Manufactory Wholesale IP68 Waterproof Optical Terminal
Box for Indoor and Outdoor FTTX Networks
Looking for a reliable solution for fiber termination and network protection? The Optical Terminal Box is designed for seamless fiber splicing, splitting, and distribution, offering robust protection for FTTX networks. With an IP68 rating, it ensures water-proof, dust-proof, and anti-aging performance, making it ideal for both indoor and outdoor installations. Featuring a flip-up distribution panel, SC/LC/PLC adaptor compatibility, and wall or pole mounting options, this box simplifies maintenance and installation. Key specifications include ≤0.2dB insertion loss, ≥50dB UPC return loss, and a wide operating temperature range of -40℃ to +85℃
• IP68 waterproof & dust-proof | • SC/LC/PLC adaptor compatibility | • Wall or pole mounting options | • ≤0.2dB insertion loss | • Wide temperature range -40℃ to +85℃
This water-proof optical terminal box is suitable for both indoor and outdoor use.

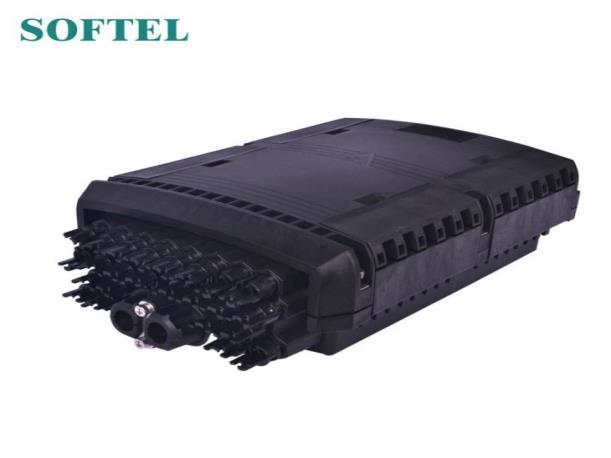

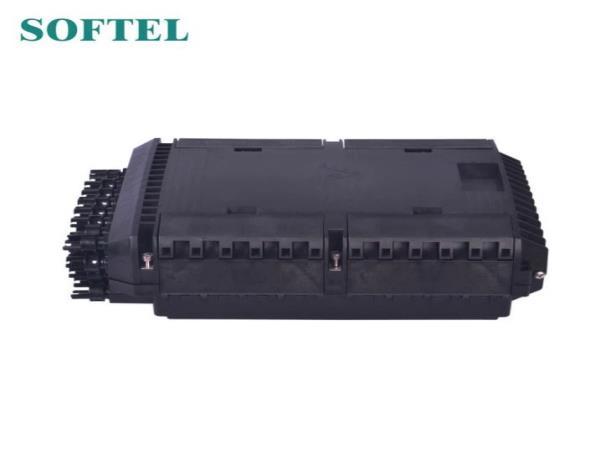

Optical Terminal Box
This Optical Terminal Box is used as a termination point for feeder cables to connect with drop cables. All the fiber splicing, splitting, distribution can be done in the box. Meanwhile it provides solid protection and management for FTTX network building.
Features
1、 The material is PC.
2、All the level of wet-proof、water-proof、dust-proof、anti-aging, protection is up to IP68.

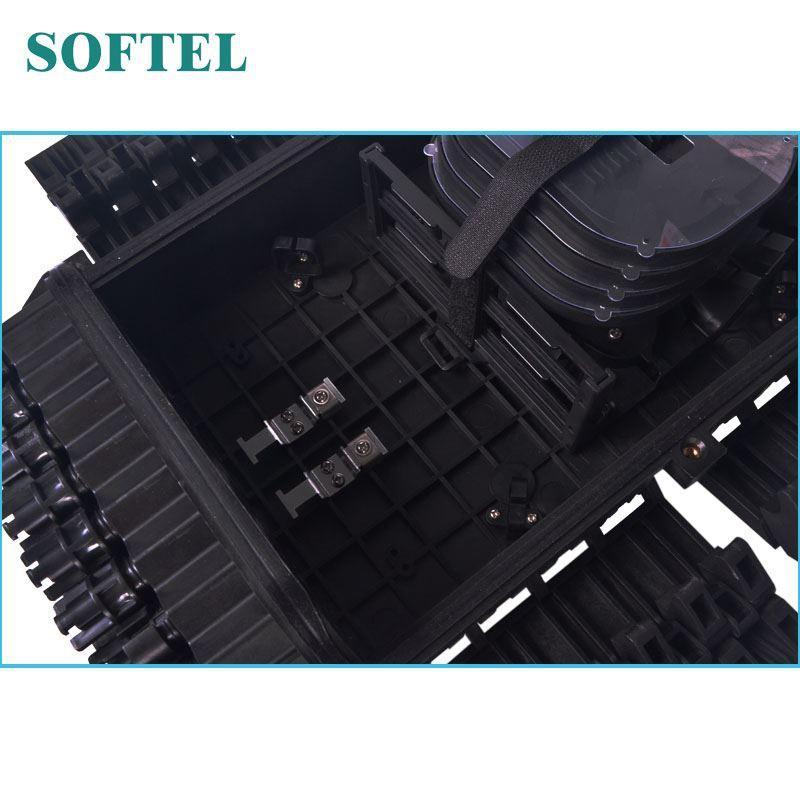

3、 Clamping for feeder cable and drop cable.
4、 Cables，pigtails，patch cords are running through in individual path without disturbing each other

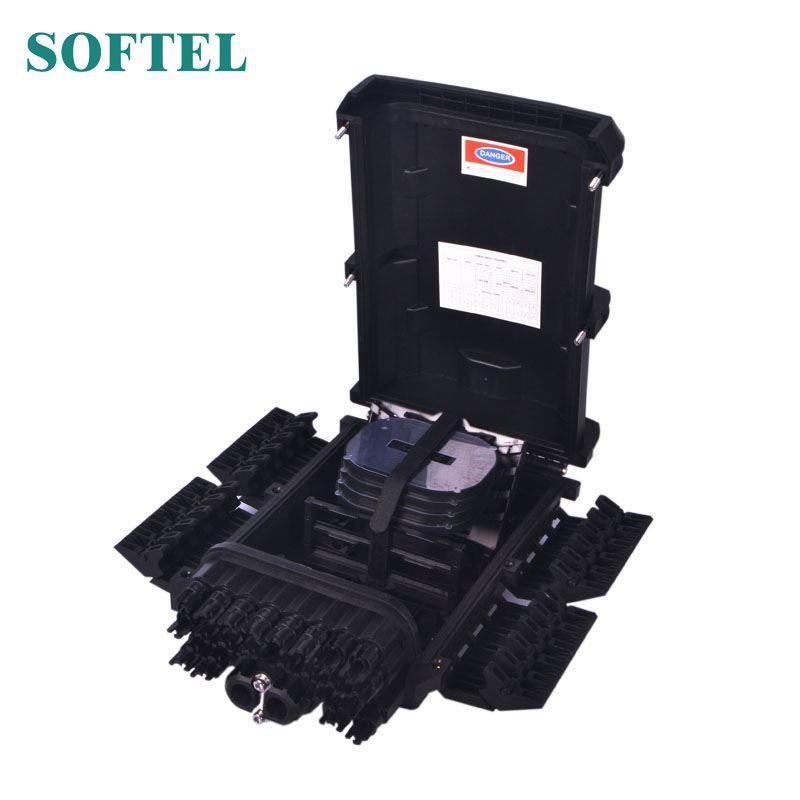

5、 Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6、 This cabinet can be installed wall-mountedlyor poled-mountedly, and suitable for both indoor and outdoor use.
7. Cassette type, SC/LC/PLC adaptor installation and easy for maintenance. Specifications
1、Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2
MΩ/500V（DC）；IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
Optical Terminal Box
1．Wall-mounted installation
According to the size oftable 1 of hanging wall withpercussion drillplay two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw。
2．Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .
Accessories
1. Users' Manual*1
2. Key*1
3. Accessories Bag * 1
4. Easy pole ring*2（Option）
