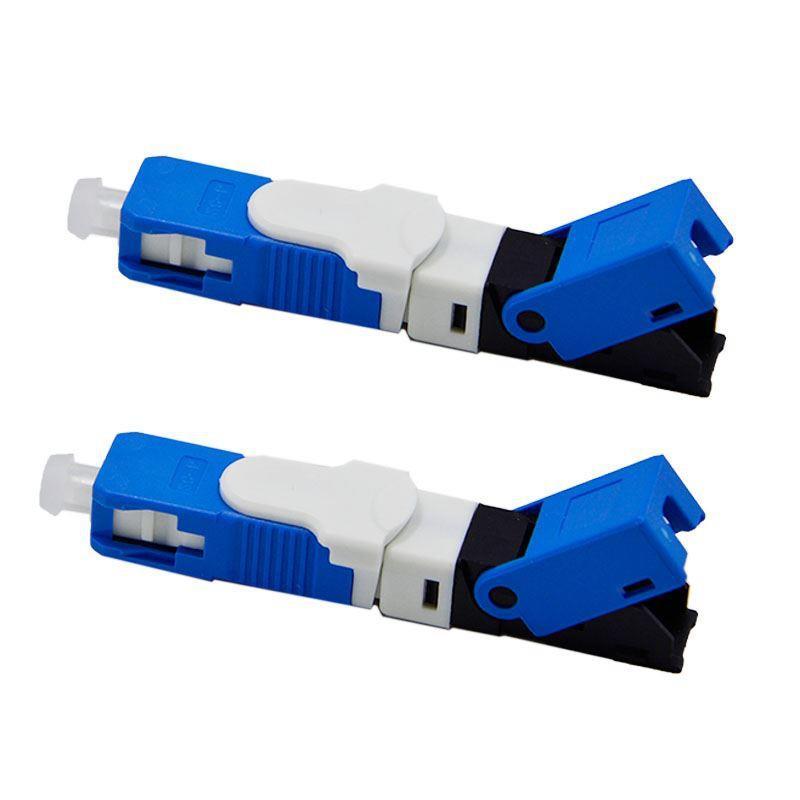

Manufactory Wholesale SC/APC Field Assembly Optical Fiber
Connector for FTTX LAN CCTV Applications
Looking to streamline fiber termination and enhance optical wiring flexibility? The SC/APC Field Assembly Optical Fiber Connector is designed for fast, reliable installations in FTTX, LAN, and CCTV applications. With an insertion loss of ≤0.3dB and reflection loss >50dB, this connector ensures high performance and durability. Its robust design withstands mechanical endurance tests, tension up to 20N, and extreme temperatures from -40℃ to +75℃, making it ideal for demanding environments.
• Fast fiber termination | • High durability & reliability | • Low insertion loss (≤0.3dB) | • Suitable for FTTX, LAN, CCTV | • Wide temperature range (-40℃ to +75℃)
Field Assembly Fiber Optical Connectors for FTTX Optical Fiber Connector
SC/APC
Using this Optical Fiber Connector, it is possible to improve the flexibility of optical wiring design and reducing the time required for fiber termination. Fast connectors have been a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Specifications of Optical Fiber Connector
Item Parameters
Application
Cladding Diameter
3.0 x 2.0 mm butterfly drop cable
125μm ( 657A & 657B )
Coating Diameter 250μm
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Reflection Loss > 50dB
Rate of success >95%
Clamping Force >5 N
Tension >20 N
Temperature Range -40~+75℃
Tension Test when installed (20 N)
Mechanical Endurance (500 times)
Fall-down Test (4 meters height, 3 time each direction)
IL ≤ 0.2dB RL ≤ 5dB
IL ≤ 0.2dB RL ≤ 5dB
IL ≤ 0.2dB RL ≤ 5dB
