Manufactory Wholesale Mini EDFA for 1550nm Optical Signal

Relay Transmission with Low Noise & High Output

Need reliable optical signal amplification in compact form? The Mini EDFA is designed for 1550nm optical signal relay transmission, featuring low noise pump lasers, high-performance Erbium-doped fiber, and a 32-bit ARM processor for precise control (± 1dBm). Ideal for CATV, FTTH, and telecom applications, it delivers stable output power (13~24dBm) with low distortion and wide bandwidth. With ≤10W power consumption and a built-in lithium battery, it ensures uninterrupted operation even during power outages.

• Low noise pump lasers | • High-performance Erbium-doped fiber | • 32-bit ARM processor | • Stable output power (13~24dBm) | • Built-in lithium battery

The product is compact, easy to install and debug,used for 1550nm optical signal relay transmission in general power supply environment.

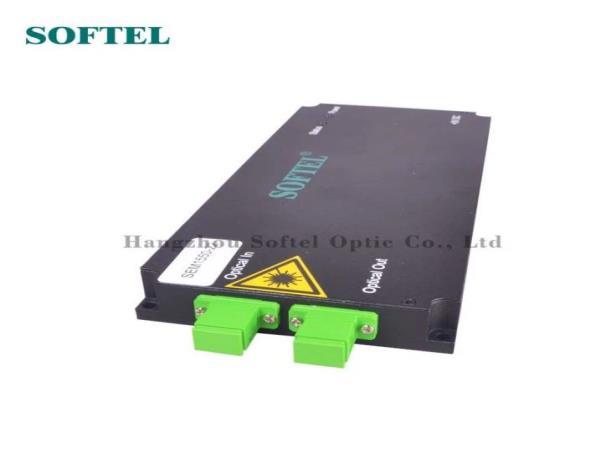

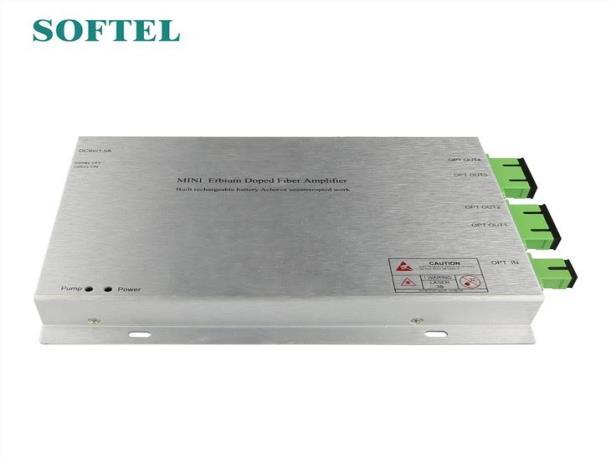

Mini EDFA

Features

Select internationally renowned brands oflow noise pump lasers. Mini EDFA has low distortion, wide band, high output optical.

Imported high-performance Erbium-doped fiber, high energy conversion 32-bit ARM processor, light control output accuracy of ±1dBm. Optical power receiving range -5dBm ~ +10dBm, optical power output 13~24dBm.

Contact:Tomleequan Email:sales@fmuser.com whatsapp: +8613922702227

Operating mode

All control circuits and devices use high-efficiency switching chips, and the overall power consumption is≤10W. External 9V power supply, power connector can select national standard, European standard, or American. Built-in lithium battery,to ensure equiptment can go on work after power.

Product Paramenters of Mini EDFA

Item

Bandwidth 1535~1565nm

Input Power Range -5dBm~ +10dBm

Output Power Range (13~14)dBm

Output Power Stability ±0.1dBm

Note

Nominal input + 3 dBm

Return Input ≥45dB

Output ≥45dB

Optical Connector Type SC/APC(Standard)& FC/APC

C/N ≥50dB

Customizable

C/CSO ≥63dB

Power Supply DC 9V

Power consumption ≤10W

Operating Temperature -5~+42℃

Storage Temperature Range -30~+70℃

Humidity 95%(non-condensing)

External power supply

About Us

FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.
