Manufactory Wholesale 32 Ports WDM Optical EDFA for CATV
FTTH FTTB
FTTX PON with Low Noise High
Power
Looking for a reliable solution for large-scale CATV network coverage? The 32 Ports WDM Optical EDFA delivers low noise, high performance, and FTTP high power amplification, ideal for FTTH, FTTB, and FTTX PON applications. With a gain spectrum band of 1540~1563nm, it supports single-wave transmission, CWDM, and DWDM, ensuring flat gain and efficient signal distribution. Key features include Er Yb Codoped double-clad fiber technology, total output power up to 5W, and a noise figure <5dB. Perfect for medium to large cities, this amplifier offers a cost-effective, scalable solution for CATV networks.
• Low noise figure <5dB | • Total output power up to 5W | • Er Yb Codoped double-clad fiber technology | • Supports FTTH, FTTB, FTTX PON | • SNMP network management interface
32 ports wdm optical edfa is a low noise, high performance, FTTP high power, multi-ports optical amplifier
32 ports wdm optical edfa
I. Product Overview
32 ports wdm optical edfa with gain spectrum band within1540~1563nm, which is mainly designed for the application of CATV or 1~8 continuous brandingchannel (ITU wavelength) and also offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities.
32 ports wdm optical edfa can realize Single wave transmission, CWDM three waves in single fiber, flat gain.DWDM; it is important fiber transmission equipment of building large and medium - sized CATV network, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon.
II. Features
Adopts Er Yb Codoped double-clad fiber technology;
Output ports: 4-16 optional;
Optical output power: total output up to 5W;
Low noise figure: <5dB when input is 0dBm;
Perfect network management interface, in line with standard SNMP network management;

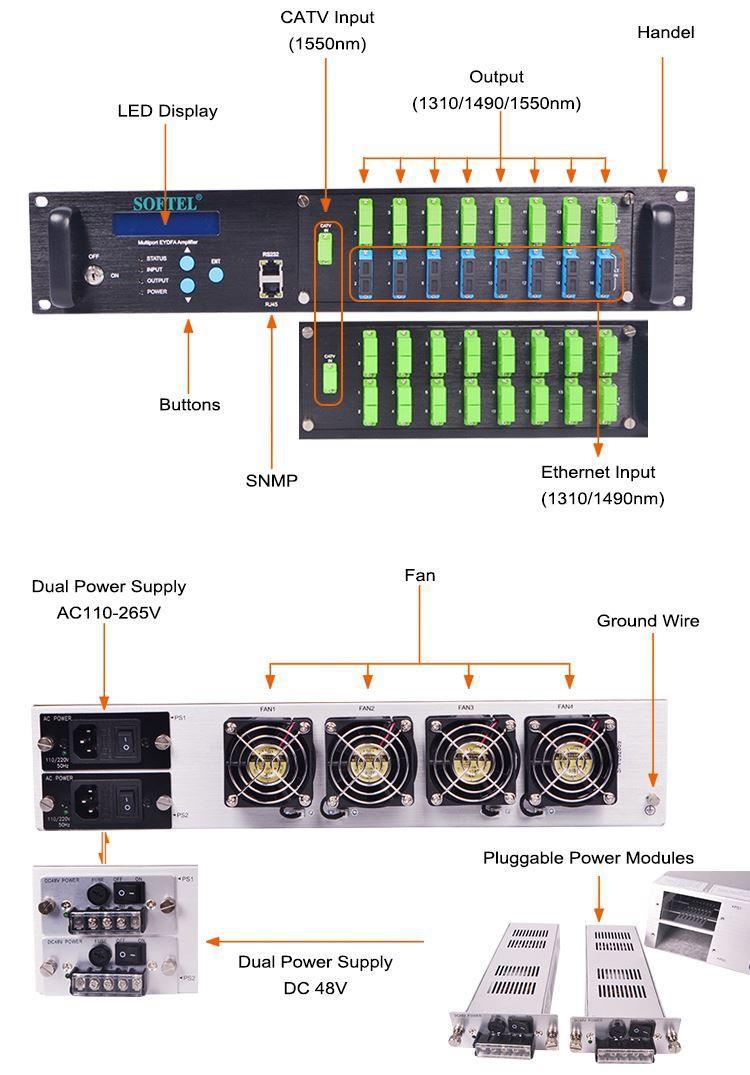

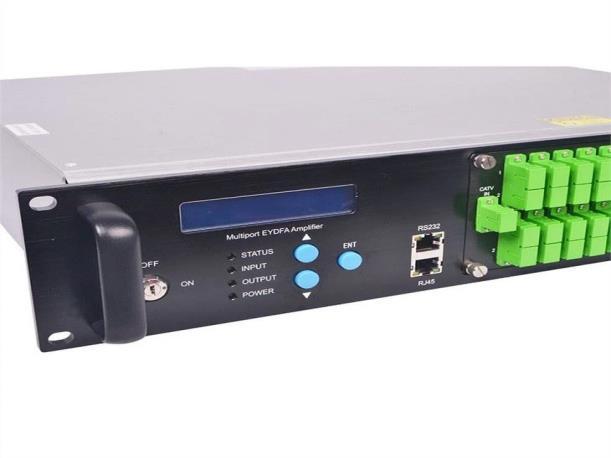

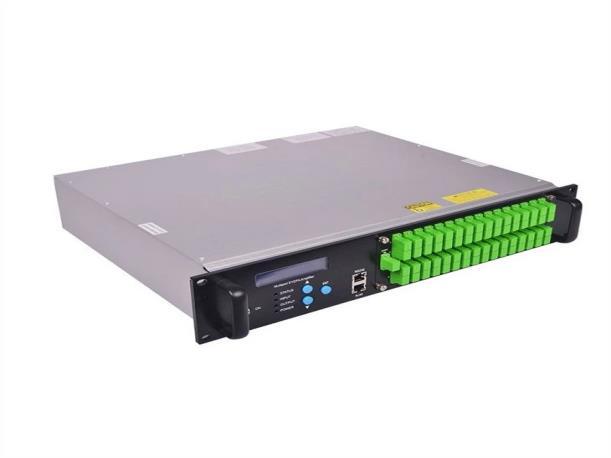

Intelligent temperature control system make the power consumption lower; Detailed image of 32 ports wdm optical edfa
Technical parameter of 32 Ports Wdm Optical Edfa
