Manufactory Wholesale H.264 IPTV Encoder with 12 HDMI
Inputs for Cable TV and Satellite Broadcasting
Looking for a reliable solution for HD audio and video encoding? The H.264 IPTV Encoder is a professional-grade device featuring 12 HDMI inputs, supporting MPEG-4 AVC/H.264 video and MPEG-1 Layer 2 audio encoding. With the ability to simultaneously encode 12 channels of HD content and generate 128 SPTS or 1 MPTS output, it’s perfect for cable TV digital headends and satellite broadcasting. Its cost-effective design ensures high performance and scalability, making it ideal for large-scale digital distribution systems.
• 12 HDMI inputs | • 128 IP inputs via UDP/RTP | • MPEG-4 AVC/H.264 encoding | • 1 MPTS and 128 SPTS output | • Accurate PCR adjustment and PSI/SI editing
h.264 iptv encoder ( MPEG4 AVC/H.264 HD IP Encoder) is a professional HD audio & video encoding and multiplexing device.
h.264 iptv encoder
Contact:Tomleequan Email：
h.264 iptv encoder has 12 HDMI (8/16/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio encoding with high performance.
h.264 iptvencoder can simultaneously encode12 channel HD audio& video; Whta's more , it can multiplex theinput TS to generate 128 SPTS or one MPTS output through data port.
Generally speaking, its high integrated and cost effective design makes the device widely used in a varietiyt of digital distribution systems like cable TV digital head-end, satellite digital TV broadcasting,etc.

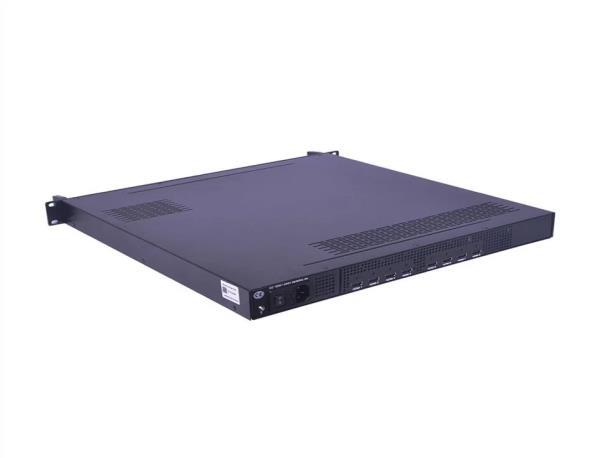

Detail Images
Key Features
· 12 HDMI input
· 128 IP input from DATA1, DATA 2 and DATA3 port over UDP and RTP protocol
· MPEG4 AVC/H.264 video encoding format
· MPEG1 Layer II audio encoding format, support audio gain adjustment
· 1 MPTS and 128 SPTS IP output from DATA1 GE port over UDP and RTP protocol
· Accurate PCR adjusting
· PSI/SI editing and inserting
· Lowest cost per channel, breakthrough price
Technical Specifications
Contact:Tomleequan
Input
Video
Contact:Tomleequan Email：
12 HDMI inputs
DATA1(GE port)/DATA2(GE port)/DATA3(FE port),RJ45
Resolution input
1920×1080_60i, 1280×720_60i, 1920×1080_50i, 1280×720_50i outpu
t 1920×1080_60i, 1280×720_60 i, 1920×1080_50i, 1280×720_50i, 720×4 80_50i,320×240_60i,176×2 40_60i,176×120_60i, 720×5 76_50i,704×576_50i, 640×576_50i,352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i
Encoding MPEG-4 AVC/H.264
Bit-rate
0.8Mbps~19Mbps each channel
Rate Control CBR/VBR
GOP Structure IP…P (P Frame adjustment, without B Frame )
Encoding
Sampling rate
Audio
MPEG-1 Layer 2
48KHz
Resolution 24-bit
Bit-rate
Maximum PID
Remapping
Multiplexing
Stream output
Function
32kbps,48kbps ,56kbps,64kbps,80kb ps,96kbps,11 2kbps,128Kbps,160kbps,192kbps,22 4kbps,256kb ps,320kbps,384kbps
180 input per channel
PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
128 SPTS IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
System function
Contact:Tomleequan Email：
interface
Network management(WEB)
Chinese and English language
Ethernet software upgrade
Paking of h.264 iptv encoder
