Manufactory Wholesale 2GE ONU Dual Band WiFi ONU for FTTH/O Multi-Service Integration Networks
Looking for a reliable and high-performance optical network unit for FTTH/O scenarios? The 2GE ONU Dual Band WiFi ONU is designed to meet the demands of multi-service integration networks, offering dual-band WiFi (2.4G+5G) and two 10/100/1000Mbps Ethernet ports. Built with mature chipset technology, it supports IEEE802.11b/g/n/ac WiFi, Layer 2/3 functionality, and full management via SOFTEL OLT. Ideal for fixed network operators, it ensures guaranteed QoS, plug-and-play functionality, and compliance with IEEE802.3ah and ITU-T G.984.x standards.
• Dual-band WiFi (2.4G+5G) | • Two 10/100/1000Mbps ports | • Plug-and-play with auto-configuration | • Supports IPv4/IPv6 dual stack | • Compliant with IEEE802.3ah and ITU-T G.984.x
ONT-2GE-DW is launched to be oriented tomulti-service integration network as an opticalnetwork unit device, which belongs to XPON HGUterminal for FTTH/O scenario. It configures two 10/100/1000Mbps ports, WiFi (2.4G+5G) port.
2GE ONU Dual Band WiFi ONU
ONT-2GE-DW+WiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH andtriple play service demand of fixed network operators. These boxes are based on the mature Chipset technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, and Layer 2/3 also. Support full management of HGU devices through SOFTEL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah、ITU-TG.984.x and technical requirement of GPON Equipment (V2.0 and above version) from China Telecom.
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227

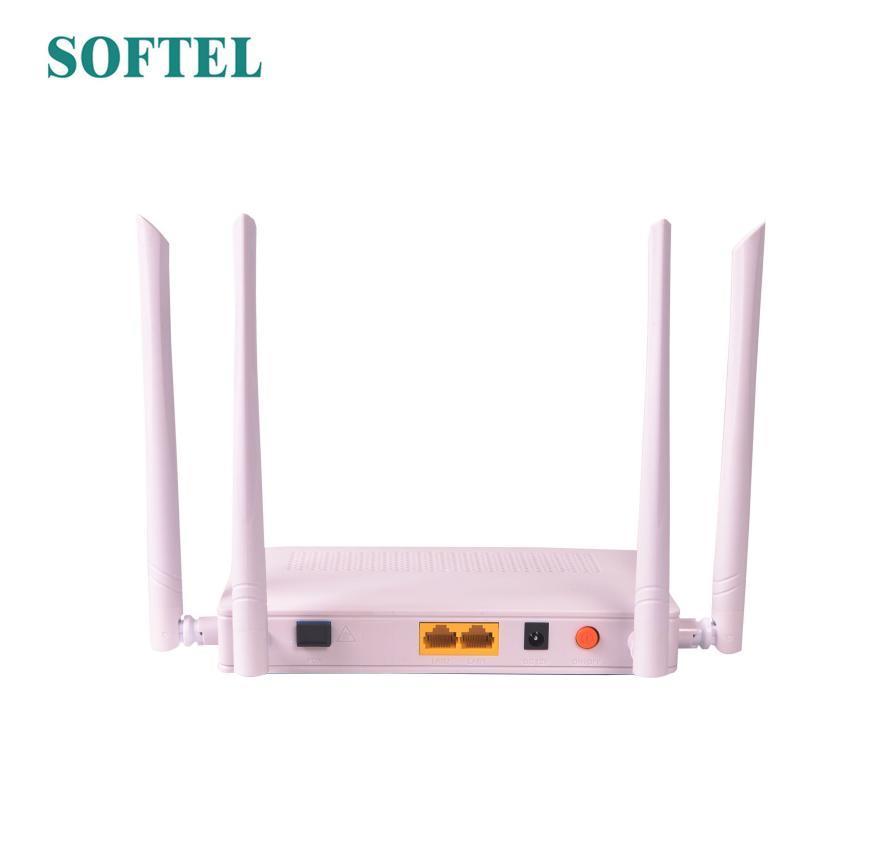

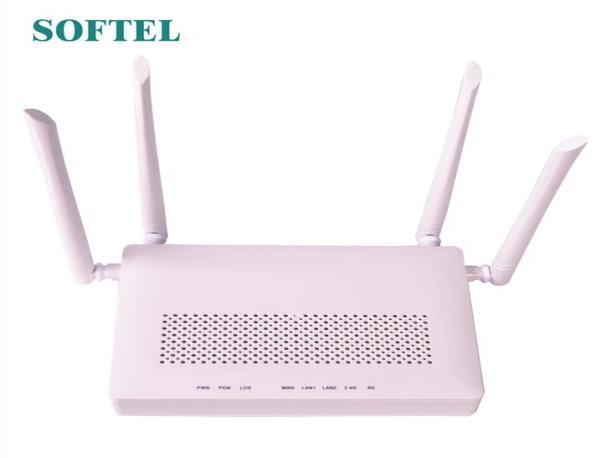

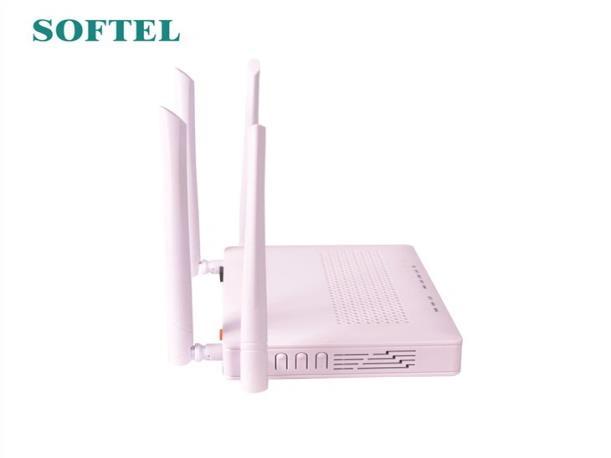

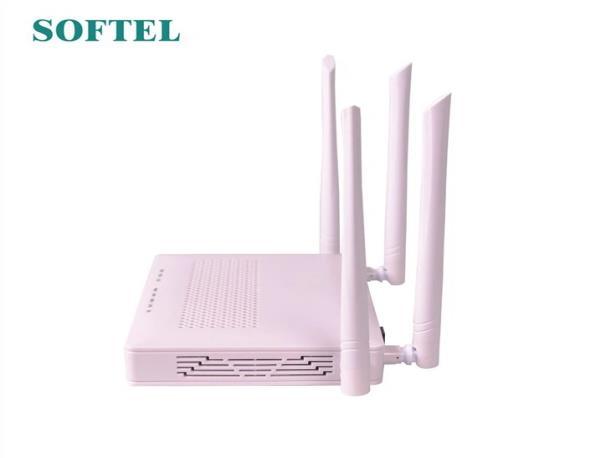

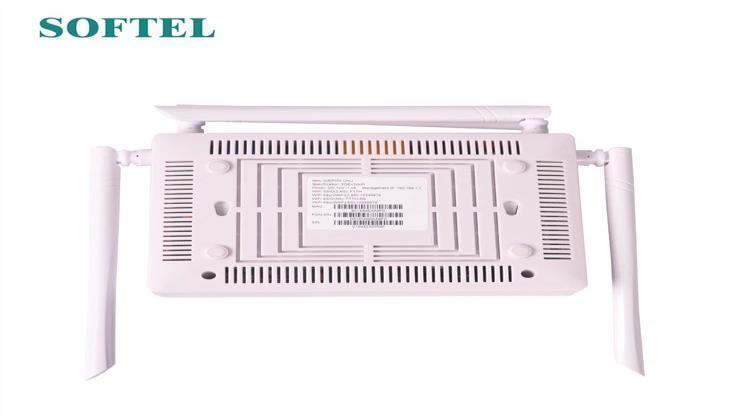

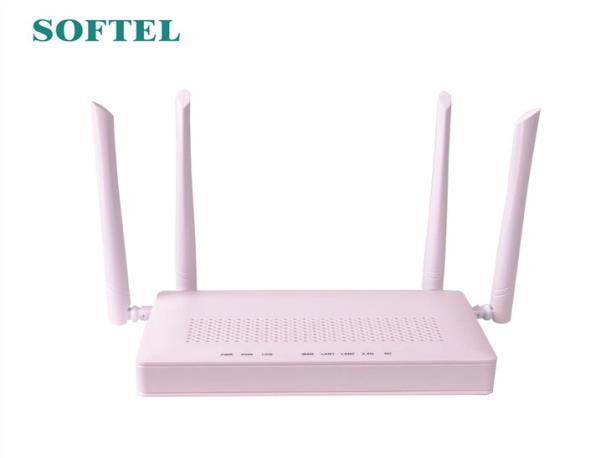

Picture of 2GE ONU Dual Band WiFi ONU
Features of 2GE ONU Dual Band WiFi ONU
Support full management of HGU functions by SOFTEL OLT
Plug and play, features auto-detecting, auto- configuration, and auto firmware upgrade , etc
Integrated OAM/OMCI remote configuration and maintenance function
Support IPV4 & IPV6 dual stack
Support TR-069 remote configuration and maintenance
Support Layer 3 gateway, NAT and firewall function
Support Multiple WAN with Route/Bridge mode
Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
Support SIP protocol
Support DDSN, ALG, DMZ, Firewall and UPNP service
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Support 802.11n/ac WiFi(4T4R) function
Data Service Functions
Full speed non-blocking switching
2K MAC address table
64 fullrangeVLAN ID
Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc
Integrated port monitoring, port mirroring, portrate limiting, port SLA, etc
Support auto polarity detection of Ethernet ports(AUTO MDIX)
Integrated IEEE802.1p QoS with four level priority queues
Support IGMP v1/ v2 / v3 snooping/proxy and MLD v1 / v2 snooping/proxy
Support bridge, router and bridge/router mixed mode
Hardware Specifications of 2GE ONU Dual Band WiFi ONU
interface 1* G/EPON+2*GE+2.4G/5.8G WLAN
Power adapter input 100V-240V AC, 50Hz-60Hz
Power Supply DC 12V/1.5A
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Indicator light POWER/PON/LOS/LAN1/ LAN2 /2.4G/5G
Button Power switch Button, Reset Button, W LAN Button, WPS Button
Power Consumption <18W
Working
Environment
Dimension 180mm x 133mm x 28mm ( L×W×H )
Net Weight 0.3Kg
Wireless of 2GE ONU Dual Band WiFi ONU
Interface type External 4*2T2R External antenna
Antenna gain 5dBi
Interface maximum rate 2.4G WLAN： 300Mbps 5.8G WLAN： 866Mbps
Interface working mode 2.4G WLAN：802.11 b/g/n 5.8G WLAN：802.11 a/n/ac
Pon Interface of 2GE ONU Dual Band WiFi ONU
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Interface Type SC/UPC, CLASS B+
Transmission distance 0～20km
Working wavelength Up 1310nm; Down 1490nm;
RX Optical power sensitivity -27dBm
Ethernet Interface of 2GE ONU Dual Band WiFi ONU
Interface type 2* RJ45
Interface parameters 10/100/1000BASE-T
Package List ONU * 1 PC
Power adaptor *1
Network cable *1
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Box *1 PC
Packing Size
Measurement: 27.5 * 25.8 * 5.7 cm, 0.53kg/PC
