Manufactory Wholesale XPON OLT 8 Port with GPON/EPON Support for High-Speed Fiber Networks

Page 1


Manufactory Wholesale XPON OLT 8 Port with GPON/EPON

Support for High-Speed Fiber Networks

Looking for a compact yet powerful solution for fiber network deployment? The XPON OLT 8 Port is a 1U rack-mounted device that supports both GPON (1:128 splitting ratio) and EPON (1:64 splitting ratio), ensuring high scalability for up to 1024 terminals in GPON mode and 512 in EPON mode. With 8 XPON ports, 4 GE uplink ports, and 210GE uplink ports, it’s ideal for FTTP, enterprise LANs, and IoT applications. Compliant with ITU

G.984.x and IEEE 802.3x standards, it delivers reliable performance with a transmission distance of up to 20KM.

• 8 XPON ports with GPON/EPON support | • 1:128 GPON and 1:64 EPON splitting ratios

| • 20KM transmission distance | • Compact 1U rack-mounted design | • Compliant with ITU G.984.x and IEEE 802.3x standards

When XPON mode is GPON,each GPON port supports the splitting ratio of 1:128; When XPON mode is EPON,each EPON port supports the splitting ratio of 1:64.

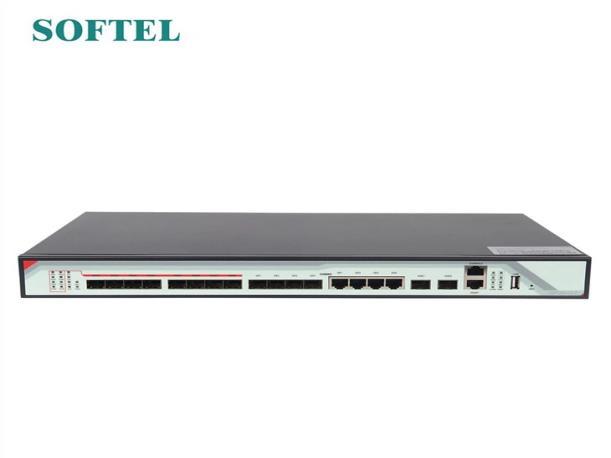

XPON OLT 8 Port

XPON OLT OLT-X8 completely meet relative standard of ITU G.984.x and IEEE 802.3x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2*10GE uplink ports and 8 XPON ports.

WhenXPON modeis GPON,eachGPON portsupports the splittingratio of1:128;WhenXPON modeis EPON,each EPON portsupports thesplittingratio of1:64. GPON systemsupport1024 terminals accessing infor the most,EPON systemsupport 512 terminals accessing in for the most.

Feature

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio. Product Specification

Management Rack Type

Uplink Port COMBO port

1U 19-inch standard box

4 10/100/1000M auto-negotiation Ethernet ports

4 SFP interfaces

10-Gigabit 2 SFP+ interfaces

PON Port Quantity 8

Physical interface SFP slot

Interface type

GPON: ITU-TG.984.2 Class B+/Class C+ EPON: IEEE802.3ah

Max splitting ratio

GPON: 1:128

EPON: 1:64

Management Port 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port

USB Port 1 USB interface (It’s used to backup configuration, upgrade program, and record log information)

Wavelength Forwarding: 1490nm Receiving: 1310nm

Interface

Business capabilities

Ø Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.

Ø Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.

Ø PON function configuration management: Like OLT authentication, DBA template, service template, line template and soon.

About Us

FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.

Contact:Tomleequan Email:sales@fmuser.com whatsapp:+8613922702227
