Manufactory Wholesale 2GE Dual Band Wifi ONU for FTTX
Solutions with POTS and RF Interface
Looking for a reliable solution to deliver high-speed data and premium video services? The 2GE Dual Band Wifi ONU for FTTX Solutions is designed for multi-service integration networks, featuring two 10/100/1000Mbps ports, dual-band WiFi (2.4G+5G), a POTS port, and an RF interface. Ideal for FTTH/O scenarios, this XPON HGU terminal ensures seamless connectivity with advanced features like WMM, MU-MIMO, and WPS. With a compact design (220mm x 150mm x 32mm) and low power consumption (7.5W static), it’s perfect for residential and small business applications.
• Dual-band WiFi (2.4G+5G) | • 2x GE ports + POTS + RF interface | • MU-MIMO & WMM support | • Compact & energy-efficient | • Ideal for FTTH/O networks
ONT-2GE-V-RFDW configures two 10/100/1000Mbps ports, WiFi (2.4G+5G) port, one POTS port and RF interface that providing with high-speed data services and high-quality video services.
2GE Dual Band Wifi ONU for FTTX Solutions
ONT-2GE-V-RFDW is launchedtobeorientedto multi-serviceintegrationnetworkas anopticalnetwork unit device, which belongs to XPON HGU terminal for FTTH/O scenario. This 2GE Dual Band Wifi ONU for FTTX Solutions configures two 10/100/1000Mbps ports, WiFi (2.4G+5G) port, one POTS port and RF interface that providing with high-speed data services and high-quality video services to users.
Hardware parameters
Dimension
220mm x 150mm x 32mm (Without antenna)
Weight Approximately 420g
Working
Working
Interfaces

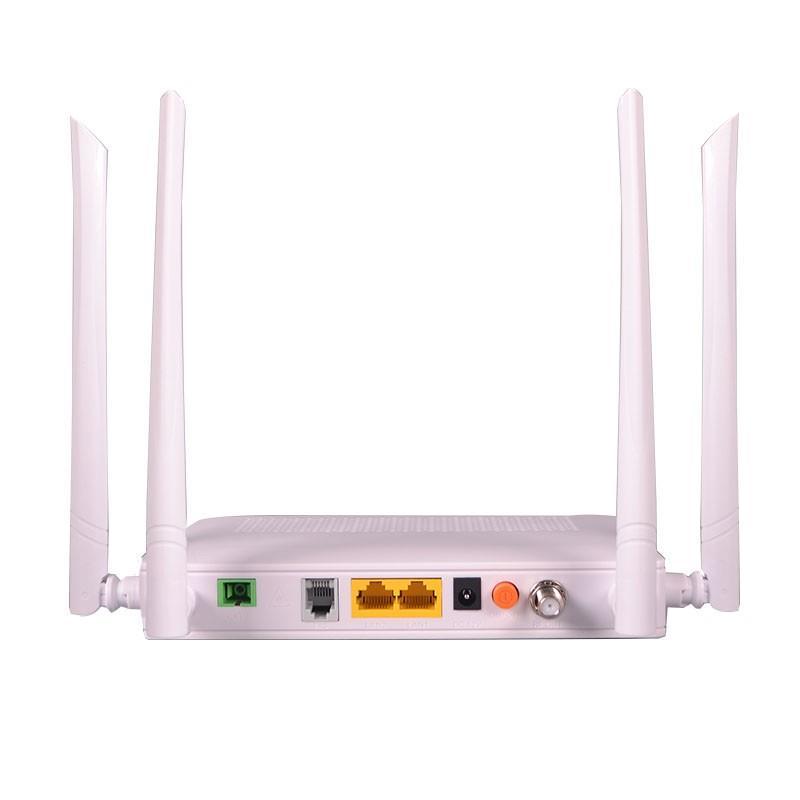

1POTS+2GE+Wi-Fi(2.4G+5G)+USB

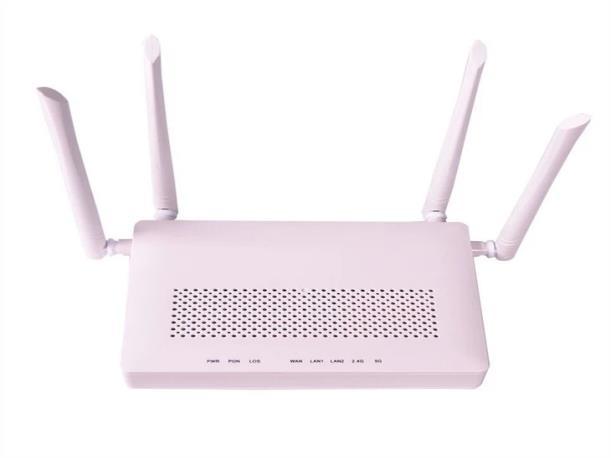

indicator light POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Interface parameters
PON interface
Ethernet port
• Class B+
• -27dBm receiver sensitivity
• Wavelength：upstream 1310nm，downstream 1490nm
• Support WBF
• Flexible mapping between GEM Port and TCONT
• Authentication method: SN/password/LOID (GPON)
• Two-way FEC (Forward error correction)
• Support DBA for SR and NSR
• Stripping based on VLAN Tag/Tag for Ethernet port.
• 1:1 VLAN/N:1 VLAN/VLAN Pass-through
• QinQ VLAN
• MAC address limit
• MAC address learning
POTS interface
• Maximum number for two ports that joint-up
connecting in parallel with Telephone：4 REN
• Support G.711A/u，G.729a/b，G.722 CODEC
• Support T.30/T.38 mode for fax
• DTMF
Contact:Tomleequan Email：
• Emergency calls protocol
WLAN • IEEE 802.11 b/g/n
• 2×2 MIMO
• Antenna gain：5dBi
• WMM (Wi-Fi multi media)
• Multiple SSID multiple
• WPS
USB interface
• USB2.0
• Network storage according to FTP
5G parameters of 2GE Dual Band Wifi ONU for FTTX Solutions
Network standard IEEE 802.11ac
Antennas 2T2R, support MU-MIMO
Maximum supported rates
20M:173.3Mbps
40M:400Mps
80M:866.7Mbps
Data modulation type BPSK QPSK 16QAM 64QAM 256QAM
Maximum output power ≤20dBm
Typical channel (customizable)
Encryption mode
Encryption type
