12 IN 1 Digital Modulator with IP and RF output

Page 1


Manufactory Wholesale SKD121X 12-in-1 Digital Modulator with IP and RF Output for CATV, DVB-T, ISDB-T, H.264 Encoding, and HDMI Input

Are you struggling to manage multiple HD signal inputs while ensuring seamless RF and IP output in your broadcasting setup? The SKD121X is here to revolutionize your workflow. This professional-grade HD encoder modulation system supports 12 HD inputs up to 1080P, encoding in H.264 format, and simultaneously outputs both RF and IP signals. With an impressive RF output level of up to 45dBmV and 4 adjacent channels in a single output port, the SKD121X ensures high-quality signal transmission across diverse applications, including CATV, hotel TV systems, and broadcasting networks. Its front panel control and built-in web browser for secure management make it the most cost-effective and user-friendly solution in the market.

Core Features:

• 12 HD inputs with H.264 encoding and simultaneous RF & IP output

• RF output in 4 adjacent channels with ≥ 45dBmV combined level

• Front panel control and web UI for easy setup and management

• Supports DVB-T, ISDB-T, and J.83A/B standards

• Auto-speed fans for efficient heat dissipation

Upgrade your broadcasting system with the SKD121X and experience unmatched performance and reliability.

The SKD121X is a professional-grade HD encoder modulation system. It allows users to encode HD signals in H.264 formats in a single 1RU chassis with 12 HD inputs and output simultaneously RF and IP. With up to 45dBmV of RF output level and easy access capabilities: Front panel control and Web UI, the SKD121X’ s features makes it the most cost-effective device in the market.

SKD121X

HD DENSE ENCODER MODULATOR WITH RF AND IP OUTPUT

FEATURES:

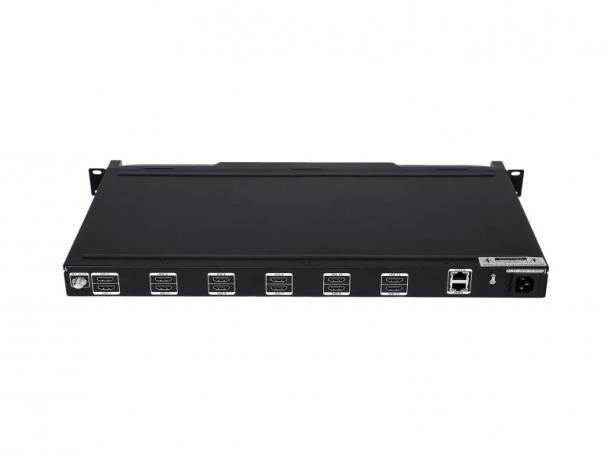

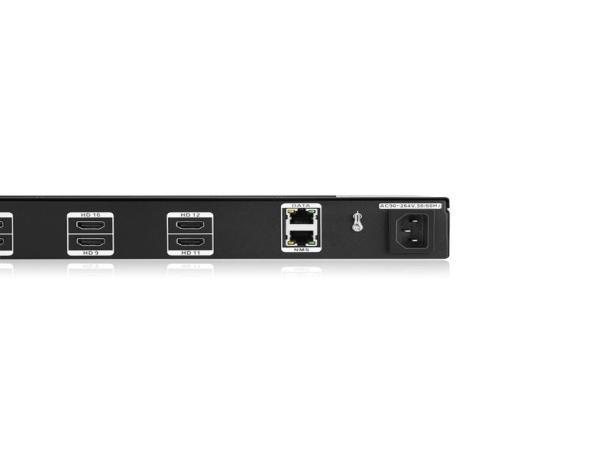

1. Support 12 HD input up to 1080P and output in RF and IP simultaneously

2. RF output in 4 adjacent channels in one output port

3. Three auto-speed fans for heat-sink

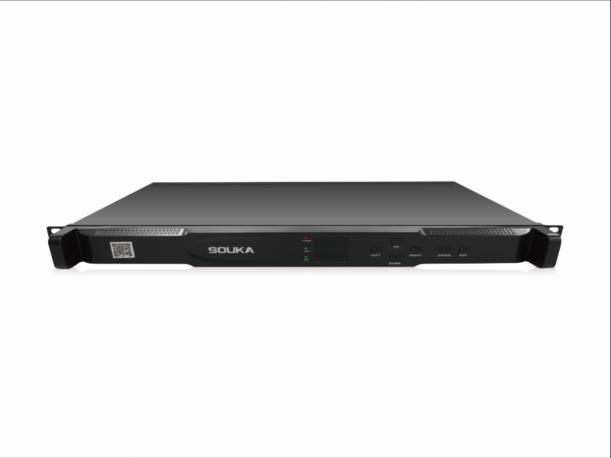

4. Color LCD front panel control for quick set up

5. Secure management and configuration with built-in web browser

SPECIFICATION:

Input

Connector

VIDEO

AUDIO

ENCODING

HDMI 1.4

Encoding H.264

Input Resolution

1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P

Bitrate 2 ~ 18 Mbps

Encoding MPEG 1 Layer II, AC3

Sample Rate 32K/44.1K/48K

Bitrate 384kbps

DVB-T

J.83A

J.83B

RF

MODULATION

Standard DVB-T COFDM

Bandwidth 6/7/8 M

Constellatio n 16QAM,64 QAM

MER ≥ 40 dB

Code Rate 1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval 1/32, 1/16, 1/8, 1/4

Transmissio n Mode 2K,4K,8K

Standard Annex A

Bandwidth 6/ 7 /8 M

Constellatio n 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

MER ≥ 40dB

Symbol Rate 3 ~ 6.952Msps

Standard Annex B

Bandwidth 6M

Constellatio n 64QAM, 256QAM

MER ≥ 40dB

Symbol Rate 5 ~ 6.900Msps

Cable Standard HRC, IRC or STD

OUTPUT

Output Channel number 4 Adjacent

Output Level ≥ 45dBmV combined

Output Frequency 100 ~ 999.999MHz

Manage
