Manufactory Wholesale 144 Core Fiber Optic Patch Panel for High-Density Telecom Networks
Managing high-density fiber optic connections can be a challenge, but the 144 Core Fiber Optic Patch Panel simplifies it with its robust 1.5mm steel housing and sliding design for easy connector patching. Designed for telecom network managers, this panel supports up to 144SC terminations and features a high-density splice tray for 24 fibers, ensuring efficient cable management in large-scale installations. Its snap-in locker design and removable rubber grommet enhance durability and ease of use, making it ideal for harsh industrial environments.
• 1.5mm steel housing | • High-density splice tray (24 fibers) | • Snap-in locker design
| • Removable rubber grommet | • Ideal for telecom and industrial applications
The 144 core fiber optic patch panel is an excellent solution for managing the complex connections of high-density fiber optic cables. Its high-quality construction, durability, and easy-to-use design make it a must-have for telecom network managers.

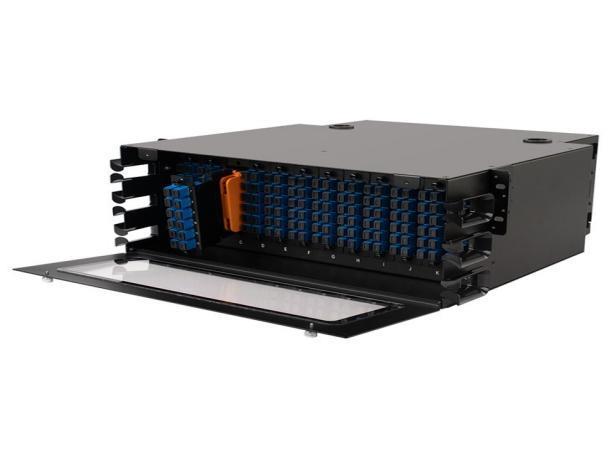

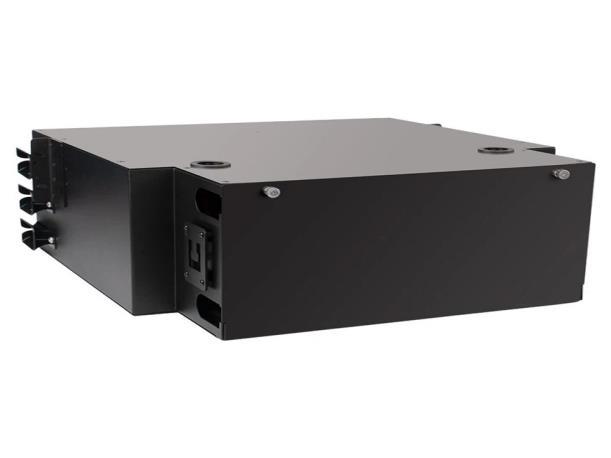

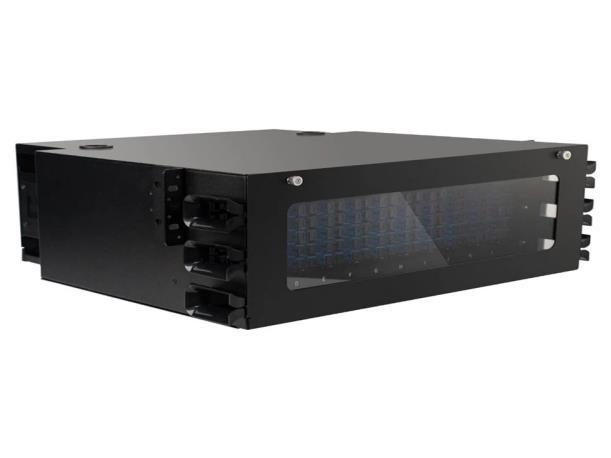

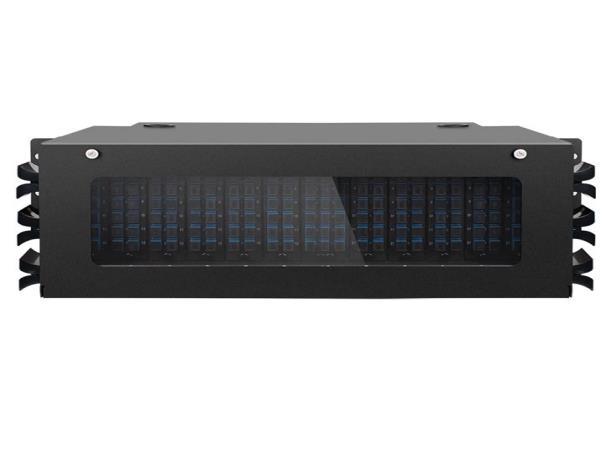

144 Core Fiber Optic Patch Panel
Feature of 144 Core Fiber Optic Patch Panel
1. 1.5mm steel sheet for strong housing
2. Slim 1 Unit Mounting Height
3. Ball bearing slid rails with positive stop
4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be turned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations
10. High density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12. 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up

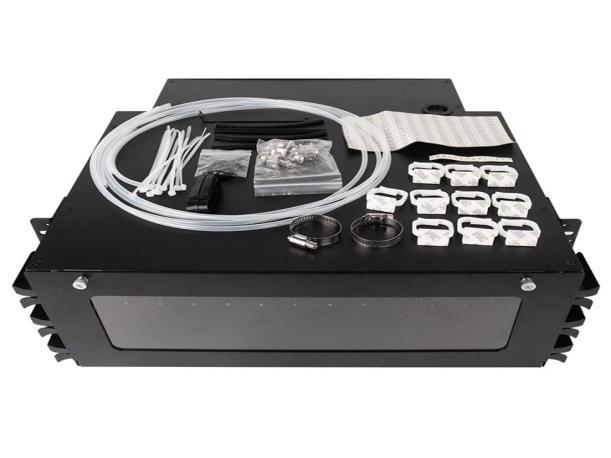

16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube
Parameters of 144 Port Fiber Optic ODF
80) 192LC, 96SC 12, 24 /
485x270x(43-2 40) 192LC, 96SC 12 core integrated splice tray /
ODF-G 1U 480x310x43.5 120LC MPO cassette /
ODF-G 4U
480x310x17.5 288LC MPO cassette, 12, 24 splice tray /
A fiber optic patch panel is a hardware device used to terminate, organize, and manage fiber optic cables. It allows for easy access to the network cables, making it easier to repair, replace and maintain the fiber optic network. The patch panel typically consists of a metal or plastic frame, with fiber optic adapters mounted on one side, and fiber optic cable management accessories on the other. The adapters allow for the insertion of optical fibers, while the cable management accessories keep the cables organized, protected, and secured in place.
Patch panels come in various sizes ranging from 12 to 144 ports, depending on the complexity of the network. The 144 fiber optic patch panel is a high-density panel that is ideal for large-scale telecom
installations. It provides a centralized location for managing multiple fiber optic connections, and it helps to minimize cable clutter and maximize space efficiency. Moreover, it provides flexibility in cable routing and simplifies the tracing of cables, making it easier to identify faulty segments and rectify them.
The 144 fiber optic patch panel is made of high-quality materials that provide durability and longevity. They are designed to withstand tough environmental conditions and are ideal for use in harsh industrial environments. They are also easy to install, operate, and maintain. With the 144 fiber optic patch panel, telecom networks can achieve high performance, reliability, and improved service quality, which is essential for competitive business operations.
