Manufactory Wholesale 16 In 1 Fixed RF Modulator for CATV Systems with 45dBmV Output and SAW Filtering
Looking for a reliable RF modulation solution? The 16 In 1 Fixed RF Modulator offers a 4RU rack-mounted chassis with 16 microprocessor-controlled mini-modulators or 12 agile modulators. Its built-in active combiner eliminates cabling issues, ensuring a high output level of 45dBmV. Ideal for CATV systems, hotels, and broadcast facilities, it features SAW filtering for superior in-band C/N and front-panel controls for easy setup. Available in NTSC or PAL configurations, this modulator is factory-set for optimal performance.
• 16-channel capacity | • Built-in active combiner | • SAW filtering for superior C/N | •
Front-panel access controls | • NTSC/PAL configurations

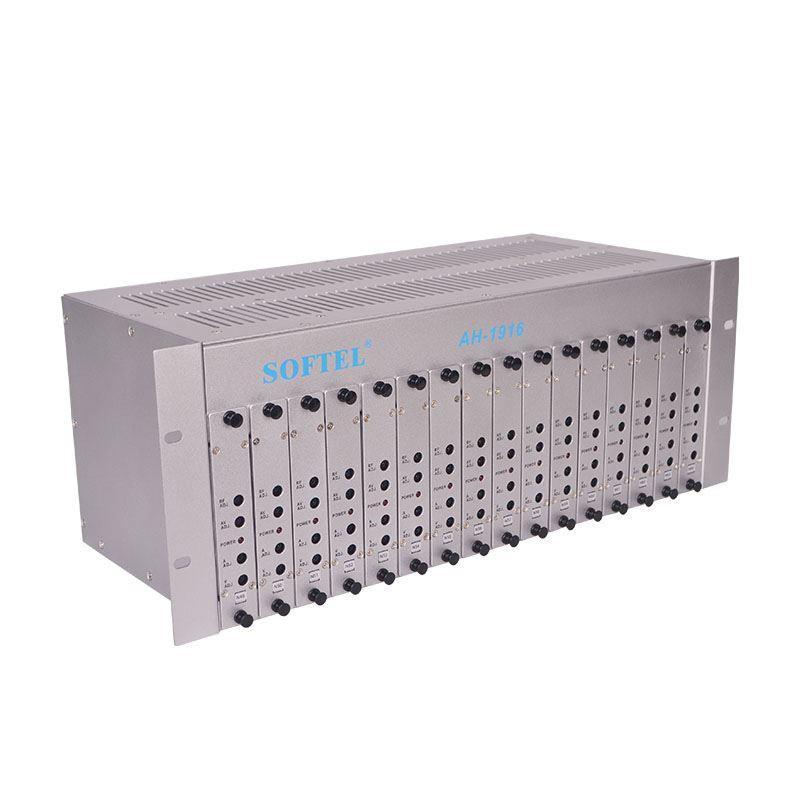

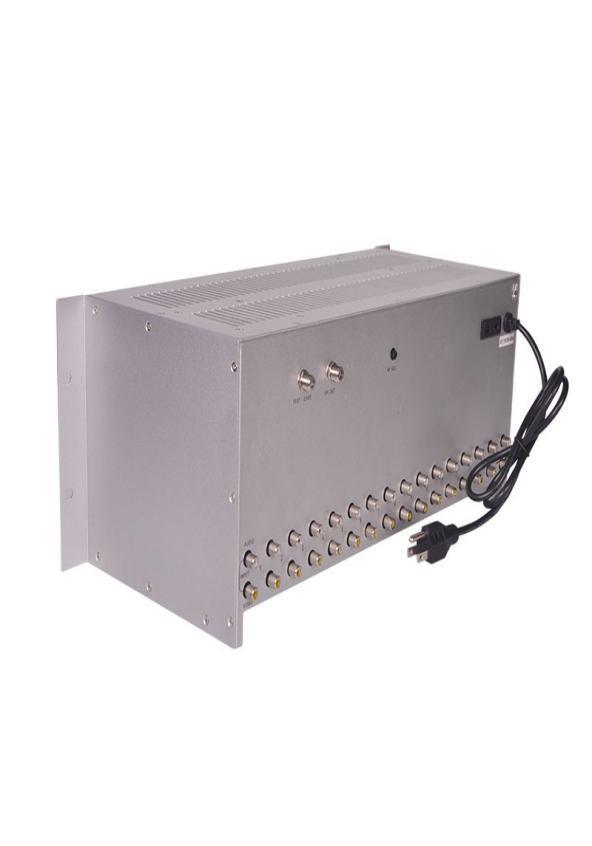

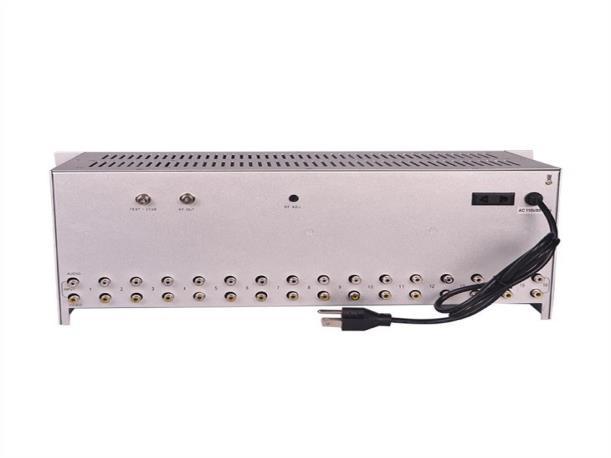

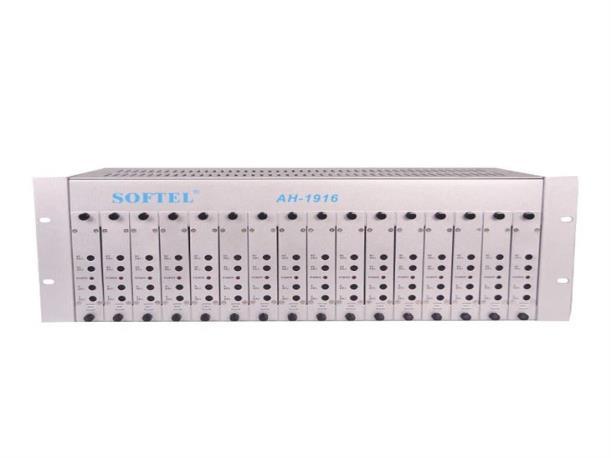

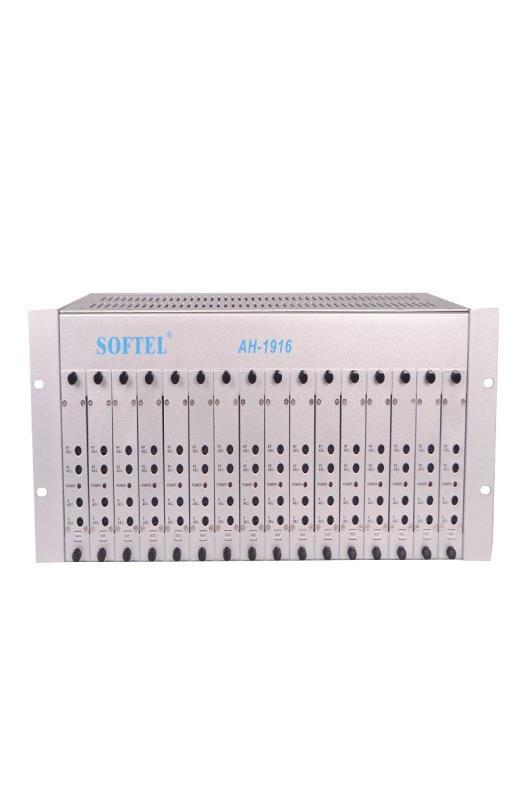

The AH1916M is a 4RU rack mounted chassis analog modulator 16 in 1 Fixed RF Modulator
16 in 1 Fixed RF Modulatorallows for installation of up to 16 pieces microprocessor-controlled fixed mini-modulators Or 12 pieces agile modulators.Built-in active combiner eliminates unnecessary cabling and potential connection problemand ensures high output level .All modulators are perfect factory set to desired channel and proper offset.
Features
1. The vestigial side-band selectivity allows maintenance free adjacent channel configuration
2. Two cooling fans for long life performance
3. 45dBmV combiner output level, no need extra combiner
4. SAW(surface acoustic wave) filtering on IF for superior in band C/N
5. Front panel access controls enables easy setup
6. Available in NTSC or PAL configurations
Parameters
Chassis of 16 in 1 Fixed RF Modulator
RF
GENERAL
Modulator Card
RF
Frequency Range 45 ~ 860 MHz
Output Connector F Connector
Output Level 105 dBµV (Adj.)
Test Point -20 dB
Isolation Port to Port ≥ 35 dB
Return Loss ≥ 12 dB
Gain + 8 dB
Modulator Capacity 16
Input Voltage Range 110V or 220V
Cooling Fan 2
Consumption 57W (Fully Loaded)
Dimension 42 * 17 *20 cm
Net Weight 10 KG (Fully Loaded)
Shipping Weight 3.7 KG (Chassis Only) 11 KG ( Fully Loaded)
Carton Size 53 * 30 * 24 cm
Output Frequency 45 ~ 860 MHz
Output Level 113 dBµV (Adj.)
Output Connector F Connector
A / V Ratio -11 ~ -18 dB (Adj.)
Frequency Stability ±5KHz
Video Input Level 0.6-1.5Vp-p (87.5% Modulation)
Video Input Connector Yellow RCA
Audio Input Level 1Vp-p (25KHz Dev.)
Audio Input Connector White RCA
GENERAL Voltage DC 5V
