Manufactory Wholesale 32-Channel AV to RF Modulator
Headend for PAL/NTSC IP to Analog Conversion
Need a reliable solution for IP to analog RF conversion? The AV to RF Modulator
Headend is a multi-channel device that delivers up to 32 non-adjacent channels in PAL or NTSC standards, perfect for areas with non-digital TVs. Its compact 2RU design, 4 GE input ports, and built-in Web UI ensure easy setup and configuration. Ideal for hotels, hospitals, and legacy TV systems, this modulator supports MPEG1/2/4, H.264, H.265, and AAC audio formats, with optional teletext and BISS decrypt functions.
• 32 non-adjacent channels | • PAL/NTSC standards | • 4 GE input ports | • Compact
2RU design | • Built-in Web UI for easy configuration
avto rf modulator headendis a multi-channel IP to analog RFdevice thatcan producea 32 non-adjacentchannels in PAL or NTSC standard
av to rf modulator
Product Description
av to rf modulator headend is a multi-channel IP to analog RF device that can produce a 32 non-adjacent channels in PAL or NTSC standard. Setup and tuning is easy and simple taking advantage of the unit’s friendly system.
This av to rf modulator headend is ideal to deploy in place where non-digital TVs are prevalent.

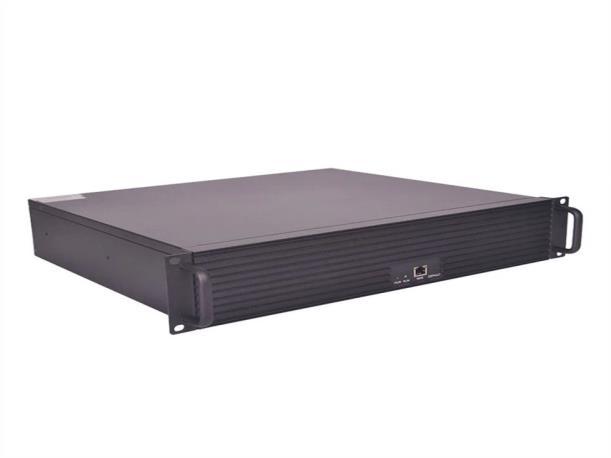

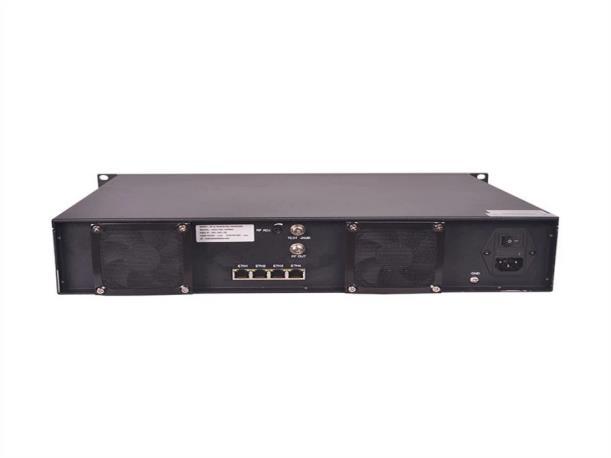

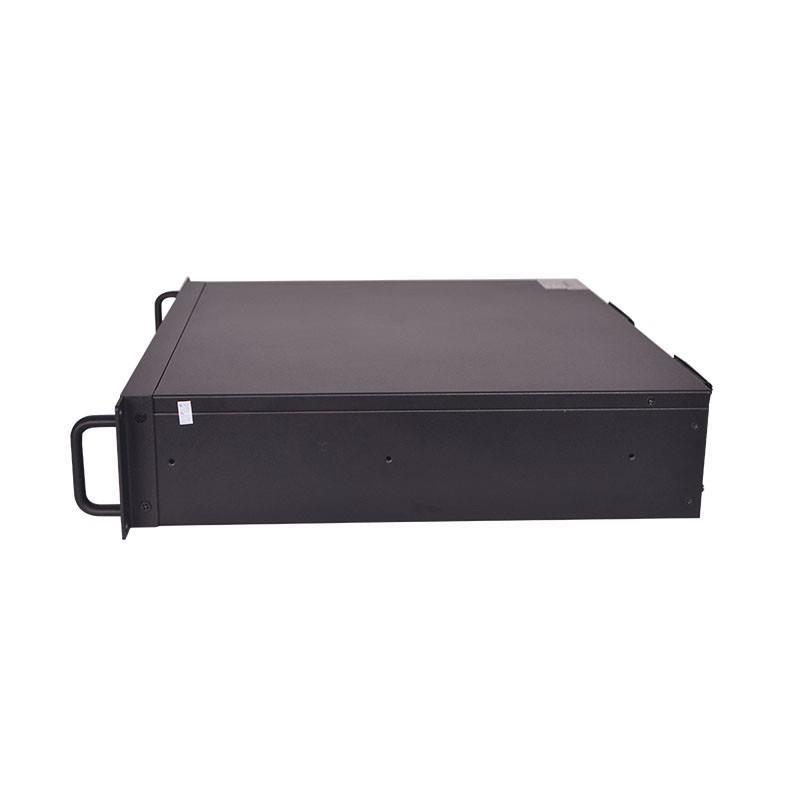

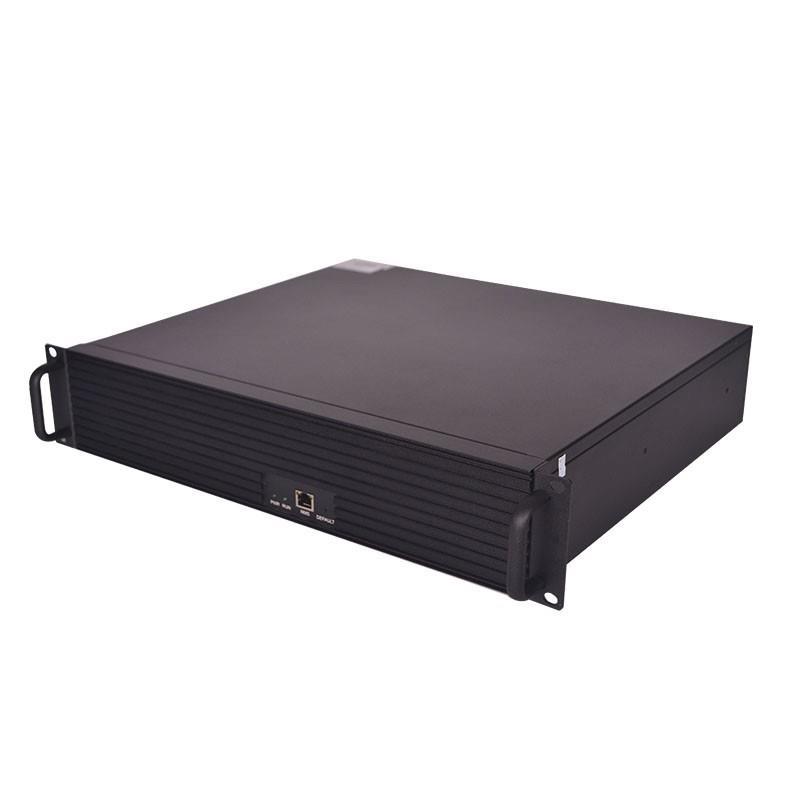

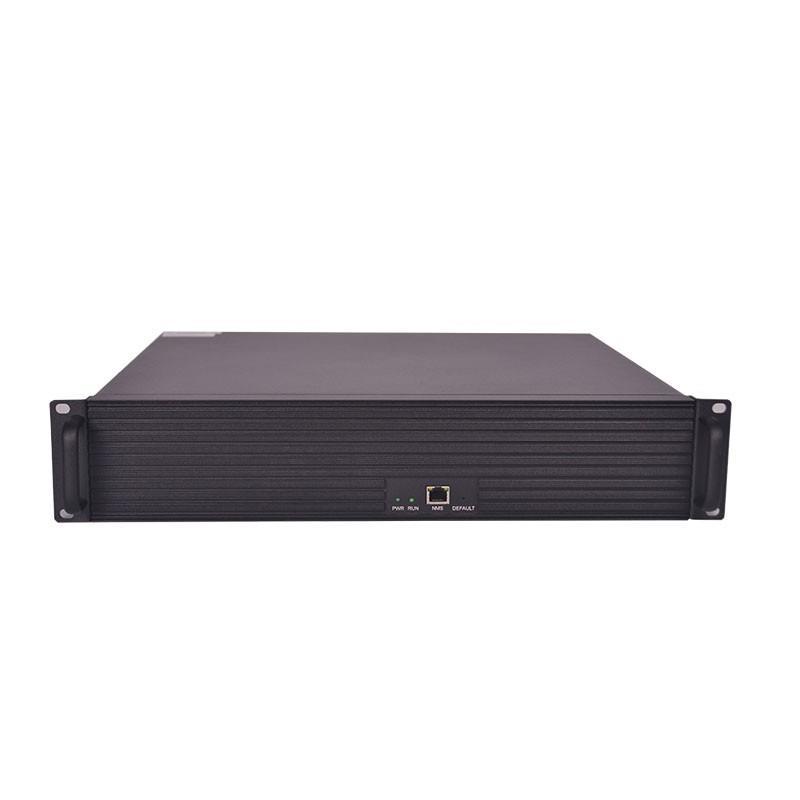

Detail Images
Key Features
1. Support 4 GE input port over MPTS and SPTS
2. Compact 2RU design with 5 cooling fans and dustproof screen
3. Receive up to 32 IP streams and output up to 32 channels in NTSC or PAL standard
4. Easy configuration and software upgrade by built-in Web UI
5. Optional function on teletext and overlay
6. Optional function on BISS decrypt Technical Specifition
GbE INPUT
Input Connector 4x RJ45
Transport Protocol UDP,RTP
Addressing Unicast, Multicast
MPEG Transport SPTS, MPTS TS DECODING
Video Resolutions Up to 1080P
Video Form
Audio Form
MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1
MPEG-1 Layer I/II/III; WMA,AAC,AC3
MAX decoding stream 32 channels
Additional capabilities Teletext; BISS decrypt
Aspect Ratio Control 4:3; 16:9
RF OUTPUT
Connector F female connector
Number of RF channels Max 32,Fully agile modulated channels
Supported Standard NTSC, PAL BG/DI/DK
STD,HRC and IRC Supported
Output Level ≥ 45dBmV combined
Adjust Range 20dB Per 32CHs 10dB Per CH
Output Frequency 48 ~ 860 MHz
Out-band Rejection ≥ 60dB
Audio Output Format MONO
Audio Adjust Range
~ 100 % GENERAL
