Manufactory Wholesale 1550nm 16 Port FTTH WDM EDFA for
CATV and Amplification Networks
Looking for a reliable and high-performance solution for your FTTH and CATV networks? The 1550nm 16 Port FTTH WDM EDFA combines Er-Yb Codoped double-clad fiber technology with a low noise figure of <5dB, ensuring superior signal quality and stability. Ideal for system integration and operation, it supports one-key attenuation down to 6dBm and offers a flexible, cost-effective solution for Triple Play and FTTH applications. With SNMP network management and intelligent temperature control, this device is engineered for high reliability and low power consumption.
• Er-Yb Codoped double-clad fiber technology | • Low noise figure: <5dB | • One-key attenuation down to 6dBm | • SNMP network management | • Intelligent temperature control
This High Quality WDM EDFA with dual-handle grips can support one-key down to 6 dbm. For its high quality, high reliable and high performance, this WDM EDFA is the ideal choice for system integration and system operation.

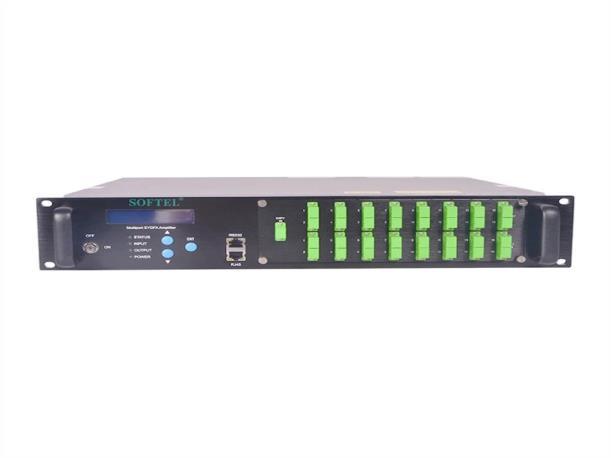

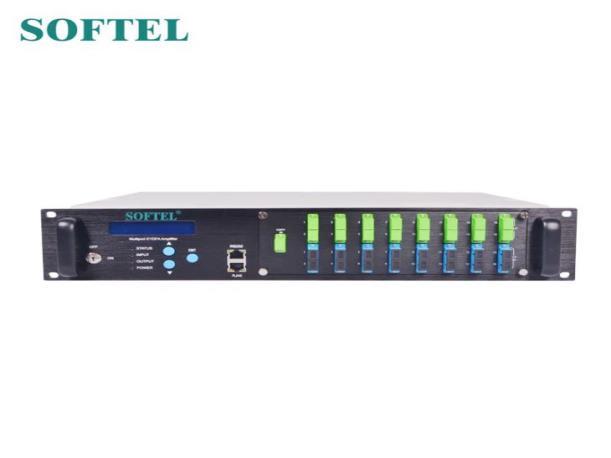

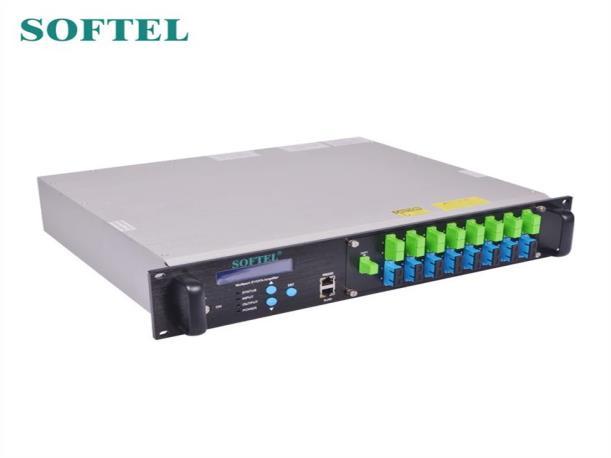

FTTH WDM EDFA 16 Port
1550nm 16 port FTTH WDM EDFA, for its high quality, high reliable and high cost performance, is the ideal choice of the system integration and system operation. And it provides a flexible and low- cost solution for the Triple Play and FTTH solution.
Application:
It provides a flexible and low- cost solution for the Triple Play and FTTH solution. For its high quality, high reliable and high performance, this WDM EDFA is also an ideal choice for Single-mode fiber 1550, CATV network and Amplification network.
Characteristics:
Adopts Er-Yb Codoped double-clad fiber technology;
Low noise figure: <5dB while optical input power is 0dBm;
Perfect network management interface, in line with standard SNMP network management; Intelligent temperature control system of this 1550nm 16 port FTTH WDM EDFA makes the power consumption lower
Noise Figure
Solution to some ordinary problems:
1.Power supply light STATUS: Green
LED light LASER: Red
VFD display: NO LASER INPUT
Reason: N0 1550nm optical input
Solution: Input 1550nm optical signal
2.In LED it displays the right optical power, but not enough by test meter
Reason: 1)The optical meter is not very correct
2)The input optical power is out of the requested value( -3～10dB)
3)Too big loss in the test pigtail
4)There is dust in the connectors
Solution:Use absolute alcohol to wash the all the connects and the test point of optical meter
Package:
