Manufactory Wholesale Passive Cable TV Optical Node for FTTH CATV with 68dBμV Output and No Power Consumption
Looking for a cost-effective and energy-efficient solution for FTTH CATV networks? The Passive Cable TV Optical Node is a high-performance FTTH optic-to-RF converter designed for digital television and fiber-to-the-home applications. With no power supply required and a high-sensitivity optical receiving tube, it ensures seamless integration of three networks. Delivering an output level of 68dBμV at Pin=-1dBm, this device operates across a bandwidth of 45~1050MHz, making it ideal for CATV FTTH, triple-play networks, and FTTH PON systems.
• No power consumption | • High sensitivity optical receiving tube | • Output level 68dB
μV | • Bandwidth 45~1050MHz | • Ideal for CATV FTTH and triple-play networks
Brief introduction of Passive Cable tv Optical Node
PassiveCabletvOpticalNodefor digitaltelevision, fiber tothe home. PassiveCableTvOptical Nodeadopts the high sensitivity opticalreceiving tube, without power supply, no power consumption. Whentheinput optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks, fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:
1. SR100: CATV operating wavelength 1260~1620nm.

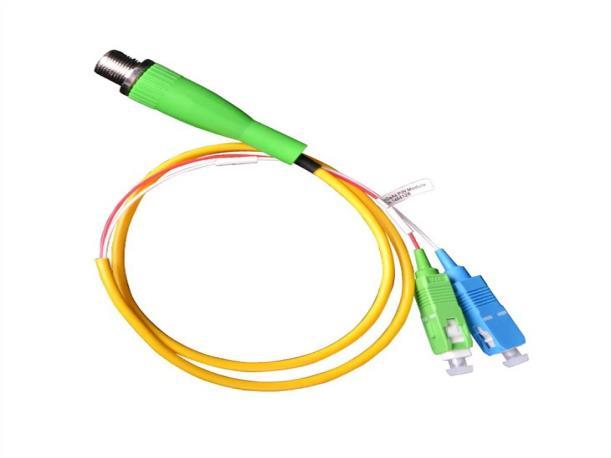

2. SR100/WF: Built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV Operating wavelength 1550nm.
Product feature of Passive Cable Tv Optical Node
1. No Power required
2. Work bandwidth 45~1050MHz
3. Output Level=68dBμV (Pin=-1dBm)
Main application of Passive Cable Tv Optical Node
1. CATV FTTH
2. Integration of three networks
3. FTTH PON
Test data
Technical index of Passive Cable Tv Optical Node
Receiving power (dBm)
Optical return loss (dB) ≥55
Optical fiber connector SC/APC
General feature
Contact:Tomleequan Email：
BER <1.0E-9 Pin:+2~-14dBm
Work temp (℃) -20~+55
Storage temp (℃) -40~85
Work relative temp (%) 5~95

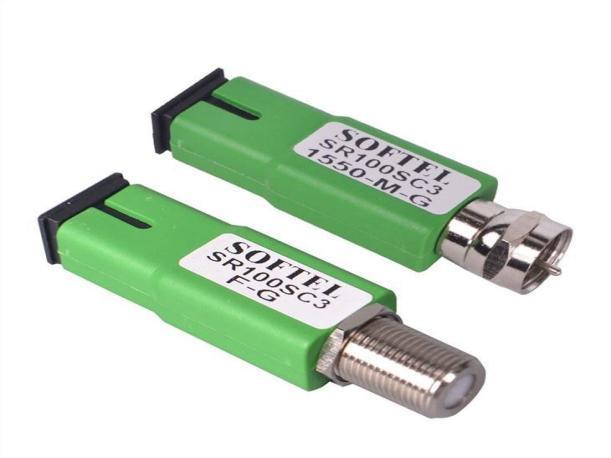

23×53×12 A Type (Enamel Typ e)
Size (W)×(D)×(H) (mm)

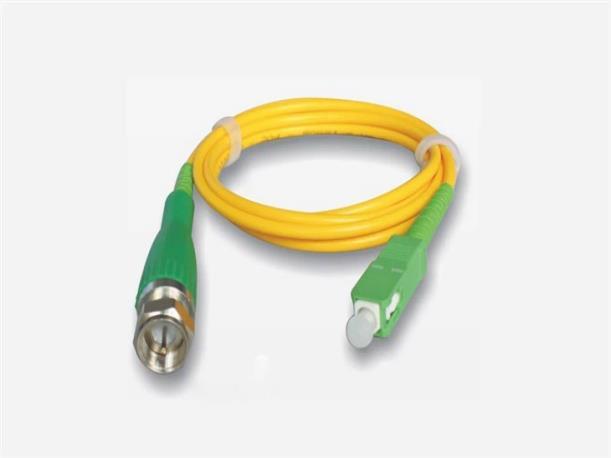

Ф13×28 B Type (Fiber Type)

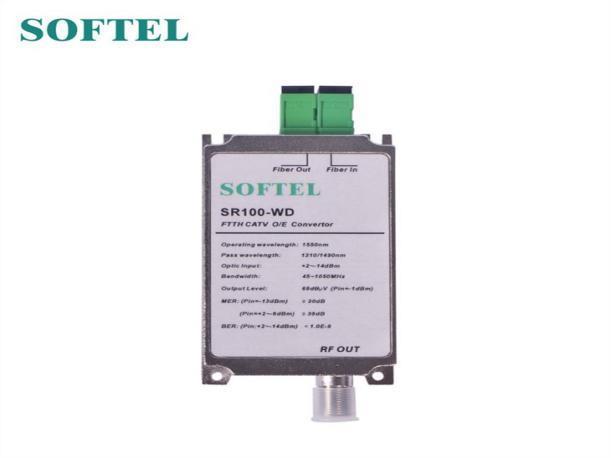

50×88×22 C Type (Box Type)
