Manufactory Wholesale 1GE FTTH EPON ONU for High-Speed
Internet, IPTV, and IP Camera Solutions
Looking for a reliable and high-performance solution for FTTH, FTTB, and PON+EOC applications? The 1GE FTTH EPON ONU delivers exceptional performance with its 1000Base-PX10/PX20 standard, supporting a 1:64 optical splitting ratio and 20km transmission distance. Designed for seamless integration with EPON OLT, it ensures flexible network structures and robust FTTx solutions. Ideal for INTERNET, IPTV, VOD, and IP Camera applications, this ONU offers 950Mbps downstream and 930Mbps upstream throughput with <1.5ms latency.
• 1000Base-PX10/PX20 standard | • 1:64 optical splitting ratio | • 20km transmission distance | • 950Mbps downstream, 930Mbps upstream | • <1.5ms latency
This 1GE EPON ONU is applicable for FTTH、FTTB and PON+EOC .
GEPON ONU-1GE is designed mainly for FTTH use and FTTO use as well. This 1GE FTTH EPON ONU supports 1000Base-PX10/PX20 standard with 1:64/1:32 maximum optical splitting ratio and 10/20km distance, and provides 1uplink GE PON port.
ONU-1GE together with EPON OLT can realize flexible network structure and provide total FTTx solutions.
Applications
Typical Solution: FTTH、FTTB、PON+EOC
Typical Business: INTERNET、IPTV、VOD、IP Camera
Specifications of 1GE FTTH EPON ONU
PON Interface 1 EPON optical interface
Meet 1000 BASE-PX20 standard
Symmetric 1.25Gbp supstream/downstream
SC single-modfiber
Split ratio:1:64
Transmission distance: 20KM

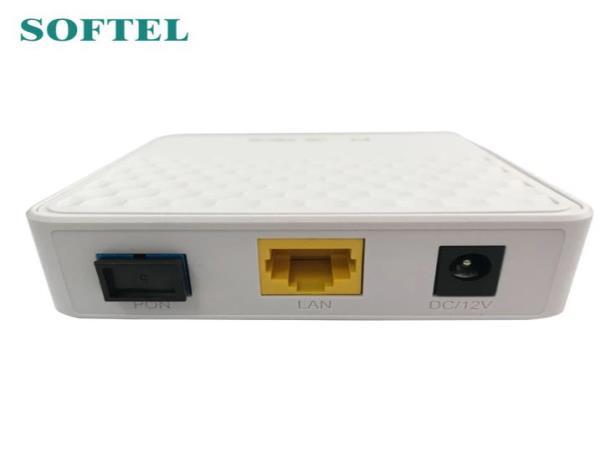

Interface
User Ethernet Interface
1*10/100/1000 Mauto-negotiation (ONU-1GE)
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
Power Interface 12V DC Power supply
An external 12V 0.5A AC/DC power supply adapter
PON Optical Parameter
Performance Parameters
Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1～4dBm
Rx Sensitivity: -24dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber
Network Management
Data Transmission Parameter
PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 100Mbps
1000Mbps(ONU-GFE)
Packet Loss Ratio:<1*10E-12
latency:<1.5ms
Business Capability
Layer 2 wire speed switching
Support VLAN TAG/UNTAG，VLAN
conversion
Support Port-based speed limitation
Support Priority classification
Support storm control of broadcast
Support RSTP
Management Mode Support IEEE802.3 QAM
ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet
Local management
Management Function
Contact:Tomleequan
Status monitor, Configuration management, Alarm management, Log management

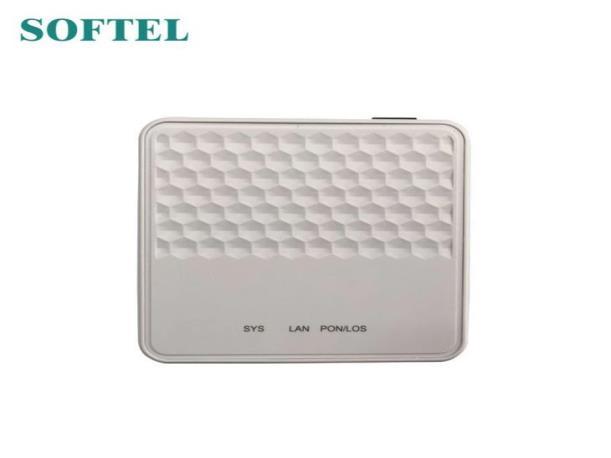

Indicator
LED Indicator
PWR: Power up or down
SYS: System instructions
OPTIN: Optical Link Status
LINK：ONU Registered
LAN: Link Status of Ethernet Interface
Power
Physical Features Shell
Physical Specifications
Environmental Specifications
External 12V 0.5A AC/DC power supply adapter
Power consumption: < 3.8W
Dimension：160mm(L) x120mm(W) x30mm(H)
Weight：0.2kg
Operating temperature: 0 to 50 ºC
Storage temperature: -40 to 85 ºC
Operating humidity: 10% to 90% (Non-condensing)
Storage humidity: 5% to 95% (Non-condensing)
