Manufactory Wholesale Outdoor EPON Optical Line Terminal
4 Ports for Triple-Play, IP Camera, and IoT Applications
Looking for a robust outdoor EPON solution? The Outdoor EPON Optical Line Terminal 4 Ports integrates OLT and EDFA technologies, meeting China MII and SARFT standards. Designed for flexible deployment in outdoor cabinets, corridors, and pole mounting, it simplifies network design, reduces costs, and accelerates fiber access. With 4 GE uplink ports, 4 EPON downstream ports, and support for 256 ONUs under a 1:64 splitter ratio, it’ s ideal for Triple-Play, CPN, IP cameras, and IoT applications. • 4 GE uplink ports | • 4 EPON downstream ports | • Supports 256 ONUs | • 20km transmission distance | • Dual power supply configuration

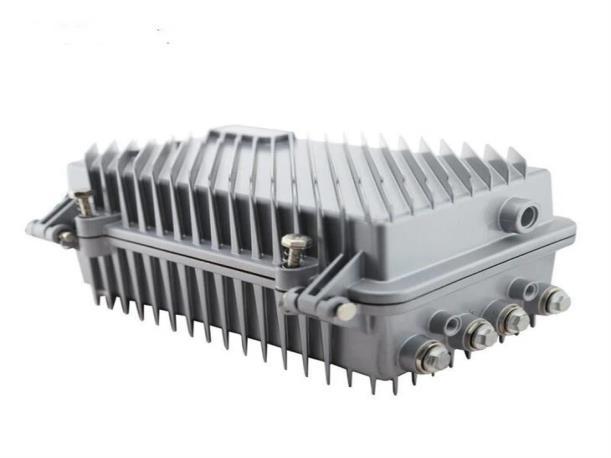

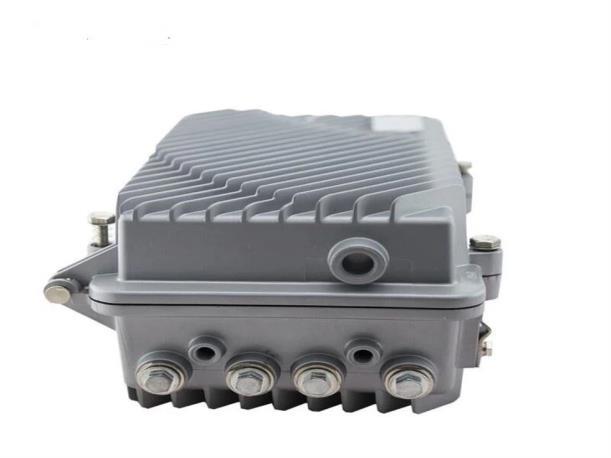

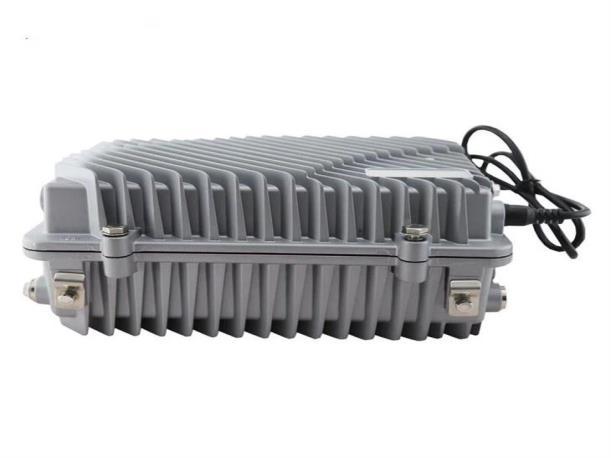

Outdoor EPON Optical Line Terminal 4 Ports is outdoor type EPON OLT product.
Outdoor EPON Optical Line Terminal 4 Ports
Outdoor EPON Optical Line Terminal 4 ports is a series of products integrated with OLT and EDFA. It meets the technical requirements of China MII and SARFT’s for EPON and EDFA. The exquisitely designed equipment is flexible for deployment in outdoor cabinet, corridor and pole mounting, etc. Outdoor EPON Optical Line Terminal 4 ports can simplify network design, reduce engineering cost and accelerate the process of fiber access.
Outdoor EPON Optical Line Terminal 4 ports part provides 4GE optical interface for uplink, 4 EPON ports for downstream. And provide EDFA management port, Built-in 220VAC power module, support Dual power supply configuration.
It can support 256 ONU under 1:64 splitter ratio. The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.
Characteristics
1. High Stability with low cost and flexible networking construction
2. Four fixed PON slots with 1:64 splitting ratio at most
3. Four Uplink GE optical interface
4. OLT-E4A could support 256 ONU maximally
5. Maximum Transmission distance:20km (1:32 splitting ratio)
6. Aluminum alloy die casting shaping, has good heat dissipation and shielding effect
7. Comprehensive Network Management
8. In band and out band management;
9. Support Telnet and local command lines management;
10. EMS management based on standard SNMP protocol;
11. Support EDFA docking management
12. Support online upgrading.
13. Powerful QOS Function
14. Realize stable and efficient dynamic bandwidth allocation (DBA)
15. Various OAM Function
16. ONU auto-detection and registration;
17. Support LGMP and Snooping function;
18. Support port flow control and flow shaping.
Specifications
1*10/100/1000Mauto-negotiable outband port 1*CONSOLE port 1*EDFA port
Management Ports
PON port speed
Symmetrical 1.25Gbps
Wavelength 1490nm TX,1310nm RX
Connector
Fiber Type
PO N P ort Spec ifica tion （A pply to PO N m odul
Saturation Optical Power
Management Mode
Others
Contact:Tomleequan
SC/PC
SNMP, Telnet, CLI management mode.
Contact:Tomleequan Email：
About Us
FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.
Contact:Tomleequan Email:sales@fmuser.com whatsapp:+8613922702227
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227 Storage Temperature -40~85℃
