Huawei GPON OLT
MA5683T for High-Density Network Aggregation and Switching
Looking for a robust solution to handle ultra-high-density network demands? The 10G GPFD Huawei GPON OLT MA5683T delivers unmatched performance with 3.2T backplane capacity, 1920G switching capacity, and support for up to 44-channel 10GE or 768 GE access ports. Designed for enterprise, campus, and telecom networks, it ensures high reliability with OLT dual hot backup, end-to-end QoS, and smooth evolution from EPON to 40G PON. With green technology reducing power consumption, this OLT is a cost-effective, future-proof choice for scalable network infrastructure.
• 3.2T backplane capacity | • 1920G switching capacity | • 44-channel 10GE or 768 GE
access | • OLT dual hot backup & end-to-end QoS | • Smooth evolution to 40G PON
10g GPFD Huawei
OLT MA5683t has ultra-high convergence switching capacity and ultra-high-density cascade capability
Gpon
10g GPFD Huawei Gpon OLT MA5683t

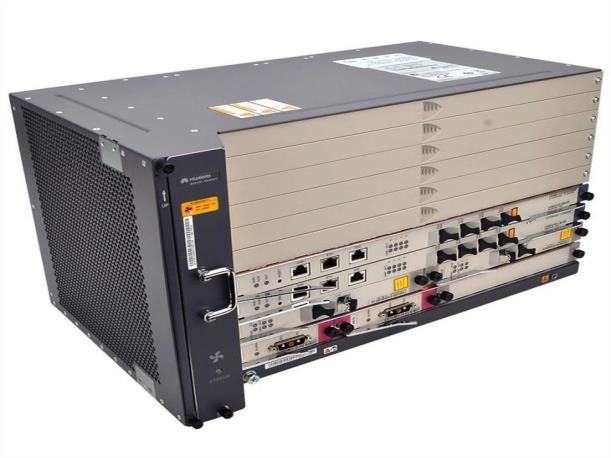

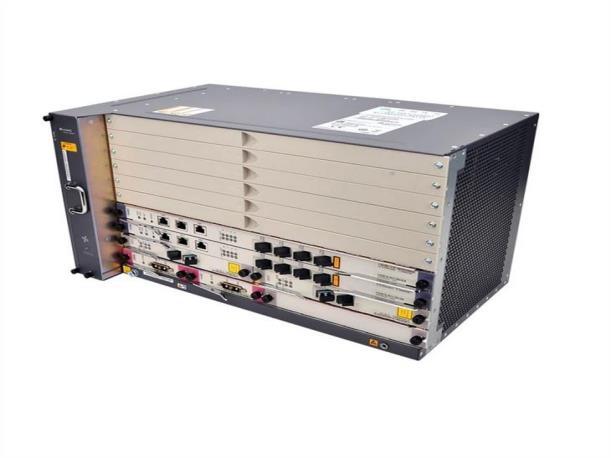

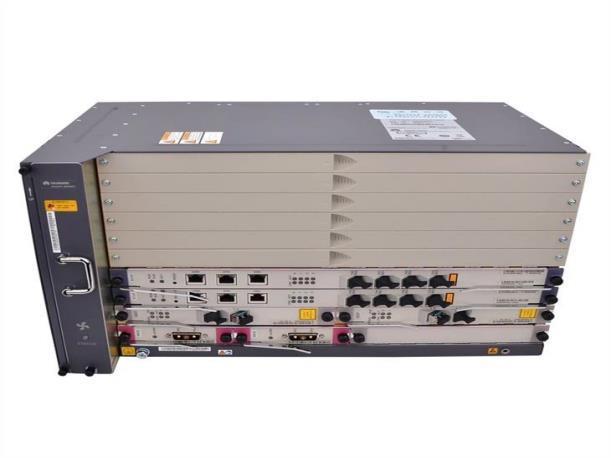

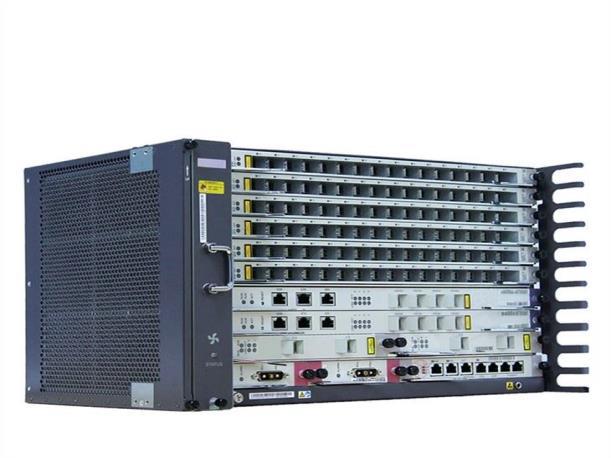

Product Display
10g GPFD Huawei Gpon OLT MA5683t
SmartAX MA5600T Series OLTs combine high-performance aggregation and switching capabilities, providing 3.2 Tbit/s backplane capacity, 960 Gbit/s switching capacity, 512K MAC addresses, and a maximum of 44-channel 10 GE or 768 GE access ports.
Lowers Operations and Maintenance (O&M) costs with software versions for all three models that are fully compatible with service boards; reduces the need to stock quantities of spare parts.
Features
Aggregate Access:
Ultra-high convergence switching capacity, 3.2T backplane capacity, 1920G switching capacity, 512G MAC address capacity;
Ultra-high-density cascade capability, maximum support for 44-channel 10GE or 768 GE access, no additional investment aggregation switch.
High Reliability:
Highly reliable networking capabilities, support OLT dual hot backup, off-site capacity,upgrade business is not interrupted
Complete QoS function, support traffic classification management, priority control, with paragraph control. H-QoS functions to meet SLA requirements for diverse business customers.
End-to end high reliability design, uplink support BFD/Smart Link/LACP redundancy protection, support EPON TypeB / TypeD and GPON TypeB / TypeC line protection.
Multi-scene access:
A variety of E1 line access, support Native TDM or CESoP / SAToP function.
Support E-LAN function to achieve internal traffic flow based on VLAN to meet the enterprise and campus network applications.
Support IPTV users without convergence access, single-frame support 8000 multicast users and 4000 multicast channels.
Smooth Evolution:
EPON / GPON / 10G PON / 40G PON common platform to support smooth evolution, to meet the ultra-wideband access.
Support IPv4 / IPv6 dual stack, support IPv6 multicast, to achieve the smooth evolution of IPv4 to IPv6.
Green Technology:
Unique chip technology, high-density 16 port GPON board power consumption does not exceed 73W.
Support free board automatic power, fan intelligent speed, effectively reduce the idle power consumption. Specification
Model No.
Dimension:
Operating Environment
MA5680T
MA5683T
MA5608T
490*275.8*447.2mm 442*283.2*263mm 442*233.5*88mm
Temperature: -25℃~+55℃
Humidity:5%~95% (non-condensing)
Power Supply Parameters
Backplane Exchange capacity
Temperature: -40℃~+65℃
Humidity:5%~95% (non-condensing)
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V -48V DC input
Supports dual power protection Working Voltage range -38.4V~-72V
Temperature: -40℃~+65℃
Humidity:5%~95% (non-condensing)
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V
Support 220V / 110V AC input
Control Board Exchange Capacity
1920 Gbit/s
Access Capacity
Access Type
System Performance
128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE
960Gbit/s 512Gbit/s
48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE
16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE
Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
Layer 2 / Layer 3 wire-speed forwarding Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting ratio Maximum support 60KM
