Manufactory Wholesale 1GE ONU Dual Mode GPON/EPON with
CATV Output for FTTH/FTTO/FTTD Applications
Looking for a reliable and versatile ONU solution? The 1GE ONU supports dual-mode GPON/EPON networks, ensuring seamless integration into diverse environments. With a robust firewall, wide temperature adaptability, and CATV output, it meets the demands of FTTH, FTTO, and FTTD applications. Featuring 4 GE auto-adapting Ethernet ports, AES-128 encryption, and remote management via OMCI/TR069, this device delivers high-speed broadband access, video surveillance, and SOHO connectivity.
• Dual-mode GPON/EPON support | • 4 GE auto-adapting Ethernet ports | • CATV output with remote RF control | • AES-128 encryption | • Wide temperature range: -40° C to 85°C
1ge onu (ONT-1GE) ONU support Gpon & Epon Network
1ge onu

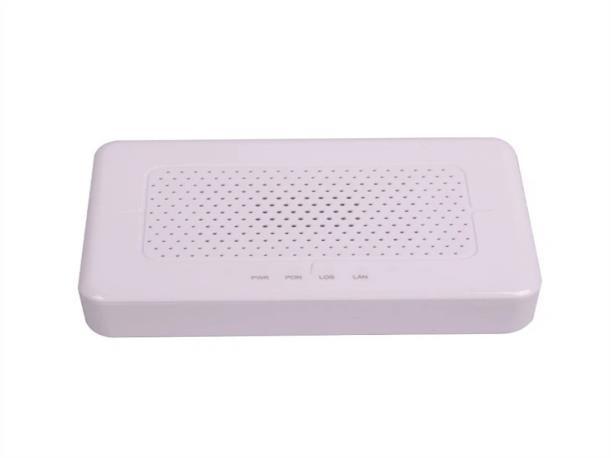

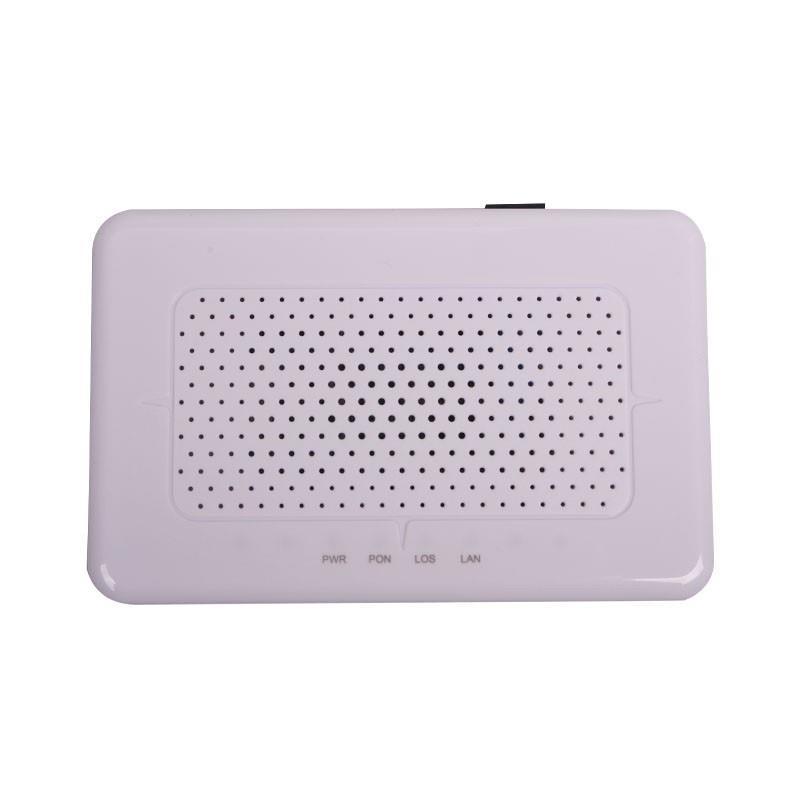

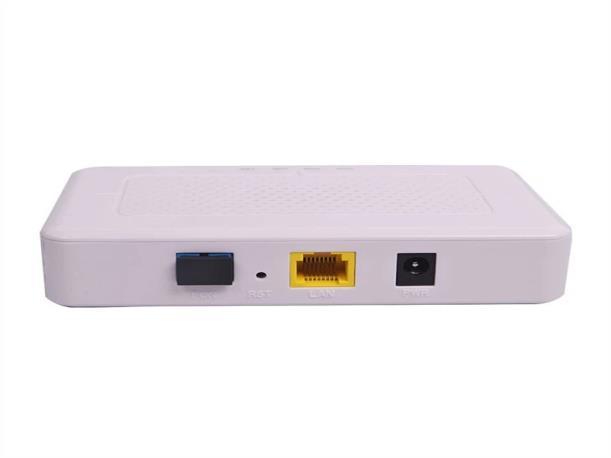

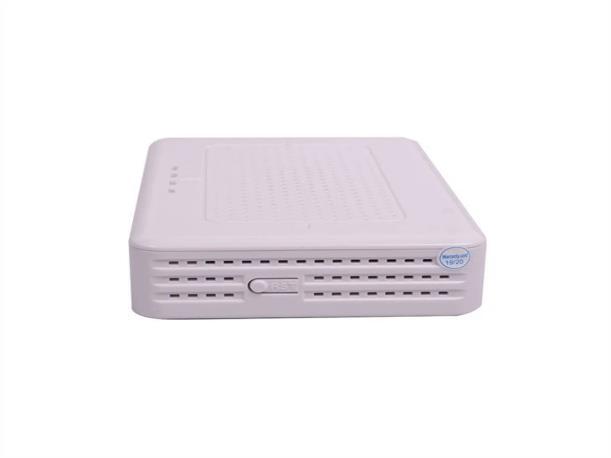

Product Display
1GE ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.
And this 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products.
Features
Full compatible with ITU-T G.984
Support four GE auto-adapting Ethernet ports
Support one CATV output
Support OMCI and TR069 for remote management
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate, working mode and flows control
Support loopback at UNI
Support packet filtering and anti-illegal message attack protection
Support performance statistics of Ethernet lines
Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
Support DHCP Option60 reporting the location information of the Ethernet interface
Support PPPoE+ for accurate subscribers identification
Support IGMP Snooping
Support AES-128
CATV support turn on/off RF output remotely
Specification
UPlink Interface
Ethernet Interface
1*GPON port, FSAN G.984.2 standard, Class B+
Downstream Data Rate: 2.488Gbps
Upstream Data Rate: 1.244Gbps
SC/APC single-mode fiber
28dB Link loss and 30KM distance with 1:128
4*10/100/1000Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
1 RF output
Female F-Type Connector Power Interface 12V DC Power supply
Contact:Tomleequan Email：
PON
Optical Parameter
Data Transmission Parameter
Business Capability
Network Management
Management
Function
Shell
Power
Power consumption: <7W
Physical Specifications
Environmental Specifications
Wavelength: Tx:1310nm, Rx:1490nm
Tx Optical Power: 0~5dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -8dBm
Connector Type: SC
Optical Fiber: 9/125μm single-mode fiber
PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
Layer 2 wire speed switching
Support VLAN TAG/UNTAG,VLAN conversion
Support Port-based speed limitation
Support Priority classification
Support storm control of broadcast
Support link detection
Standard compliant OMCI interface as defined by ITU-T G.984.4
Support WEB management
Status monitor, Configuration management, Alarm management, Log management
Plastic casing
External 12VDC/1A power supply adapter
Power consumption: <7W
Item Dimension:200mm(L) x140mm(W) x 33mm (H)
Item weight:0.5kg
Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 5% to 95%(Non-condensing)
