Manufactory Wholesale XPON ONU WiFi Router ONT-2GF-W for FTTH FTTB Residential and SOHO Users
Looking for a reliable and high-performance residential gateway? The XPON ONU WiFi Router ONT-2GF-W is designed to meet the demands of modern broadband access, supporting FTTH (Fiber To The Home) and FTTB (Fiber To The Building) solutions. With a PON interface offering uplink speeds of 1.25Gbps and downlink speeds of 2.5Gbps, this router ensures seamless connectivity for residential and SOHO users. It features dual Ethernet ports, an RF interface, and a robust WLAN module with 2.4GHz support and 300M transmission rates. Built to carrier-grade standards, it delivers reliability, security, and maintainability for the last kilometer of broadband access.
• PON Interface: SC/PC, CLASS B+ | • WLAN Module: 2.4GHz, 300M transmission | •
Ethernet Ports: 110/100/1000BASE-T, 110/100BASE-T | • RF Interface: Integrated for
CATV support | • Compact Design: 167×118×30mm, <8W power consumption
XPON onu wifi router ONT-2GF-W is our new arrival

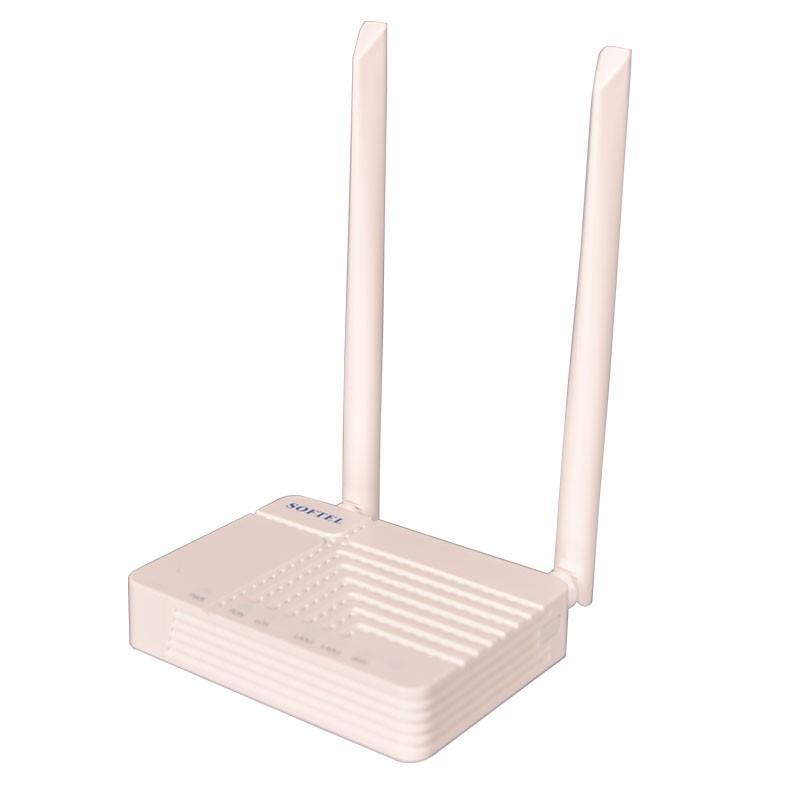

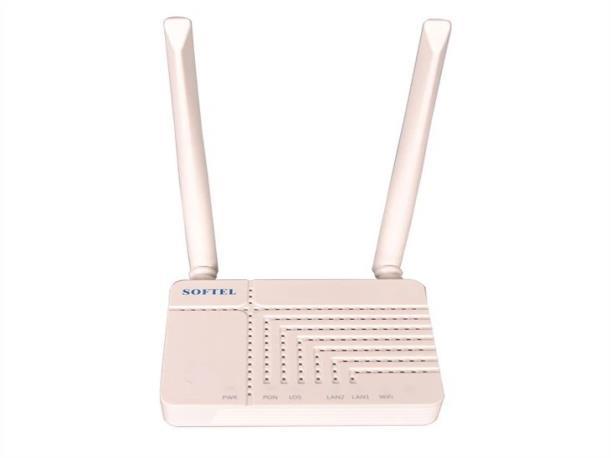

Xpon onu wifi router
Product Description
Xpon onuwifirouter (ONT-2GF-W) isa residentialgatewaydevice withroutingfunctions for XPON ONUandLAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.

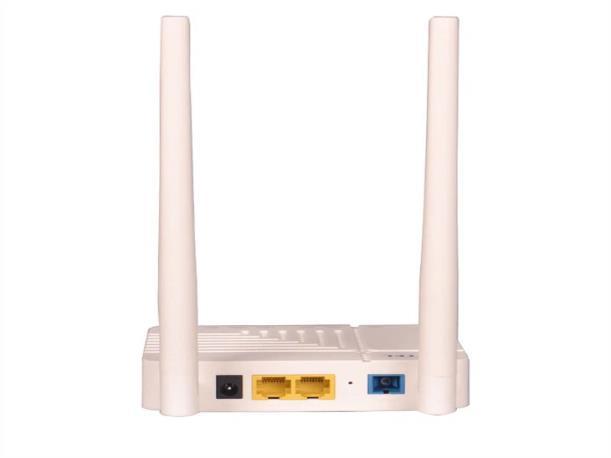

The uplink of Xpon onu wifi router provides one PON interface, while downlink provides two Ethernet and RF interface. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building).
It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Hardware Specification
PON Interface
Interface Type SC/PC, CLASS B+ Rate Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface 1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface Size (Mm)
Environment
Power Supply
Humidity: 5% ~ 95% （no condensation）
External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size
WLAN Module
metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
External dual antenna, antenna gain 5db, antenna power 16~21dbm Support 2.4GHz, 300M transmission rate
