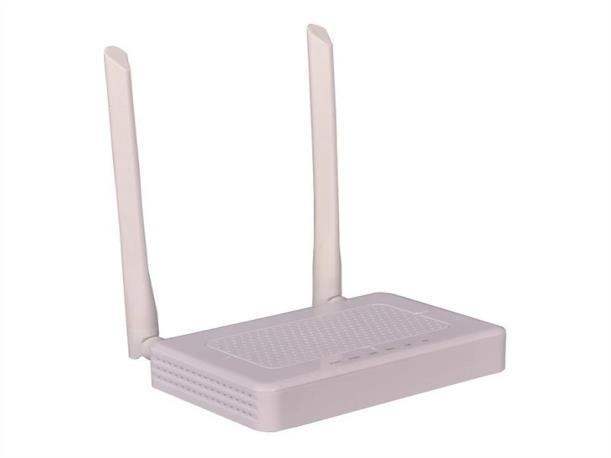

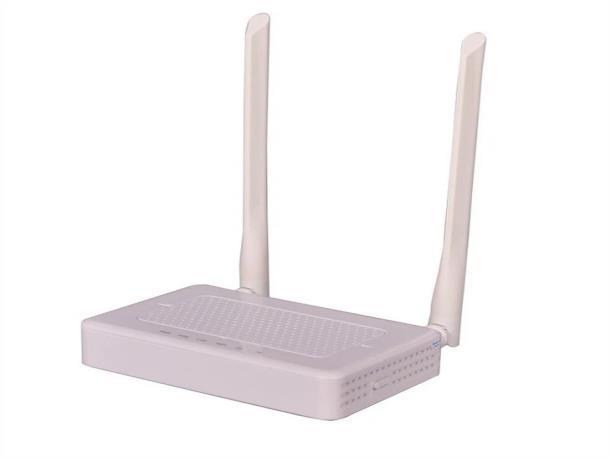

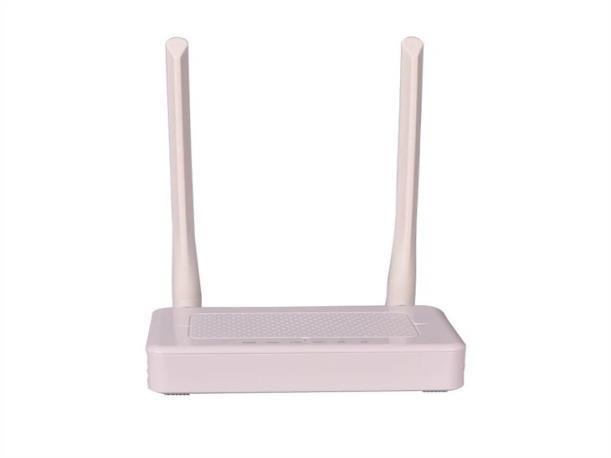

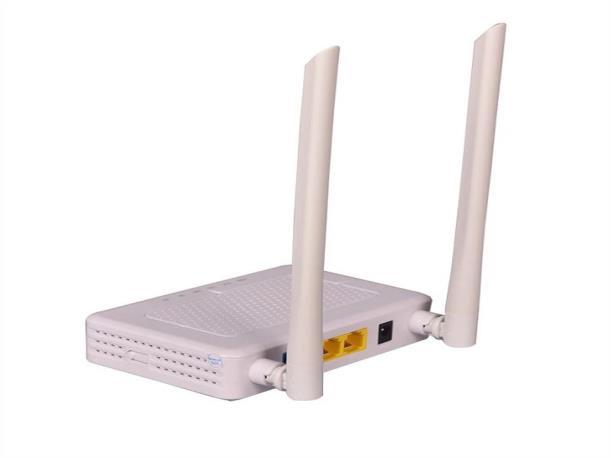

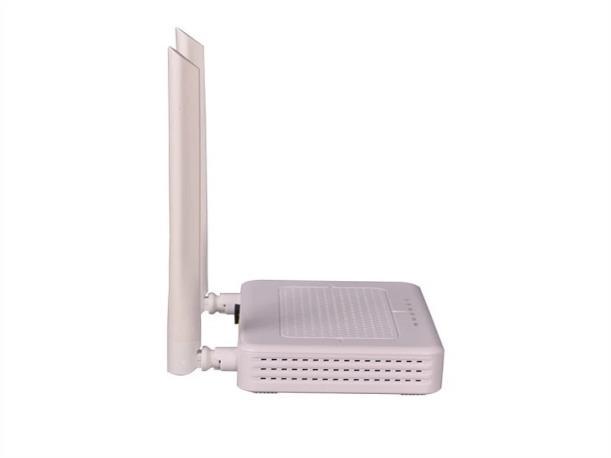

Manufactory Wholesale Xpon Onu Wifi with GPON/EPON
Adaptive Mode for High-Speed Data Transmission
Looking for a reliable and secure solution for high-speed data transmission? The Xpon Onu Wifi combines GPON/EPON adaptive mode with advanced security features, ensuring efficient and stable connectivity. With downstream speeds of 2.488Gbit/s and upstream speeds of 1.244Gbit/s, this device is perfect for FTTH applications, offering low latency (<1.5ms) and minimal packet loss (<110E-12). Its compact design and robust performance make it ideal for residential and small business networks.
• GPON/EPON adaptive mode | • Downstream 2.488Gbit/s, Upstream 1.244Gbit/s | •
Low latency (<1.5ms) | • Compact and energy-efficient design | • Ideal for FTTH and small business networks
Specification
Item Parameter
GPON/EPON mode adaptive
PON Interface

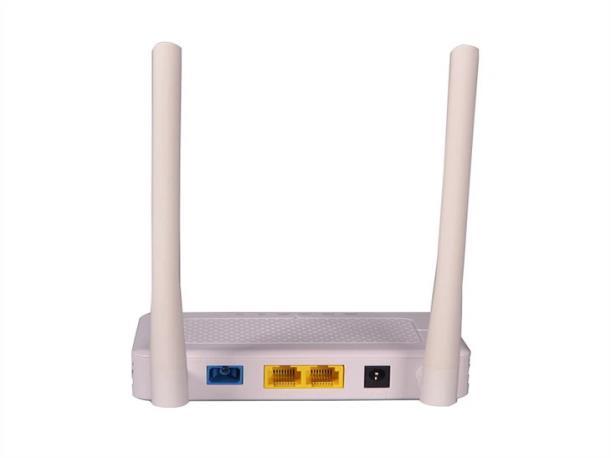

Interface
Ethernet Interface
1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON SC/PC single mode fiber
1*10/100/1000M and 1*10/100M auto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X 100m distance
Performance Parameters
Power Interface 12V DC Power supply
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:
Physical Features
PON
Optical Parameter
0.5～5dBm
Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm
Data Transmission Parameter
PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s
Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*10E-12
latency: <1.5ms
Shell White plastic casing
Power
Physical Specifications
Environmental Specifications
<5W, 12V/0.5A power supply adapter
Item Dimension：125mm(L) x80mm(W) x 25mm (H)
Item weight：0.2kg
Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)
