Manufactory Wholesale FTTH ONU Dual Mode GPON EPON
Residential Gateway with RF
Interface
Looking for a reliable and versatile solution for fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments? The FTTH ONU (ONT-2GF-RFW) is a dual-mode residential gateway compatible with GPON and EPON networks, offering seamless integration with major OLT brands like Huawei, ZTE, and Fiberhome. Designed for carrier-grade reliability, it delivers high-speed broadband access with uplink rates of 1.25Gbps and downlink rates of 2.5Gbps. Ideal for residential and corporate users, this device features an RF interface, dual antennas, and supports 2.4GHz Wi-Fi, ensuring robust connectivity and performance.
• Dual-mode GPON/EPON compatibility | • RF interface for CATV integration | • 2.4GHz Wi-Fi with dual antennas | • Carrier-grade reliability and security | • Compact design with low power consumption
FTTH ONU(ONT-2GF-RFW)is a residential gateway device with routing functions for XPON ONU.
FTTH ONU

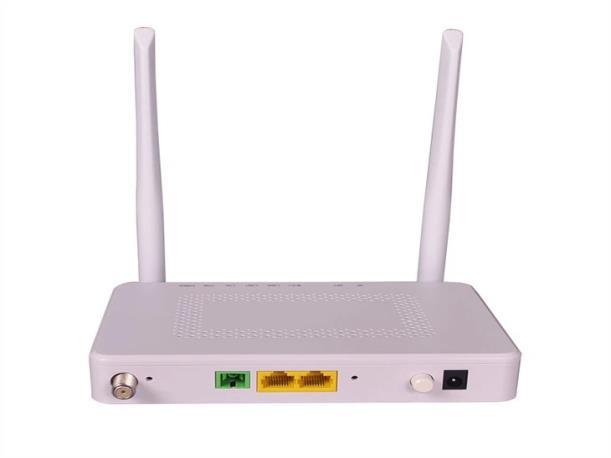

Product Display
This FTTH ONU is compatible with other brand's OLT, like Huawei, ZTE, Fiberhome(ZTE OLT CAN REMOTE WAN-IP FOR SOFTEL ONU). We can provide full FTTH solution. and technical support at meanwhile.
This FTTH ONU is designed with Dual mode, which can work in Gpon&Epon network.

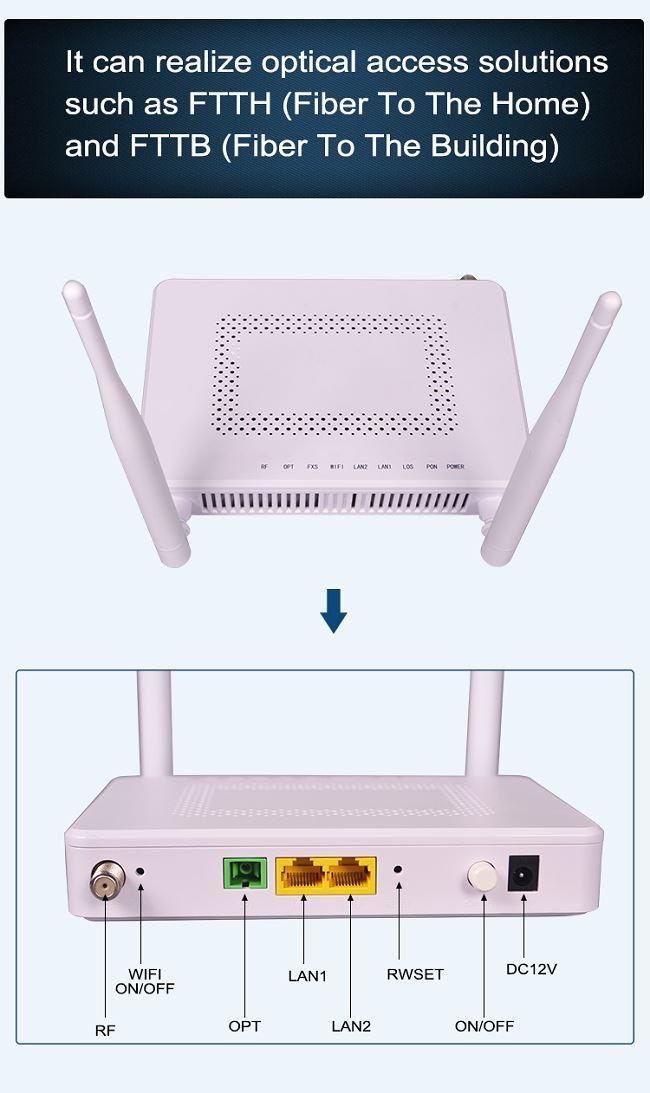

Our FTTH ONU can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

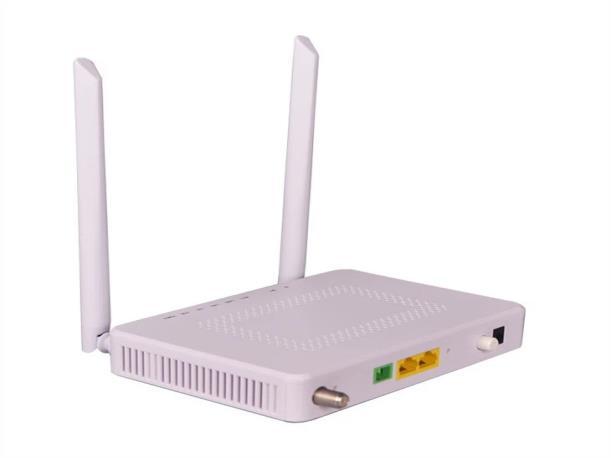

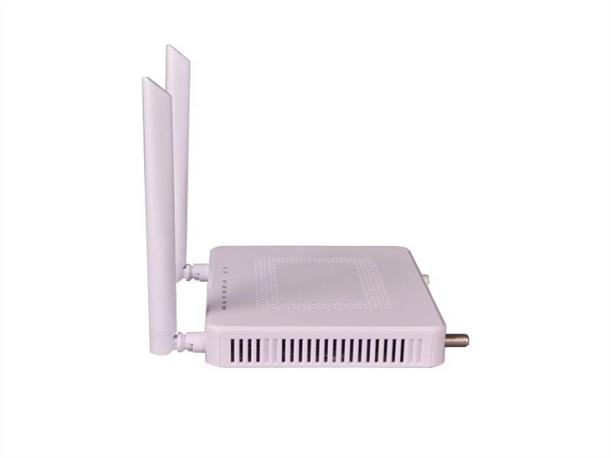

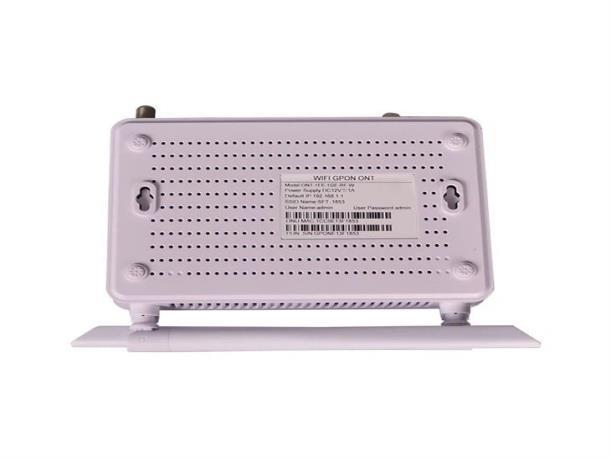

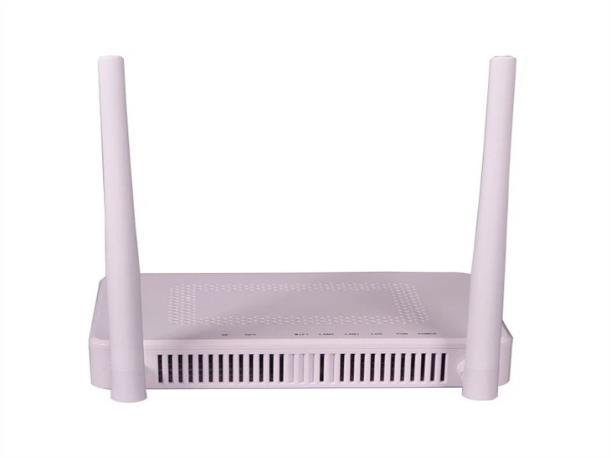

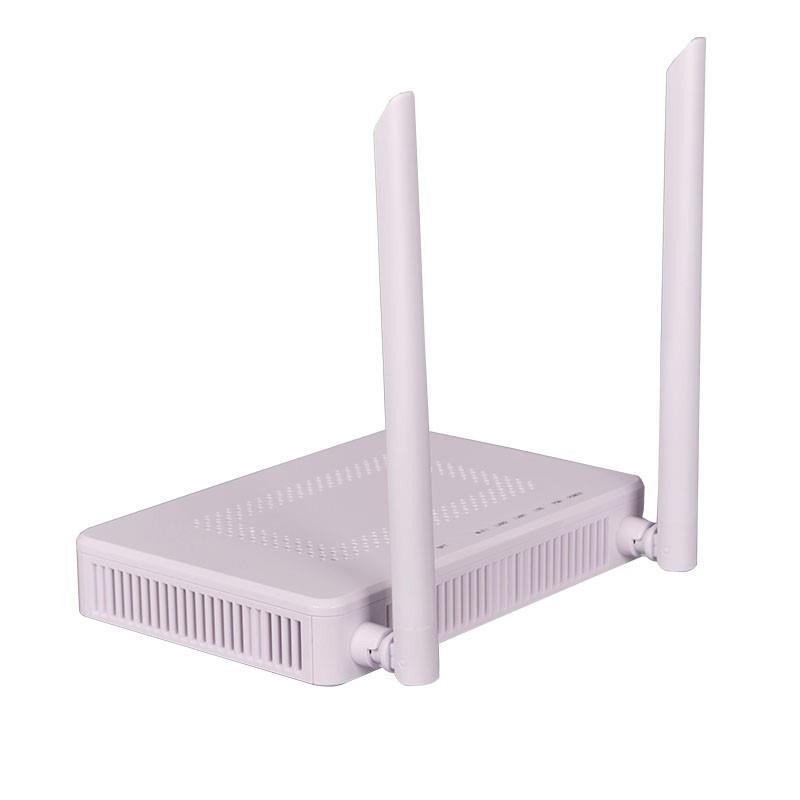

Deatail Images
PON Interface
User-Side Interface
Interface Type SC/PC, CLASS B+ Rate Uplink: 1.25Gbps; Downlink: 2.5Gbps
1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface
Size (Mm) 167(L)×118(W)×30(H)
Maximum Power Consumption <8W
Weight
Operating Environment
Power Supply
Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% （no condensation）
External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module

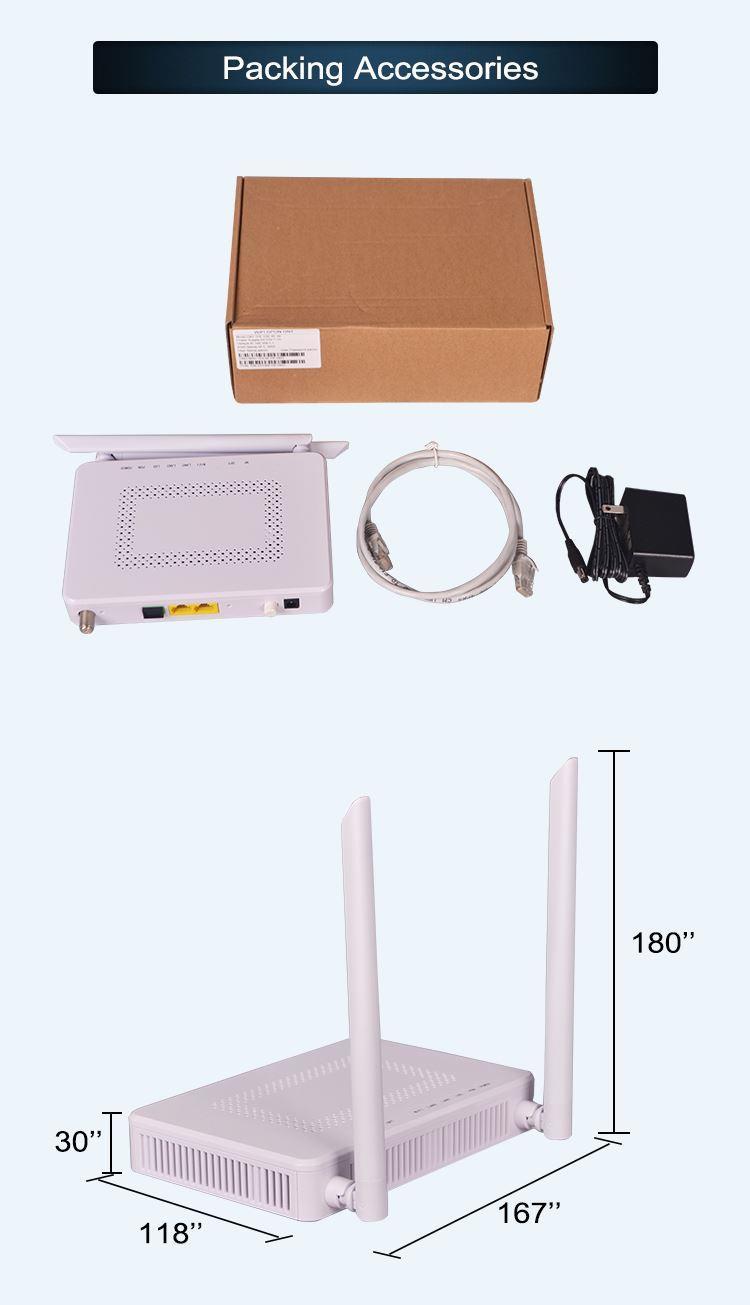

Packing of FTTH ONU
Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm
Support 2.4GHz, 300M transmission rate
