Manufactory Wholesale OLT EPON 16 Port High-Performance
Rack-Mount for FTTH Networks
Looking for a scalable and efficient solution for your FTTH network? The OLT EPON 16 Port delivers high performance with 16 EPON ports, supporting up to 1024 ONUs under a 1:64 splitter ratio. Designed for easy deployment, this 1U rack-mount device features 4GE copper and optical interfaces, 210Gb uplink ports, and IEEE802.3ah compliance, ensuring reliable transmission up to 20KM. Ideal for telecom operators and ISPs, it offers port-based rate limitation and bandwidth control for optimized network management.
• 16 EPON ports with 1:64 splitter ratio | • 4GE copper & optical interfaces | • 210Gb uplink ports | • IEEE802.3ah compliant | • 20KM transmission distance

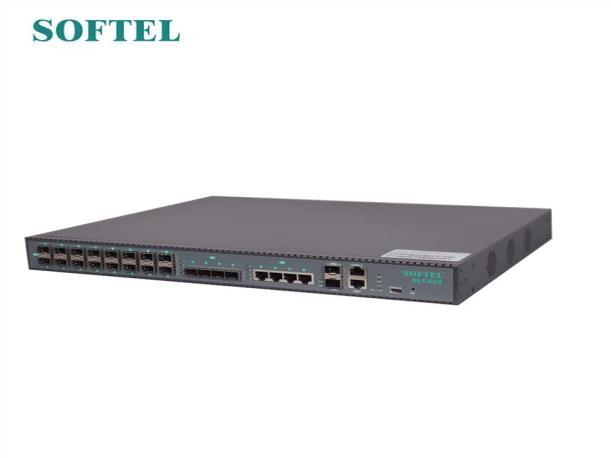

OLT Epon 16 port which is 1U high 19 inch rack mount with high performance,and flexible easy to deploy.It can support max 1024 ONUs under 1:64 splitter ratio.
Olt Epon 16 Port
Description
OLTEpon16 portprovides 4GE(copper) and4GE optical interface, 2*10Gb uplink interface, and16 EPON ports for downstream. Each EPON port supports the splitting ratio of 1:64 and support port-based rate limitation and bandwidth control, in compliant with IEEE802.3ah Standard the olt epon 16 port transmission distance can up to 20KM.
Specification
Item OLT-E16
Chassis Rack 1U 19 inch standard box
Uplink Port QTY 10
Copper 10/100/1000M auto-negotiable,RJ45:4pcs
Optical interface 4 GE
10Gb uplink interface 2*10Gb
PON Port QTY 16
Physical Interface SFP Slots
Connector Type 1000BASE-PX20+
Max splitting ratio 1:64
Management Ports 1*100BASE TX outband port; 1CONSOLE port
Transmission Distance 20KM
PON port speed Symmetrical 1.25Gbps
Wavelength 1490nm TX,1310nm RX
Connector SC/PC
PON Port Specification
10Gb SFP+ Port
Specification
Fiber Type 9/125μm SMF TX Power +2.5～+7dBm
Rx Sensitivity -27dBm
Saturation Optical Power -6dBm
Transmission Distance 10KM PON port speed 8.5-10.51875Gbps
Dimension
Dimension
