Manufactory Wholesale 1GE EPON ONU for FTTH Solution with High-Speed Forwarding and IPv6 Support
Looking for a reliable and efficient FTTH solution? The 1GE EPON ONU delivers ultra-broadband access for home and SOHO users, leveraging EPON technology to ensure seamless VoIP, Internet, and HD video services. With 900Mbps NAT forwarding, IPv6/IPv4 dual stack, and DS-Lite support, this device is perfect for data, voice, video, and monitoring services. Its plug-and-play design and remote diagnosis capabilities simplify deployment and maintenance, while 802.1ag Ethernet OAM ensures robust link monitoring.
• 900Mbps high-speed forwarding | • IPv6/IPv4 dual stack & DS-Lite support | •
Plug-and-play & remote diagnosis | • 802.1ag Ethernet OAM for E2E link monitoring | •
Ideal for FTTH, FTTB, FTTO, FTTP applications
The EchoLife 1GE ONU is an indoor optical network terminal (ONT) in FTTH solution.
epon onu

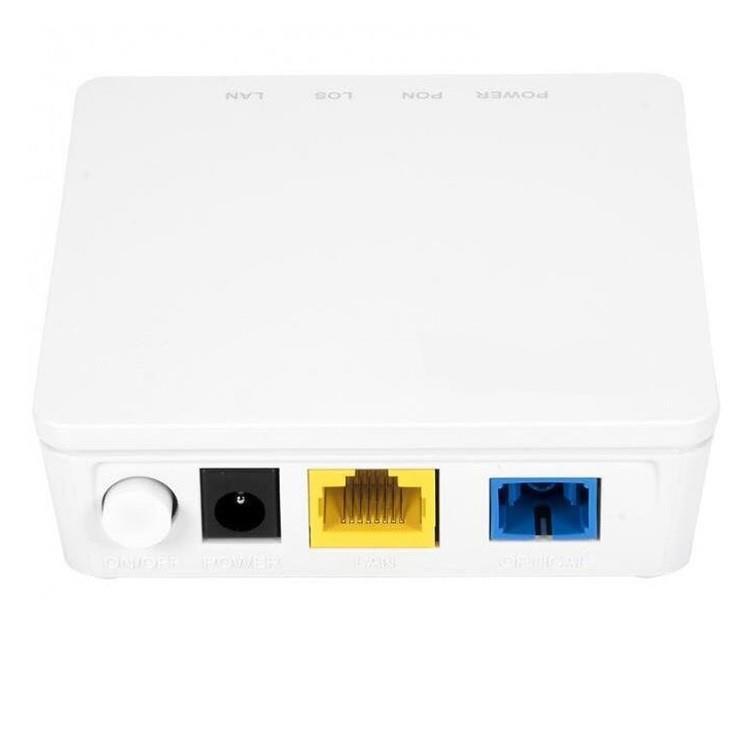

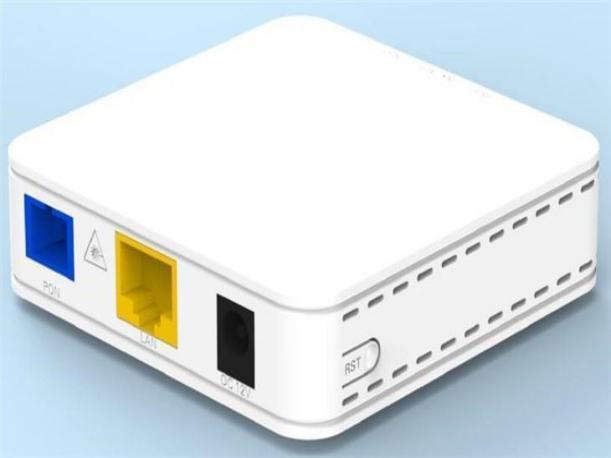

Product Display
This 1ge epon onu By using the EPON technology, ultra-broadband access is provided for home and SOHO users. TheHG8010H provides one GE/FE auto-adaptingEthernetport. TheHG8010 features high-performanceforwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.
Applications of 1ge epon onu:
Data services
Voice services
Video services
Monitoring service
FTTH / FTTB / FTTO / FTTP
Key Features:
Plug and play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault locating. Supports remote batch upgrades, and up to 2,000 devices can be upgraded each hour
Link monitoring: IEEE 802.1ag-based Ethernet OAM that implements end-to-end (E2E) link detection and network isolation
Energy wise: SOC chips feature high-integration capabilities. Each chip integrates the PON, voice, gateway, and LSW modules, with 25 percent power savings
Specification
Technical items
Descriptions
Fiber port 1 EPON interface, SC single-mode/single-fiber, Downstream rate 1.25Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-28dBm (1490nm)
LAN
Throughput
DC power
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput can reach 900Mbps or more
12V 1A, external AC-DC power adapter
Button Reset, power
Power ≤8W
Storage Storage temperature: -30℃-+60℃storage humidity: 10-90%(non-condensation)
