Manufactory Wholesale OLT 4 Port GPON for High-Performance FTTx Solutions
Looking for a compact and efficient solution for your FTTx network? The OLT 4 Port GPON is a 1U rack-mounted device designed for high performance, flexibility, and ease of deployment. With ITU-T G.984/G.988 compliance and support for automatic configuration, EMS, and Web management, it ensures seamless integration into your network. Ideal for "triple play," VPN, IP cameras, and corporate LANs, this OLT delivers 2.5Gbps downstream and 1.25Gbps upstream speeds, supporting up to 512 ONUs with a 1:128 splitting ratio.
• ITU-T G.984/G.988 compliant | • 2.5Gbps downstream, 1.25Gbps upstream | •
Supports up to 512 ONUs | • Automatic configuration & Web management | • Compact 1U rack-mounted design
OLT 4 Port Gpon are 1U high 19-inch rack-mounted products. The characteristics of OLT are small, convenient, flexible, easy to deploy, and high performance.

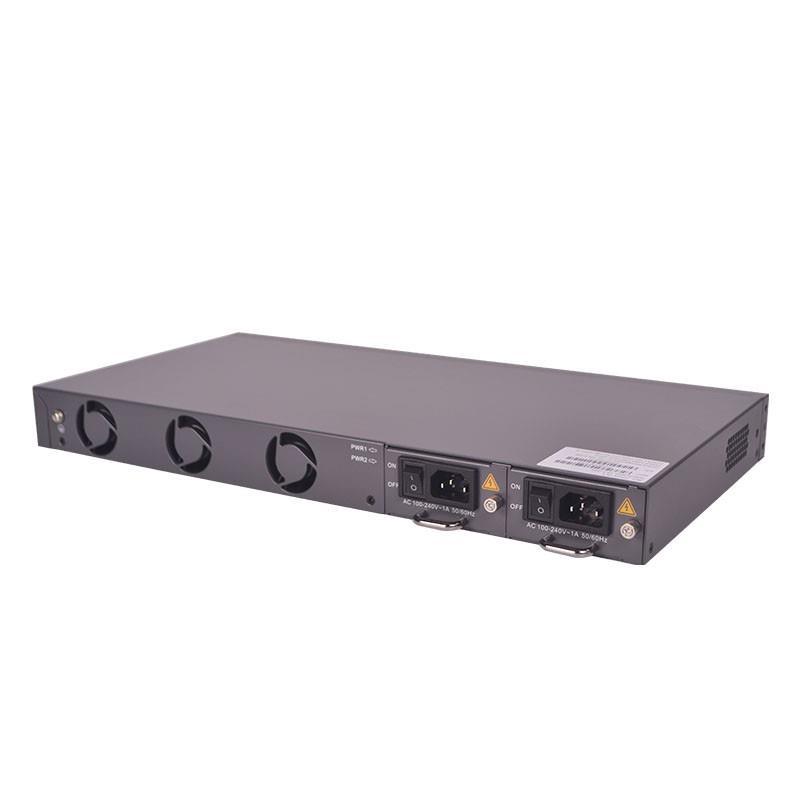

OLT 4 Port Gpon

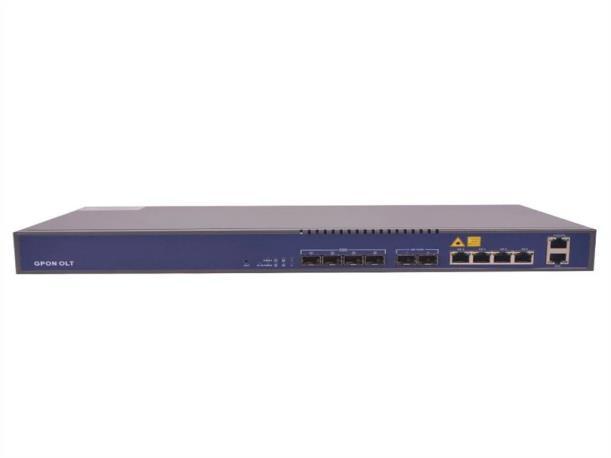

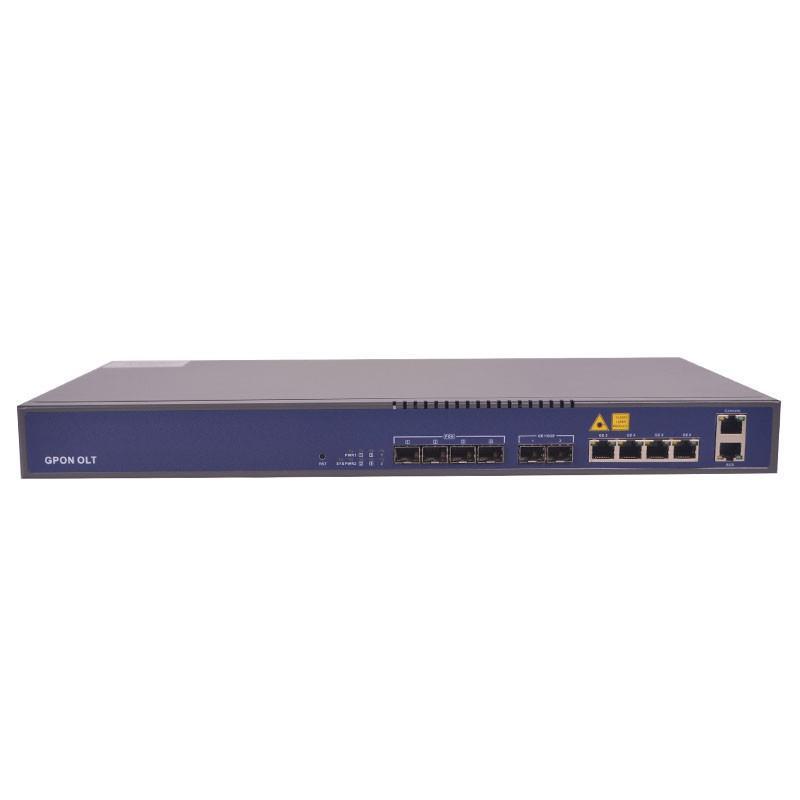

Product Dispaly
This OLT 4 Port Gpon has small, convenient characteristics, which is easy to deploy and with high perfromance. Meet ITU-T G984/G.988 standard, meet Chinese relevant Gpon Standards. With automatic configuration, automatic upgrade, EMS and Web management functions.
OLT 4 Port Gpon is suitable for deployment in compact indoor environments. OLT can be used for "triple play", VPN, IP cameras, corporate LAN and ICT applications.

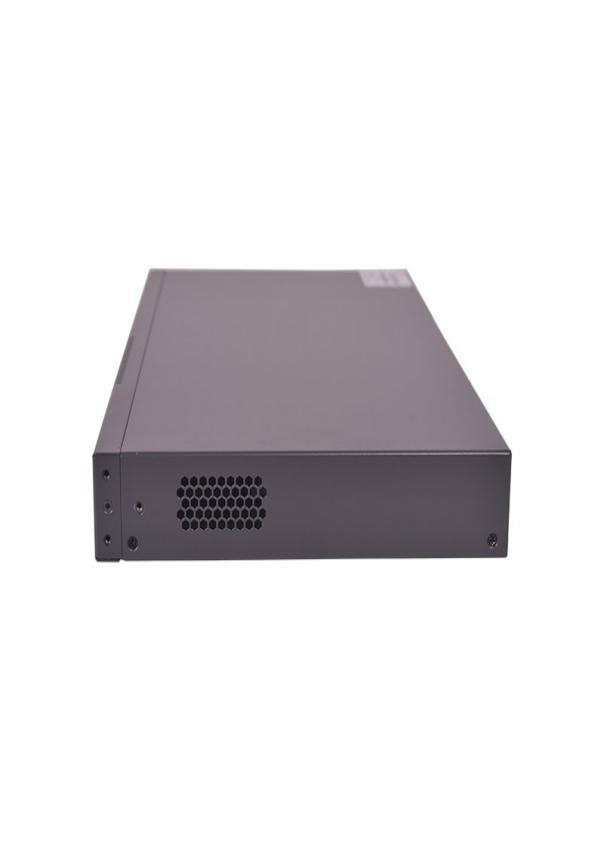

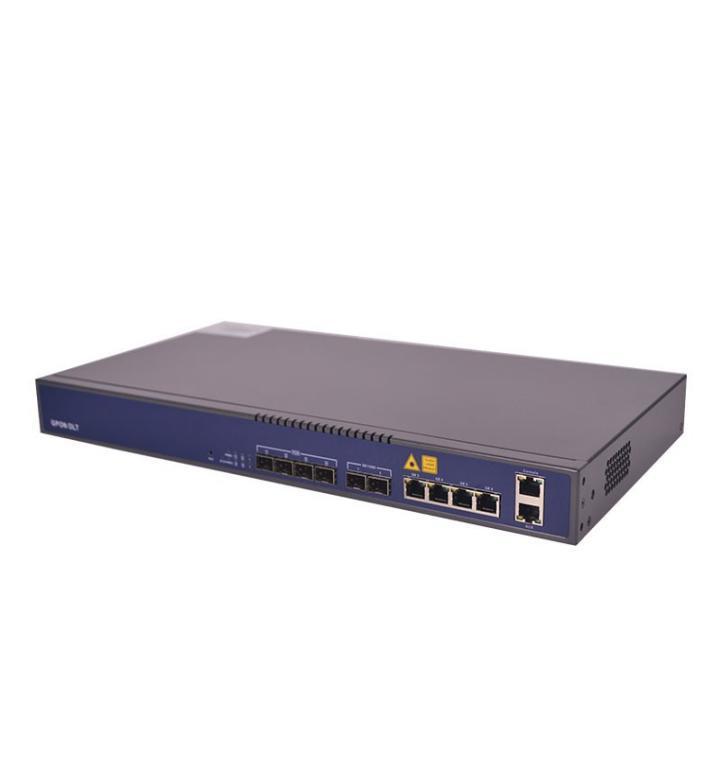

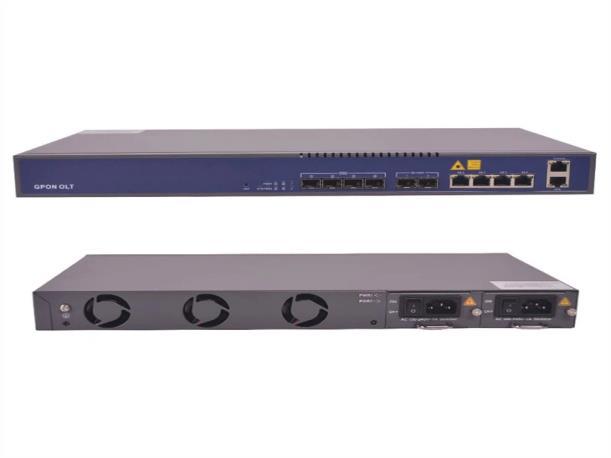

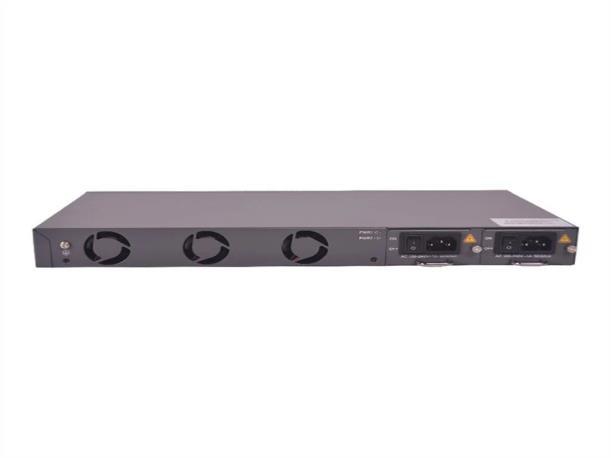

Detail Images
Following picture is the typical GEPON system application, OLTW3000 is used in the center end for operators, and ONU is used in the customers' place. As the FTTx solution, there are the following features:
Each OLT uplink can offer up to 1Gbps bandwidth, support high-speed internet, IPTV multicast/VoD, etc high bandwidth IP data service.
OLT downlink can support up to 512 ONU customers by the optical splitter
It's the passive opticalnetworkbetweenOLTand ONU, greatlyreduce the opticalcable line investment for operators Specifications
PON
Port Quantity 4
Physic al interfa ce SFP slot
Interfa ce type ITU-TG.984.2 Class B+/Class C+
Max splittin g ratio 1:128
Manag ement port
1 10BASE-TX out band port
1 CONSOLE local management port
PON port attribut e Transmission distance 20KM
Port rate Downstream: 2.5Gbps Upstream: 1.25Gbps
Wavel ength Forwarding: 1490nm Receiving: 1310nm
Interfa ce type SC
Fiber type 9/125μm SMF (Single Mode Fiber)
Light transm ission power
Receiv
Netwo rk manag ement metho d Support CLI,SNMP,TELNET
Busine ss capabil ities
Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. PON management function: DBA,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management
Size 440mm(L)*391mm(W)*44mm(H)
Weigh t

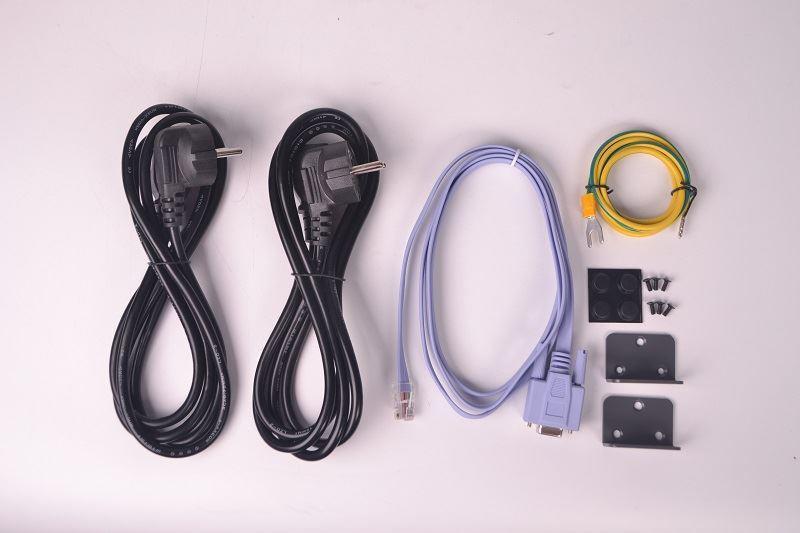

Accessories

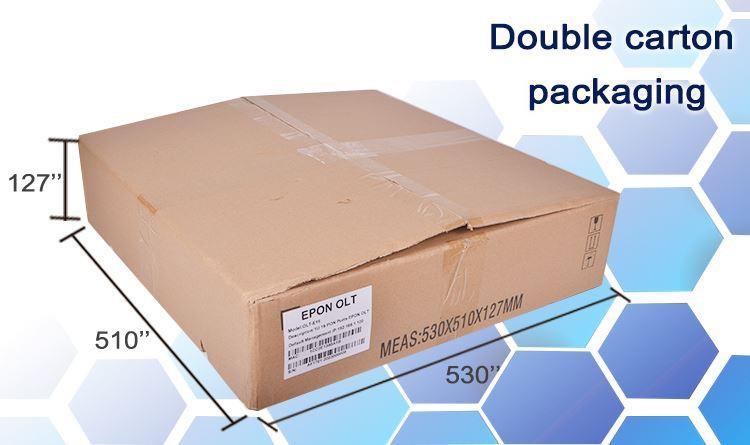

Paking
