Manufactory Wholesale GPON Technology 8 Port OLT for FTTX with 2.5Gbps Downstream and 1.25Gbps Upstream
Looking for a reliable and scalable solution for FTTX deployments? The GPON Technology 8 Port OLT is a 1U rack-mounted device designed to meet ITU G.984.x and FSAN standards, offering 8 GPON ports with a splitting ratio of 1:128. With 2.5Gbps downstream and 1.25Gbps upstream bandwidth, it supports up to 1024 GPON terminals, ensuring high performance and compatibility with third-party ONUs. Ideal for telecom operators and ISPs, this OLT features 4 uplink GE ports, 4 uplink optical ports, and 2 10-gigabit uplink ports, making it a versatile choice for modern network architectures.
• 8 GPON ports with 1:128 splitting ratio | • 2.5Gbps downstream, 1.25Gbps upstream |
• Supports 1024 GPON terminals | • Compatible with third-party ONUs | • 1U compact design for easy deployment

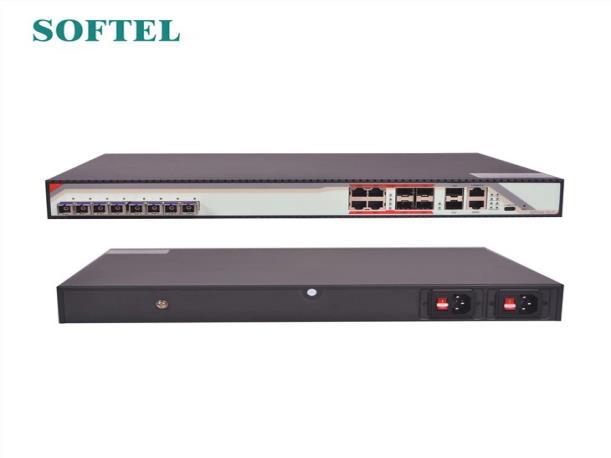

Gpon Technology 8 Port OLT
Description
Specifications

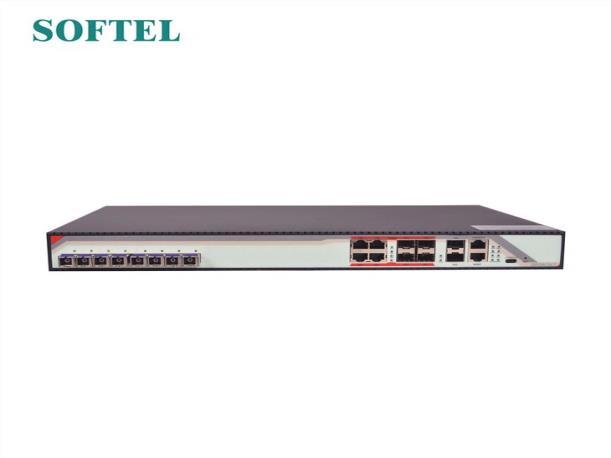

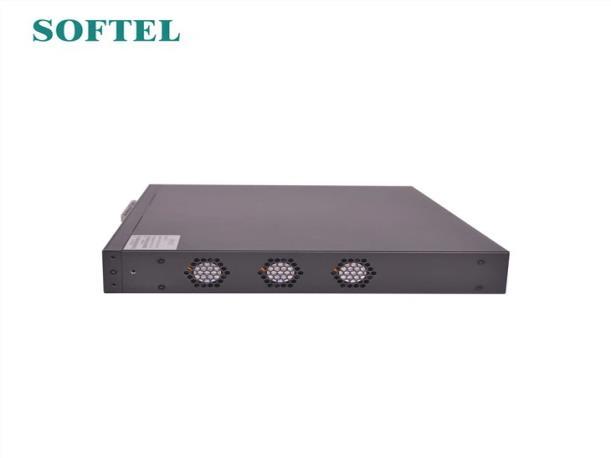

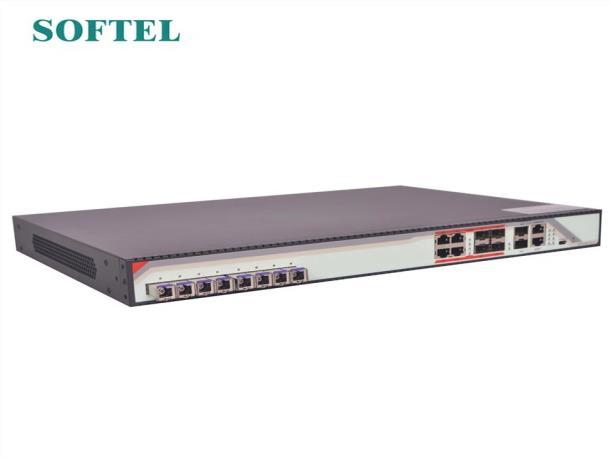

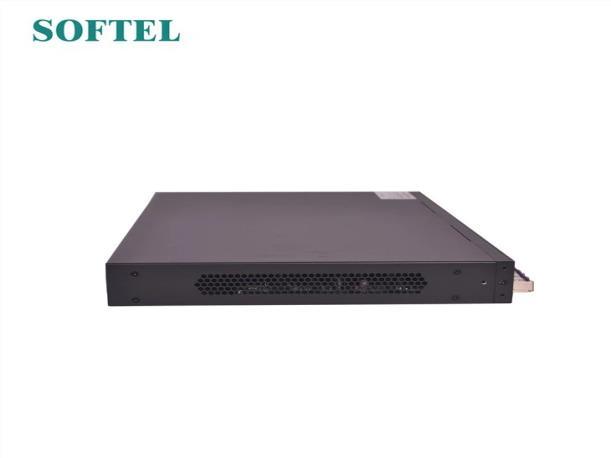

GponOLTOLT-G8 whichis 1Urack-mounted device with1 USBinterface, 4 uplinkGE ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 8 GPON ports, each port supports the splitting ratio of 1:128 and provides 2.5Gbps downstream bandwidth and 1.25Gbps upstream bandwidth, the system of this Gpon technology 8port OLT support 1024 GPON terminals accessing in for the most.
What's more this Gpon technology 8port OLT can fully compatible with third party manufacturers ONU.
Use: FTTX
Product name: GPON Technology 8 port OLT
Management Ports: 1 100/1000BASE-Tx out-band Ethemet port
PON port speed: Down stream: 2.5Gbps; Upstream: 1.25Gbps

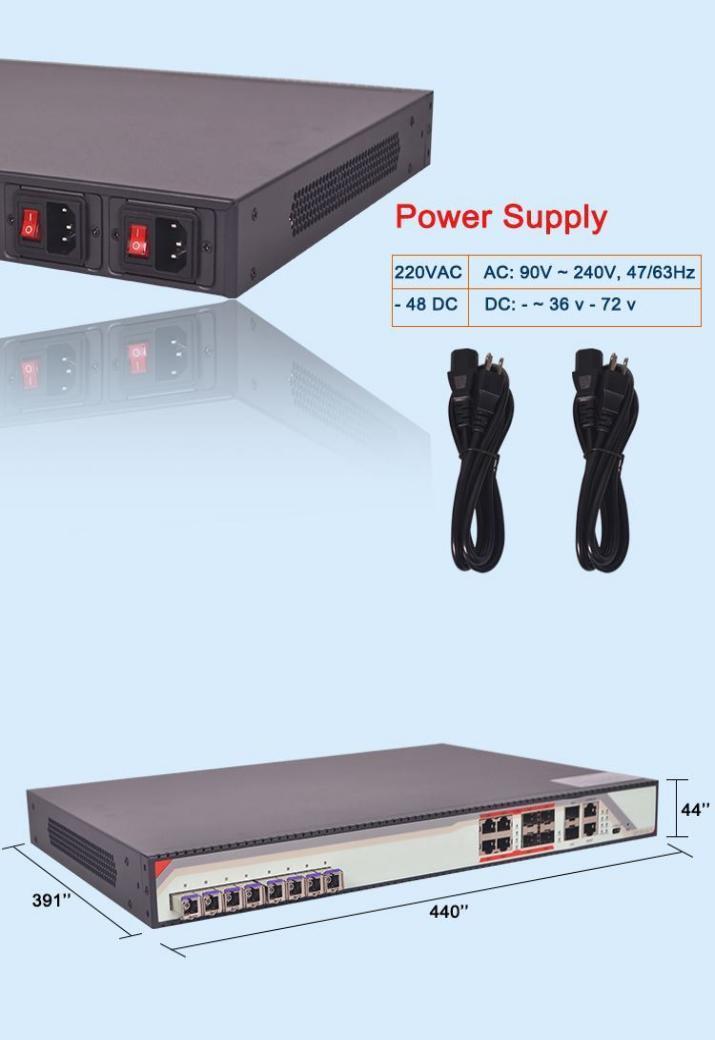

Power Supply: 220VAC/-48DC
Dimension: 440*391*44(mm*mm*mm)
Rack:1U 19 Inch
PON Port Transmission Distance:20km
Wavelength:1490nm TX,1310nm RX
Power Consumption:70W

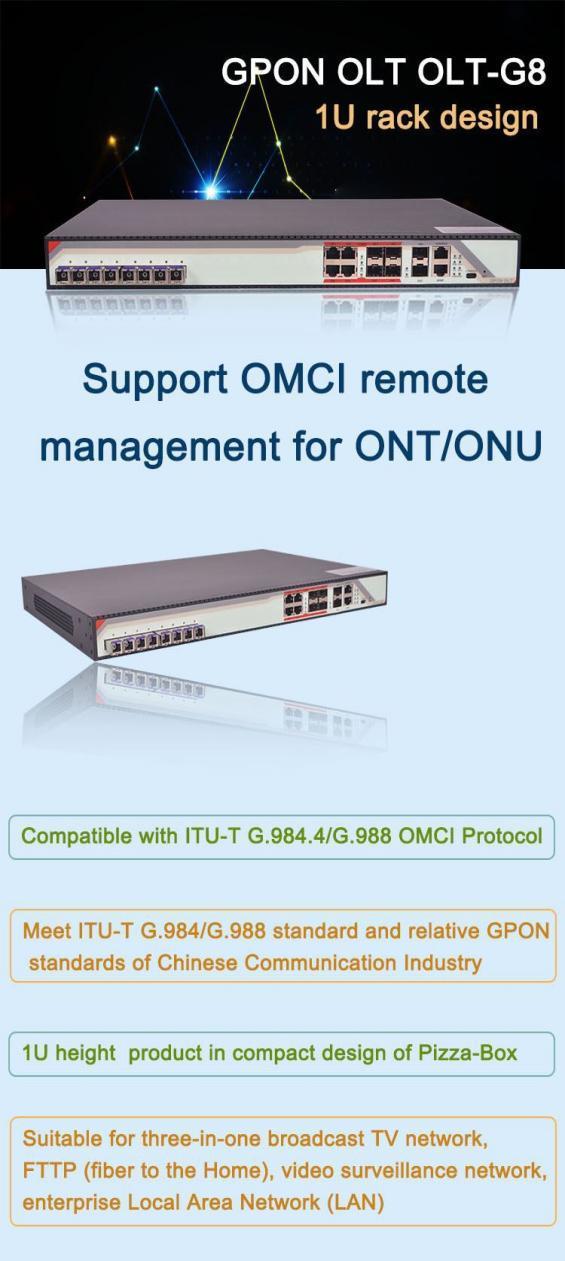

Features
ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry
OMCI remote management for ONT/ONU, fully compatible with ITU-T G.984.4/G.988 OMCI Protocol
1U height Gpon Technology 8PON OLT product in compact design of Pizza-Box
Layer 2 Switching Function
QOS Guarantee
Easy-to-Use Management System

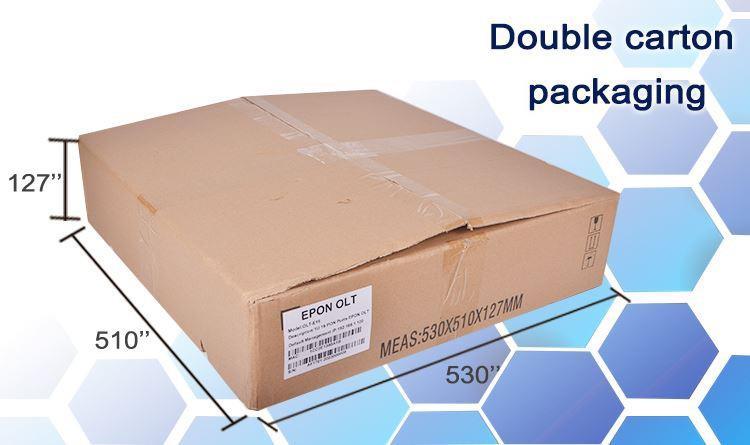

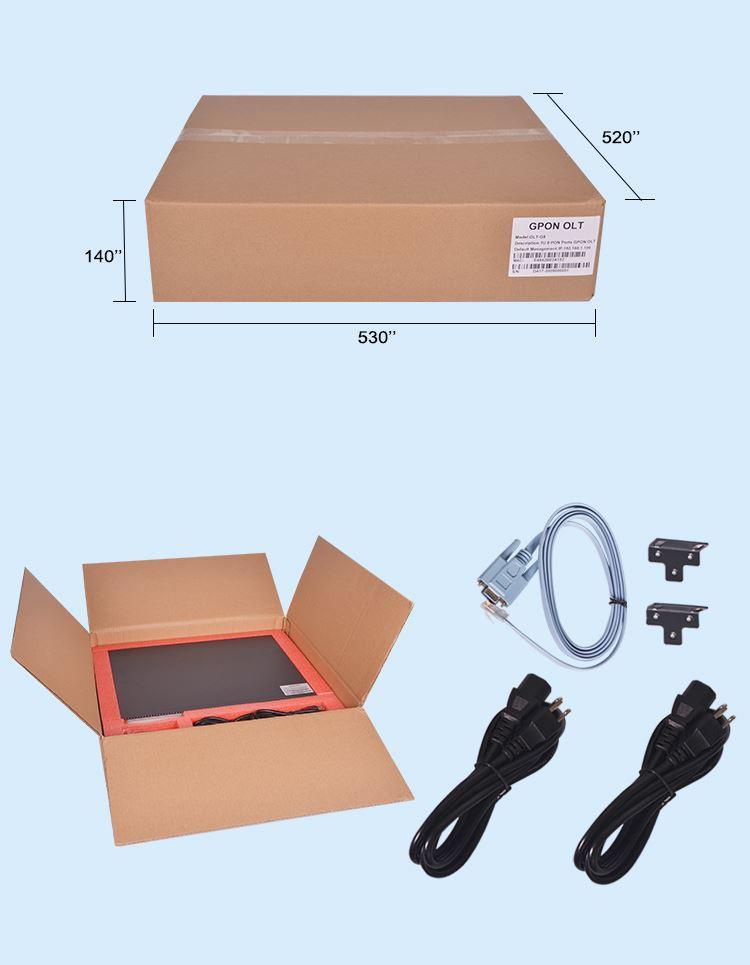

Product Packaging
