Manufactory Wholesale 4 Port ONU WiFi CATV with GPON
Technology for FTTH
Bandwidth Access
Looking for a reliable FTTH bandwidth access solution? The 4 Port ONU WiFi CATV combines GPON technology with single fiber WDM for seamless data transmission, supporting downlink 1490nm and uplink 1310nm wavelengths. This device ensures high stability, QoS guarantee, and flexible networking, making it ideal for INTERNET, CATV, IPTV, VOD, and IP Camera applications. With 4 GE auto-adapting Ethernet ports, 802.11n WiFi, and remote CATV RF control, it’s a versatile choice for modern connectivity needs.
• 4 GE auto-adapting ports | • 802.11n WiFi up to 300Mbps | • Remote CATV RF control
| • ITU-T G.984 compatible | • OMCI & TR069 remote management
ONT-4GE-RFW is a FTTH bandwidth access equipment. Based on stable GPON technology, it has high stability, QoS guarantee,convenient management and flexible networking construction.
4 Port Onu Wifi Catv
Product Discription
4 port ONU wifi catv series is fully compatible with ITU-T G.984 technology standard and third party manufacturers OLT.
This 4 port ONU wifi catv adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm. Which only needs one-core fiber to transmit data service. And it support wifi Wifi function.

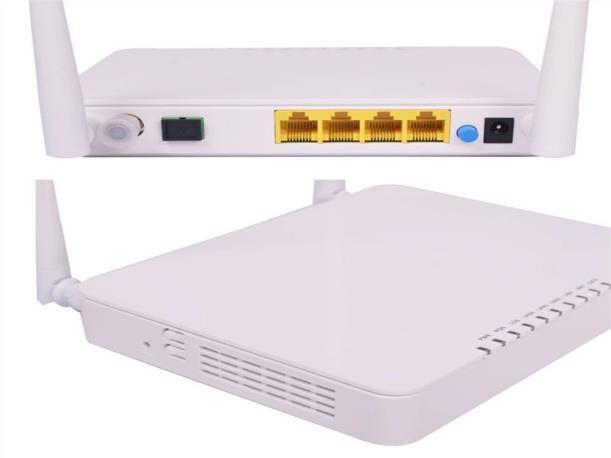

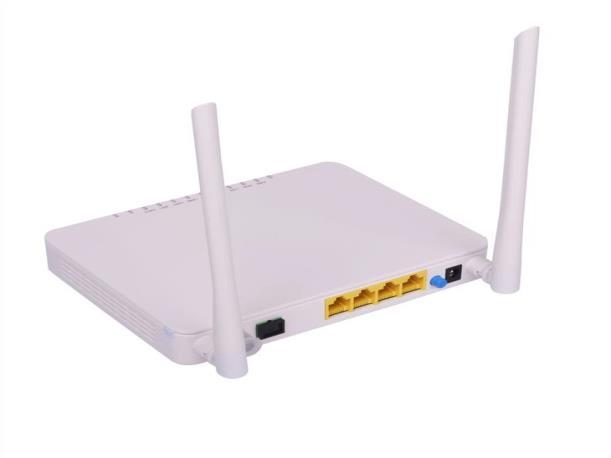

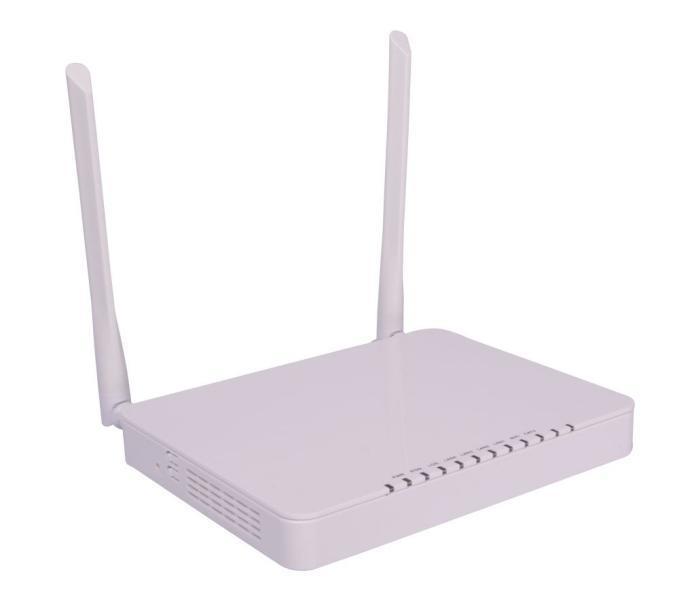

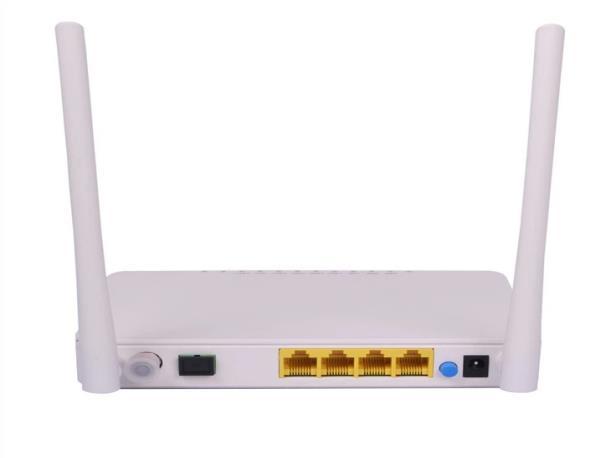

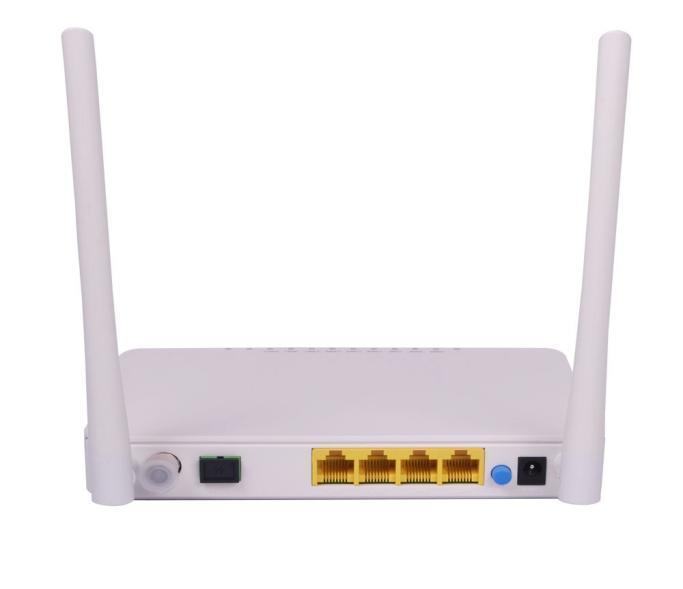

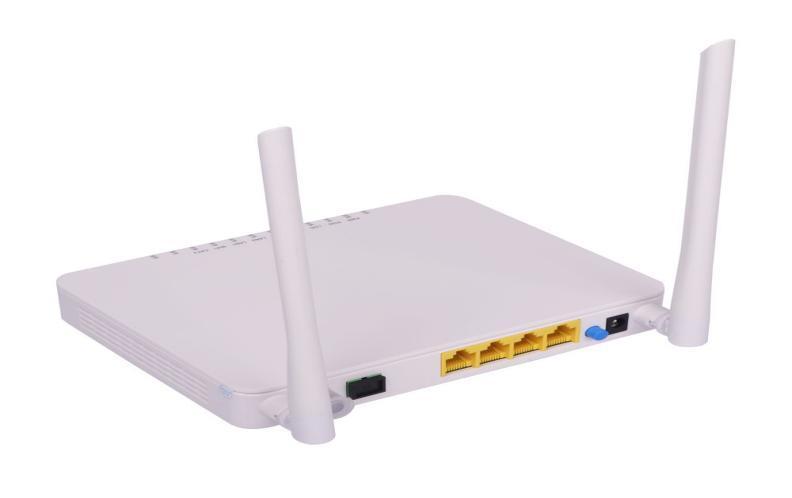

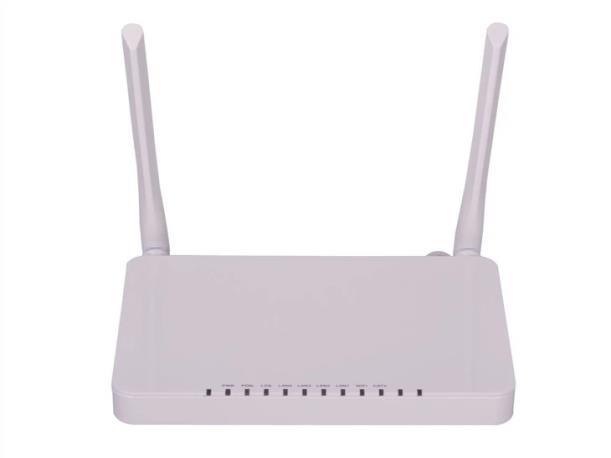

Detail Images
Product Features
Full compatible with ITU-T G.984
Support 4 GE auto-adapting Ethernet ports
Support CATV output
Support one 802.11 n/b/g WiFi port
Support OMCI and TR069 for remote management
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support performance statistics of Ethernet lines
Support PPPoE+ for accurate subscribers identification
Support IGMP Snooping
Support AES-128
CATV support turn on/off RF output remotely
WIFI Features
Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz
Full IEEE 802.11b/g legacy compatibility with enhanced performance
Two-stream spatial multiplexing up to300 Mbps PHY data rates
Support multi-SSID（Maximum 4 SSID）
Support automatic channel selection
Support hide SSID
Support wireless security of 64/128 bit WEP、802.1x、WPA and WPA2
Frequency: 2.400 ~ 2.500 GHz
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Wireless data rate: IEEE 802.11b: 1,2,5.5,11Mbps; IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps; IEEE 802.11n: up to 200 Mbps
Channel: 13*Channel, configurable to meet the standard of USA, Canada, Japan and China
Transmission distance：100m indoors coverage area；300m outdoors coverage are (varying depending on the actual environment)
Application
Typical Business: INTERNET, CATV, IPTV, VOD, IP Camera, Wi-Fi

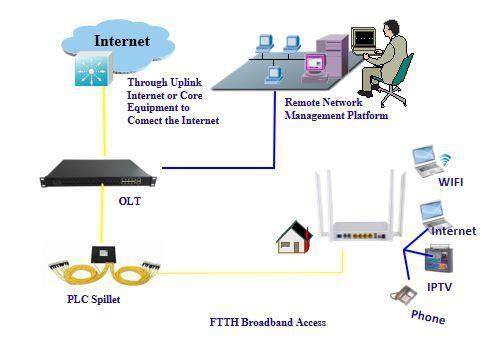

Network Application

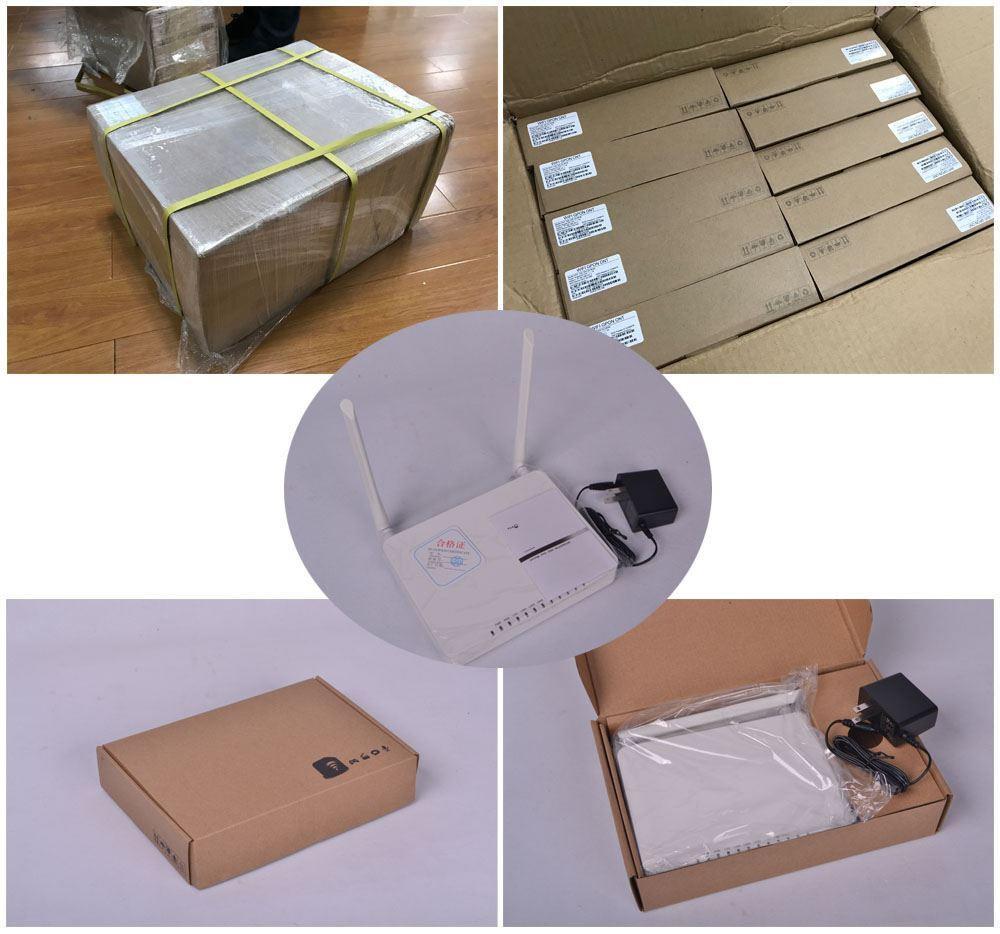

Packaging
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
