Manufactory Wholesale Outdoor 8 Port EPON OLT with EDFA WDM for Harsh Environments -40℃ to +75℃
Deploying networks in extreme conditions? The Outdoor 8 Port EPON OLT is engineered for harsh environments, operating seamlessly from -40℃ to +75℃. With integrated EDFA/YEDFA and Layer 3 switching, this OLT reduces engineering costs while offering pole, wall, and corridor mounting flexibility. Ideal for telecom and enterprise networks, it delivers 128Gbps backbone bandwidth, 20KM transmission distance, and supports up to 512 ONUs.
• Built-in EDFA 100-200mW | • 128Gbps backbone bandwidth | • -40℃ to +75℃ operating range | • Layer 2 & 3 functions | • SNMP, Web, and CLI management
Outdoor 8 port epon olt with EDFA WDM outdoor 8 port epon olt

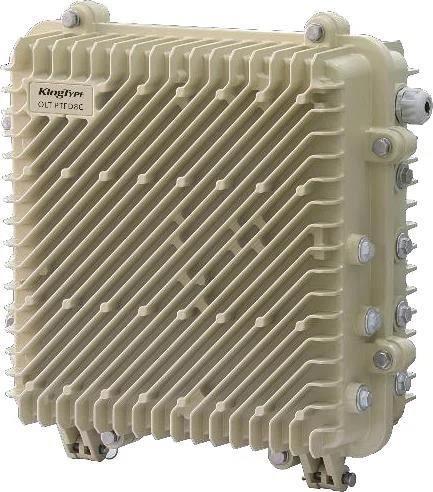

Product Display

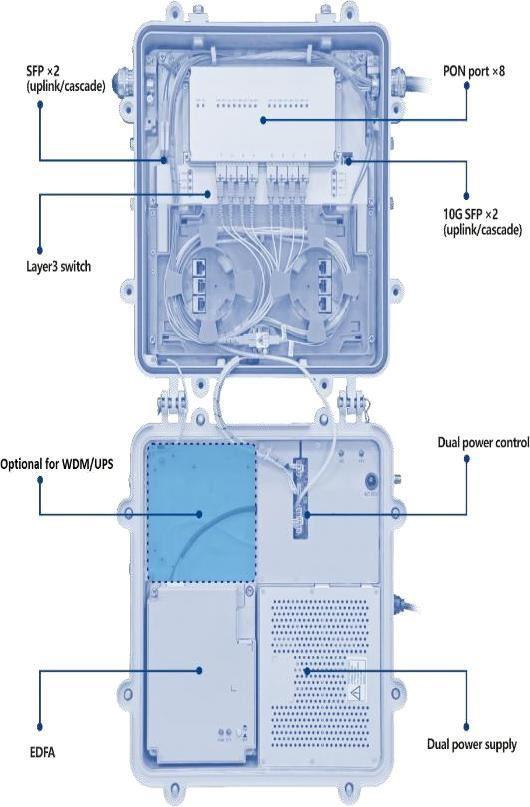

outdoor 8 port epon olt is 8 EPON outdoor OLT, which extensively designed for complex and harsh environment-40℃to +75℃, flexible for deployment outdoor, corridor and pole mounting, which ultimately reduce the engineering cost, PTFD8C offers integrated functionality which is layer 3 switch + EDFA/YEDFA + OLT
Features- outdoor 8 port epon olt
· 150V – 265V AC ; 60V -48V AC optional Cable power supply
· Build-in EDFA 100-200mW
·Working Temp. -40℃to +75℃
· Delivering Capacity-
· Backbone bandwidth 128Gbps
Security features -
· Bidirectional data encryption
· ONU authentication
· MAC limit
· L2 – L4 ACL and Port Isolation
Layer 2 Functions –
· Fully support of QoS
· Support VLAN Translation
· Support VLAN QinQ
· Support VLAN tagging
· Support Link aggregation
Layer 3 Functions -
· ARP, ARP proxy
· DHCP relay, DHCP proxy
· Static routing
· Dynamic routing: RIP, OSPF
Parameter
Chassis
EDFA/YEDFA
Technical Specifications
Mountable, Wall mountable
SFP+ & 2xGE SFP
RJ45
EDFA Out: 23dBm & YEDFA Out: 28dBm Wavelength: 1550nm
PON Port Specification
Transmission Distance 20KM
EPON port speed
Symmetrical 1.25Gbps Wavelength
1490nm, RX 1310nm
Connector
Management Mode SNMP, Web and CLI
Management Function Port Status monitoring and configuration management; EPON management function: DBA, ONU authorization, ACL, QOS, etc.; Online ONU configuration and management; User management; Alarm management.
