Manufactory Wholesale OLT Epon 8PON Port
High-Performance FTTx Solution for Triple-Play and IoT Applications
Looking for a compact and flexible OLT solution? The OLT Epon 8PON Port delivers high performance with 8GE copper and 8SFP combo uplink interfaces, supporting up to 256 ONUs under a 1:64 splitter ratio. Ideal for Triple-Play, CPN, IP Camera, Enterprise LAN, and IoT applications, it ensures higher access bandwidth, reduced operational costs, and efficient fiber utilization. With a 20KM transmission distance and AES-128 encryption, this 1U rack-mountable OLT is the perfect FTTx solution for operators.
• 8PON ports with 1:64 splitter ratio | • 20KM transmission distance | • AES-128
encryption | • Supports Triple-Play, CPN, IoT | • 1U rack-mountable design
The Epon OLT OLT-E8 is small, convenient, flexible, easy to deploy, with high performance. This series of OLT can be used in “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications.
Olt Epon 8pon Port
Product Description

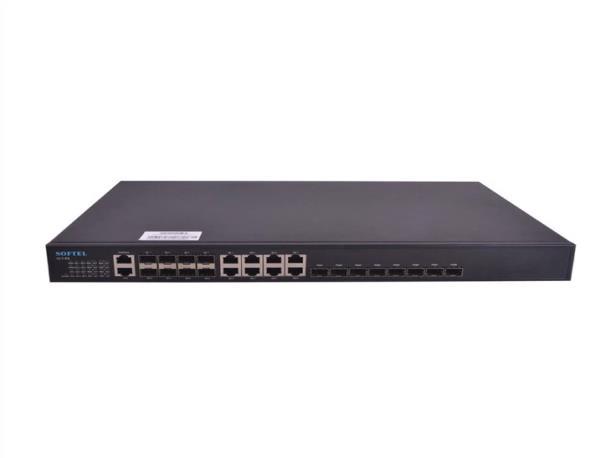

OLT Epon 8PON Ports 1U Pizza-Box OLT provides 8GE(copper) and 8SFP slots Combo interface for uplink, and 8 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.
Summary
GEPON (Gigabit Ethernet Passive Optical Network) is consist of OLT(Optical Line Terminal), ONU (Optical Network Unit) and
the optical splitter. OLT provides the uplink Ethernet port which is connected to IP core network, and meanwhile offers the downlink PON ports. Every PON port is connected to the optical splitter by the single optical fiber, and then connected to ONU according to the certain ratio.
This OLT Epon 8 pon port provide the higher access bandwidth, more terminal users, and effectively decrease the project operation and investment cost. So it's the ideal FTTx solution for operators.
Management Ports 1*100BASE TX outband port 1 CONSOLE port
PON Port Specification
（Apply to PON Module
Wavelength 1490nm TX,1310nm RX
Connector SC/PC
Fiber Type 9/125μm SMF TX Power +2～+7dBm Rx Sensitivity -27dBm
Saturation Optical Power -6dBm
Management
Characteristic
1U height, the installation is simple and flexible
Follow IEEE802.3ah standard
Support 1:64 splitting ratio, High utilization rate of optical fiber
Support the transmission distance 20 kilometers
Offer L2/L3 switch function
Support ACL
Support DBA(Dynamic Bandwidth Allocation)
QoS supports IEEE802.1p, IP Precedence, DSCP IP
ONU automatic identification
MAC address limitation
Have AES-128 encryption technology
Support IGMP Snooping
Support OAM
Support IEEE802.1x
Contact:Tomleequan Email：
Contact:Tomleequan
Provide NMS based on SNMP, GUI interface, and support in-band and out-band management Main Application
As the FTTx solution, there are the following features:
Each OLT uplink can offer up to 1Gbps bandwidth, support high-speed internet, IPTV multicast/VoD, etc high bandwidth IP data service.
OLT downlink can support up to 512 ONU customers by the optical splitter
It's the passive optical network between OLT and ONU, greatlyreduce the optical cable line investment for operators
