Manufactory Wholesale 4 Pon Ports EPON OLT with 256 ONU
Support for High-Performance Fiber Networks
Looking for a compact yet powerful solution for fiber network deployment? The 4 Pon Ports EPON OLT is a 1U rack-mount device designed for high-performance and flexibility in compact environments. With 4GE and 4 SFP combo uplink interfaces, it supports up to 256 ONUs under a 1:64 splitter ratio, ensuring efficient fiber utilization. Compliant with IEEE802.3ah standards, it offers advanced features like Dynamic Bandwidth Allocation (DBA), AES-128 encryption, and 20KM transmission distance. Ideal for telecom operators and enterprise networks, this OLT ensures reliable, scalable, and secure connectivity.
• Supports 256 ONUs | • 20KM transmission distance | • IEEE802.3ah compliant | • AES-128 encryption | • Dynamic Bandwidth Allocation (DBA)
OLT-E4 provides 4GE and 4 SFP slots Combo interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.

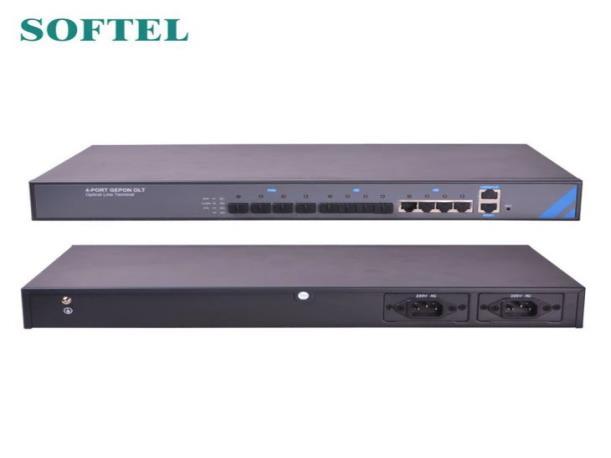

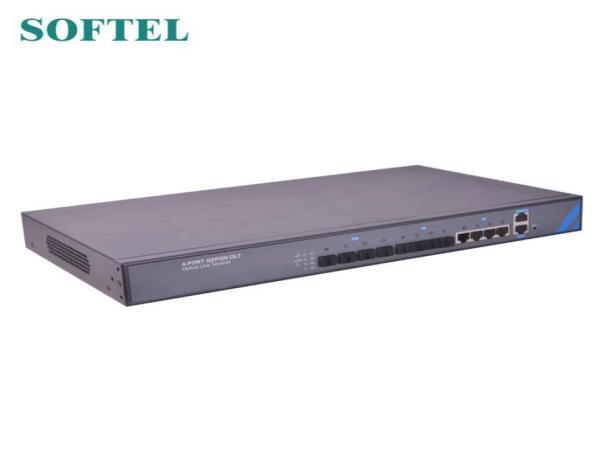

4 Pon Ports EPON OLT
4 Pon Ports EPON OLT is a 1U high 19 inch rack mount olt. It is small, convenient, flexible and of high performance. It is appropriate to deploy in a compact room environment .
OLT-E4 provides 4GE and 4 SFP slots Combo interface for uplink, and 4 EPON ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.
Characteristic
The installation is simple and flexible.
It follows IEEE802.3ah standard
Support 1:64 splitting ratio, High utilization rate of optical fiber
Support the transmission distance 20 kilometers
Offer L2/L3 switch function
Support DBA(Dynamic Bandwidth Allocation)
QoS supports IEEE802.1p, IP Precedence, DSCP IP
ONU automatic identification
MAC address limitation
Have AES-128 encryption technology
Support IGMP Snooping
Support OAM
It Support IEEE802.1x
It provides NMS based on SNMP, GUI interface, and support in-band and out-band management
Parameters
Item 4 Pon Ports EPON OLT
Slots N/A
Port
10/100/1000M auto-negotiable,RJ45: 8pcs
Uplink
Management
Ports
Management Mode
Saturation Optical Power
Management Function
SNMP, Telnet, and CLI management mode.
Fan Group Detecting
Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA, ONU authorization, ACL, QOS, etc;
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Online ONU configuration and management
User management Alarm management
Support port VLan and protocol Vlan
Support Vlan tag/Untag , vlan transparent transmission;
Support 4096 VLAN
Support 802.3dd trunk
Layer-two Switch
RSTP
QOS based on port ,VID,TOS and M AC address
IGMP Snooping
Contact:Tomleequan
Contact:Tomleequan Email：
802.x flow control
Port stability statistic and monitoring
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
EPON Function
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
configuration .Different user and different service could provide different QoS by means of different LLID channels.
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable syste m
Support dynamic distance calculation on EMS online
Support RSTP, IGMP Proxy
Dimension 442mm(L)*315mm(W)*44mm(H)
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
