Wholesale Gepon Wifi ONU (ONT-2GF-W) Dual
Mode
EPON/GPON Gateway for FTTH and FTTB Solutions
Looking for a reliable and versatile optical network unit? The Gepon Wifi ONU (ONT-2GF-W) is a dual-mode ONU that automatically establishes EPON or GPON links, ensuring seamless connectivity for residential and SOHO users. Compliant with ITU-T G.984 and IEEE802.3ah standards, it supports FTTH and FTTB applications, offering 1.25Gbps uplink and 2.5Gbps downlink speeds. With advanced features like auto-discovery, remote management, and dynamic bandwidth allocation, this device delivers carrier-grade reliability and security.
• Dual-mode EPON/GPON support | • 1.25Gbps uplink, 2.5Gbps downlink | • FTTH and FTTB solutions | • Auto-discovery and remote management | • Carrier-grade reliability and security
Gepon wifi onu (ONT-2GFW )supports EPON and GPON network. It is dual mode ONU,which will automatically establish an EPON link with the EPON OLT or GPON link with the GPON OLT by identifying the local OLT mode. It supports the EPON ONU OAM and GPON ONT OMCI as well.

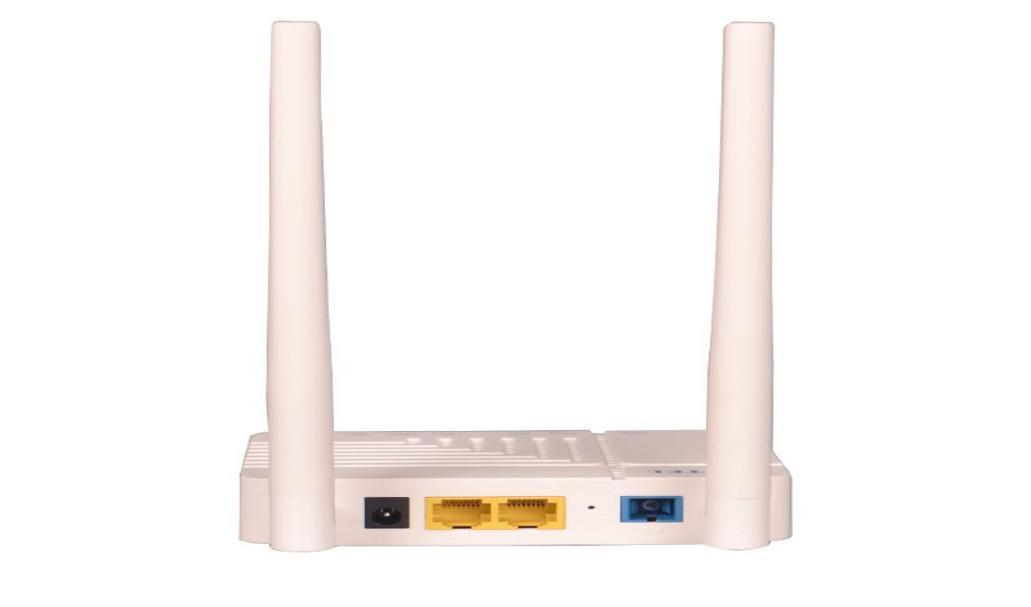

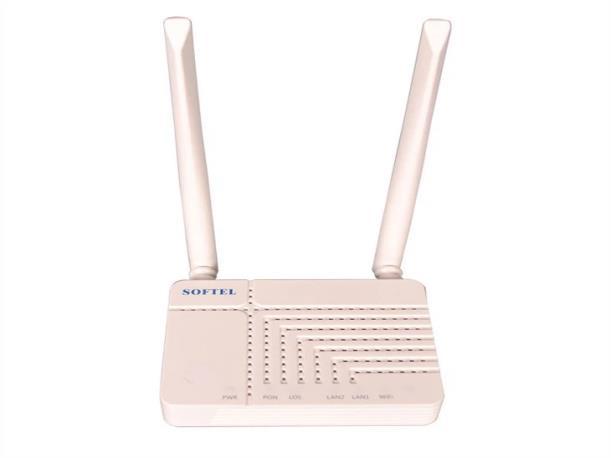

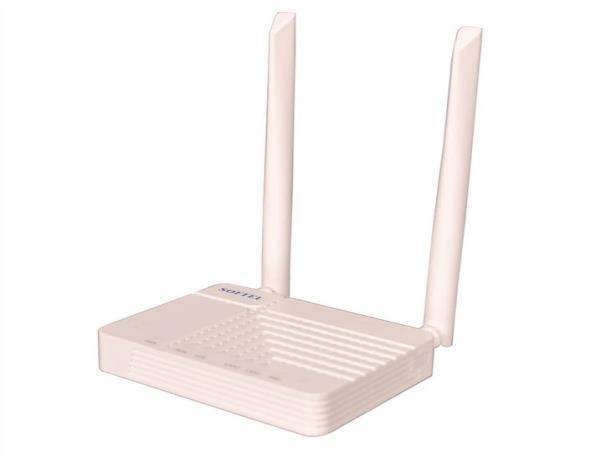

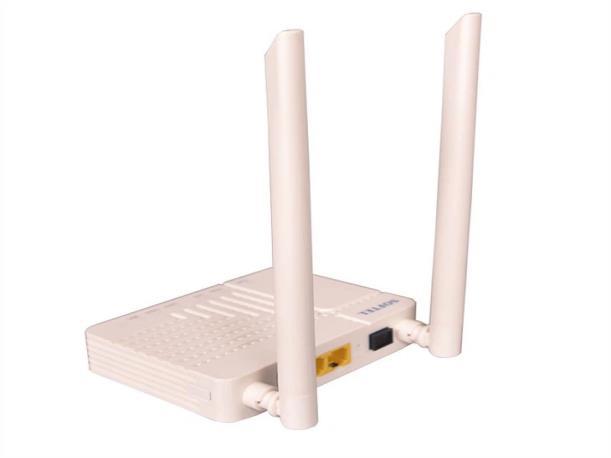

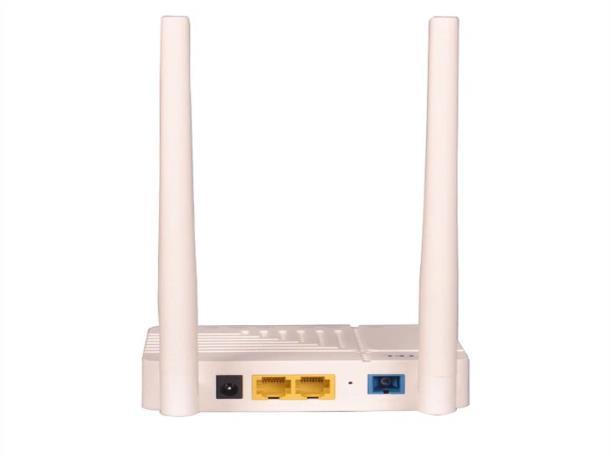

Product Display
Gepon Wifi ONU (ONT-2GF-W) is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.

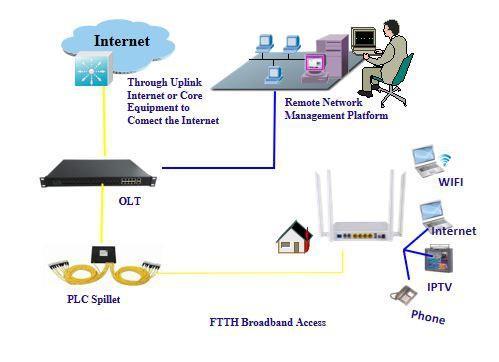

The uplink of ONT-2GF-W provides one PON interface, while downlink provides two Ethernet and RF interface. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates thereliability, maintainabilityandsecurity design of carrier-gradeequipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Product features
GPON mode:
In compliant with ITU - T G. 984 Standard
Support ONU auto-discovery/Link detection/remote upgrade of software
Wi-Fi series meet 802.11 n/b/g technical standards
Support VLAN transparent, tag configuration
Support multicast function
Support DHCP/Static/PPPOE internet mode
Support port-binding
Support OMCI+TR069 remote management
Support data encryption and decryption function
Support Dynamic Bandwidth Allocation (DBA)
Support MAC filter and URL access control
Support power-off alarm function ,easy for link problem detection
Specialized design for system breakdown prevention to maintain stable system
EMS network management based on SNMP ,convenient for maintenance
EPON mode:
In compliant with IEEE802.3ah Standard
Support ONU auto-discovery/Link detection/remote upgrade of software
Wi-Fi series meet 802.11 n/b/g technical standards
Support VLAN transparent, tag configuration
Contact:Tomleequan Email：
Support multicast function
Support DHCP/Static/PPPOE internet mode
Support port-binding
Support OAM+TR069 remote management
Support data encryption and decryption function
Support Dynamic Bandwidth Allocation (DBA)
Support MAC filter and URL access control
Support power-off alarm function ,easy for link problem detection
Specialized design for system breakdown prevention to maintain stable system
EMS network management based on SNMP ,convenient for maintenance
Hardware specification
PON Interface Interface Type SC/PC, CLASS B+ Rate
Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface 1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface
Size (Mm)
Maximum Power
167(L)×118(W)×30(H)
Consumption <8W
Weight 120g
Operating Environment Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% （no condensation）
Power Supply External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module

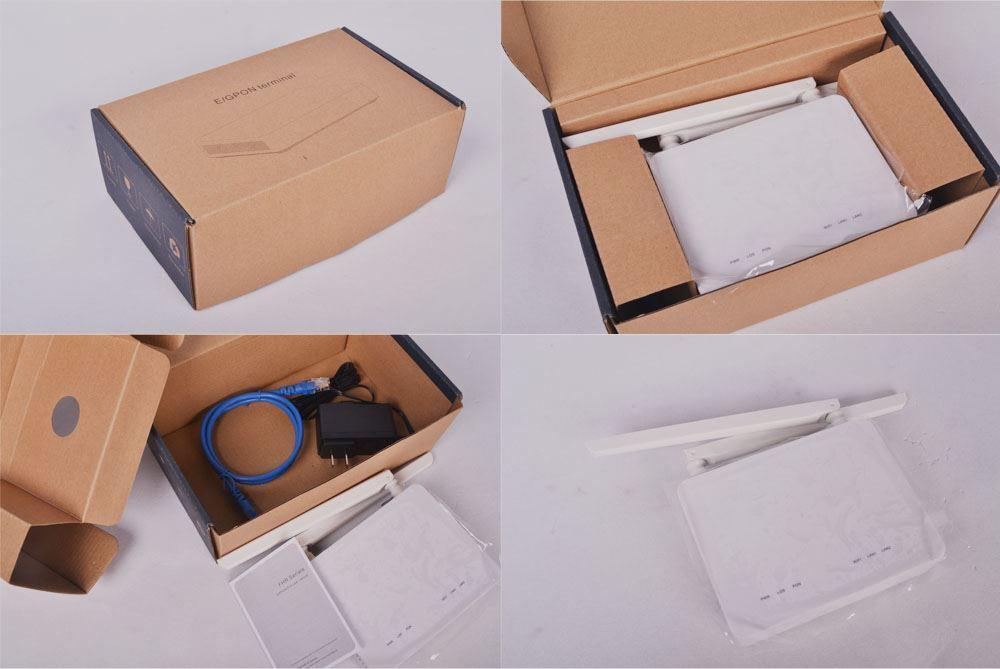

Packaging
External dual antenna, antenna gain 5db, antenna power 16~21dbm Support 2.4GHz, 300M transmission rate
