Manufactory Wholesale 4GE Single-Fiber CATV Dual-Band
ONT
for FTTH/FTTO GPON Networks
Looking for a reliable and scalable solution for broadband access networks? The 4GE Single-Fiber CATV Dual-Band ONT is designed to meet the demands of modern GPON networks, offering high reliability, QoS guarantees, and easy management. With dual-band CATV support and 4 Gigabit Ethernet ports, it delivers seamless data and video services for FTTH/FTTO applications. Featuring a downstream rate of 2.488Gbps and upstream rate of 1.244Gbps, this ONT ensures low latency (<1.5ms) and high performance. Its compact design and flexible expansion make it ideal for residential and commercial deployments.
• Dual-band CATV support | • 4 Gigabit Ethernet ports | • GPON network compatibility |
• Low latency (<1.5ms) | • Easy management and scalability
ONT-4GE-RFDW have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking.
4GE
Single-fiber CATV Dual-Band ONT
ONT-4GE-RFDW dual-band CATV type ONU is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.

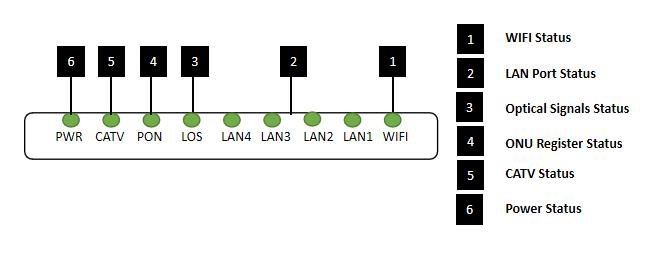

Product Interface and LED Definitions
Indicat or Descripti on
4GE Single-fiber CATV Dual-Band ONT
CATV
Blinking：Data is being transmitted
On: Ethernet connection is normal
Blinking: Data is being transmitted through the Ethernet port
Off: Ethernet connection is not set up
On: Optical power lower than receiver sensitivity ; Off: Optical in normal
On: Success to register to OLT
Blinking: In process of registering to OLT
Off: Failed to register to OLT;
On：CATV optical normal
：The CATV signals are not received
On: The ONU is power on Off: The ONU is Power off Specification

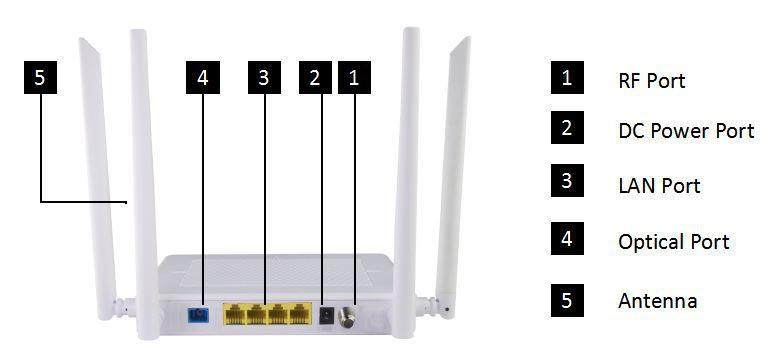

Interface PON Interface
1*GPON port, FSAN G.984.2 standard, Class B+
Downstream Data Rate： 2.488Gbps
Upstream Data Rate： 1.244Gbps
SC/PC single mode fiber
28dB Link loss and 20KM distance with 1:128
Ethernet Interface
Power Interface
Performanc
1 RF output F-Type Connector
4*10/100/1000M auto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X 100m distance
12V DC Power supply
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～5dBm
Rx Sensitivity: -28dBm
Saturation Optical Power: -8dBm
Data
Transmissio n Parameter
PON Throughput: Downstream
2.488Gbit/s; Upstream 1.244Gbit/s
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
Network Manageme nt Management Mode
Standard compliant OMCI interface as defined by ITU-T G.984.4
Support TR069 and WEB management
Manageme nt Function
Physical Features
Power
Physical Specificatio ns
Status monitor, Configuration management, Alarm management, Log management
Shell
Power supply: DC 12V /1A
Power consumption: <8.5W
Item Dimension：240mm(L) x 210mm(W) x 24mm (H)
Item weight：0.4kg
About Us
White plastic casing
