Manufactory Wholesale 1GE 1FE CATV Wifi XPON ONU for
FTTH FTTB Residential and SOHO Users
Looking for a reliable and efficient solution for last-mile broadband access? The 1GE 1FE CATV Wifi XPON ONU is a residential gateway device designed for FTTH and FTTB applications, offering seamless integration of PON, Ethernet, and RF interfaces. With uplink speeds of 1.25Gbps and downlink speeds of 2.5Gbps, this device ensures high-performance connectivity for residential and SOHO users. Built with carrier-grade reliability and security, it supports ITU-T G.984 and IEEE802.3ah standards, making it a trusted choice for optical access solutions.
• 1 PON interface | • 2 Ethernet & 1 RF interface | • FTTH & FTTB support | •
Carrier-grade reliability | • ITU-T G.984 & IEEE802.3ah compliant

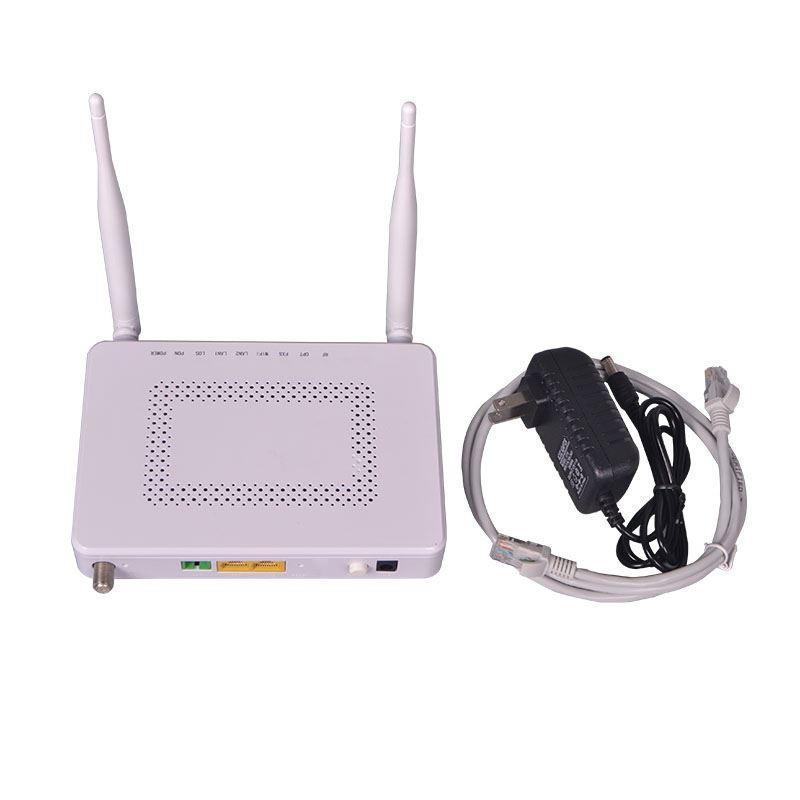

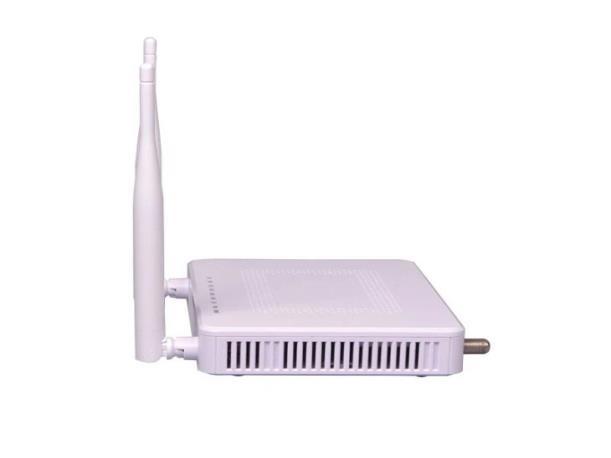

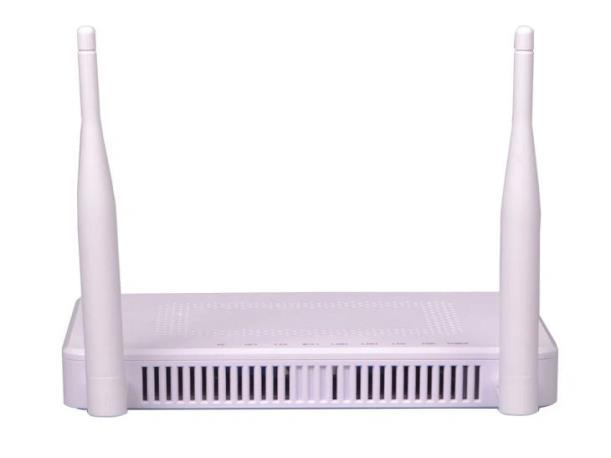

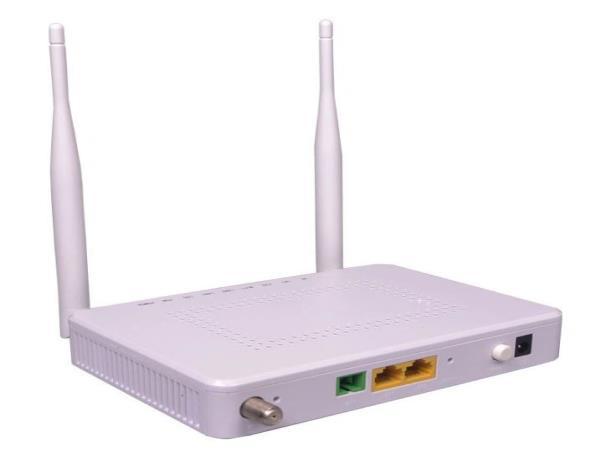

ONT-2GF-RFW is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.
1ge 1fe catv Wifi xpon onu
Contact:Tomleequan Email：
The uplink of1GE 1FE CATVWifi XPON ONUprovides one PON interface, while downlink provides twoEthernet and one RF interfaces. 1ge 1fe catv Wifi xpon onu can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). Besides, this 1ge 1fe catv Wifi xpon onu fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Hardware Specification of 1GE 1FE CATV Wifi XPON ONU
Interface Type SC/PC, CLASS B+
PON Interface
Rate
Uplink: 1.25Gbps; Down link: 2.5Gbps
User-Sid e Interface
1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface
Size (Mm) 167(L)×118(W)×30(H)
Maximu m Power
Consum ption <8W
Weight 200g
Operatin g Environ ment Temperature: -10°C ~ 55°C, Humidity: 5% ~ 95% （no condensation）
Power Supply External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length:
9.0±0.1mm
WLAN Module
Internaland external dual antenna, antenna gain 5db, antenna power 16~21dbm; Support 2.4GHz, 300M transmission rate More products
