Manufactory Wholesale 1GE 1FE CATV Wifi GPON ONU with High Bandwidth and ITU-T G.984 Compliance
Looking for a reliable and high-performance GPON ONU? The 1GE 1FE CATV Wifi GPON ONU combines GPON technology, WDM, and HFC to deliver superior bandwidth, reliability, and QoS. With a downstream rate of 2.488Gbps and upstream rate of 1.244Gbps, it ensures efficient data transmission for residential and commercial applications. Its ITU-T G.984 compliance and compatibility with third-party OLTs make it a versatile choice for FTTH deployments.
• High bandwidth: 2.488Gbps downstream, 1.244Gbps upstream | • ITU-T G.984
compliant | • CATV and Wifi integration | • Easy management with WEB and TR069
support | • Ideal for residential and commercial use
It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
Contact:Tomleequan Email：

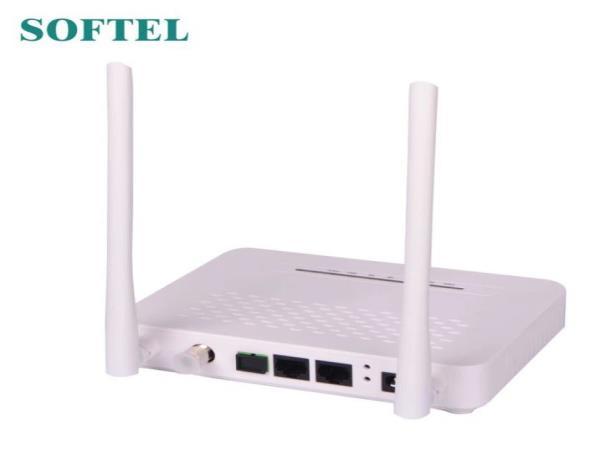

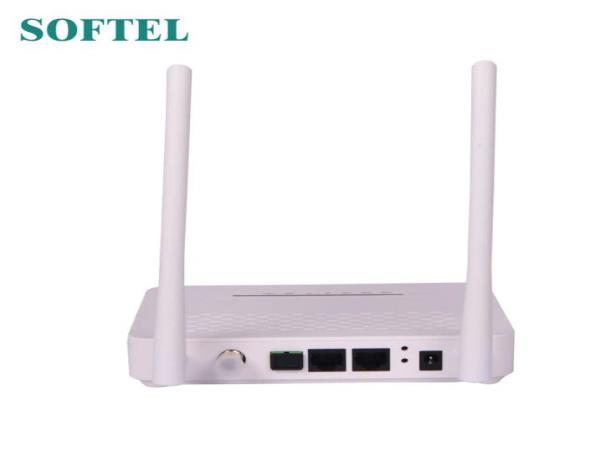

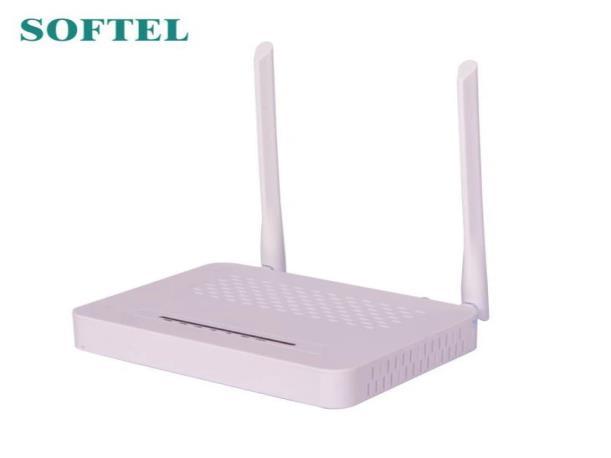

ONT-2GF-RW is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology. This 1GE 1FE CATV Wifi GPON ONU has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU- T G. 984 requirements and have good compatibility with third party manufacturers OLT.
Specification
Item 1GE 1FE CATV Wifi GPON ONU ONT-2GF-RW
PON Interface
1*GPON port, FSAN G.984.2 standard, Class B+
Downstream Data Rate：2.488Gbps
Upstream Data Rate：1.244Gbps SC/APC single mode fiber
28dB Link loss and 20KM distance with 1:128
User Ethernet Interface 1*10/100/1000M and 1*10/100M auto-negotiation
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Power Interface
PON
Optical Parameter
Data Transmission Paramete
Business Capability
Network Management
Management Function
Full/half duplex mode
RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output
Female F-Type Connector
12V DC Power supply
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:
0.5～5dBm
Rx Sensitivity: -28dBm Saturation Optical Power:-8dBm
PON Throughput: Downstream 2.488Gbit/s s; Upstream
1.244Gbit/s Ethernet: 1000Mbps and 100Mbps
Packet Loss Ratio:<1*10E-12 latency:<1.5ms
Layer 2 wire-speed switching Support VLAN TAG/UNTAG
Support device-based speed limitation Support Priority classification Support loop detection
Standard compliant OMCI interface as defined by ITU-T G.984.4
Support WEB management and TR069 remote management
Status monitor, Configuration management, Alarm management, Log management
Shell Plastic casing Power
Power supply: DC 12V /0.6A Power consumption:<5W
Item Dimension：160mm(L)*135mm(W)*31mm(H)
Physical Specifications
Environmental Specifications
Item weight：0.35kg
Operating temperature: 0to 55ºC Storage temperature: -30 to 60ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 5% to 95%(Non-condensing)
Contact:Tomleequan Email：
Wavelength 1550nm
Optical return loss >45dB
CATV optical port input power -10dBm～0dBm
RF frequency 45MHz~1000MHz
RF output level ≥86dBuV
RF flatness ≤±2.0
CNR ≥42dB
CSO ≤-60dBc
CTB ≤-65dBc
RF output return loss ≥10dB
RF output impedance 75Ω
WIFI Specification
Item Parameter
Operating mode Router or bridge
Technical standard
IEEE802.11b/g/n
Frequency 2.412 ~ 2.472 GHz
Antenna gain 5dBi
Performance parameters
Support rate
Modulation
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
802.11n: max rate 300Mbps
Receive sensitivity
Transmit power
11g： OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps) Q64QAM(48/54Mbps)
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11Mbps:≤-90dBm 54 Mbps:≤-76dBm
HT20 MCS7:≤-73dBm
HT40 MCS7:≤-70dBm
802.11n: 13dBm
Encryption mode AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK
