Manufactory Wholesale ONU XPON ONU WIFI CATV with GPON/EPON Support
for Residential and SOHO Users
Looking for a reliable and versatile broadband solution? The ONU XPON ONU WIFI CATV (ONT-2GF-RFW) integrates GPON/EPON support, WiFi, and CATV functionalities into a single device, offering seamless connectivity for residential and SOHO users. With carrier-grade reliability, it ensures secure and maintainable broadband access, supporting uplink speeds of 1.25Gbps and downlink speeds of 2.5Gbps. Compatible with Huawei, ZTE, and Fiberhome OLTs, this device features remote CATV control, customizable HTTP ports, and multi-OLT compatibility. Backed by a 2-year warranty and free technical support, it’s the ultimate solution for last-mile broadband access.
• GPON/EPON support | • WiFi & CATV integration | • Remote CATV control | • Multi-OLT compatibility | • 2-year warranty & free support
Contact:Tomleequan Email：
ONT-2GF-RFW modelis onuxpon, whichsupportGpon&Epon network,alsois one kind of onuwith wifi andcatv.

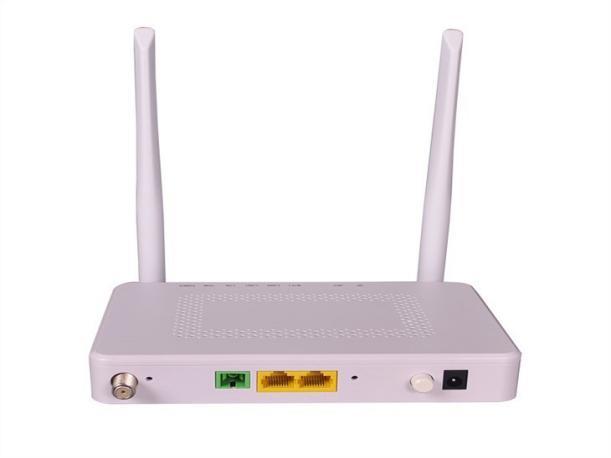

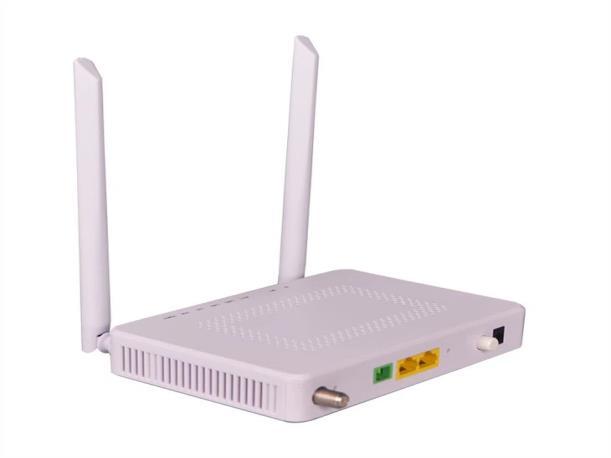

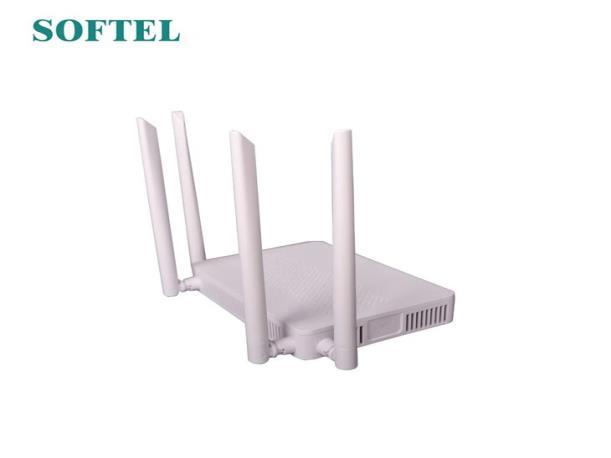

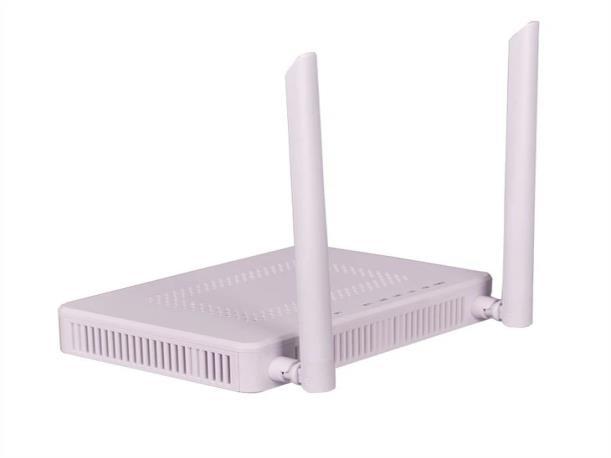

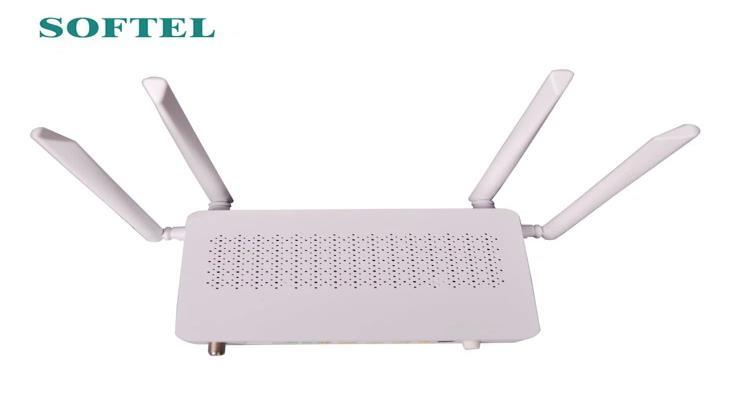

ONU XPON ONU WIFI CATV
Product Discription:
Onu Xpon Onu Wifi Catv (ONT-2GF-RFW) is a residential gateway device with routing functions for ONU XPON and LAN Switch for residential and SOHO users, which it is fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Contact:Tomleequan Email：
ONU Xpon onu wifi catv is compatible with Huawei, zte, fiberhome and other band's OLT. It has 2 years warranty and we provide free techinal support.
Features
1. Turn On&Off CATV by remote.
2. After resetting the ONT, the WAN configuration remains.
3. Customize the HTTP port number, which is convenient for management and more secure.
4. Multi-OLT compatibility mode can be switched freely. It is compatible with mainstreamOLTs such as HUAWEI, ZTE, VSOL, G-COM, C-DATA, etc
Hardware Specifications of ONU Xpon onu wifi catv
PON Interface
Interface Type SC/PC, CLASS B+ Rate
Uplink: 1.25Gbps; Downlink: 2.5Gbps

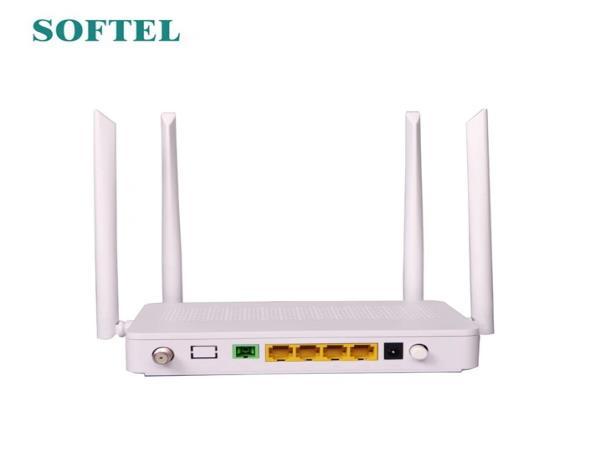

User-Side Interface 1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface
Size (Mm) 167(L)×118(W)×30(H)
Maximum Power
Consumption <8W
Weight 200g
Operating Environment Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% （no condensation）
Power Supply
External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module
Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm
Support 2.4GHz, 300M transmission rate
