Manufactory Wholesale GPON EPON XPON 1GE 1FE WIFI
ONU for FTTH FTTO FTTD Broadband Access
Looking for a reliable and versatile solution for broadband access? The GPON EPON XPON 1GE 1FE WIFI ONU combines dual-mode compatibility with GPON and EPON technologies, delivering high-performance, cost-effective connectivity for FTTH, FTTO, and FTTD applications. With 802.11n WiFi (2T2R), Layer 2/3 support, and advanced features like QoS, VoIP, and remote management, this ONU ensures seamless integration and stable operation in diverse environments. Fully compliant with ITU-T G.984.x and IEEE802.3ah standards, it’s the ideal choice for fixed network operators and cable operators.
• Dual-mode GPON/EPON compatibility | • 802.11n WiFi up to 300Mbps | • QoS, VoIP, and remote management support | • Wide temperature range operation | • Compliant with ITU-T G.984.x and IEEE802.3ah standards
GPON EPON XPON 1GE 1FE WIFI onu supports EPON and GPON two modes access.
GPON EPON XPON 1GE 1FE WIFI Onu
GPON EPON XPON 1GE 1FEWIFI onu is designed for meetingthe multi-services needs offixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillanceand other requirements. GPON EPON XPON1GE 1FEWIFI onu is based on matureGPON andGigabit EPON technology, which have high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility, good quality of service (QOS) guarantees, and the technology of 802.11n WiFi (2T2R),Layer 2/3. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment fromChina Telecom. It can also be applied to a wide temperature environment.
Features of GPON EPON XPON 1GE 1FE WIFI Onu:
Ø bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11n 2T2R speed up to 300Mbps
Ø Support VoIP protocol: SIP,IMS-SIP
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support remote software upgrade

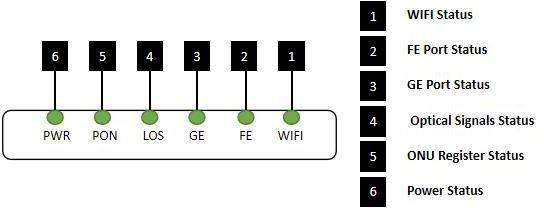

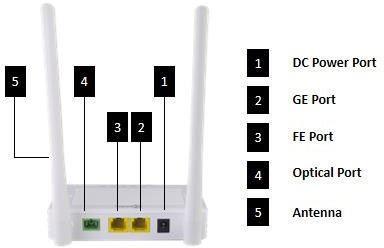

Product Interface and LED Definitions
Specification
Item Parameter
Interface
PON Interface
Ethernet Int erface
GPON/EPON mode adaptive
1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON
SC/PC single mode fiber
1*10/100/1000M and 1*10/100M auto-negotiation Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X 100m distance
Power Interf ace 12V DC Power supply
PON Optical Parameter
Performan ce Param eters
Data Trans mission Par ameter
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～ 5dBm
Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm
PON Throughput: Downstream 2.488Gbit/s; Upstream 1.2 44Gbit/s
Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*1 0E-12 latency: <1.5ms
Network Managem ent Managemen t Mode
When adaptive to GPON mode, support standard compliant OMCI interface as defined by ITU-T G.984.4, TR069 remote management and WEB management
When adaptive to EPON mode, Support IEEE802.3
QAM, ONU can be remotely managed by OLT, TR069 re mote management and WEB management
Managemen t Function
Status monitor, Configuration management, Alarm management, Log management
Shell White plastic casing
Power <5W, 12V/0.5A power supply adapter
Physical
Specification s
Physical Features
Environment al Specificat ions
WIFI Specification
Item Dimension：125mm(L) x80mm(W) x 25mm (H)
Item weight：0.2kg
Operating temperature: 0 to 50ºC Storage temperature: -4 0 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)
~ 2.472 GHz Antenna
802.11b: 1, 2, 5.5, 11Mbps Support rate
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
802.11n: max rate 300Mbps
Contact:Tomleequan Email：
Channel 2.4GHz Channel：1,2,3,4,5,6,7,8,9,10,11,12,13
Modulation mode
Receive s ensitivity
Transmit power
11b：DSSS：
DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) 11g：
OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps)
Q64QAM(48/54Mbps)
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11Mbps:≤-90dBm 54 Mbps:≤-76dBm
HT20 MCS7:≤-73dBm
HT40 MCS7:≤-70dBm
802.11n: 17dBm
Encryption mode AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK

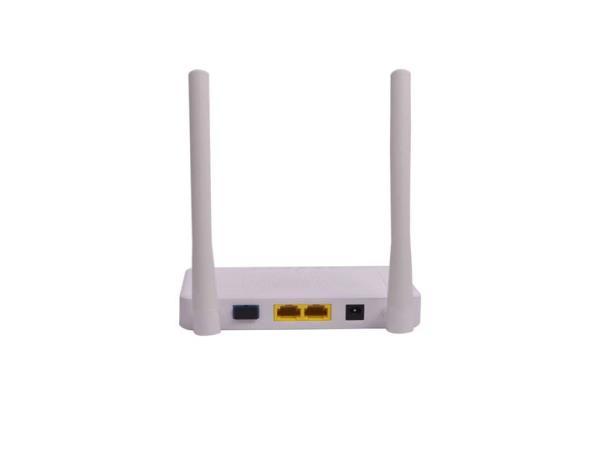

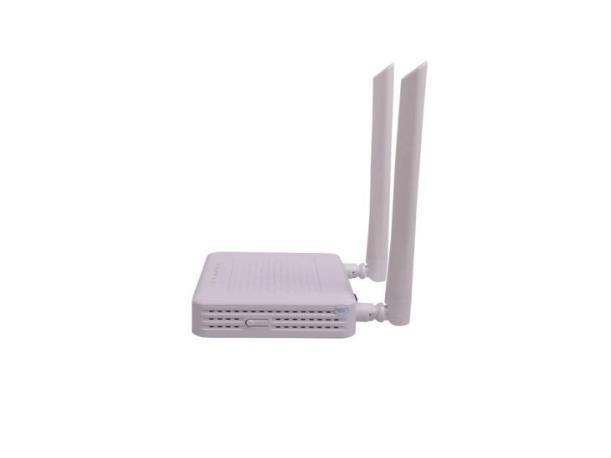

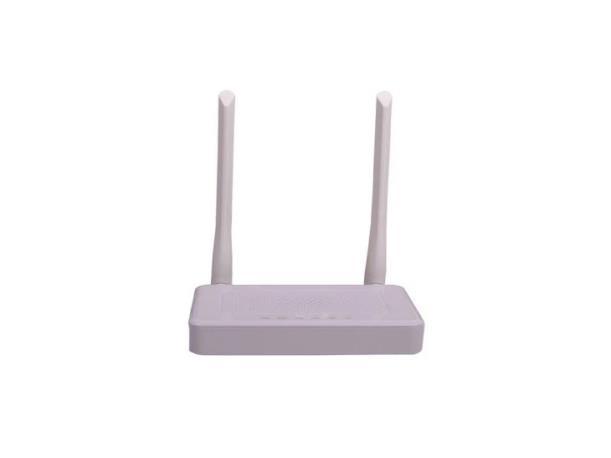

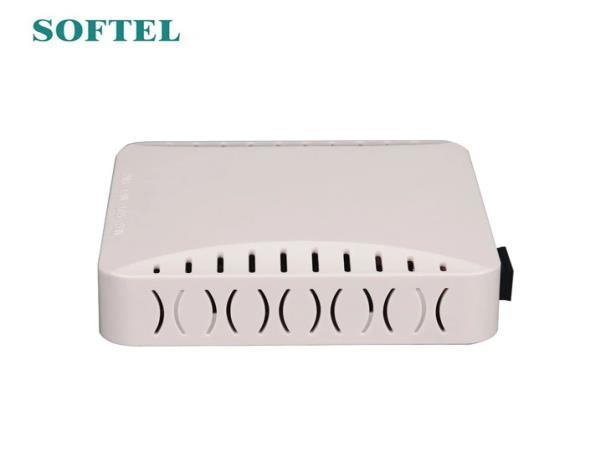

Pictures of GPON EPON XPON 1GE 1FE WIFI onu
