Manufactory Wholesale 1GE 1FE CATV Wifi Dual-Mode ONU for FTTH/FTTB with GPON/EPON Compatibility
Looking for a reliable and versatile optical network unit? The 1GE 1FE CATV Wifi Dual-Mode ONU seamlessly supports both GPON and EPON modes, ensuring compatibility with Huawei, ZTE, and FiberHome OLTs. Designed for FTTH and FTTB applications, it delivers carrier-grade reliability, maintainability, and security, making it ideal for residential and corporate broadband access. With uplink speeds of 1.25Gbps and downlink speeds of 2.5Gbps, this ONU ensures high-performance connectivity.
• Dual-mode GPON/EPON support | • 1GE + 1FE + RF interfaces | • 2.4GHz WiFi with 300M transmission rate | • Compact design (167×118×30mm) | • Carrier-grade reliability and security
1GE 1FE CATV Wifi Dual-mode ONU supports GPON and EPON two modes adaptive. This 1GE 1FE CATV Wifi Dual-mode ONU is compatible with huawei/zte/fiberhome olt. It's with fast delivery. We provide 7 days' technical support also.

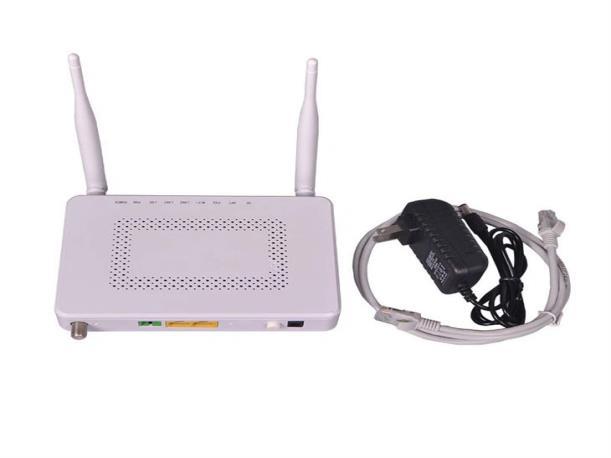

1GE 1FE CATV Wifi Dual-mode ONU
The uplink of 1GE 1FE CATV Wifi Dual-mode ONU provides one PON interface, while downlink provides two Ethernet and one RF interfaces. This 1ge 1fe catv Wifi Dual-mode onu can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). Besides, this 1ge 1fe catv Wifi Dual-mode onu fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
of 1GE 1FE CATV Wifi Dual-mode ONU
Rate Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface 1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface
Size (Mm)

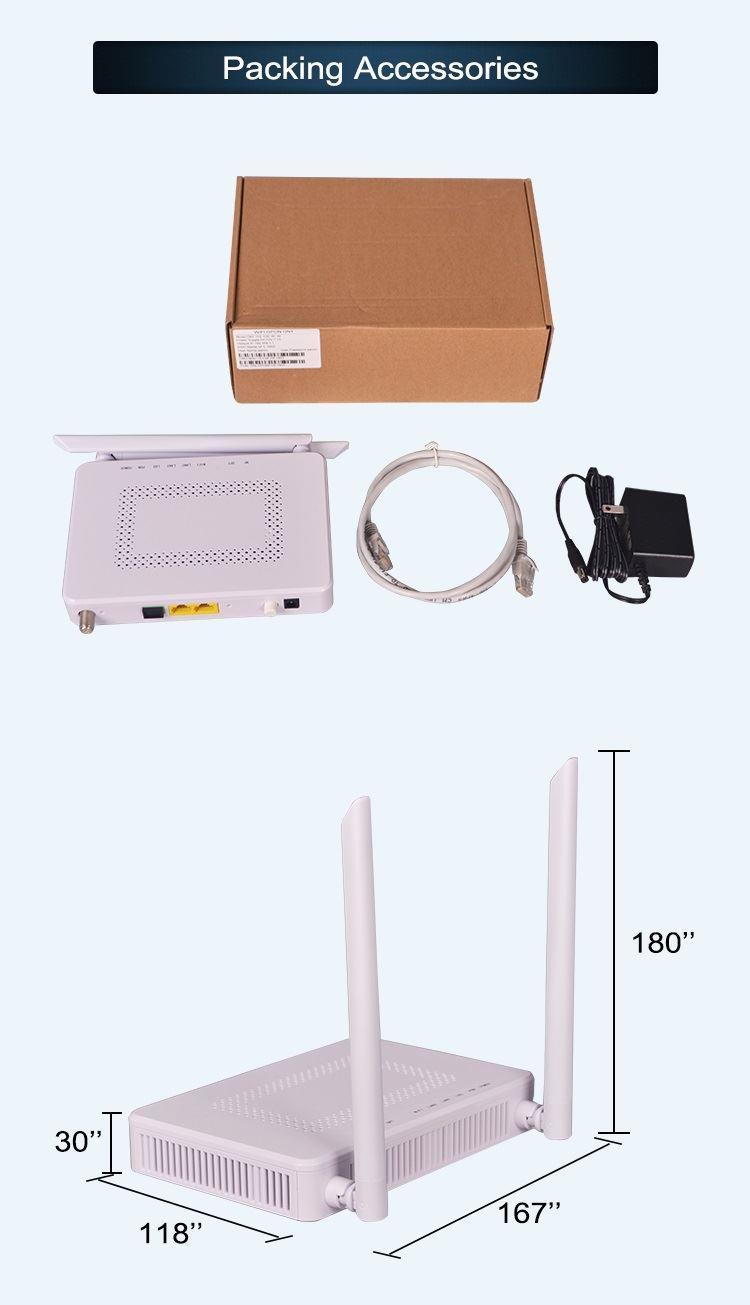

167(L)×118(W)×30(H)
Maximum Power Consumption <8W
Weight 200g
Temperature: -10°C ~ 55°C
Operating Environment
Humidity: 5% ~ 95% （no condensation）
Power Supply External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm
WLAN Module
Support 2.4GHz, 300M transmission rate
State Color
Descriptions
PWR Solid Green Normal Off No power
PON Solid Green ONU is authorized Flash ONU is Registering Off ONU is not authorized
LOS Solid Red Abnormal Flash In diagnostic mode Off Normal
LAN 1 Solid Green Link UP Flash Active(Tx and/or Rx)
Contact:Tomleequan
*note：The test conditions are 59 analog channels and 38 digital channels
