ASSEMBLYGUIDE
ShannonYohXinTing,S10202743
Attach
Howitshouldlooklike

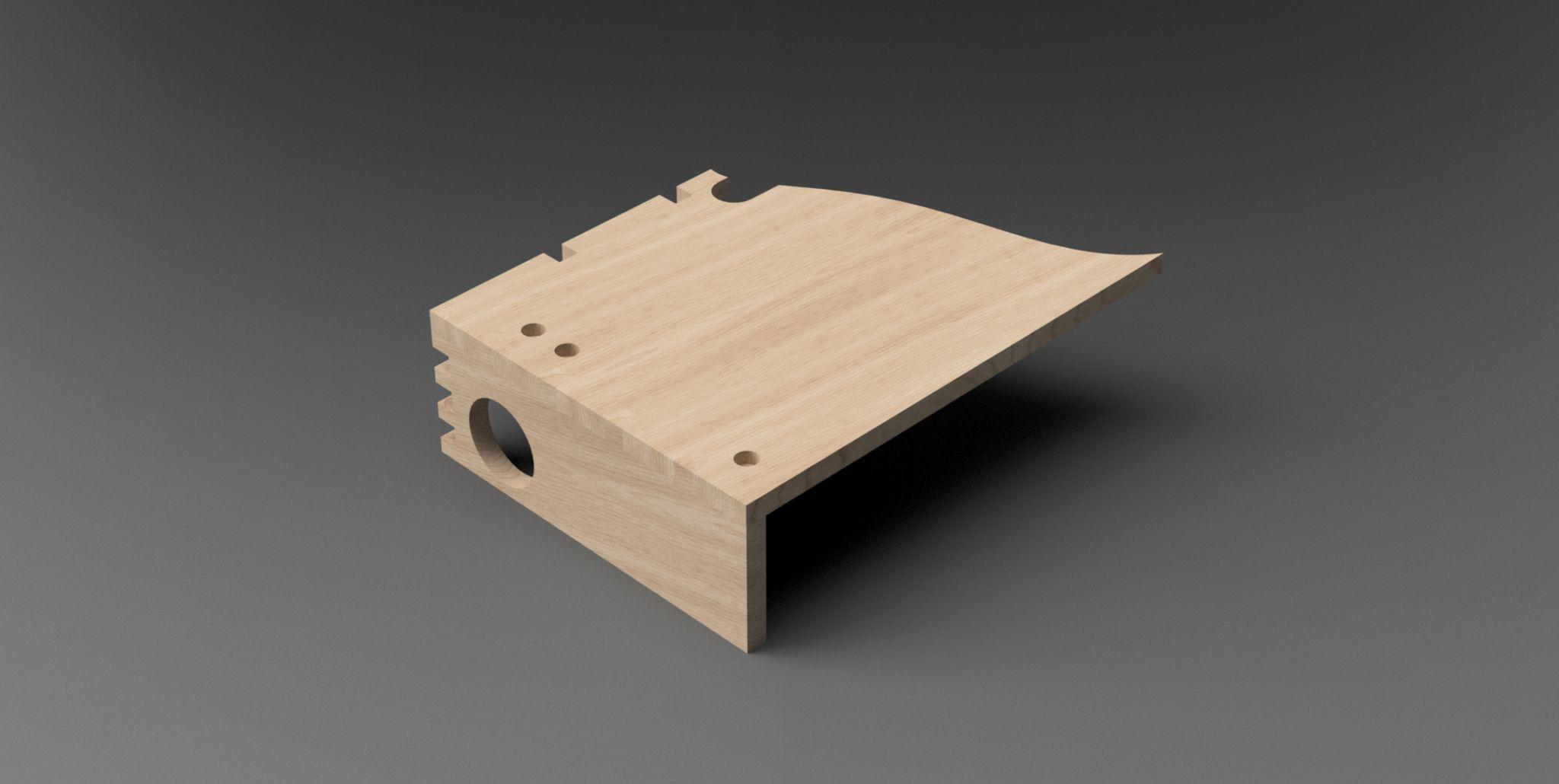

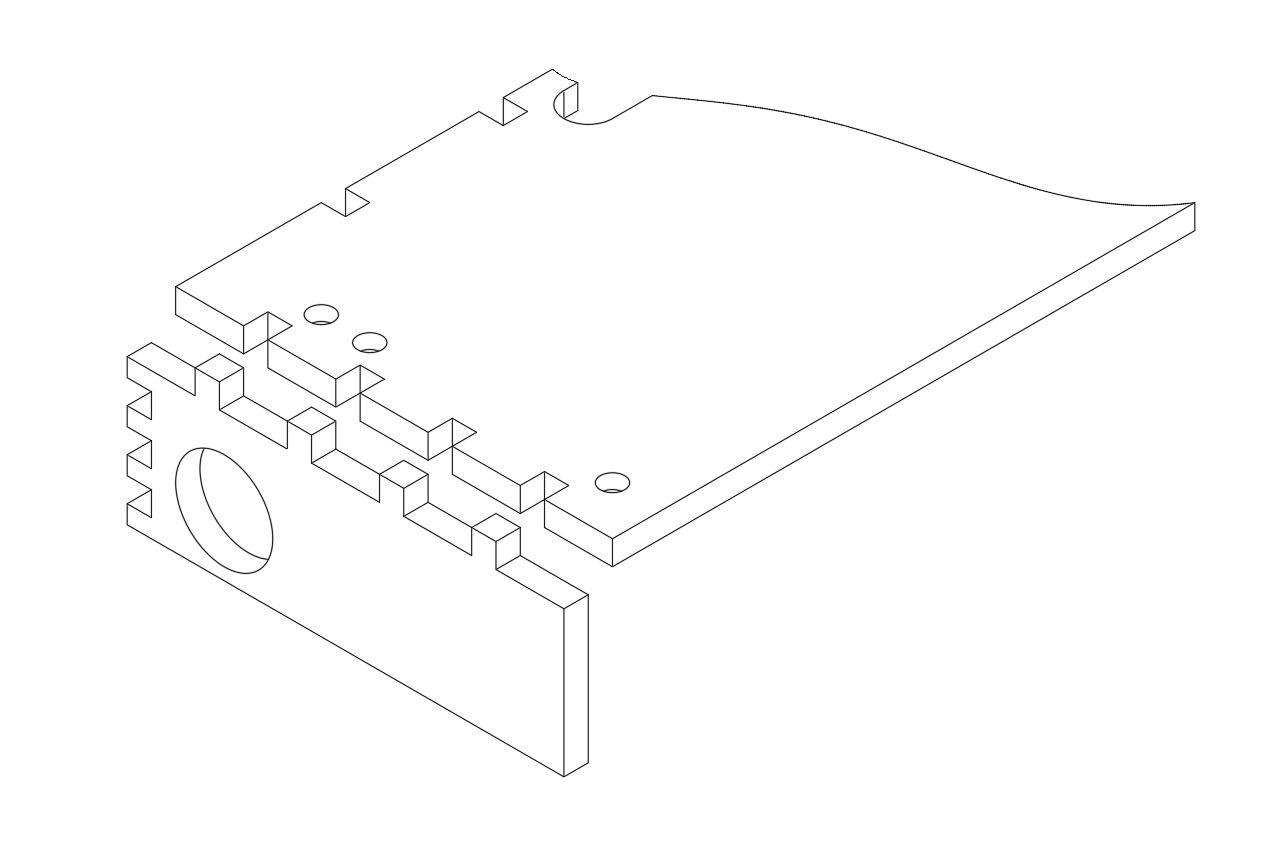

theLeftFrametoTopFrameBbytheirjoineryand addingwoodglueforreinforcement.
1.
LeftFrame
TopFrameB
Howitshouldlooklike
AttachtheLeftFrame+TopFrameBtoTopFrameAby applyingepoxyglue.
2.
LeftFrame+
TopFrameB
TopFrameA

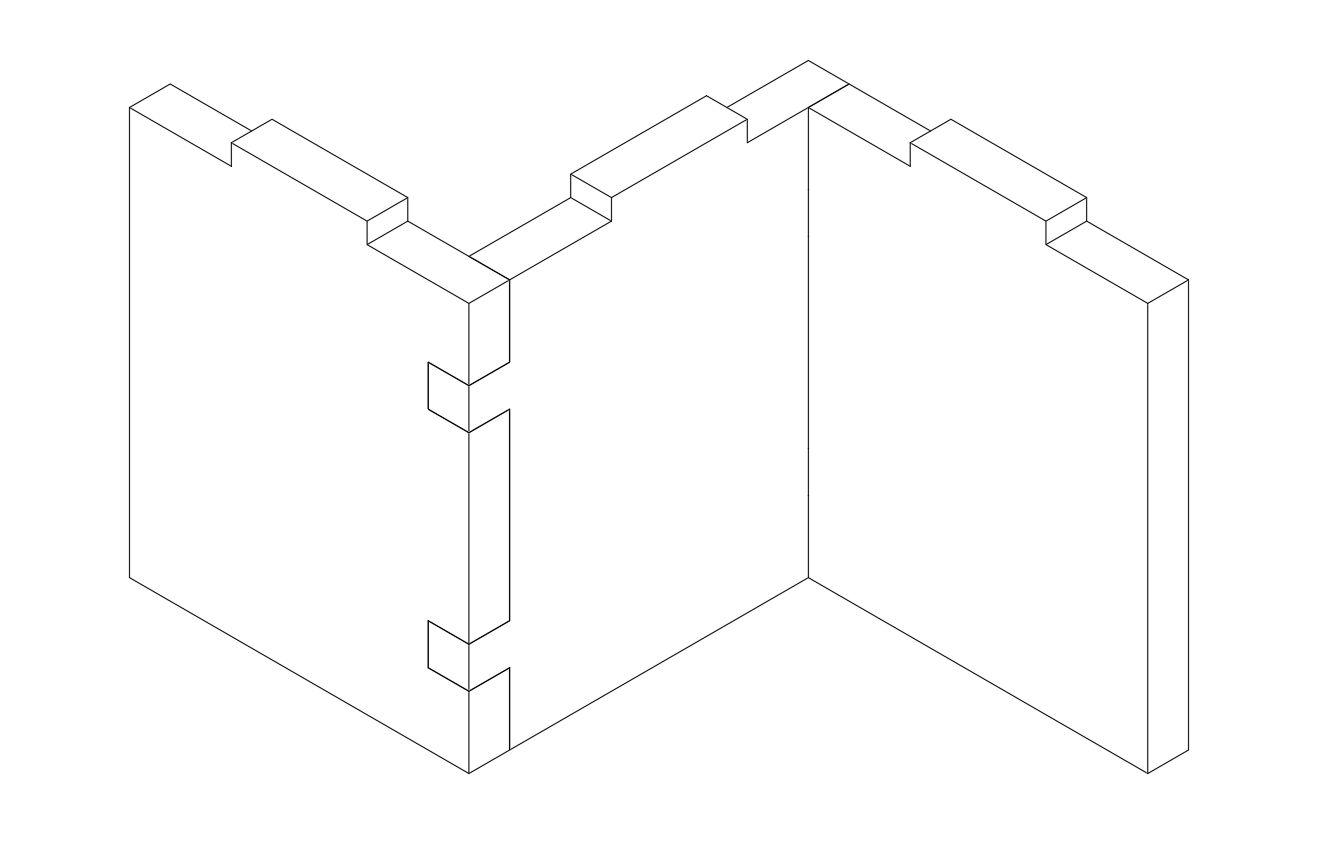

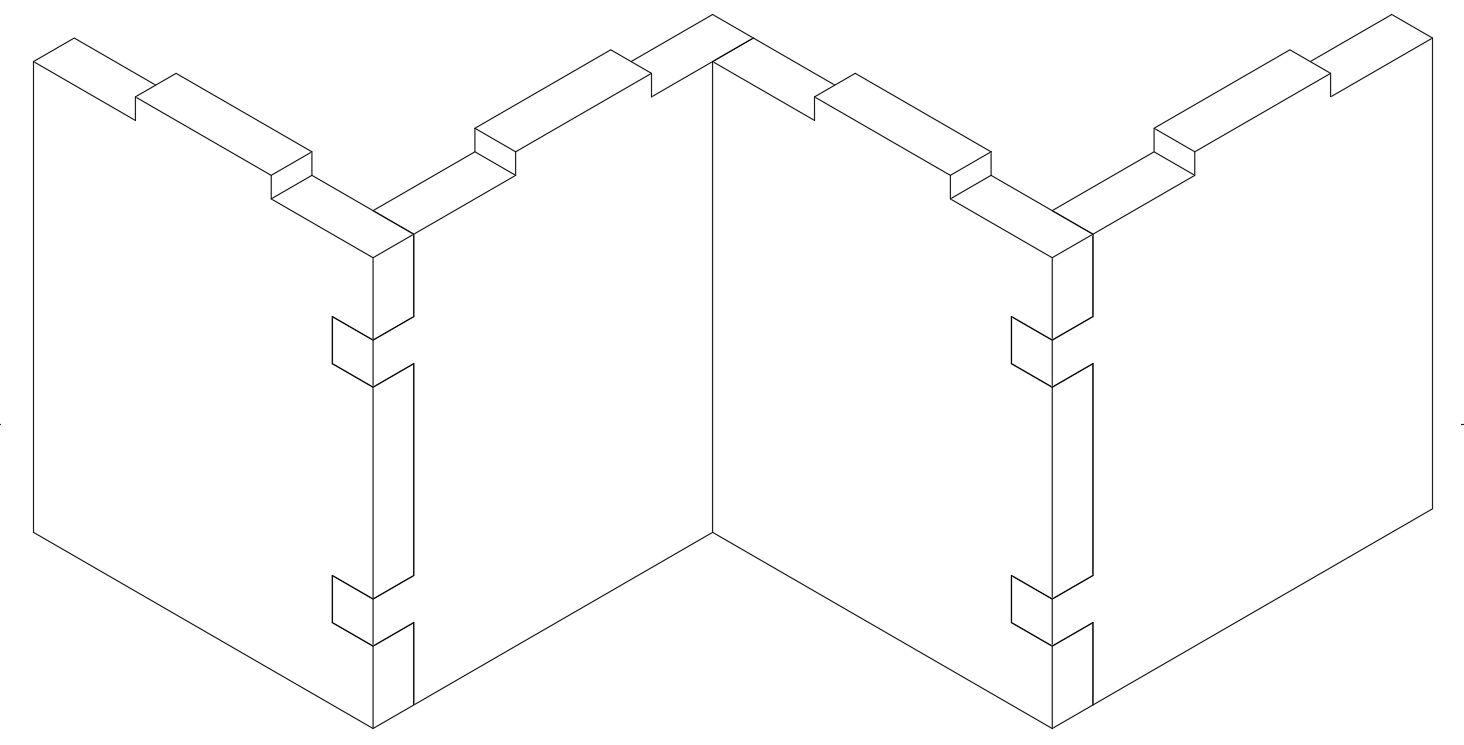

Turnthejointpartsaround (3.1).Attachtheneeded mazeframesforeachmaze assembly.Attachwiththeir joineryandwoodglue(3.2).
3. 3.1
S T U 3.2 S T U MazeFrameA MazeFrameB MazeFrameD MazeFrameE MazeFrameC MazeFrameD MazeFrameD MazeFrameE
Howitshouldlooklike
3.3

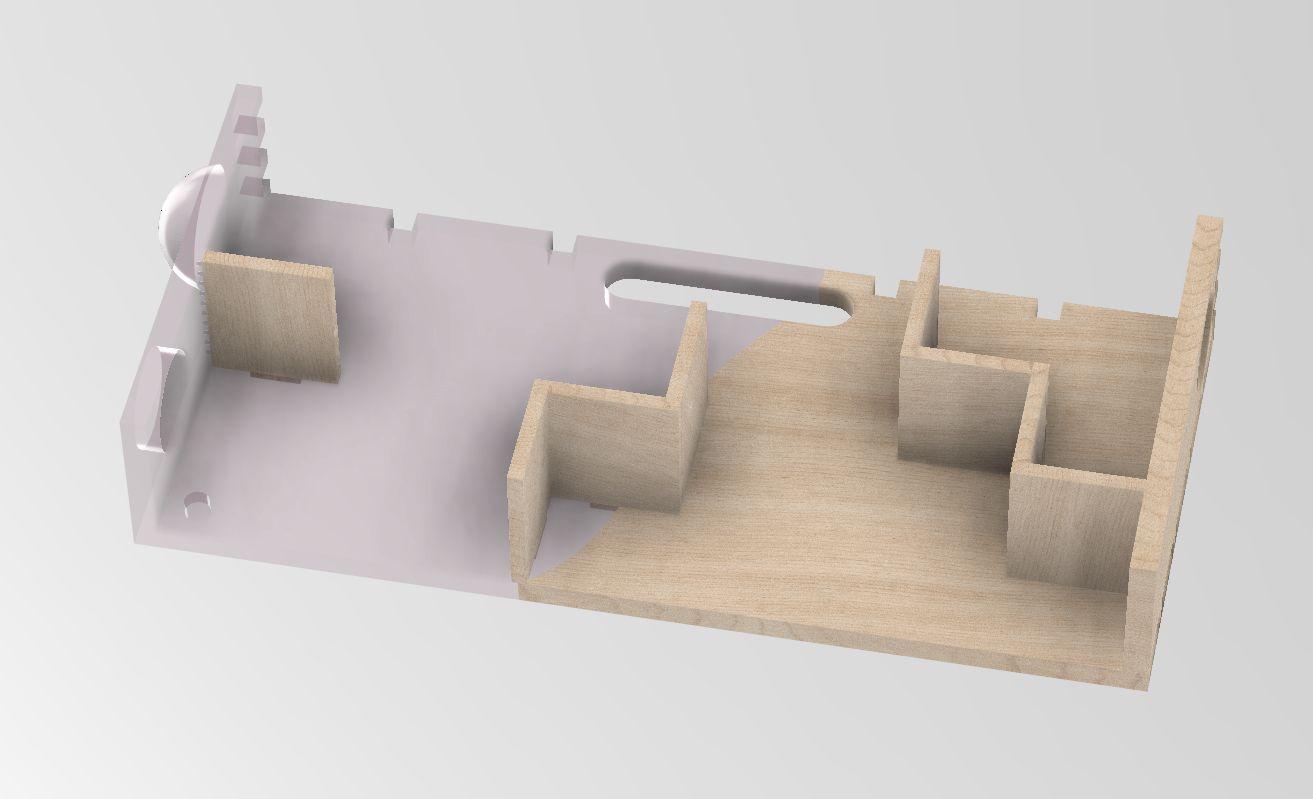

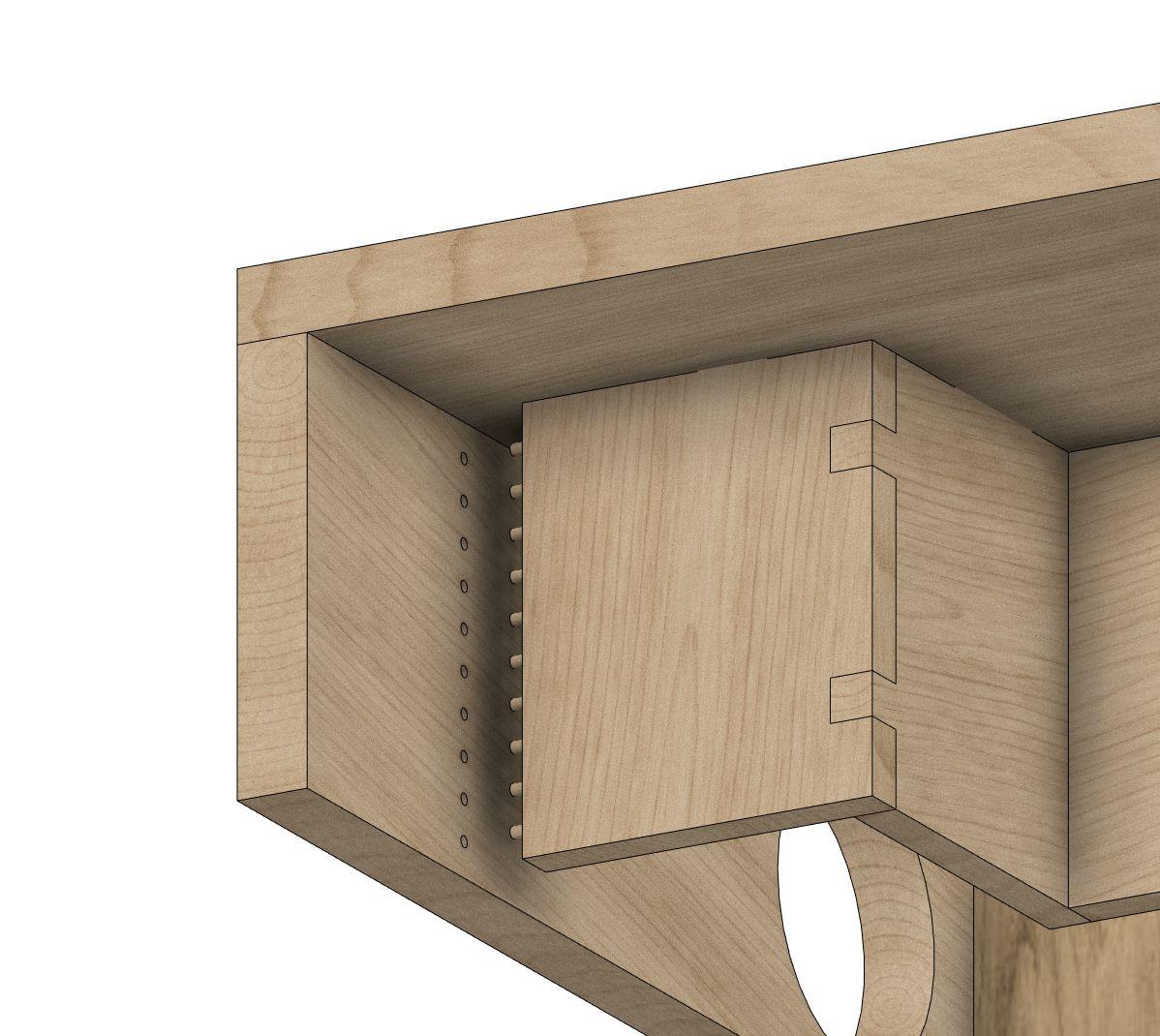

PutinthedowelsforMazeFrameCinMazeAssemblyS andMazeFrameAinMazeAssemblyU(3.3).Assemble eachMazeAssemblytotheirdesignatedplace.
3.
MazeFrameA
MazeFrameC

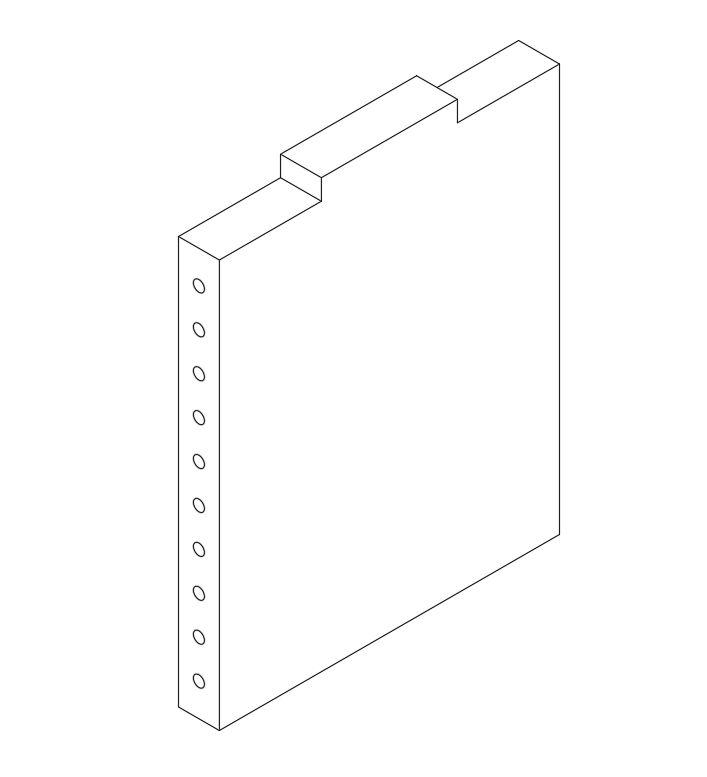

BackFrame
Howitshouldlooklike

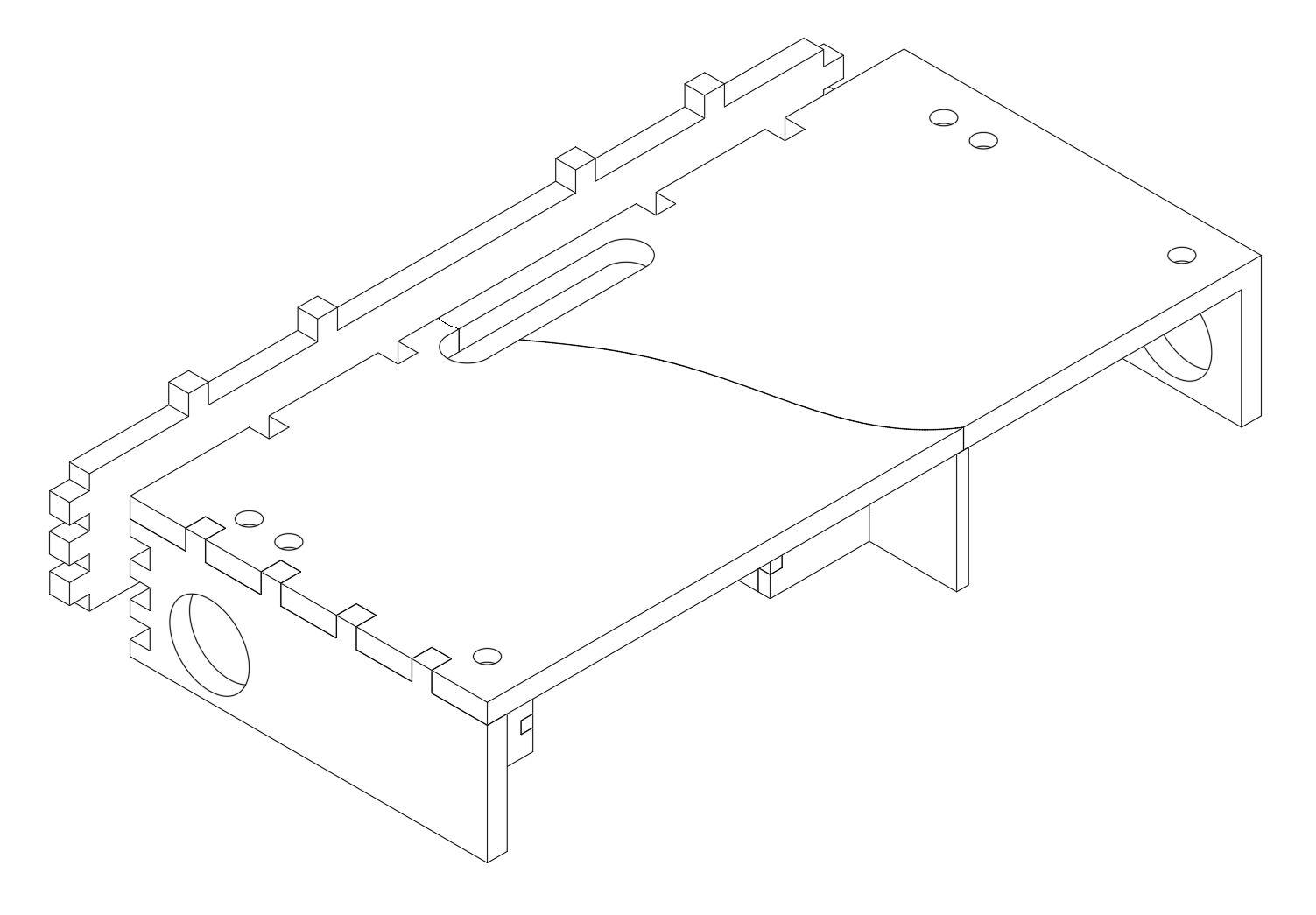

4.
AttachtheBackFrametothejointpartsbytheirjoinery andwoodglue.
SeatBar
Howitshouldlooklike

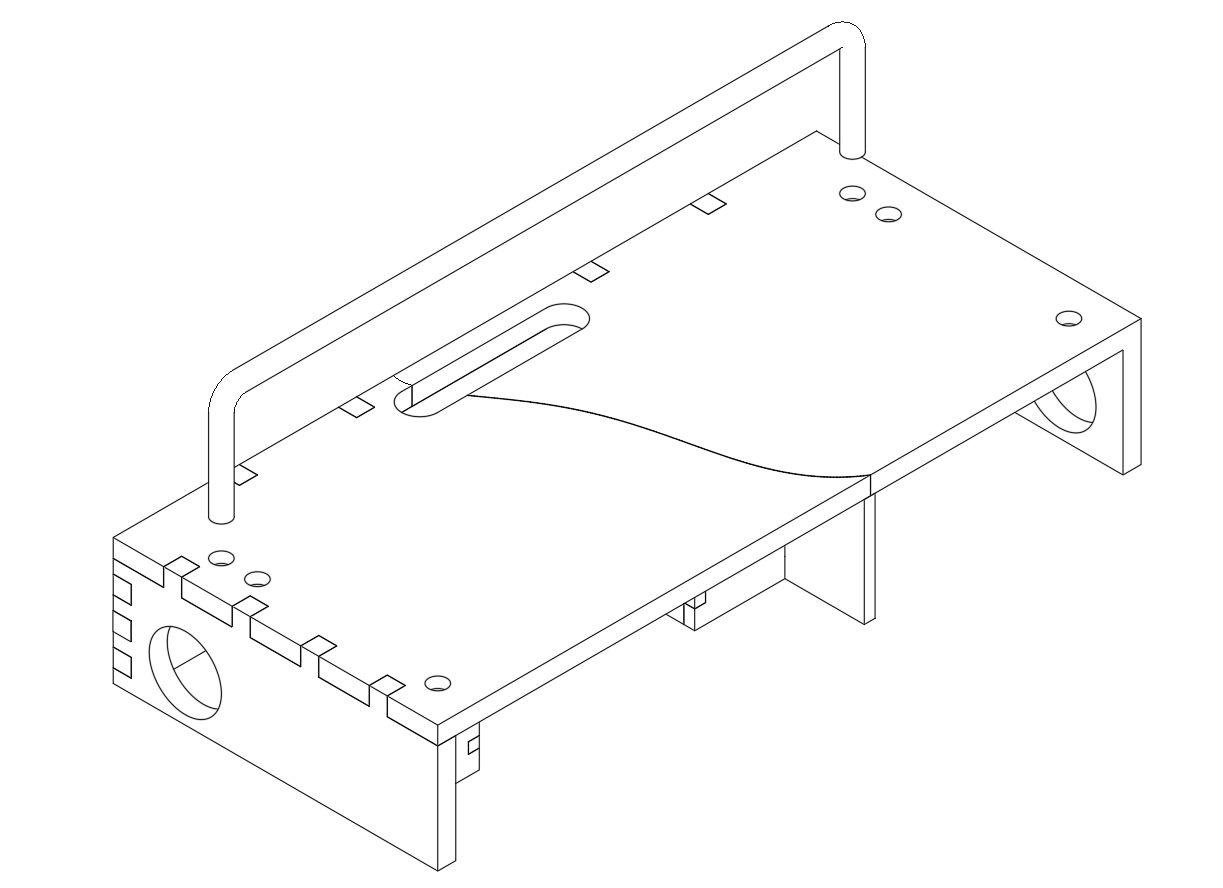

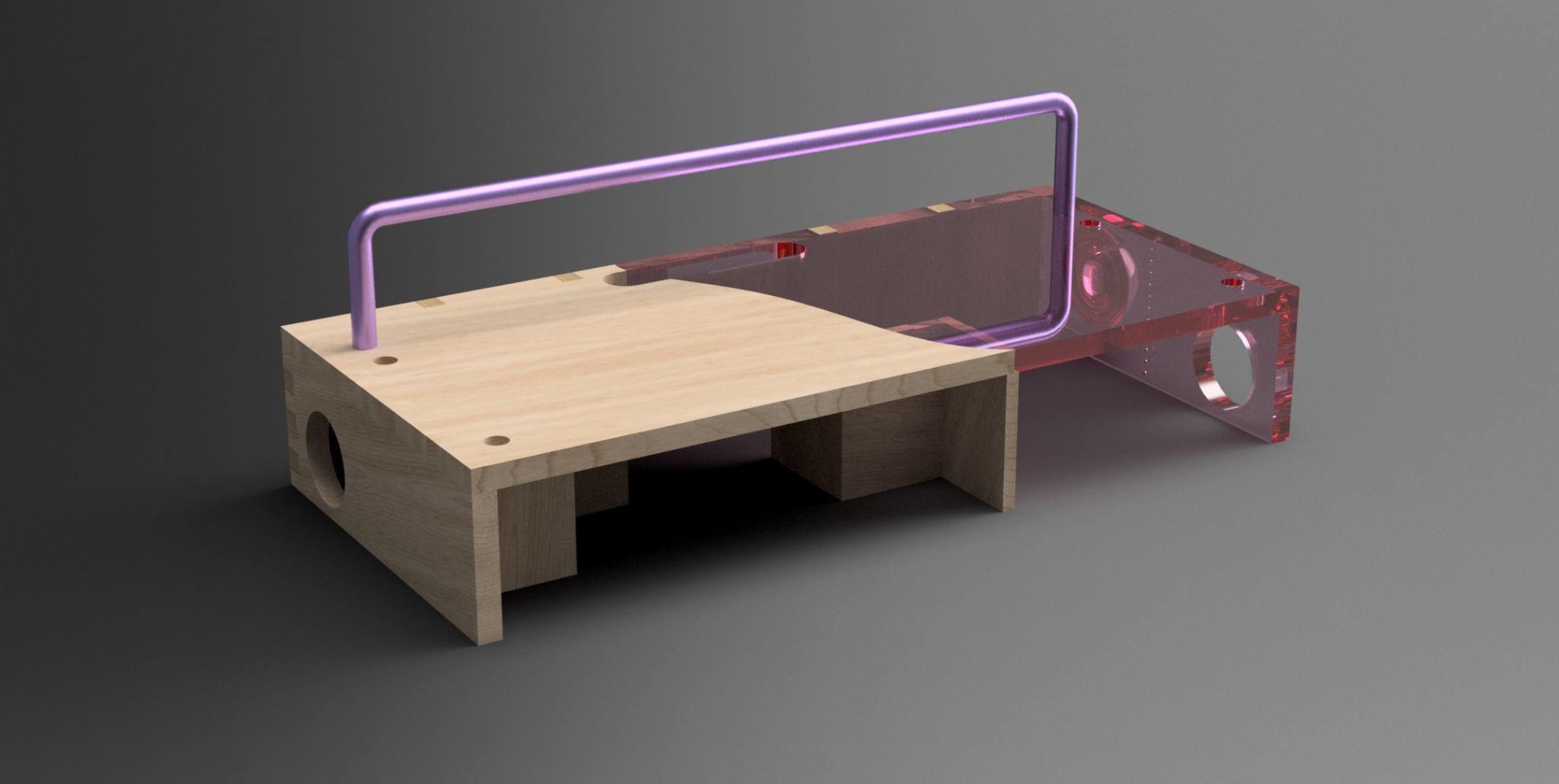

AttachtheSeatBarintothedrilledholesonthetwoTop Frame,reinforcingwithwoodglue.
5.
6.
AttachtheArmRestBarintothedrilledholesonthetwo TopFrame,reinforcingwithwoodglue.
ArmRestBar

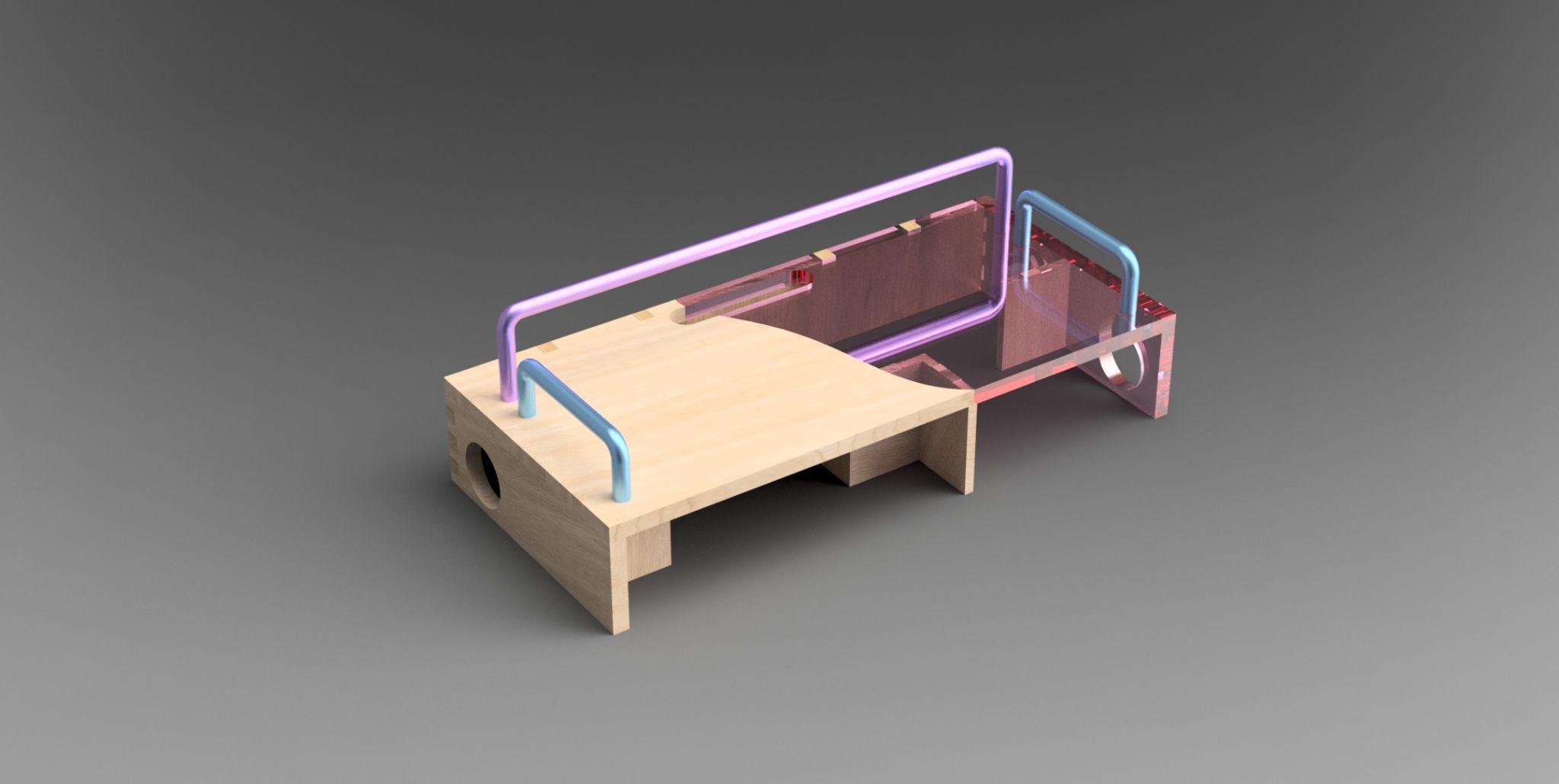

Done!
