Architecture Portfolio: Shannon McCaddon (Version 1)

Pg

1

Shannon McCaddon Architecture Portfolio

shannon.mccaddon@gmail.com www.linkedin.com/in/mccaddon/

I

II

Origin

Achievement

Page 03 - 07

Page 08 - 09

About Me Passionate for the arts, environment and combination of the two; I seek to better the natural and built world. My work is often inspired by nature and in turn I am very invested in sustainability.

I was born and raised in New Smyrna Beach, Florida. I attended UCF where I placed first among architecture applicants. I served as an officer for the American Institute of Architecture Students while minoring in Urban Planning.

I am currently employed with ESA Solar as an Architectural Design Specialist. I brought an artistic approach to the designs at ESA by implementing graphics and artistic sections and renders to help with local presentations to the public.

I love to travel the world to get inspired. My hobbies include painting, baking and costume design. I am constantly seeking new experiences and feedback to better myself.

Pg

2

III

IV

V

VI

VII

Cradle

Growth

Solar Gardens

Community

Studio

Page 10 - 13

Page 14 - 15

Page 16 - 17

Page 18 - 19

Page 20 - 21

Pg

3

I PROJECT

Meditation Garden Peninsula of Lake Eola Orlando, Florida

This project is one of three health and wellness inserts into the urban fabric of downtown Orlando. It acts as the origin on the pathway to bettering one’s self. Following the experiences at this location in Orlando’s central park of Lake Eola, the occupant is led through the city to other sites to inspire a healthy lifestyle.

ORIGIN

Pg

5

The Seed A hollowed form, insulated from the bustling city. From the outside the form appears as a orthogonal and unassuming structure with a tall crack for entry.

Inside is a garden in a soft form. Light enters through the cracks as if the seed could germinate through its shell bursting into the world with new beginnings.

Contemplation The occupant is drawn out to beyond the edge of the peninsula and into a space of self-reflection.

Here one can passively view the city of Orlando, perhaps enticed to a fresh start and follow the breadcrumbs of health and wellness put forth by the other sites in the overall project.

Pg

6

Render of Meditation Space

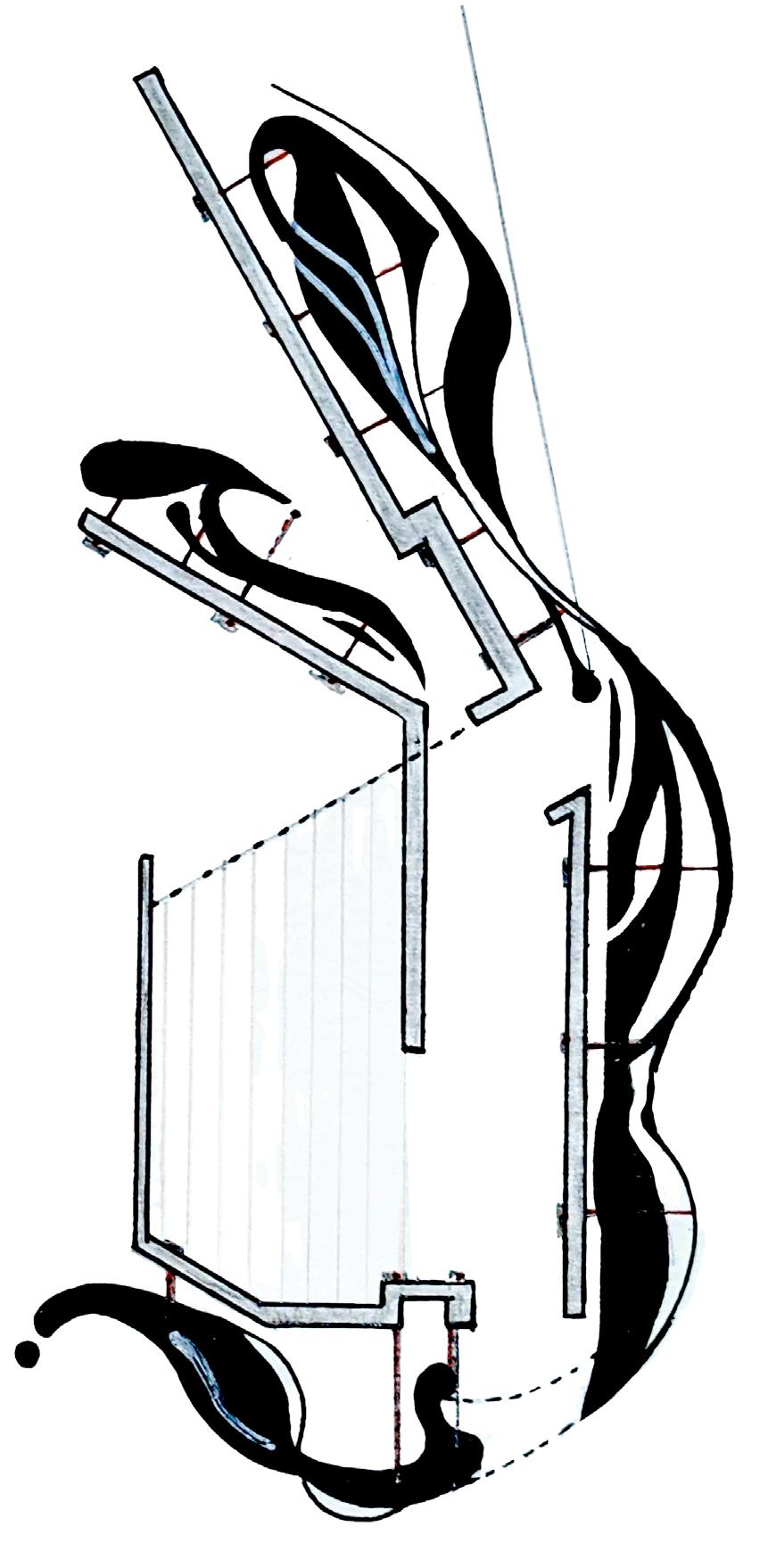

Plan View

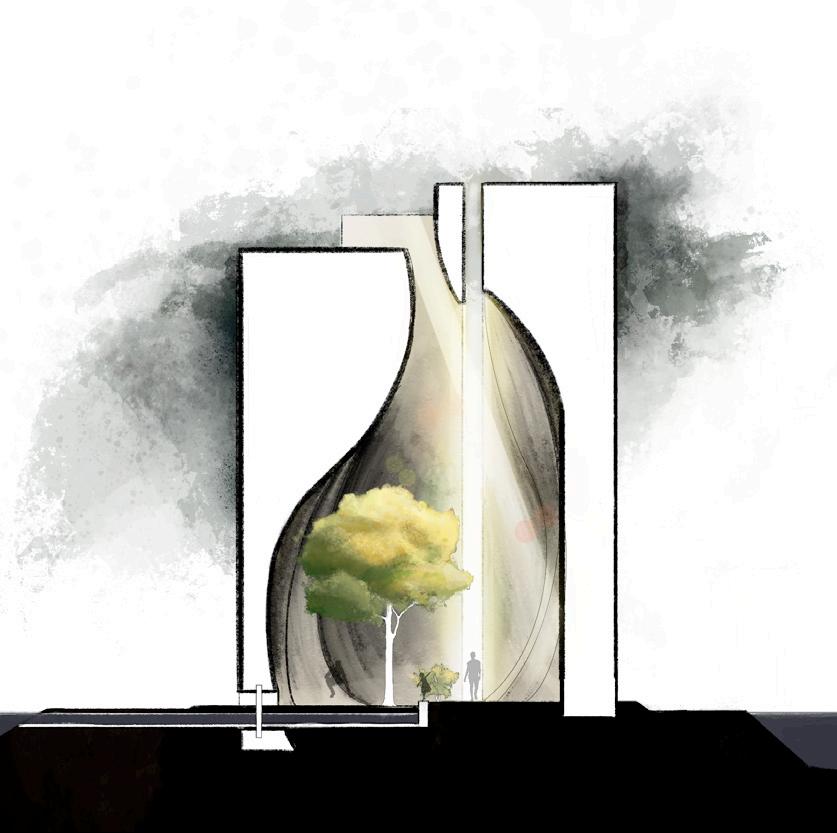

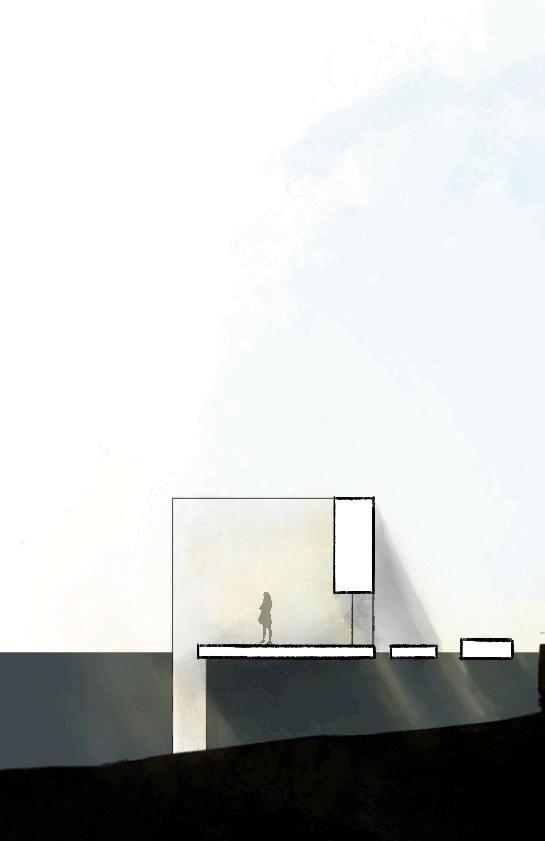

Sectional View of the Seed East- West

Pg

7

II PROJECT

ACHIEVEMENT

Activity Center Alley-South Orlando, Florida

This is another of three health and wellness inserts into the urban fabric of downtown Orlando. This site is located in a narrow alleyway, and encourages passing joggers to run through. It offers a sense of fitness achievement with a rockwall that pierces through the three floors as an option to climb instead of take the stairs.

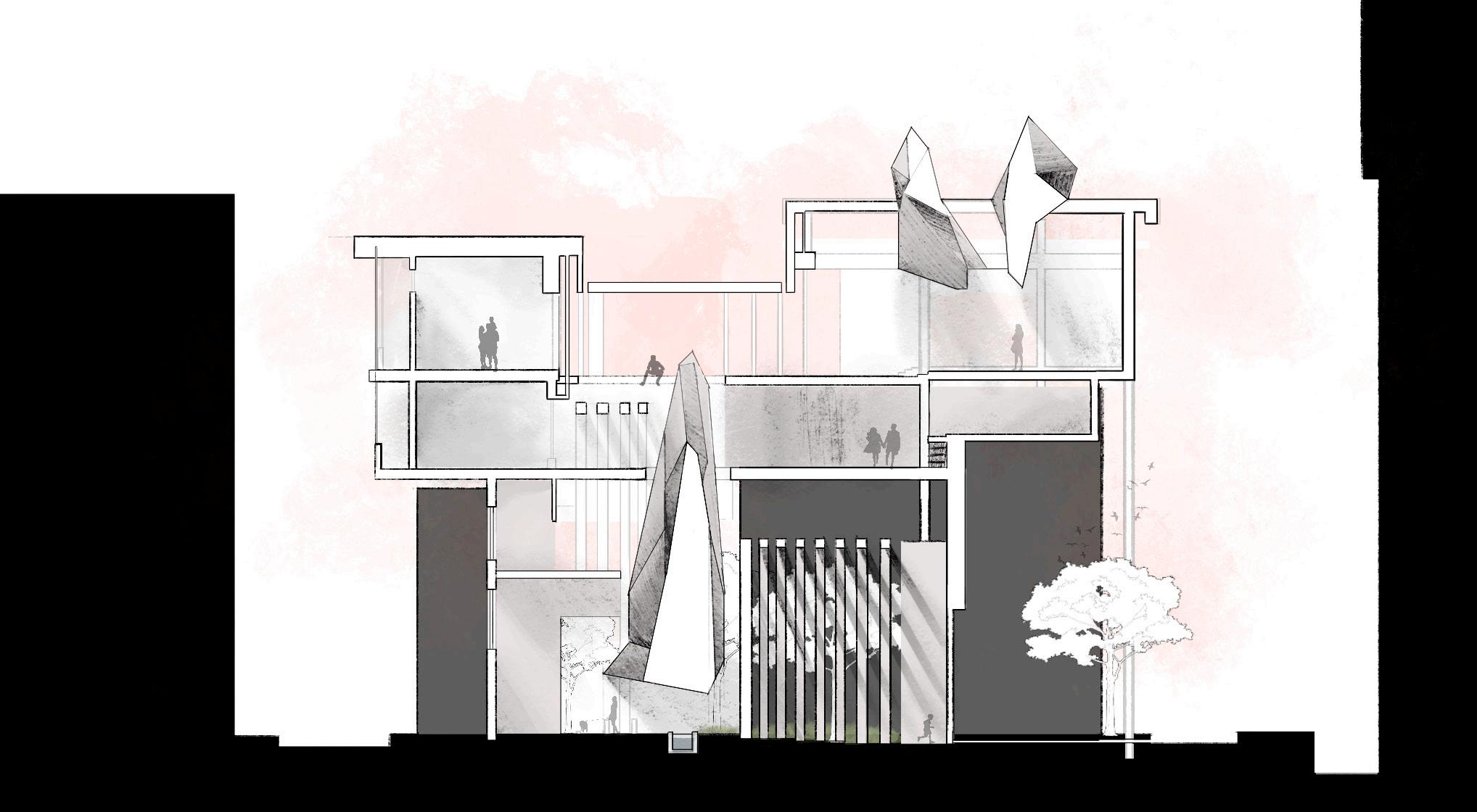

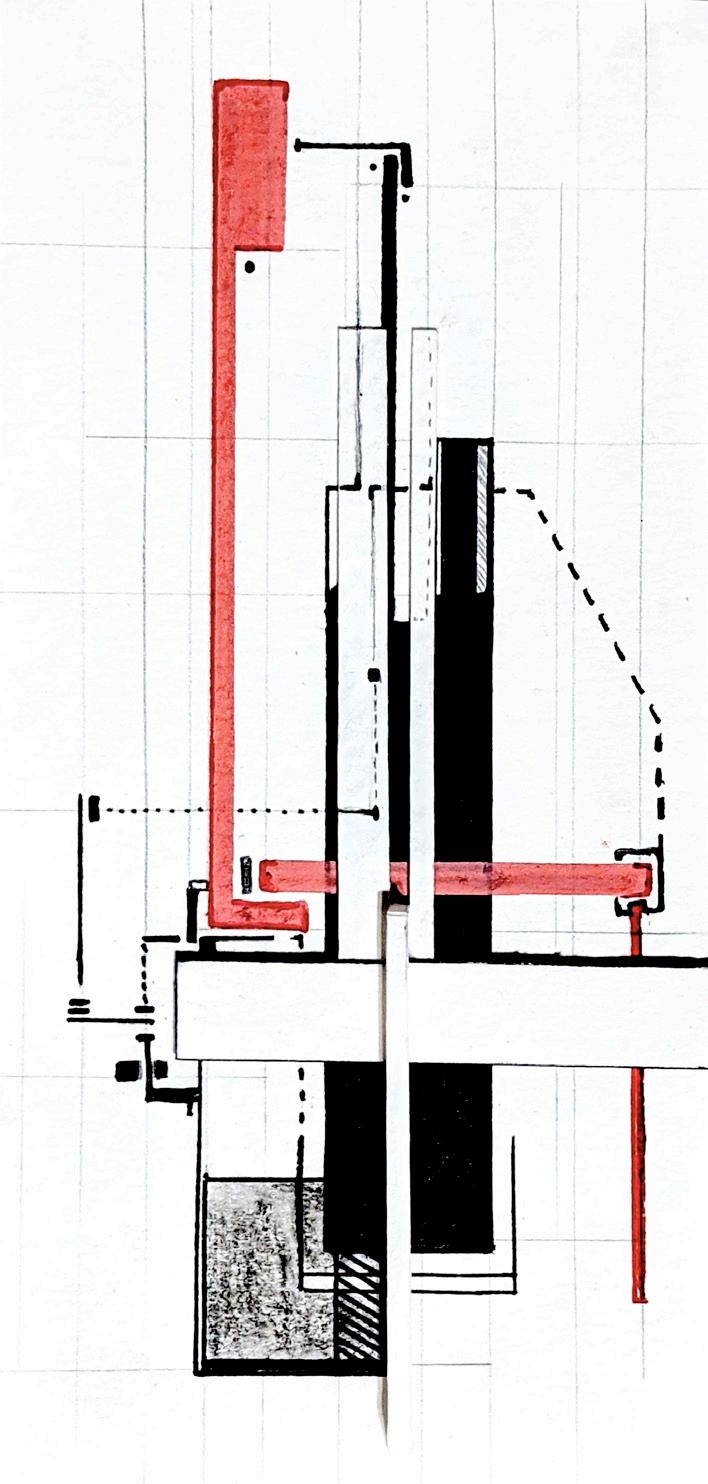

Sectional View East - West

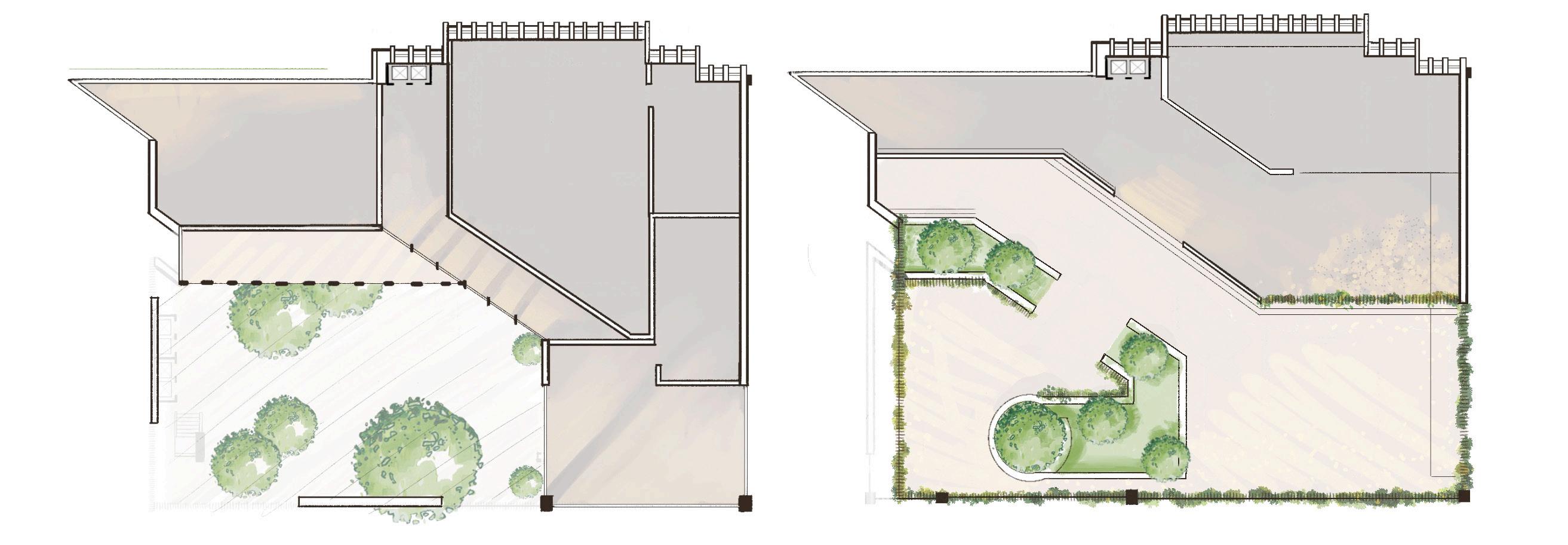

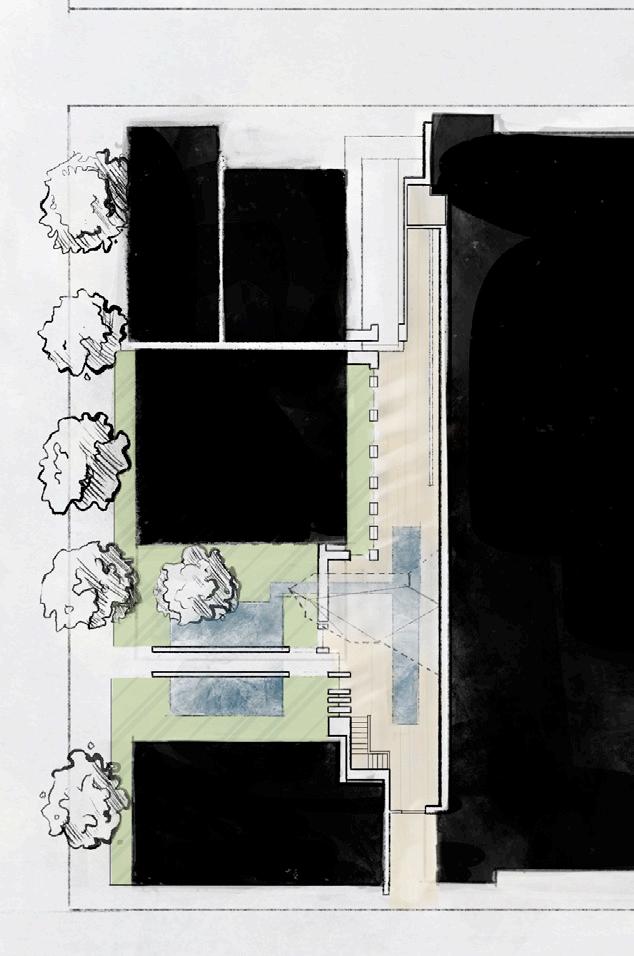

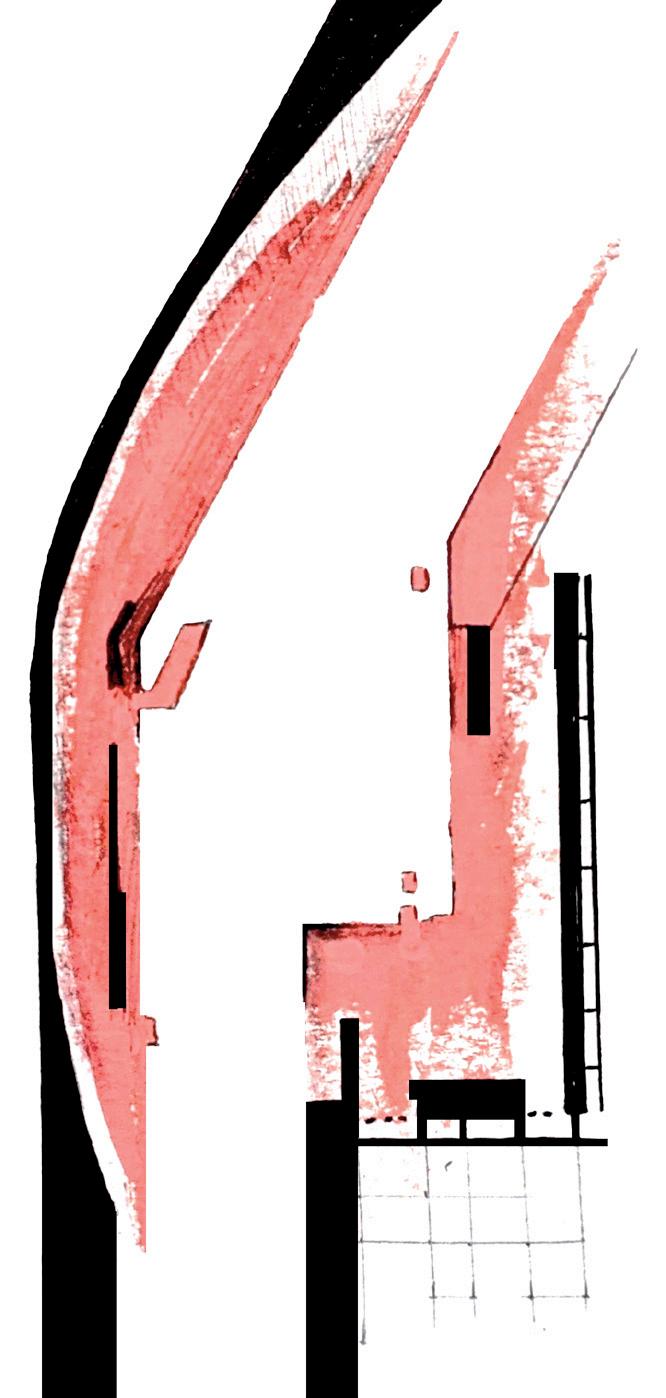

Ground Floor Plan

First Floor Plan

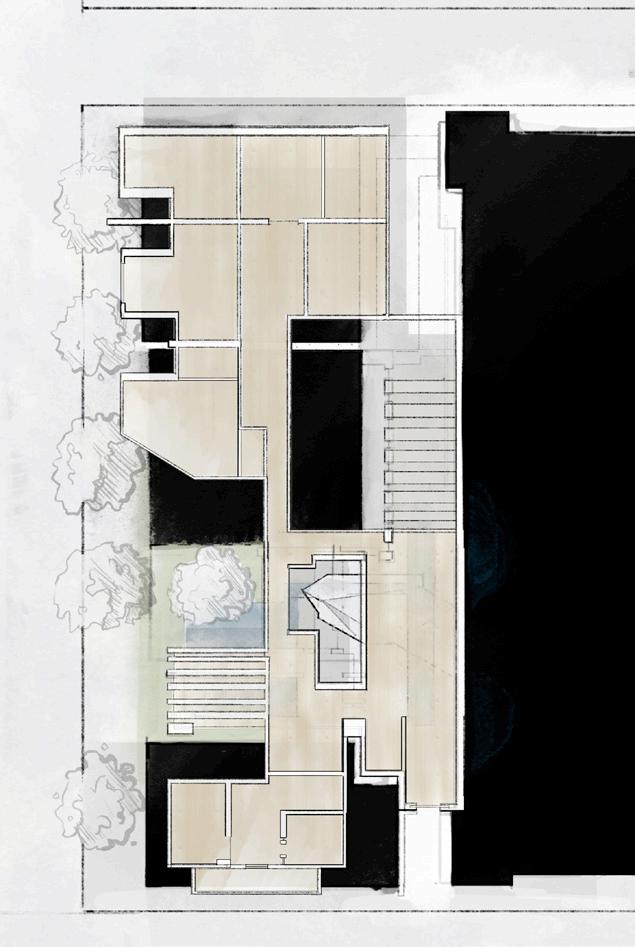

Second Floor Plan

Render of Garden and Rock-wall

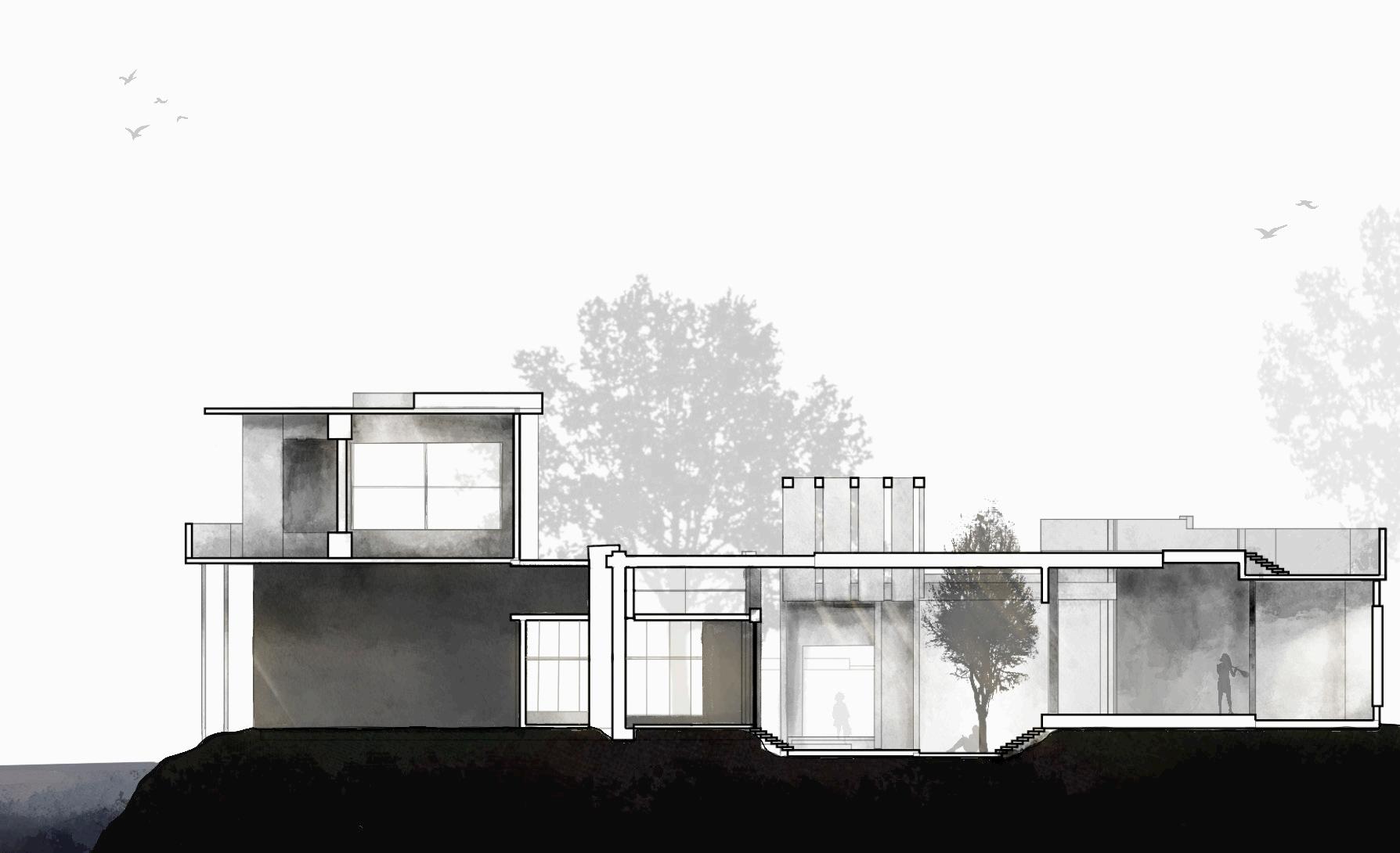

Sectional View North- South

Pg

9

PROJECT

III

CRADLE Multi-family Housing Market Street Tampa, Florida

A set of several housing units for different sized families inserted by the Tampa’s Riverwalk. This project seeks to create a safe, nurturing environment for children, pets and adults to foster creativity and playfulness.

Pg

10

Model Large Housing Unit

Model Large Housing Unit Interior Garden

Render of Community Green Space

Model of Small and Medium Housing Units

A place for makers and craftspeople The apartments feature pockets of cradled outdoor space for pets and children to play safely. The pockets are surrounded by glass windows for adults to be able to keep a watchful eye while working on their crafts from their studios.

Cradling forms encourage playfulness for adults and children alike in order to foster creativity.

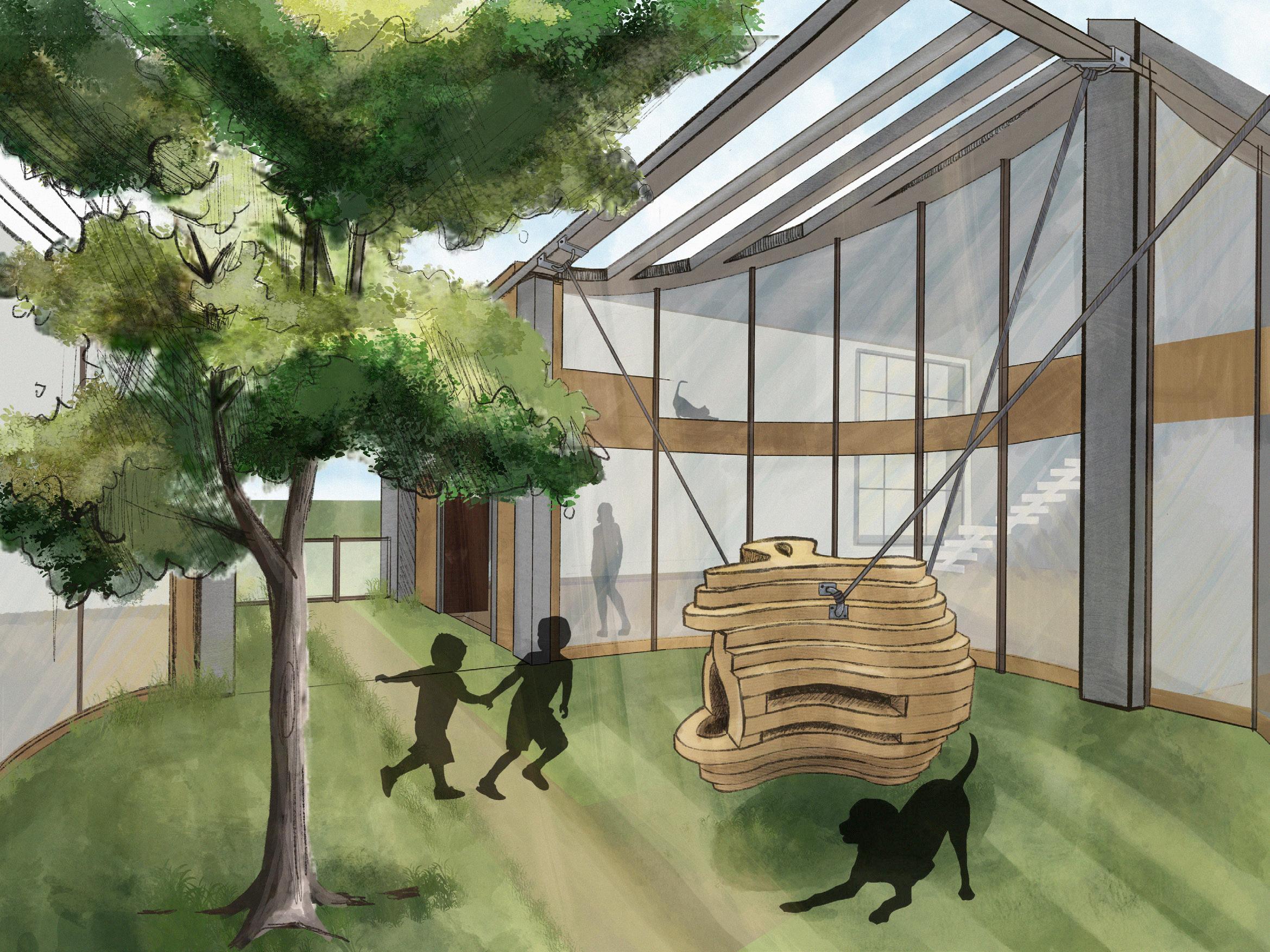

Render of Interior Pocket Garden

Pg

11

Riverwalk Gallery Park A public portion of the site invites the public who use the Riverwalk to engage in the market, gallery and green space. Sculptural egg-like cradles are scattered in the public park space to invite pedestrians to pause and investigate the playful landscape.

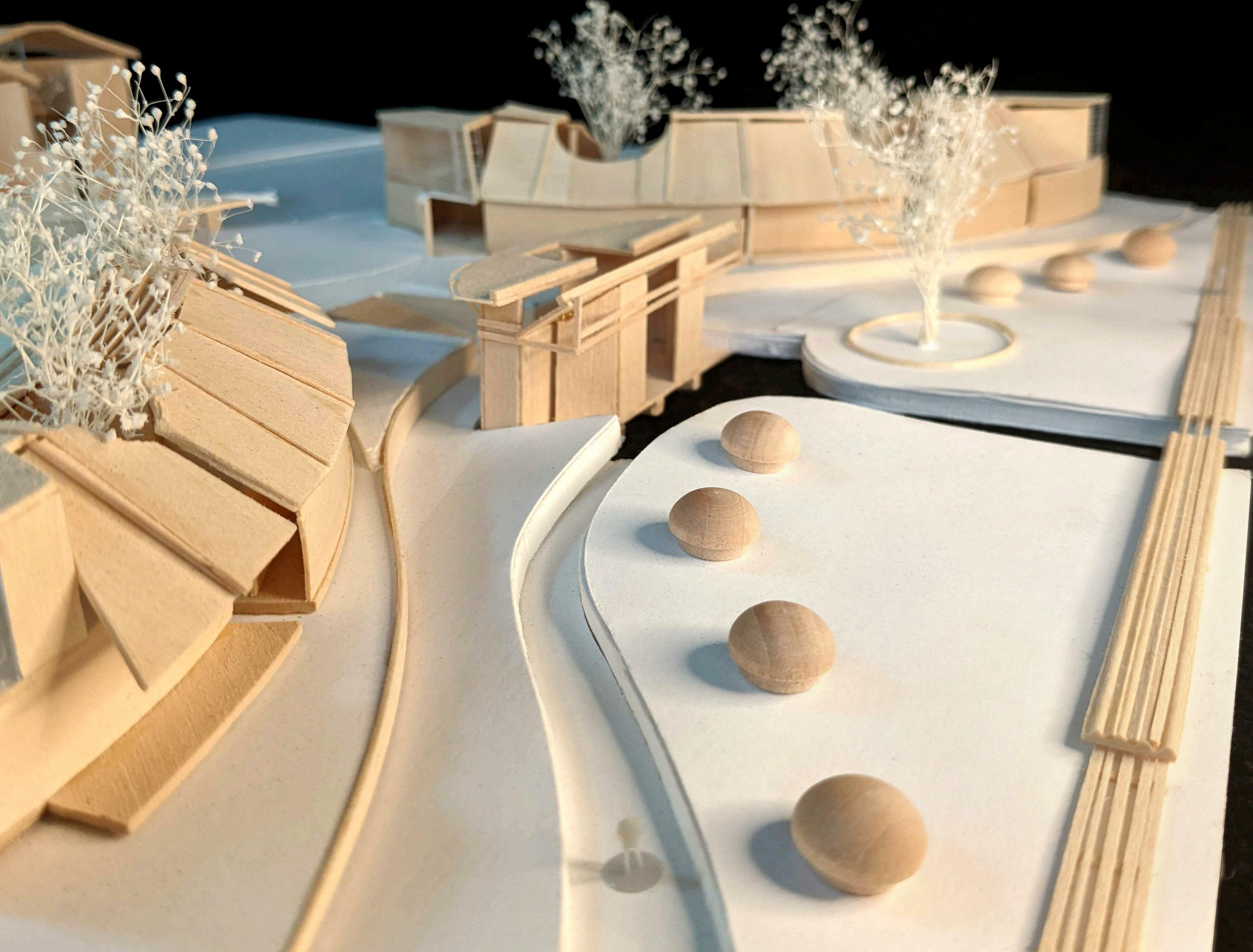

Physical Model Plan View

Pg

12

Physical model view of public green space and community market

Diagram of the site’s location on Tampa’s Hillsborough River

Riverwalk Market and Gallery The river is brought into the site and reflects the market onto it.

Here members of the community can show off their crafts and sell in an open market environment.

Physical model- View from Hillsborough River

13 13

PPgg

IV PROJECT

Life Tower

Hyde Park Tampa, Florida

An multi-purpose tower focusing on embracing the existing conditions of life to appreciate the natural species of the Florida ecosystem. The tower stems from an existing oak on the site. The system branches and expands to key points of community wellness.

GROWTH Sectional View

Pg

14

Render of Wellness Garden

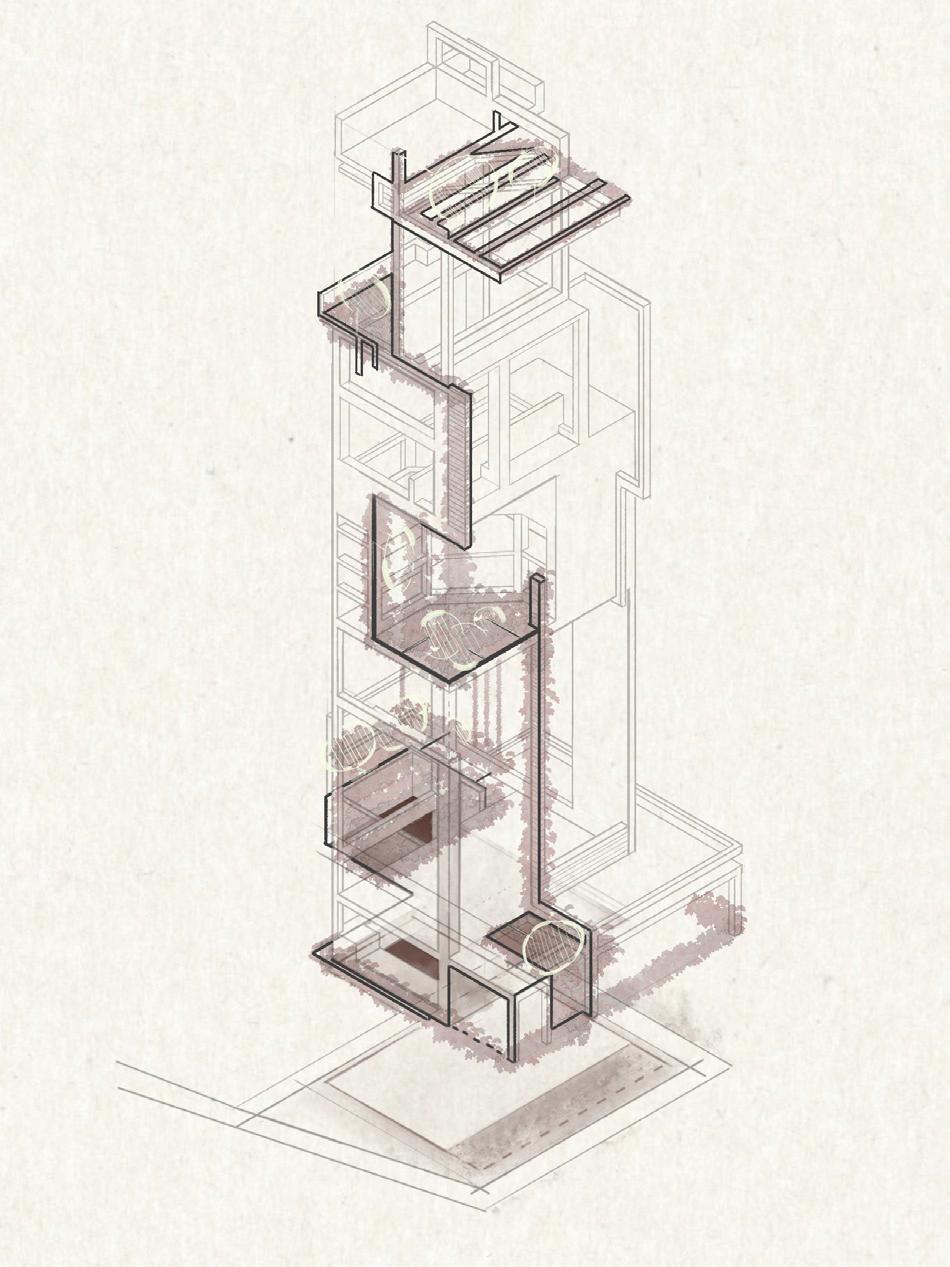

Axonometric Render

Plant-Life

Structure

Ground Floor Plan

Level 3-5 Plan: Retail

Level 6-11 Plan: Office Space

Level 12 Plan: Wellness Garden

Level 13-15 Plan: Residential

Roof Plan: Lounge

Natural Light

Pg

15

V PROJECT

SOLAR

GARDENS

Shared Solar Farms Several Towns in Virginia Several shared solar or community solar projects done professionally with ESA Solar. Shared solar allows local low income residents to use a portion of the farm and lower their electric bill as an alternative to roof mounted solar.

These visuals are created to present to the community and village board for permitting. It seeks to answer questions about sound, setbacks and view-shed.

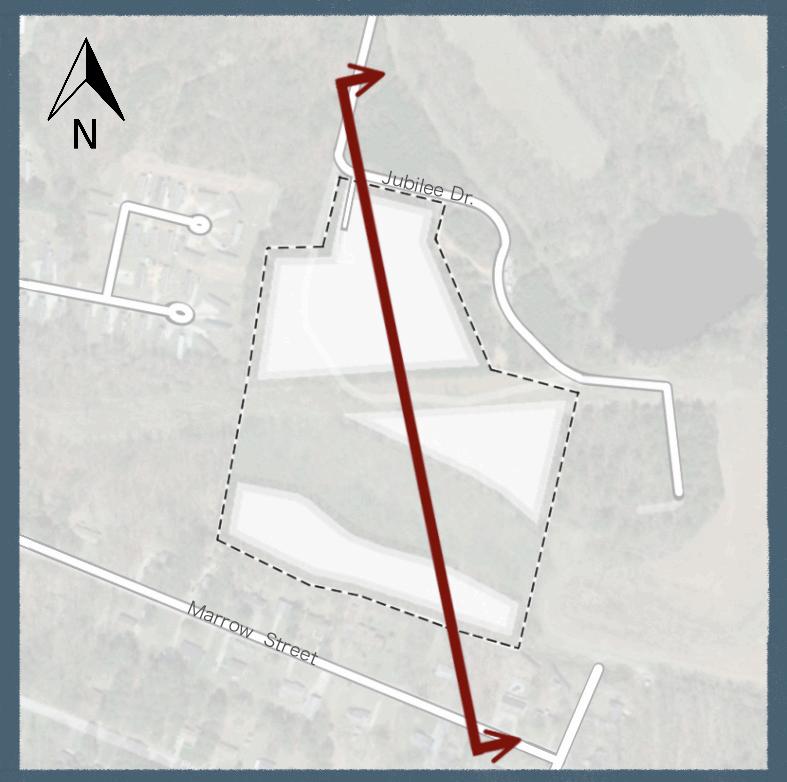

Legend of Marrow Solar Farm

Pg

16

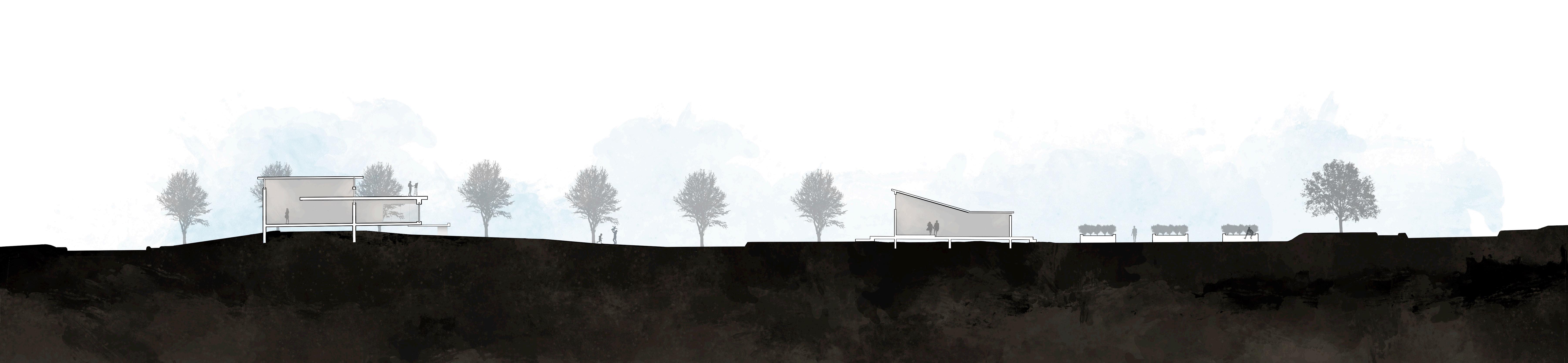

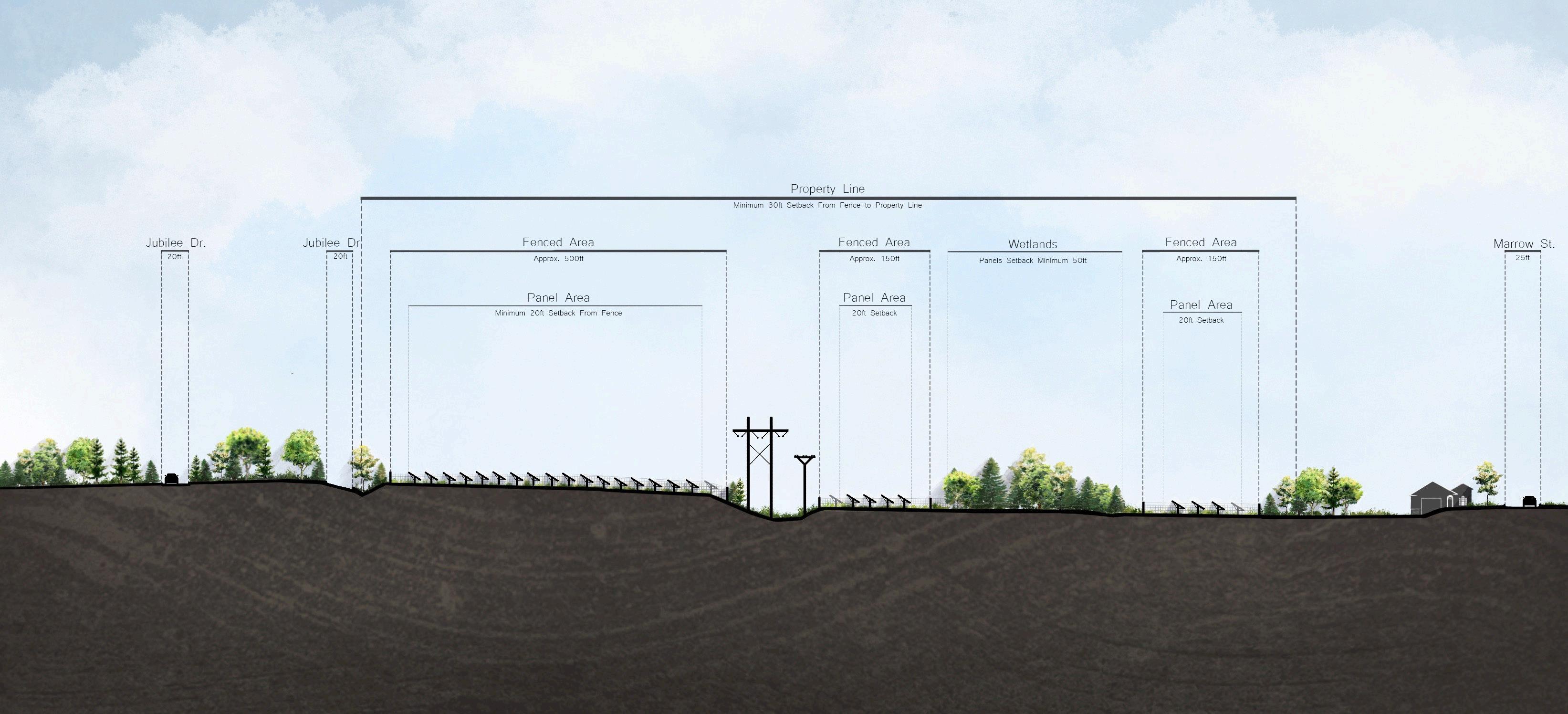

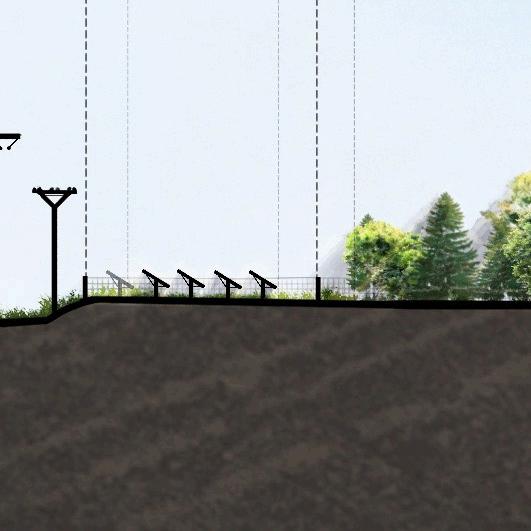

Section of Marrow Solar Farm in Virginia

Render of Enon Road Solar Farm- Option #1

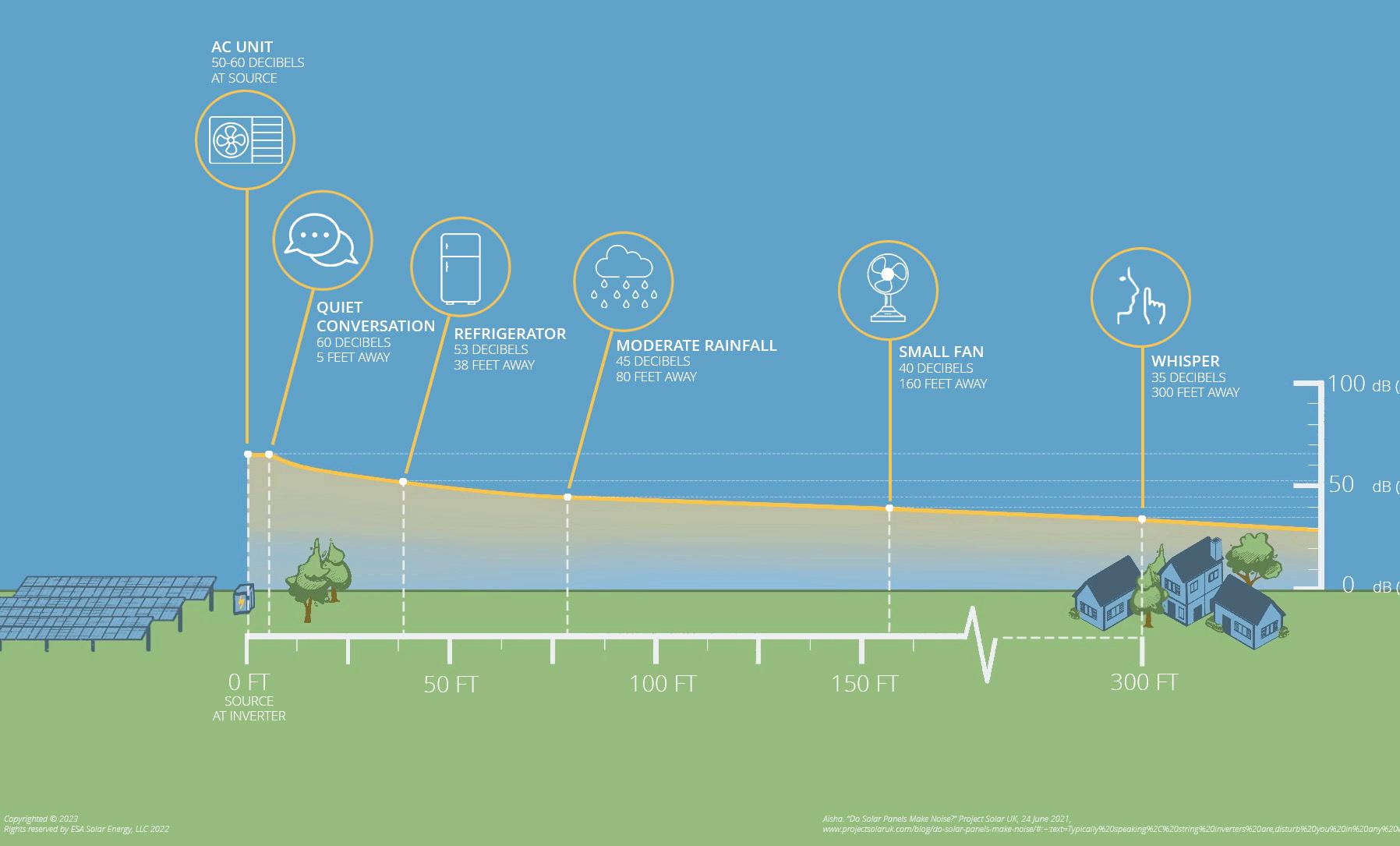

Graphic that shows how sound disipates from a solar farm

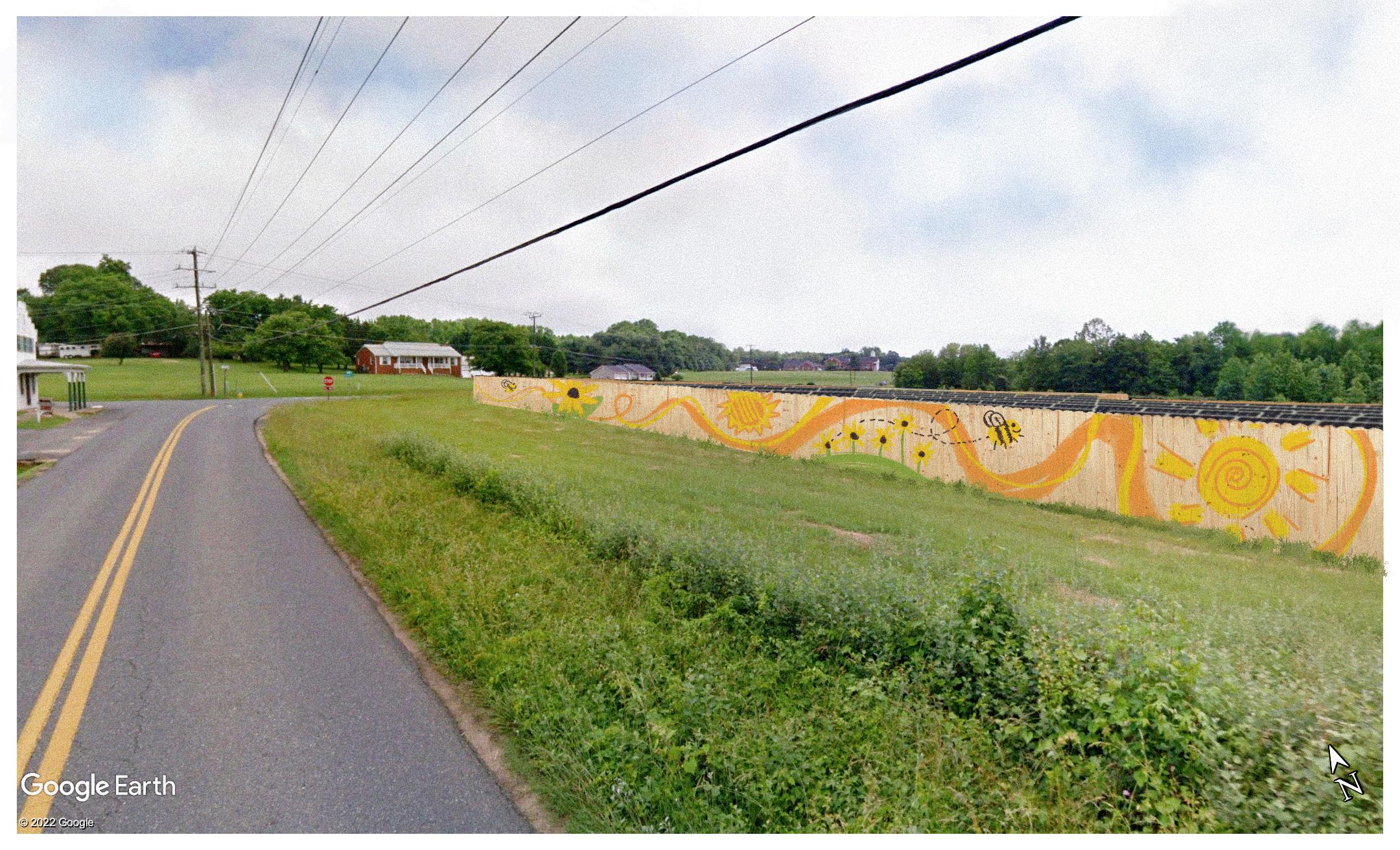

Render of Enon Road Solar Farm- Option #2 Plan to allow neighboring community center to paint fence and learn about solar

Preditictive Landscaping render for Crawford Road Solar Farm Pg

17

VI PROJECT

COMMUNITY

Community Center Winter Park Village Winter Park, Florida

This project aims to revitalize Winter Park’s central village into a walkable hub for arts and social connection.

The site features a sculpture garden, communal cafe, gallery and plenty of green space for locals to make their own.

Render of Community Cafe at night

Pg

18

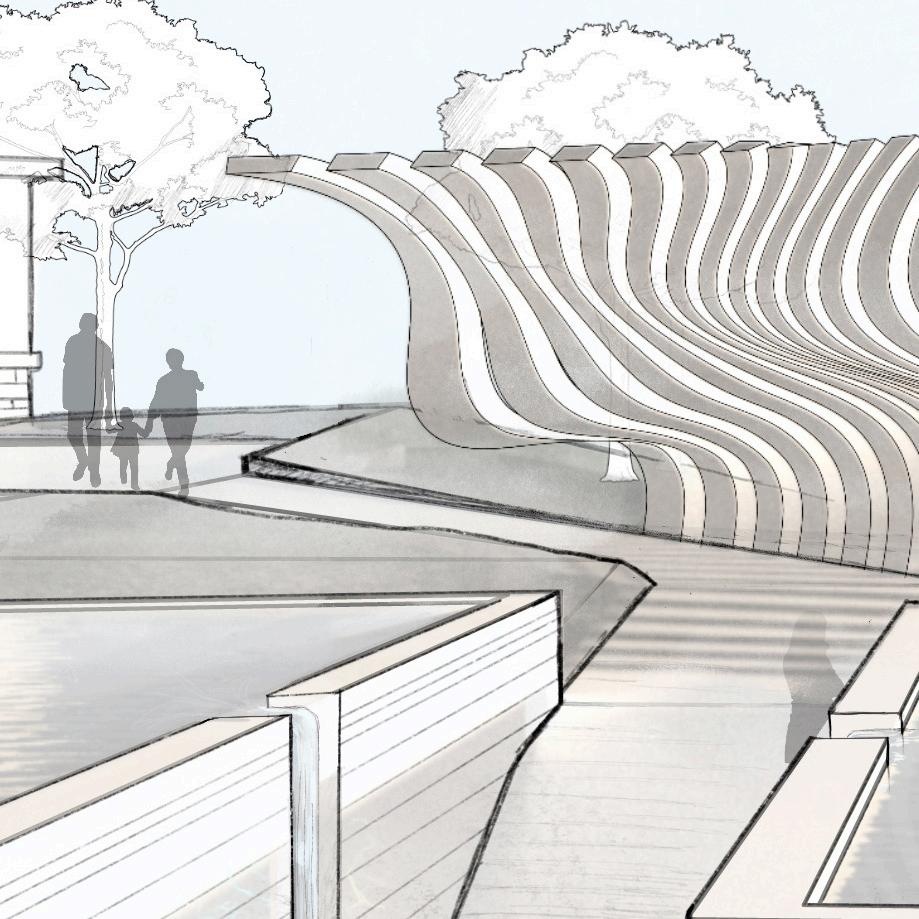

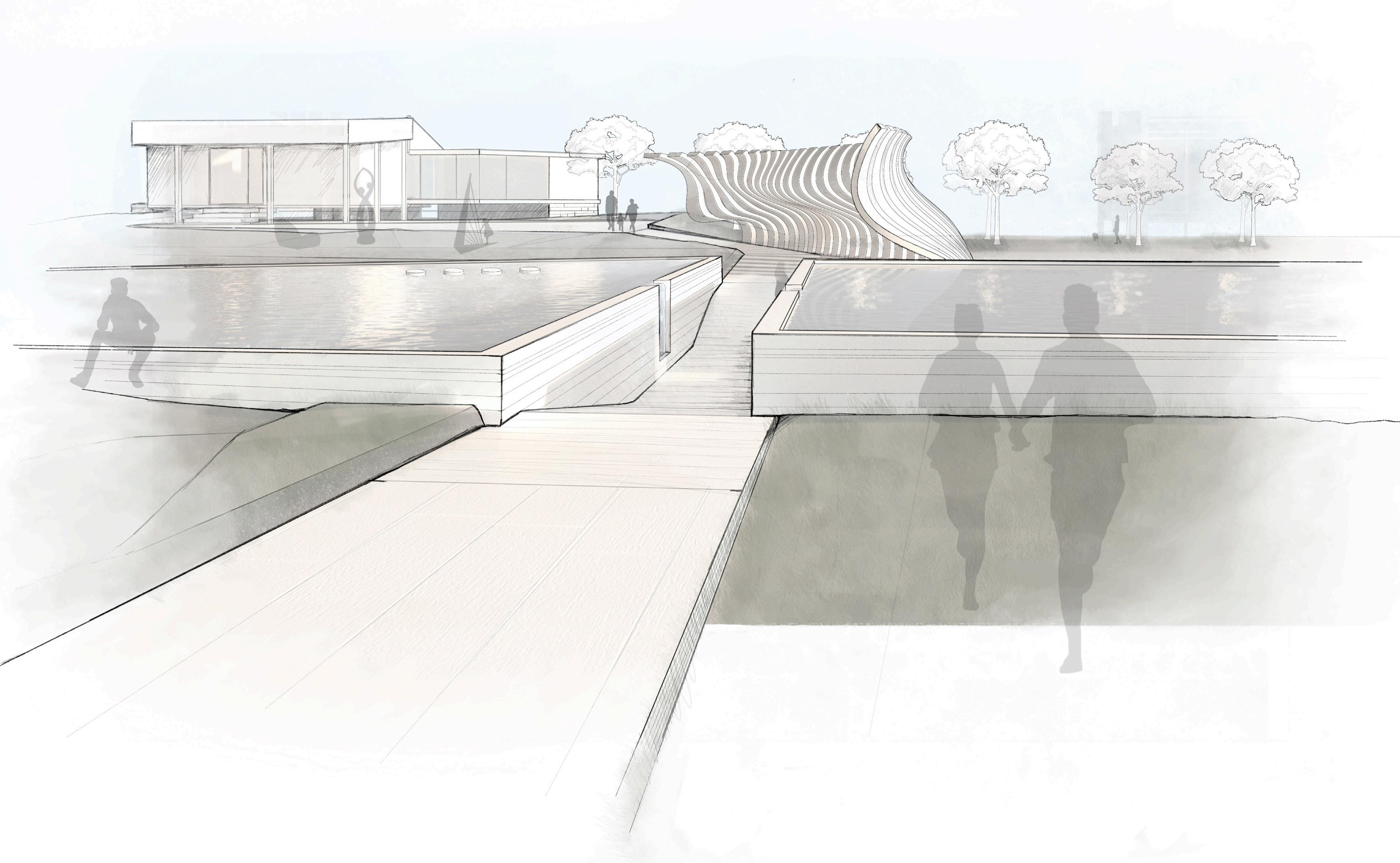

Render of sculture garden

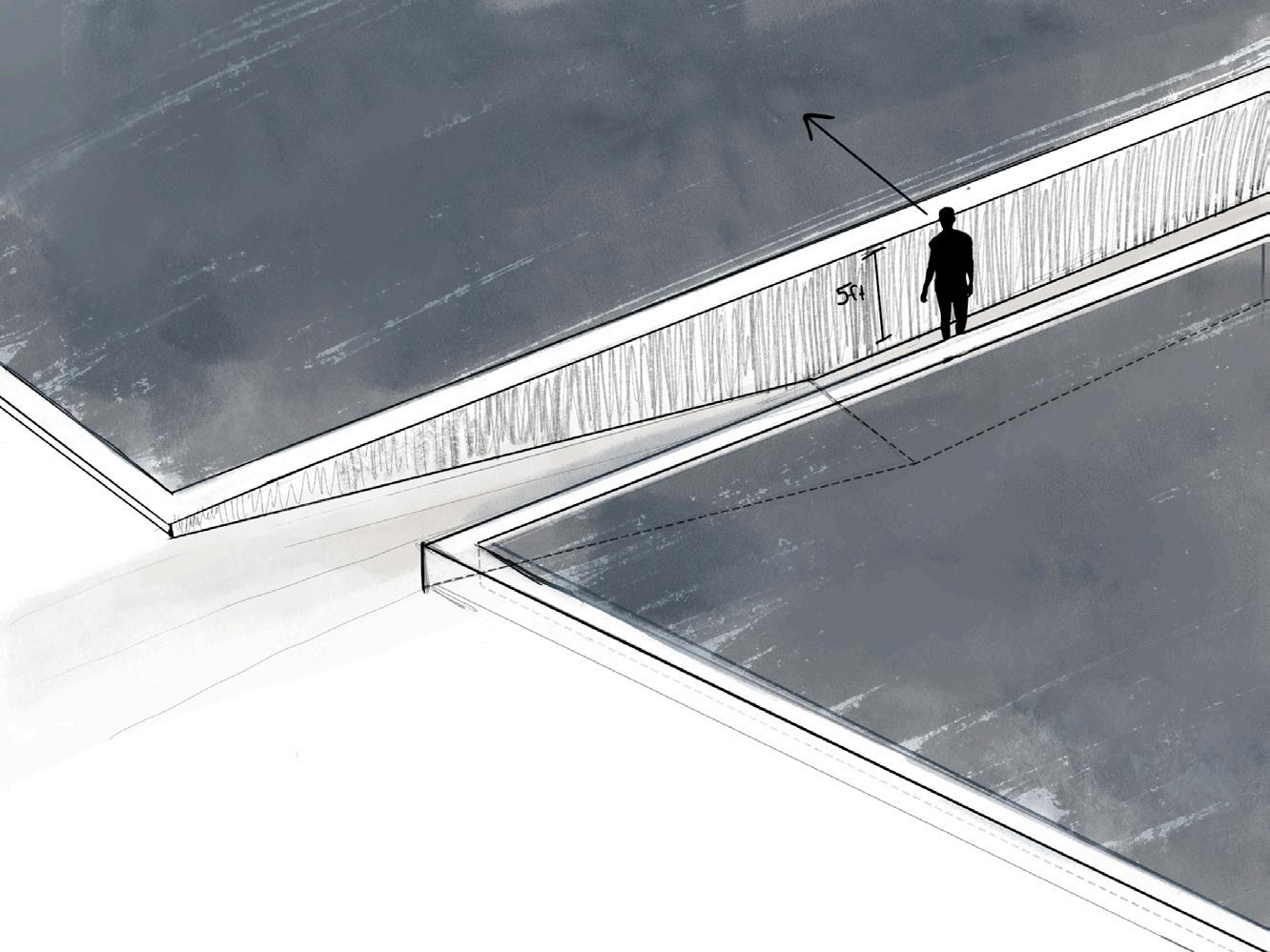

Sculpted Pathways Circulation is drawn through sculptural pathways as seen here cutting through the central water feature of the community center.

The occupant is lowered to eye level with the water. They are invited to a moment of reflection as the water crests over the interior walls and allowing the cafe to play with the refractions of the water.

Pg

19

PROJECT

VII STUDIO

Glass Blowing Studio

Atlantic Center for the Arts New Smyrna Beach, Florida A glass-blowing insert at the Atlantic Center for the Arts. This location acts as a

Terrain

Flood plain

communal workshop for artisans to hone their skills an use the workshop to produce original pieces.

Light

Wind

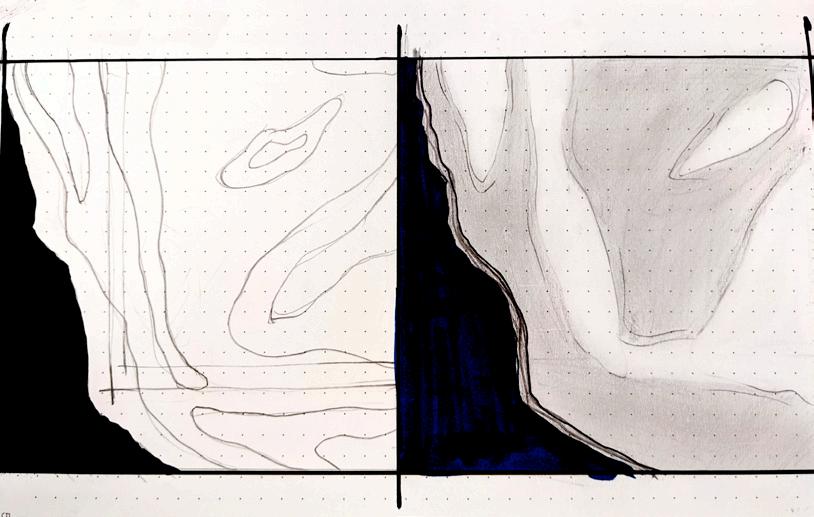

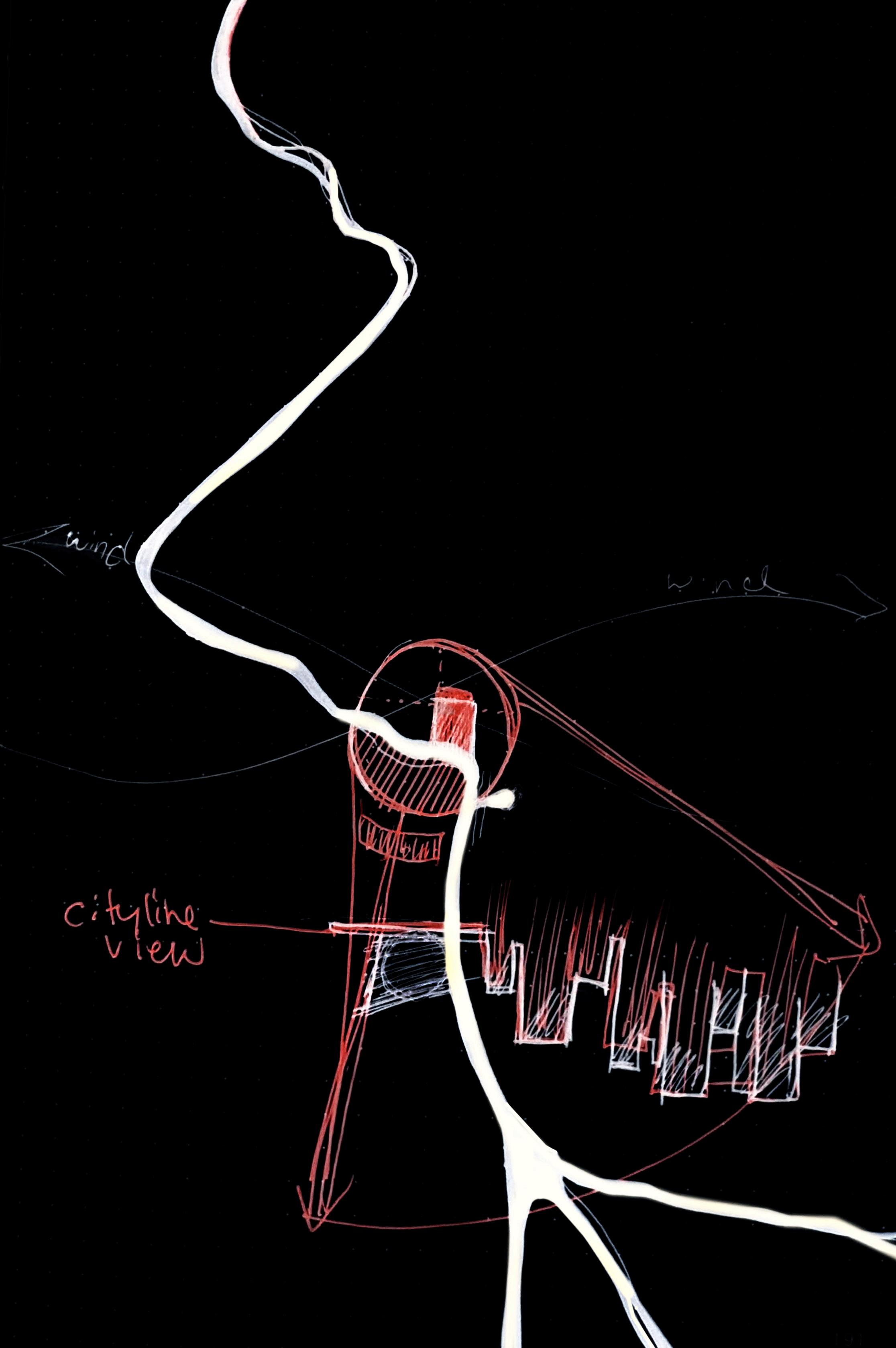

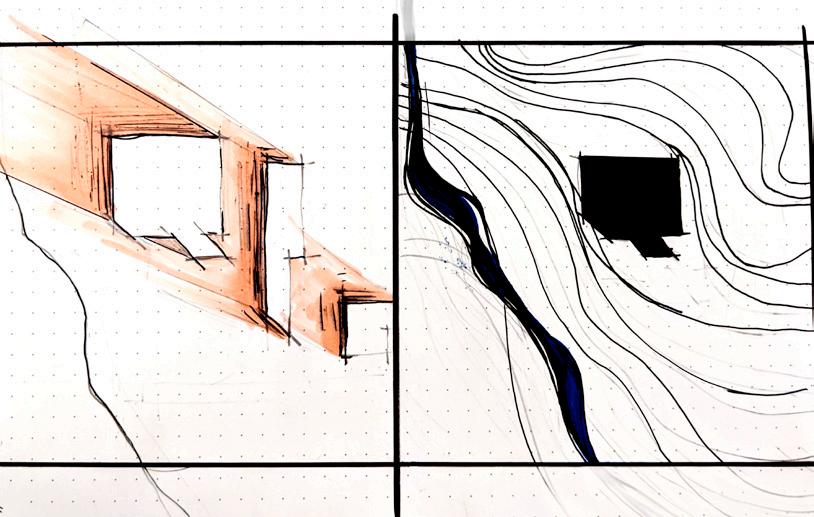

Site Studies

Pg

20

Sectional view

Molten Glass The model seeks to mimic the shape of molten glass being pulled and stretched into form.

After passing through the cooling water it hardens into an airy light structure.

Model of studio: Basswood, plexi-glass, foam board

PPgg

21 21

Shannon McCaddon Architecture Portfolio

Contact: +1 (386) 576-7070 shannon.mccaddon@gmail.com linkedin.com/in/mccaddon/
