Urology Center
In Grayslake, Illinois, there is an urology center managed by an urology group called UroPartners. UroPartners was a client of Chicago Design Network who wanted renovation work done on the second floor of the building, which consists of three separate suites. The changes that were made include walls, ceilings, millwork, lighting, and doors. Rooms included on the second floor are exam rooms, waiting rooms, reception, procedure rooms, write-up rooms, storage rooms, breakrooms, and bathrooms. After the renovation, some existing rooms remained while others were demolished and replaced with new rooms.
Company: Chicago Design Network
Project Title: UroPartners Grayslake
Date: November 2023
Partner(s): Travis Rebsch

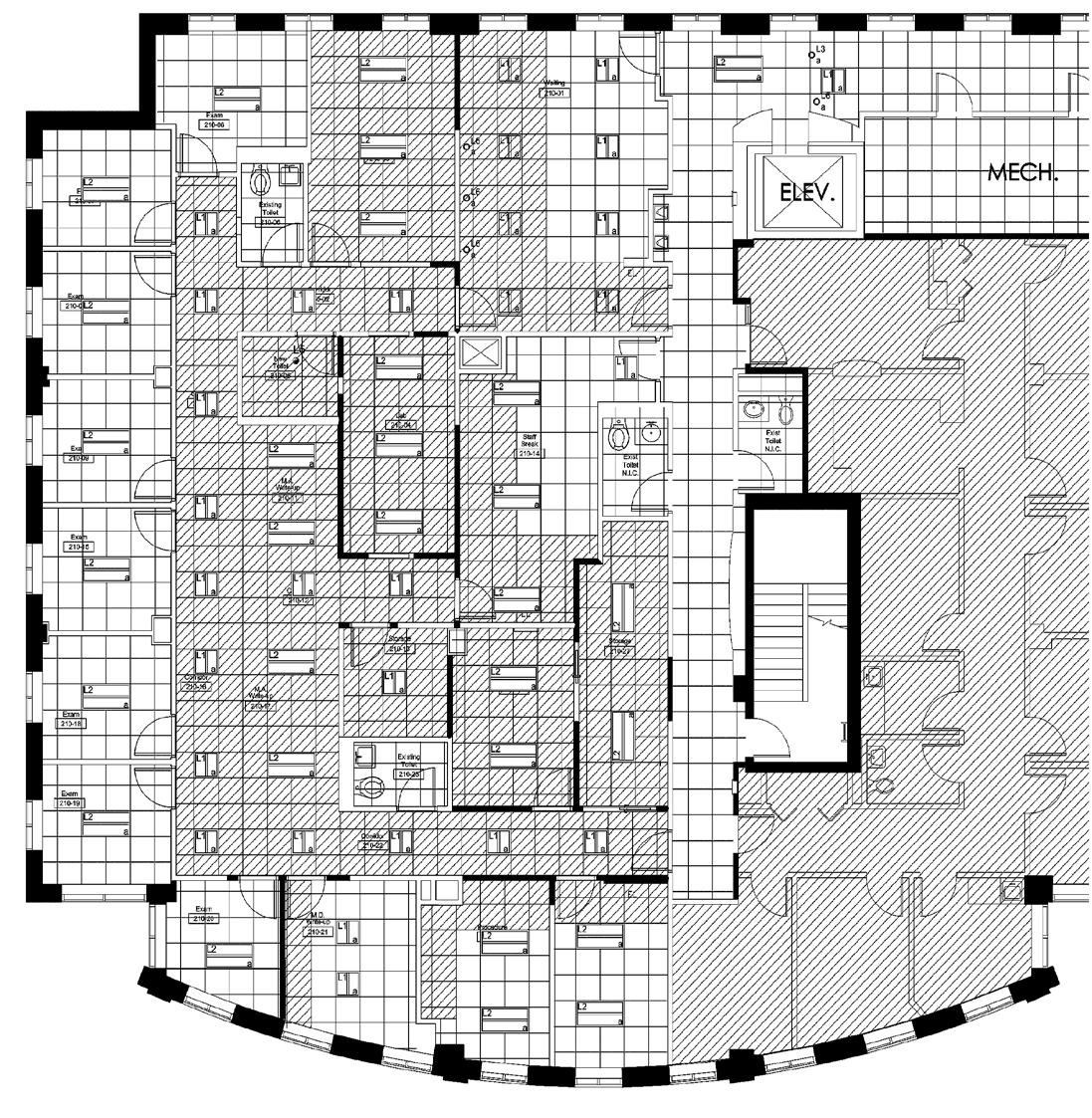

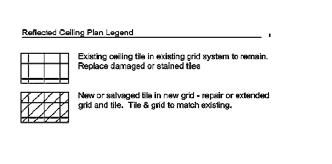

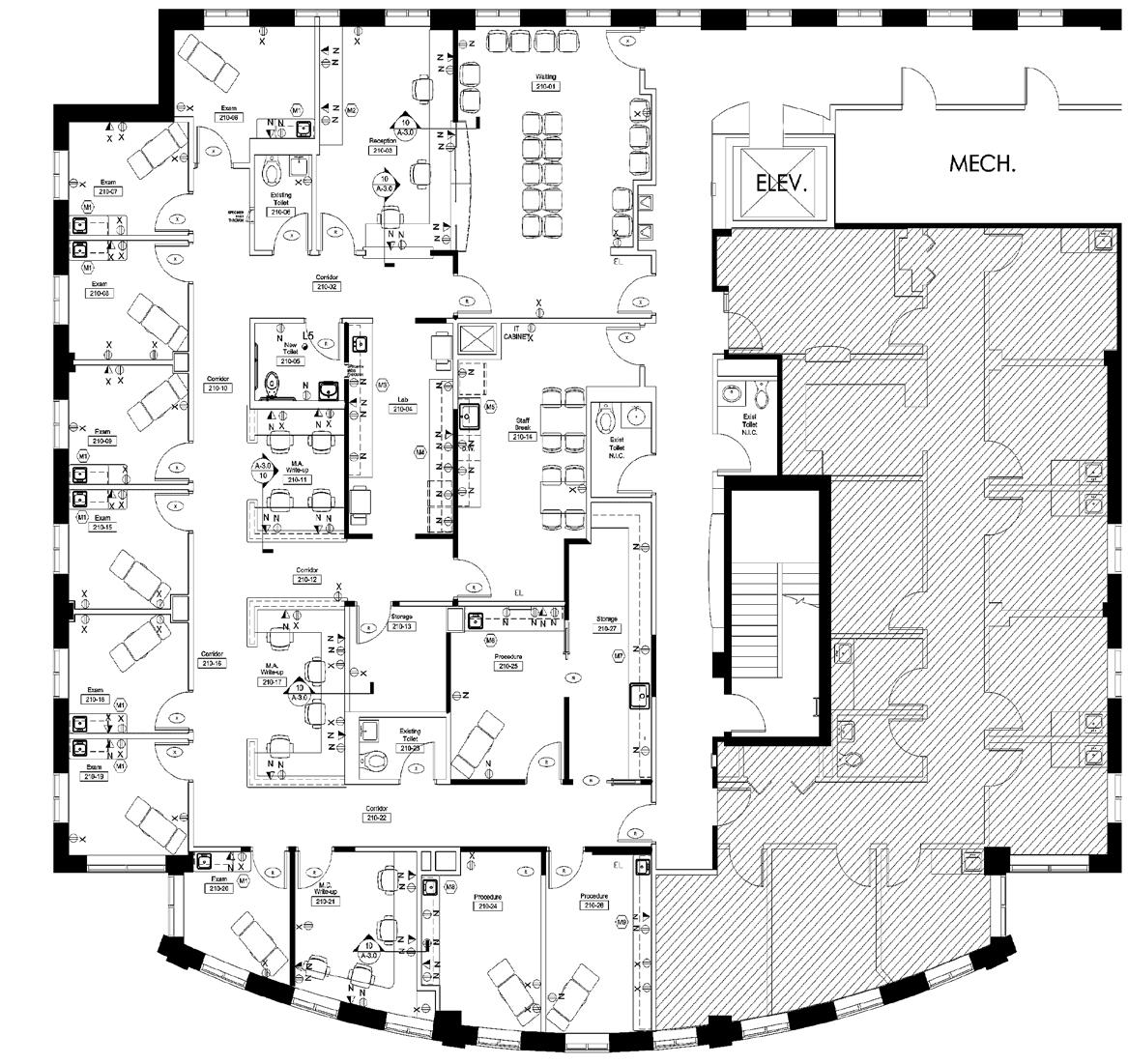

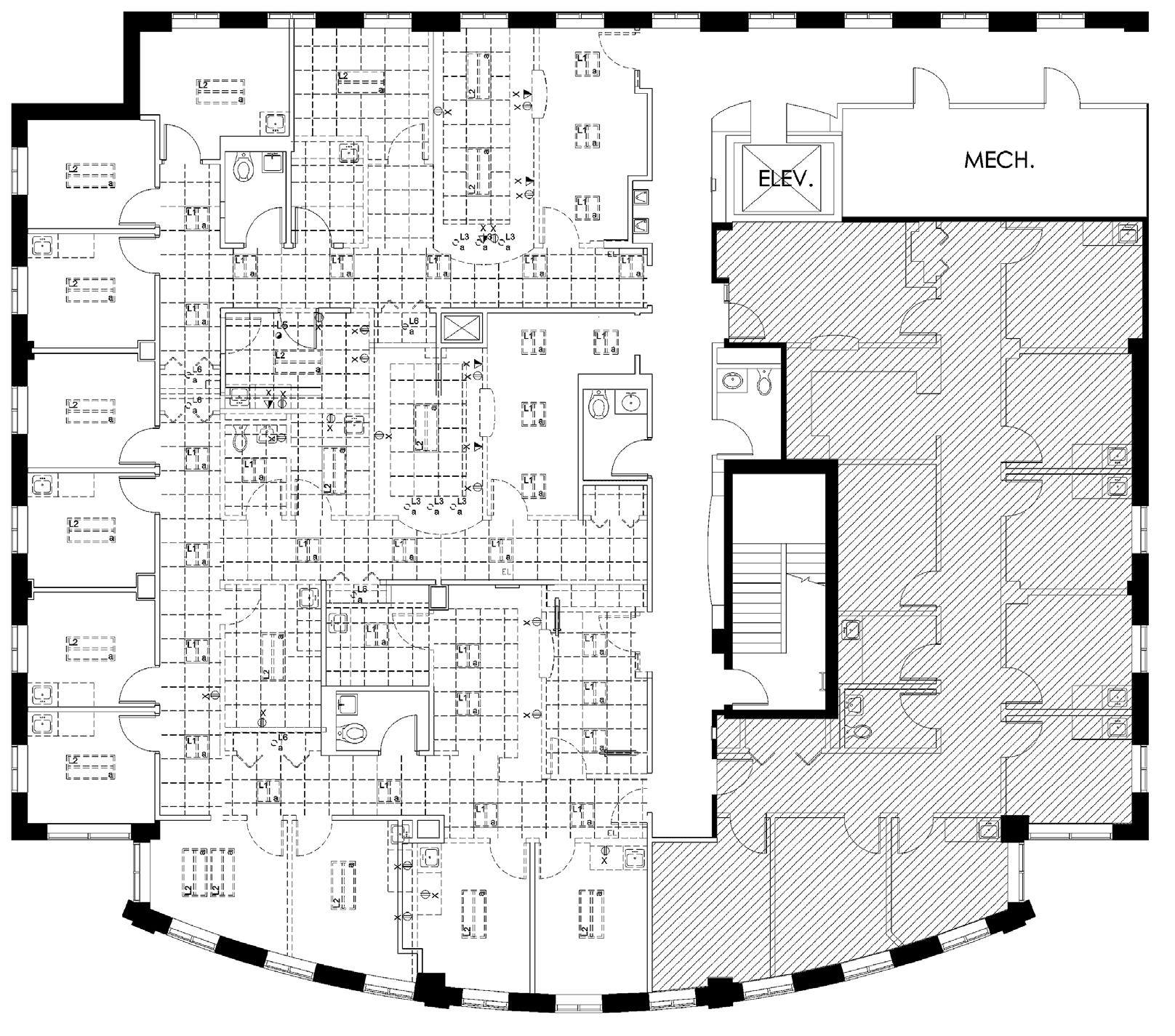

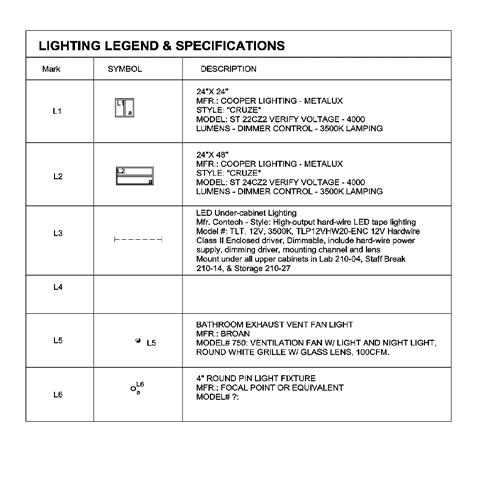

Construction Plan Reflected Ceiling Plan Plan

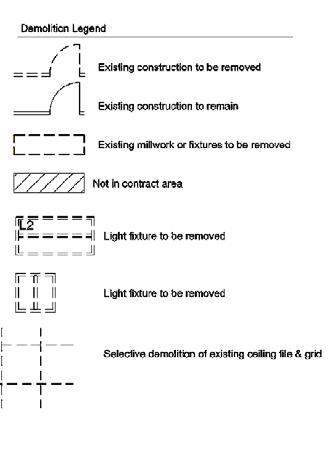

Demolition Plan

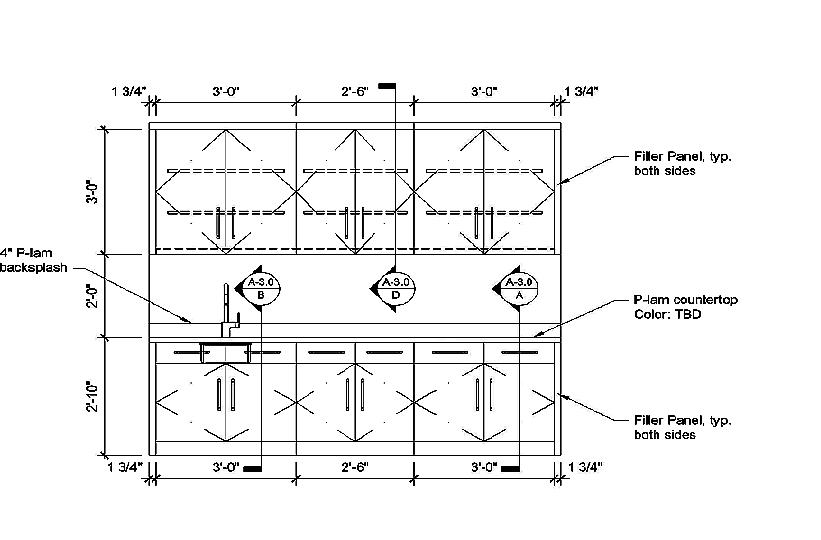

Procedure Room #1 Millwork Elevation
Procedure Room #2 Millwork Elevation

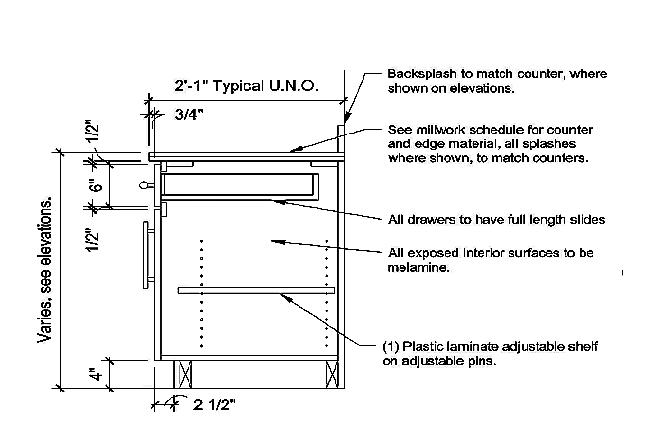

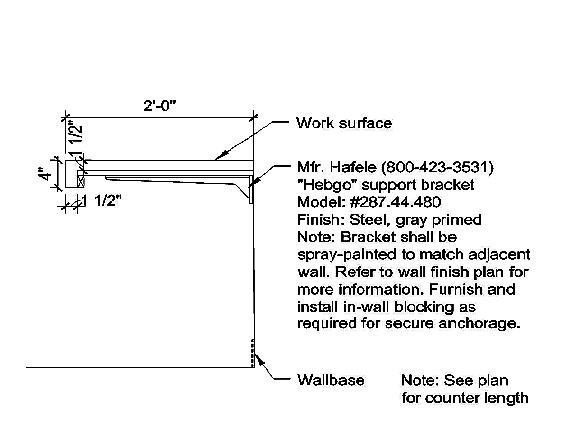

Procedure Room #3 Millwork Elevation Counter Section Section
Cleaned/Soiled Room Millwork Elevation

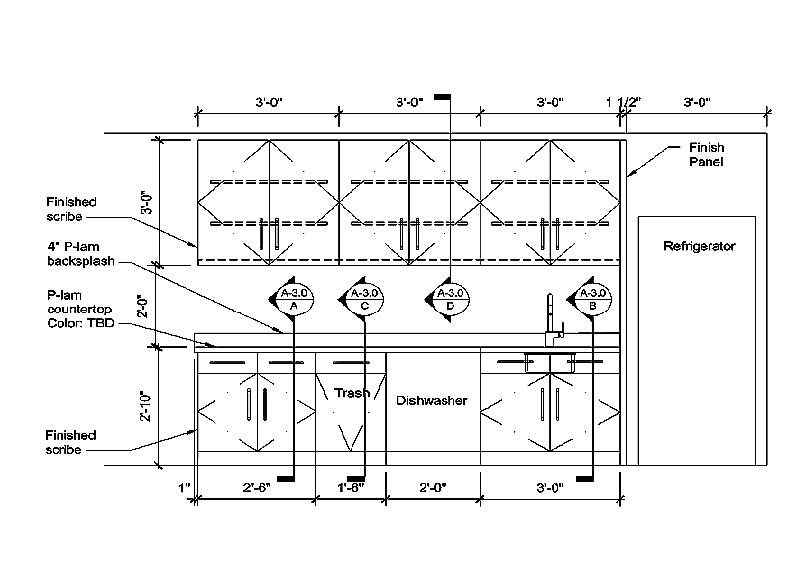

Breakroom Millwork Elevation
Exam Room Millwork Elevation Reception Millwork Elevation

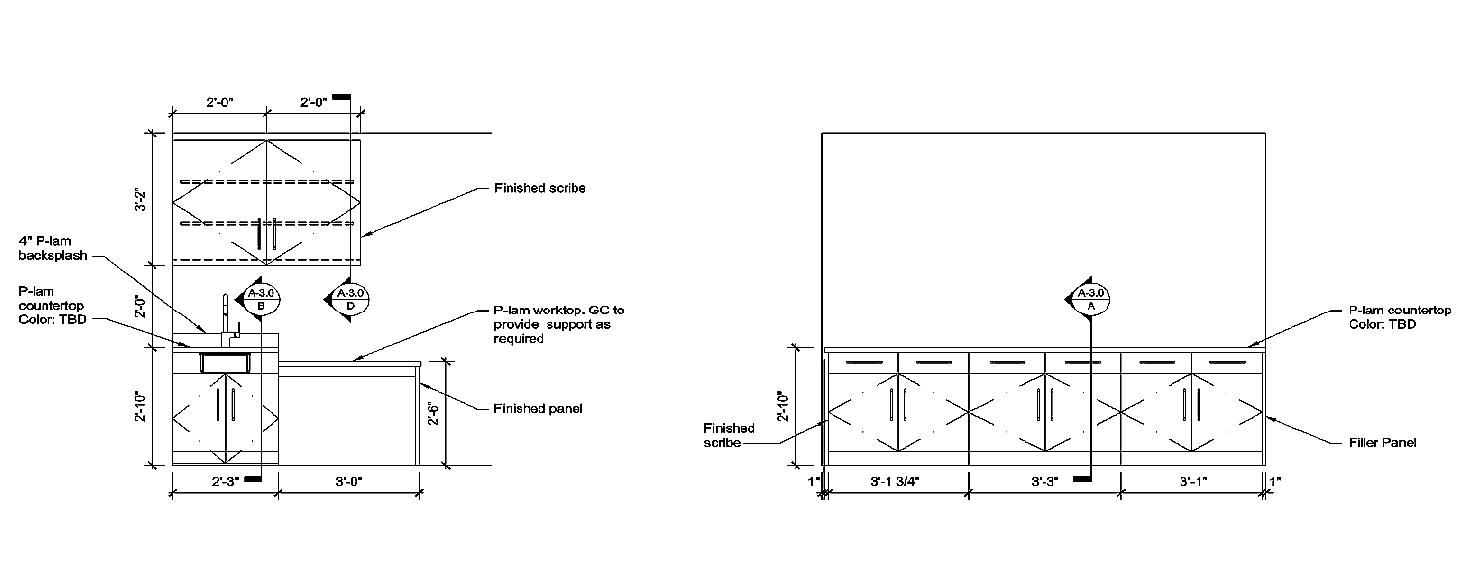

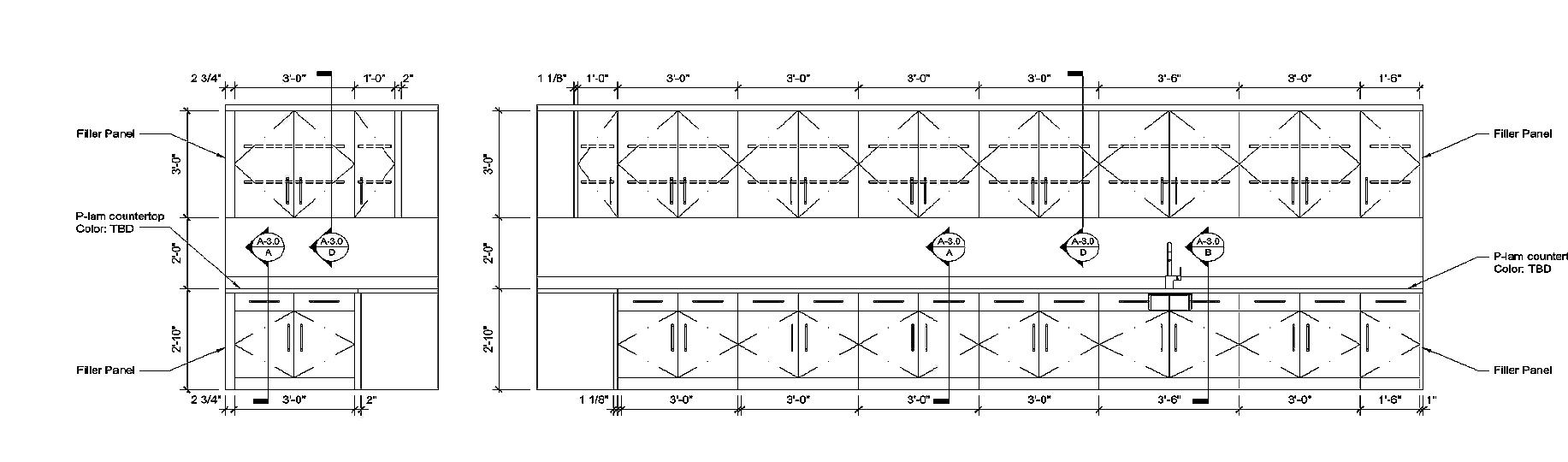

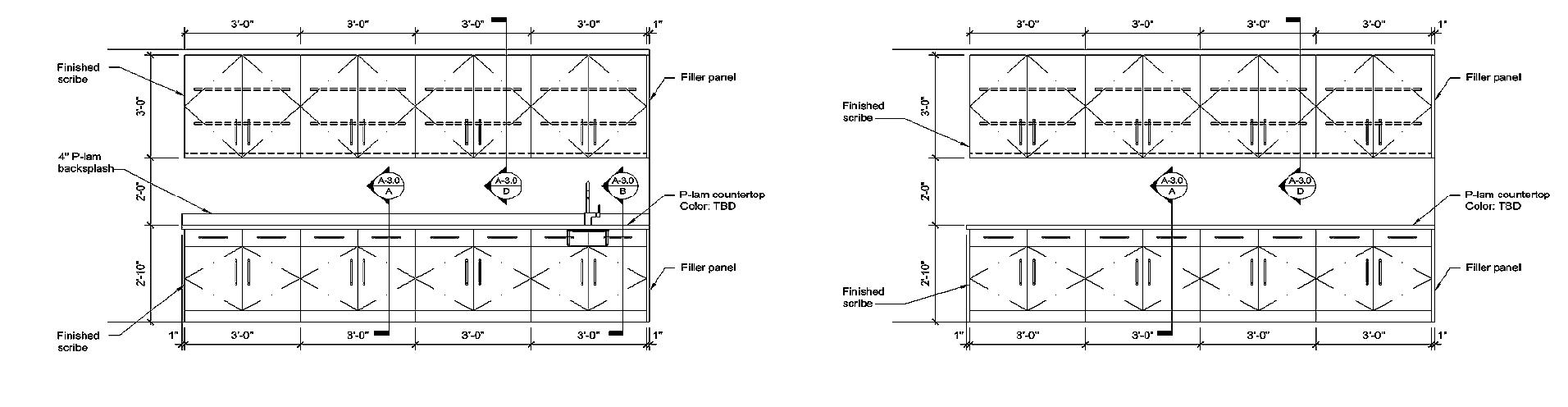

Lab Millwork with Sink Elevation
Urology Center

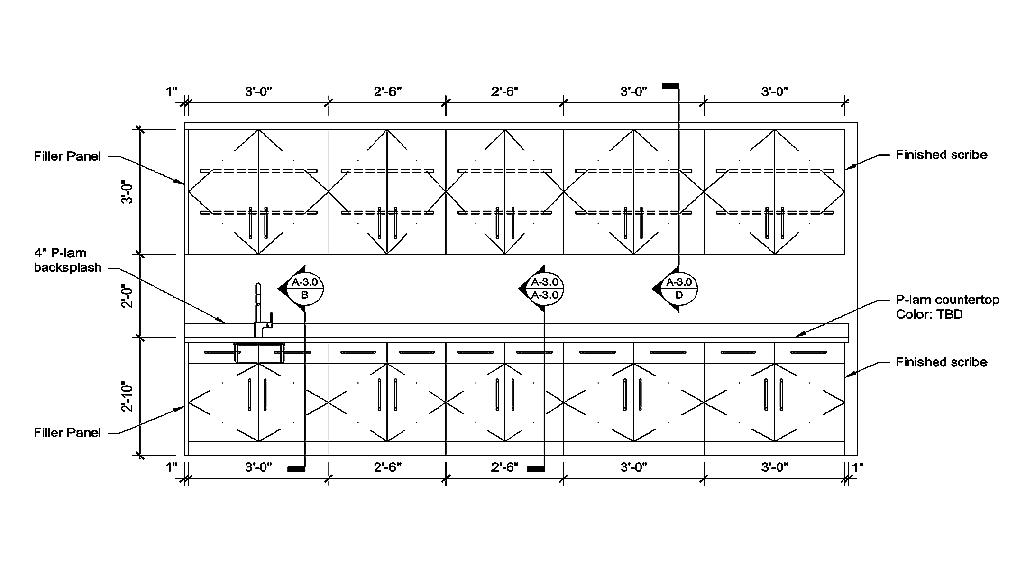

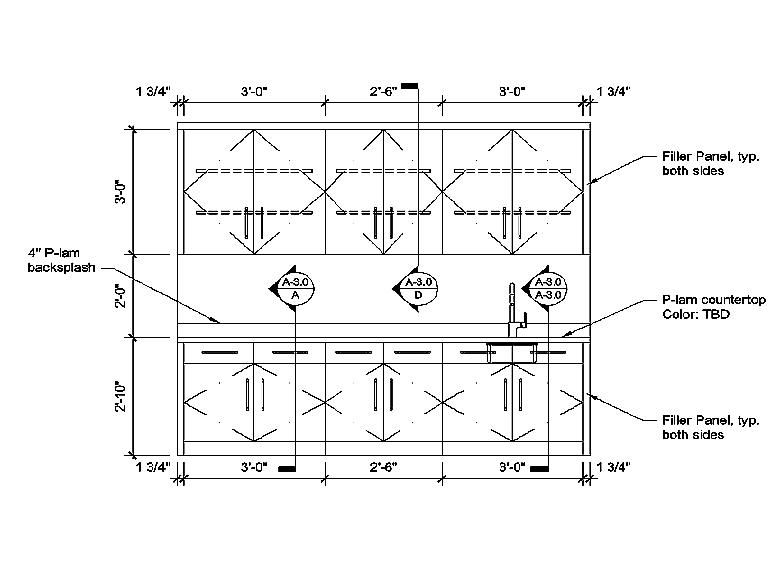

Lab Millwork Elevation
Hybrid Building
The purpose of this project is to design a hybrid-building (two-part) that has four different purposes: residential, insititutional, recreational, and educational. From the first to third level, one building consists of a restaurant, a clinic, a culinary arts school, and a large rooftop garden that is open to the public; and the other building consists of apartments for residents.
Studio: 5th Year Cloud Studio
School: Illinois Institute of Technology
Project Title: Hybrid Building
Semester: Fall 2021
Instructors: Patricia & Robert Natke

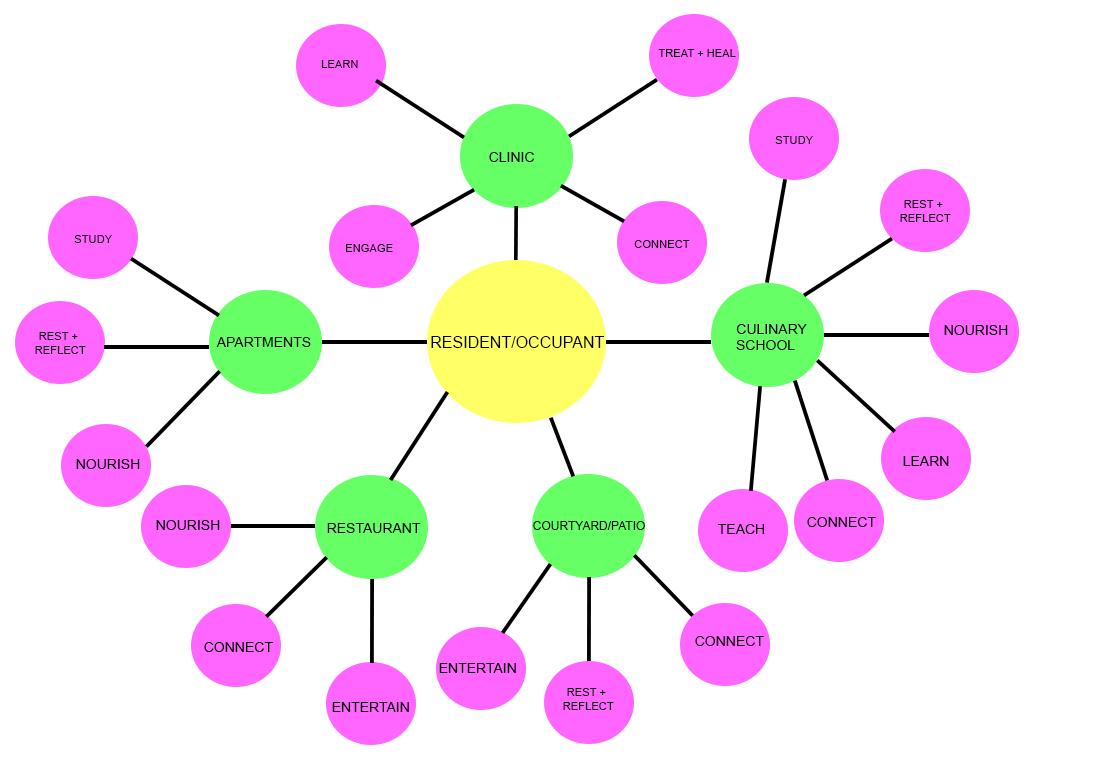

Inhabitation Diagram
SITE PLAN SCALE: 1/64"=1'-0" 1
Site Plan
Hybrid Building 4TH FLOOR SCALE: 1/16"=1'-0" 4 MECHANICAL ROOM 1015 SQFT LOUNGE 942 SQFT LAUNDRY 160 SQFT KITCHEN LIVING ROOM KITCHEN KITCHEN STORAGE BATHROOM A A 3RD FLOOR SCALE: 1/16"=1'-0" 3 CULINARY ARTS SCHOOL 5076 SQFT STUDY ROOM 1522 SQFT CONFERENCE 651 SQFT OFFICES 651 SQFT LOUNGE 942 SQFT LAUNDRY 160 SQFT STORAGE LIVING ROOM A A 2ND FLOOR SCALE: 1/16"=1'-0" 2 LECTURE HALL 3347 SQFT RADIOLOGY ROOM EXAM ROOM EXAM ROOM LOUNGE 942 SQFT LAUNDRY 160 SQFT WOMEN'S RR MEN'S RR 130 SQFT STORAGE DINING AREA BATHROOM DINING AREA KITCHEN BATHROOM DINING AREA KITCHEN STORAGE A A 1ST FLOOR SCALE: 1/16"=1'-0" 1 LOUNGE 942 SQFT ENTRANCE LOBBY 1540 SQFT SOCIAL HUB 630 SQFT DINING AREA 2597 SQFT KITCHEN MECHANICAL ROOM WOMEN'S RR MEN'S RR BAR AREA 150 SQFT 1065 SQFT 164 SQFT 164 SQFT 872 SQFT LAUNDRY 160 SQFT BREAK ROOM VESTIBULE OFFICE 79 SQFT 159 SQFT COURTYARD/PATIO 71 SQFT STORAGE DELIVERY/TRASH AREA 593 SQFT VESTIBULE A KITCHEN LIVING ROOM BATHROOM KITCHEN LIVING ROOM BATHROOM KITCHEN LIVING ROOM BATHROOM KITCHEN DINING AREA LIVING ROOM KITCHEN DINING AREA KITCHEN DINING AREA LIVING ROOM KITCHEN DINING AREA STORAGE BEDROOM BATHROOM A
Floor Plan
Floor Plan Third Floor Plan Fourth Floor Plan
First
Second
Hybrid Building 4TH FLOOR 3RD FLOOR 2ND FLOOR 1ST FLOOR WEST ELEVATION SCALE: 1/16"=1'-0" 3 4TH FLOOR 3RD FLOOR 2ND FLOOR 1ST FLOOR NORTH ELEVATION SCALE: 1/16"=1'-0" 1 4TH FLOOR 3RD FLOOR 2ND FLOOR 1ST FLOOR SOUTH ELEVATION SCALE: 1/16"=1'-0" 2 4TH FLOOR 3RD FLOOR 2ND FLOOR 1ST FLOOR EAST ELEVATION SCALE: 1/16"=1'-0" 4 APARTMENT APARTMENT ENTRANCE LOBBY RESTAURANT DINING AREA APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT APARTMENT LECTURE HALL CULINARY ARTS SCHOOL WEST SECTION SCALE: 1/16"=1'-0" 1 20' PREFINISHED METAL COPING METAL DECKING WIDE FLANGE BEAM CHANNEL BEAM CURTAIN WALL SYSTEM CONCRETE SLAB METAL ANGLE WALL SECTION SCALE: 3/8"=1'-0" 1 North Elevation West Elevation East Elevation South Elevation
West view of hybrid building
Section
Section A
Wall
Hybrid Building

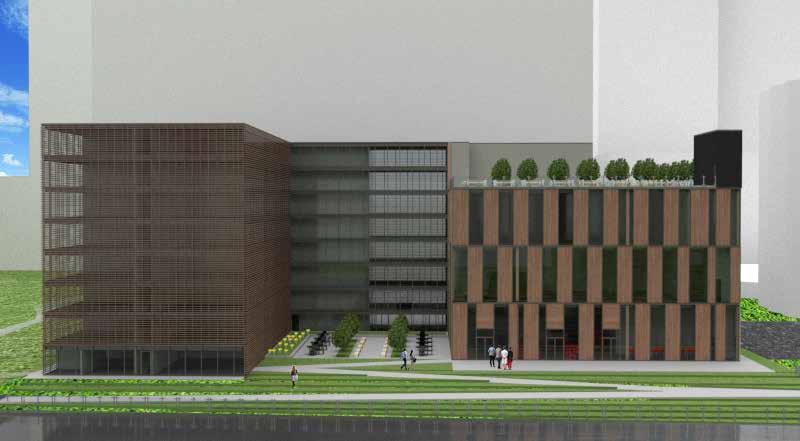

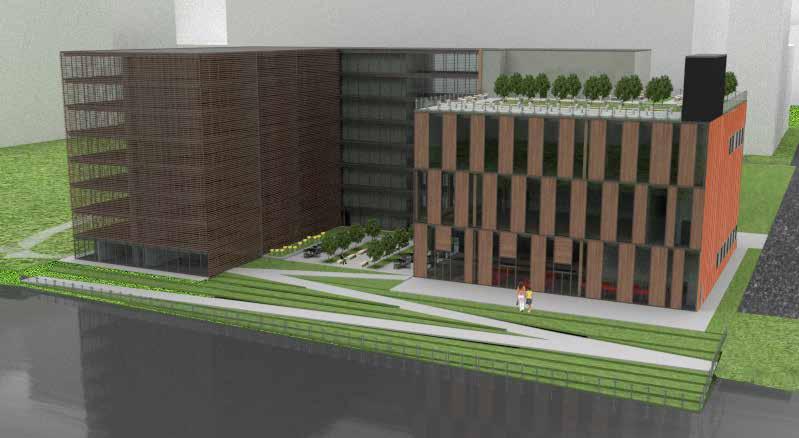

Two-point perspective view of hybrid building facing river

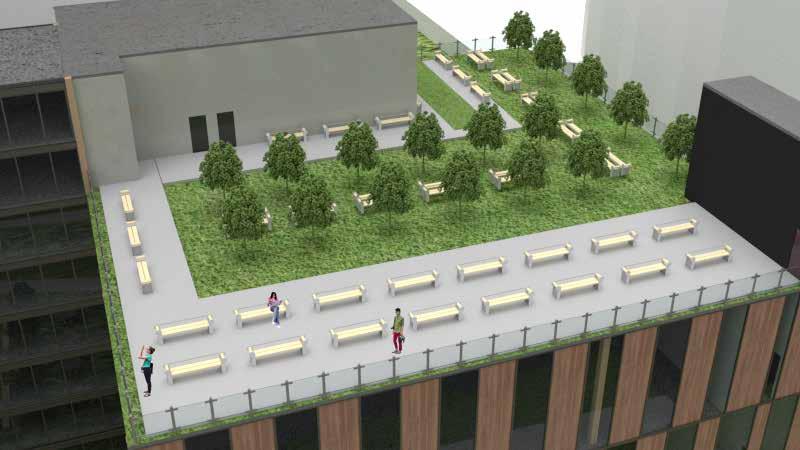

Rooftop view

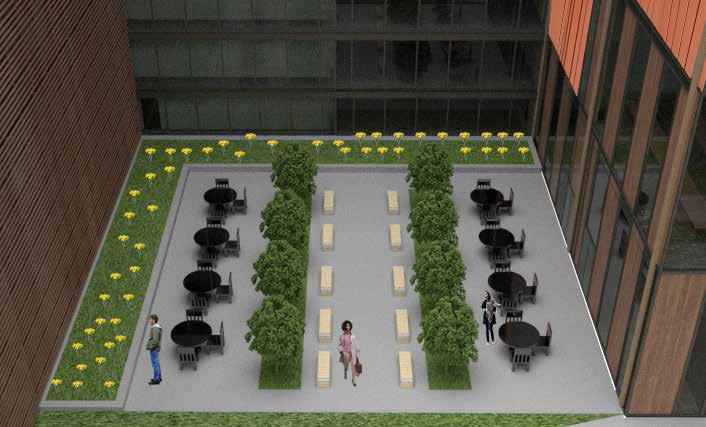

Courtyard view

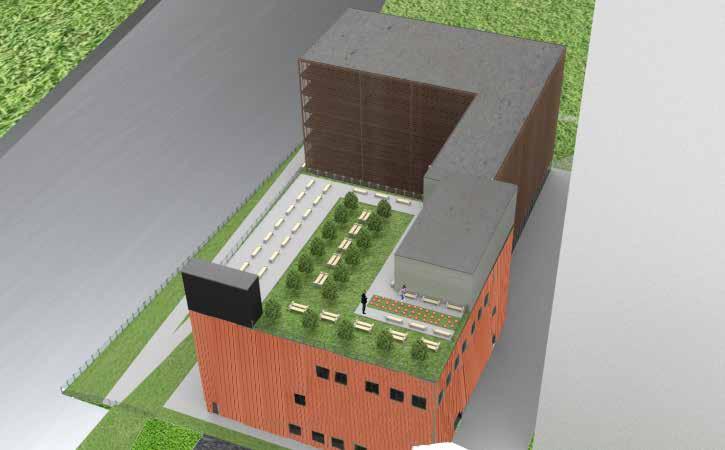

Aerial southeast view of hybrid building

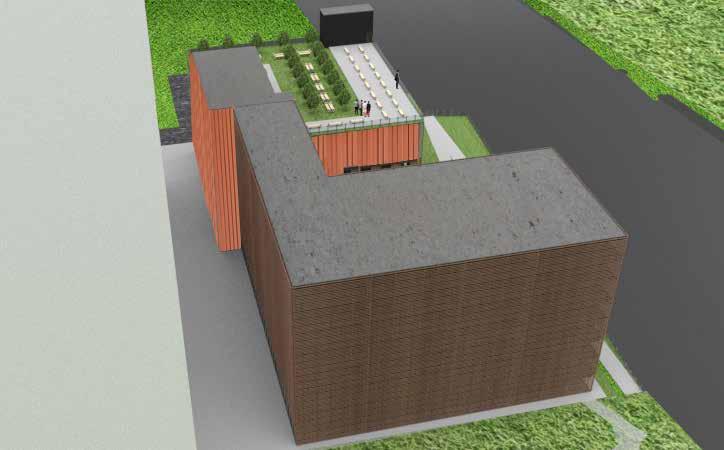

Aerial northeast view of hybrid building

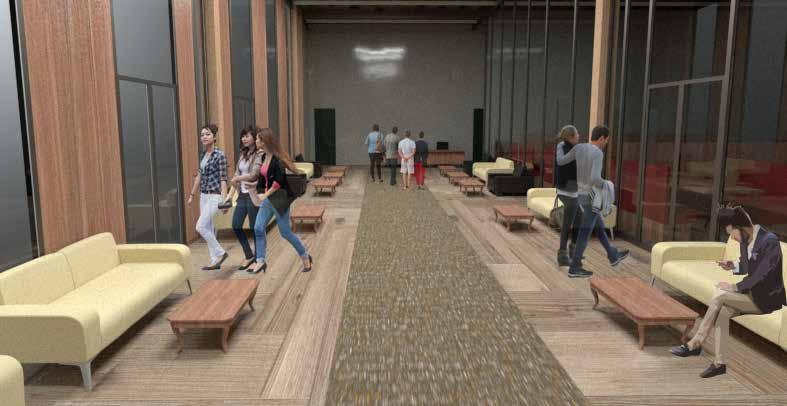

Main lobby of public building

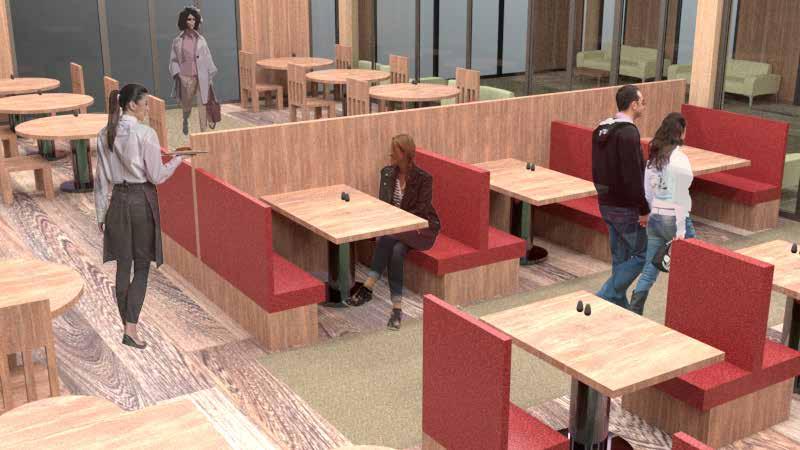

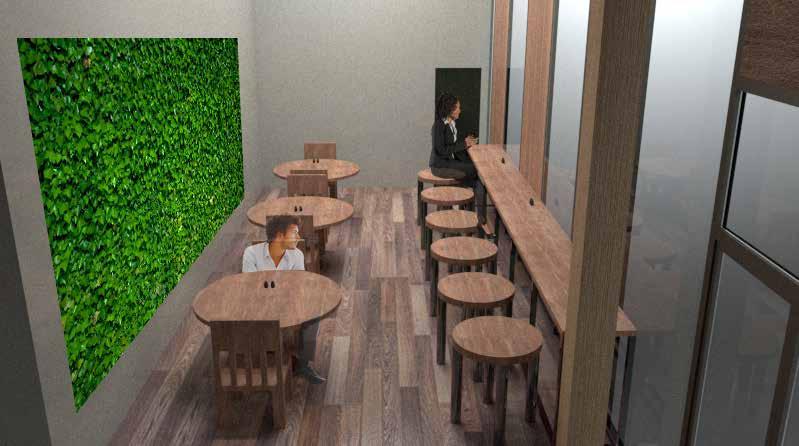

Small dining area in restaurant near entrance

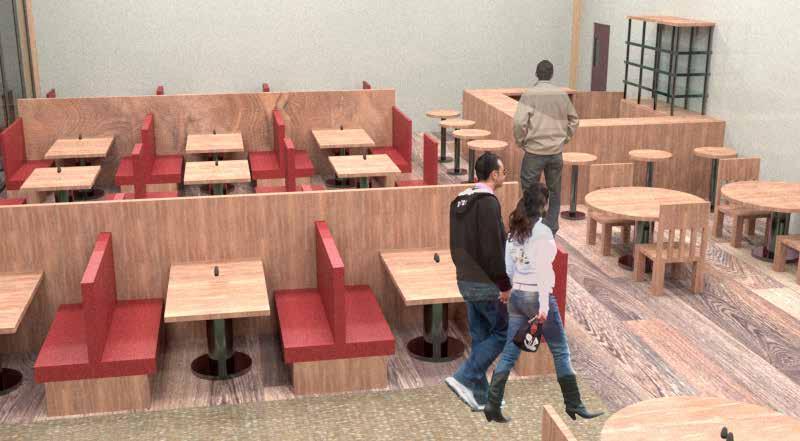

Main restaurant dining area with bar
Hybrid Building

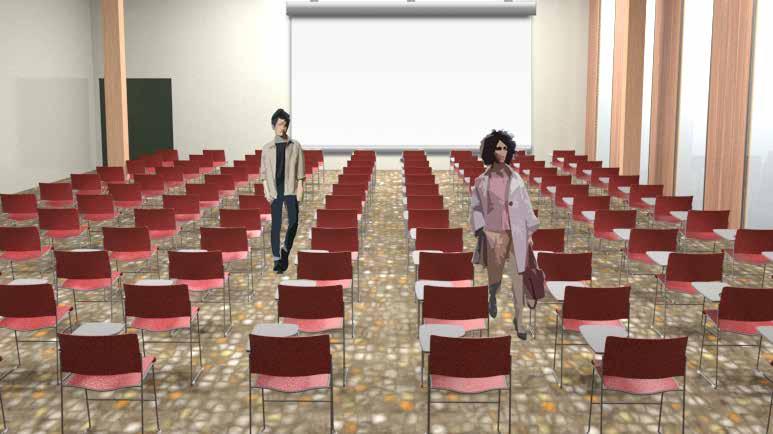

Lecture hall
Clinic waiting room

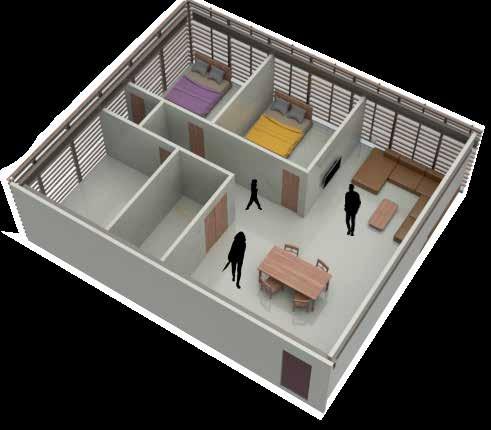

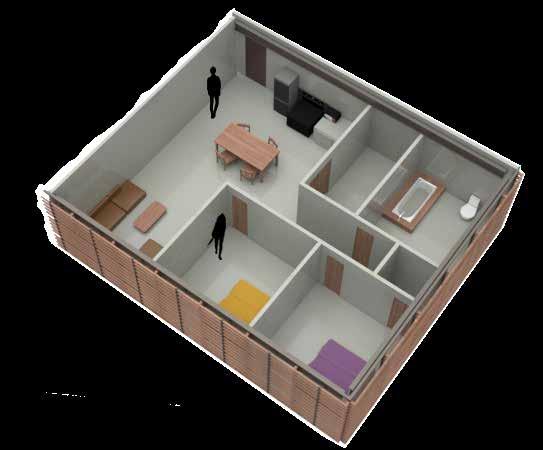

Axonometric views of apartment interiors

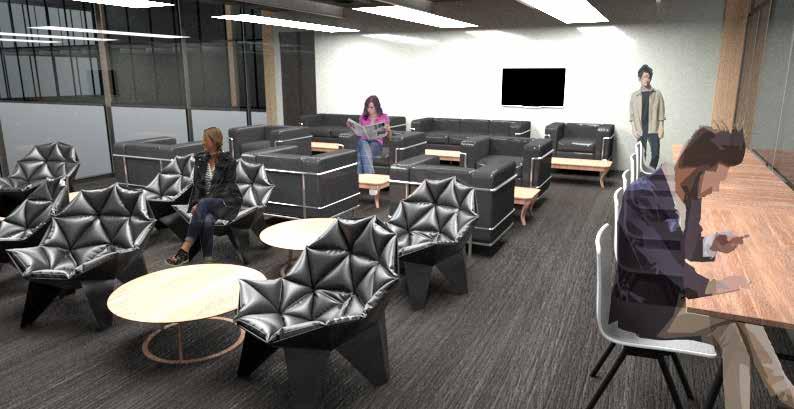

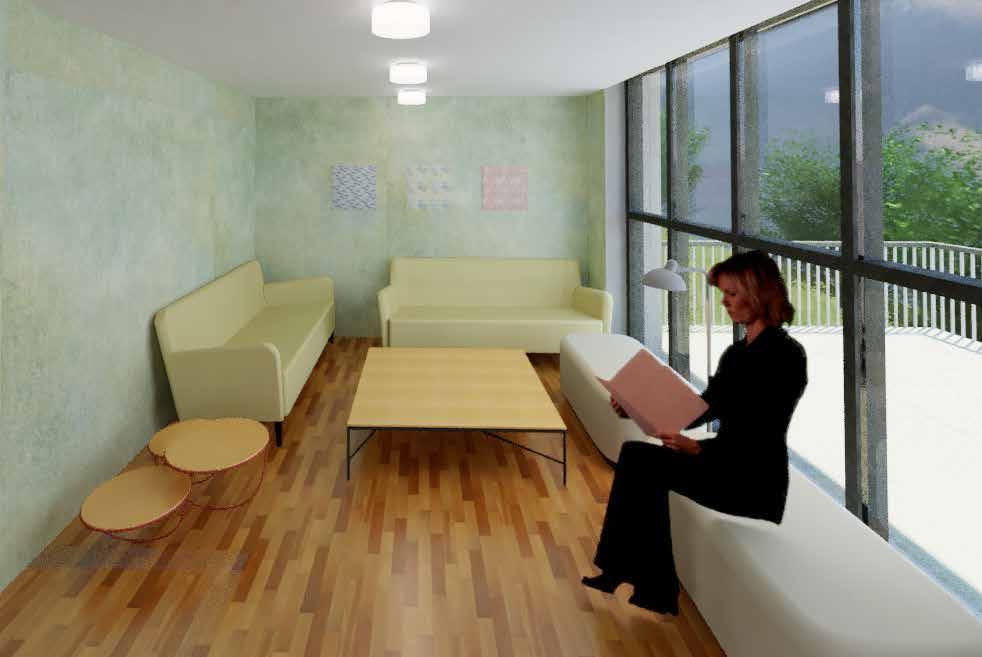

Apartment lounge
Main restaurant dining area
Duplex Apartment
The objective of this course is to design a three-story duplex apartment with a courtyard that consists of one floor for a one-bedroom apartment and two floors for a three-bedroom apartment. Each apartment consists of at least one bedroom, one bathroom, a kitchen, a dining room, a utility room, and a laundry room.
Course: Bim Revit
School: Illinois Institute of Technology
Project Title: Duplex Apartment Building
Semester: Spring 2022
Instructors: John Manfredy
DN www.autodesk.com/revit Scale Project number Drawn by Checked by Address AddressAddress PhoneAddress AddressConsultant Address AddressAddress Phone1/8" = 1'-0" 5/13/2022 9:32:25 PM A0.1 Site Plan Project Number Project Name Owner Issue Date Author Checker 1/8" = 1'-0" 1 Site Description
DINING ROOM 1 LIVING ROOM 2 KITCHEN 3 PANTRY BATHROOM 6 LAUNDRY ROOM 7 UTILITY ROOM 8 Bedroom 5 1/2" = 1'-0" 1 First Floor/Courtyard DN UP MASTER BATHROOM 11 MASTER BEDROOM 12 BEDROOM 10 BATHROOM 9 1/2" = 1'-0" 1 LAUNDRY & UTILITY ROOM 18 BATHROOM 14 LIVING ROOM 13 DINING ROOM 15 KITCHEN 16 BEDROOM 17 1/2" = 1'-0" 1 Level 3

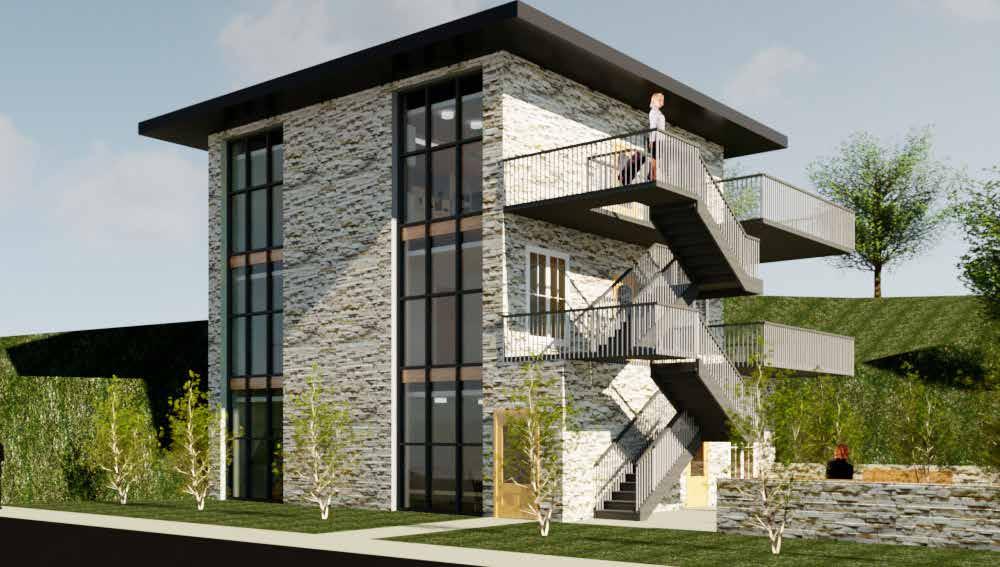

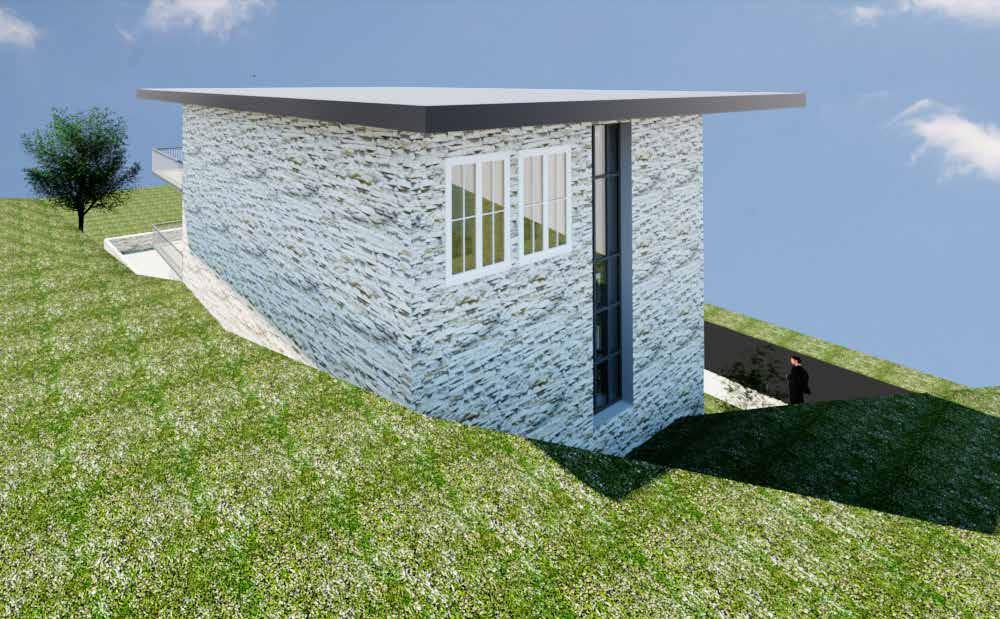

Southwest view of duplex apartment
First floor plan Second floor plan Third floor plan Site plan
Northeast view of duplex apartment
First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" www.autodesk.com/revit Scale Project number Drawn by Checked by Consultant Address Address Phone Fax -mail Consultant Address Phone FaxConsultant Address Phone FaxConsultant Address Phone -mail Address Fax3/16" = 1'-0" A3.1 Exterior Elevations Project Number Project Name Owner Issue Date Author Checker 3/16" = 1'-0" 1 West 3/16" = 1'-0" 2 East No. Description Date First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Phone FaxAddress FaxConsultant Address Phone FaxConsultant Address Phone -mail Address Address Fax e-mail 3/16" = 1'-0" A3.1 Exterior Elevations Project Number Project Name Owner Issue Date Author Checker 3/16" = 1'-0" 1 West 3/16" = 1'-0" 2 East No. Description Date First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" www.autodesk.com/revit Consultant Address Phone FaxAddress Address Fax -mail Address Address Phone Fax -mail Address Address Fax -mail Consultant Address Phone Fax3/16" = 1'-0" 1 South Description First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" www.autodesk.com/revit Scale Project number Drawn by Checked by Consultant Address Phone FaxAddress Address Fax -mail Consultant Address Address Phone -mail Address Address Fax -mail Consultant Address Phone Fax3/16" A3.2 Exterior Elevations Project Project Name Owner Issue 3/16" = 1'-0" 1 South 3/16" = 1'-0" 2 North Description South elevation North elevation East elevation West elevation Duplex Apartment
Duplex Apartment

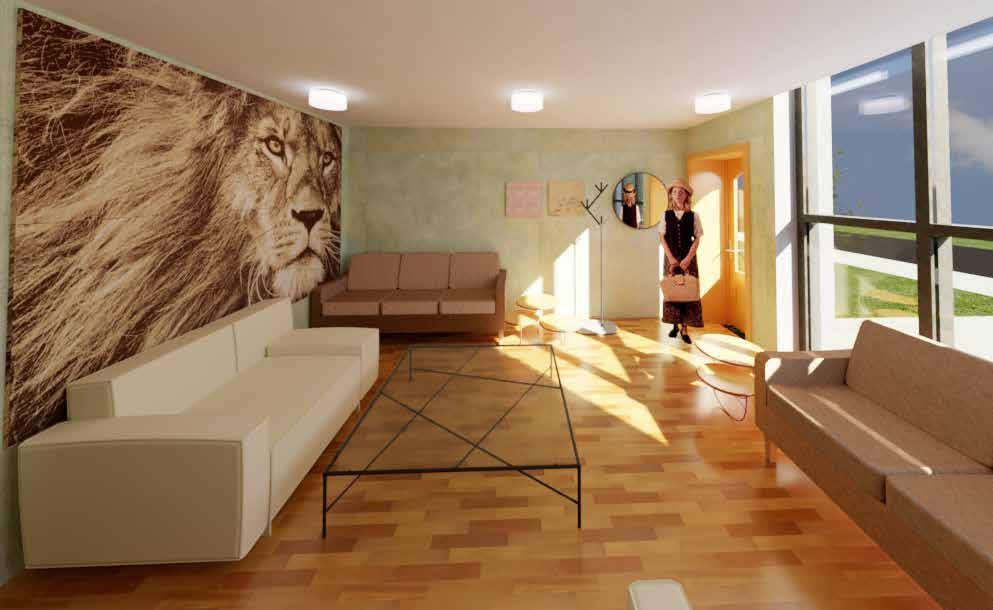

Owner’s living room

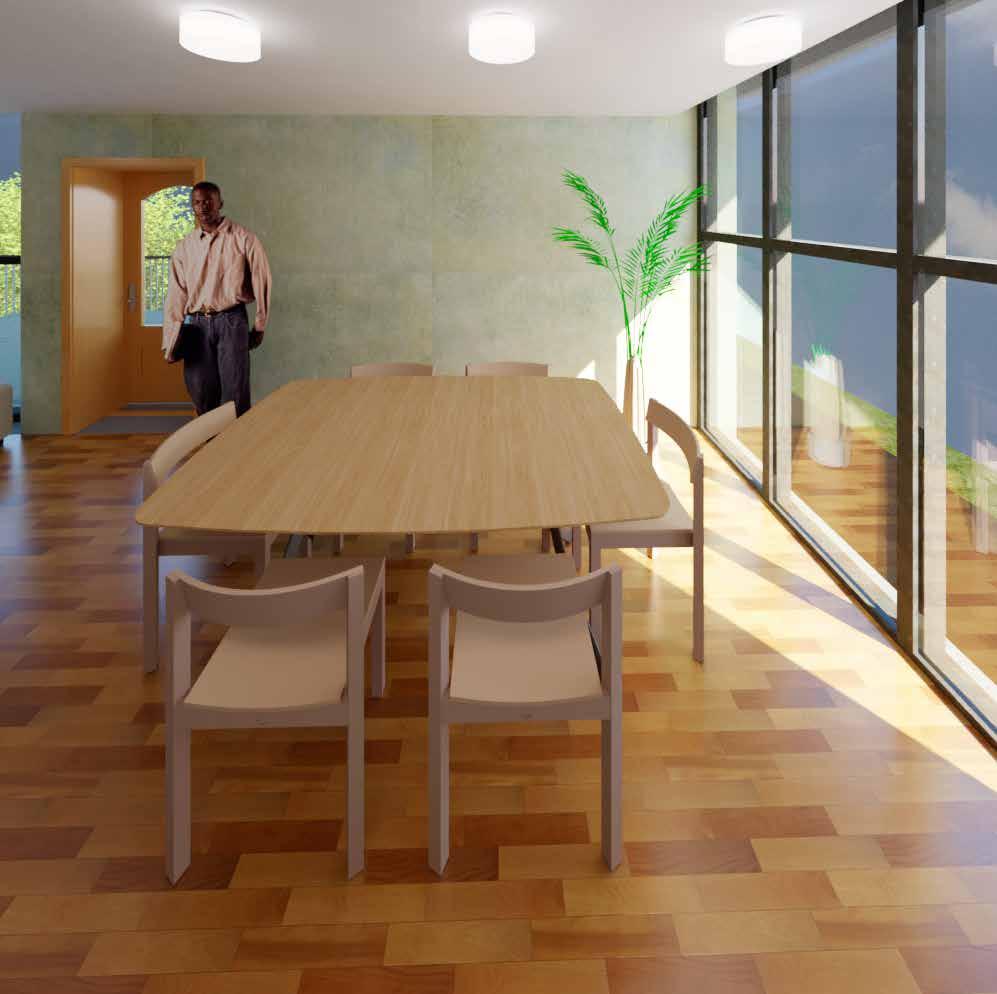

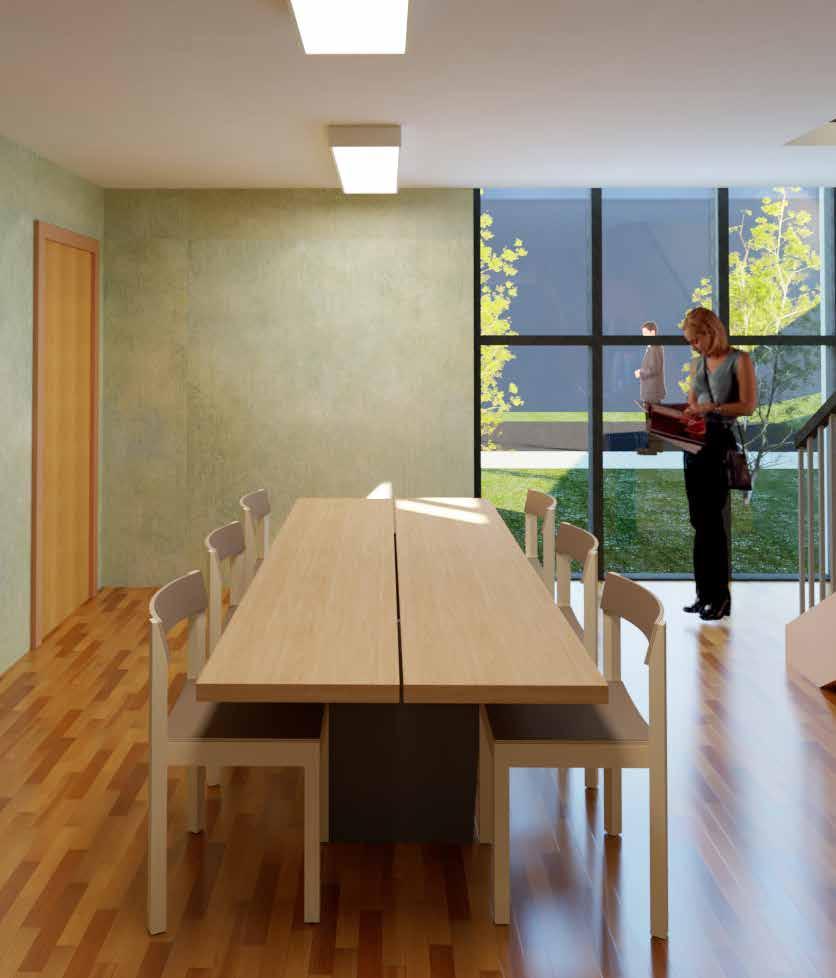

Owner’s dining room

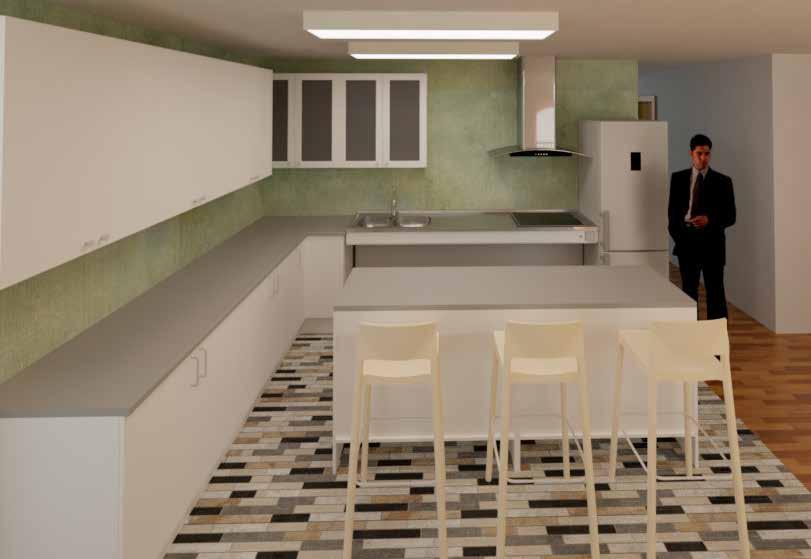

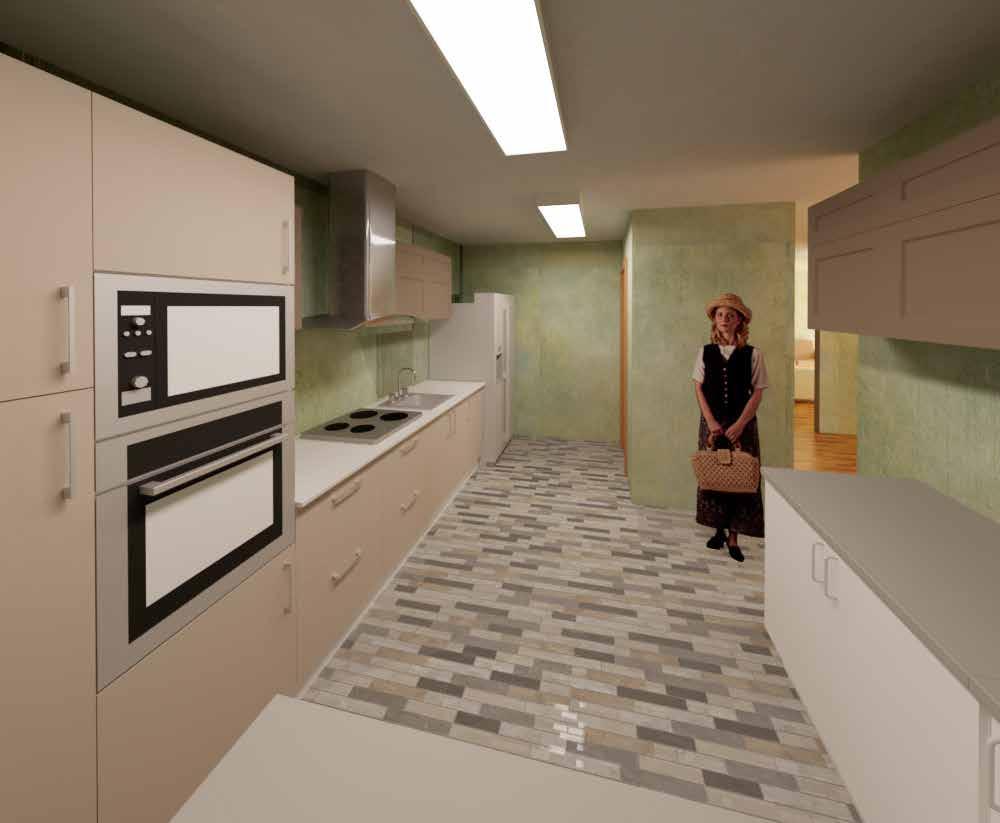

Owner’s kitchen
Rental kitchen
Rental living room
Rental dining room

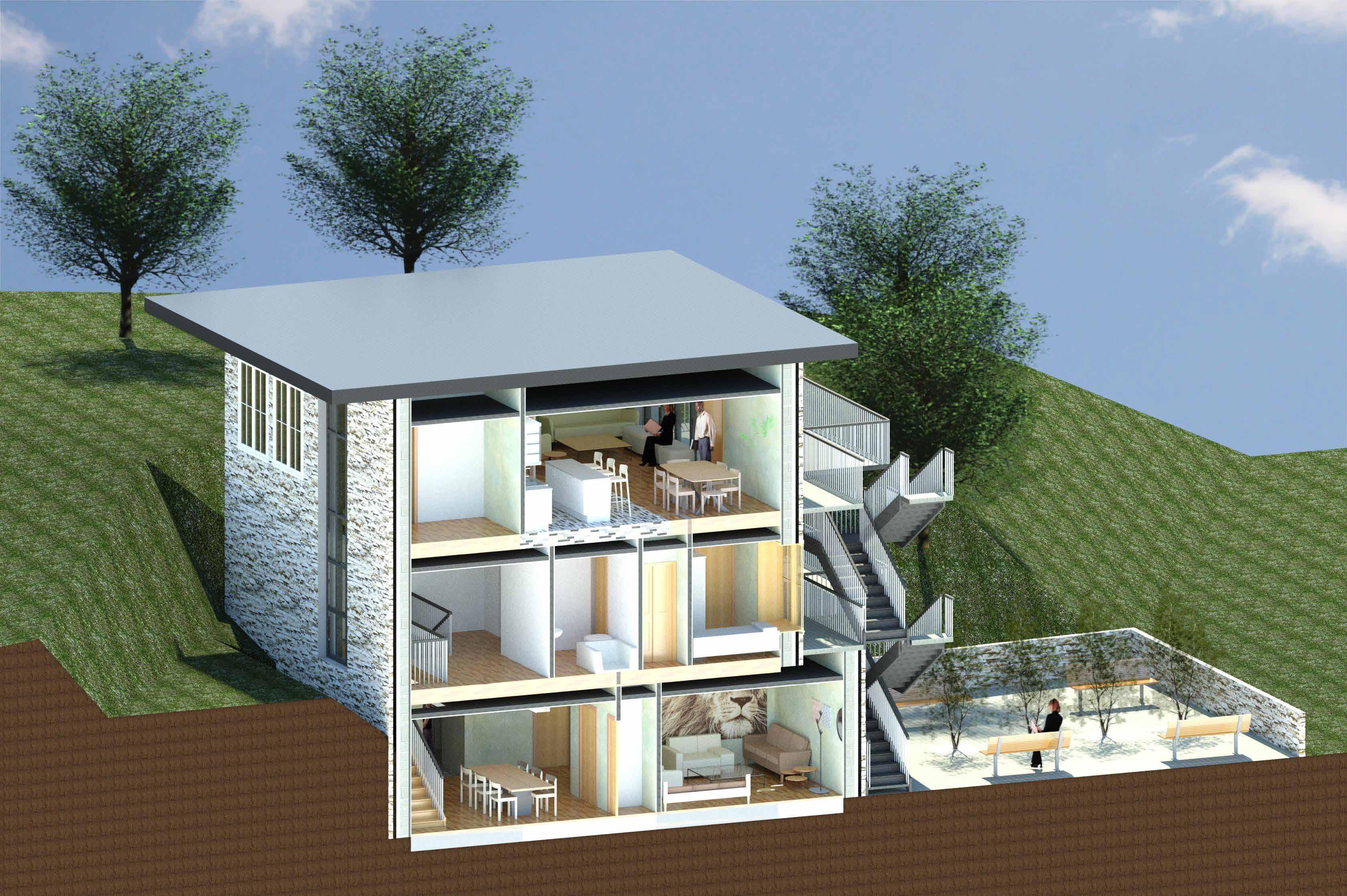

First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" www.autodesk.com/revit Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax -mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax -mail Building Project Owner 3/16" = 1'-0" 1 Section 1 No. Description 3/16" = 1'-0" 2 Section 2 First Floor/Courtyard 0' - 0" Level 2 10' - 0" Level 3 20' - 0" Roof/Parapret 30' - 0" www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax -mail Consultant Address Phone Fax -mail Consultant Address Address Phone Fax -mail PhoneConsultant Phone e-mail A4.1 Building Sections Project Owner 3/16" = 1'-0" 1 Section 1 No. Description 3/16" = 1'-0" 2 Section 2 Section perspective South section West section Duplex Apartment
