CONSTRUCTION DOCUMENTS

Goal: Learn Revit by creating an office building and it’s coordinating construction documents sheets.

ST. TALLAHASSEE, FL 32206

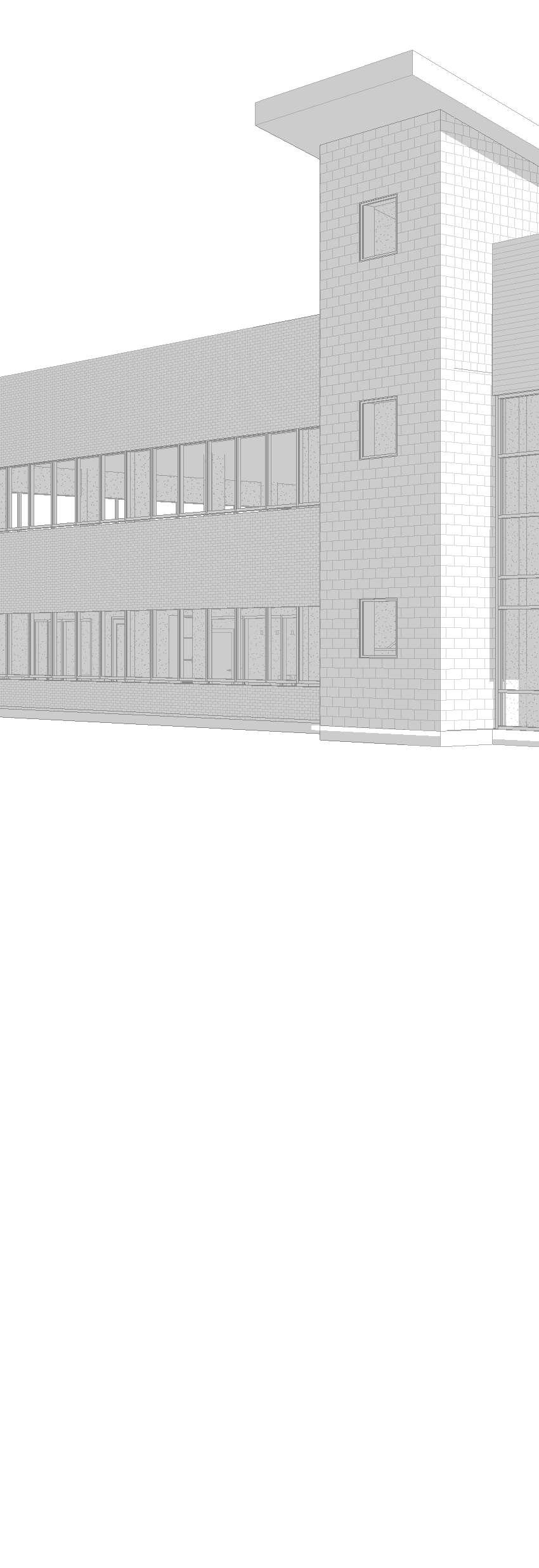

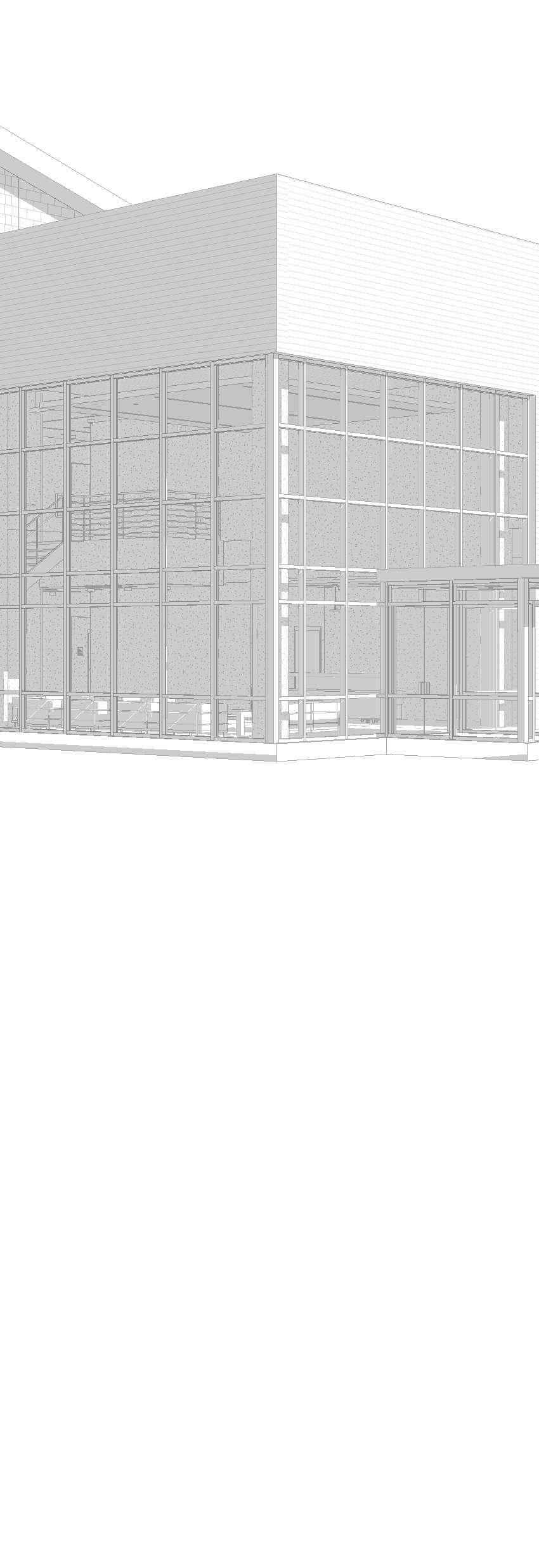

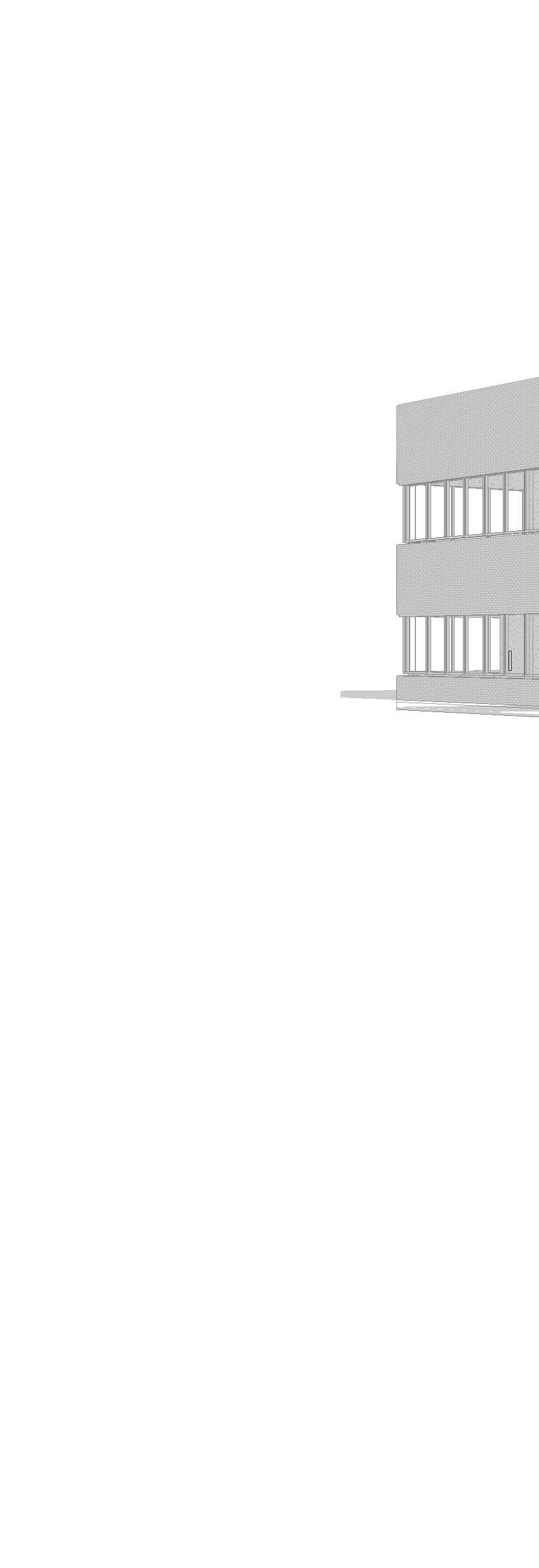

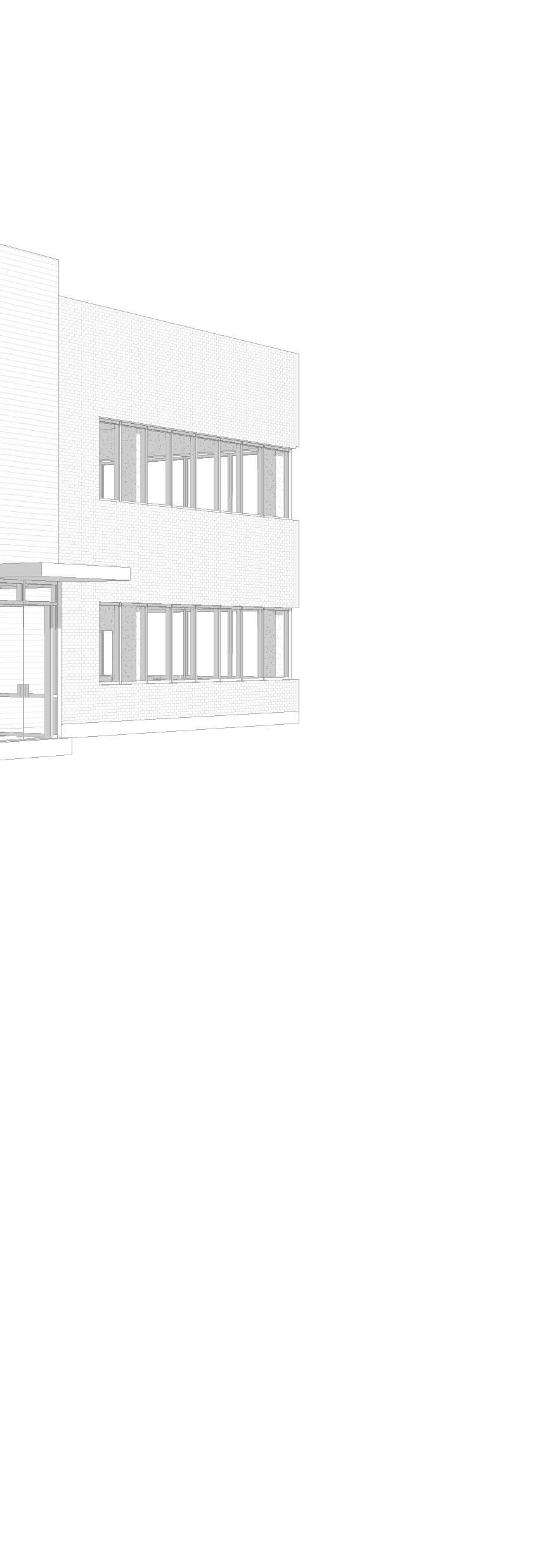

Requirements included partition plans, architectural plans, building sections, stair details and sections, furniture/finish plans, millwork details, bathroom code compliance enlarged plans, and exterior axonometric views.

OR ISSUANCE OF ANY BUILDING PERMIT, EXCEPT AS OTHERWISE PROVIDED BY LAW.

1. THE CONTRACTOR SHALL VISIT THE CONTRACT SITE TO OBSERVE EXISTING CONDITIONS. ANY DISCREPANCIES BETWEEN THE SITE CONDITIONS AND THE CONSTRUCTION DOCUMENTS SHALL BE REPORTED TO THE INTERIOR DESIGNER FOR CLARIFICATION AND CORRECTION.

2. THE CONTRACTOR SHALL VERIFY ALL DIMENSIONS TO CARRY OUT THE WORK AS INDICATED IN THE DOCUMENT.

3. THE GENERAL CONTRACTOR ASSUMES ALL RESPONSIBILITY FOR THE MATERIALS AND METHODS OF CONSTRUCTION USED FOR THIS PROJECT.

4. ANY DEVIATION FROM THE CONSTRUCTION DOCUMENTS SHALL BE APPROVED BY THE INTERIOR DESIGNER PRIOR TO CONSTRUCTION.

5. ALL MATERIALS, SYSTEMS AND CONSTRUCTION COMPONENTS ARE TO BE INSTALLED AS PER MANUFACTURER S SPECIFICATIONS.

6. ALL WORK IS TO BE IN STRICT COMPLIANCE WITH ALL STATE AND LOCAL
