FCI Window Specifications & Ratings

SPECIFICATIONS & RATINGS

FEATURES Our PVC-profile windows and doors provide exclusive advantages in terms of comfort, peace of mind and satisfaction.

Let’s take a closer look at what advantages they offer.

1

MAINTENANCE-FREE FOR LIFE The window profiles are made from an exclusive, 100% virgin uPVC powder compound that is entirely lead-free. This special compound gives the system better resistance to impact and discoloration.

The window profiles are maintenance-free and will not crack, blister or warp.

2

YOUR CHOICE OF GLAZING Depending on the model, glazing of different types and thicknesses can be applied (3/8” to 7/8”). Airtightness is ensured by triple or quadruple weather stripping (depending on window model). The glazing bead is designed to withstand extreme conditions, including winds up to 375 km/h (235 mph). Located inside, the glazing bead provides greater security and facilitates any glazing replacement.

3

NO LEAKS, NO FUSS, NO MOISTURE Our patented drainage system eliminates water faster and more efficiently than any other system on the market. You no longer have to worry about potential water damage to your windows.

4

MULTIBENEFICIAL FRAMES The multichamber profiles have more chambers than any competing product. Transition from hot to cold inside the structure is gradual. Our system provides superior thermal insulation – and the frame is distortion-proof. Multiple air chambers provide excellent sound reduction.

CROSS S

FEATURES OF EVERY PRODUCT Multichamber Design More chambers than any competing product. Providing superior thermal insulation and sound reduction. Guaranteed outstanding resistance to warping and crushing – minimizing the likelihood of seal failure and gas loss).

SPECIFIC FEATURES

Fixed

Optional Additionally available in Slim Frame – increasing the glass visibility by 2”.

Fusion Welded Corners Designed to withstand extreme conditions, while giving a more attractive appearance, enhancing solidity, and eliminating the need for adhesives and sealants, while creating a water and airtight seal.

Exclusive PVC Compound Our 3 ¼” (82.5 mm) PVC frame provides the window better with resistance to force impacts and colour discoloration.

Secure Fastening This secure, multipoint locking system offers optimum security, ex sound-proofing, and airtightness. Located around the entire perim exclusive anchoring system is specially designed with mounting sc a minimum of two PVC walls – creating reliable, durable, and secur

Tilt & Turn

Double Layer Gasket Seal The continuous double polymer compression seals, in combination with our exclusive multilock system, help eliminate air and water infiltration.

Casement | Awni

Triple Layer Weather Str This superior insulation he virtually eliminate air, wate and dirt infiltration.

For more information, feel free to visit our showr

2

5

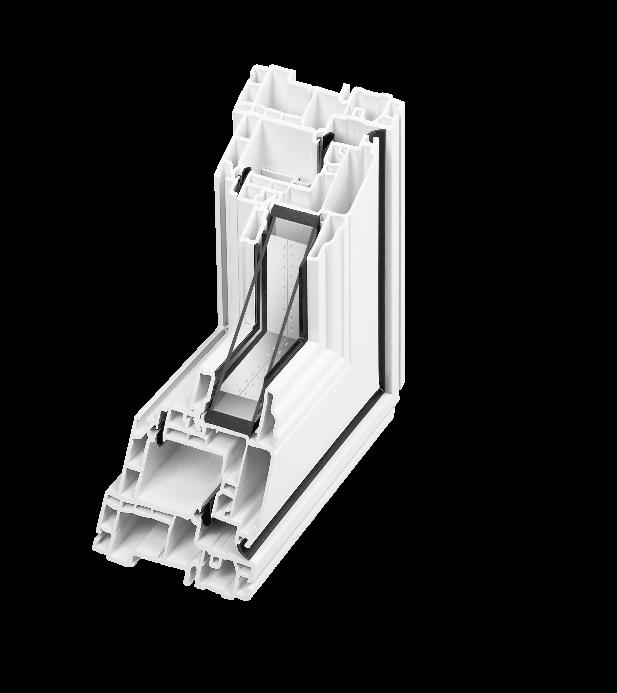

SECTIONS Interior Glazing Bead This design constitutes a key security feature and allows the window to withstand winds of over 330 km/h (205 mph).

xcellent meter, this crews and re fastening.

ing

ripping elps to er, dust,

Double Walls The 2.5mm exterior and interior double walls are among the thickest on the market – making them exceptionally sturdy and increasing sound reduction.

Customize Efficiency For additional energy efficiency, each product can be equipped with many options, such as standard double low-e argon glass, triple glazing, or with many different types of coating options

THE ULTIMATE INVESTMENT Superior quality windows preserve your home’s long-term structural integrity. These window systems are a value-added feature for your home, with increased comfort, minimal maintenance costs and refreshed style. These all-PVC window systems undergo thorough performance testing to ensure years of trouble-free operation.

6 Automatic Locks An inclusive anchoring system specifically designed for sturdy automatic locks on sliding products – resulting in a reliable, durable and secure locking system.

Single Hung | Single Slider

7

SECURITY-MINDED Opening mechanism and highsecurity multipoint lock parts are firmly fastened in screw boxes and stay secured. The exclusive screws are specially designed for uPVC. All screws install through a minimum of two walls for greater stability.

8

ATTRACTIVE DESIGN Fusion welding gives a more attractive appearance and eliminates the need for adhesives and sealants.

Result: a flawless, 100% watertight and airtight surface. Internal walls are also welded for increased overall structural strength. Inside and outside design accessories.

9

NO DRAFTS, NO ENERGY LOSS Air, dust and dirt infiltration are virtually eliminated. Result: greater comfort—and lower utility bills. Frame provision prevents the crushing of the bubble weather strip.

Double Hung | Double Slider

Quad Felt Weather Stripping Felt stripping allows the windows to slide easily, while creating an airtight seal – resulting in reduced heating and cooling costs.

room, website, or other brochures to learn more.
