The entire Design process has been accompanied with finding appropriate references that present similairties and inspiration in the preservation, architectural and urban design related elements of for the following design part of the project. Some referneces are great examples of how materials and facades can be preserved while introducing and completing the project with a modern material. Readability has been an important criteria for us when choosing these references.
In addition, there is refernces that succeed in intoducing a newly designed volume to the site that manages to not disturb the historic elements but contribute to the whole urban situation, which is something we are aiming to do in our design in the consequent step.
Furthermore, some of the refernce projects include elements that have been a great inspiration of how to treat boundaries betwwen the urban space and the project area and how to build relationships between the project and other historic buildings in an historic urban core.
3. DESIGN REFERENCES
55

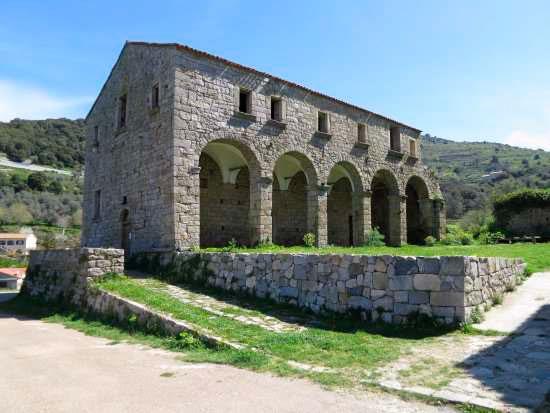

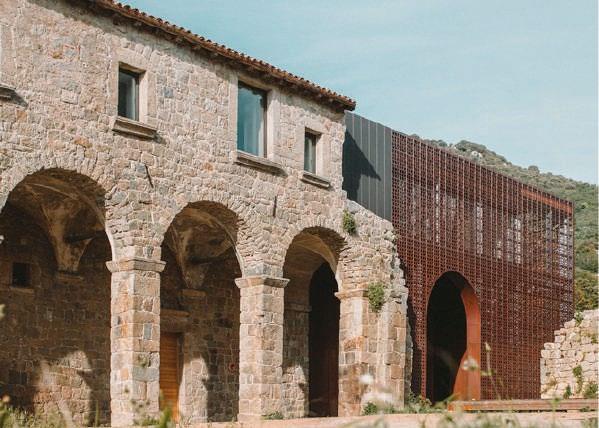

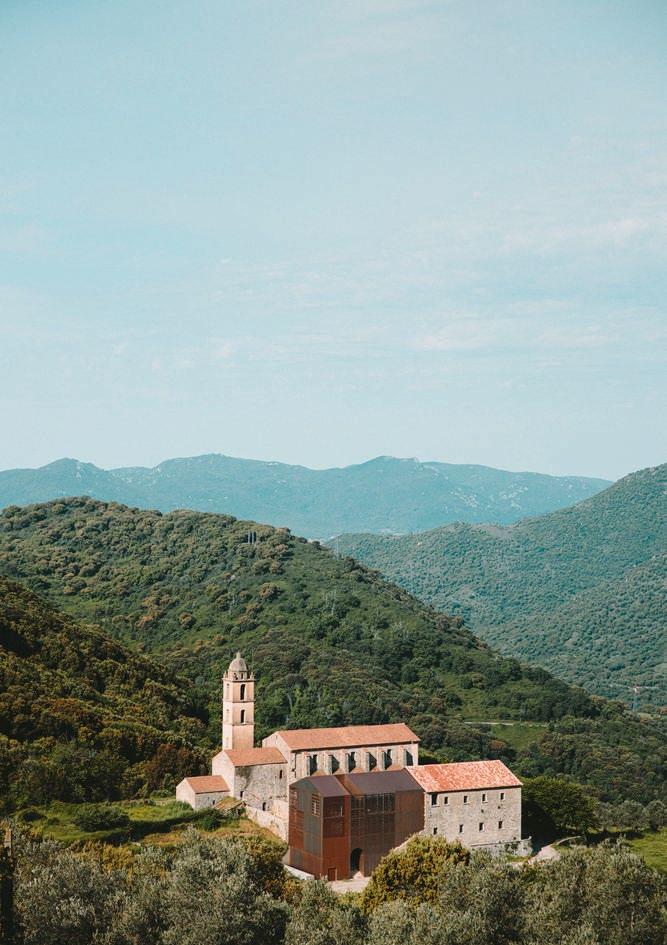

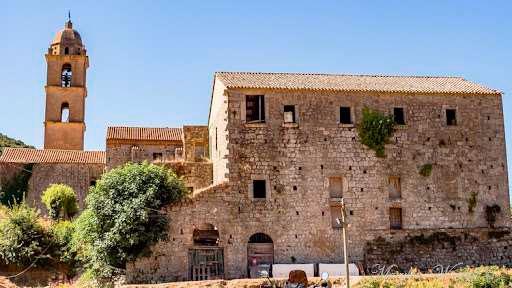

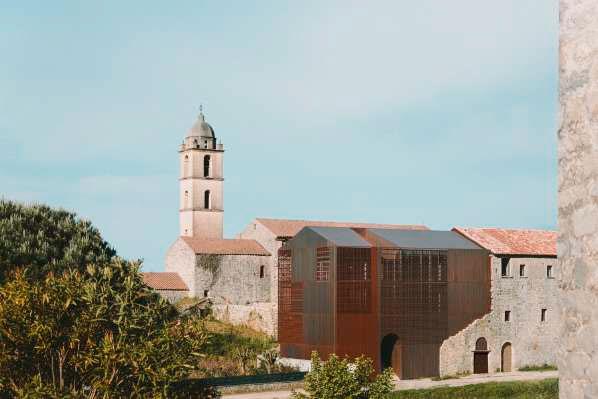

Convent Saint François
Amelia Tavella Architectes
Function before intervention: castle and monastery
Function after intervention: Information Office “Maison du Territoire”
Location: Sainte Lucie de Tallano, Corsica, France
Year: 2021
Area: 1000m2
3.1 DESIGN REFERENCES

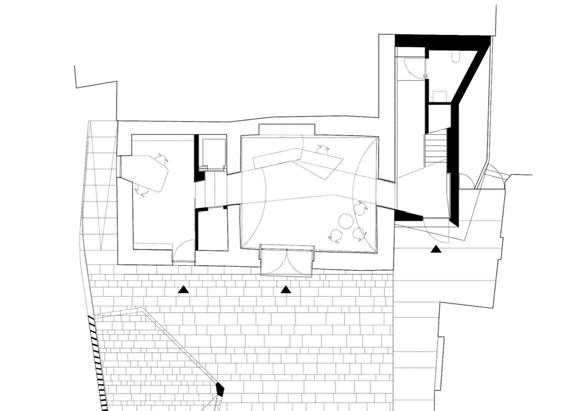

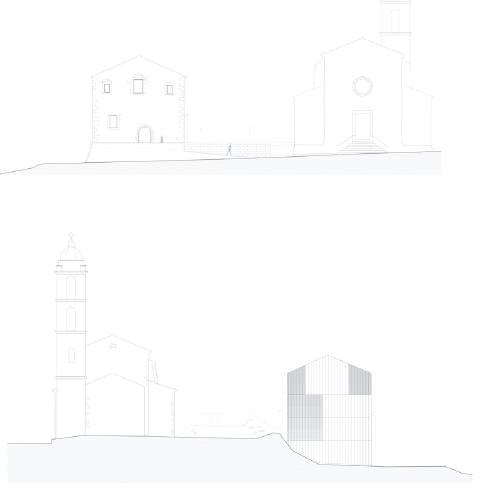

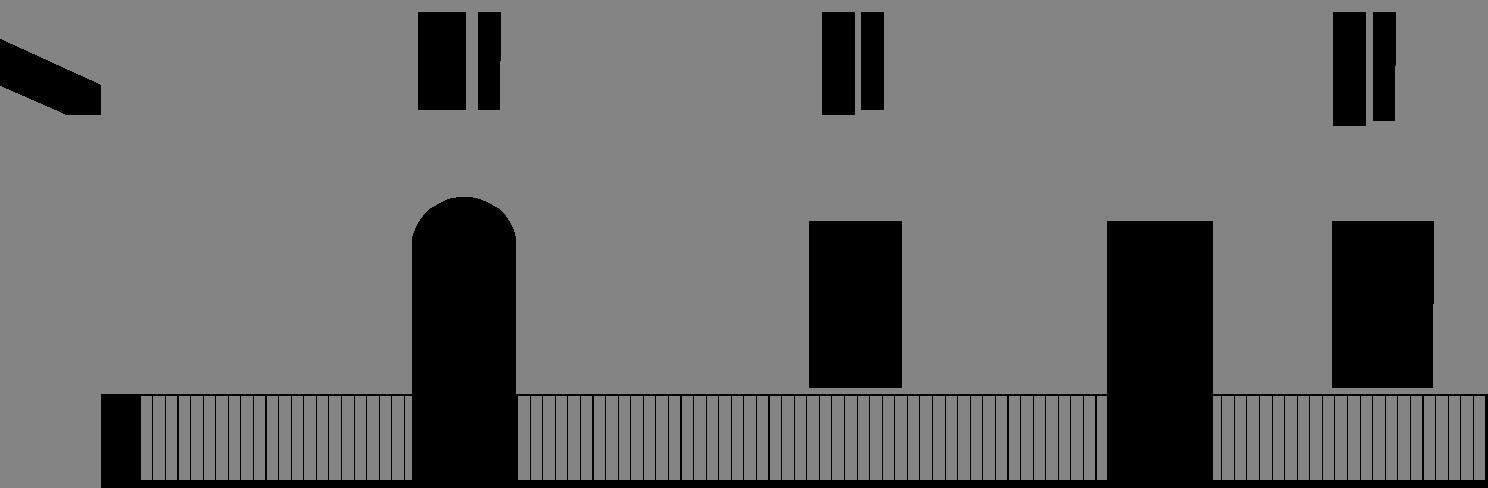

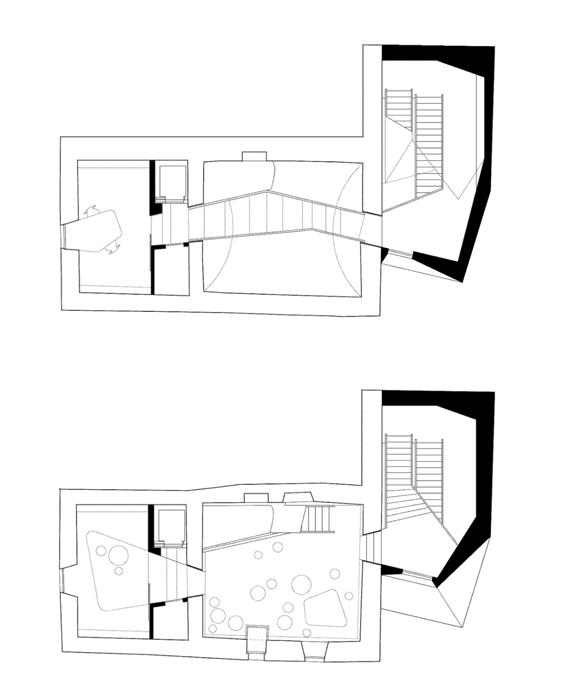

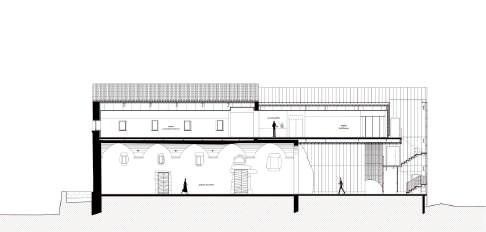

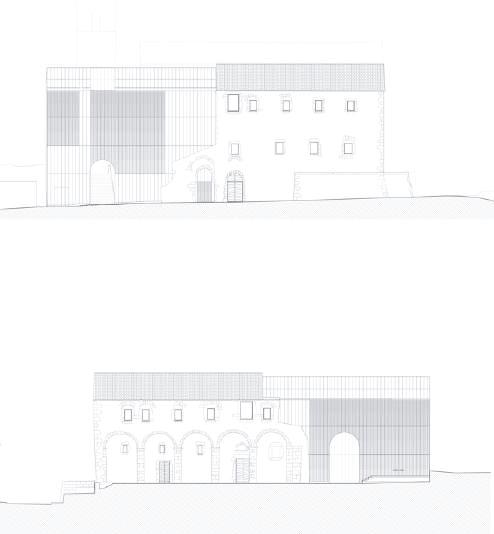

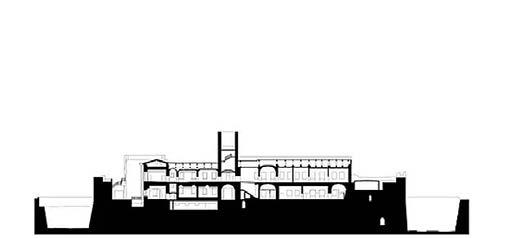

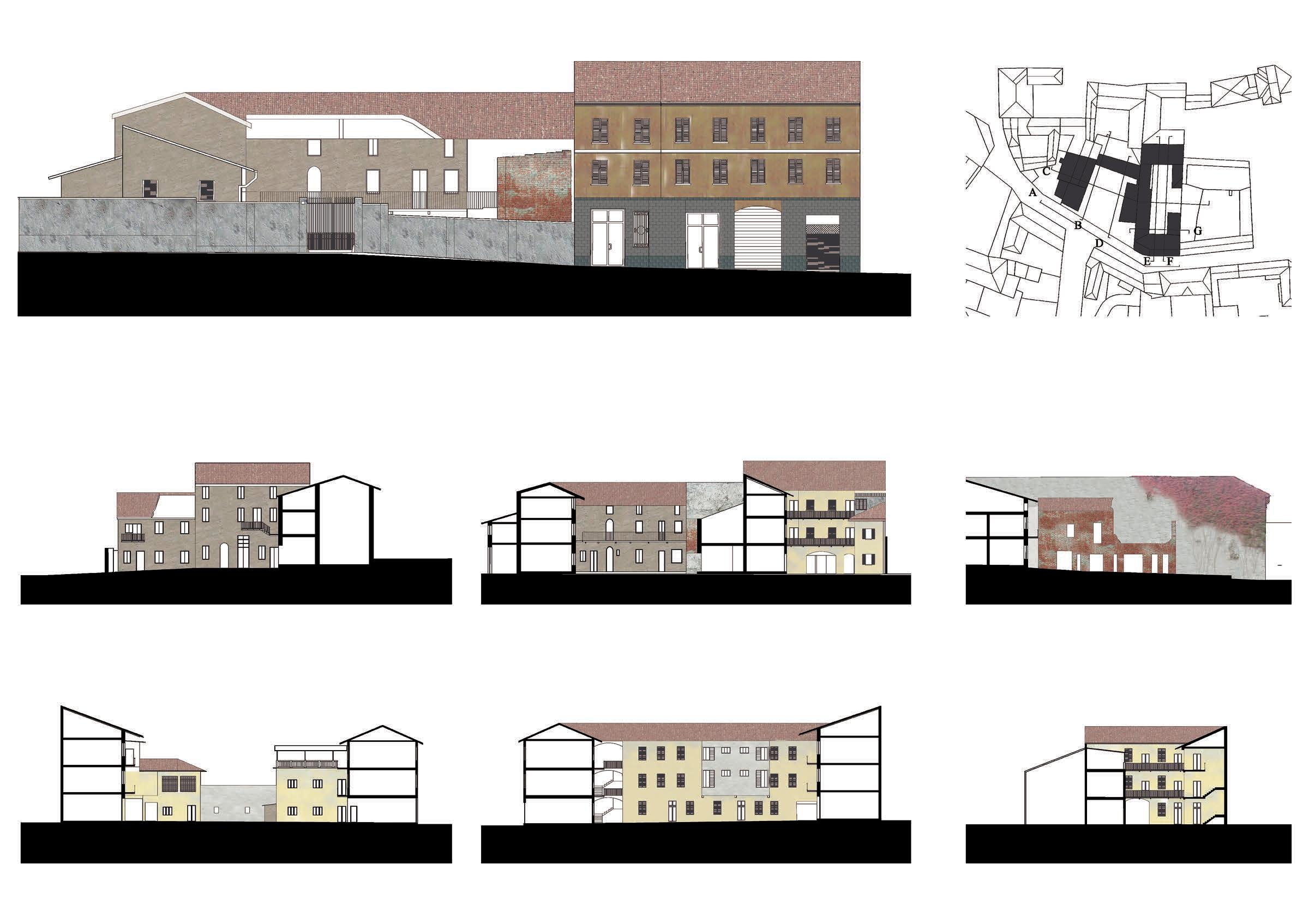

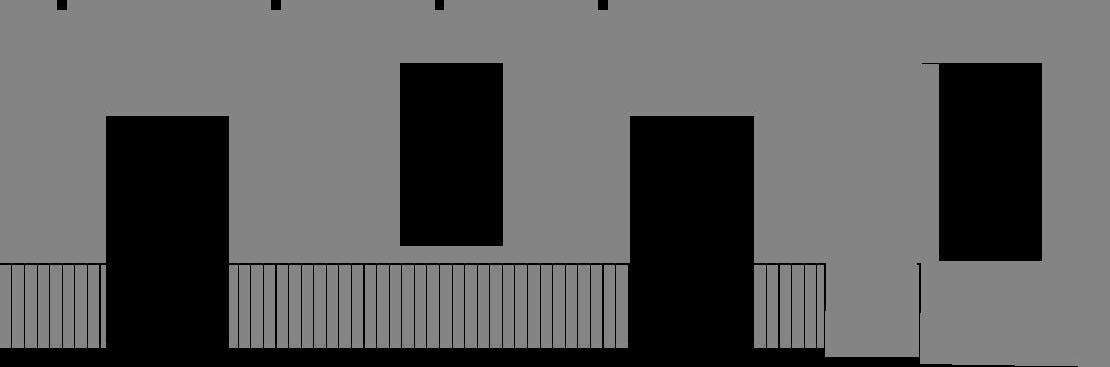

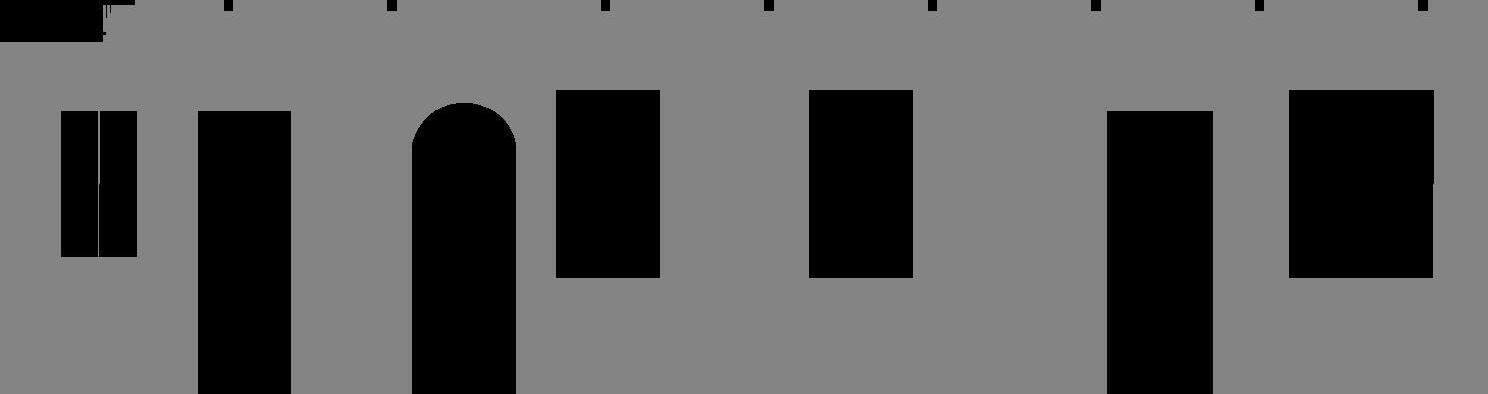

Before Intervention South elevation North elevation East elevation West elevation Longitudinal section First floor Ground floor After Intervention

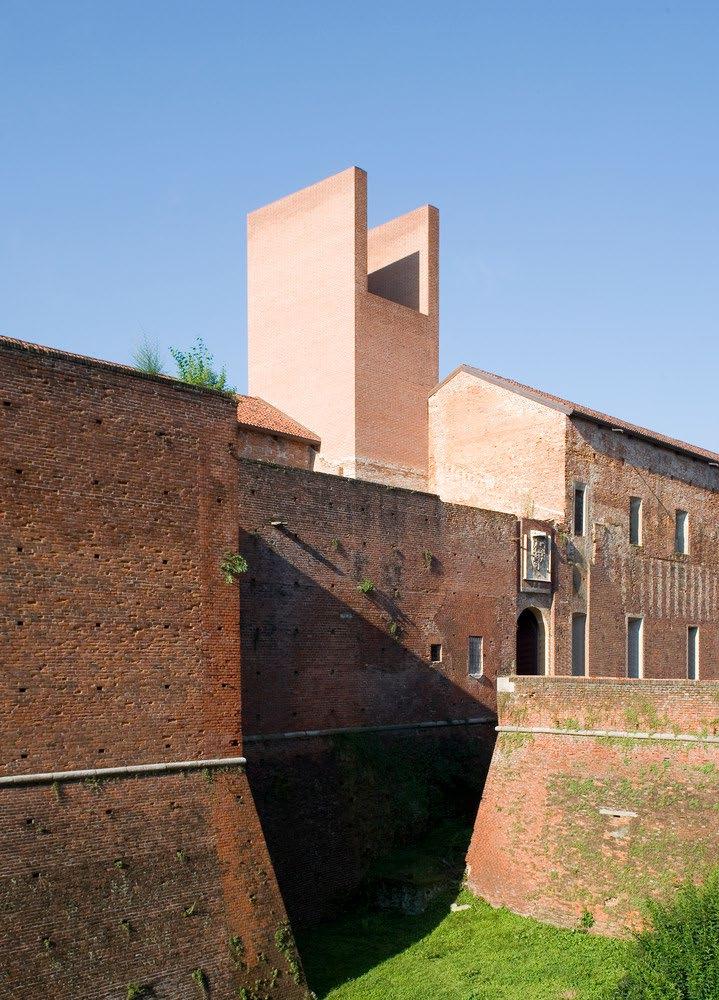

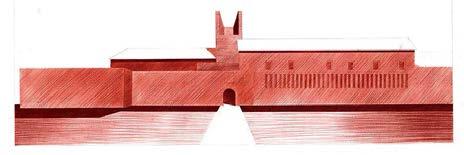

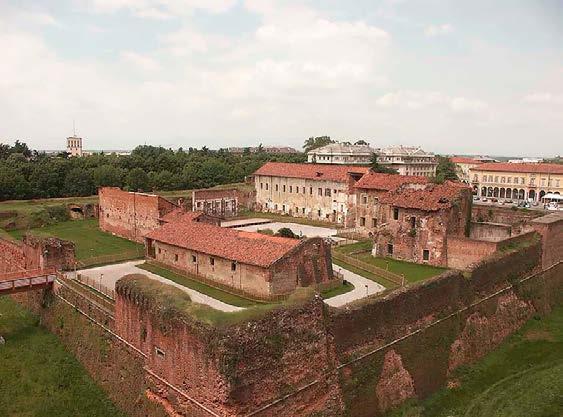

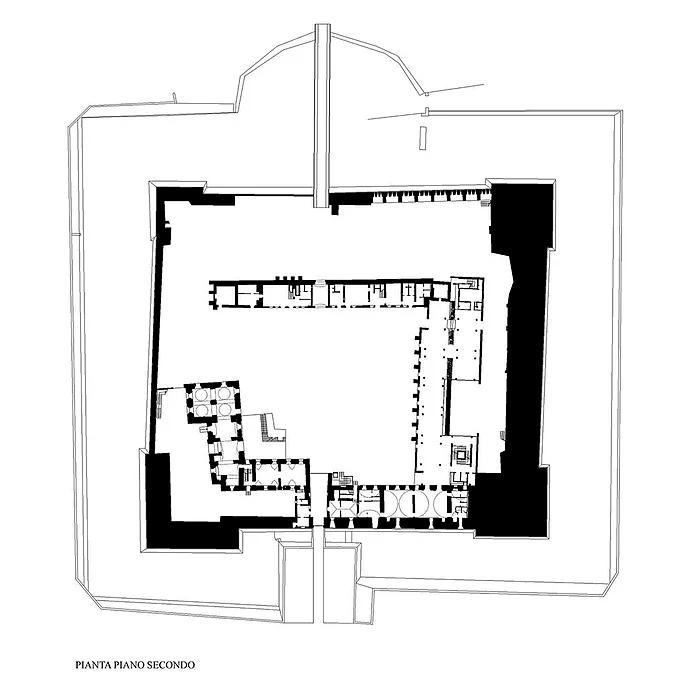

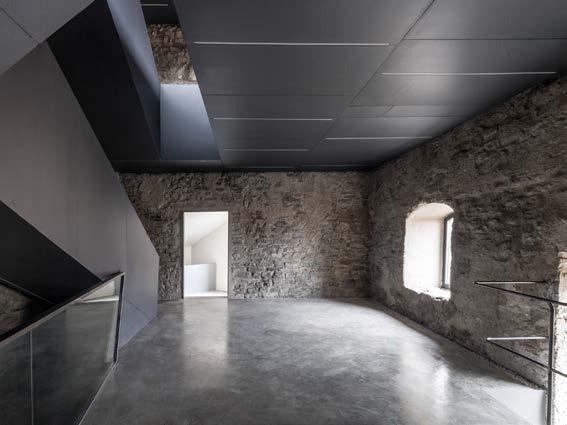

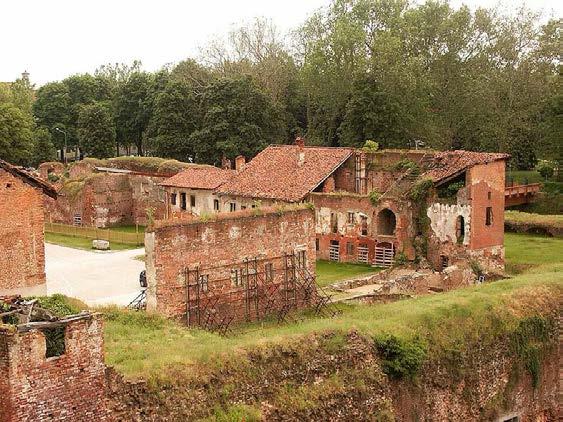

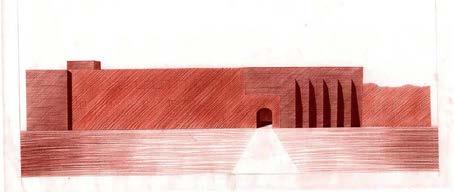

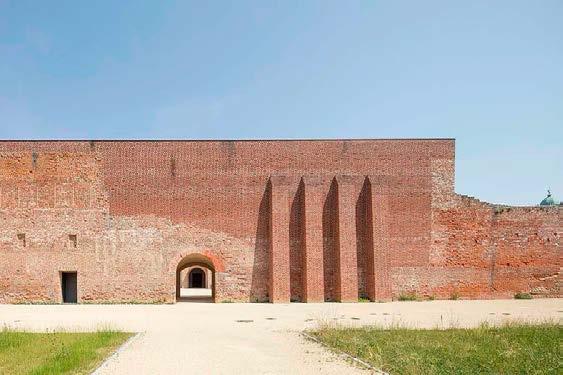

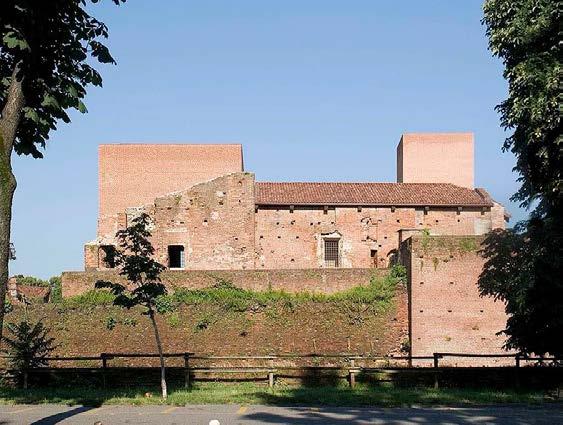

Castello sforzesco-visconteo di Novara
Studio Zermani e Associati
Function before intervention: castle and jail.
Function after intervention: Castle-museum, Viewpoint
Location: Novara, Italy
Year: 2016
Area: 11000m2
3.1 DESIGN REFERENCES

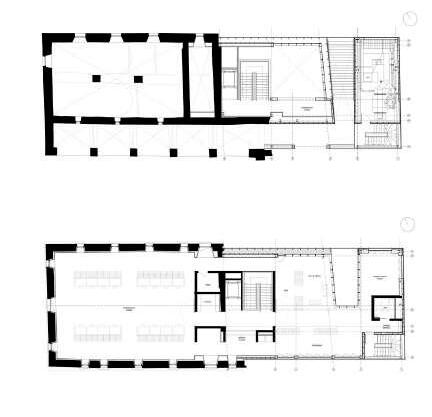

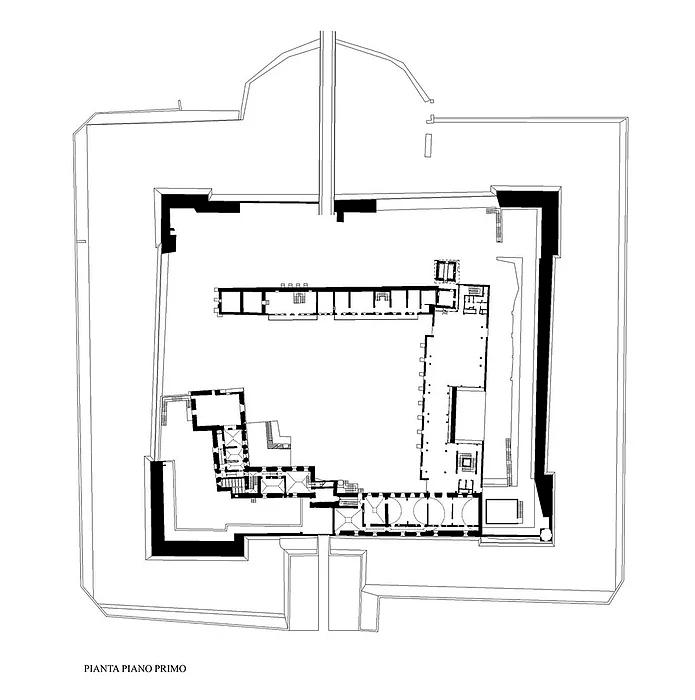

Before Intervention Elevations First floor Ground floor After Intervention
3.1 DESIGN REFERENCES

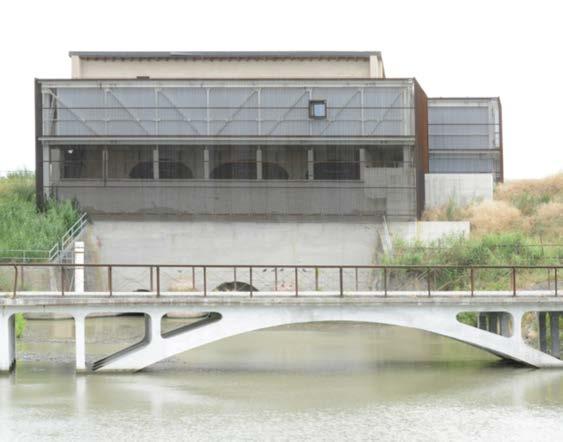

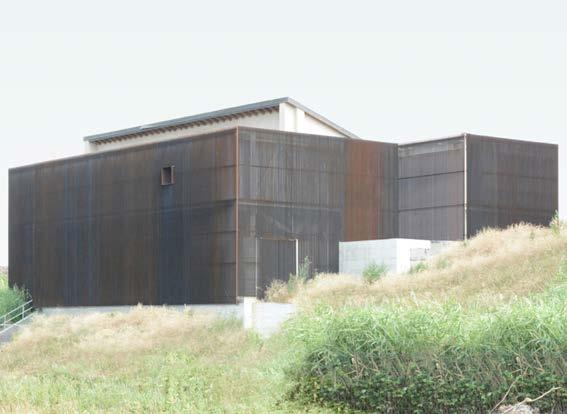

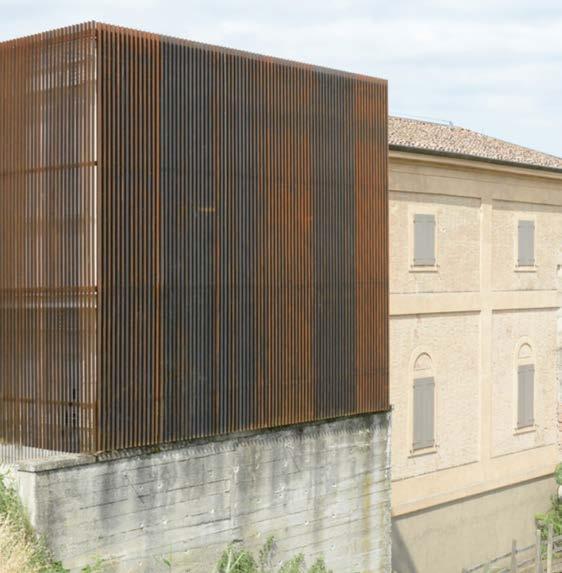

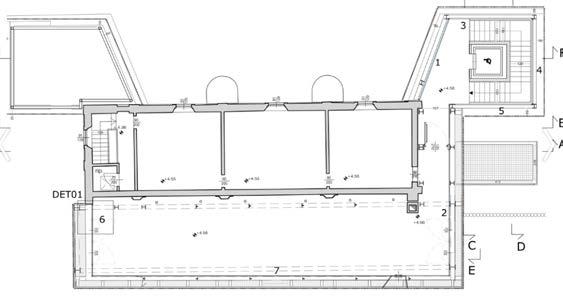

ECOMUSEO DELLE BONIFICHE
RESTORATION AND ENLARGMENT
Bondanello - Mantova
Museum and education space
Archiplan studio
ECOMUSEO DELLE BONIFICHE RESTAURO E AMPLIAMENTO
Bondanello - Mantova
Museum and education space
Archiplan studio
TAKEAWAYS FOR PROJECT:
COMPLETING A COMPLEX SITE INTRODUCING A NEW DESIGN THAT EMBRACES FUNCTIONAL PROBLEMS AND UNITES HISTORIC BUILDING PARTS
TRANSPERENCY AND LIGHT
58
3.1 DESIGN REFERENCES

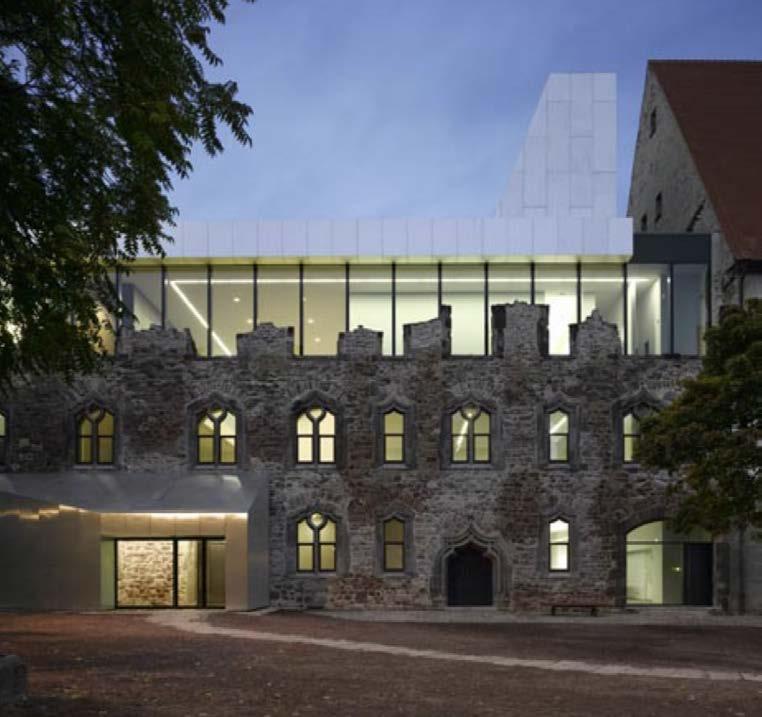

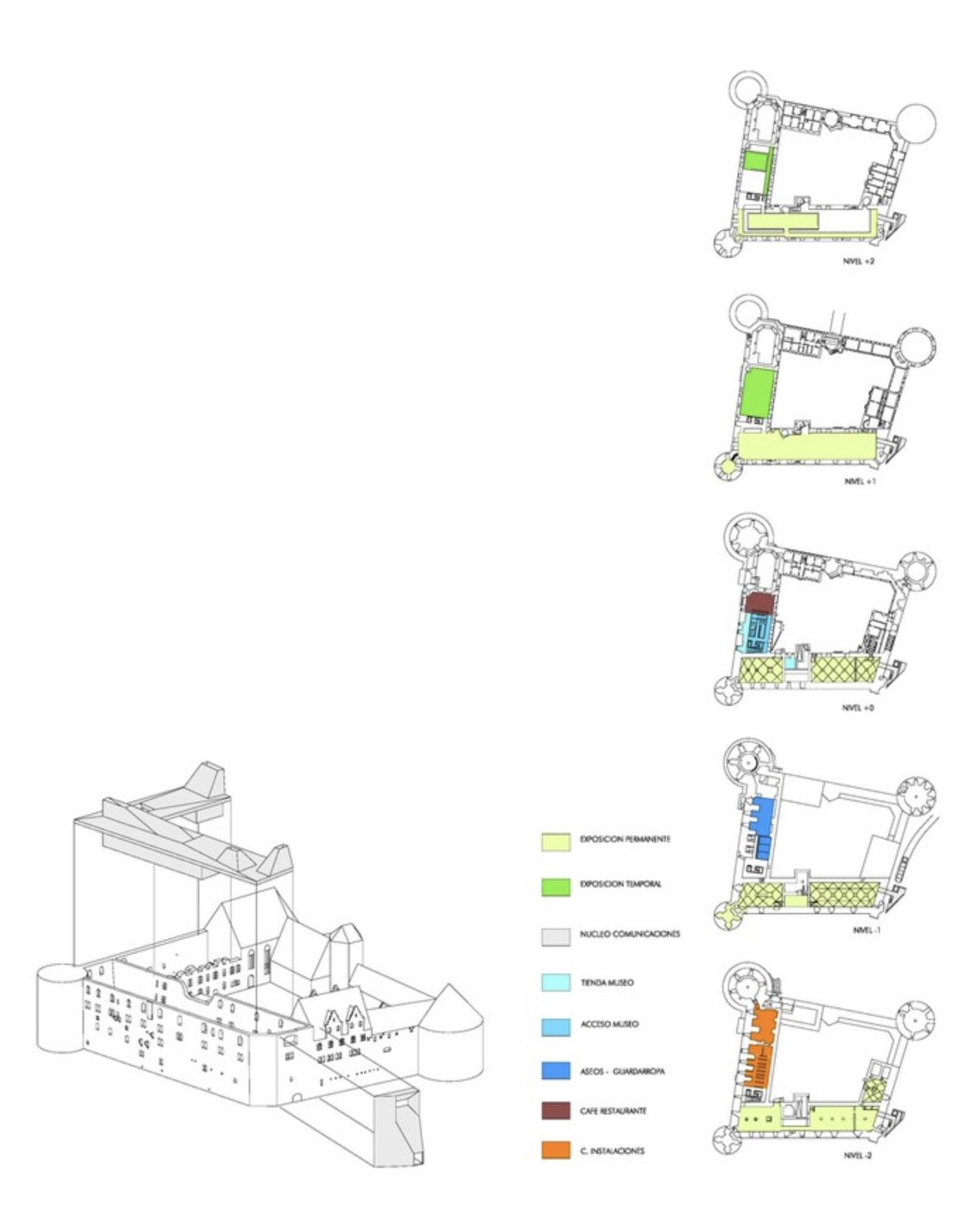

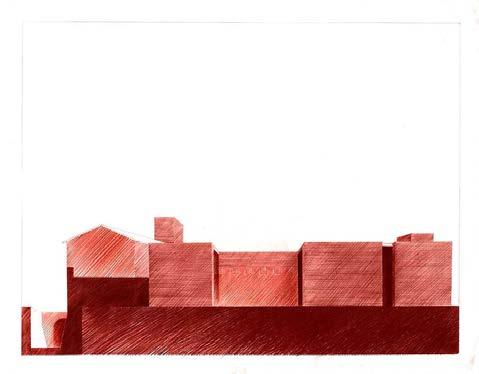

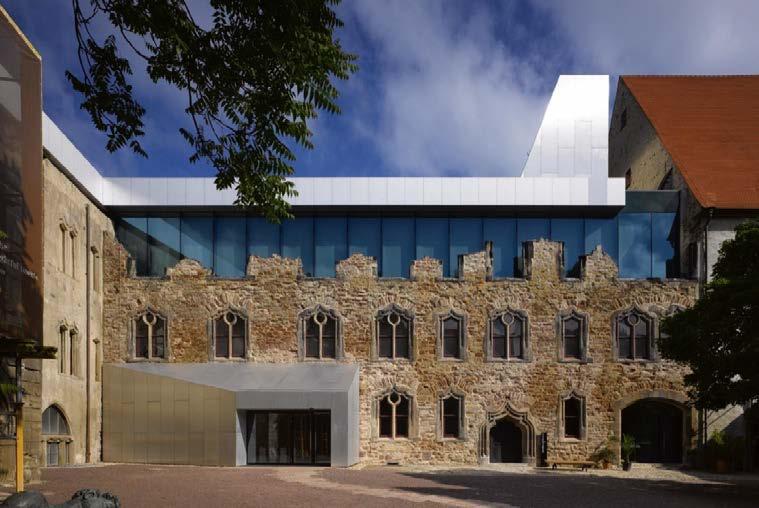

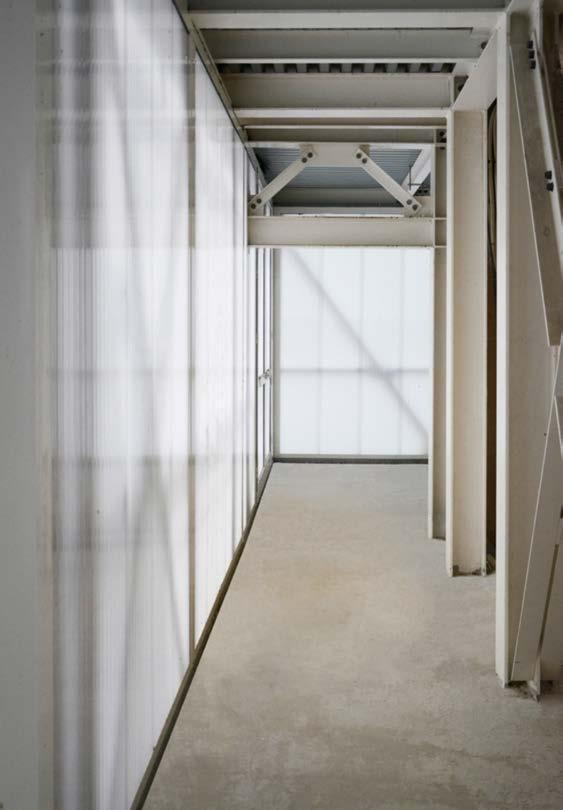

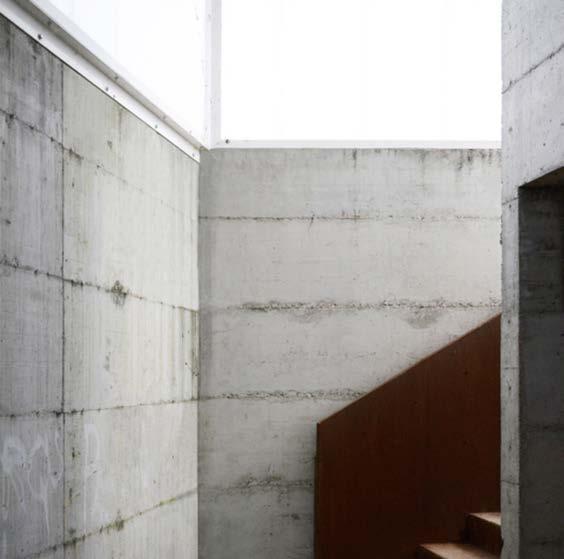

MORITZBURG MUSEUM EXTENSION
RESTORATION AND ENLARGMENT
Halle, Germany
Museum
Nieto Sobejano Arquitectos
MORITZBURG MUSEUM EXTENSION
RESTORATION AND ENLARGMENT
Halle, Germany
Museum
Nieto Sobejano Arquitectos
TAKEAWAYS FOR PROJECT:
CONSERVATION OF HISTORIC RUIN WALLS ON THE INSIDE AND OUTSIDE
CONTINUATION AND COMPLETION OF THE RUIN WALLS AND ROOF USING A MODERN MATERIAL ENSURING THE READABLITY OF THE INTERVENTION.
59
3.1 DESIGN REFERENCES

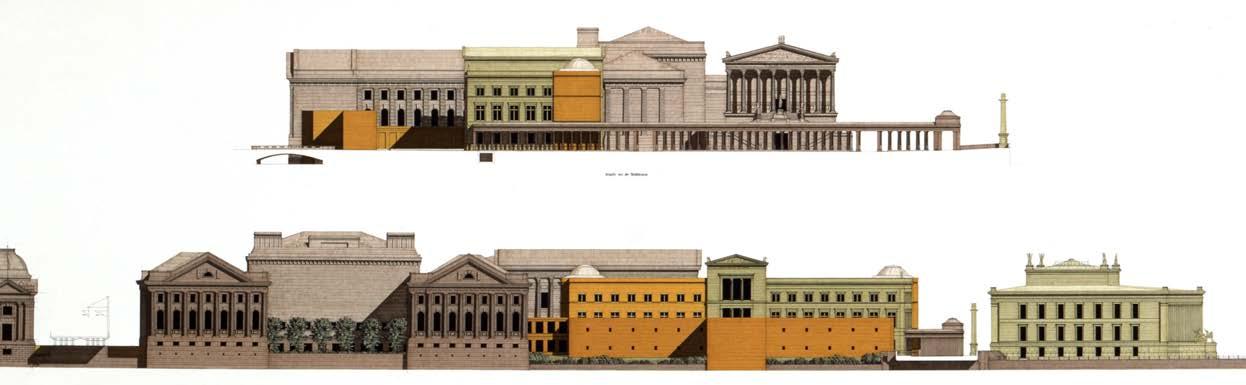

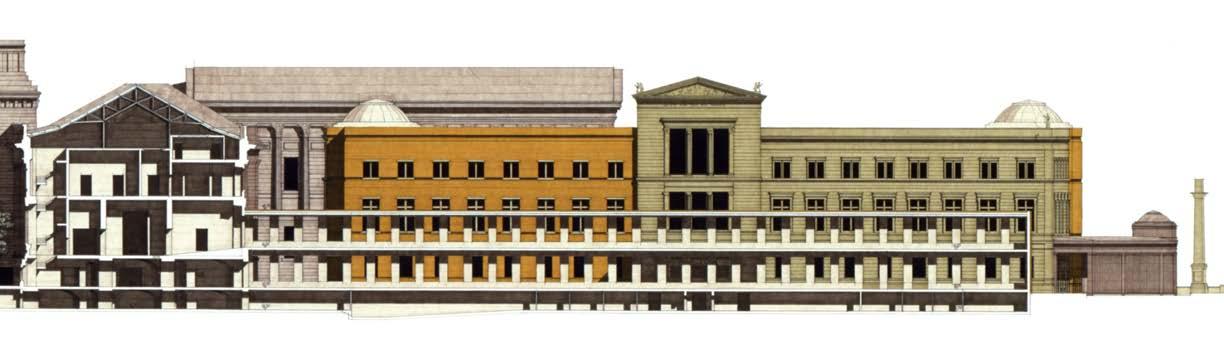

COMPETITION FOR THE NEUES MUSEUM AND COMPLETION OF THE MUSEUMSINSEL
TAKEAWAYS FOR PROJECT:
COMPETITION FOR THE NEUES MUSEUM AND COMPLETION OF THE MUSEUMSINSEL
RESTORATION AND ENLARGMENT
Berlin, Germany
Museum
RESTORATION AND ENLARGMENT

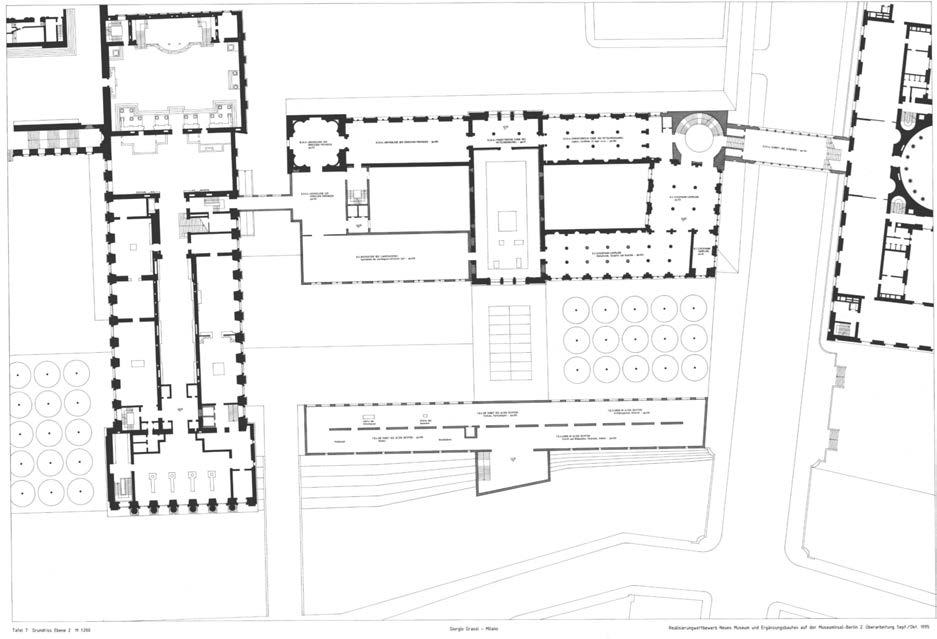

Giorgio Grassi
Berlin, Germany
Museum
Giorgio Grassi

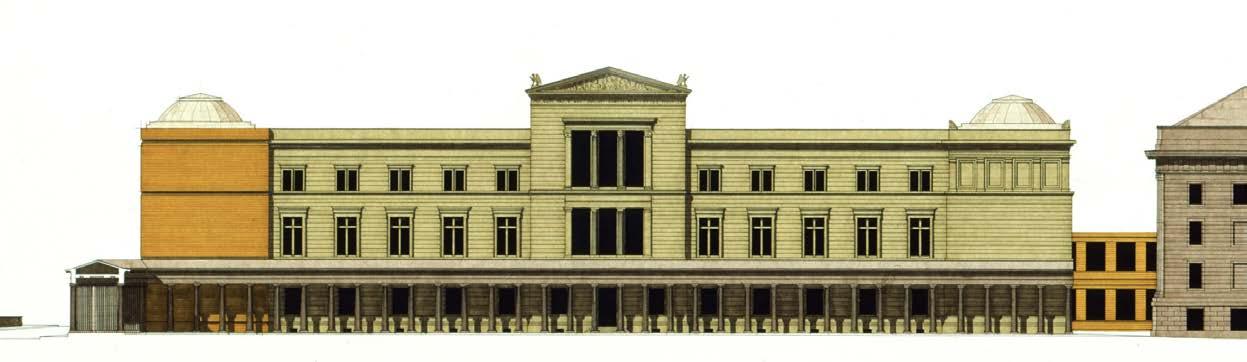

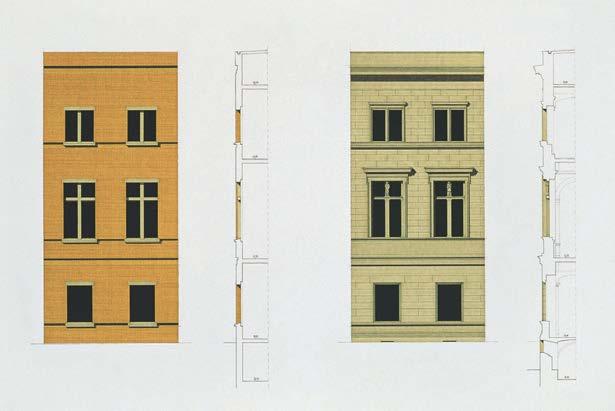

COLLONADE AS FILTER BETWEEN STREET SPACE AND DESIGN REINTERPRETATION OF HISTORIC FACADE
3.1 DESIGN REFERENCES

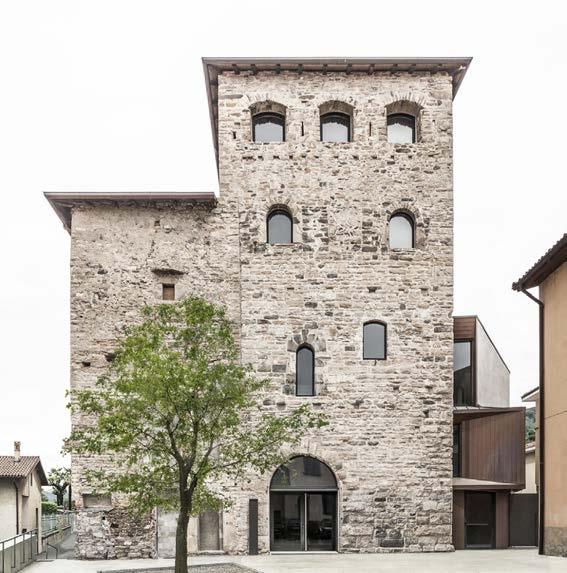

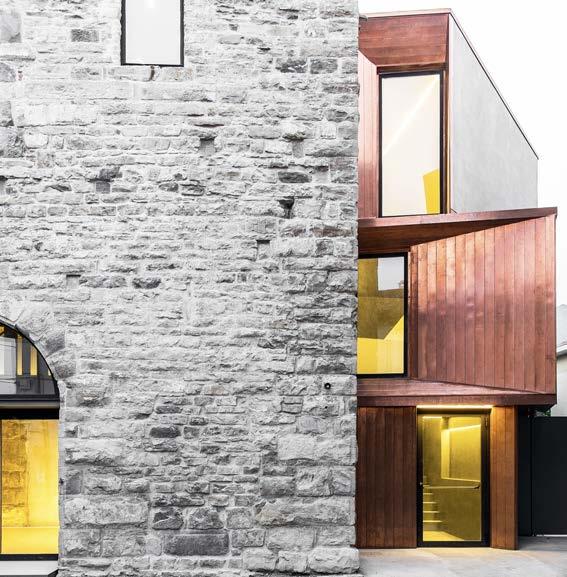

TORRE DEL BORGO
RESTORATION AND ENLARGMENT
Villa d’Adda, Bergamo Province
Civic Library
CN10architetti
TORRE DEL BORGO
RESTORATION AND ENLARGMENT

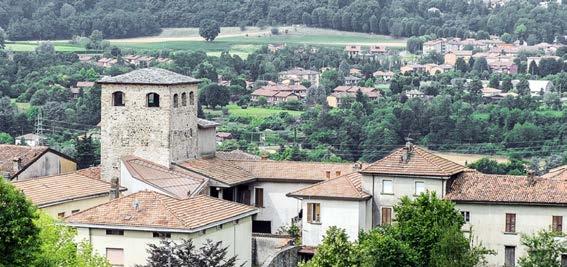

Villa d’Adda, Bergamo Province
Civic Library
CN10architetti
TAKEAWAYS FOR PROJECT:
REUSE OF HISTORIC BUILDING AS AN EXHIBITION SPACE IN THE CONTEXT OF AN HISTORIC CITY CORE
HIGH POINTCREATING VISUAL AXIS
ENLARGEMENT / DESIGN WITH CLEAR REDABILITY WHILE INTRODUCING MODERN MATERIAL
61
4. URBAN STRATEGY & ARCHITECTURAL DESIGN
The main aim of the project is to counteract the abondonment happening in the direct neighbourhood of the beautiful historic piazza by unlocking the potential of the lacuna site. The lacuna site becomes a key player in a network of cultural heritage buildings as well as furniture design related buildings, workshops and showrooms/museums. on the horizontal axis leading to the old piazza in the core of meda, such a function is fully missing. Strategically, the Lacuna Site will therefore be the first and most important link between the more modern part and the historic center of meda,
At the moment the entire site is closed and not accessible. By opening up the site to the public, creating a public space on the main horizontal axis and by introducing a new design that creates a visual realtionship to the old town piazza, the project will change that current situation.
In addition, while carefully preserving the most important elements of the ruins, modern materials and functions will bring the site back to life. The casa di ringhiera as a main design driving element have led us to creating a walkway connecting the entire site. As the history of the casa di ringhiera suggersts, there is a lott of commonly used functions included in the project. On the ground floor there is a cafe, exhibition space and a storage foor furniture making materials. In the heart of the project, the newly introduced Volume that functions as a membrane on the site, a workshop has been introduced. The street space is connected to the site with a filter, opening the space whil defining it. Visitors will be tempted to enter the site when discovering the commercial space on the street corner. The highlight on site is the roof bar, that creates a visual connection to the old town square and leaves visitors curious to walk on further and visit the heart of Meda.
63

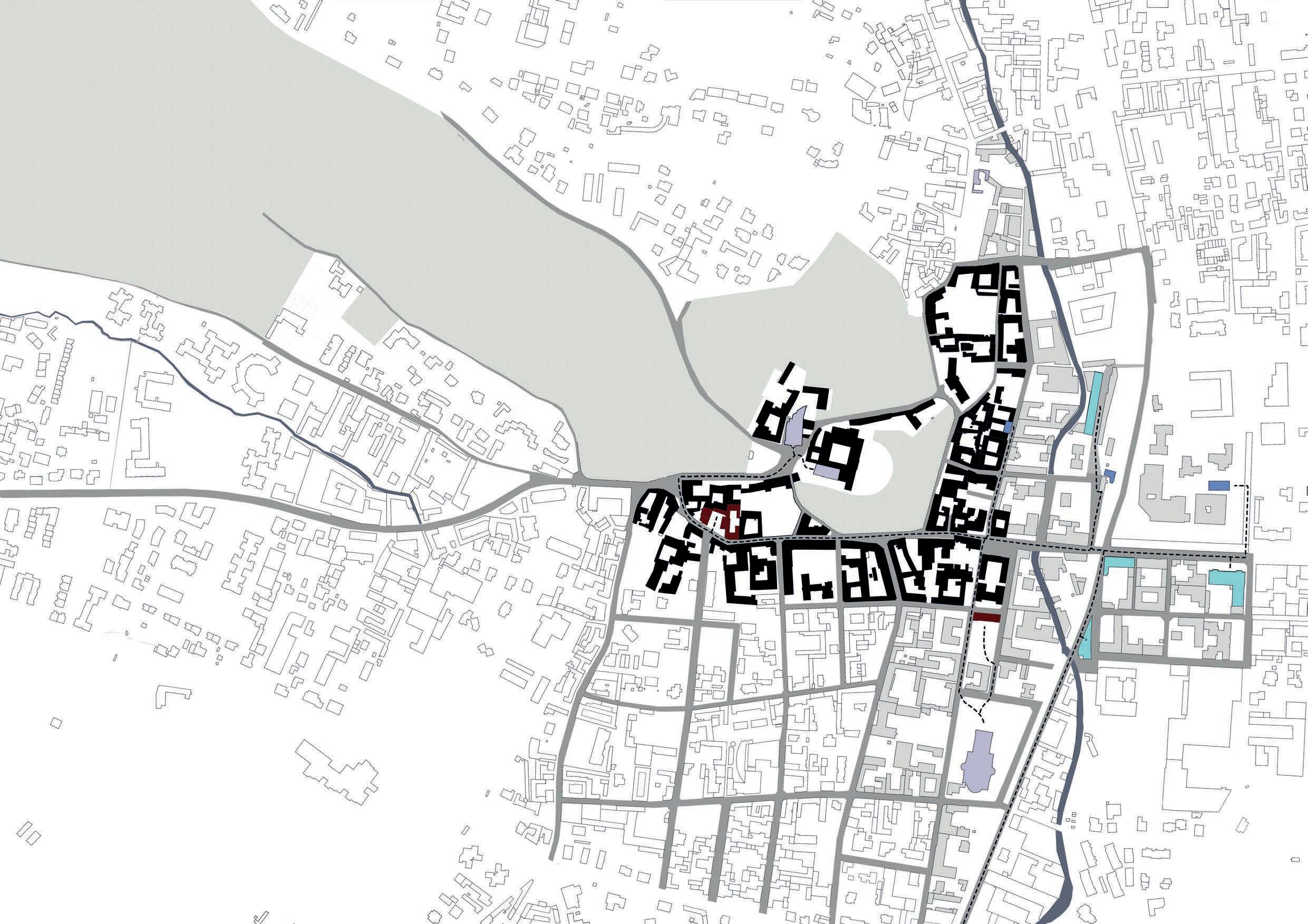

65 Scale 1-2000
historic center TS project areas cultural heritage path furniture path
67 4.2 ROOFPLAN
Scale 1-1000

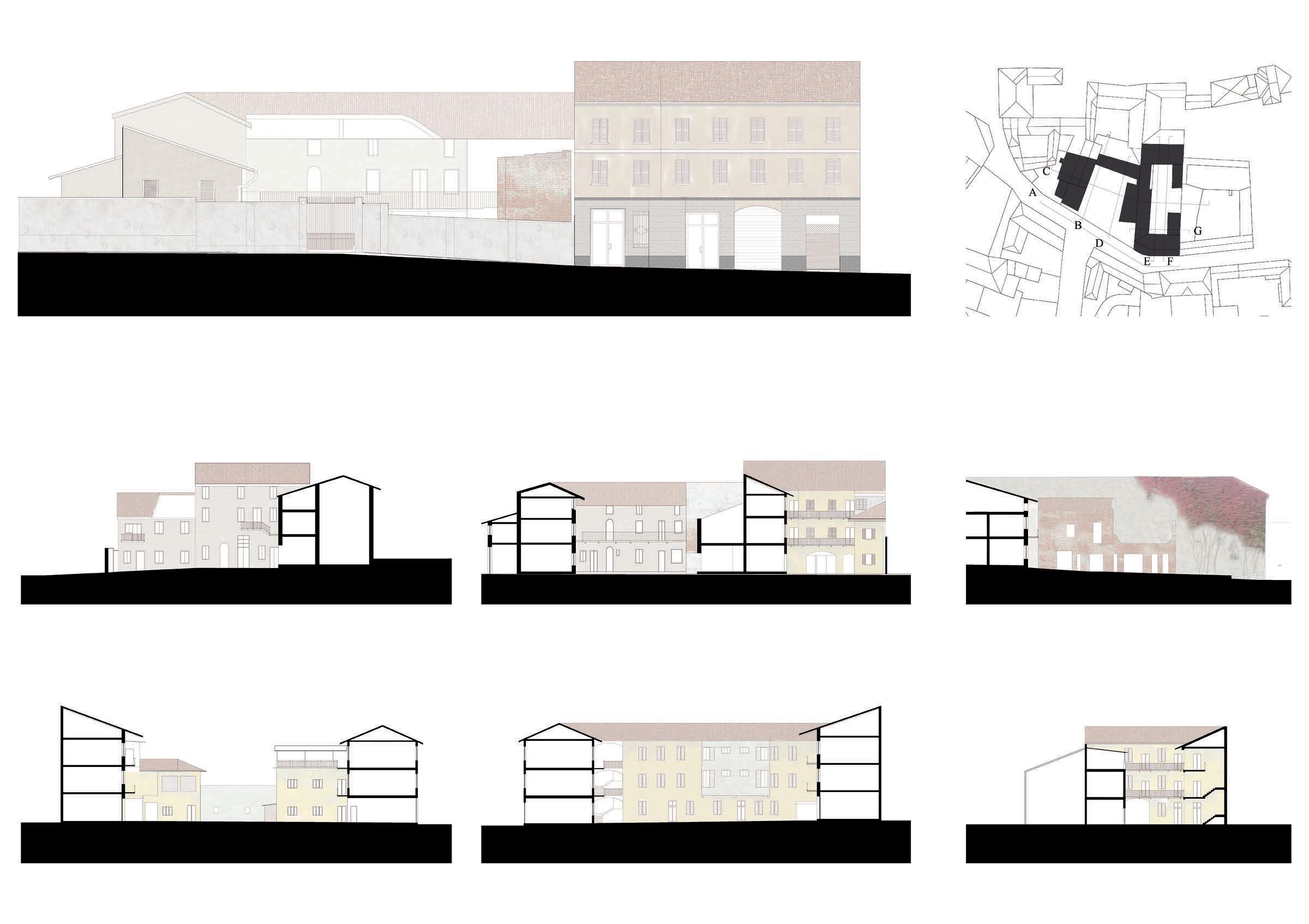

4.3 URBAN SECTION 0 024 8m
69 4.4 CONTEXTUAL
G
GROUND FLOOR PLAN
Scale 1-500

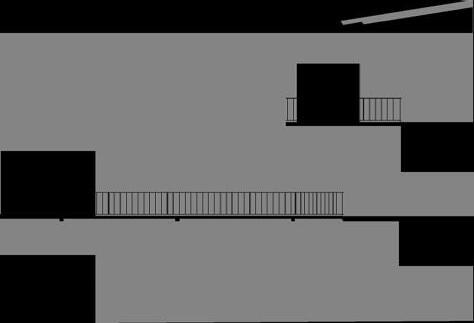

Identification of valuable “ringhiera” walkways
Introduction of new design an function at the heart of the site
Enhancment of “ringhiera” walkways + physical site connection
Identification of site circulation issues and boundaries

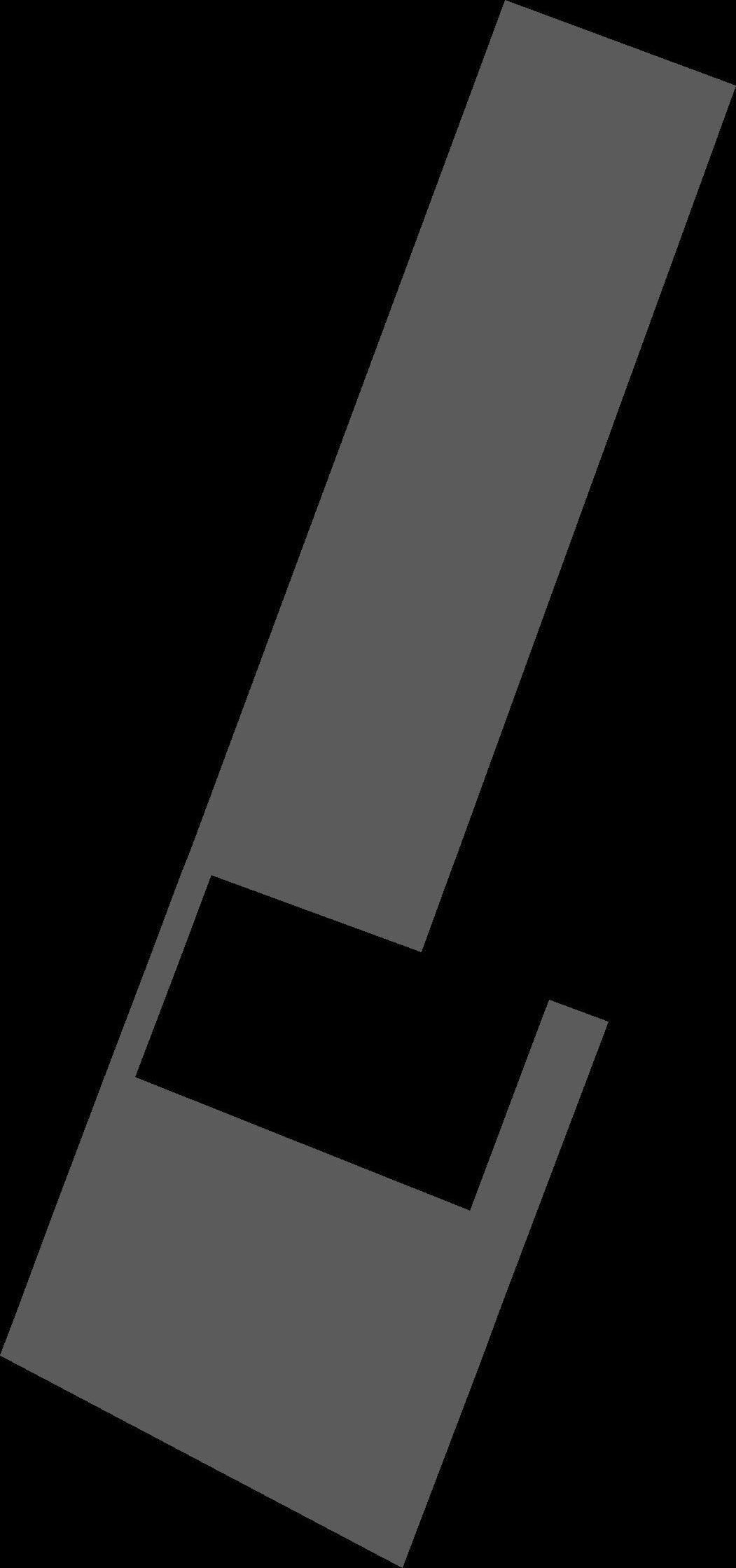

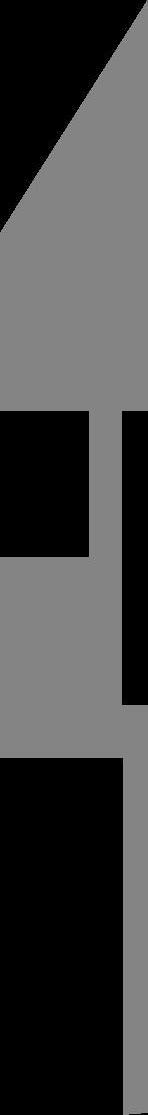

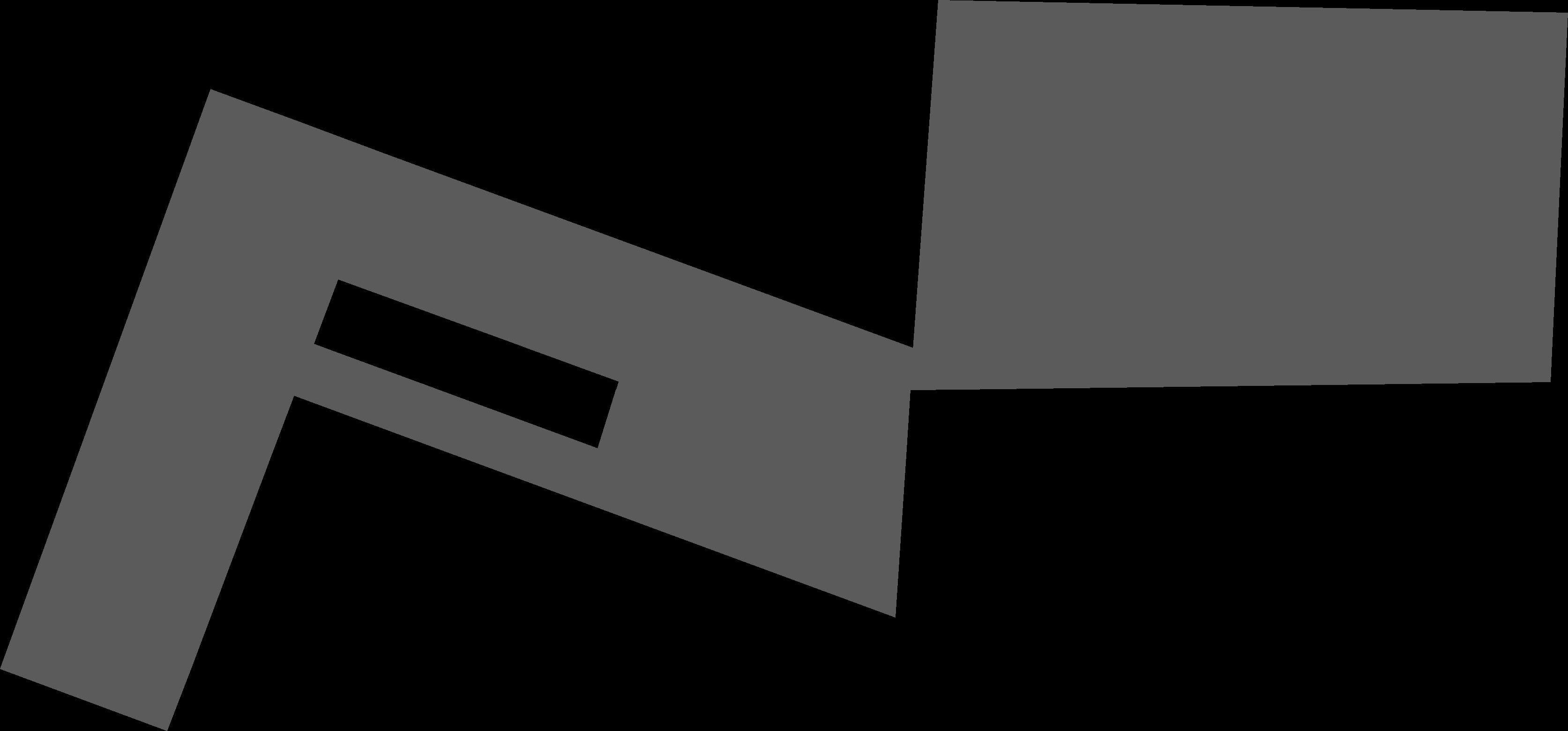

4.5 CONCEPTUAL
SCHEMES
Historic context External communication
4.5 CONCEPTUAL
Filter gallery Ramps Terrace Library Skybar Workshop
SCHEMES
4.6 GROUND FLOOR N.P.T. +0.00 NR-ARC-270Y up up N.P.T. +0.72 N.P.T. +0.90 N.P.T. +0.10 N.P.T. +0.10 N.P.T. +0.72 N.P.T. +0.00 N.P.T. +0.10 N.P.T. +0.90 N.P.T. +0.90 N.P.T. +0.90 N.P.T. +0.18 N.P.T. +0.10 N.P.T. +0.90 A A B B E F F E 0 024 8m Scale 1-200
73 4.6 1st FLOOR up B N.P.T. +4.00 N.P.T. +4.00 N.P.T. +4.00 N.P.T. +4.00 N.P.T. +4.00 N.P.T. +4.00 N.P.T. +3.00 N.P.T. +4.30 A A B B E F F E 0 024 8m Scale 1-200
4.6 2nd FLOOR BAR down N.P.T. +6.60 N.P.T. +7.60 N.P.T. +7.83 A A B B E F F E 0 024 8m Scale 1-200
75 4.6 ROOFPLAN A A B B E F F E 0 024 8m Scale 1-200

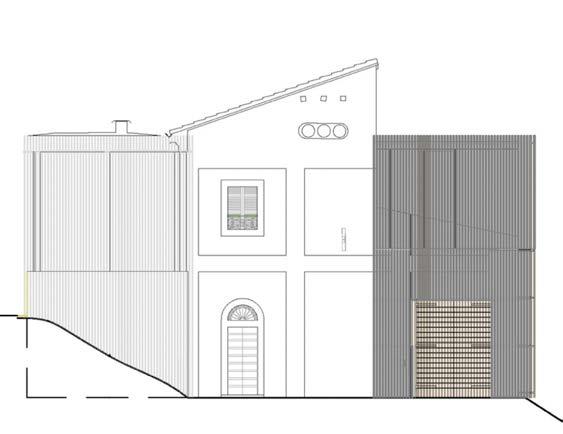

0 024 8m 4.7 SECTION AA A A B E F F E B 0 024 8m Scale 1-200
77 4.7 SECTION BB A A B E F F E B 0 024 8m 0 024 8m Scale 1-200
4.7 SECTION EE Scale 1-200 0 024 8m 0 024 8m A A B E F F E B
79 4.7 SECTION FF Scale 2-100 0 024 8m 0 024 8m A A B E F F E B
81 4.8 DISTRIBUTION SCHEME exhibition space office cafe cafe WC WC Skybar office
5. AXONOMETRIES, VISUALIZATIONS & PHYSICAL MODELS
83

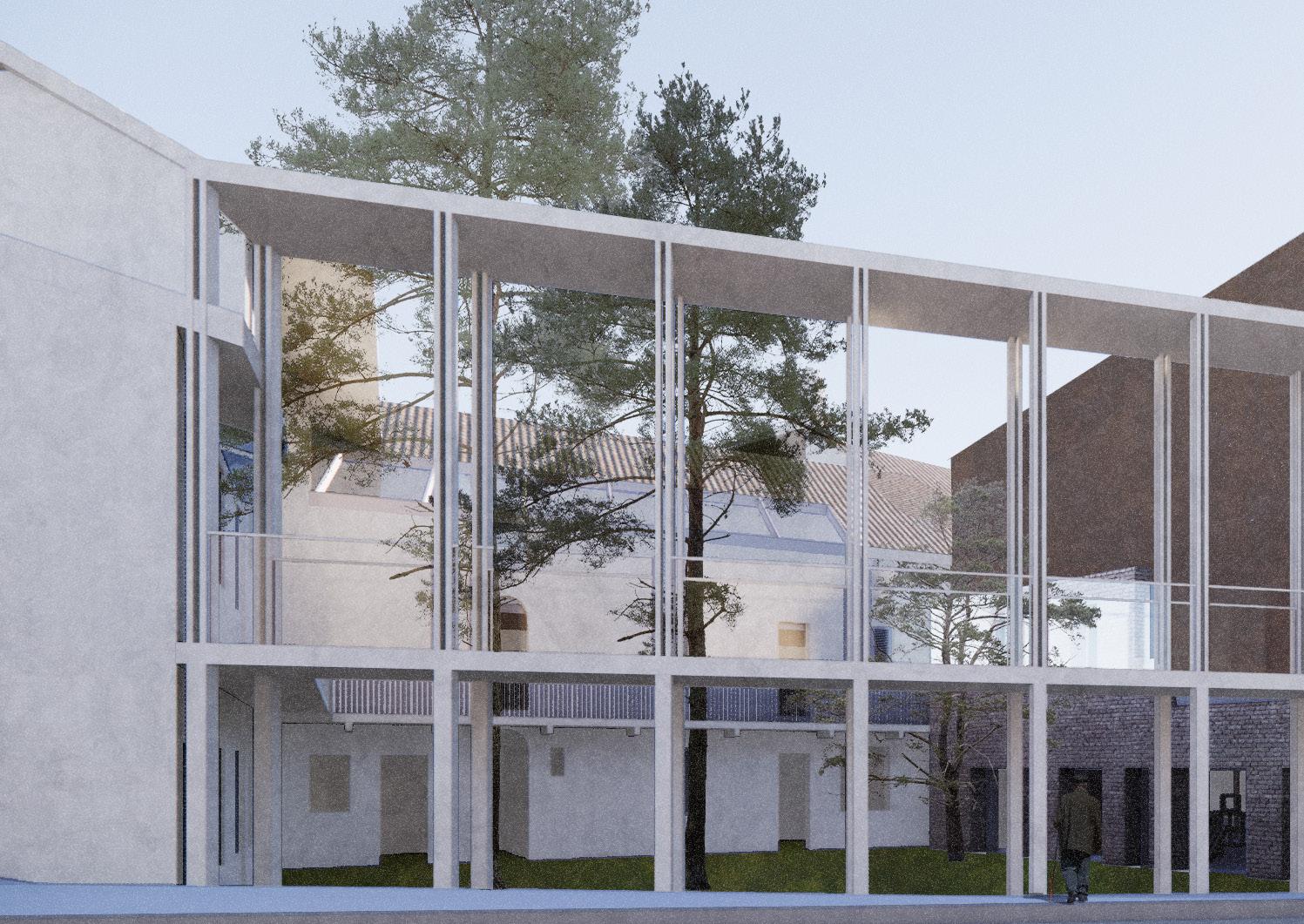

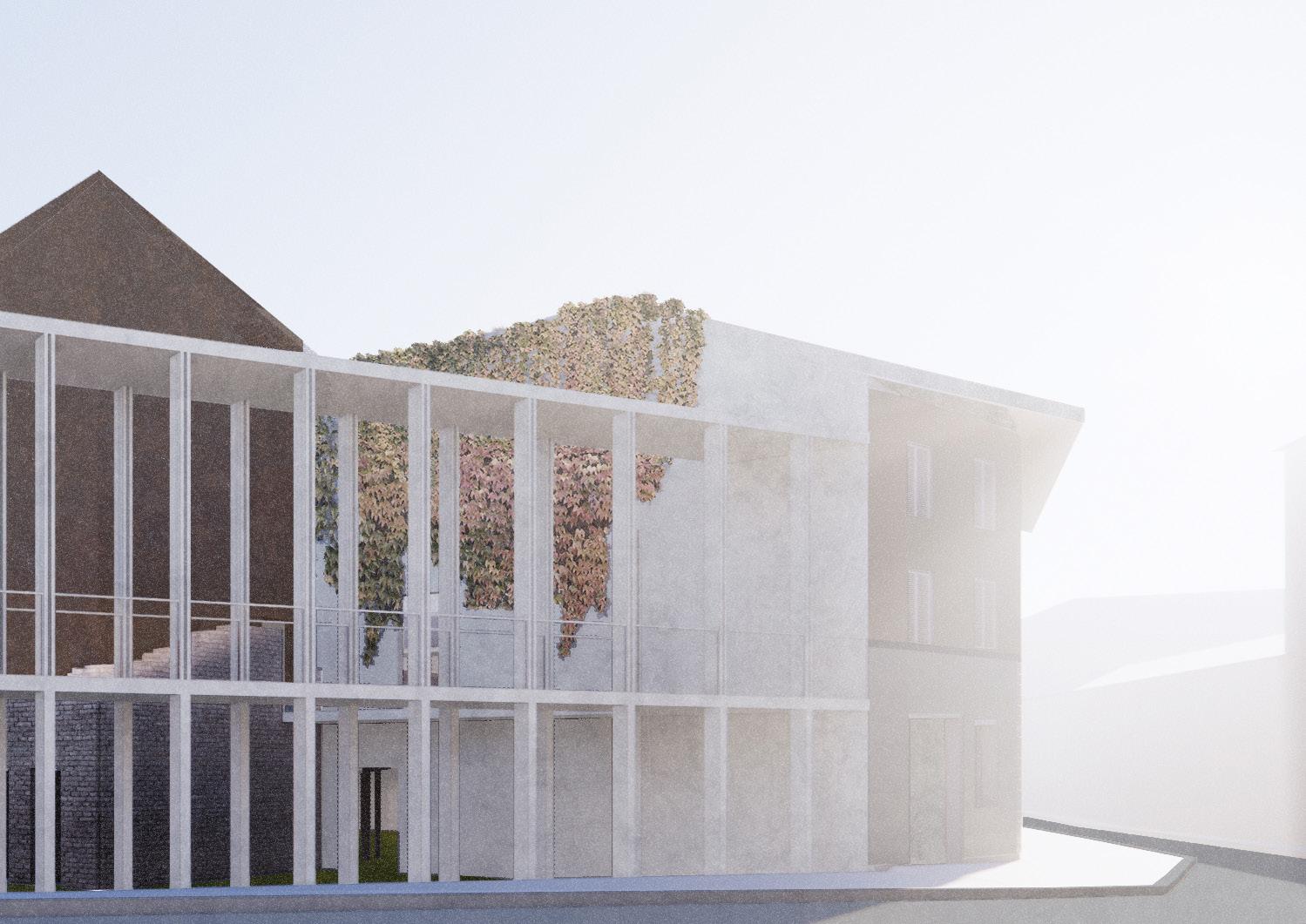

5.1 VISUALIZATION MAIN ELEVATION

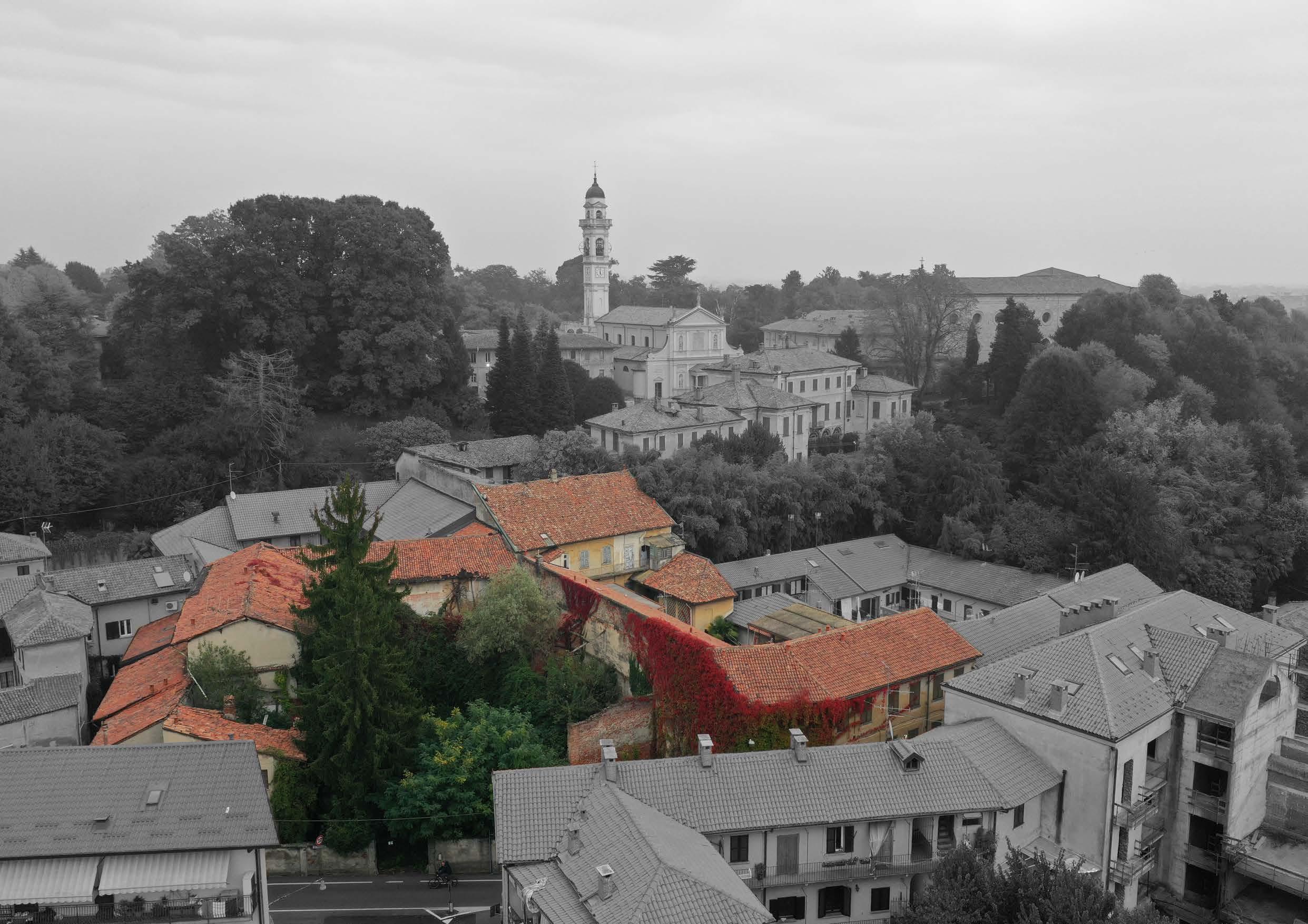

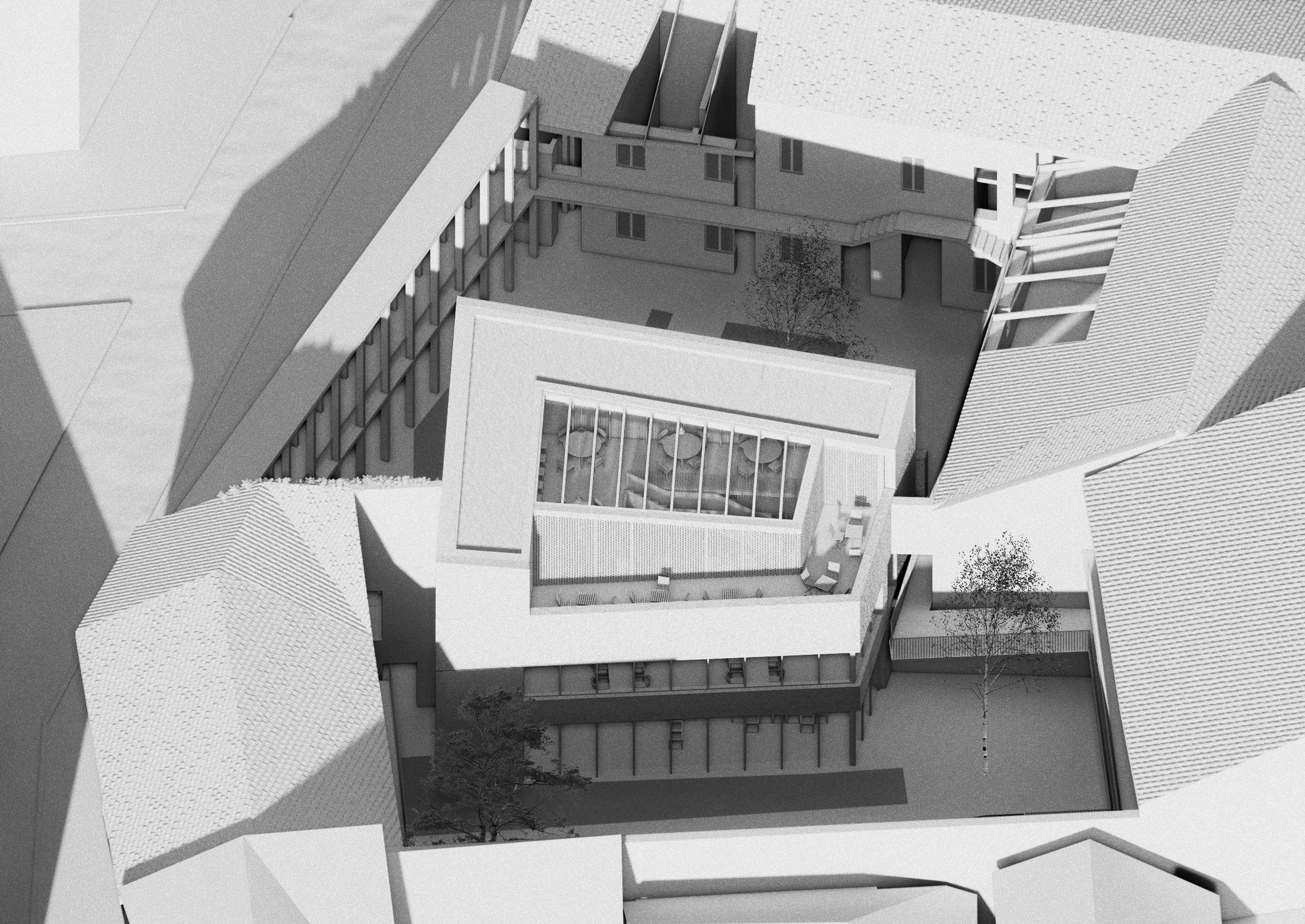

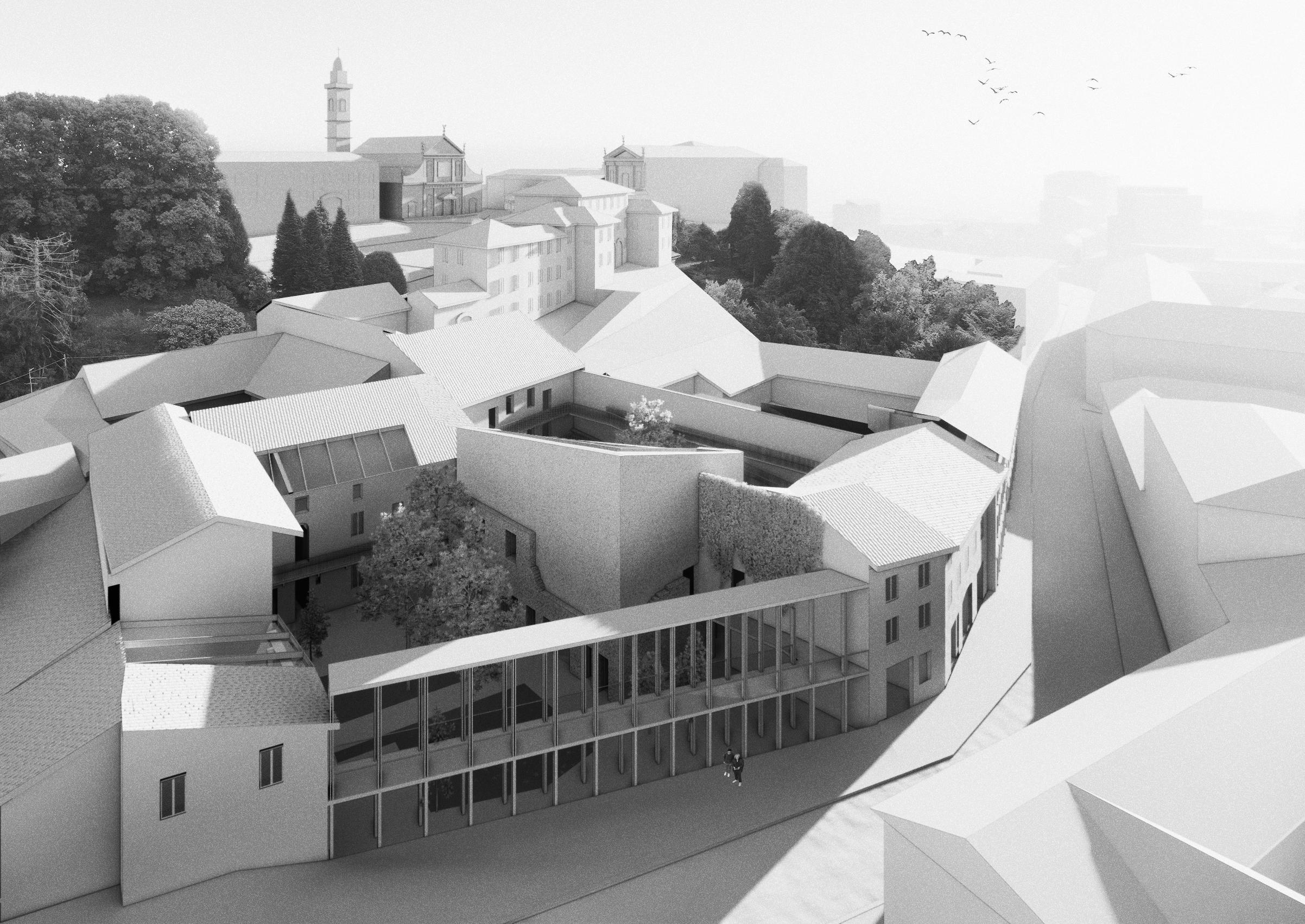

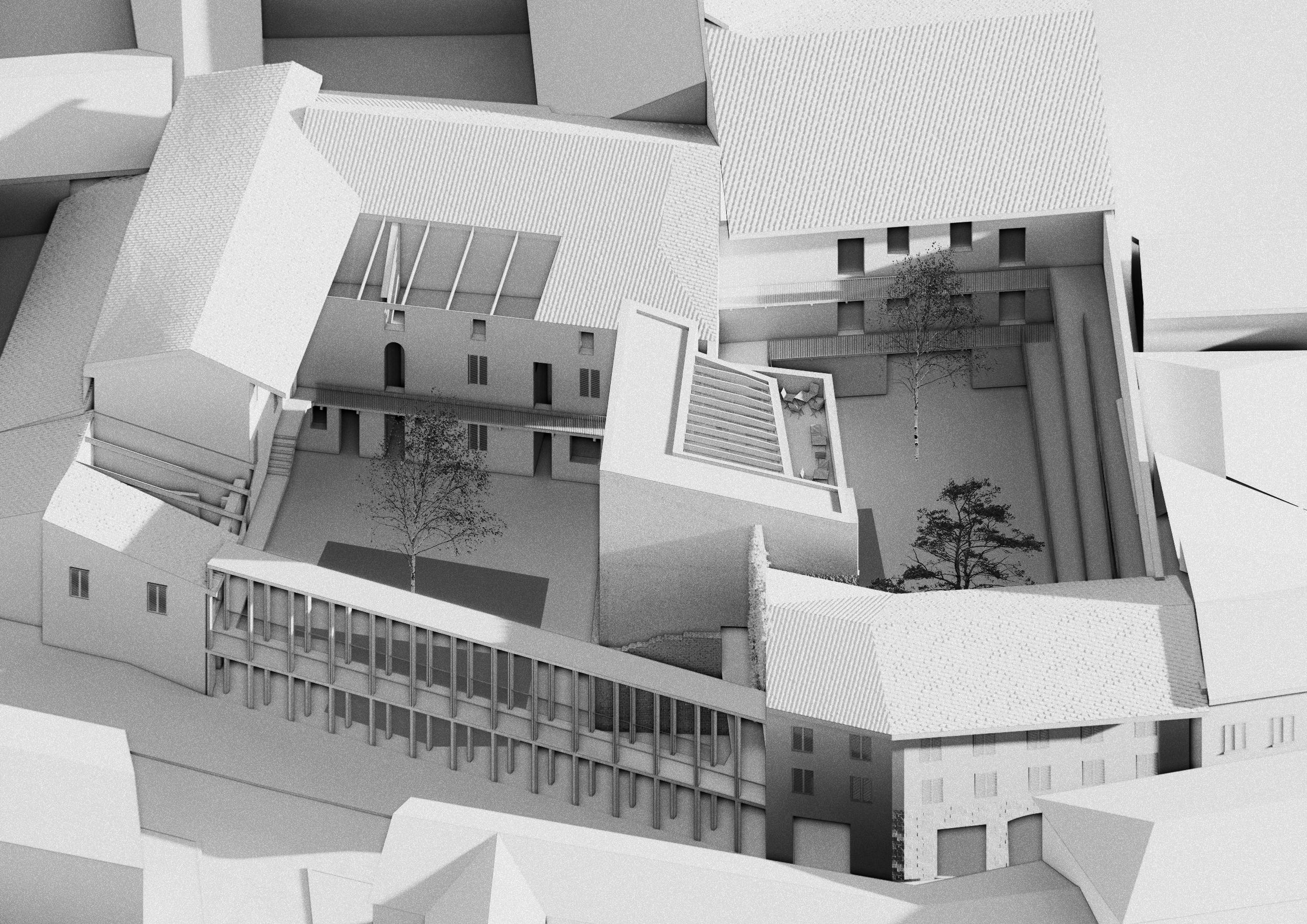

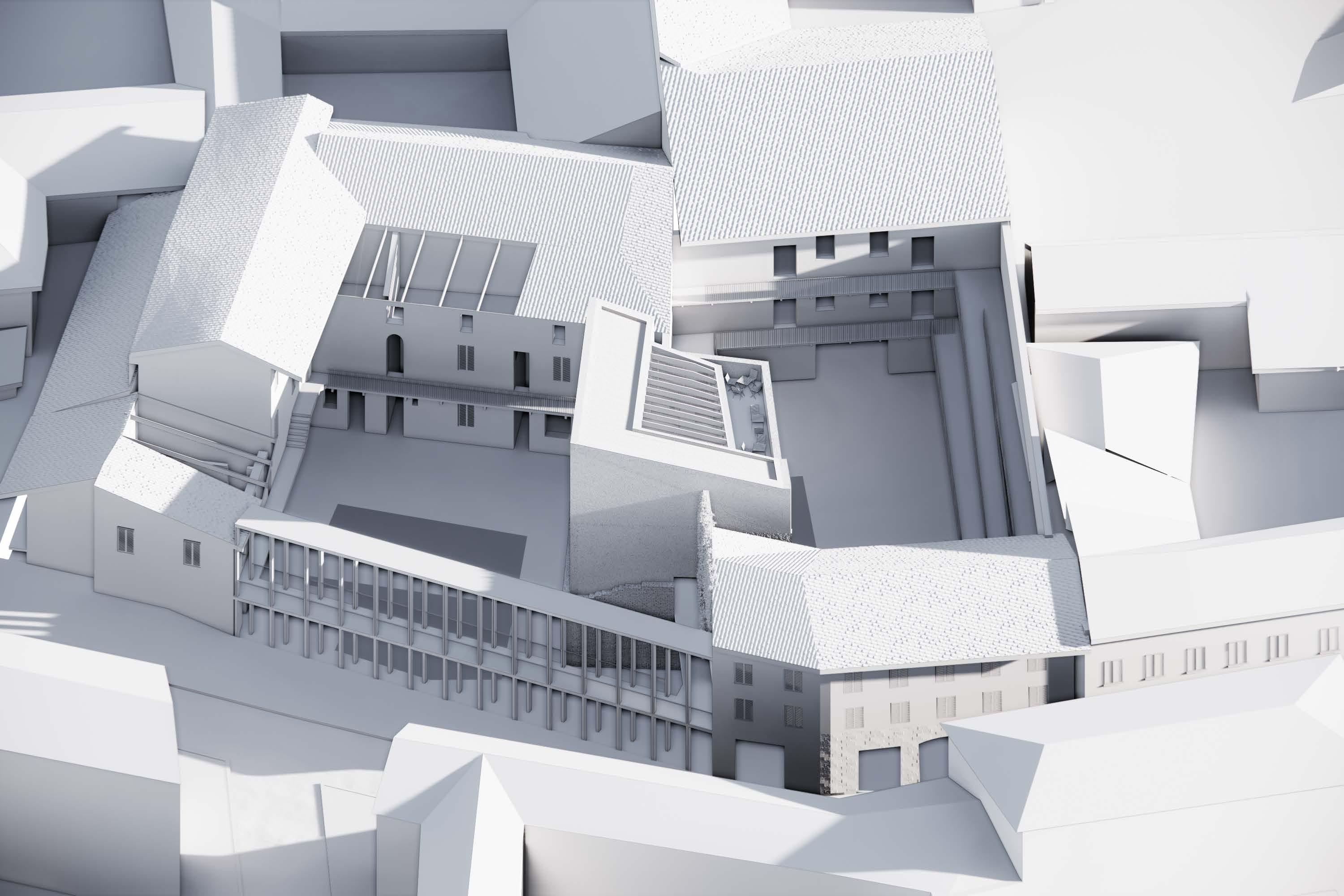

5.2 URBAN AERIAL
5.2 AXONOMETRY SW
88
5.2 AXONOMETRY SE

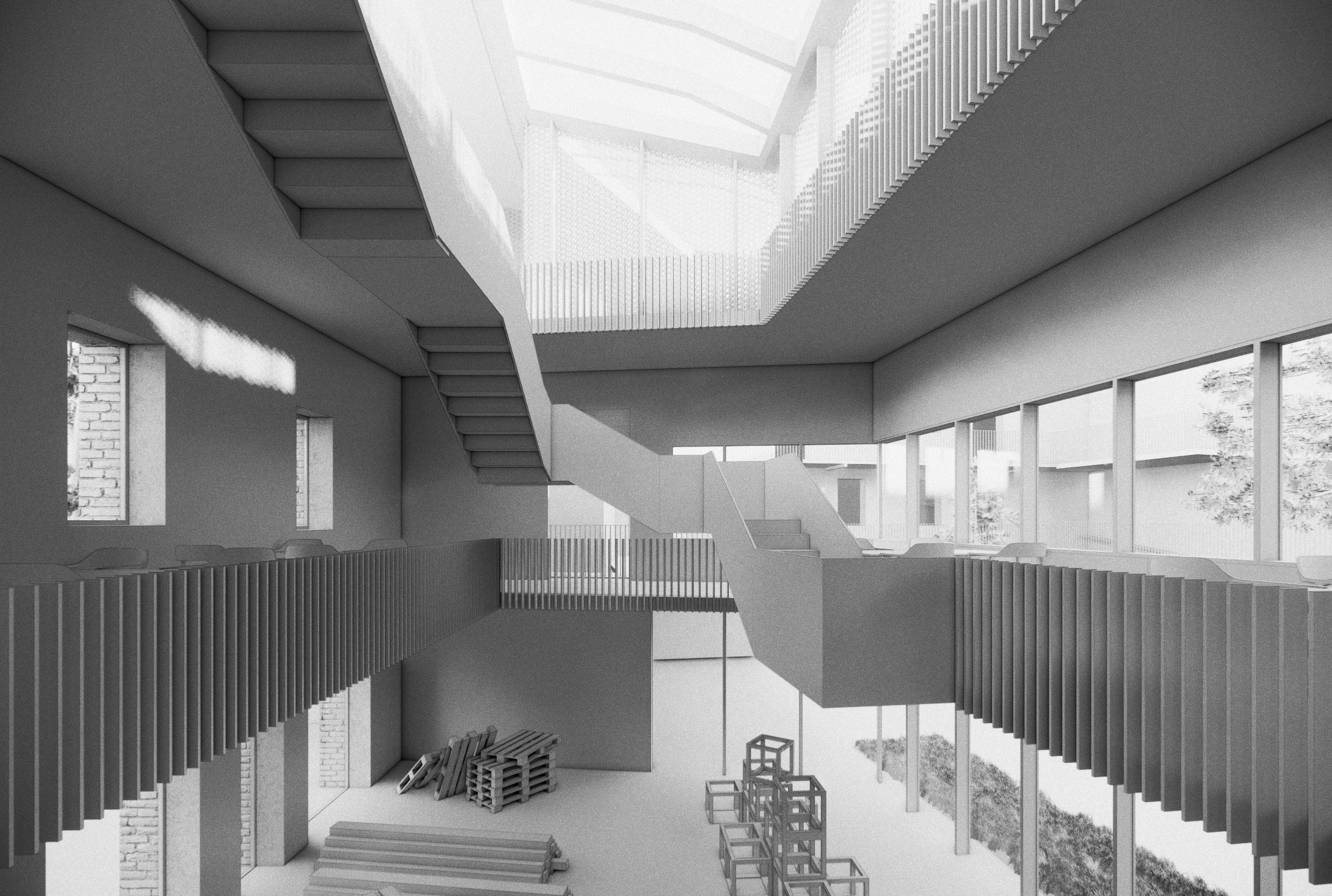

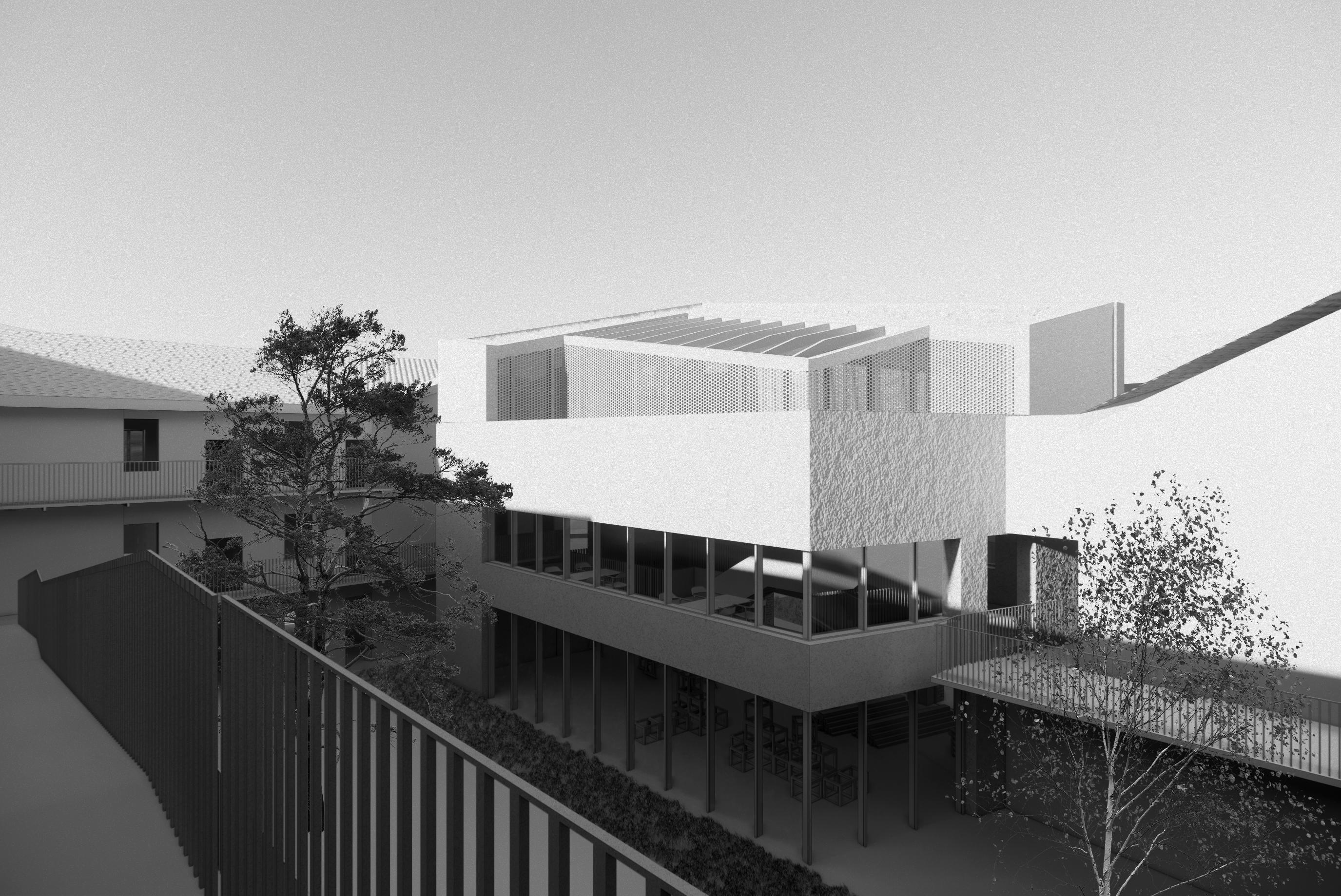

5.3 VISUALIZATION II
5.3 VISUALIZATION III
5.4 CONTEXTUAL MODEL 1:200

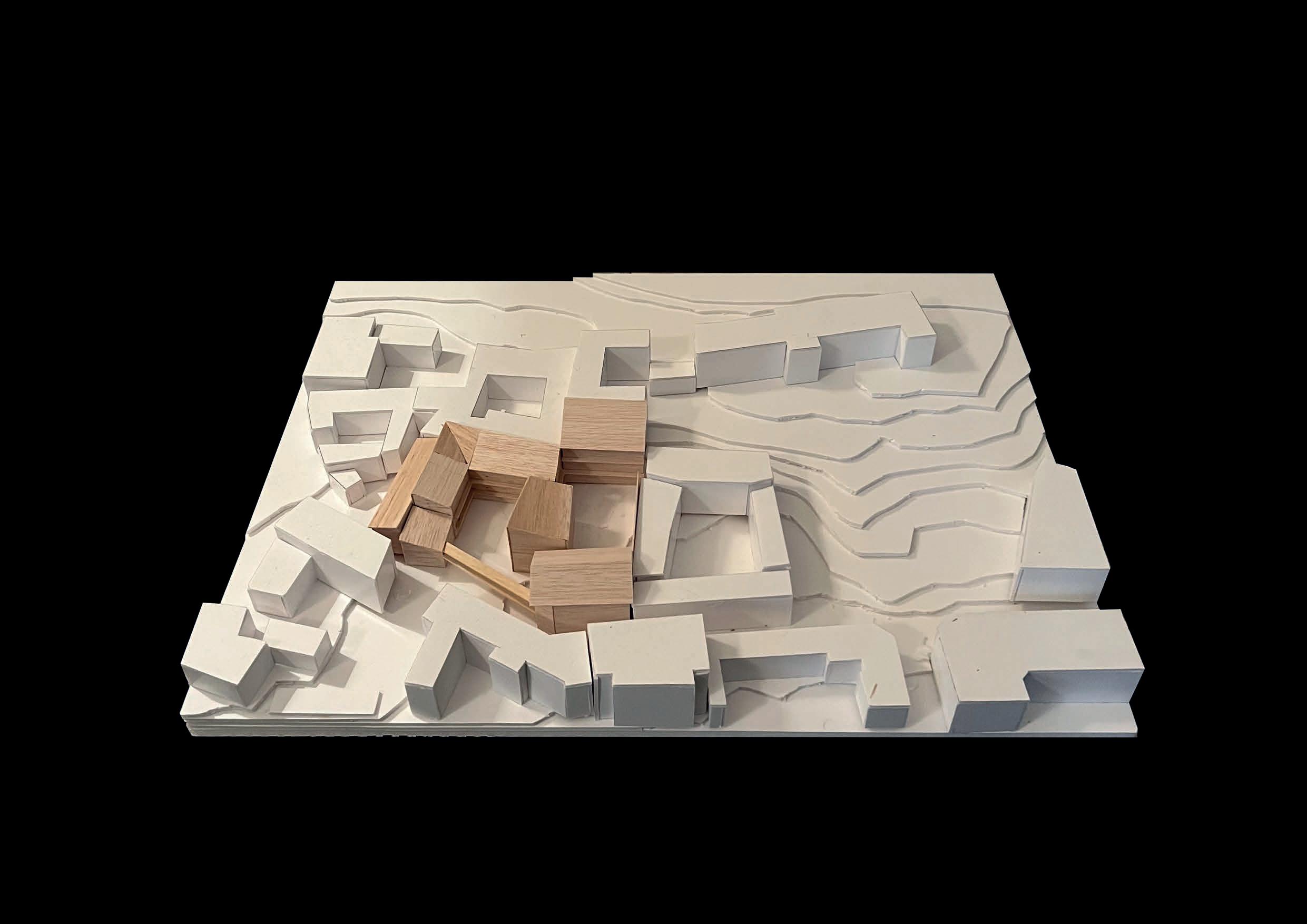

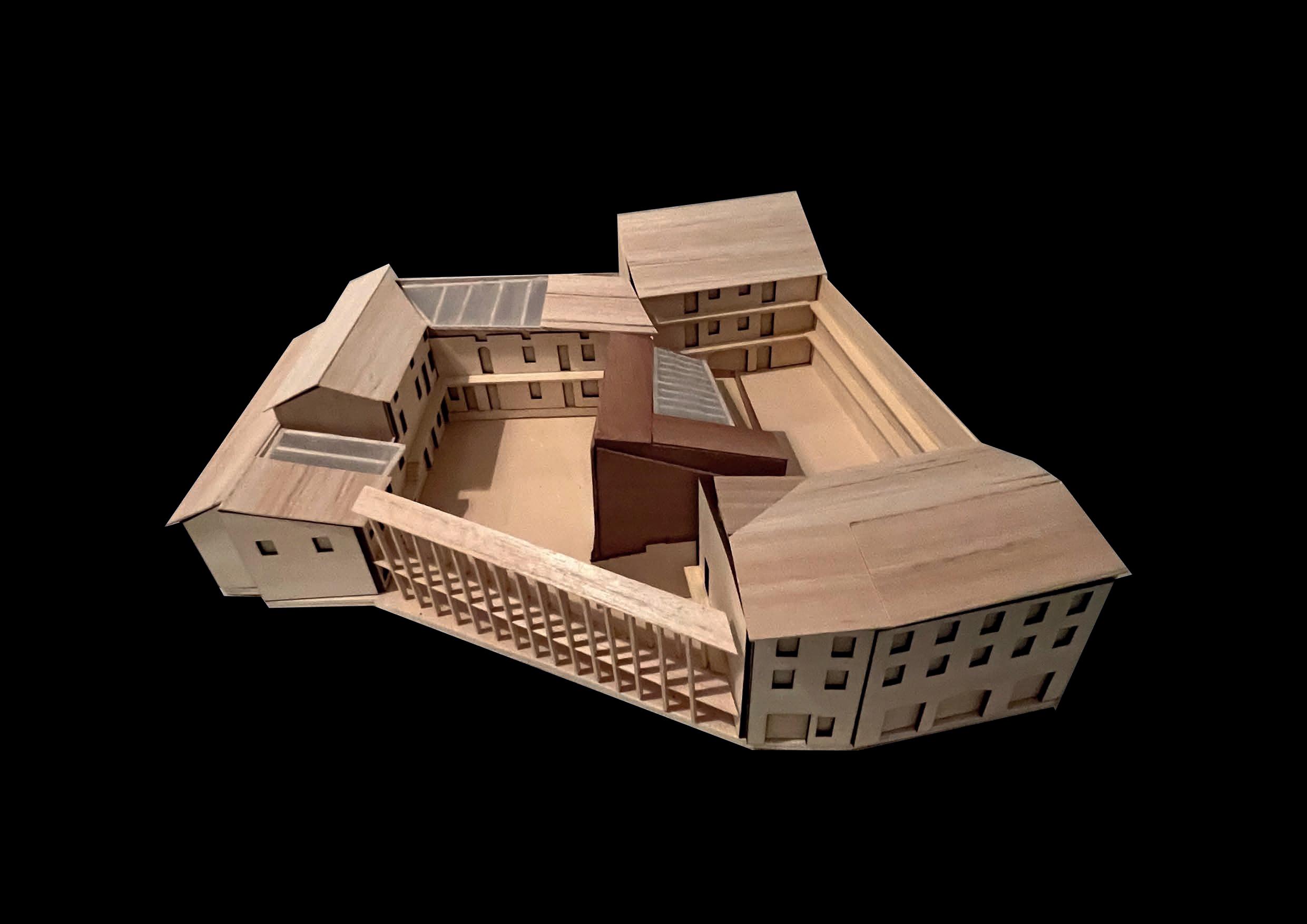

5.5 SITE MODEL 1:100
