SEJAL RANKA ARCHITECTURAL PORTFOLIO

ARCHITECTURAL PORTFOLIO

SEJAL RANKA SELECTED WORKS-2018-2022

CONTENT 4 HOUSE SEM III

7 CREATIVE DIGNITY CENTRE SEM IV

9 MASS HOUSING SEM VII

1 2 BUSINESS HOTEL SEM VI

14 ABCS I SEM VII

16 WORKING DRAWING II SEM VI

17 WORKSHOP & INTERESTS

18

DOCUMENTATION

HOUSE DESIGN:SEM III

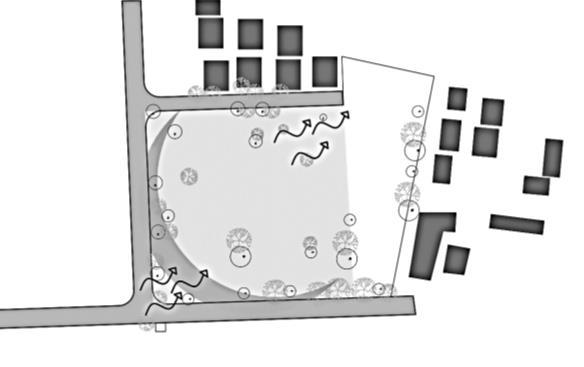

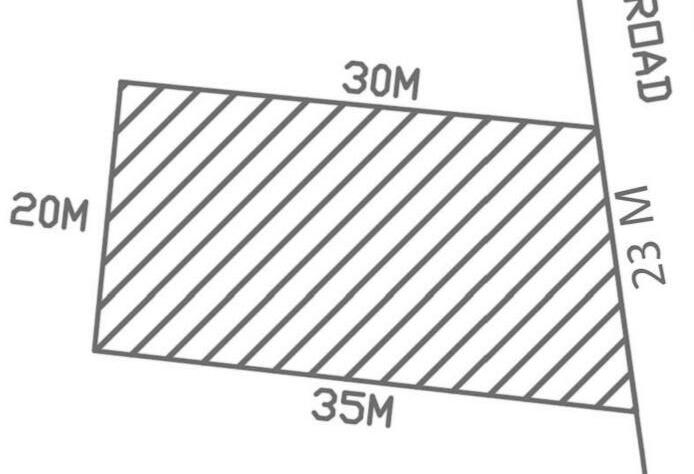

SITE:

PROJECT BRIEF: House is a domain that is intimate to all of us. From time we know, man has strived to make a habitable shelter with available technology, responding to immediate surroundings and climate, appropriate to the culture of the society where he can return everyday to his family . The relationship of the house for a human being is at multiple level of physical comfort, emotional wellbeing and spiritual connect. A bond as intimate as with the family is often established where all the above criteria are fulfilled. The design addresses and responds to the function, connectivity, movement pattern, climate and context through the program.

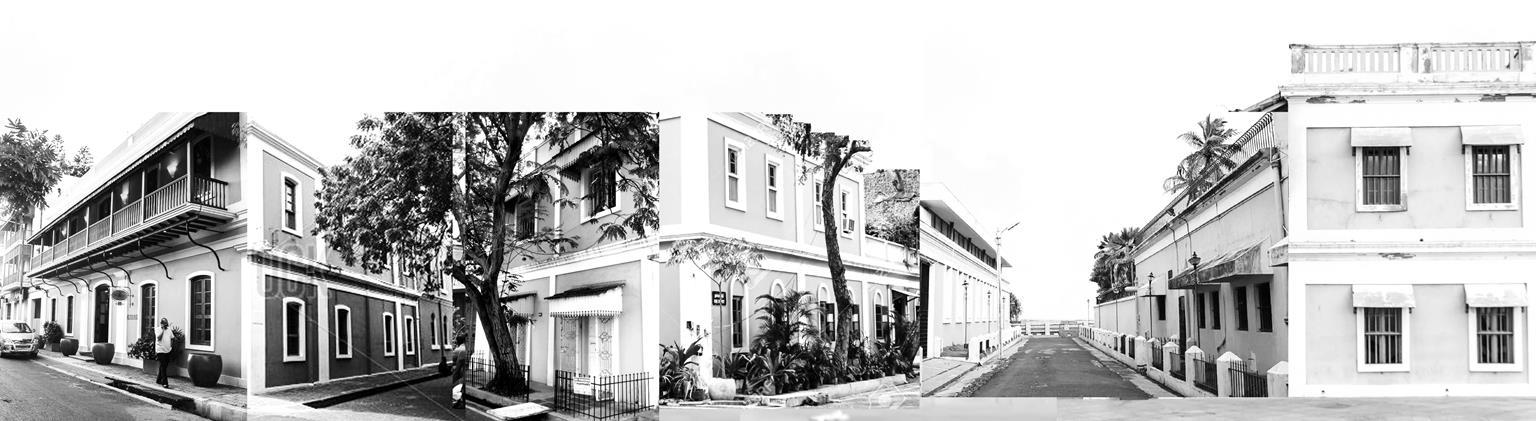

Site: White Town, Puducherry Site is located next to French Institute and has a view of Auro Golden Beach.

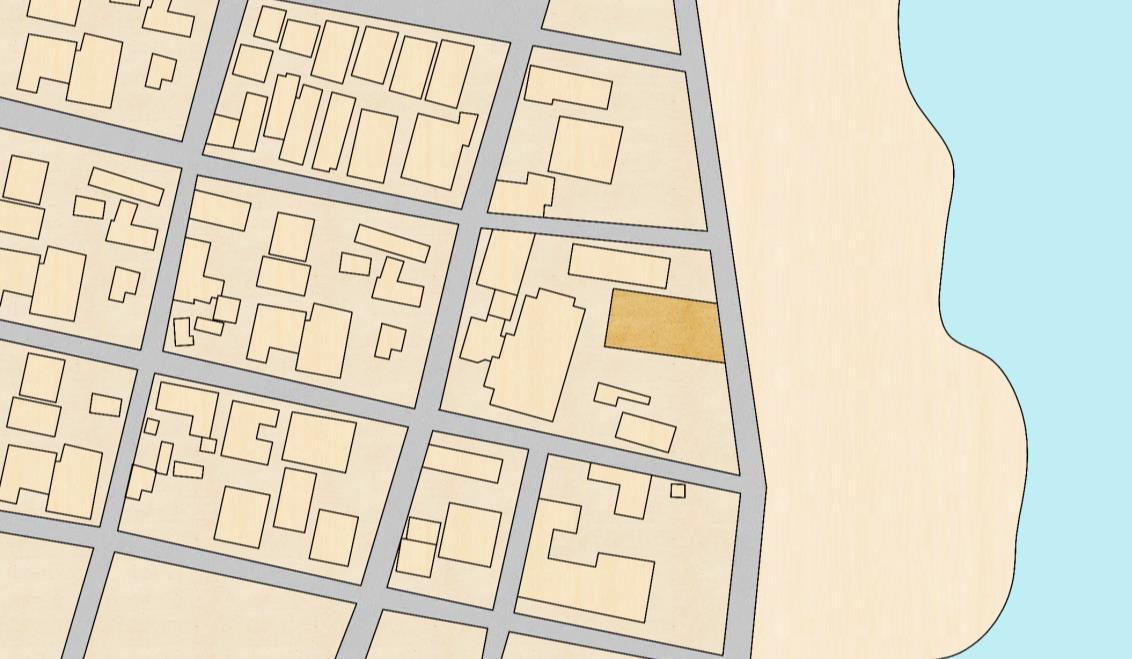

Site Context depicting relations of site with water body and its neighborhood context that comprises of residential blocks .

Design Development::

Design Requirements: Site area:699 Sq.m House for family of 5 members : Living Room Kitchen 3 Bedrooms Study Room Stay area : Living area, pantry area, Bedrooms Servants room

Concept: Design is inspired from traditional Tamilian and French houses of Puducherry.

Elements such as Thalvaram (Entrance Verandah) and Mutram (Central Courtyard) has been adopted.

Offset of 3m is considered from all sides of site.

Stay Area is in front side yet is fragmented with different Thalvaram .

Through the stay area is visually not connected to central court the rooms has a sense of connectivity to the courtyard.

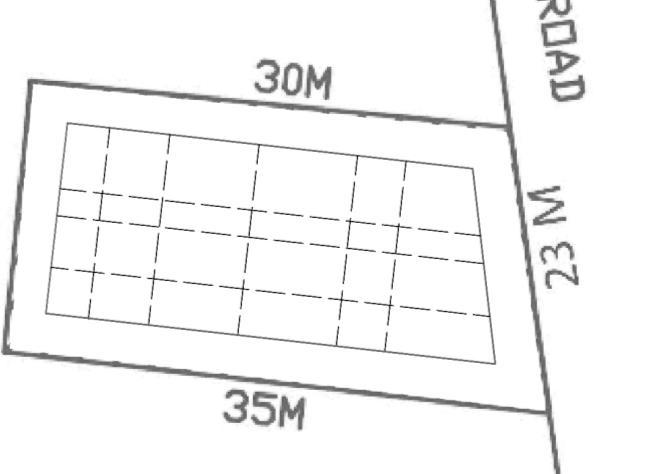

Offset Of 3m is Given from all the four sides and then grid is devised with reference to area of different blocks..

Architectural Narrative Of Puducherry.

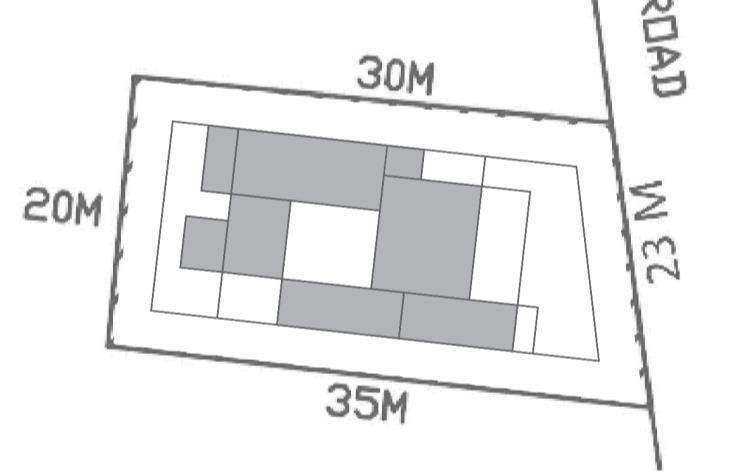

Negative Positive Spaces are created within the grid to form Mutram that is courtyard and Thalvaram that is front verandah.

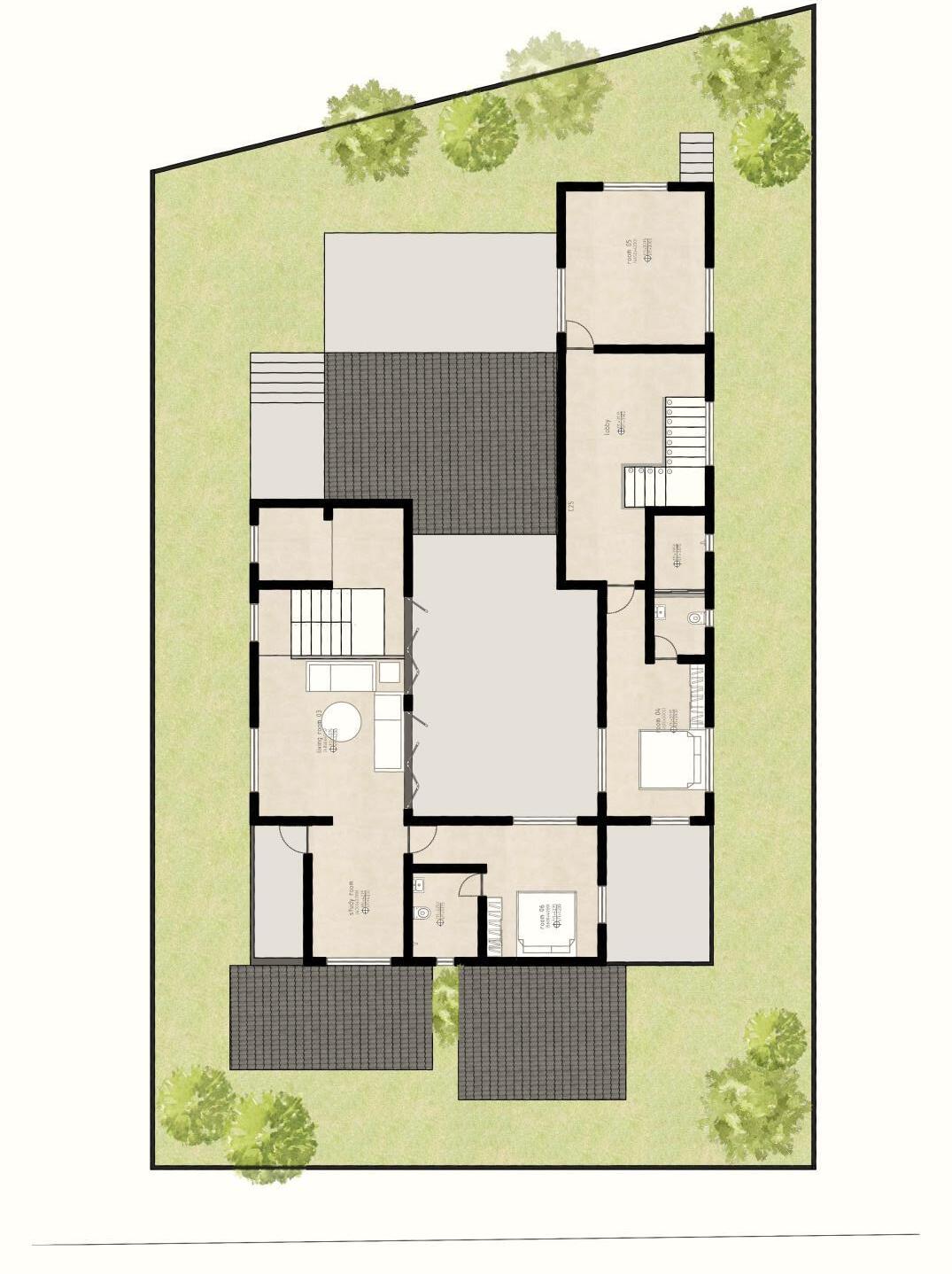

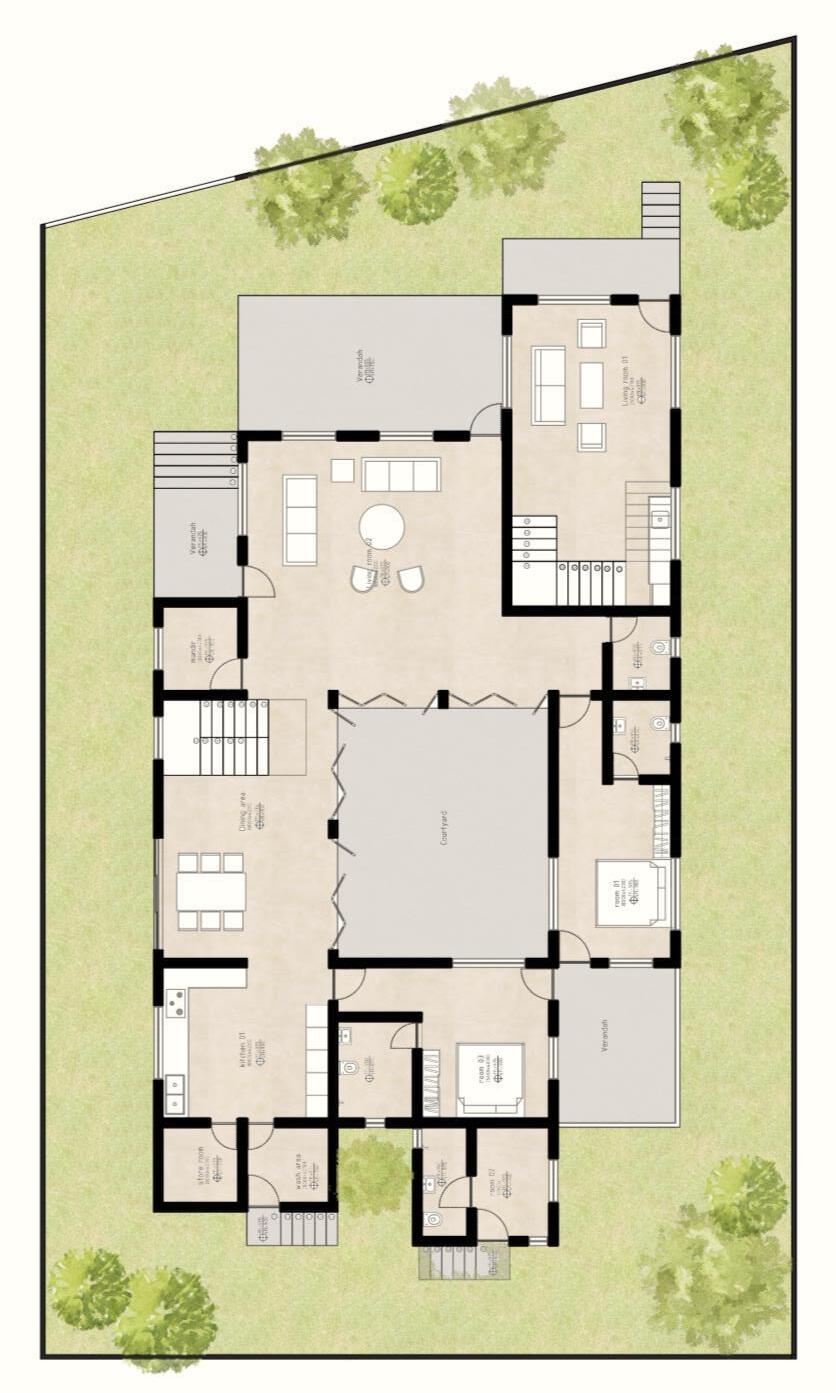

GROUND FLOOR PLAN

FIRST FLOOR PLAN

18

18

19

10

1

11

2

3

4

5

8

17

7

6

: 1.Living Room 2.Puja Room 3.Dining Room 4.Kitchen area 5.Store room 6.Wash Area 7.Master room 8.Grandparent room+terrace 9.Servant,s area Stay Area 10.Living room 11.Pantry area 12.Informal living area 13.Study room 14.Kids room 15.Stay room 01 16.Stay room 02 17.Central Court 18.Entrance foyer 19.Verandha

16

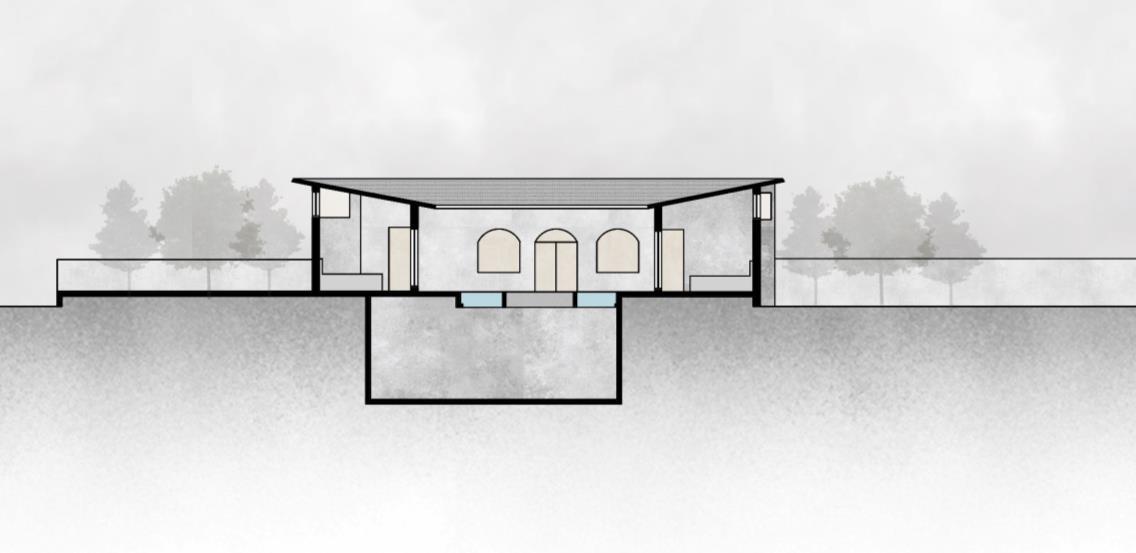

Section is from the central courtyard inspired from mutram ( franco- Tamil houses). The court acts like a buffer space and helps in keeping the house cool.

12

13

17

15

14

9

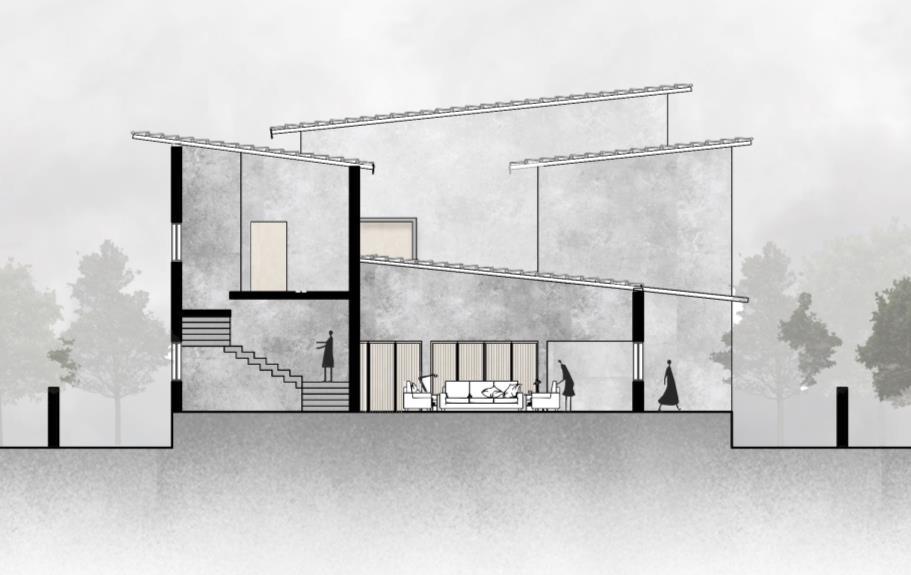

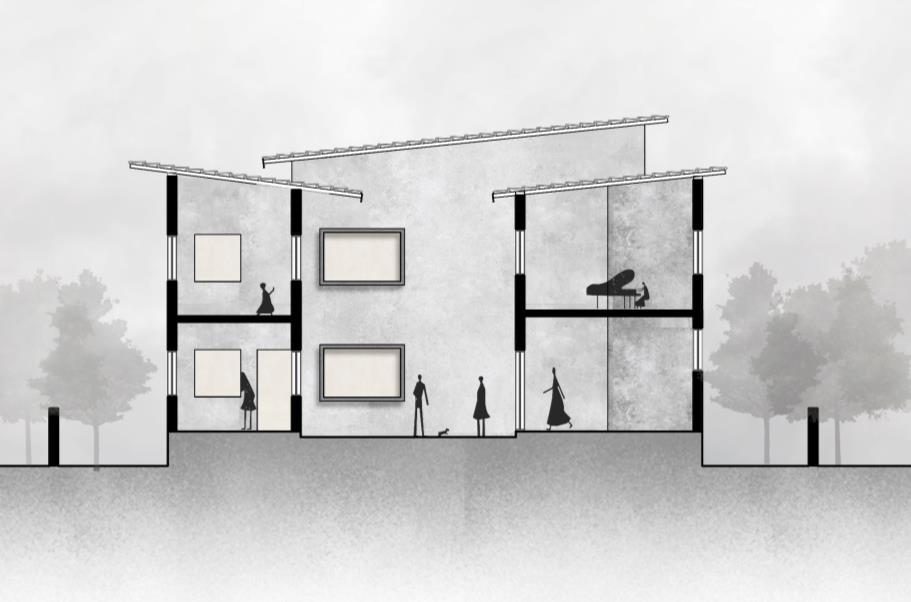

Section shows the hierarchy in volumes . The living space is a single storey whereas the stay area and room area is double storey.

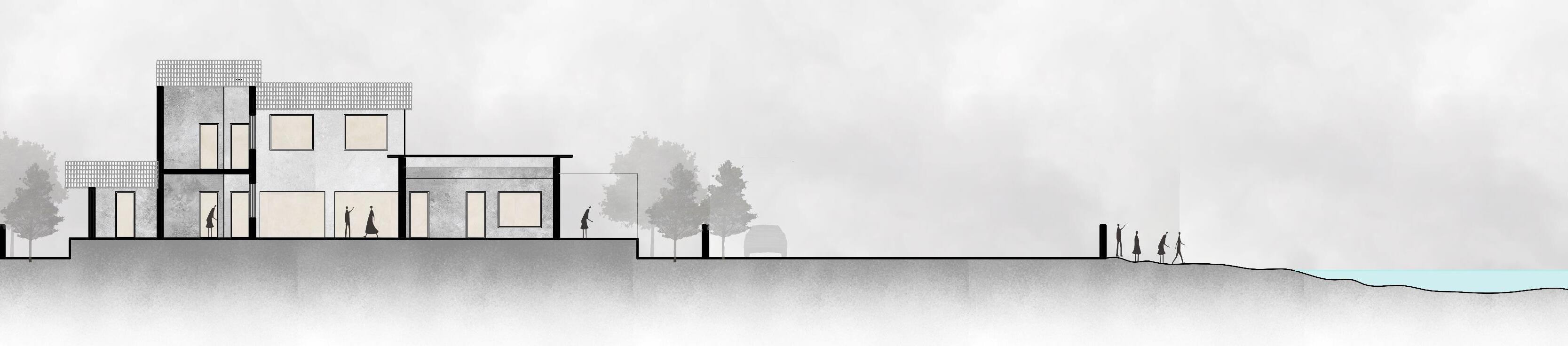

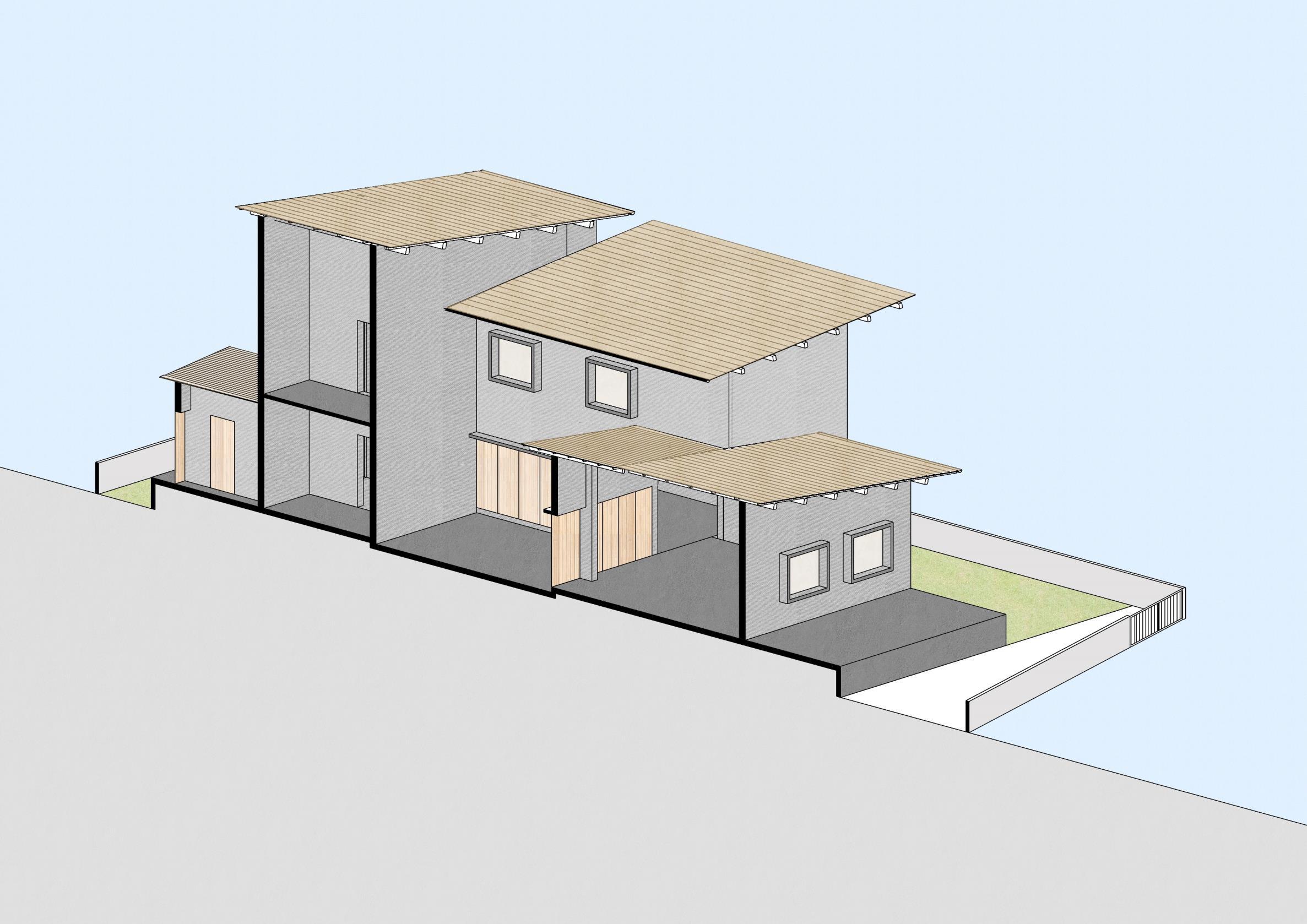

Section is through the central courtyard passing through the master bedroom and kids room with living room in front towards the water body.It shows the overall massing of the built form in the house.

1.Main Entrance 2.Verandah 3.Living Room 4.Central Courtyard 5.Master Room 6.Kid’s Room 7.Servant’s Room

6

7

5 4 3 2

Section is from the central courtyard inspired from mutram ( franco- Tamil houses). The court acts like a buffer space and helps in keeping the house cool. The Section Shows the Volumetric Hierarchy of the spaces. Also the concept of Thalvaram is used in more contemporary manner in the house.

Also it depicts the level difference with reference to ground..

1

CREATIVE DIGNITY CENTRE :SEM IV

SITE:

PROJECT BRIEF: Creative Dignity is a movement that has brought together diverse creative producers, practitioners and professionals to energize the ecosystem that Indian artisans need in this time of COVID-19 and post-COVID-19 impact.. The agenda is to create awareness about the craft and the artisans, and to help the indigenous practice to modernize and prosper with the help of professional and designers.. The idea is to generate spaces and built environment which can complement the social and cultural status of the craft. Also, offers an environment which gives them dignity they deserves. It also became a place where society and craft and professionals come together.

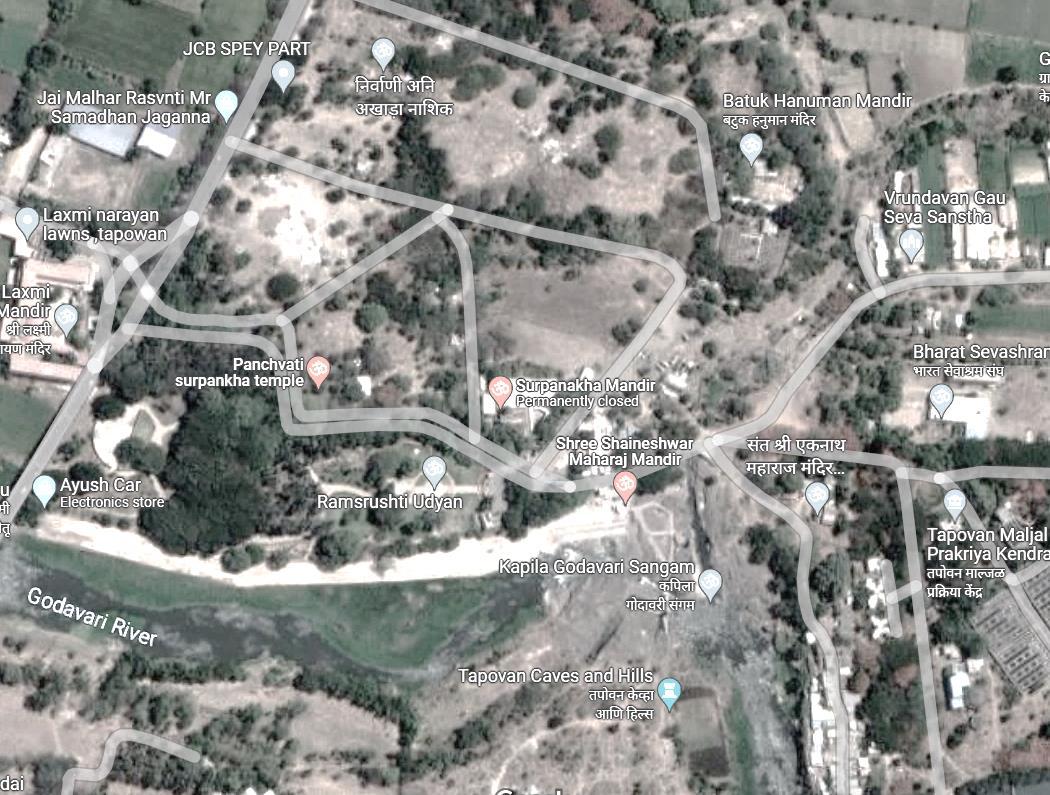

Site: Next to Surpanaka Mandir, Opposite Tapovan Garden ,Nashik.

Concept : half structure is beneath the ground and half above ground just similar to the roots and flower below and above Selected Handicraft: Kalamkari:

ground which is used to extract colors used in kalamkari.

The word Kalamkari is derived from the word Kalambamboo pen and Kari-craftsmanship. Kalamkari is a type of fabric printing traditionally done on the cotton cloth using natural materials without adding any chemicals.. The availability of natural raw materials, good and supporting climatic conditions, abundant river water .

Design Requirements : Site area:2600 sq.m Gallery Shop, Workshop, Canteen, Washing Area , Drying Area Amphitheatre Toilets .

Concept: Design is inspired from the process of extraction of colors of kalamkari which is from the root and flowers of plant.

Resembling that the structure is half beneath(Roots) and half above ground.(flowers).

Process Of Kalamkari :

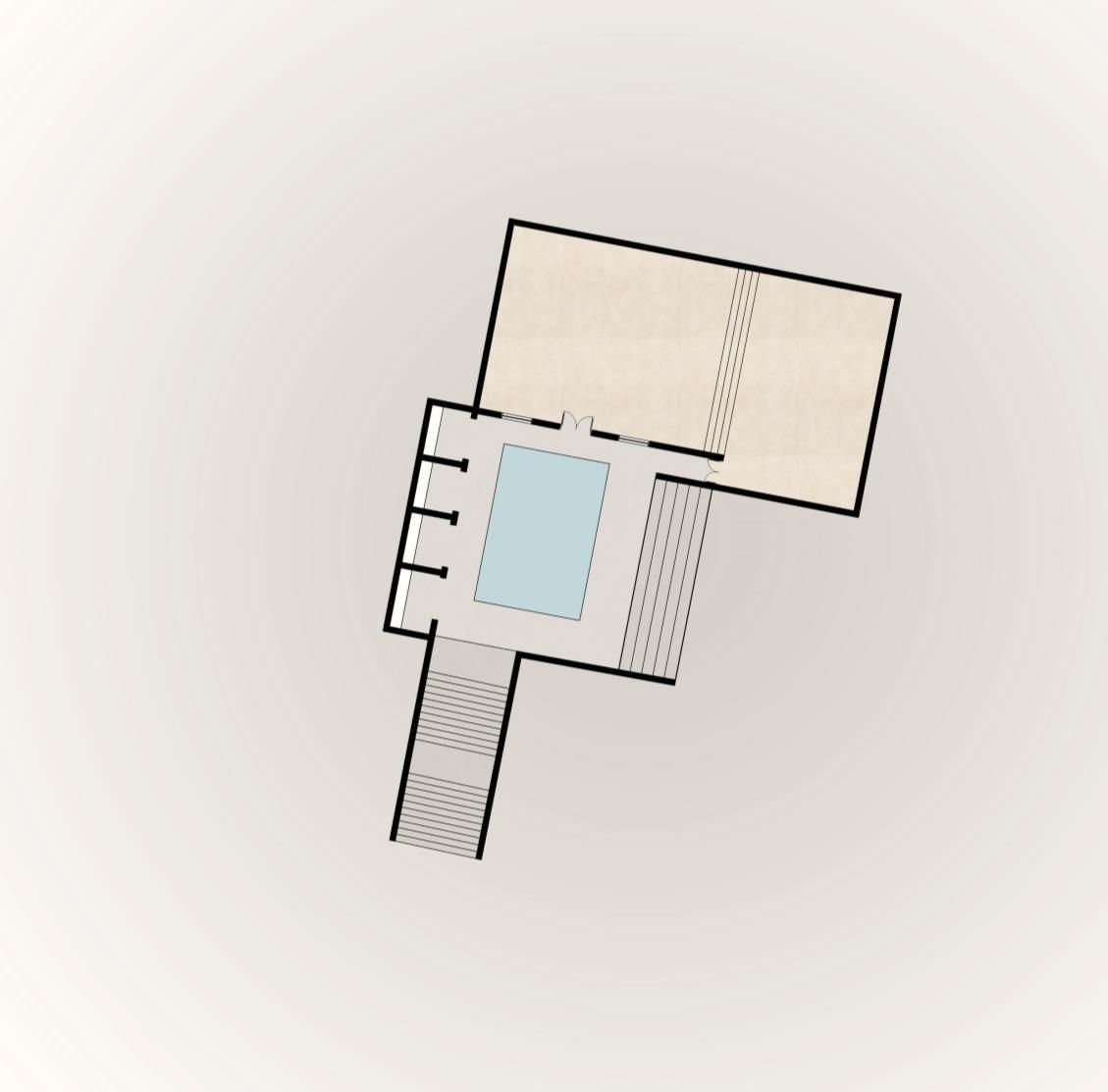

UNDERGROUND FLOOR PLAN

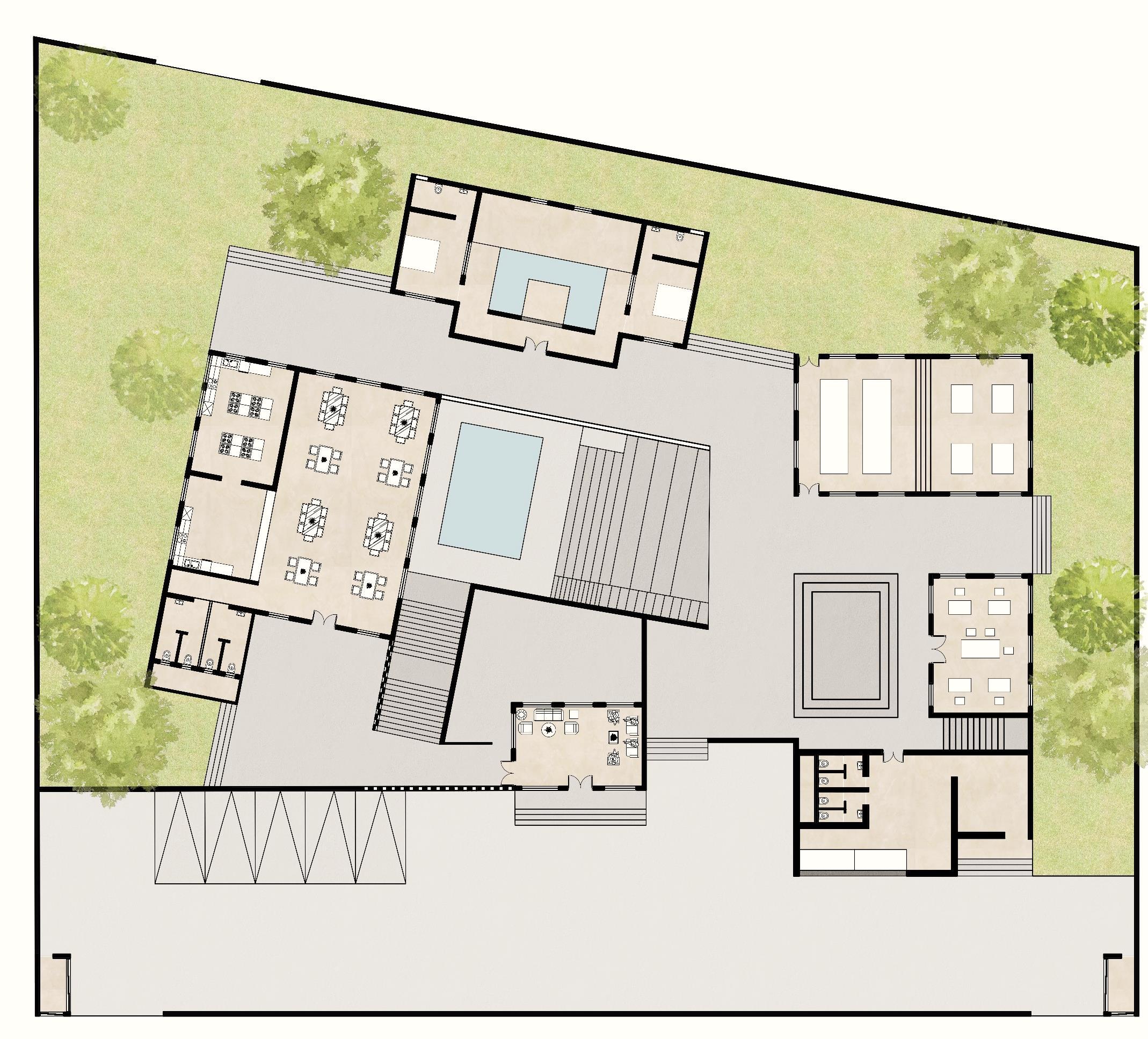

GROUND FLOOR PLAN

15

18 12

16

6 11 5

3

13

14

4 4

7

2 8

9

1

17

1.Main entrance 2.Reception 3.Cafeteria 4.Toilet 5.Kitchen

6.Workshop 7.Meeting Room 8.Washing Area 9.Boiling pots 10.Store Room

11.Seating Area 12.Gallery +Shop 13.Water Body 14.Amphitheatre 15.Service Entrance

16.Loading/ Unloading platform 17.Exit Gate 18.Stay Area

SECTION AA’

SECTION BB’

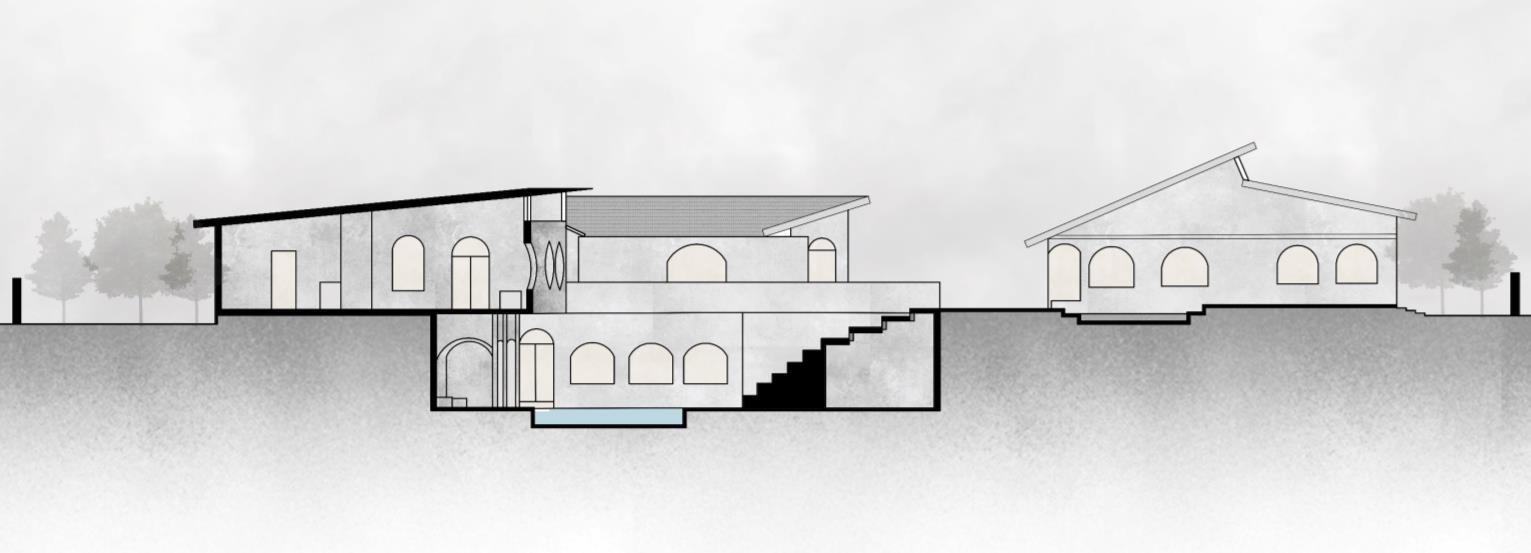

Section is through the waterbody and Amphitheatre showing connection of shop and cafeteria to them. Also, depicts the levels formed in spaces and overall arrangement of spaces.

Section is through the Gallery area and connection of waterbody in stay area .it depicts the use of waterbody as roof as well as floor .

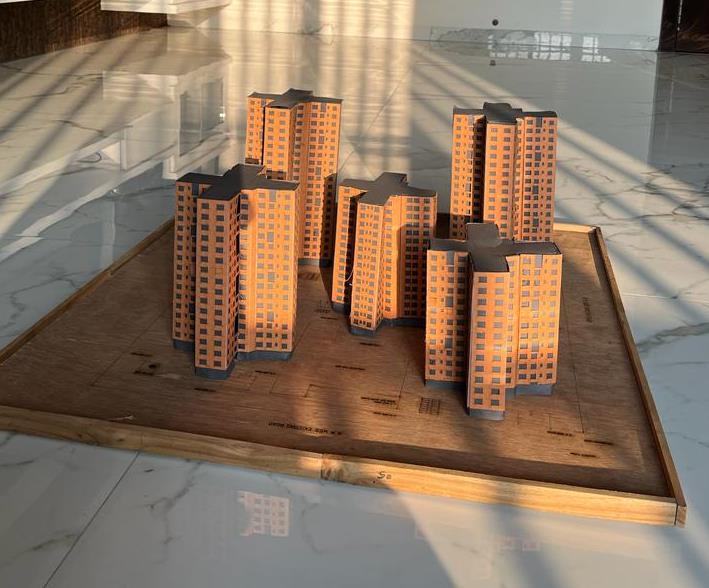

MASS HOUSING :SEM VII

SITE :

PROJECT BRIEF: With urbanization the peripheral areas of Nashik city, One such area of interest is Adgaon zone which is adjacent to Mumbai-Agra highway and marks 15km distance from the Nashik airport. This zone has rapidly gained popularity in past two decades. Affordability and the sense of belonging in a city has played a crucial role making this place a home for retirees, seniors and the youth mainly from lower to middle class group. The Aim of the Program is to reflect local character and context as a strong vision and identify campus as well as building level To provide feasible and attractive housing needs focusing at fostering the vitality of urban dwelling in the city

DESIGN DEVELOPMENT:

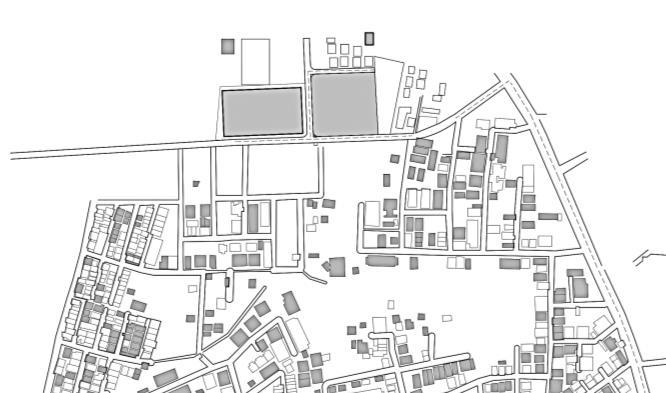

Site: Adgaon , Nashik .Well connected to road on three sides ,Next to public garden.

Design Requirements : Site area: Maximum FSI to be consumed: 2.56 (Bifurcations: 1.1%- Basic, FSI 0.5% -Premium, 60%- Ancillary FSI) Amenities: Community Hall Badminton Court Gym Open Space: 10% of the Site Area Parking As Per UDPCR Unit Typology

Percentag e

Area Per Tenement

1 BHK

40 %

40 Sq.m

2 BHK

40 %

60 sq.m

3 BHK

20 %

80 sq.m

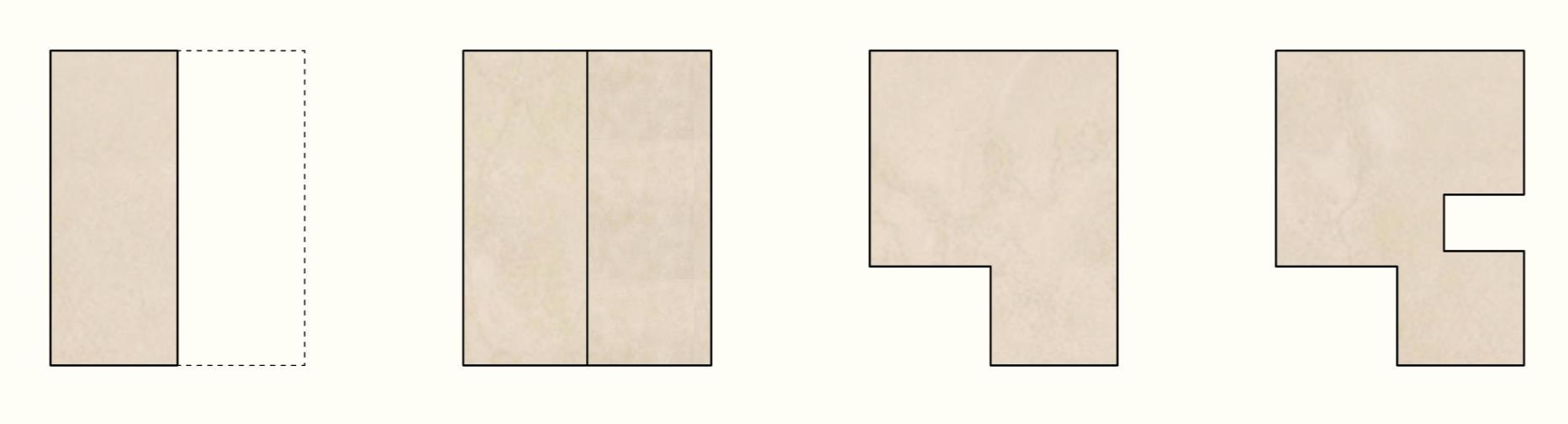

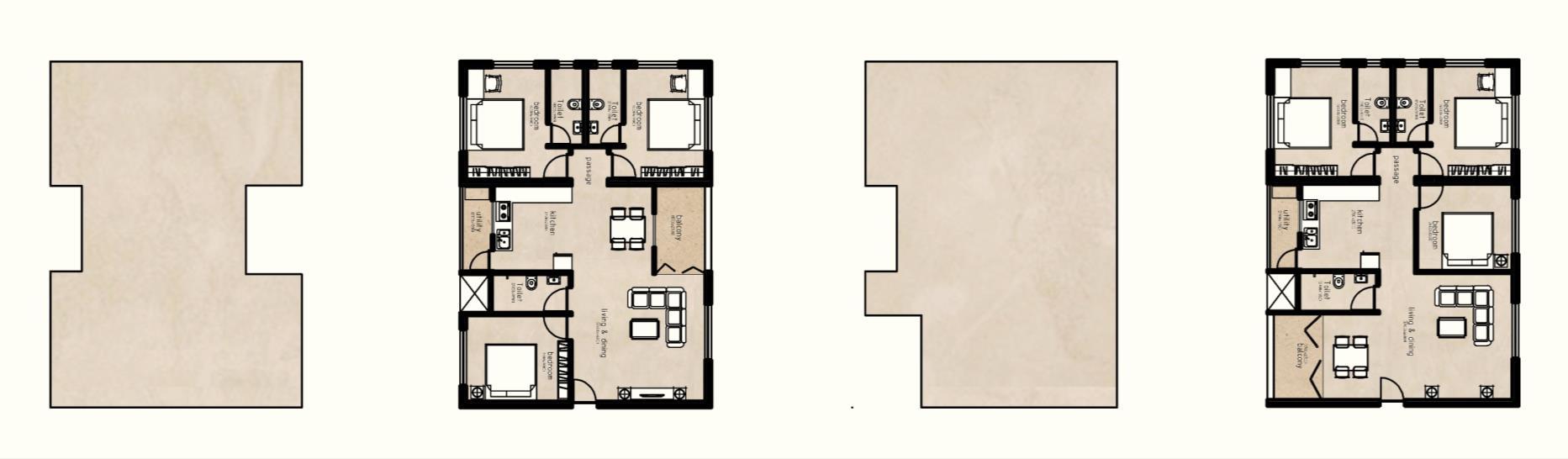

Basic unit in grid 4x10

Replicating the same unit

Creating void using same grid

Basic unit in grid 10x11 M

Creating Voids In the Block

Moving Void Placement

Creating void in same unit

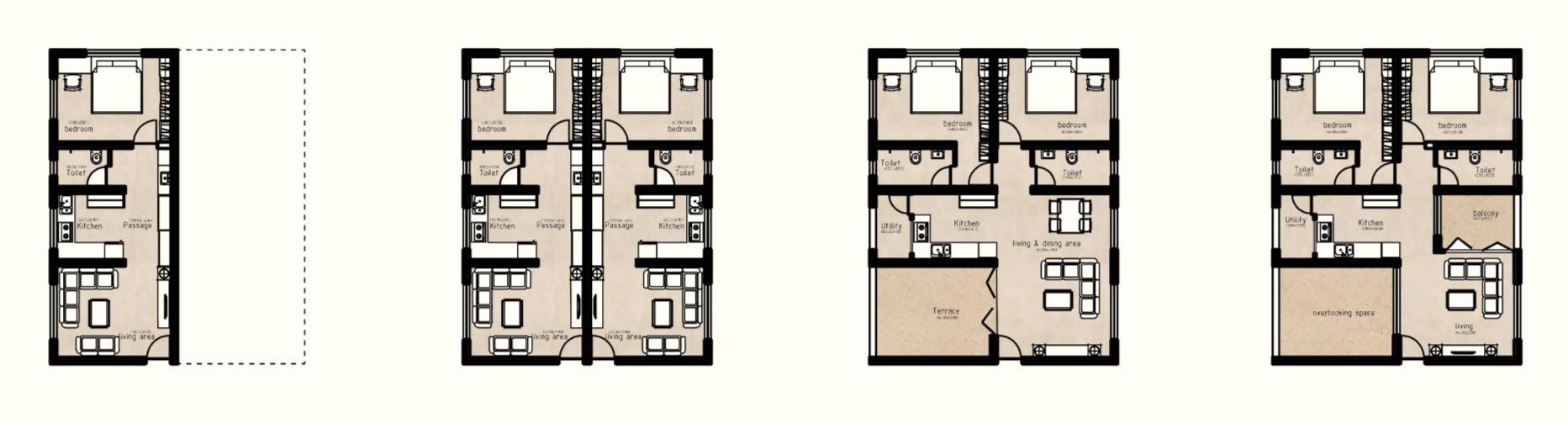

Concept: Every unit is design as a Prefabricated pod and used in multiple, making construction affordable. A Modular of 10x4 m is designed and Repetition of same module help in achieving required pods of different typologies such as 2 bhk. Pods are stacked in such a way that void are created acting as terraces

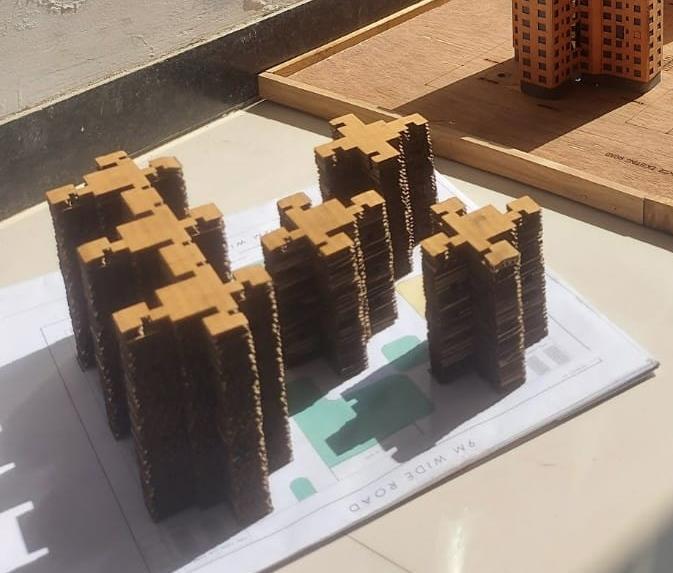

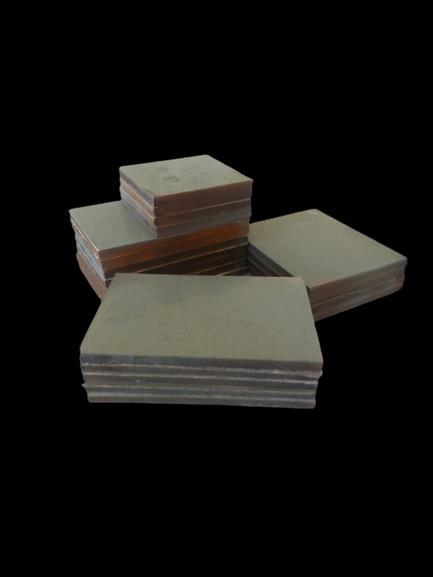

Massing Variation in Stacking

CLUSTER ARRANGEMEMT : SECTION :

Cluster are placed in such a way that every cluster opens to open space or towards the garden .Also keeping in mind the existing trees and peripheral trees.

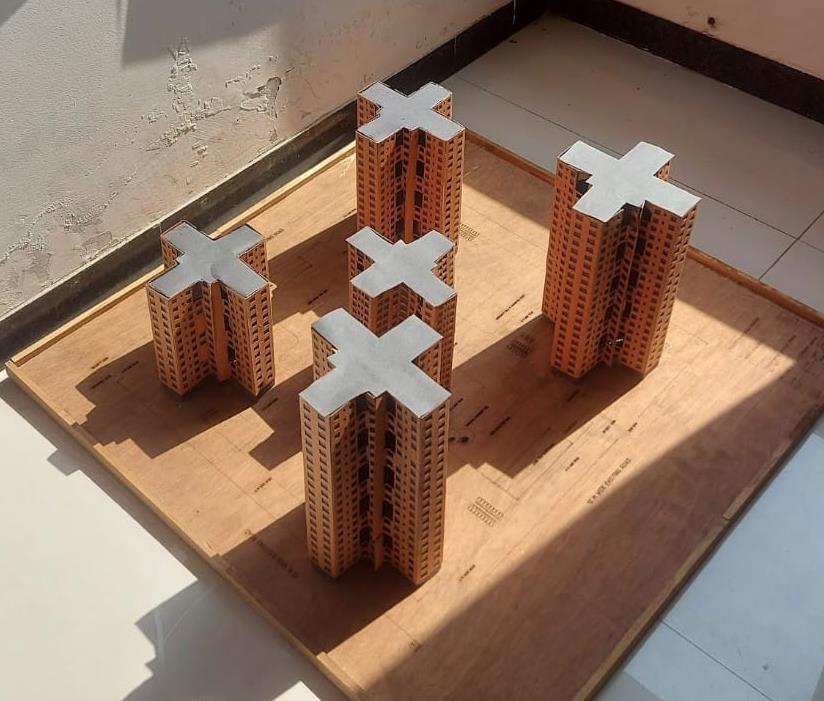

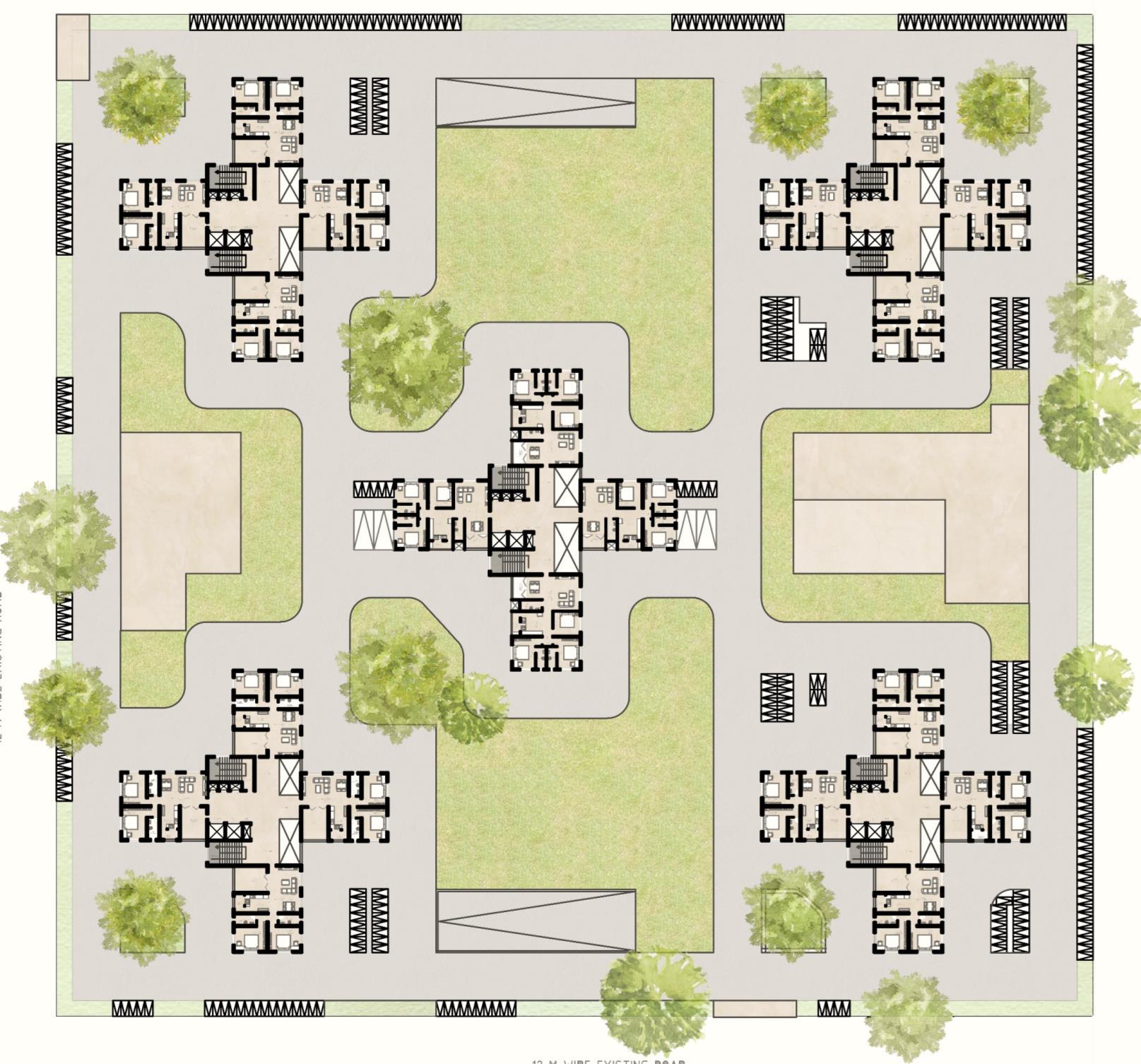

MASTER PLAN : 15 14

4.

10.

9.

13 11.

8.

12.

4.

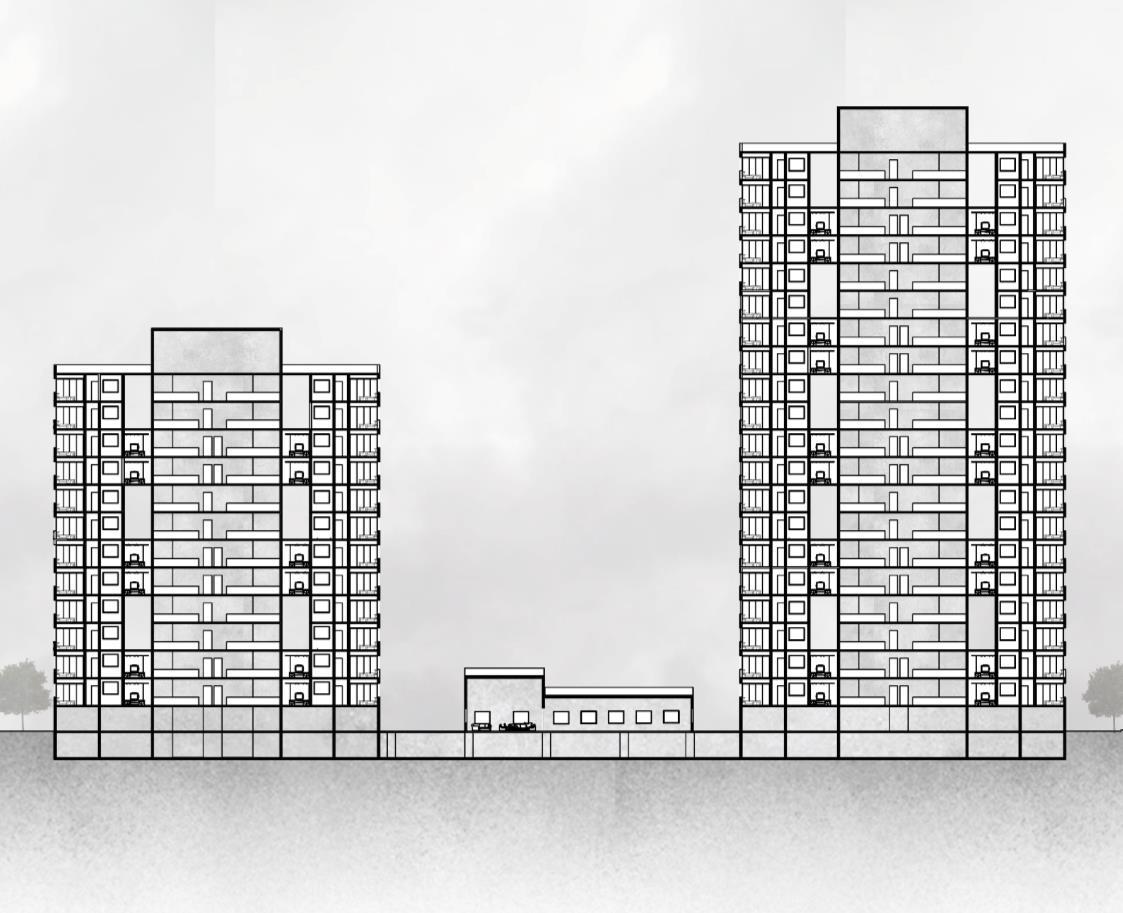

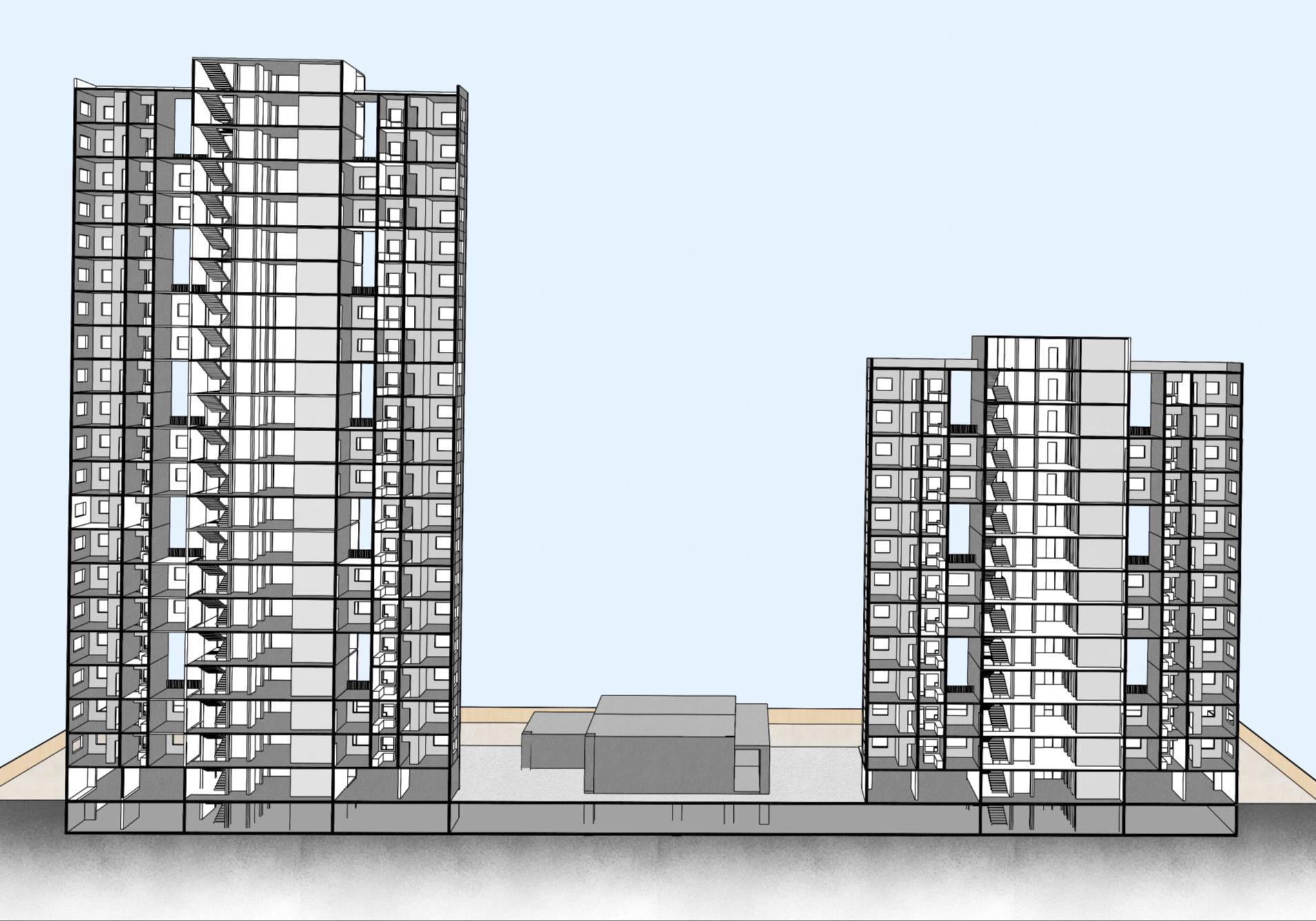

Section through block B and E and through the gym area which and also be used as yoga spaces during mornings and terrace as a party space.

ELEVATION :

6.

7.

2.

1.

3.

1.Main Entrance 2.Entry Ramp(6M Wide) 3.Edge Parking 4.Open Space 5.Security Cabin

1. 5.

6..Block A (20 Floor -1 & 2 BHK) 7. Block B20 Floor -1 & 2 BHK) 8. Block C(15 Floor -3 BHK) 9. Block D (16 Floor -1 & 2 BHK) 10. Block E(12 Floor -1 & 2 BHK)

11.Gym Area 12.Badminton Court 13.Club House 14.Exit Ramp 15.Exit Gate

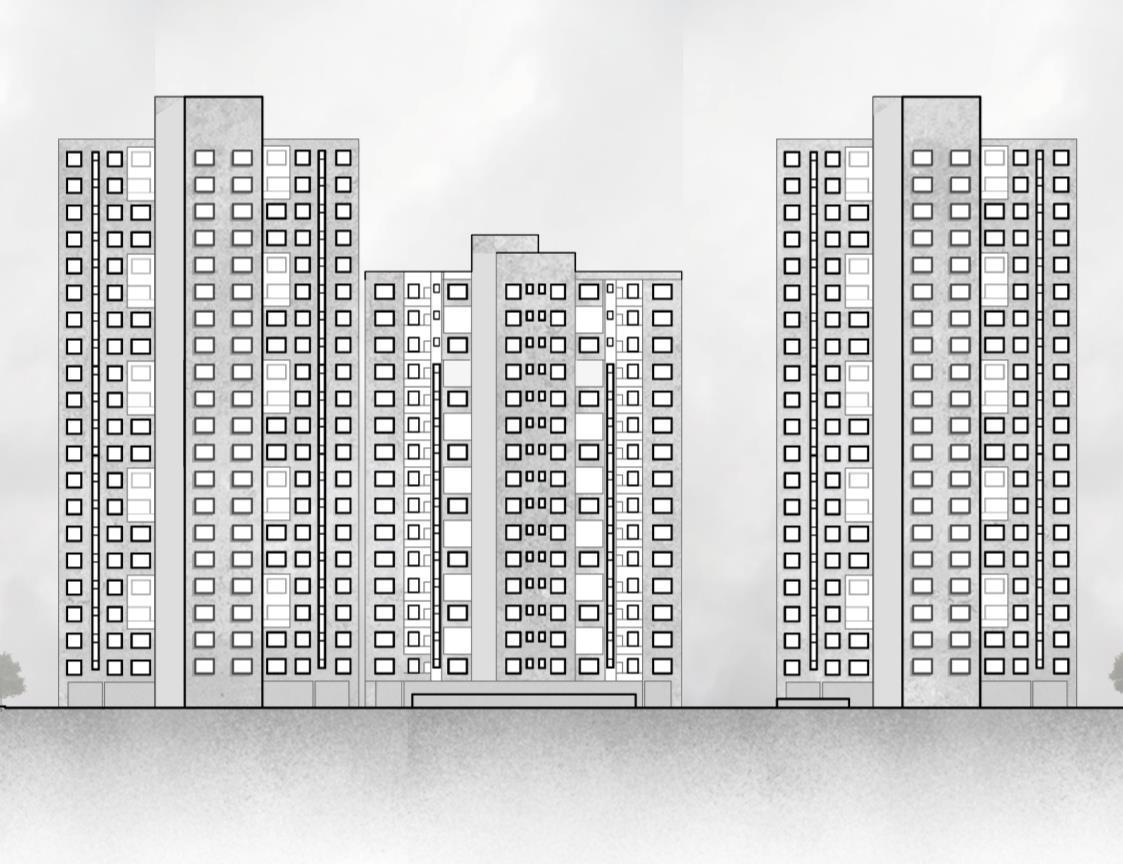

Front Elevation showing the central 3 bhk block and its visual connection to all other blocks. Also one can see the volumetric different between the block A,B to C.

FSI Statement For Proposed Mass Housing At Adgoan: Sr. no

description

Area(Sq.m)

1

Plot Area

16518

2

Minimum Open Space Required(10 % of Plot Area)

1651

3

Proposed Open Space

2350

4

FSI Permissible (2.56 Of Plot Area)

42286

5

FSI consumed For Building

41000

6

FSI for Amenity Area

1210

7

Total FSI Consumed

42210

Carpet Area Statement: Typology

Perc enta ge

Area Estima ted

Area Provided

No Of Units

Total (Sq.m)

1 BHK

40%

40 Sq.m

39.8 sq.m

272

10825.6

2 BHK

20%

60 sq.m

59 sq.m

68

4012

2 BHK(DINING)

20%

70 sq.m

66.8 sq.m

68

4542.2

3 BHK

20%

80 sq.m

76.6 sq.m

60

4596

TOTAL

100%

470

23975.8

CIRCULATION

17024

Total Area

41000

Parking Statement: No.

Type

Require d

Provide d

Guest (10%)

Total

1

4 Wheelers

234

240

25

265

2

2 Wheelers

936

950

95

1045

A Sectional Perspective showing the voids created due to different typology stacked on each other. The basement and amenity area and its connection to the main lobby can be observed.

BUSINESS HOTEL :SEM VI

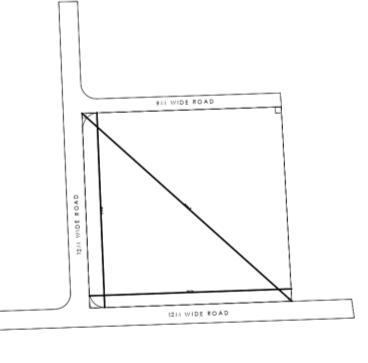

SITE:

PROJECT BRIEF: The main objective of any business organization is to earn profit. This depends not only on the working of an organization but also on its presentation; more so in the hotel and hospitality sector. The prime motive or objective of any hotel property is to attract more and more clients and guests and make their visits a memorable experience.

Architecture and designing of a property play a great role in this. The process of planning, designing and construction of a hotel is known as its integration. According to noted hotel architect Morris Lapidus, hotel guests fall into two categories- Business travelers and other travelers. Business travelers require a comfortable bed, easily accessible food, drawers’ space, good lighting for reading and quick service , and mostly working Spaces.

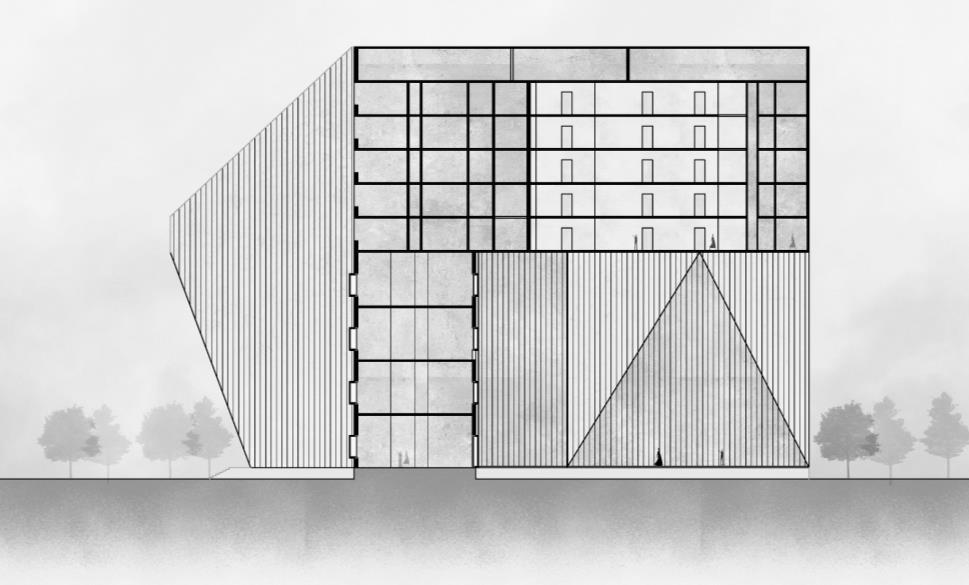

Form Development :

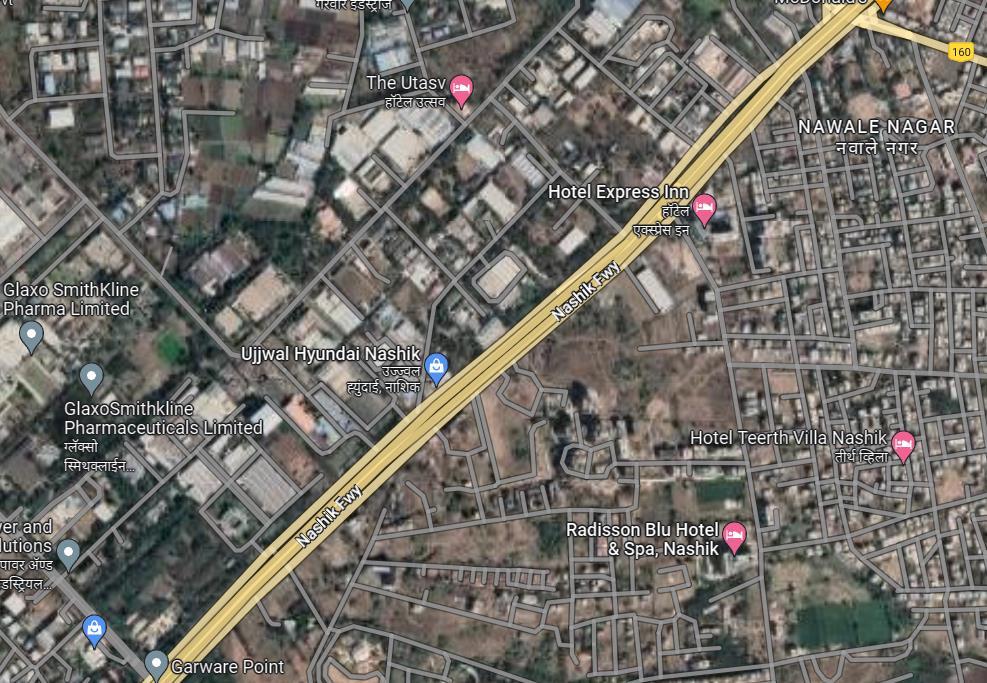

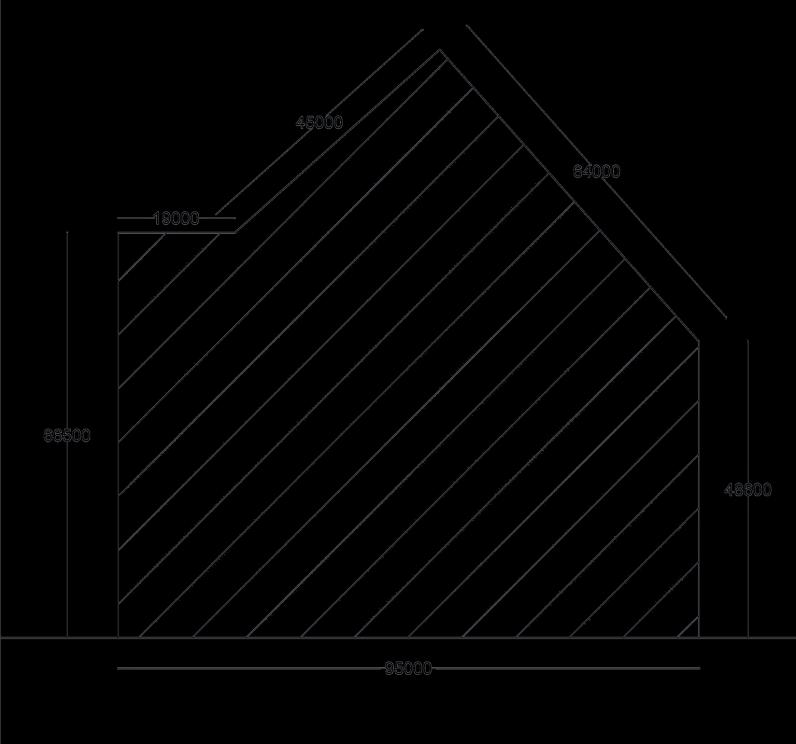

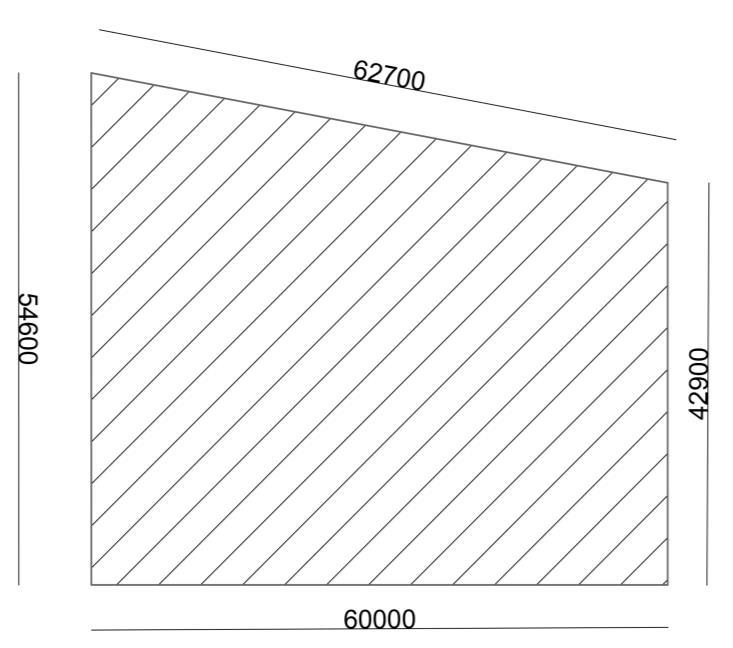

Site: On Mumbai Agra highway, Next to car mall, front of Audi service Centre, Nashik

Design Requirements : Site area:2600 sq.m Restaurants Banquet hall Conference Room Meeting Room Discussion Café Leisure activity area King suite Queen suite

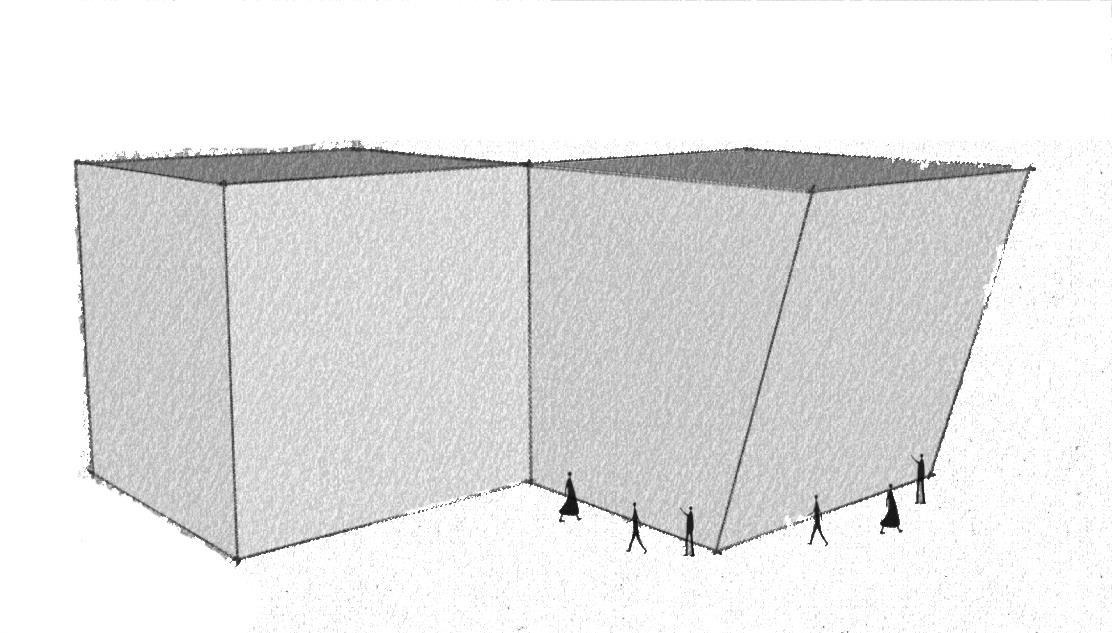

Concept: Simple 20 x 20 m cuboids are used to explore the form, and design concepts like subtracting, adding, and stacking are explored. The first four storey are formed by four blocks.

Due to the site's angular shape, which functions as a site force, the cube is positioned so that it creates a triangular courtyard in the center. The ground-floor cafe, restaurant, and reception are connected to the courtyard. Slicing the cuboid angular from top to bottom creates a covered drop of point, which is how the initial block is created. Every public area of the hotel, including the dining rooms, ballrooms, cafes, meeting rooms, and conference rooms, is physically or visually connected to the courtyard.

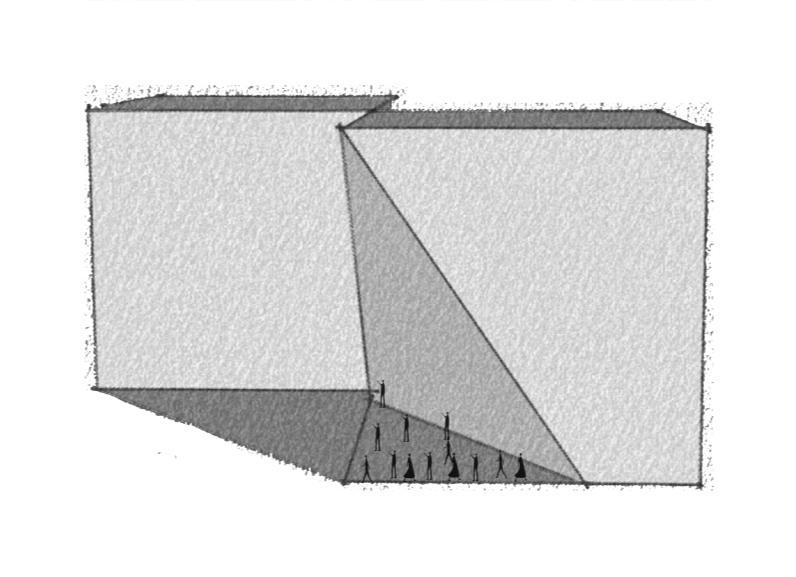

The Entrance block Of Hotel is to be Chamfered in such a way that a covered drop off point is formed due to cantilevered formed above.

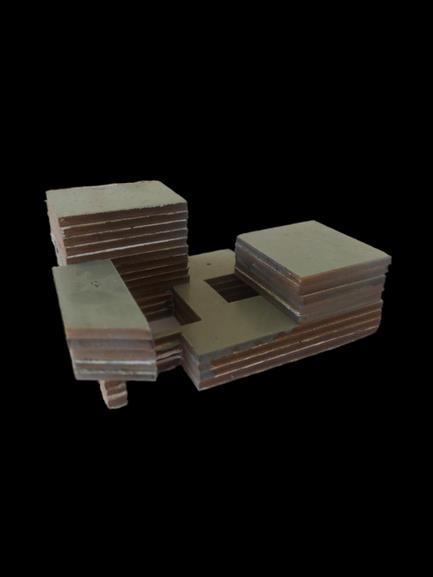

Concept Model:

The Second block with cafeteria is chamfered in such a way that angular cover is created above the open seating area

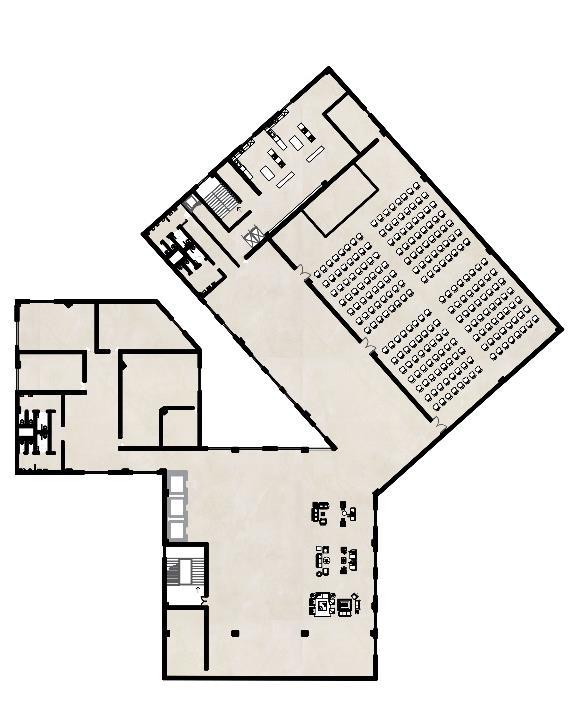

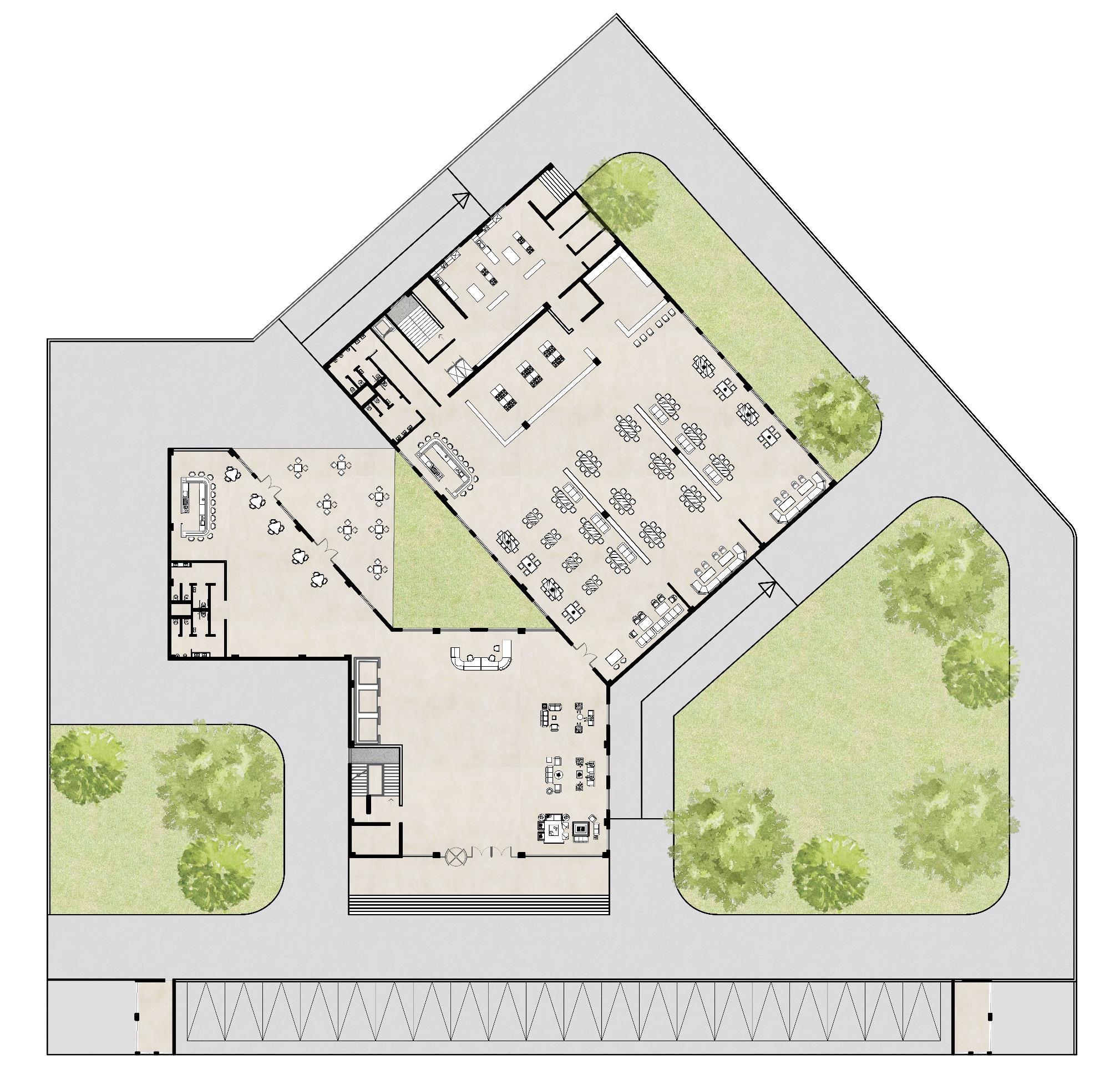

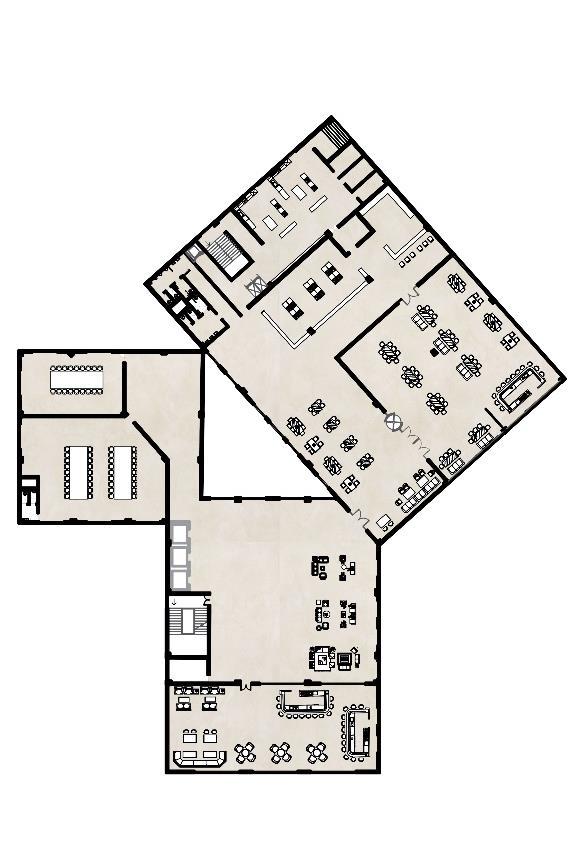

GROUND FLOOR PLAN:

A

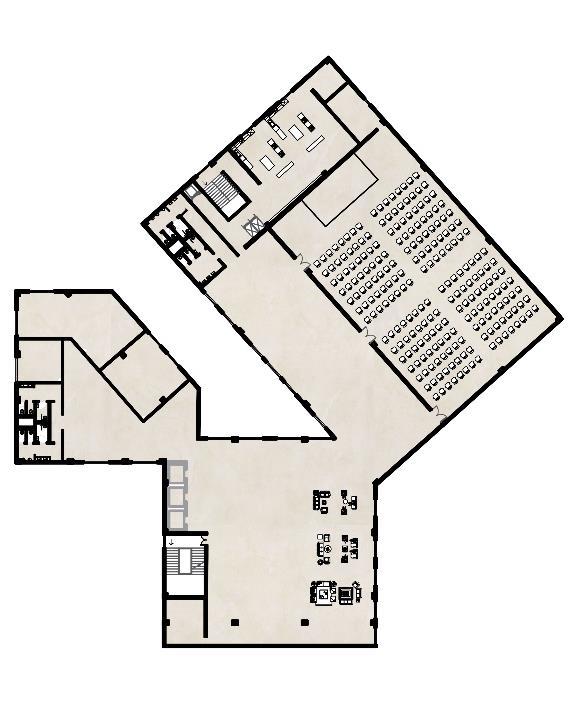

FIRST FLOOR PLAN

SECOND FLOOR PLAN

SECTION AA’

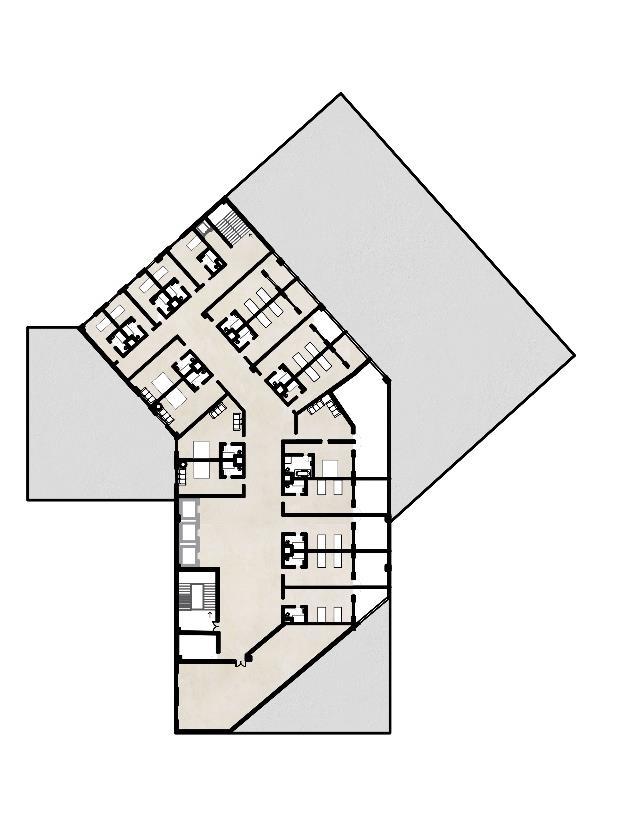

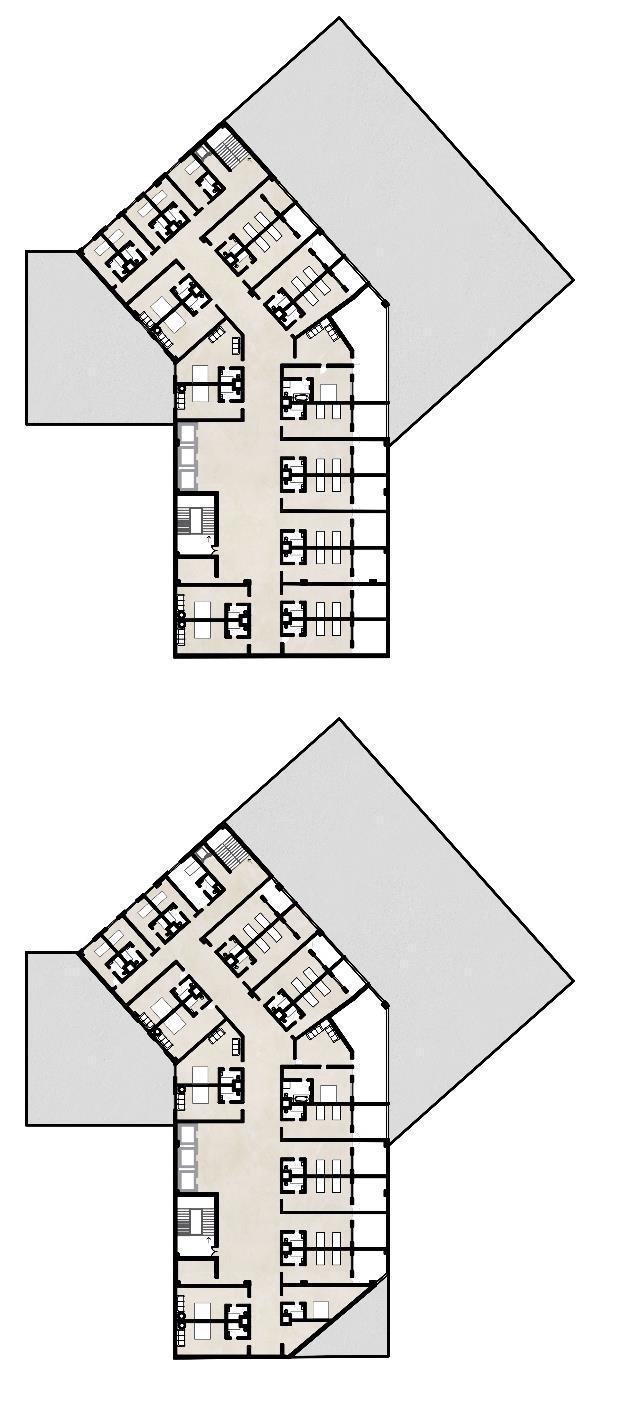

SIXTH FLOOR PLAN

SEVENTH FLOOR PLAN

A’

1.Main Entrance 2.Drop off Point 3.Lobby 4.Waiting Area 5.Reception 6.Café 7.Restaurant 8.Open kitchen 9.Mother Kitchen 10.Toilets 11.Courtyard

12.Entrance Ramp 13.Exit Ramp 14.Exit Gate 15.Sitout Area 16.Parking 17.SecurIty Cabin 18.Open Area 19.AHU Room 20.Loading /Unloading Area

THIRD FLOOR PLAN

EIGHTH FLOOR PLAN

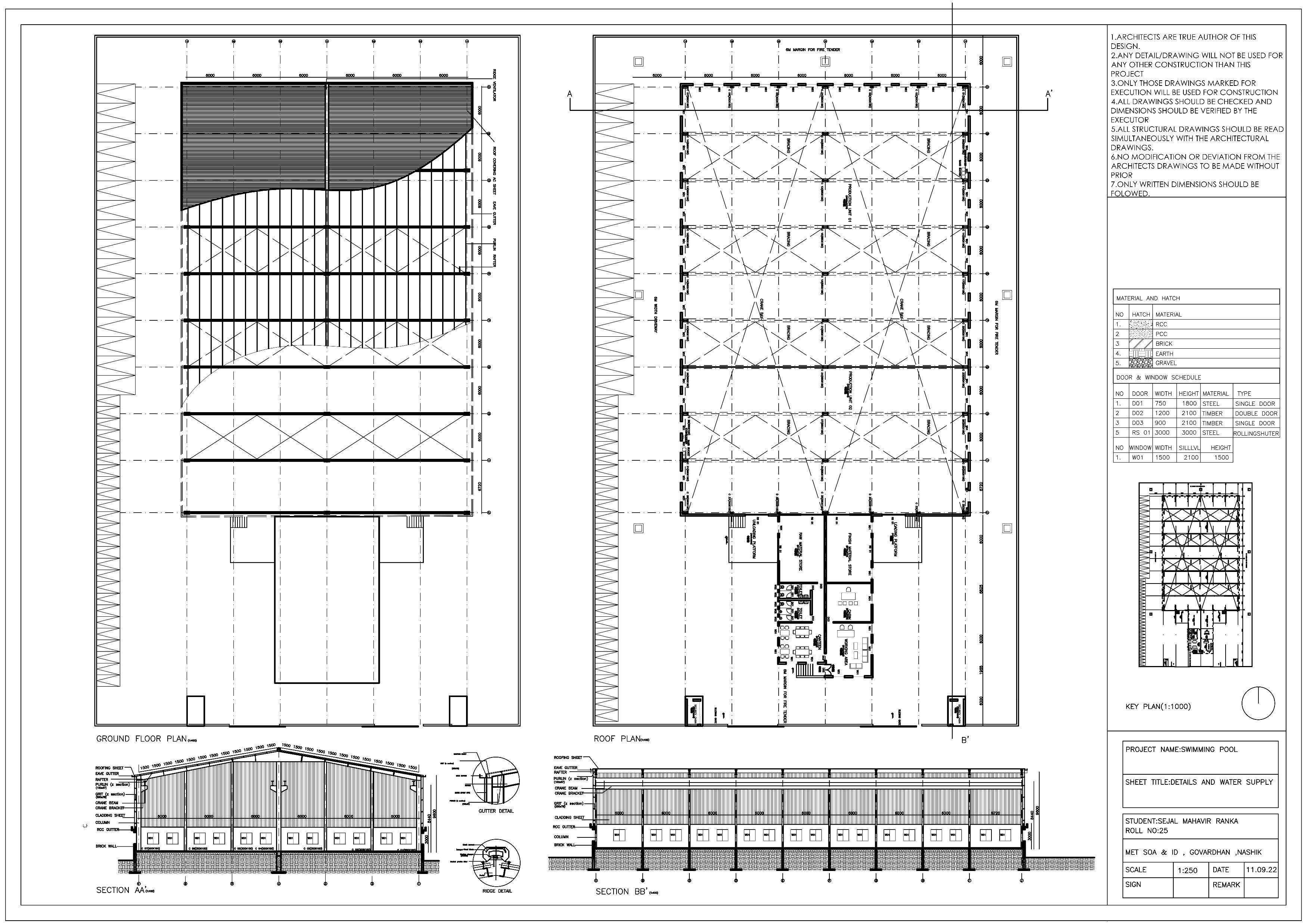

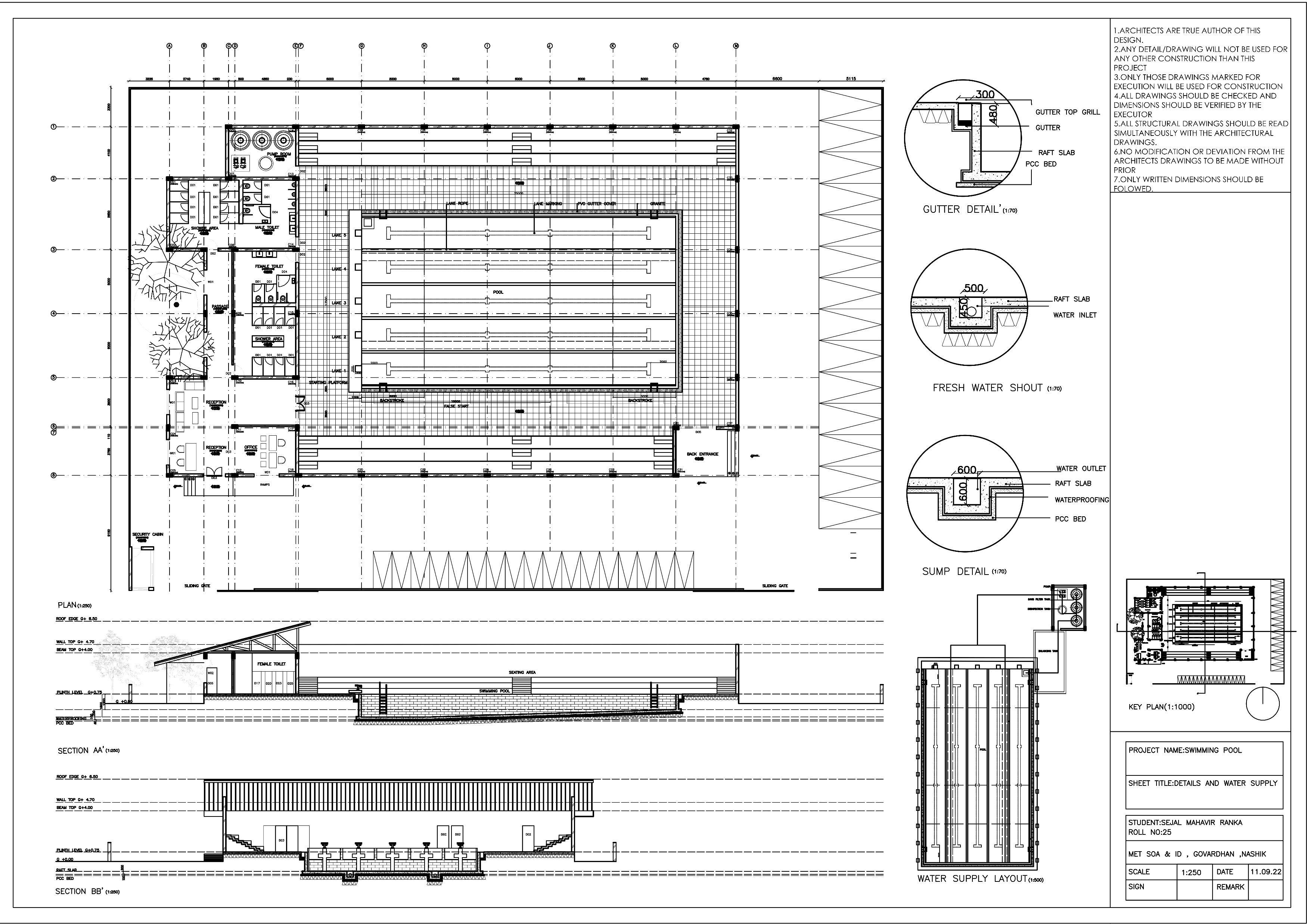

ARCHITECTURAL BUILDING CONSTRUCTION AND SERVICES I:SEMI-OLYMPIC SWIMMING POOL

ARCHITECTURAL BUILDING CONSTRUCTION AND SERVICES I :PRE-ENGINEERED BUILDING.

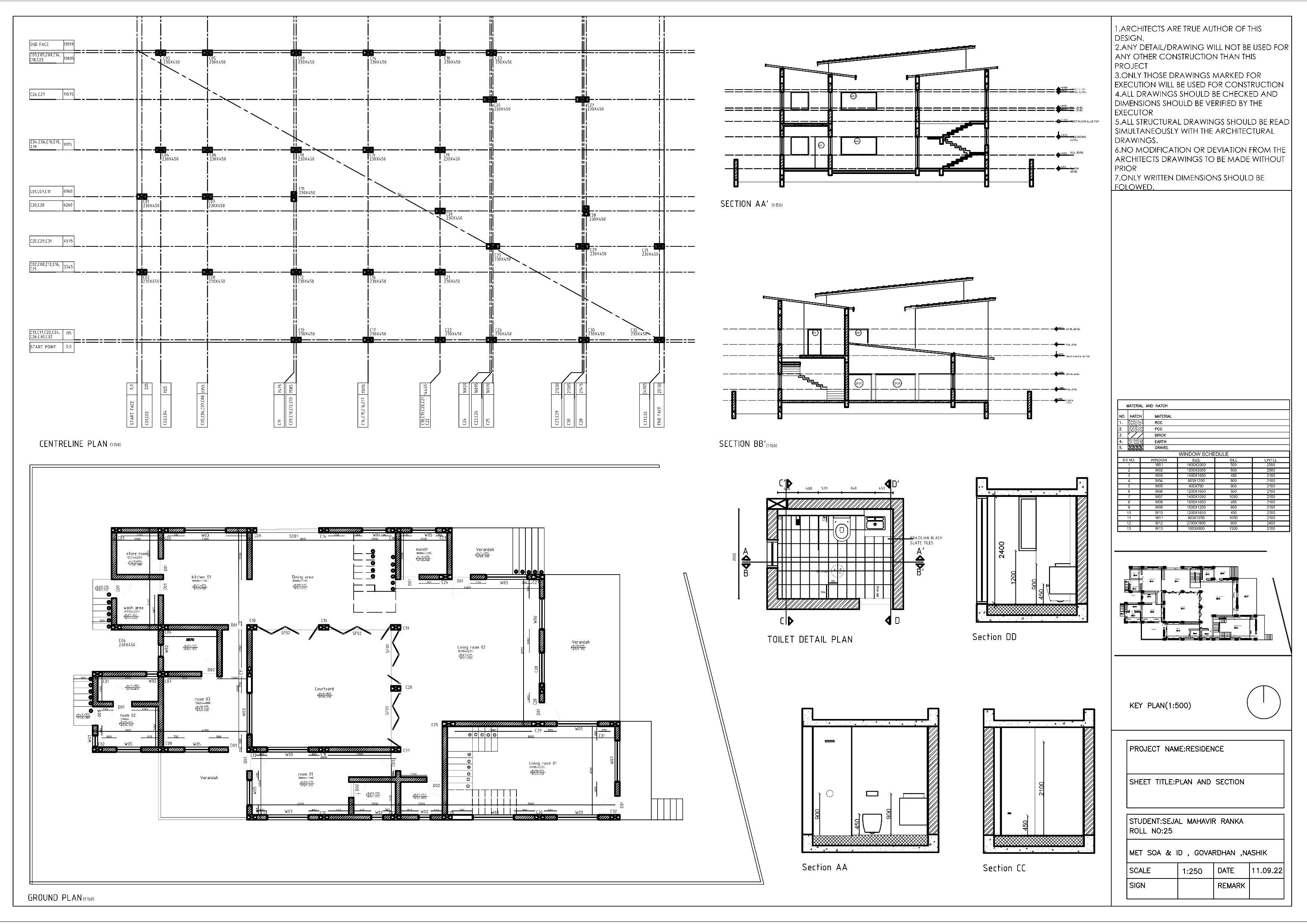

WORKING DRAWING II:RESIDENCE DESIGN(RCC STRUCTURAL SYSTEM).

WORKSHOPS AND PERSONAL INTEREST.

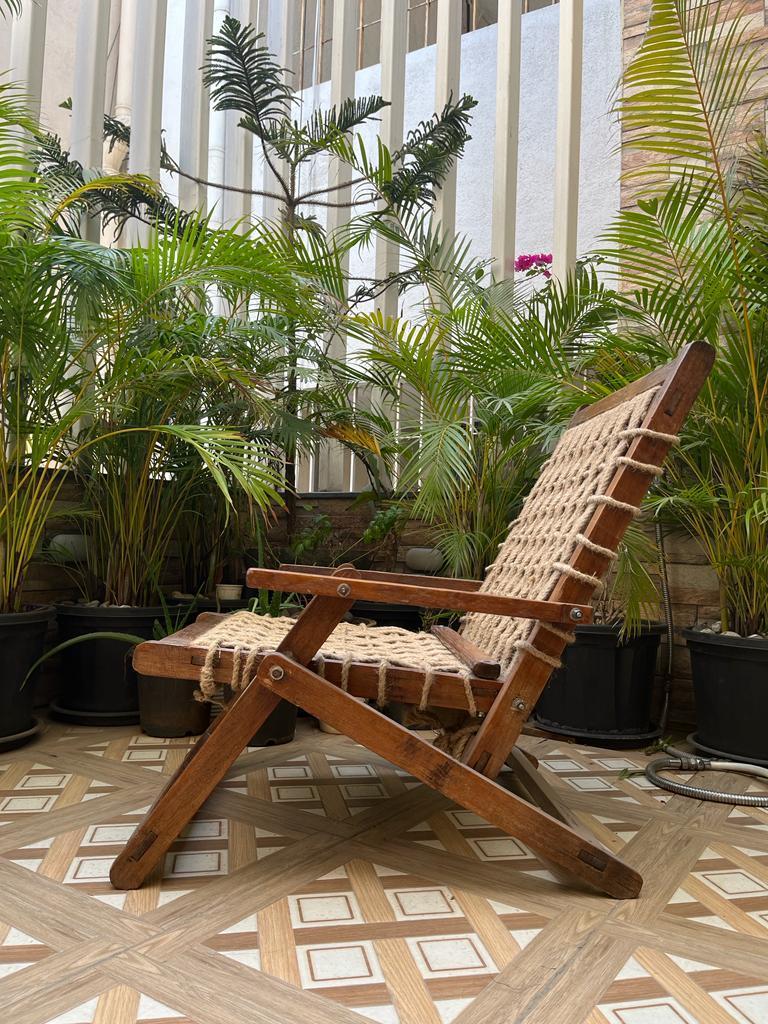

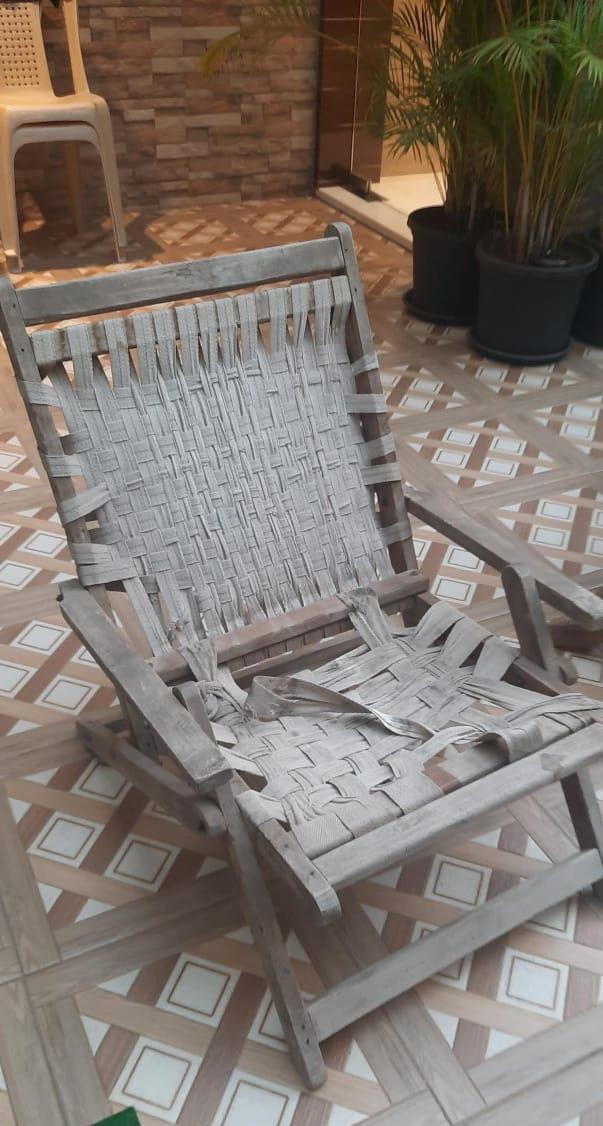

Refurnishing 50 year old chair: sanding , polishing , Reassembling, Rope weaving.

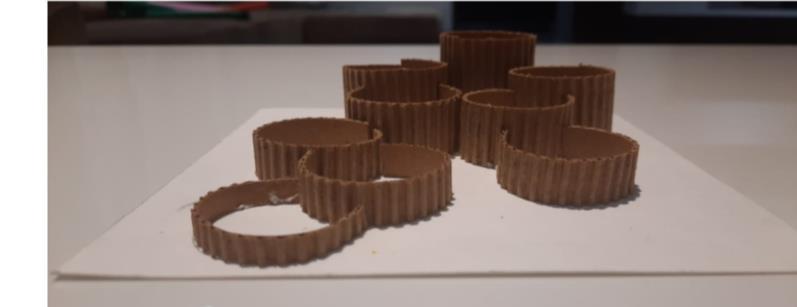

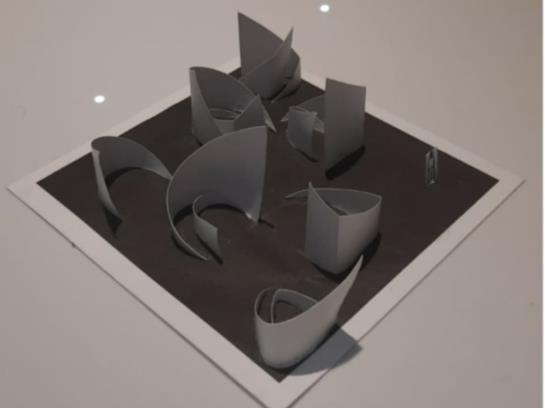

CPA , Model (Children’s Play Area)

Folly inspired from , luglio , Rome

Incense stick holder inspired from flower

Paper Model representing Peace

Wood Cut Printing : Abstract of human face

Paper Model inspired from old jodhpur

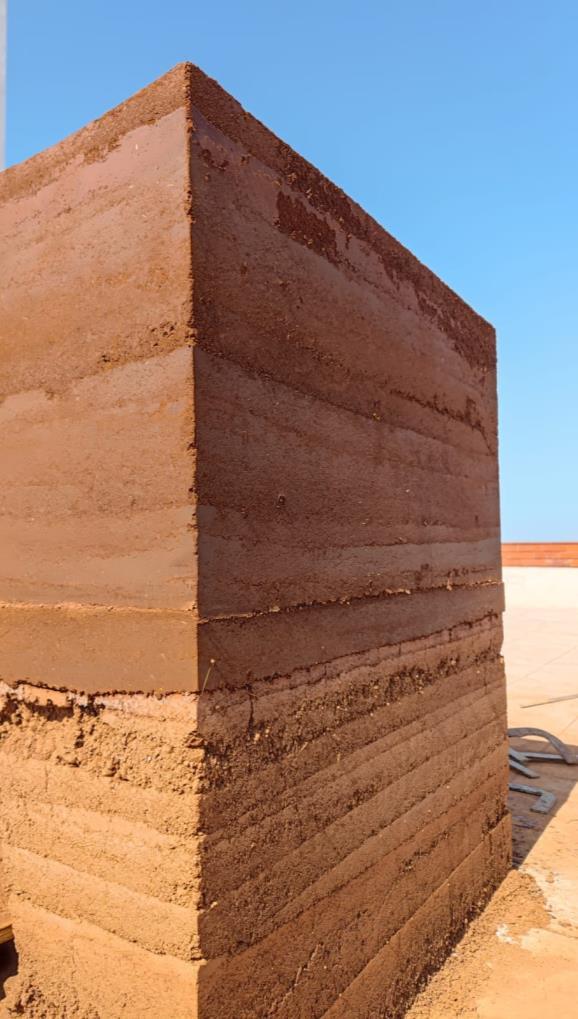

Rammed Earth Wall Construction

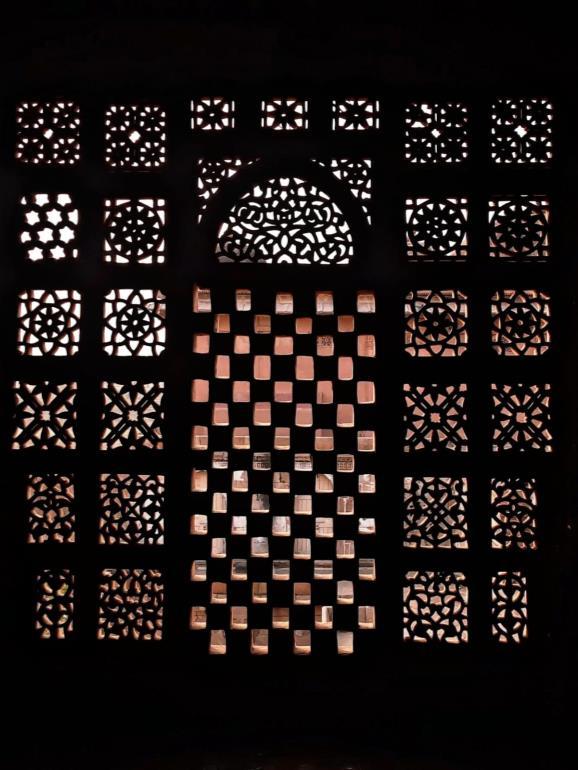

Sarkhej Roza ,Ahmedabad

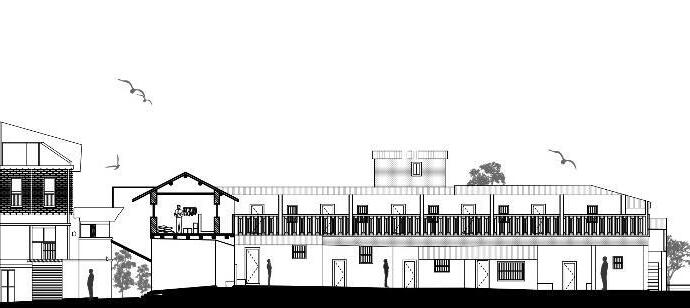

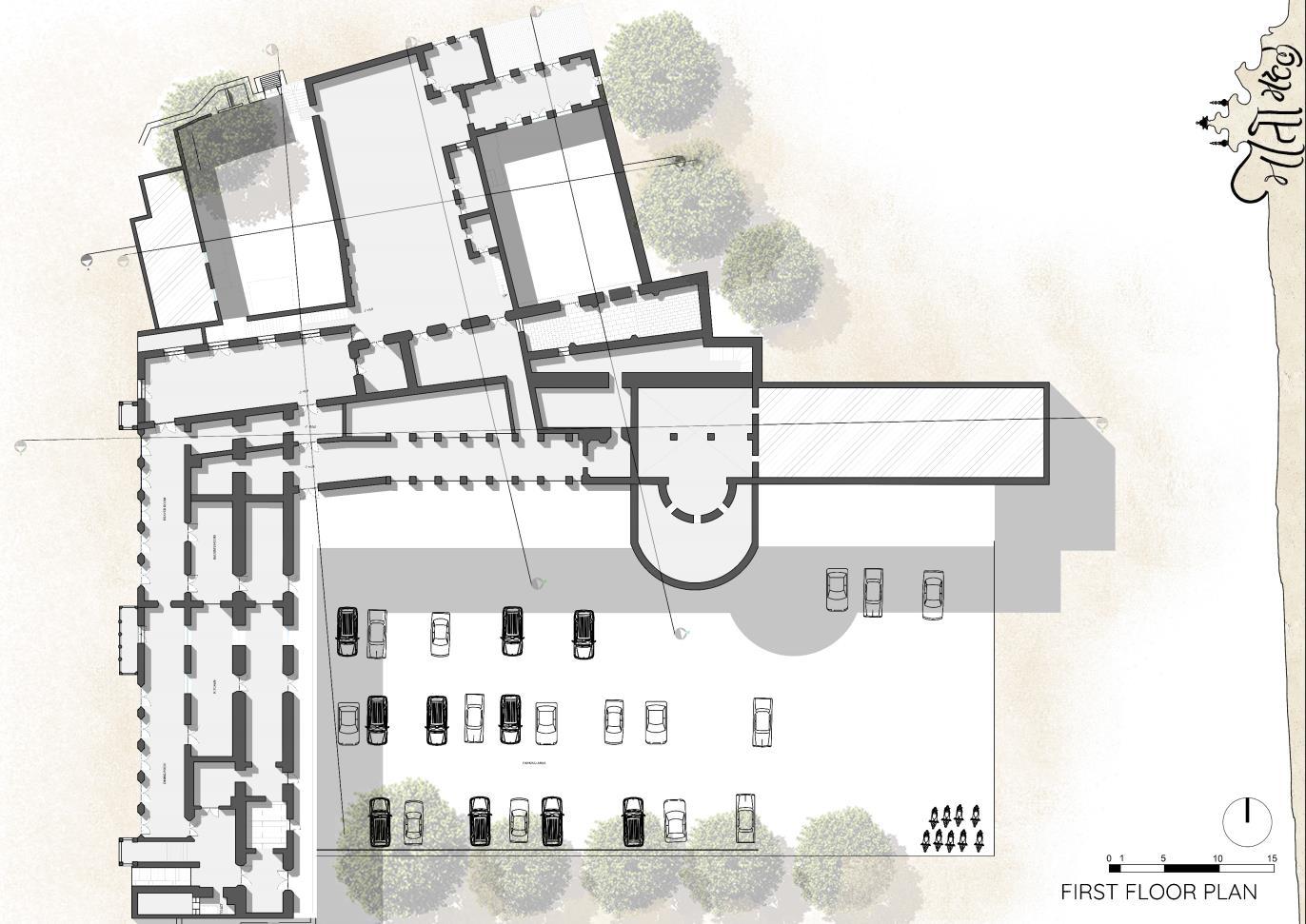

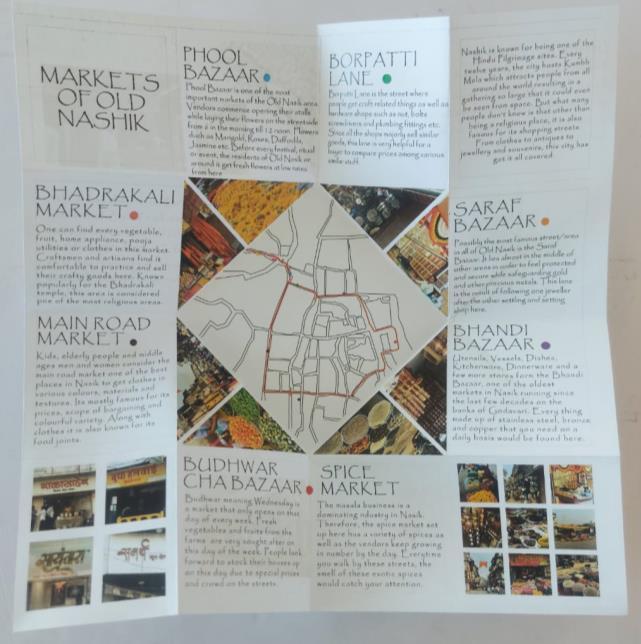

DOCUMENTATION AND PERSONAL INTEREST. Old Nashik Heritage Walk Guides For Tourist and Architectural students

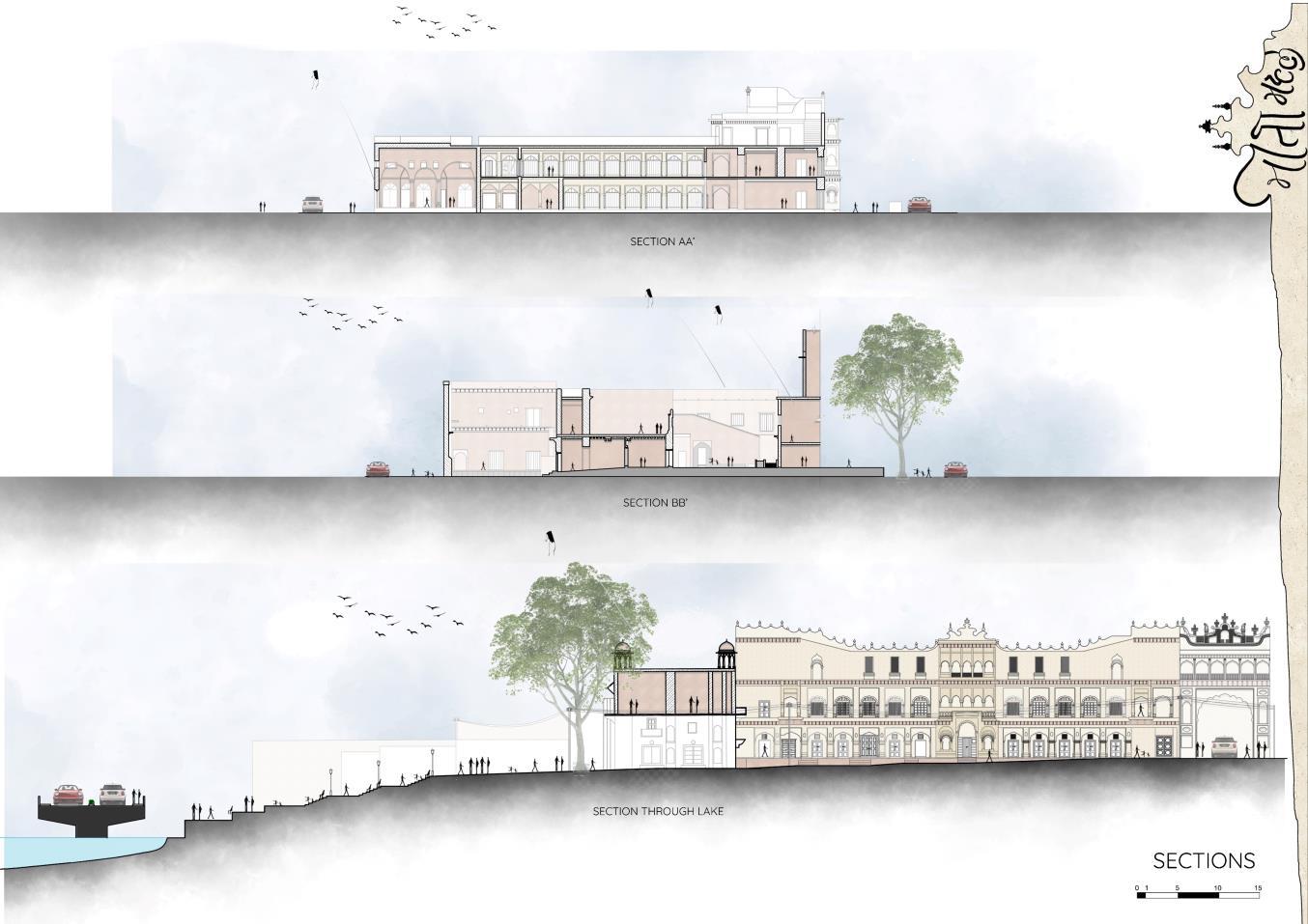

Bhopal Documentation Competition :Moti Mahal, Near Moti Masjid, Next to Iqbal Maidan
