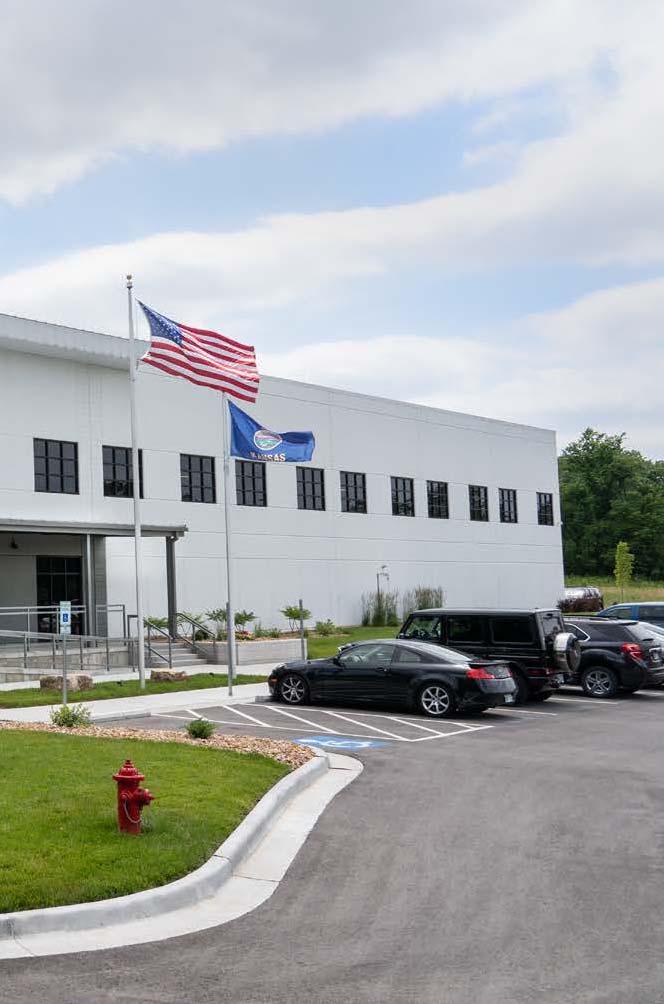

ADDRESS Schier
6455 Woodland Drive
Shawnee, KS 66218
PURPOSE
We make the world better by serving and providing for our employees.
VALUES
We live by the Golden Rule in the treatment of co-workers, vendors and customers. We believe doing the right thing is good business. We focus on fewer things to make a bigger impact. We believe that simple solutions are usually the best. We aim to build a lasting company—a tortoise, not a hare—that grows and improves at least some each year so that our Purpose carries on. Finally we aim to build a good company, one that can be trusted, that we are proud of and that is well-regarded.
VISION
Schier is the product and knowledge leader in the treatment of kitchen wastewater.
The Schier story
Schier is an employee-owned specialty manufacturer of 100% USA-made, high-capacity, lifetime guaranteed grease interceptors for commercial kitchens. In the last 20 years we have grown from a small regional company to the most widely specified and inventoried brand of grease interceptors in the U.S. sold through plumbing wholesale. Our expertise in navigating codes, standards, compliance, specifications and installations is unparalleled in the industry.
Since the first Great Basin® model was installed in 2006, people have come to expect more out of their grease interceptor. A lifetime warranty, comprehensive and transparent performance data and right-sizing are becoming the norm. These are some of our proudest contributions to the industry. With more than 500 stocking locations across the U.S. and Canada, specifications with many of America’s leading restaurant brands and more installations than any other manufacturer, we consider Schier America’s grease interceptor.
Our secret weapon is our focus on making the best grease interceptors we can, continuous improvement to our products and services and working to make the lives of the people we work with a little better every year. If you’ve already worked with us, we’d like to sincerely thank you for being part of our journey. If we haven’t worked with you yet, we look forward to the opportunity to earn your business.
Luke Ismert
Charlie Ismert Chief Executive Officer Chief Sales Officer
Home of the lifetime guaranteed grease interceptor
In 2007 we introduced the industry’s first lifetime guaranteed grease interceptor. Steel and concrete are great for many products, but not grease interceptors. Making it out of the right stuff is just the first step— backing it up when things don’t go as planned is the peace of mind you deserve.
Find our full Lifetime Warranty at schierproducts.com/lifetime-warranty

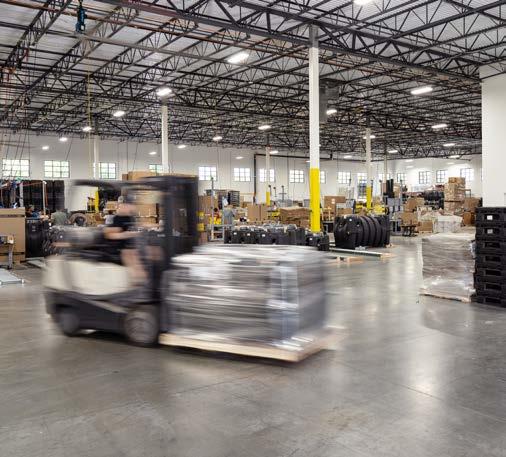

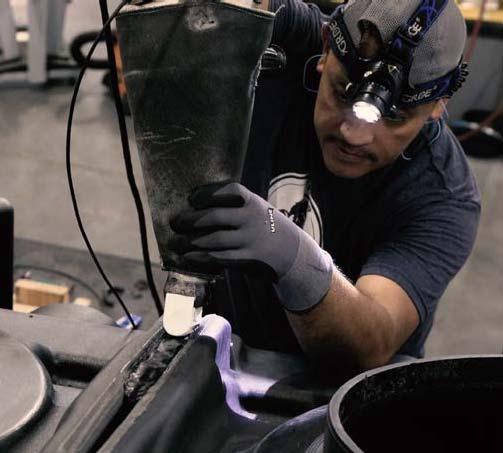

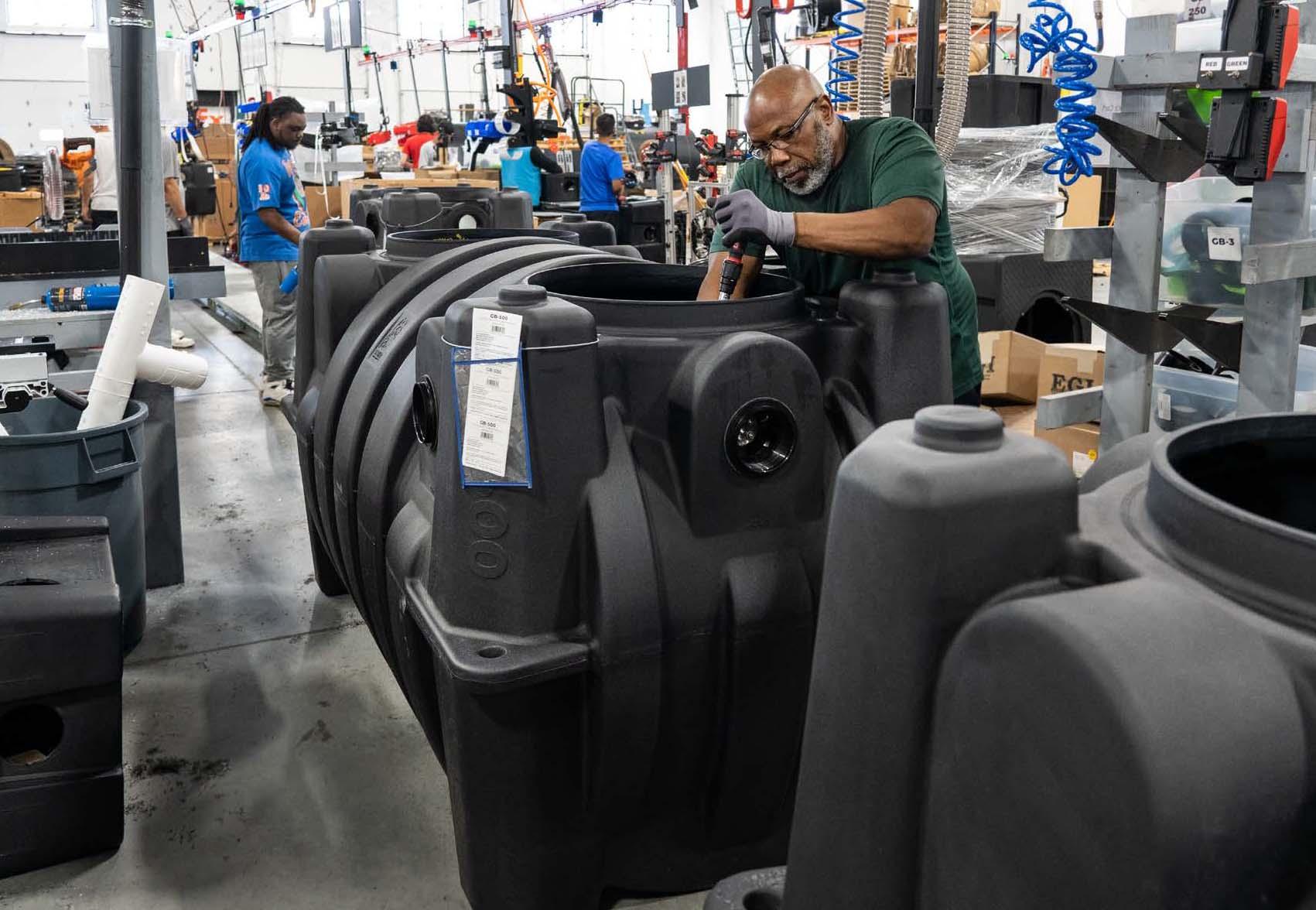

Lean manufacturing in the Heartland
As a Lean manufacturer every tool and component of our products is made or sourced in the USA, not just because we are proud to be American, but simply because it’s good business.
Our products comply with the Buy American Act.
Some of the brands who put their trust in Schier
We have more than 125 brand partners across the U.S. and Canada who have made Schier their go-to interceptor.
From site due diligence to product recommendation to local stock and strategic pricing, Schier is an integral part of our national development process.
— Rodney Taylor, Director of Construction, Jersey Mike's Subs

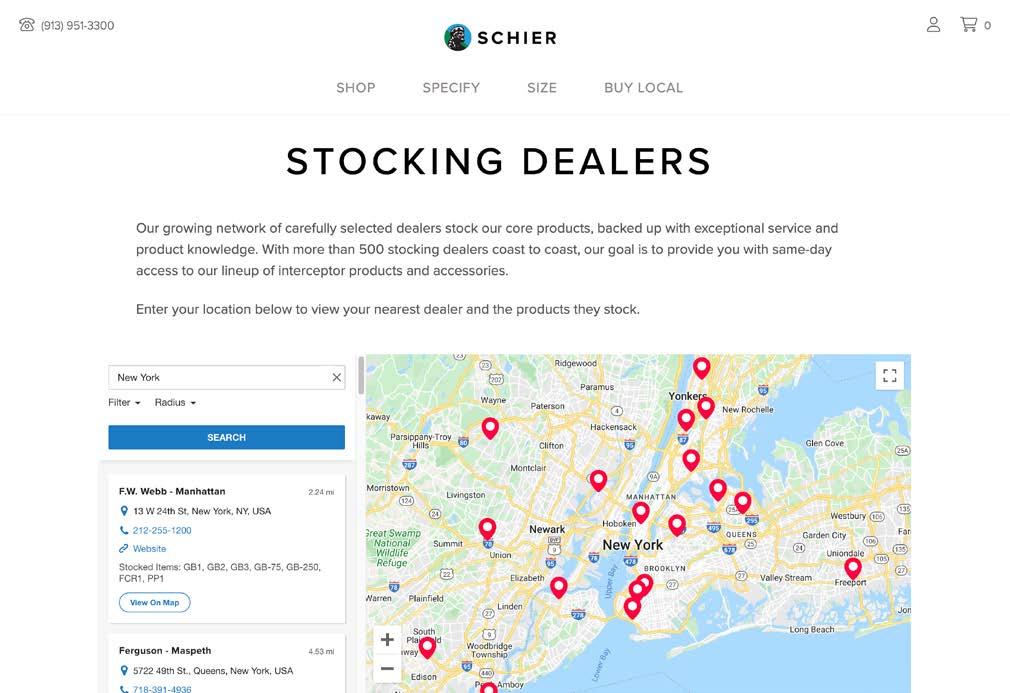

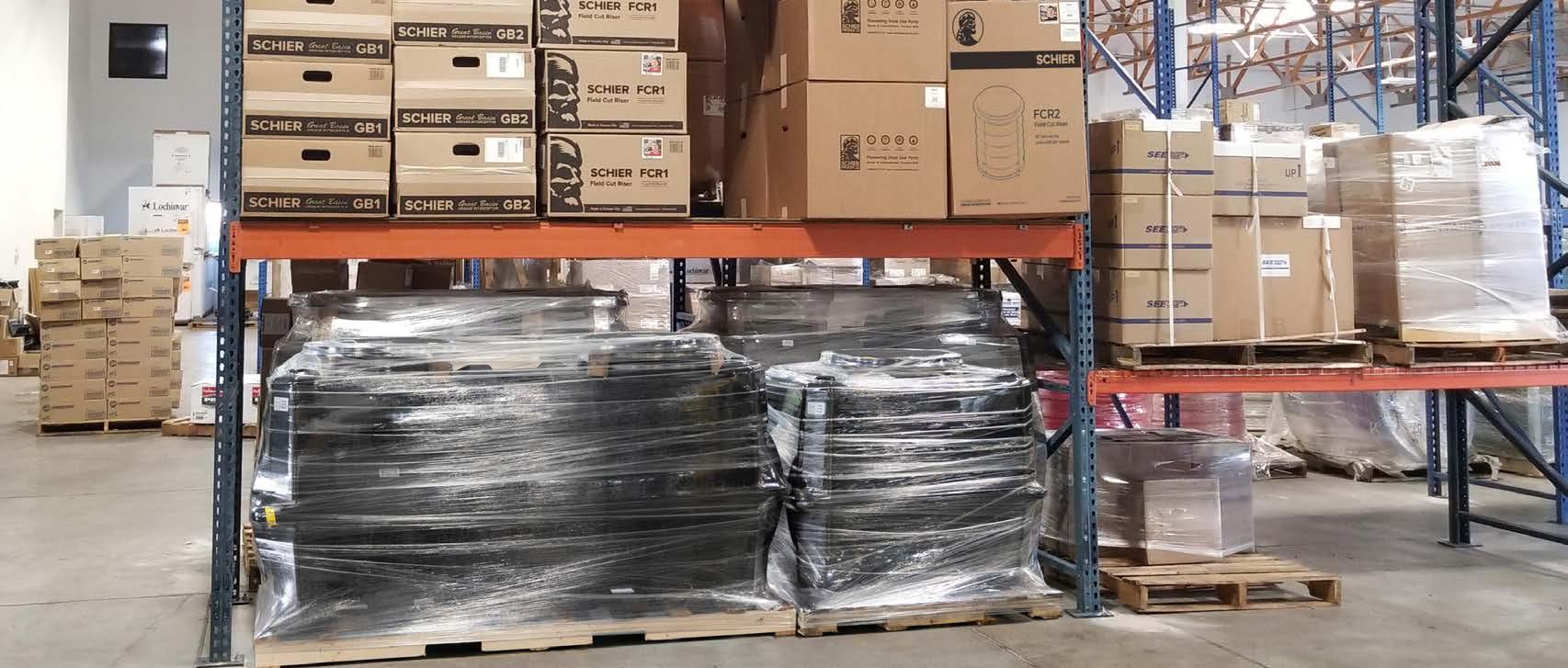

Stocked locally, ready when you are, all across
North America
We have more than 500 stocking partners across the U.S. and Canada to help take the stress out of product procurement and jobsite delays. When buying from our stocking partners isn't feasible for a project, you may also buy our products on our website and have them shipped to your facility. To find the Schier model for your next project, visit our website at schierproducts.com/wholesalers
GREASE INTERCEPTORS

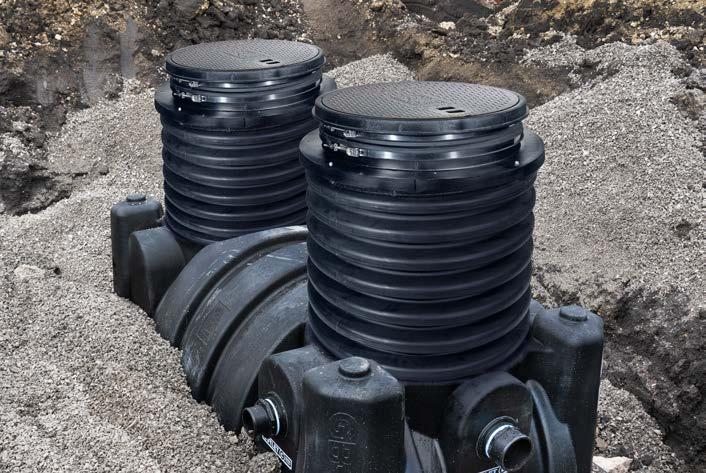

GreatBasin® indoorgreaseinterceptors
GreatBasin® indoor/outdoorgreaseinterceptors

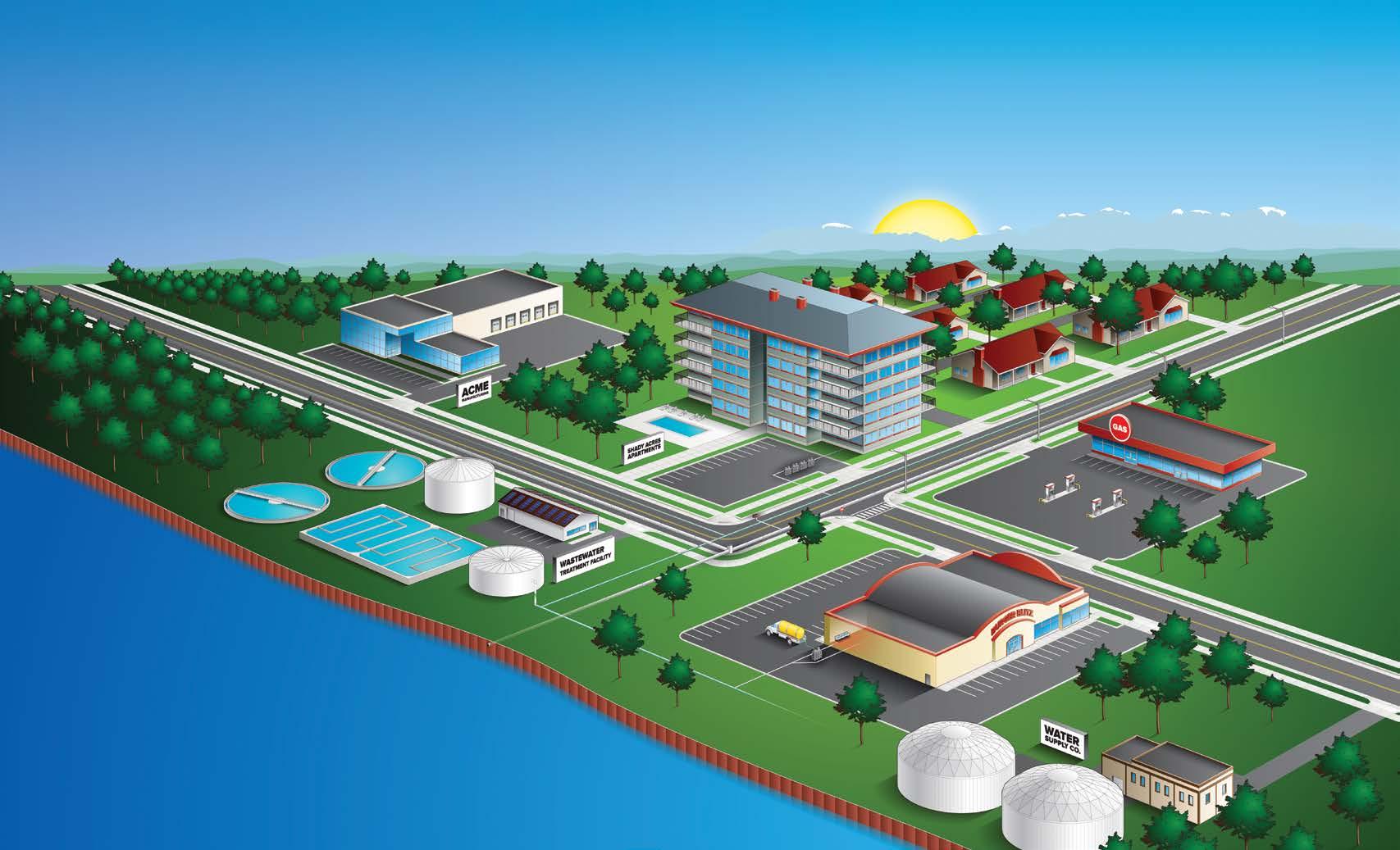

Why grease interceptors are important
Grease interceptors are typically required by code and are installed to receive flow from grease-laden kitchen fixtures. The purpose is to separate fats, oils and greases (FOG) and solids from kitchen drain waste before it enters the sewer system. When FOG builds up in the sewer system, the flow path becomes reduced or blocked resulting in backups in the kitchen, outside the building and further upstream. System backups are referred to as sanitary sewer overflows (SSOs) by the pretreatment and environmental community and are bad for public health and the environment.
» A grease interceptor is only effective when it’s sized, installed and maintained properly. A properly sized and maintained grease interceptor will help prevent SSOs.
Our pledge to the restaurant and pretreatment community
Our commitment to the restaurant and pretreatment community is to help align your interests by being the product and information leader in the management of kitchen wastewater. We refer to it simply as the worry-free grease interceptor. In that spirit, we pledge to:
» Provide the best in product performance, materials and installation features
» Be fair and transparent in the dissemination of performance data and industry information
» Provide proper sizing guidance
» Do our best to ensure your establishment and drainage system runs free and clear

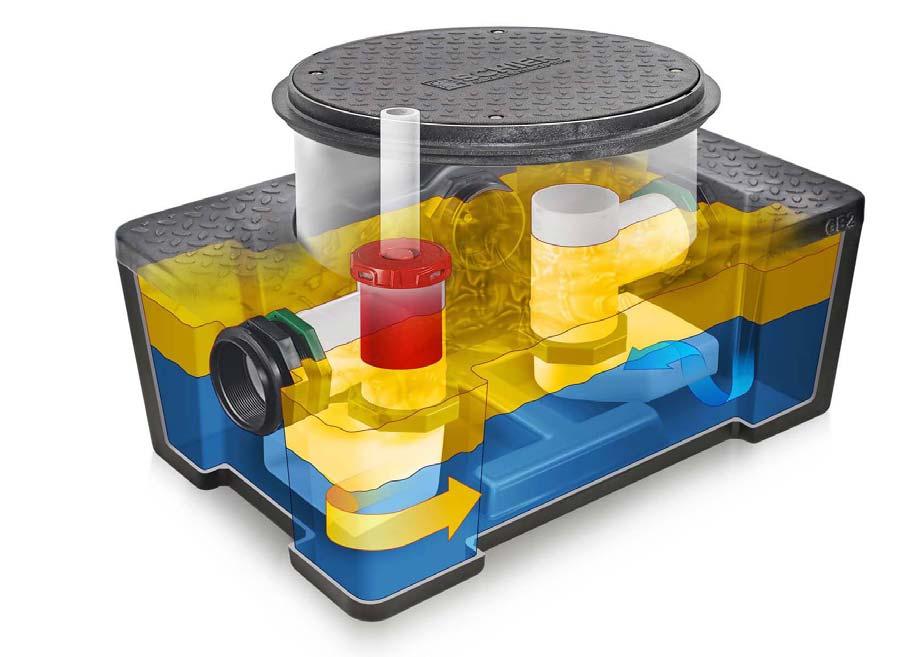

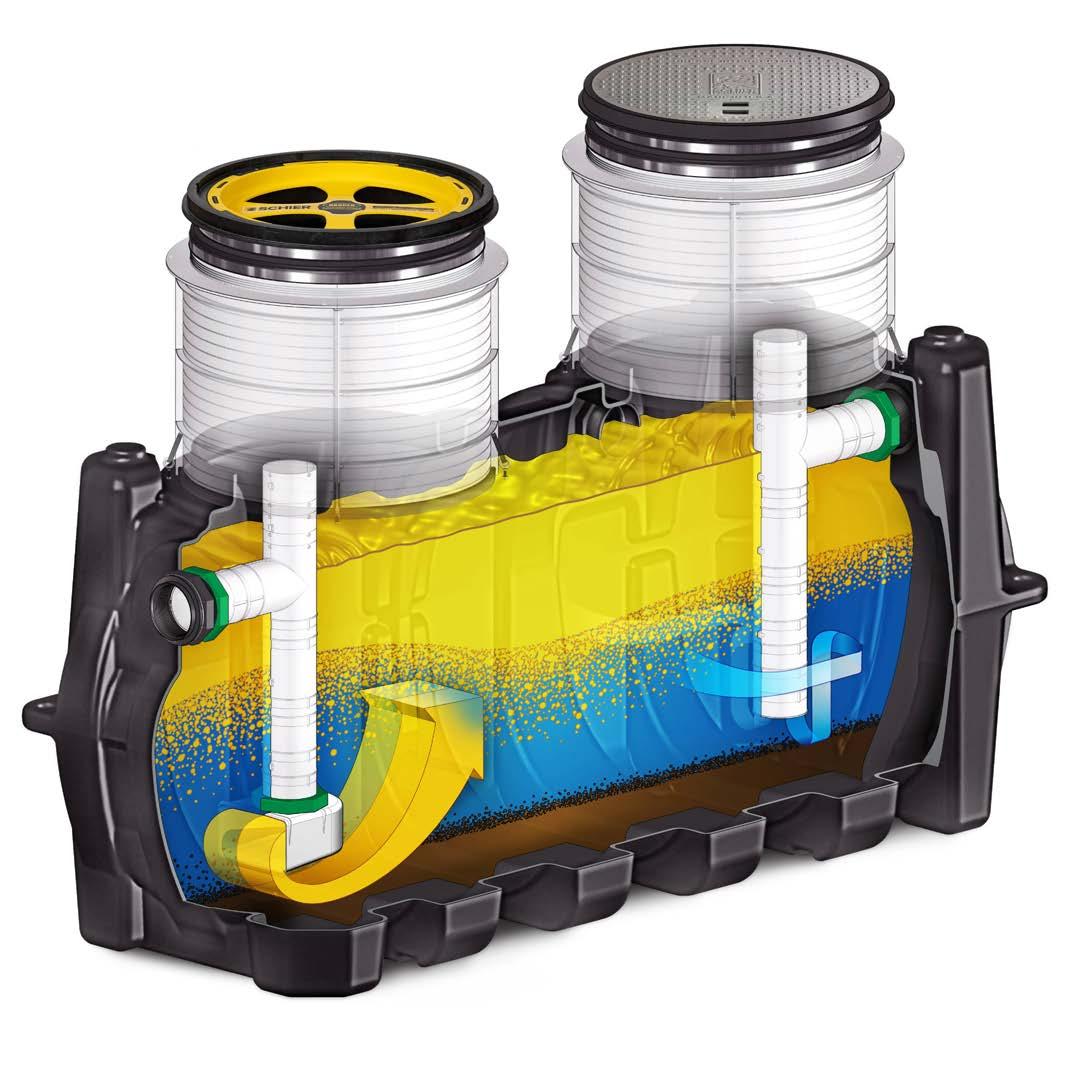

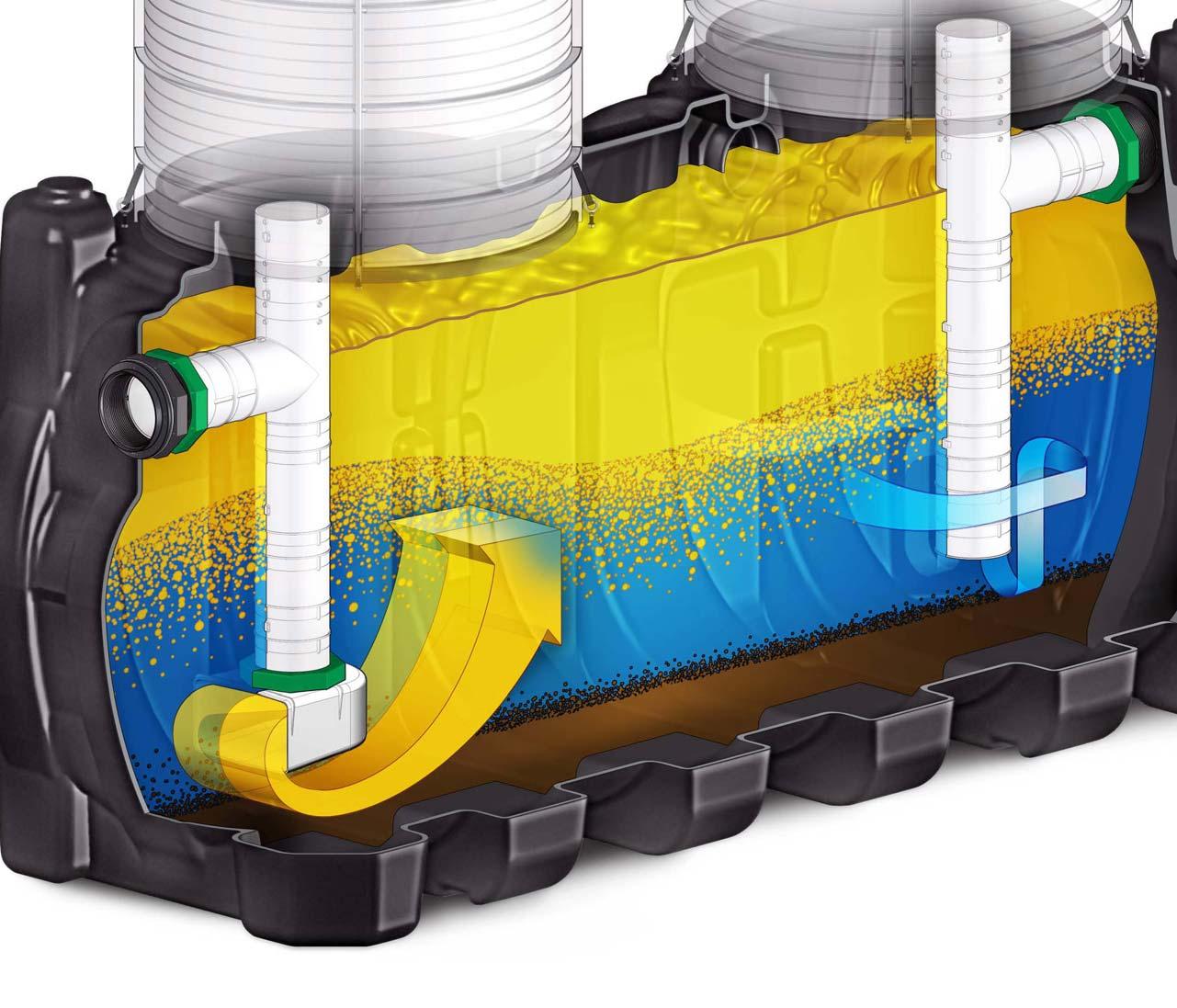

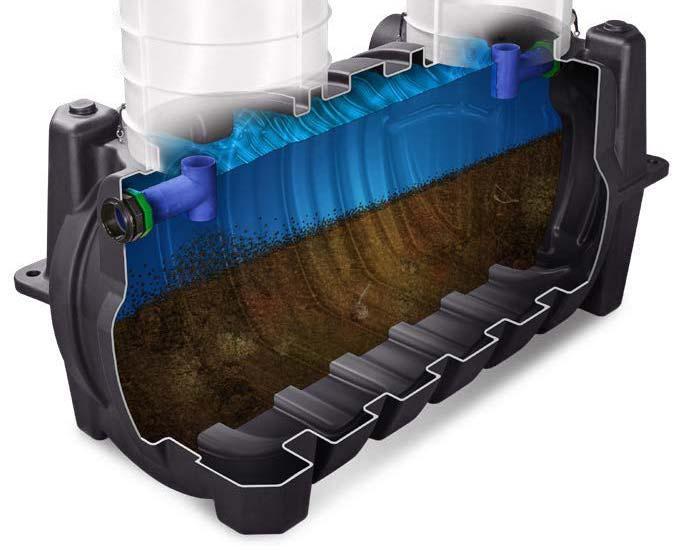

Diffusion flow for maximum performance
Diffusion flow technology significantly reduces inlet velocity and creates laminar (non turbulent) flow allowing fats, oils and grease (FOG) to quickly rise to the surface while food solids collect at the bottom.
DID YOU KNOW?
Schier is the only grease interceptor manufacturer to publish all of their third-party test reports online. We've been doing it since 2016. You can find them on every product page of our website.

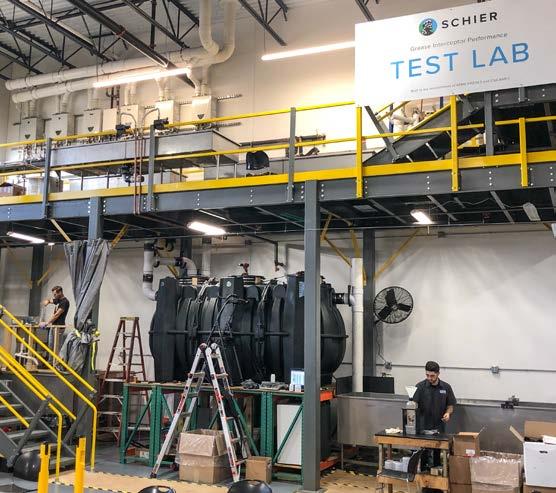

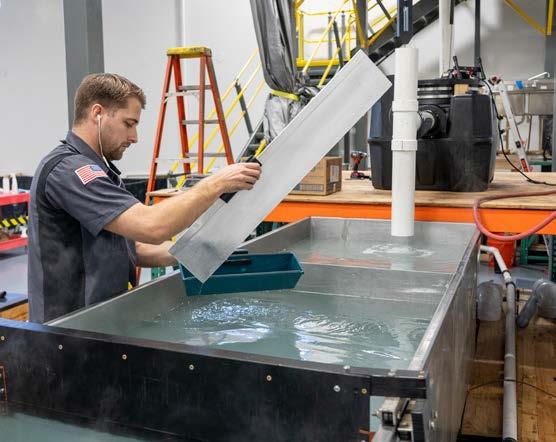

Testing for ASME Type D certification
Watch a video of our testing process at schierproducts.com/testing
state-of-the-art grease interceptor performance test lab, made to the requirements of
Great Basin® performance summary
For complete versions of Great Basin® ASME/CSA lab tests, visit individual product pages at schierproducts.com/shop
GB220 gal.Type C50
GB340
GB-5065 gal.Type D50 GPM439 lbs.60.2 gal.93.5%—92.62%
GB-5065 gal.Type D75 GPM287 lbs43 gal.91.2%—66.15%
GB-75125 gal.Type D75 GPM861 lbs.117.9 gal.95.8%—94.36%
GB-75-B125 gal.Type D50 GPM730
GB-250277 gal.Type D100 GPM1,895 lbs.259.6 gal.96.7%—93.71%
GB-250277 gal.Type C200 GPM1,196 lbs.163.8 gal.93.5%—59.15%
GB-250-B277 gal.Type D75 GPM1,560 lbs.256.3 gal.99.0%1,560
GB-500510 gal.Type C100 GPM3,048
GB-500-B510 gal.Type D100 GPM2,948 lbs.403.8
GB-10001,000 gal.Type D100 GPM5,495
GB-10001,000 gal.Type D200 GPM4,959
GB-15001,588 gal.Type D100 GPM10,061
GB-15001,588 gal.Type D200 GPM9,446
* Ratings and configurations shown at 99% efficiency are intended for Miami DERM or any jurisdiction with similar requirements
Schier's
ASME A112.14.3 and CSA B481.1.
Grease Production Sizing Method ™
Step 1 Size by flow rate per local requirements
Step 2 Select grease capacity for pumpout frequency
Food service establishment (FSE) grease production values
CATEGORY
LOW
0.005 lbs / meal (no flatware)
0.0065 lbs / meal (with flatware)
0.025 lbs / meal (no flatware)
0.0325 lbs / meal (with flatware)
0.035 lbs / meal (no flatware)
0.0455 lbs / meal (with flatware)
serves food prepared offsite or food that requires minimal preparation and/or warming; bar (drinks only), coffee shop, continental breakfast, convenience store, deli, donut shop (w/o fryer), ice cream / yogurt / smoothies, pizza carryout, sandwich shop, sushi, snack bar
serves foods from a limited menu and/or with a limited amount of onsite preparation; cafeteria (heat and serve), caterer, fast food (limited prep), pizza restaurant, salad/healthy bowls, low category restaurants w/ fryer
serves a full menu of food prepared onsite; bakery, bar and grille, BBQ, buffet, cafeteria (full serve), Chinese, donut shop (w/fryer), family restaurant, fast food (full prep), fried chicken, Greek, grocery store, Indian, Italian, seafood, steak house, medium category restaurants w/ fryer
GPSM may not satisfy local jurisdictional requirements for installation approval and should always be verified prior to selection. The easiest way to verify sizing for any project is to use our Grease Monkey® sizing tool and select the GM Check option.
90-Day pumpout sizing recommendations
GB120 GPM70 lbs.1 561203 124221 7
GB125 GPM64 lbs.1 4411129222 11 6
GB235 GPM1 30 lbs.29022358454 132
GB250 GPM1 27 lbs.28421857444 13 1
GB350 GPM272 lbs.6064661 2 1938767
GB375 GPM1 75 lbs.39030078605643
GB-5050 GPM439 lbs.97775 11 951 501 4 01 07
GB-5075 GPM287 lbs.638491128989170
GB-7575 GPM86 1 lbs.1,9 1 31,4723832942732 1 0
GB-75-B50 GPM623 lbs.1,3841,0652772 1 31 981 52
GB-250100 GPM1,895 lbs.4,21 13,239842648602463
GB-250200 GPM1, 1 96 lbs.2,6582,044532409380292
GB-250-B75 GPM1,560 lbs.4,0383, 1 0680862 1577444
GB-500100 GPM3,048 lbs.6,7735,2 1 01,3551,042968744
GB-500-B100 GPM2,948 lbs.6,55 15,0391,3 1 01,0089367 20
GB-1000100 GPM5,495 lbs.1 2,21 19,3932,4421,8791,7441,34 2
GB-1000200 GPM4,959 lbs.11,0208,4772,2041,6951,5741,211
GB-1500100 GPM10,061 lbs.22,35917,1994,4723,4403,1942,457
GB-1500200 GPM9,446 lbs.20,99116,1474,1983,2292,9992,307
Dedicated to grease interceptor sizing excellence
Grease Production Sizing Method (GPSM), first introduced by Schier in 2012, powers our Grease Monkey® sizing tool. GPSM has been used to size more than 100,000 restaurant grease interceptors, has been adopted by several municipalities and was published in the 2016 edition of ASPE’s Plumbing Engineering Design Handbook.
The Grease Monkey® sizing tool guides you quickly through all aspects of sizing, produces printable and shareable sizing calculations and comes with our complimentary GM Check service in which we personally double-check your work and confirm local code approval for your grease interceptor installation.
11,976
users
66,800+
project sizings

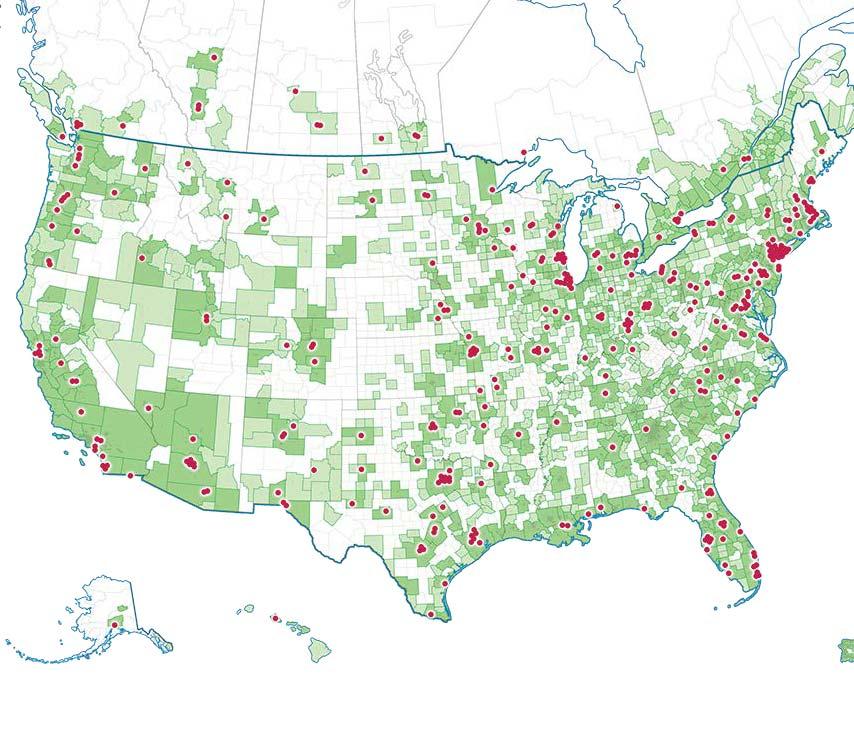

4,115 jurisdictions have used Grease Monkey® getstartedtoday|greasemonkeysizing.com

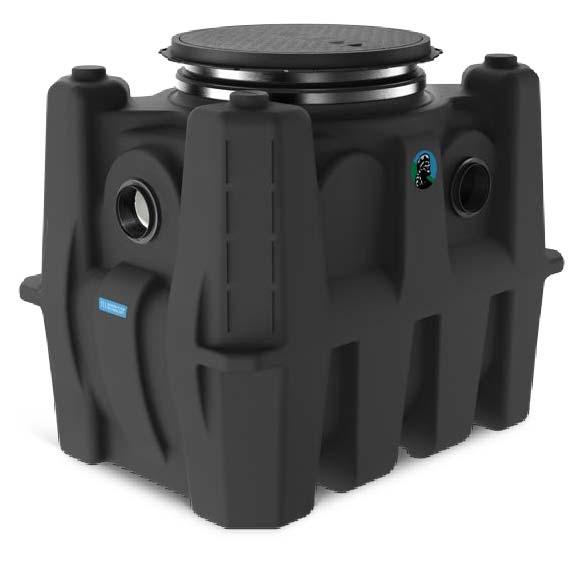

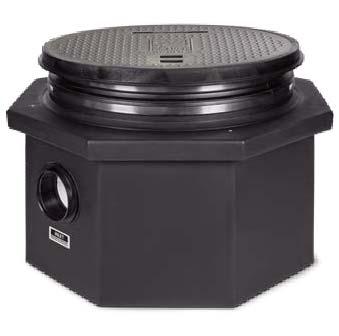

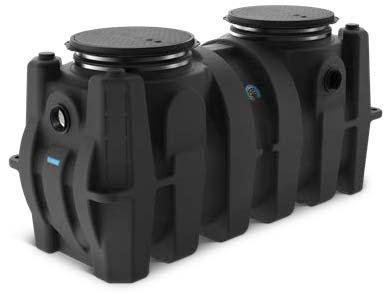

Great Basin ®
Indoorgreaseinterceptors

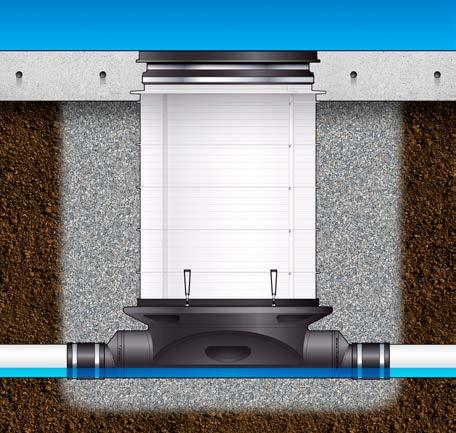

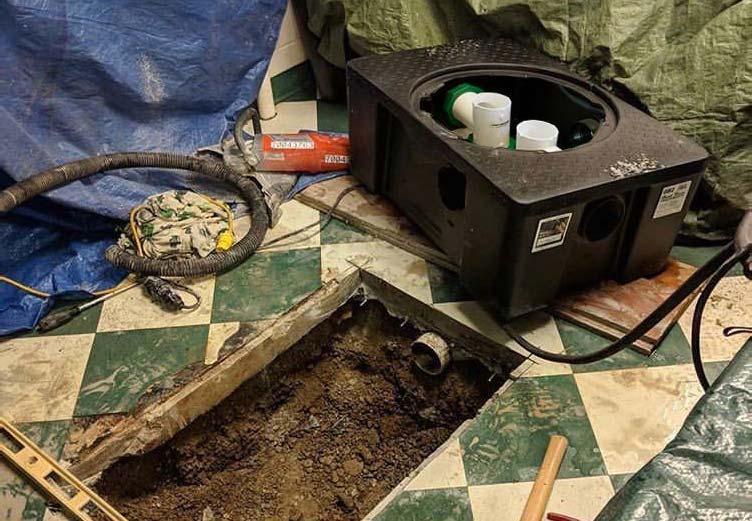

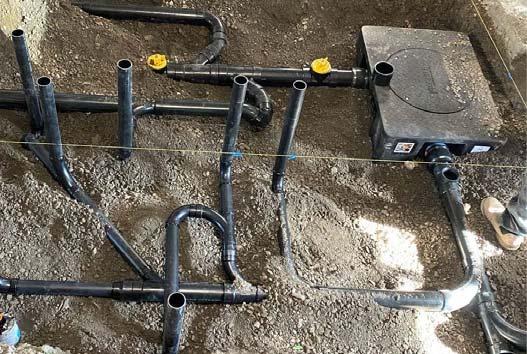

The ideal location of a grease interceptor is outside the building with Schier’s indoor/outdoor Great Basin® models. When that’s not feasible or footprint is limited we recommend the Great Basin™ indoor models.
The most expensive interceptor is the one that fails.

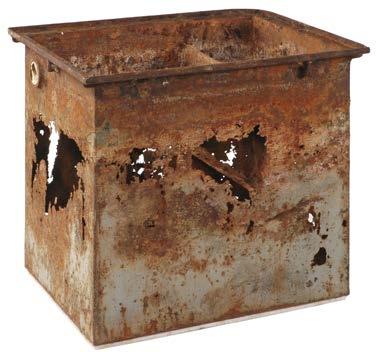

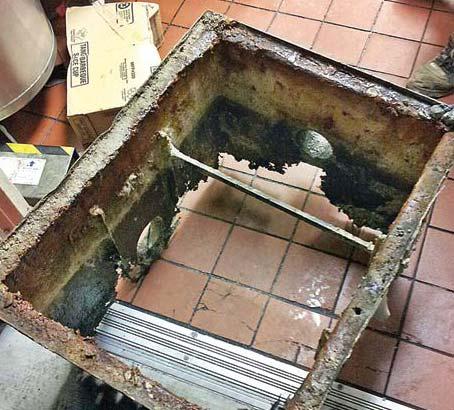

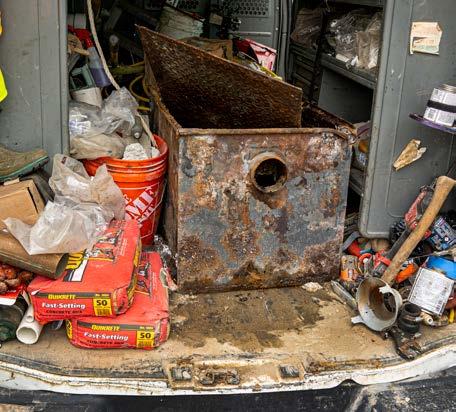

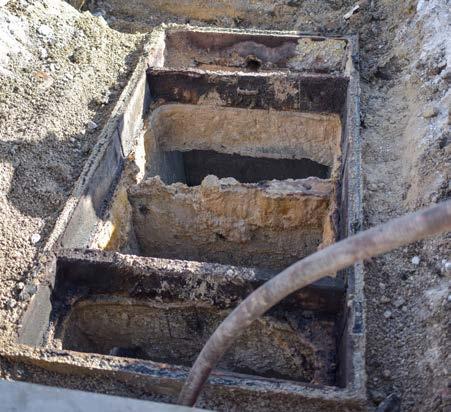

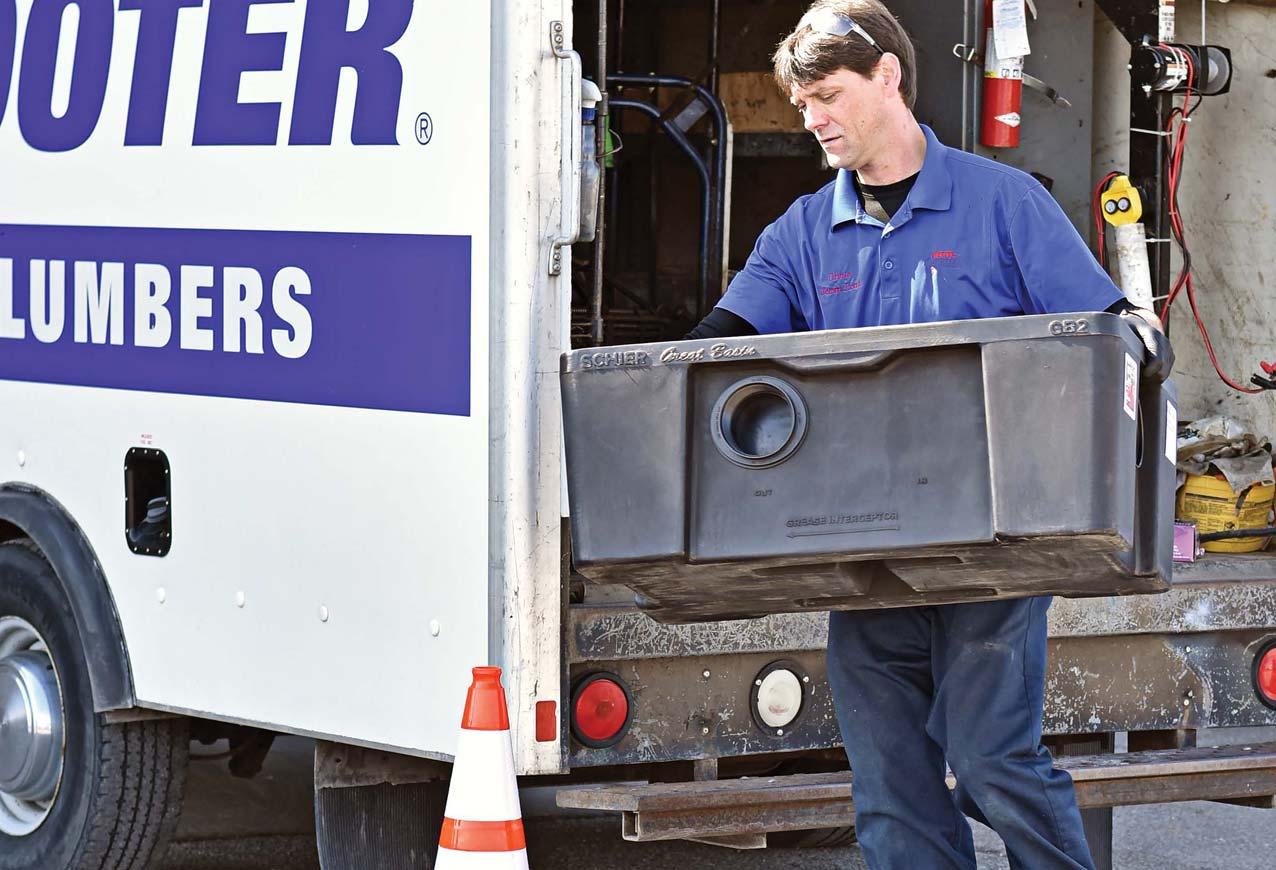

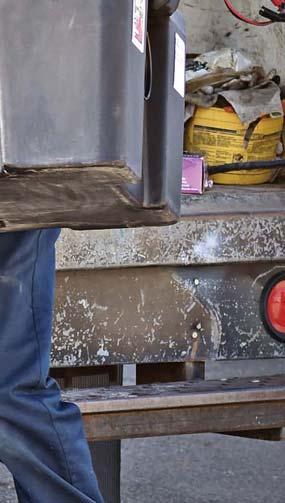

Steel interceptors commonly rust and fail within 5 years of installation leading to an expensive restaurant shutdown during removal and replacement.
5-year
With the industry's only lifetime warranty, the Great Basin® is the only serious choice over guaranteed-to-fail steel interceptors.

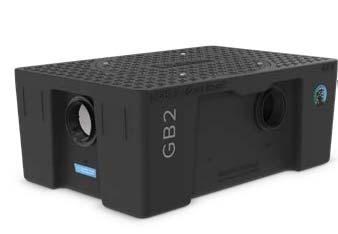

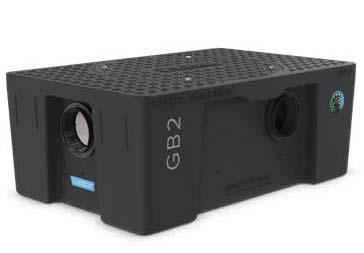

GB2 (50
STEEL (50 GPM)
Low profile, dual rated and packed with features
PROVIDED ADAPTERS
All models listed by IAPMO to ASME A112.14.3 and CSA B481.1.
See page 38 for more details

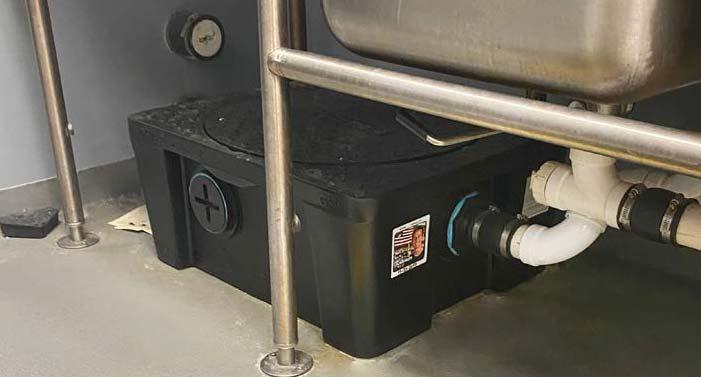

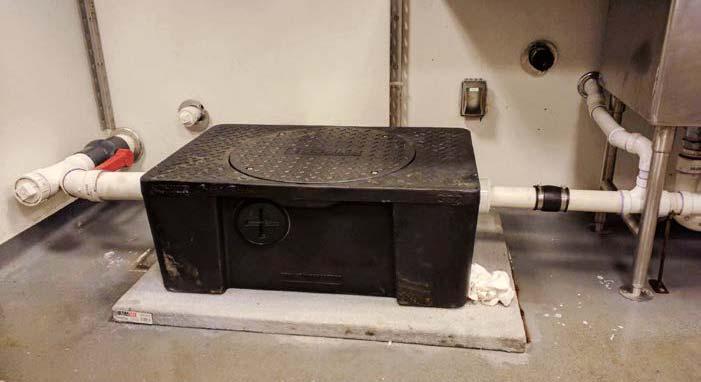

Compact low profile design easy to install under sinks, next to sinks and below grade

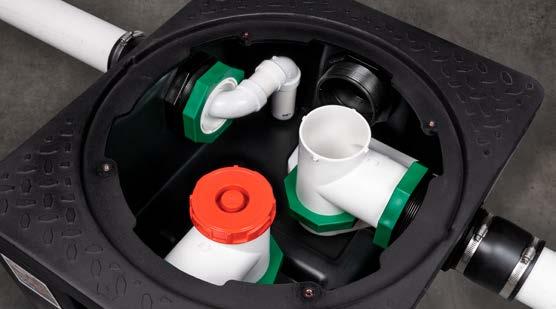

Flow control cartridge controls flow internally
4" FPT
connects to provided 2", 3", 4" plain end adapters
Built-in triple outlet for installation flexibility and pumpout port connection
GB2 with FCR1 riser
Pedestrian
PVC extension handle glue your own piece of 1 ½"
PVC inside the flow control cartridge for easy removal
FEATURE SPOTLIGHT

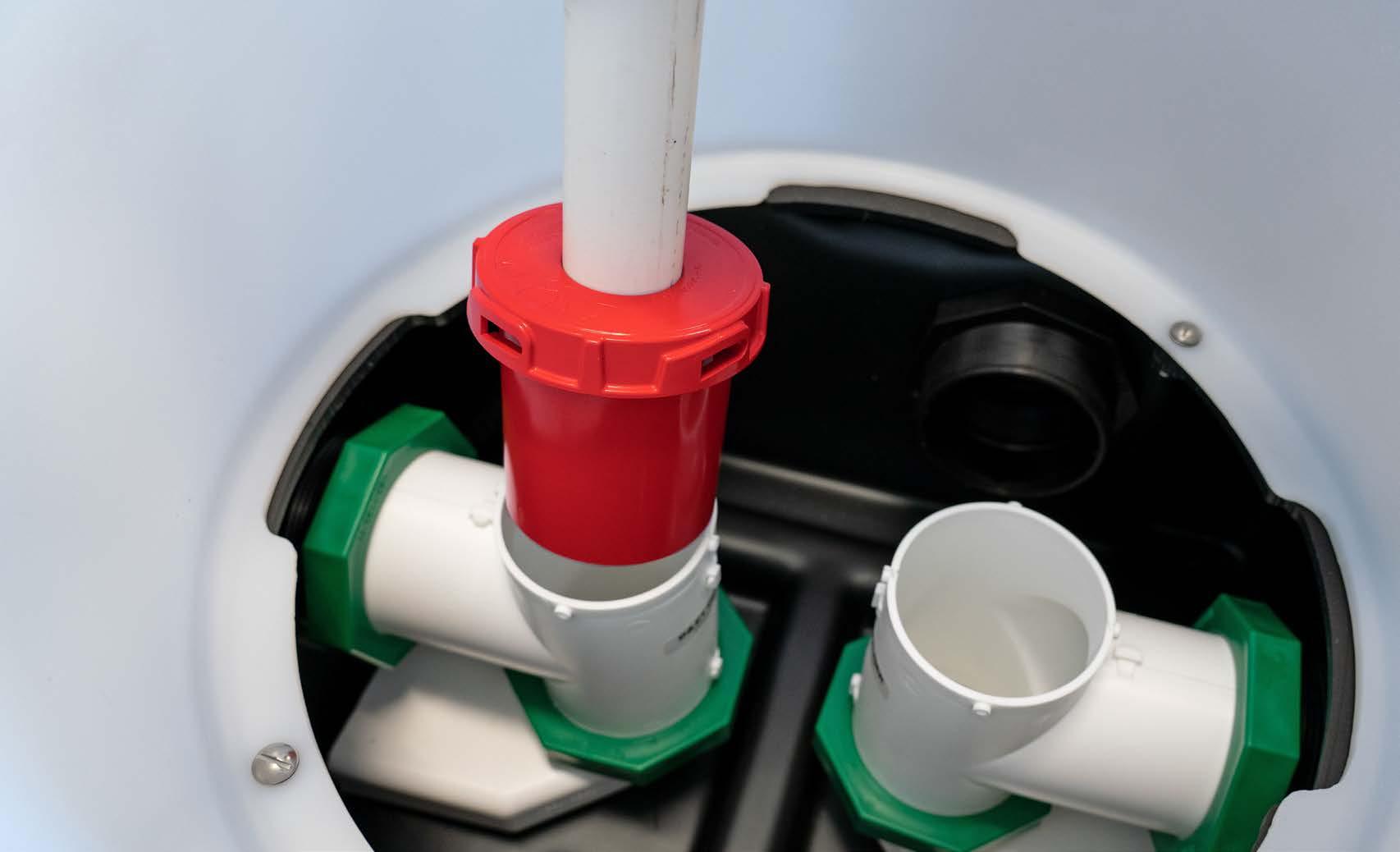

Built-in flow control
Schier was first to develop built-in flow control with Type C certification to the ASME Standard in 2006. Our newest patented flow control cartridge design was introduced in 2019. (U.S. Patent No. 11,680,669)
» Easier to maintain, removable for cleaning during pumpout, keeps your hands clean
» Eliminates the material and labor cost of installing a vented external flow control
» Use with optional 1 ½" PVC pipe as an extension handle for easy removal in deep burial installations
COMPAREWITH

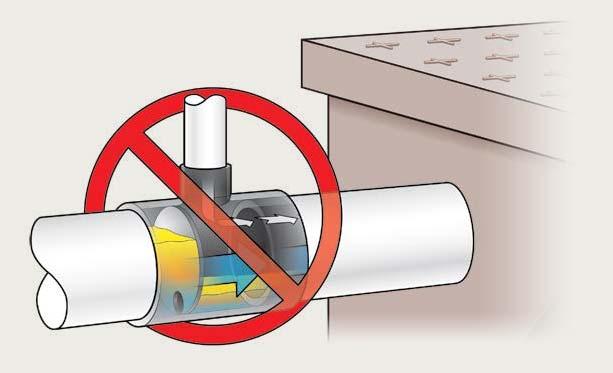

Other rated interceptors use external flow controls that add material and labor costs and are difficult to clean.
Accessories for indoor grease interceptors
See page 38 for product compatibility

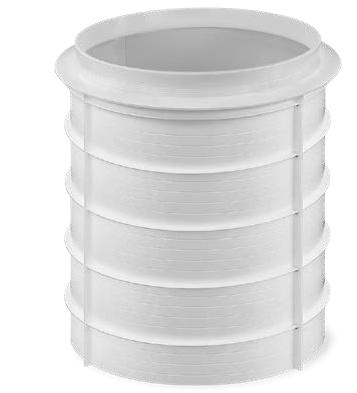

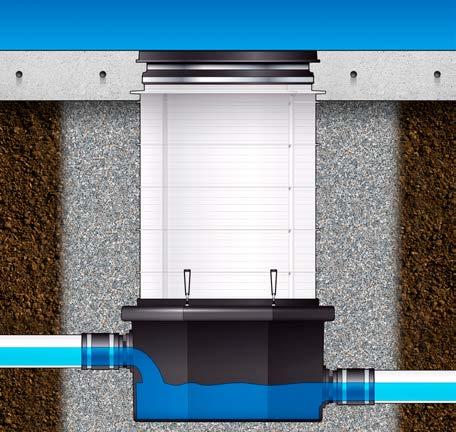

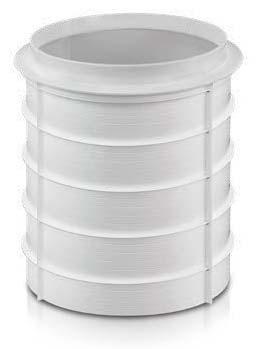

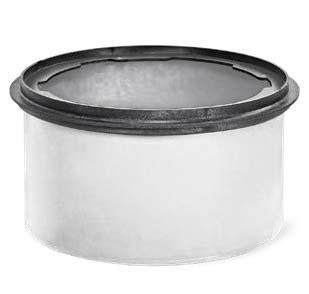

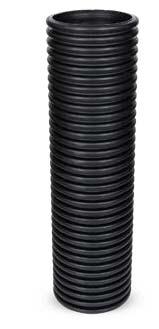

Field cut riser
Reduce jobsite installation time and custom riser costs with risers designed for easy modification in the field.

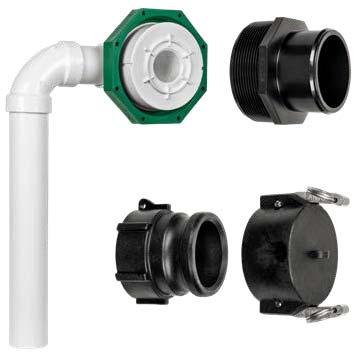

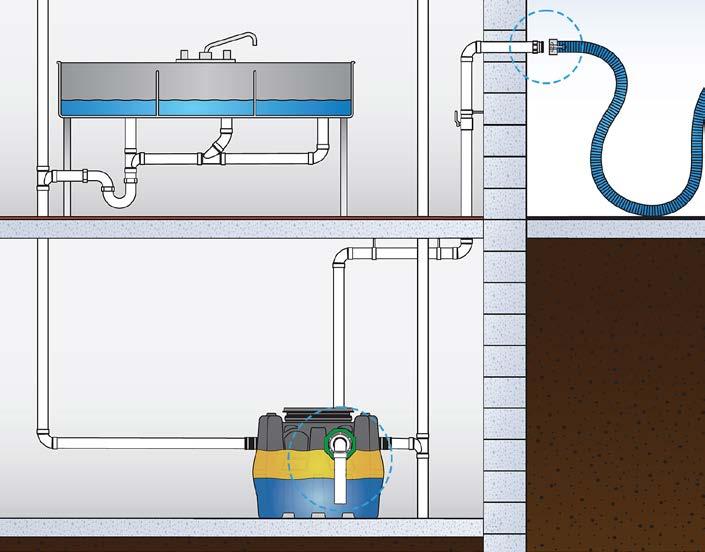

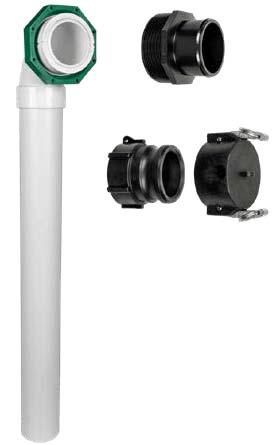

Pumpout port kit
Outfit your indoor Great Basin® with a pumpout port for remote cleaning during normal business hours.
FCR1
Converts an unused outlet into a pumpout port. Includes internal pumpout fitting and piping and a 3" cam and groove fitting with cap. Spraying down the tank during pumping is recommended.
PP1
Up to25" of riser depth

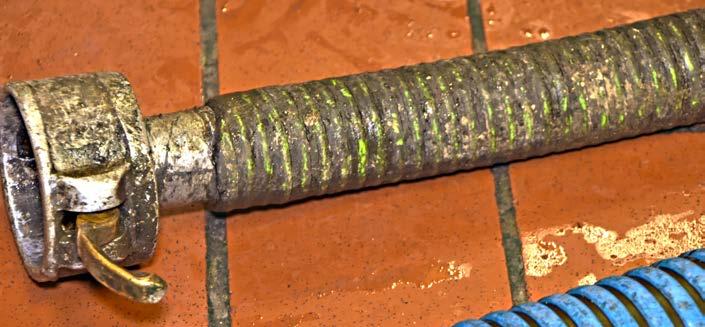

Dirty hoses drag dangerous bacteria through the kitchen
cam and groove fitting and cap interior pipe assembly

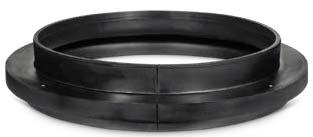

Membrane clamping collar kitSupport kits
CC1
clamping collar for indoor interceptors with 21" covers when recessed and suspended, requires FCR1 riser
SGK2 / SGK3

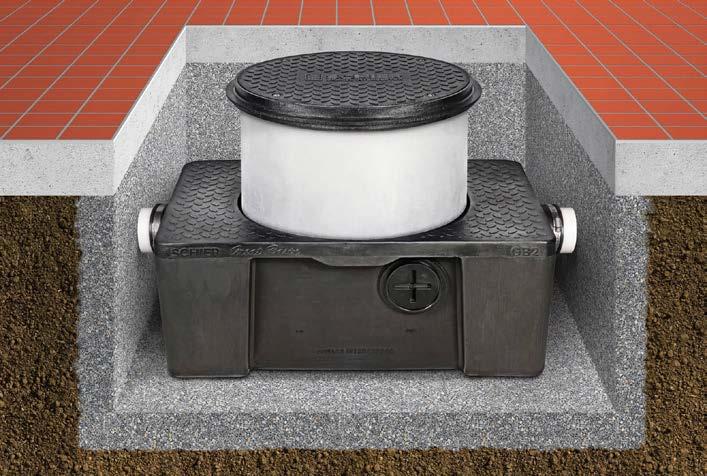

recommended for flush-to-grade buried installations without a riser in heavy foot traffic areas, use SGK2 for GB2, use SGK3 for GB3
Plain end adaptersFPT fittings
screws into 4" FPT inlet/outlet bulkhead fitting, barbed end connects to flexible coupling
screws into 4" FPT inlet/outlet bulkhead fitting, FIP end connects to MPT fittings
PLAIN-EA-24
2" plain end x 4" MPT
FPT-EA-23
2" FIP x 3" MPT requires FPT-EA-34
PLAIN-EA-34
3" plain end x 4" MPT
PLAIN-EA-44
4" plain end x 4" MPT
3" FIP x 4" MPT
FPT-EA-34

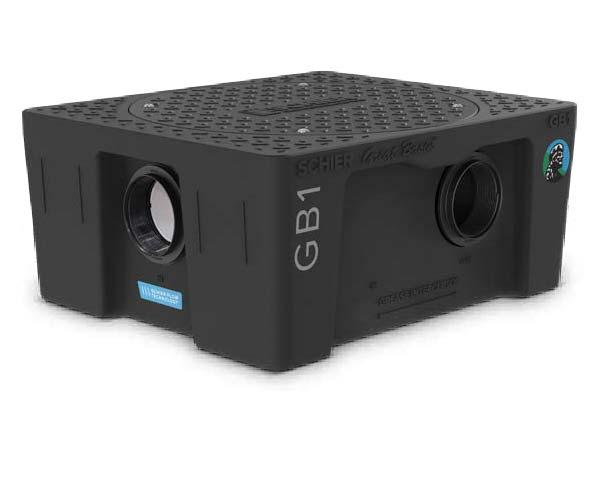

GB2 GB1
Technical Information
Location indoor
Installation above/below grade (low profile)
Flow Rates / Grease Capacities
20 GPM (1.3 L/s) / 70 lbs. (31.7 kg), 9 gal. (36.3 L)
25 GPM (1.6 L/s) / 64 lbs. (29.4 kg), 8 gal. (33.7 L)
Solids Capacity 1.3 gal. (4.9 L)
Liquid Capacity 10 gal. (37.9 L)
Weight 39 lbs. (17.7 kg)
Connections 4" FPT with 2" and 3" plain end adapters

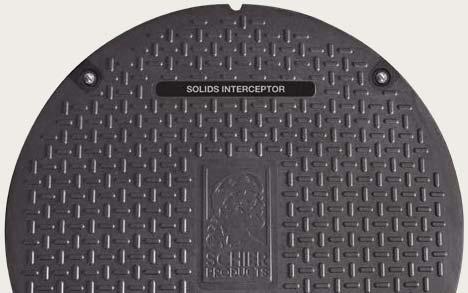

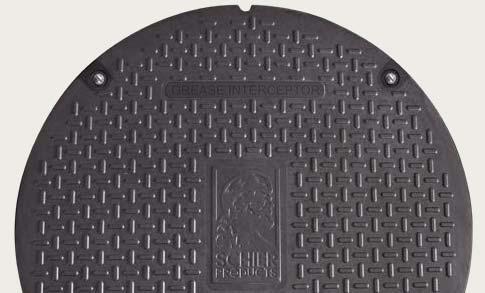

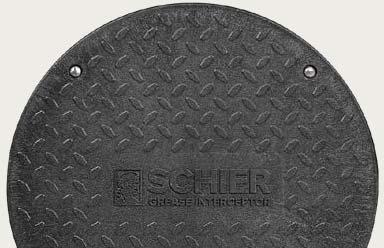

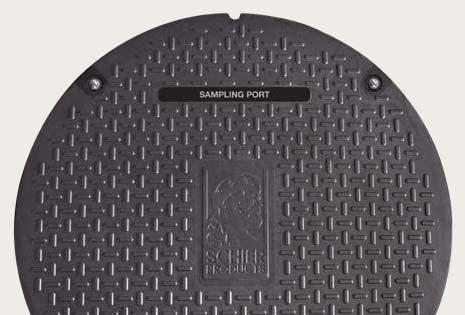

Cover bolted gas/water tight polypropylene with 1,000 lb. load rating when unit is buried with FCR1 riser, cover has a 450 lb. rating when installed at grade without riser
Alternate Configurations
* factory rated only
*GB1-CT 15 GPM, 70 lbs. (32 kg) - Super Capacity for Connecticut
Accessories
FCR1 field cut riser
PP1 pumpout port kit
CC1 membrane clamping collar kit
PLAIN-EA-44 4" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting

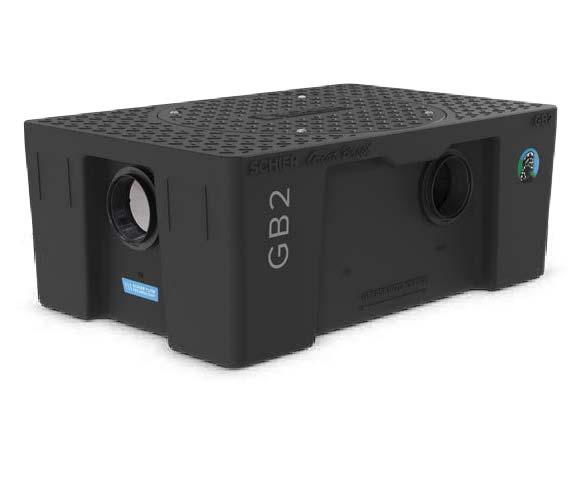

Technical Information
Location indoor
Installation above/below grade (low profile)
Flow Rates / Grease Capacities
35 GPM (2.2 L/s) / 130 lbs. (59.2 kg), 17 gal. (67.8 L)
50 GPM (3.2 L/s) / 127 lbs. (57.9 kg), 17 gal. (66.2 L)
Solids Capacity 1.8 gal. (6.8 L)
Liquid Capacity 20 gal. (75.7 L)
Weight 49 lbs. (22.2 kg)
Connections 4" FPT with 3" and 4" plain end adapters
Cover bolted gas/water tight polypropylene with 1,000 lb. load rating when unit is buried with FCR1 riser, cover has a 450 lb. rating when installed at grade without riser
Alternate Configurations
GB2-CT 25 GPM, 126 lbs. (57.1 kg) - Super Capacity for Connecticut
GB2-2 2 units in series, 35 GPM, 180 lbs. (81.6 kg) - Miami DERM
Accessories
FCR1 field cut riser
PP1 pumpout port kit
SGK2 support gusset kit for GB2
CC1 membrane clamping collar kit
PLAIN-EA-24 2" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting

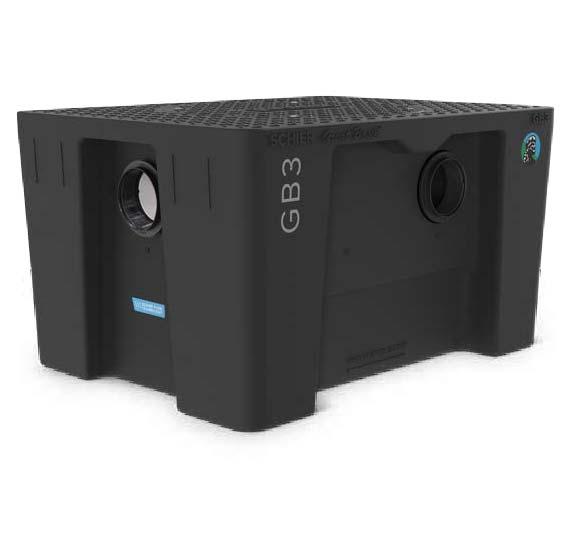

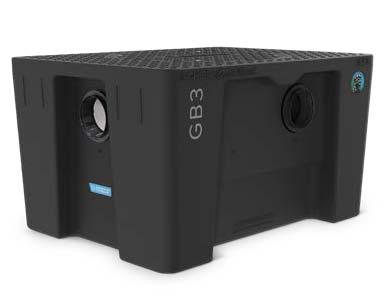

GB3
Technical Information
Location indoor
Installation above/below grade
Flow Rates / Grease Capacities
50 GPM (3.2 L/s) / 272 lbs. (123.7 kg), 37 gal. (141.6 L)
75 GPM (4.7 L/s) / 175 lbs. (79.6 kg), 24 (91.2 L)
Solids Capacity 1.9 gal. (7.2 L)
Liquid Capacity 40 gal. (151.4 L)
Weight 69 lbs. (31.3 kg)
Connections 4" FPT with 4" plain end adapters
Cover bolted gas/water tight polypropylene with 1,000 lb. load rating when unit is buried with FCR1 riser, cover has a 450 lb. rating when installed at grade without riser
Alternate Configuration
GB3-CT 50 GPM, 272 lbs. (124 kg.) - Super Capacity for Connecticut
Accessories
FCR1 field cut riser
PP1 pumpout port kit
SGK3 support gusset kit for GB3
CC1 membrane clamping collar kit
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting

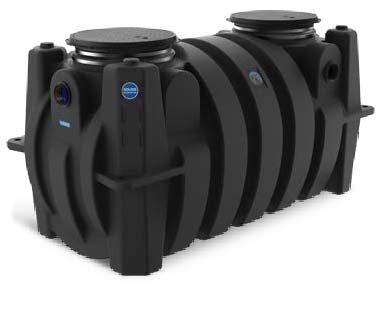

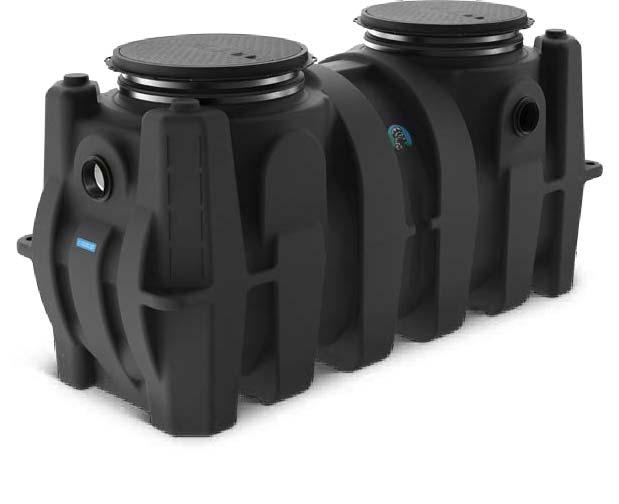

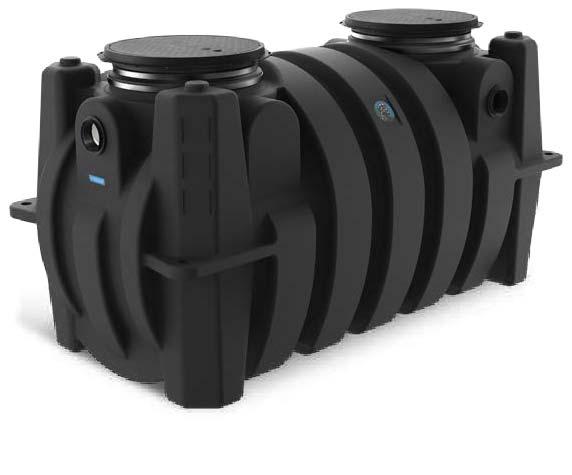

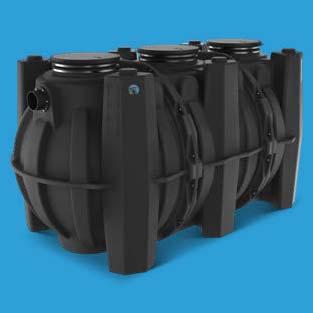

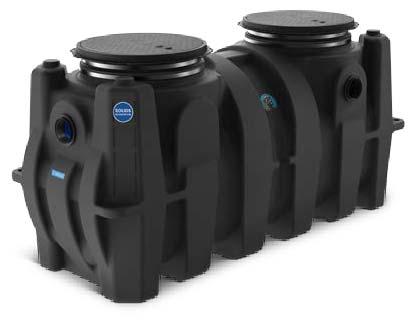

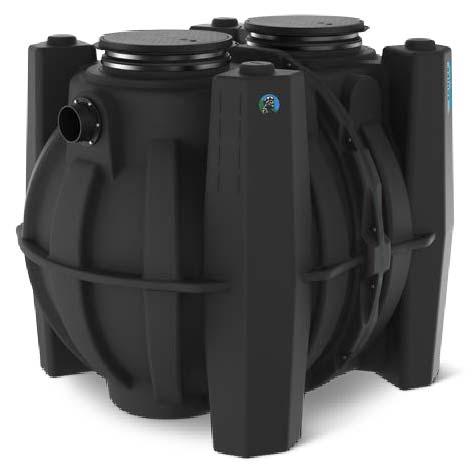

GreatBasin ®
Indoor/outdoorgreaseinterceptors

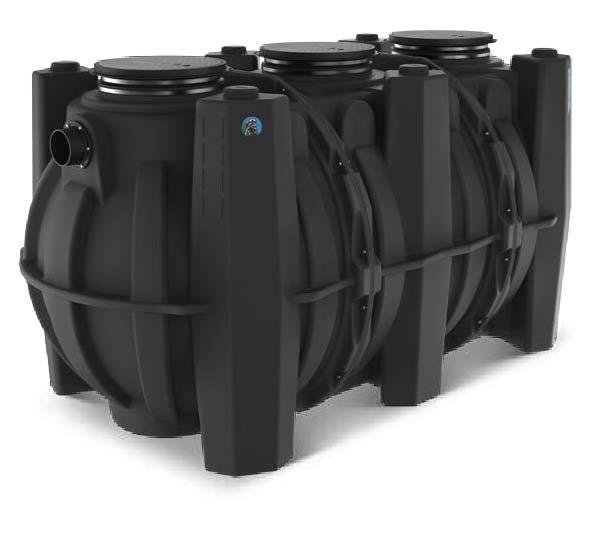

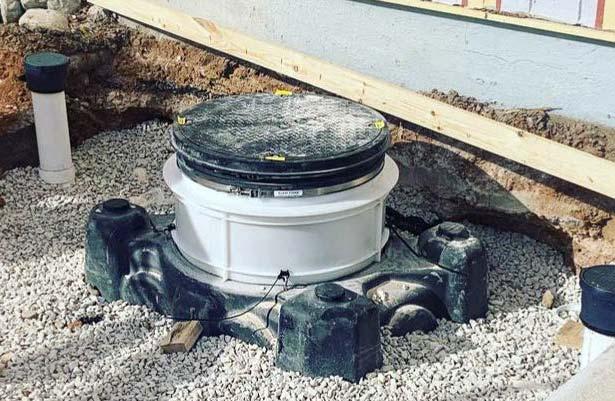

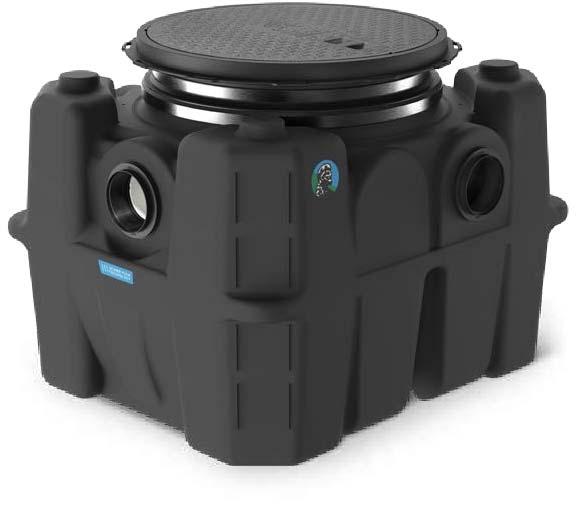

Schier’s Great Basin® lineup of indoor/outdoor interceptors continues to lead the industry by offering a grease interceptor that is not only highly efficient but rugged enough to be installed outside in heavy traffic areas.
The most expensive interceptor is the one that fails.

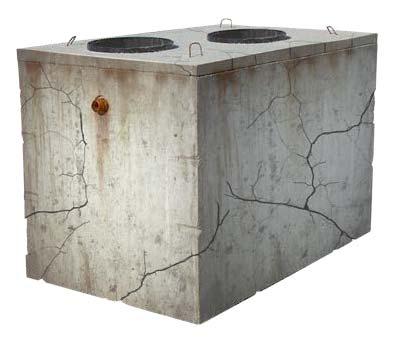

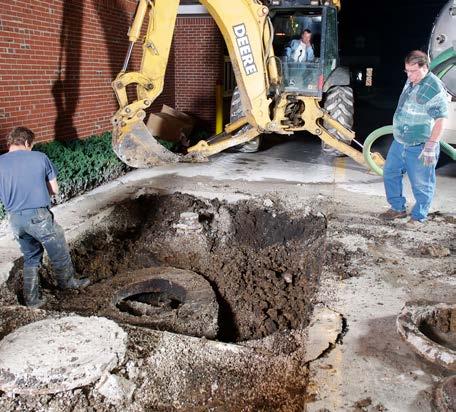

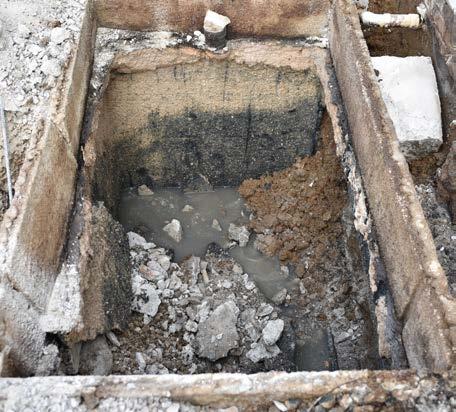

Typical concrete interceptors start to corrode and fail within 10 years of service requiring costly tear-out, replacement and restaurant downtime.
With the industry's only lifetime warranty, the Great Basin® is the only serious choice over guaranteed-to-fail concrete interceptors.
Installs anywhere, separates the most grease and solids
See page 38 for more details
Safety Star®
access restrictor prevents accidental entry to tanks
On-grade perfection
cover adapter gives you 4" of adjustability at grade with 5º tilt
Best-in-class capacity
certified grease capacity with up to 25% built-in solids capacity
Certified with no flow control on models GB-50, GB-75, GB-75-B, GB-250, GB-250-B, GB-500-B, GB-1000, GB-1500
Built-in triple outlet for installation flexibility and pumpout port connection
Built like a tank
heavy-duty without the weight, exceeds structural loading requirements of ASTM C890

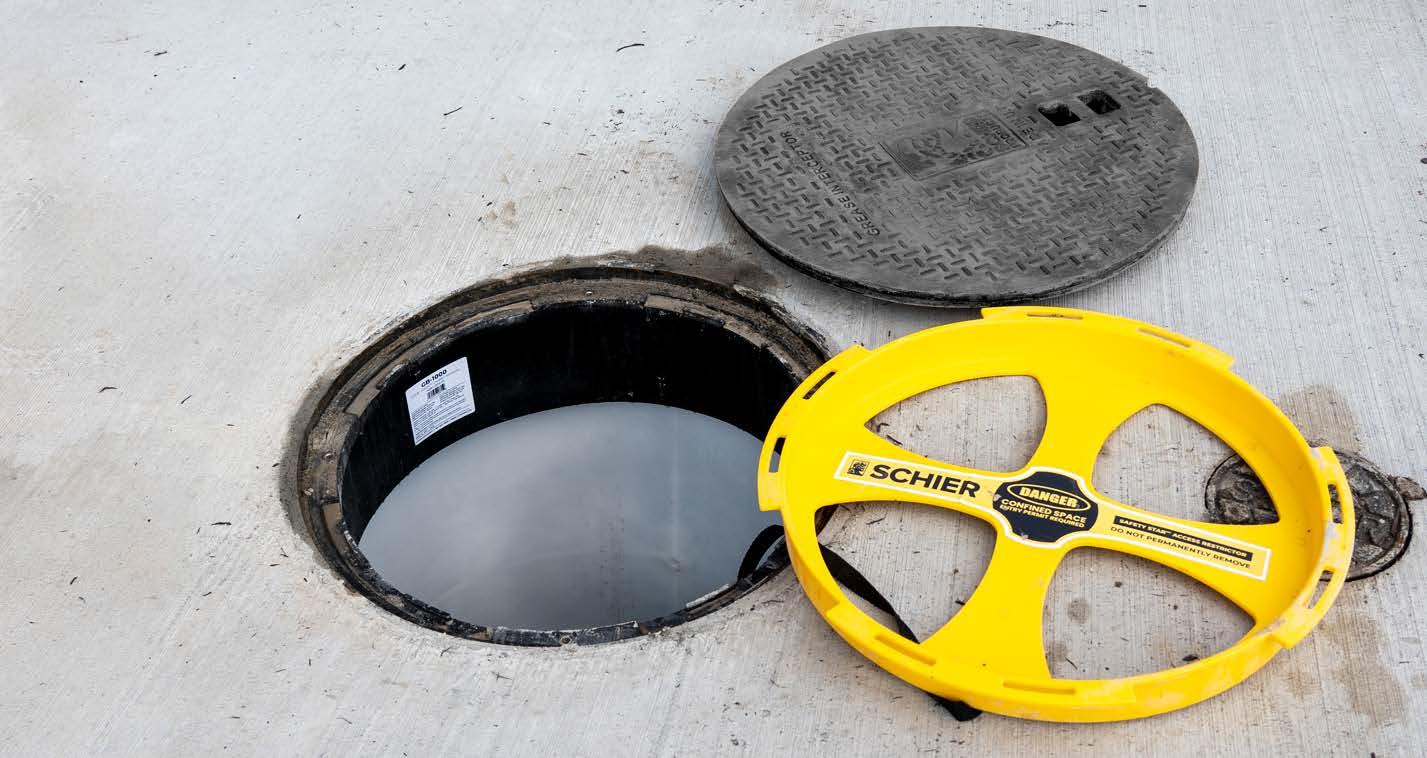

Safety Star ® Accessrestrictor
FEATURE SPOTLIGHT
Safety always comes first
Nearly every year fatalities happen inside grease interceptors due to open sewer manholes including drowning, entrapment and inhaling poisonous H 2 S gas. Schier’s Safety Star® provides access for routine maintenance like pumping and inspection, while keeping the manway closed to accidental entry.

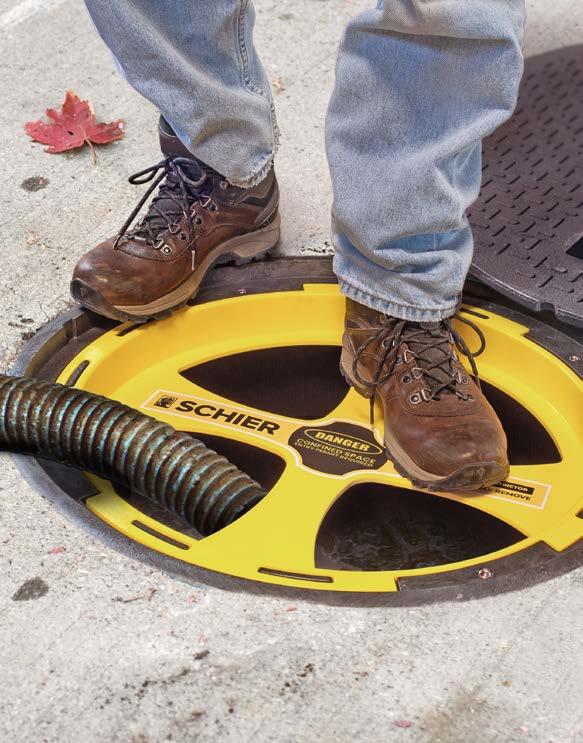

» Load-rated at 450 lbs.
» Allows access for pump-out and inspection while in place
» Can be partially removed for full access to manway
» Safety Star® is tethered to the cover adapter with a rot-resistant polypropylene strap
» For additional/optional security, a pre-molded pilot hole in the Safety Star® allows it to be screwed into the cover adapter using a tamper-resistant screw
Integrated into the following products: Great Basin® | GB-50, GB-75, GB-250, GB-500, GB-1000, GB-1500 Sewer Viewer® | SV10, SV24, SV24-O Billy Goat® | SI-50, SI-75, SI-250, SI-500
Accessories for indoor/outdoor grease interceptors
See page 38 for product compatibility
Field cut riser

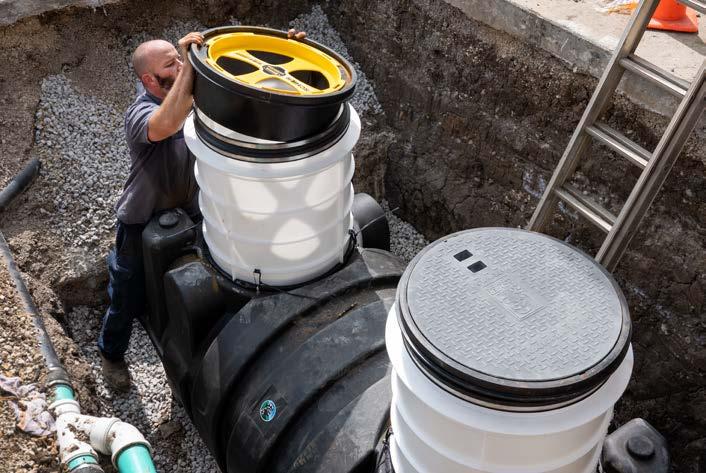

Reduce jobsite installation time and custom riser costs with risers designed for easy modification in the field.
Adapter for corrugated riser
Connects 24" corrugated risers to Schier interceptors.
CORRUGATED RISER BY OTHERS
Pumpout port kit
Outfit your Great Basin® grease interceptor with a pumpout port for remote cleaning during normal business hours.
CA2
FCR2
AK1
high water table anti-flotation anchor kit for models GB-50, GB-75, GB-250 and Billy Goat® solids interceptors
Support kits
AGS1
above grade support kit for GB-250 suspended installations
ATD1
for securing cover adapters to base units in above grade installations. This kit is included in the AGS2 support kit.
Membrane clamping collar kit
AK2
high water table anti-flotation anchor kit for GB-500
AGS2
above grade support kit for GB-500, includes ATD1
membrane clamping collar for interceptors with 24" covers when recessed and suspended, requires FCR2 riser
AK3
high water table anti-flotation anchor kit for GB-1000 and GB-1500
Plain end adapters FPT fittings
screws into 4" FPT inlet/outlet bulkhead fitting, barbed end connects to flexible coupling
screws into 4" FPT inlet/outlet bulkhead fitting, FIP end connects to MPT fittings
requires FPT-EA-34
CC2
Technical Information
Location indoor/outdoor
Installation above/below grade
Flow Rates / Grease Capacities
50 GPM (3.2 L/s) / 439 lbs. (199.3 kg), 60 gal. (227.1 L)
75 GPM (4.7 L/s) / 287 lbs. (130.3 kg), 43 gal. (162.7 L)
Solids Capacity 13 gal. (49.2 L)
Liquid Capacity 65 gal. (246.1 L)
Weight 148 lbs. (67.1 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapter
Options
4" plain/FPT inlet/outlet

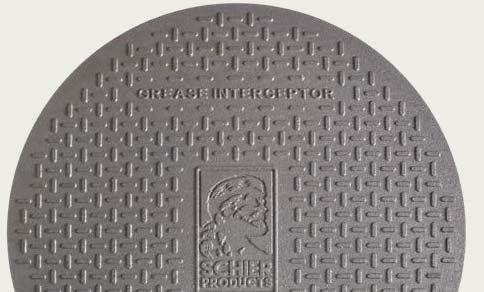

C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Technical Information
Location indoor/outdoor
Installation above/below grade
Flow Rate / Grease Capacity
75 GPM (4.7 L/s) / 861 lbs. (390.5 kg), 118 gal. (446.6 L)
Solids Capacity 31 gal. (117.3 L)
Liquid Capacity 125 gal. (473.2 L)
Weight 190 lbs. (86.2 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapter
Alternate Configuration
GB-75-B 50 GPM, 623.4 lbs. (282.7 kg) at 99% - Miami DERM
Options
4" plain/FPT inlet/outlet
6" plain inlet/outlet with 4" pumpout port connections
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Technical Information
Location indoor/outdoor
Installation above/below grade
Flow Rates / Grease Capacities
100 GPM (6.3 L/s) / 1,895 lbs. (859.4 kg), 260 gal. (984.2 L)
200 GPM (12.6 L/s) / 1,196 lbs. (542.4 kg), 164 gal. (620.8 L)
Solids Capacity 69 gal. (261.2 L)
Liquid Capacity 277 gal. (1,048.6 L)
Weight 376 lbs. (170.5 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Alternate Configurations
* factory rated only
GB-250-B 75 GPM, 1,560 lbs. (707 kg) at 99% - Miami DERM
*GB-250-250HF 250 GPM, 1,068 lbs. (484.4 kg) - Vancouver, B.C.
Options
4" plain/FPT inlet/outlet
6" plain inlet/outlet with 4" pumpout port connections
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
AGS1 above grade support kit for GB-250
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Technical Information
Location indoor/outdoor
Installation above/below grade
Flow Rate / Grease Capacity
100 GPM (6.3 L/s) / 3,048 lbs. (1,382.3 kg), 418 gal. (1,582.3 L)
Solids Capacity 128 gal. (484.5 L)
Liquid Capacity 510 gal. (1,930.6 L)
Weight 528 lbs. (239.5 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Alternate Configurations * factory rated only
GB-500-B 100 GPM, 2,817 lbs. (1,277.6 kg) at 99% - Miami DERM
*GB-500-250HF 250 GPM, 1,859 lbs. (843.1 kg) - Vancouver, B.C.
*GB-500-500HF 500 GPM, 1,000 lbs. (453.5 kg) - Vancouver, B.C., NYC
Options
4" plain/FPT inlet/outlet
6" plain inlet/outlet with 4" pumpout port connections
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
AGS2 above grade support kit for GB-500
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
GB-1000
Technical Information
Location indoor/outdoor
Installation above/below grade
Flow Rates / Grease Capacities
100 GPM (6.3 L/s) / 5,495 lbs. (2,492.1 kg), 753 gal. (2,850.4 L)
200 GPM (12.6 L/s) / 4,959 lbs. (2,249 kg), 679 gal. (2,570.2 L)
Flow Rates / Grease Capacities at99% Efficiency
100 GPM (6.3 L/s) / 5,272 lbs. (2,390.9 kg), 722 gal. (2,733.1 L)
200 GPM (12.6 L/s) / 3,127 lbs. (1,418.1 kg), 428 gal. (1,620.1 L)
Solids Capacity 211 gal. (798.7 L)
Liquid Capacity 1,000 gal. (3,785.4 L)
Weight 824 lbs. (373.7 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Options
6" plain inlet/outlet
6" plain inlet/outlet with pumpout ports
4" plain/FPT inlet/outlet
4" plain/FPT inlet/outlet with pumpout ports
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
AK3 high water anchor kit
CC2 integral membrane clamping collar kit
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
The GB-1000 is patent pending.
GB-1500
Technical Information
Location indoor/outdoor
Installation above/below grade
Flow Rates / Grease Capacities
100 GPM (6.3 L/s) / 10,061 lbs. (4,563 kg), 1,378 gal. (5,216.2 L)
200 GPM (12.6 L/s) / 9,446 lbs (4,036 kg), 1,294 gal. (4,898.3 L)
Flow Rates / Grease Capacities at99% Efficiency
100 GPM (6.3 L/s) / 9,897 lbs. (4,489 kg), 1,355 gal. (4,194.2 L)
200 GPM (12.6 L/s) / 8,093.46 lbs (3,670 kg), 1,108 gal. (4,493.3 L)
Solids Capacity 318 gal. (1,203 L)
Liquid Capacity 1,588 gal. (6,011 L)
Weight 1,290 lbs. (585 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Options
6" plain inlet/outlet
6" plain inlet/outlet with pumpout ports
4" plain/FPT inlet/outlet
4" plain/FPT inlet/outlet with pumpout ports
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
AK3 high water anchor kit
CC2 integral membrane clamping collar kit
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
The GB-1500 is patent pending.
Pumpout port option: See website for configurations with preinstalled pumpout ports that include cam and groove fittings and caps.
GB-1000
Certified as both hydromechanical and gravity grease interceptors Listed by IAPMO to ASME A112.14.3 / CSA B481.1-2022 (Type D) and ANSI Z1001-2021. Flow control not required.
GB-1500
SYSTEM COMPONENTS

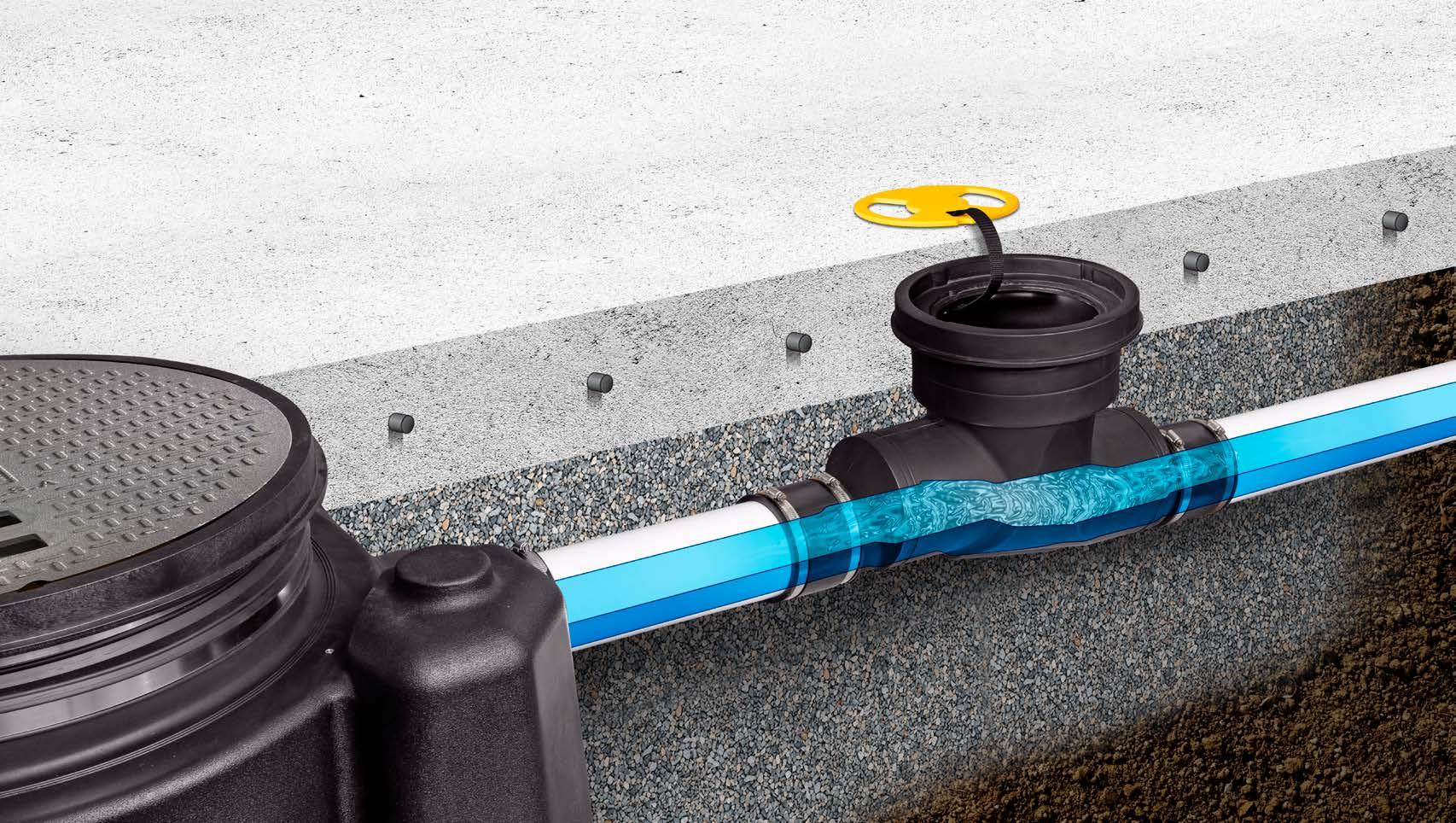

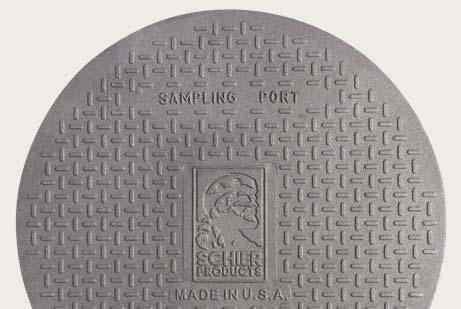

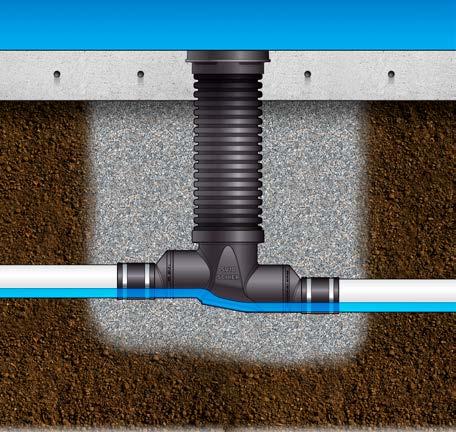

SewerViewer ® wastewatersamplingports
BillyGoat ® kitchensolidsinterceptors
Wastewatersamplingports
FCR2
USE THIS PRODUCT ONLY WHEN REQUIRED
Schier’s Great Basin® models are provided with open top inlet and outlet diffusers to provide adequate visibility to the influent and effluent wastewater quality. Sewer Viewer® sampling ports are only recommended when required by the authority having jurisdiction or for applications where physical sampling is needed.
Cover for SV10 camlockedpolyethylene, H-20ratedto16,000lb. See
FCR10
31" riser for SV10
30" field cut riser
CA2 Adapter for 24" corrugated riser
Pedestrian composite, bolted 24", rated to 2,000 lbs., for indoor and above grade
SV10
SV24
Technical Information
Location indoor/outdoor
Installation above/below grade
Weight 9 lbs. (4.1 kg)
Connections 4" and 6" plain end
Cover HDPE cam locked polyethylene gas/water tight, H-20 rated to 16,000 lbs.
Access Restrictor Safety Star ® built into cover adapter
Accessway 8" (203 mm)
Accessories
FCR10 corrugated riser for SV10
SV24-O
Technical Information
Location indoor/outdoor
Installation above/below grade
Weight 110 lbs. (50 kg)
Connections 4" and 6" plain end
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapter
Accessway 20" (508 mm)
Options
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated riser
ATD1 cover adapter tie-down kit
Technical Information
Location indoor/outdoor
Installation above/below grade
Weight 112 lbs. (51 kg)
Connections 4" plain/FPT inlet/outlet
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapter
Accessway 20" (508 mm)
Options
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated riser
ATD1 cover adapter tie-down kit
SV24

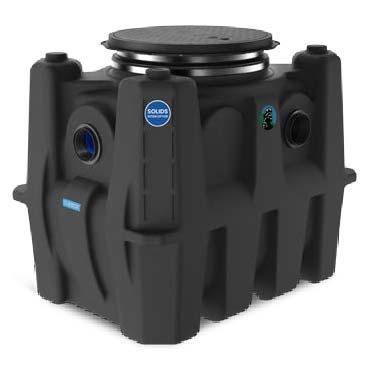

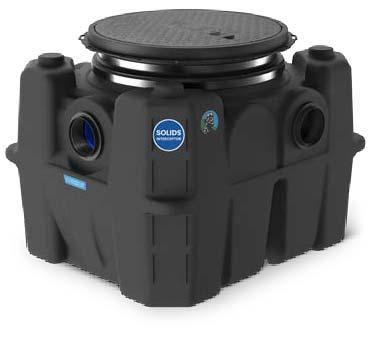

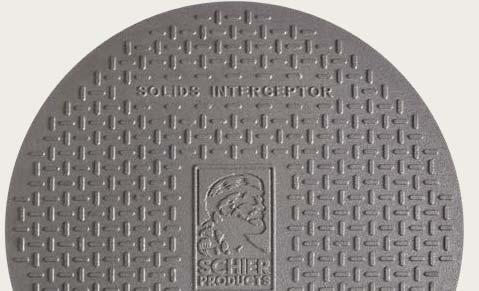

BillyGoat®
Kitchensolidsinterceptors
Technical Information
Location indoor/outdoor
Installation above/below grade
Solids Capacity 53 gal. (201 L)
Liquid Capacity 65 gal. (246 L)
Flow Rate 125 GPM (7.9 L/s) at 4"
Weight 148 lbs. (67 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Options
4" plain/FPT inlet/outlet
3" plain / 4" FPT inlet/outlet
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
Schier’s indoor/outdoor Great Basin® models provide up to 25% solids capacity to sufficiently capture the greases and solids that go down the kitchen drain line. Billy Goat® solids interceptors are only recommended when required by the authority having jurisdiction or for applications where an unusual amount of solids discharge is anticipated.
See pages 28–29 for accessories compatible with Billy Goat® solids interceptors.
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Adjustable cover adapters provide up to 4" of additional height.
SI-250 SI-500
Technical Information
Location indoor/outdoor
Installation above/below grade
Solids Capacity 109 gal. (413 L)
Liquid Capacity 125 gal. (473 L)
Flow Rates 125 GPM (7.9 L/s) at 4",
375 GPM (23.7 L/s) at 6"
Weight 190 lbs. (86 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Options
4" plain/FPT inlet/outlet
6" plain inlet/outlet with 4" pumpout port connections
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Technical Information
Location indoor/outdoor
Installation above/below grade
Solids Capacity 262 gal. (992 L)
Liquid Capacity 277 gal. (1,049 L)
Flow Rates 125 GPM (7.9 L/s) at 4",
375 GPM (23.7 L/s) at 6"
Weight 346 lbs. (171 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Options
4" plain/FPT inlet/outlet
6" plain inlet/outlet with 4" pumpout port
connections
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
AGS1 above grade support kit for SI-250
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Technical Information
Location indoor/outdoor
Installation above/below grade
Solids Capacity 457 gal (1729.9 L)
Liquid Capacity 510 gal (1,930.6 L)
Flow Rates 125 GPM (7.9 L/s) at 4",
375 GPM (23.7 L/s) at 6"
Weight 528 lbs (239.5 kg)
Access Restrictor Safety Star ® (450 lb. rating) built into cover adapters
Options
4" plain/FPT inlet/outlet 6" plain inlet/outlet with 4" pumpout port connections
C24BC composite cover, bolted 24" gas/water tight, pedestrian rated to 2,000 lbs.
C24HP cast iron cover, pickable 24" gas/water tight, H-20 rated to 16,000 lbs.
Accessories
FCR2 field cut riser
CA2 adapter for 24" corrugated pipe riser
PP3 pumpout port kit
AK1 high water anchor kit
ATD1 cover adapter tie-down kit
CC2 integral membrane clamping collar kit
AGS2 above grade support kit for SI-500
PLAIN-EA-24 2" plain end fitting
PLAIN-EA-34 3" plain end fitting
FPT-EA-23 3" × 2" FPT fitting (requires FPT-EA-34)
FPT-EA-34 4" × 3" FPT fitting
Schiergreaseinterceptorsreferenceguide
GB1GreatBasin
® indoor10gal.39lbs.2",3"20GPM70lbs.10gal.97.3%16lbs.1.3gal.TypeC
GB1GreatBasinindoor10gal.39lbs.2",3"25GPM64lbs.9gal.92.8%1.3gal.TypeC
GB1-CTGreatBasin® indoor10gal.39lbs.2",3"15GPM70lbs.10gal.1.3gal.TypeC
GB2GreatBasin® indoor20gal.49lbs.3",4"35GPM130lbs.18gal.93.3%1.8gal.TypeC
GB2GreatBasin
® indoor20gal.49lbs.3",4"50GPM127lbs.17gal.91.2%1.8gal.TypeC
GB2-CTGreatBasin® indoor20gal.49lbs.3",4"25GPM126lbs.17gal.93.2%1.8gal.TypeC
GB2-2GreatBasin® indoor40gal.98lbs.3",4"35GPM274lbs.38gal.97.8%180lbs.3.6gal.TypeC
GB3GreatBasin® indoor40gal.69lbs.4"50GPM272lbs.37gal.90.9%1.9gal.TypeC
GB3GreatBasinindoor40gal.69lbs.4"75GPM175lbs.24gal.90.1%1.9gal.TypeC
GB3-CTGreatBasin
® indoor40gal.69lbs.4"50GPM272lbs.37gal.90.9%1.9gal.TypeC
GB-50GreatBasin
® indoor/outdoor65gal.148lbs.4"50GPM439lbs.60gal.93.5%13gal.TypeD
GB-50GreatBasin
® indoor/outdoor65gal.148lbs.4"75GPM287lbs.43gal.91.2%13gal.TypeD
GB-75GreatBasinindoor/outdoor125gal.190lbs.4",6"75GPM861lbs.118gal.95.8%TypeD
GB-75-BGreatBasin
® indoor/outdoor125gal.215lbs.4",6"50GPM730lbs.100gal.98.7%623.4lbs.TypeD
GB-250GreatBasin
® indoor/outdoor277gal.376lbs.4",6"100GPM1,895lbs.260gal.96.7%69gal.TypeD
GB-250GreatBasin
® indoor/outdoor277gal.376lbs.4",6"200GPM1,196lbs.164gal.93.5%69gal.TypeC
GB-250-BGreatBasin
® indoor/outdoor277gal.390lbs.4",6"75GPM1,560lbs.256gal.99.0%1,560lbs.55gal.TypeD
GB-250-250HFGreatBasin
® indoor/outdoor277gal.376lbs.4",6"250GPM1,068lbs.146gal.69gal.TypeD
GB-500GreatBasin
® indoor/outdoor510gal.528lbs.4",6"100GPM3,048lbs.418gal.95.3%128gal.TypeC
GB-500-BGreatBasinindoor/outdoor510gal.568lbs.4",6"100GPM2,948lbs.404gal.98.9%2,817lbs.102gal.TypeD
GB-500-250HFGreatBasin
® indoor/outdoor510gal.528lbs.4",6"250GPM1,859lbs.255gal.128gal.TypeD
GB-500-500HFGreatBasin
® indoor/outdoor510gal.528lbs.4",6"500GPM1,000lbs.418gal.95.3%128gal.TypeD
GB-1000GreatBasin
® indoor/outdoor1,000gal.824lbs.4",6"100GPM5,495lbs.753gal.98.8%5,272lbs.211gal.TypeD
GB-1000GreatBasinindoor/outdoor1,000gal.824lbs.4",6"200GPM4,959lbs.679gal.96.9%3,127lbs.211gal.TypeD
GB-1500GreatBasin
® indoor/outdoor1,588gal.1,290lbs.4",6"100GPM10,061lbs.1,378gal.99.6%9,897lbs.318gal.TypeD
GB-1500GreatBasin
® indoor/outdoor1,588gal.1,290lbs.4",6"200GPM9,446lbs.1,294gal.98.4%8,093lbs.318gal.TypeD
Note 1 99% efficiency ratings are intended for Miami DERM or any jurisdiction with similar requirements.
Note 2 CT models are intended for Connecticut only.
Note 3 HF (high flow) models are intended for NYC and Vancouver or anywhere that high flow models exceeding 200 GPM are required.
Note 4 Type C: without external flow control, directly connected (internal flow control); Type D: without external flow control, indirectly connected (no flow control)
Note 5 GB-1000 and GB-1500 can be ordered with integrated pumpout ports that include cam and groove fittings and caps.
1FCR1PP1C21MSGK3CC1
1FCR2,CA2AK1PP3C24BC,C24HPCC2ATD1
1FCR2,CA2AK1PP3C24BC,C24HPCC2ATD1
1FCR2,CA2AK1PP3C24BC,C24HPCC2ATD1 1FCR2,CA2AK1PP3C24BC,C24HPCC2ATD1 2FCR2,CA2AK1PP3C24BC,C24HPAGS1CC2ATD1 2FCR2,CA2AK1PP3C24BC,C24HPAGS1CC2ATD1 2FCR2,CA2AK1PP3C24H2,C24HPAGS1CC2ATD1 2FCR2,CA2AK1PP3C24BC,C24HPAGS1CC2ATD1 2FCR2,CA2AK2PP3C24BC,C24HPAGS2CC2ATD1 2FCR2,CA2AK2PP3C24BC,C24HPAGS2CC2ATD1 2FCR2,CA2AK2PP3C24BC,C24HPAGS2CC2ATD1 2FCR2,CA2AK2PP3C24BC,C24HPAGS2CC2ATD1 2FCR2,CA2AK3optionalC24BC,C24HPCC2ATD1 2FCR2,CA2AK3optionalC24BC,C24HPCC2ATD1
3FCR2,CA2AK3optionalC24BC,C24HPCC2ATD1 3FCR2,CA2AK3optionalC24BC,C24HPCC2ATD1
