Unit CSEC03: Database Security and Computer Programming

Unit CSEC03:Database Security and Computer Programming QUALIFI Level 5 Extended Diploma in Networking and Cyber Security

ABOUT THIS WORKBOOK • The main purpose of this workbook is to support you as you study for the Qualifi Level 4 diploma in Cyber Security, so it specifically focuses on the content of the syllabus for the Unit CSEC03: Database Security and Computer Programming.

• This workbook provides underpinning knowledge and develops understanding to improve your skills as well as to prepare you for future assessment. If you are studying towards the Qualifi Level 4 diploma in Cyber Security then, if you choose to do so, you will be assessed on your knowledge and understanding of the learning outcomes.

Introduction

•

Database security concerns the use of a broad range of information security controls to protect databases (potentially including the data, the database applications or stored functions, the database systems, the database servers and the associated network links) against compromises of their confidentiality, integrity and availability. It involves various types or categories of controls, such as technical, procedural/administrative and physical. Database security is a specialist topic within the broader realms of computer security, information security and risk management.

•

In this unit the learners will explore security risks to database systems and mitigation techniques. Understanding the function of computer programming is essential to understanding the dark arts of ‘Black Hat Hackers’.

•

Learners will also examine (as a rolling case study) Python as a popular contemporary programming language. The symbiotic link between developments in computer programming and vulnerabilities to hacking will be examined and explored.

Learning Outcomes

1.

Understand the broad range of information security controls to protect databases.

2.

Understand types of database categories of control.

3.

Understand the underpinning concepts and models of cloud-based storage solutions.

4.

Understand the relationship between computer programming and computer hacking.

5.

Understand the ‘interpreted’ general-purpose programming language, Python.

Learning Outcome 1: Understand the broad range of information security controls to protect databases Assessment Criteria 1.1 Explain security risks in database systems.

1.2 Assess the effectiveness of information security concepts and tools in protecting databases.

Database • A database is an organized collection of structured information, or data, typically stored electronically in a computer system.

• A database is usually controlled by a database management system (DBMS). Together, the data and the DBMS, along with the applications that are associated with them, are referred to as a database system, often shortened to just database.

• Data within the most common types of databases in operation today is typically modeled in rows and columns in a series of tables to make processing and data querying efficient.

• The data can then be easily accessed, managed, modified, updated, controlled, and organized. Most databases use structured query language (SQL) for writing and querying data.

What Is Structured Query Language (SQL)?

SQL is a programming language used by nearly all relational databases to query, manipulate, and define data, and to provide access control.

SQL was first developed at IBM in the 1970s with Oracle as a major contributor, which led to implementation of the SQL ANSI standard, SQL has spurred many extensions from companies such as IBM, Oracle, and Microsoft.

Although SQL is still widely used today, new programming languages are beginning to appear.

Evolution of the Database

Da tabases have evolved dramatically since their i nception i n the early 1960s .

Na vi gational databases such as the hierarchical database (which relied on a tree-like model and allowed only a one-to-many relationship), and the network database (a more fl exible model that allowed multiple relationships), were the original systems us ed to s tore and manipulate data.

Al though simple, these early s ystems were i nflexible.

In the 1980s , relational databases became popular, followed by object-oriented da tabases in the 1990s.

More recently, NoSQL databases came about as a response to the growth of the i nternet and the need for faster s peed and processing of unstructured data.

Toda y, cl oud databases and self-driving databases are breaking new ground when i t comes to how data is collected, stored, managed, and utilized. (www.oracle.com, 2020)

Types of Data Stored in Databases

Information stored in a database management system can be either highly structured (such as accounting records or customer information) or unstructured (such as digital images or spreadsheets).

The data may be accessed directly by customers and employees, or indirectly through enterprise software, websites, or mobile apps. Additionally, many types of software such as business intelligence, customer relationship management, and supply chain applications use information stored in databases.

Types of Databases • There are many different types of databases. The best database for a specific organization depends on how the organization intends to use the data.

• Relational databases. Relational databases became dominant in the 1980s. Items in a relational database are organized as a set of tables with columns and rows. Relational database technology provides the most efficient and flexible way to access structured information.

• Object-oriented databases. Information in an object-oriented database is represented in the form of objects, as in object-oriented programming.

• Distributed databases. A distributed database consists of two or more files located in different sites.

The database may be stored on multiple computers, located in the same physical location, or scattered over different networks.

• Data warehouses. A central repository for data, a data warehouse is a type of database specifically designed for fast query and analysis.

NoSQL databases. A NoSQL, or no relational database, allows unstructured and semi structured data to be stored and manipulated (in contrast to a relational database, which defines how all data inserted into the database must be composed). NoSQL databases grew popular as web applications became more common and more complex.

Graph databases. A graph database stores data in terms of entities and the relationships between entities.

Types of Databases Cont.

OLTP databases. An OLTP database is a speedy, analytic database designed for large numbers of transactions performed by multiple users.

These are only a few of the several dozen types of databases in use today. Other, less common databases are tailored to very specific scientific, financial, or other functions.

Types of Databases Cont.

In addition to the different database types, changes in technology development approaches and dramatic advances such as the cloud and automation are propelling databases in entirely new directions.

Some of the latest databases include: •

Open source databases. An open source database system is one whose source code is open source; such databases could be SQL or NoSQL databases.

•

Cloud databases. A cloud database is a collection of data, either structured or unstructured, that resides on a private, public, or hybrid cloud computing platform. There are two types of cloud database models: traditional and database as a service (DBaaS).

With DBaaS, administrative tasks and maintenance are performed by a service provider.

•

Multimodel database. Multimodel databases combine different types of database models into a single, integrated back end. This means they can accommodate various data types.

Types of Databases Cont.

Document/JSON database. Designed for storing, retrieving, and managing document-oriented information, document databases are a modern way to store data in JSON format rather than rows and columns.

Self-driving databases. The newest and most groundbreaking type of database, self-driving databases (also known as autonomous databases) are cloud-based and use machine learning to automate database tuning, security, backups, updates, and other routine management tasks traditionally performed by database administrators.

What Is a Database Management System?

•

A database typically requires a comprehensive database software program known as a database management system (DBMS).

•

A DBMS serves as an interface between the database and its end users or programs, allowing users to retrieve, update, and manage how the information is organized and optimized.

•

A DBMS also facilitates oversight and control of databases, enabling a variety of administrative operations such as performance monitoring, tuning, and backup and recovery.

•

Some examples of popular database software or DBMSs include MySQL, Microsoft Access, Microsoft SQL Server, FileMaker Pro, Oracle Database, and dBASE.

Database Challenges

Today’s large enterprise databases often support very complex queries and are expected to deliver nearly instant responses to those queries.

As a result, database administrators are constantly called upon to employ a wide variety of methods to help improve performance. Some common challenges that they face include:

Absorbing significant increases in data volume. The explosion of data coming in from sensors, connected machines, and dozens of other sources keeps database administrators scrambling to manage and organize their companies’ data efficiently.

Ensuring data security. Data breaches are happening everywhere these days, and hackers are getting more inventive. It’s more important than ever to ensure that data is secure but also easily accessible to users.

Database Challenges Cont.

•

Keeping up w ith demand. In today’s fast-moving business environment, companies need real-time access to their data to support timely decision-making and to take advantage of new opportunities.

•

Managing and maintaining the database and infrastructure. Database administrators must continually watch the database for problems and perform preventative maintenance, as well as apply software upgrades and patches. As databases become mor e complex and data volumes grow, companies are faced with the expense of hiring additional talent to monitor and tune their databases.

•

Removing limits on scalability. A business needs to grow if it’s going to survive, and its data management must grow along with it. But it’s very difficult for database administrators to predict how much capacity the company will need, particularly with onpremises databases.

•

Addressing all of these challenges can be time-consuming and can prevent database administrators from performing more strategic functions.

Keeping up with demand. In today’s fast-moving business environment, companies need real -time access to their data to support timely decision-making and to take advantage of new opportunities.

Database Challenges Cont.

Managing and maintaining the database and infrastructure. Database administrators must continually watch the database for problems and perform preventative maintenance, as well as apply software upgrades and patches. As databases become more complex and data volumes grow, companies are faced with the expense of hiring additional talent to monitor and tune their databases.

Removing limits on scalability. A business needs to grow if it’s going to survive, and its data management must grow along with it. But it’s very difficult for database administrators to predict how much capacity the company will need, particularly with on-premises databases.

Addressing all of these challenges can be time-consuming and can prevent database administrators from performing more strategic functions.

Top Database Security Threats

•

Every day, hackers unleash attacks designed to steal confidential data, and an organization’s database servers are often the primary targets of these attacks.

•

Databases are one of the most compromised assets according to the 2015 Verizon Data Breach Investigations Report.

•

“The reason databases are targeted so often is quite simple, they are at the heart of any organization, storing customer records and other confidential business data,” said Morgan Gerhart, vice president of product marketing at cyber security firm Imperva.

Organizations are not protecting these crucial assets well enough, he added.

•

“When hackers and malicious insiders gain access to sensitive data, they can quickly extract value, inflict damage or impact business operations. In addition to financial loss or reputation damage, breaches can result in regulatory violations, fines and legal fees,” he said.

Top Database Security Threats Cont.

• The threats identified over the years are the same that continue to plague businesses today.

• The most common database threats include: • Excessive privileges • Legitimate privilege abuse • Database injection attacks • Malware • Storage media exposure • Exploitation of vulnerable databases • Unmanaged sensitive data • The human factor • Denial of service attack

Excessive privileges

Top Database Security Threats Cont.

• Database users may have different privileges.

• When workers are granted default database privileges that exceed the requirements of their job functions, these privileges can be abused, • Excessive privileges always create unnecessary risks. According to statistics 80% of the attacks on company databases are executed by current company employees or ex-employees.

• Some companies fail to update access privileges for employees who change roles within an organization or leave altogether.

Legitimate privilege abuse • Users may abuse legitimate database privileges for unauthorized purposes

Top Database Security Threats Cont.

Countermeasures for Excessive privileges and Legitimate privilege abuse • It is advised to deploy and uphold a strict access and privileges control policy.

• Don’t grant excessive privileges to company employees and revoke outdated privileges in time.

Database injection attacks.

Top Database Security Threats Cont.

• The two major types of database injection attacks are SQL injections that target traditional database systems and NoSQL injections that target “big data” platforms.

• This is a type of attack when a malicious code is embedded in frontend (web) applications and then passed to the backend database • As the result of database injections cybercriminals get unrestricted access to any data being stored in a database.

Countermeasures for Database injection attacks • Stored procedure shall be used instead of direct queries.

• MVC Architecture shall be implemented.

Malware A perennial threat, malware is used to steal sensitive data via legitimate users using infected devices.

Top Database Security Threats Cont.

Storage media exposure •

It’s a good practice to make backups of proprietary databases at defined periods of time.

•

However, surprisingly database back-up files are often left completely unprotected from attack.

•

As a result, there are numerous security breaches happening through database backup leaks.

•

Failure to audit and monitor the activities of administrators who have low-level access to sensitive information can put the data at risk.

Countermeasures for Storage media exposure •

Encrypt both databases and backups. Storing data in encrypted form allows secure both production and back-up copies of databases.

•

Audit both the database and backups. Doing this helps to see who has been trying to get access to sensitive data.

Top Database Security Threats Cont.

Exploitation of vulnerable databases • It often happens that databases are found totally unprotected due to misconfiguration.

• Some databases have default accounts and configuration parameters.

• One should remember that hackers are often highly professional IT specialists who surely know how to exploit database vulnerabilities and misconfigurations and use them to attack the databases.

Countermeasures for Exploitation of vulnerable databases • Databases shouldn’t have any default accounts.

• IT personnel should be highly qualified and experienced.

Unmanaged sensitive data

Top Database Security Threats Cont.

•

Many companies store a lot of sensitive information and fail to keep an accurate inventory of it.

•

Forgotten and unattended data may fall prey to hackers.

•

In addition, new sensitive data is added daily and it’s not easy to keep track of it all.

•

It means that newly added data may be exposed to threats.

•

These type of data will be exposed to threats if the required controls and permissions are not implemented

Countermeasures for Unmanaged sensitive data •

Encrypt all sensitive data in your database(s).

•

Apply required controls and permissions to the database.

•

Run periodic search for new sensitive data on your databases. You can do this very effectively with the Periodic Data Discovery tool and Compliance Manager that will automatically discover newly added sensitive data and protect it.

The Human factor

Top Database Security Threats Cont.

• Databases get breached and leaked due to insufficient level of IT security expertise and education of non-technical employees who may break basic database security rules and put databases at risk.

• IT security personnel may also lack the expertise required to implement security controls, enforce policies, or conduct incident response processes.

Countermeasures • Database users shall be educated in database security.

• IT security specialists shall be urged to raise their professional level and qualification.

Top Database Security Threats Cont.

Denial of service attack • This type of attacks slows down a database server and can even make it unavailable to all users.

• Even though a DoS attack doesn’t disclose the contents of a database, it may cost the victims a lot of time and money.

• What’s the use of a database if you can’t use or access it.

Countermeasures for Denial of service attack • Harden the TCP/IP stack by applying the appropriate registry settings to increase the size of the TCP connection queue.

• Decrease the connection establishment period.

• Employ dynamic backlog mechanisms to ensure that the connection queue is never exhausted.

• Use a network Intrusion Detection System (IDS). (www.ibm.com, 2020)

• Learning Outcome 2: • Understand types of database categories of control.

• Assessment Criteria • 2.1 Explain database terminology and categories of control.

Database Terminology • A database is a structure that organizes and stores data electronically.

• The data is stored using a database management system (DBMS) such as Microsoft Access, MySQL or Microsoft SQL Server.

• Data is organized into rows, columns, and tables, so that it can be easily accessed, managed and updated.

• Tables • A table is a set of data represented by columns and rows.

• A column is referred to as a field and a row is a combination of column values and is referred to as a record.

Database Terminology Cont.

Web site

Company

www.sum-it.nl

SUMit

www.johanvandenboom.nl

Johan van den Boom

www.lankelma.nl

Lankelma

• Tables Cont.

• Tables contain a unique set of characteristics and they store data of the same type in each row.

• A table in a database looks like a simple spreadsheet.

• Row • A row (= tuple, entry) is a group of related data, for example the data of one subscription. One row can not contain lists.

• Column • One column (data element) contains data of one and the same kind.

The example above has 3 rows and 2 columns.

Database Terminology • Data Fields • A data field which is one piece of information you track in your database.

• Each data field in the table can define the characteristics of its data as a string value, numeric value, date and/or time values.

• Relationships • A relational database contains tables that relate to another table by using a relationship.

• The tables are connected by a common field.

• The relationships are defined as: • One to Many: this is the most common type of a table relationship. For every record in Table A, there are multiple records in Table B.

• Example: There is a one to many relationship between the Customers table and Orders table. A customer may have many orders in the Order table.

Relationships Cont.

Database Terminology Cont.

Many to Many: For every record in Table A, there are multiple records in Table B, and vice versa. In this case, a third table called a Join Table is created to which will contain only unique values

Example: Many to Many relationship between Orders and Products with the table ProductsOrders functioning as the Join Table. The table ProductsOrders holds all the details about each order and what products it contains. Its primary key is a combination of the primary key of the Orders and Products table.

One to One – the rarest type of a table relationship. It is used for security and organization to avoid empty fields that only apply to some records in a table.

Database Terminology Cont.

• Keys • Key fields are used to build the relationships between data in different tables.

• Primary Key: Usually auto-numbered, unique ID for internal tracking and for matching records between related tables. Each value is unique to the table and cannot be null. There is only one Primary Key per table

• Foreign Key: A field in a related table pointing back to the Primary Key in another table. For auto-numbered fields it is defined as a number value.

• Index • An index in a database resembles an index at the back of a book.

• Using a keyword you can find the right page number of rows, within a table.

Database Terminology Cont.

• Referential Integrity • Referential Integrity makes sure that a foreign key value always points to an existing row.

• A "dead" link can not happen anymore.

• Several rules can enforce referential integrity.

• When creating or updating a row the system checks whether the foreign keys have valid values.

• In addition the database designer chooses an action for delete:

• It's only possible to delete a row in the one-table when there a no more related many-rows.

• When deleting a row the RDBMS automatically deletes the related data in the many table. This is called a cascaded delete.

• When deleting the last 'many' the RDBMS automatically deletes the related 'one' row.

Anderson Rule

• Professor Ross Anderson of Cambridge university have been arguing that by their nature large databases will never be free of abuse.

• Anderson's Rule means you cannot construct a database with scale, functionality and security because if you design a large system for ease of access it becomes insecure, while if you make it watertight it becomes impossible to use. (Anderson, 2008)

Database Control  Database control refers to the task of enforcing regulations to provide correct data to authentic users and applications of a database.

 In order that correct data is available to users, all data should

conform to the integrity constraints defined in the database.

Besides, data should be screened away from unauthorized users so as to maintain security and privacy of the database.

 Database control is one of the primary tasks of the database administrator (DBA).

 The three dimensions of database control are: 

Authentication



Access rights



Integrity constraint

Database Control Cont.

• Authentication • In a distributed database sys tem, a uthentication is the process through whi ch only l egitimate users ca n gain access to the data resources.

• Authentication can be enforced i n two l evels: • • • •

Controlling Access to Client Computer − At thi s level, user a ccess i s restricted while l ogin to the client computer that provi des useri nterface to the database server.

The most common method is a username/password combi nation. However, more sophisticated methods like bi ometric authentication may be used for high security data.

Controlling Access to the Database Software − At thi s l evel, the da tabase s oftware/administrator assigns s ome credentials to the us er.

The us er gains access to the database using these credentials.

One of the methods is to create a login account within the da tabase s erver.

Access rights

Database Control Cont.

A user’s access rights refers to the privileges that the user is given regarding DBMS operations such as the rights to create a table, drop a table, add/delete/update tuples in a table or query upon the table.

In distributed environments, since there are large number of tables and yet larger number of users, it is not feasible to assign individual access rights to users. So, DDBMS defines certain roles.

A role is a construct with certain privileges within a database system.

Once the different roles are defined, the individual users are assigned one of these roles. Often a hierarchy of roles are defined according to the organization’s hierarchy of authority and responsibility.

• Integrity constraint • Semantic Integrity Control • Semantic integrity control defines and enforces the integrity constraints of the database system.

• The integrity constraints are as follows:

Database Control Cont.

• Data type integrity constraint • Entity integrity constraint • Referential integrity constraint

• Data Type Integrity Constraint • A data type constraint restricts the range of values and the •

type of operations that can be applied to the field with the specified data type.

For example, let us consider that a table "HOSTEL" has three fields - the hostel number, hostel name and capacity.

The hostel number should start with capital letter "H" and cannot be NULL, and the capacity should not be more than 150.

Database Control Cont.

• Integrity constraint Cont.

• Semantic Integrity Control Cont.

• Entity Integrity Control • Entity integrity control enforces the rules so that each tuple can be uniquely identified from other tuples. For this a primary key is defined. A primary key is a set of minimal fields that can uniquely identify a tuple.

• Entity integrity constraint states that no two tuples in a table can have

identical values for primary keys and that no field which is a part of the primary key can have NULL value.

• Integrity constraint Cont.

Database Control Cont.

• Semantic Integrity Control Cont.

• Referential Integrity Constraint • Referential integrity constraint lays down the rules of foreign keys.

• A foreign key is a field in a data table that is the primary key of a related table. The referential integrity constraint lays down the rule that the value of the foreign key field should either be among the values of the primary key of the referenced table or be entirely NULL.

In addition to implementing layered security controls across the entire network environment, database security requires to establish the correct controls and policies for access to the database itself.

These include:

Database Control Cont.

Administrative controls to govern installation, change, and configuration management for the database.

Preventative controls to govern access, encryption, tokenization, and masking.

Detective controls to monitor database activity monitoring and data loss prevention tools. These solutions make it possible to identify and alert on anomalous or suspicious activities.

Database Control Cont.

• Database security policies should be integrated with and support the overall business goals, such as protection of critical intellectual property and cyber security policies and cloud security policies.

• Ensure to designated responsibility for maintaining and auditing security controls within the organization and that the policies complement those of the cloud provider in shared responsibility agreements.

• Security controls, security awareness training and education programs, and penetration testing and vulnerability assessment strategies should all be established in support of the formal security policies. (www.ibm.com, 2020)

Case studies in big data organisation and breach incidents

Case studies in big data organisation and breach incidents Cont.

Case studies in big data organisation and breach incidents Cont.

• Sina Weibo • Date: March 2020

Impact: 538 million accounts Details: With over 500 million users, Sina Weibo is China’s answer to Twitter. However, in March 2020 it was reported that the real names, site usernames, gender, location, and -- for 172 million users -- phone numbers had been posted for sale on dark web markets. Passwords were not included, which may indicate why the data was available for just ¥1,799 ($250).

• Weibo acknowledged the data for sale was from the company,

but claimed the data was obtained by matching contacts against its address book API. It also said that since doesn't store passwords in plaintext, users should have nothing to worry about. This, however, doesn’t tally as some of the information being offered such as location data, isn’t available via the API. The social media giant said it had notified authorities about the incident and China’s Cyber Security Administration of the Ministry of Industry and Information Technology said it is investigating.

Case studies in big data organisation and breach incidents Cont.

• Marriott International • Date: 2014-18

Impact: 500 million customers Details: Marriott International announced in November 2018 that attackers had stolen data on approximately 500 million customers. The breach initially occurred on systems supporting Starwood hotel brands starting in 2014. The attackers remained in the system after Marriott acquired Starwood in 2016 and were not discovered until September 2018.

• The attackers were able to take some combination of contact

information, passport number, Starwood Preferred Guest numbers, travel information, and other personal information. The credit card numbers and expiration dates of more than 100 million customers were believed to be stolen, but Marriott is uncertain whether the attackers were able to decrypt the credit card numbers. The breach was eventually attributed to a Chinese intelligence group seeking to gather data on US citizens, according to a New York Times article.

Case studies in big data organisation and breach incidents Cont.

• MySpace • Date: 2013 Impact: 360 million user accounts Details: Though it had long stopped being the powerhouse that it once was, social media site MySpace hit the headlines in 2016 after 360 million user accounts were leaked onto both LeakedSource (a searchable database of stolen accounts) and put up for sale on dark web market The Real Deal with an asking price of 6 bitcoin (around $3,000 at the time).

• According to the company, lost data included email addresses, passwords and usernames for “a portion of accounts that were created prior to June 11, 2013, on the old Myspace platform.”

According to Troy Hunt of HaveIBeenPwned, the passwords were stored as SHA-1 hashes of the first 10 characters of the password converted to lowercase.

Case studies in big data organisation and breach incidents Cont.

• eBay • Date: May 2014 Impact: 145 million users Details: eBay reported that an attack exposed its entire account list of 145 million users in May 2014, including names, addresses, dates of birth and encrypted passwords. The online auction giant said hackers used the credentials of three corporate employees to access its network and had complete access for 229 days—more than enough time to compromise the user database.

• The company asked customers to change their passwords. Financial information, such as credit card numbers, was stored separately and was not compromised. The company was criticized at the time for a lack of communication with its users and poor implementation of the password-renewal process.

• (www.csoonline.com, 2020)

Learning Outcome 3:

Understand the underpinning concepts and models of cloud-based storage solutions.

Assessment Criteria

3.1 Explore the functionality of database tools available to Data Owners, Custodians, Incident Responders and Investigators.

Data protection tools and platforms

Today, a wide array of vendors offer data protection tools and platforms. A fullscale solution should include all the following capabilities:

Discovery

Look for a tool that can scan for and classify vulnerabilities across all the databases, whether they’re hosted in the cloud or on-premise and offer recommendations for remediating any vulnerabilities identified.

Discovery capabilities are often required to conform to regulatory compliance mandates.

Data activity monitoring

Data protection tools and platforms Cont.

• The solution should be able to monitor and audit all data activities across all databases, regardless of whether the deployment is on-premise, in the cloud, or in a container.

• It should alert the suspicious activities in real-time so that the companies can respond to threats more quickly.

• Database administrators want a solution that can enforce rules, policies, and separation of duties and that offers visibility into the status of the data through a comprehensive and unified user interface.

• Make sure that any solution that choose can generate the reports which shall need to meet compliance requirements.

Data protection tools and platforms Cont.

Encryption and tokenization capabilities • In case of a breach, encryption offers a final line of defense against compromise.

• Any tool that choose should include flexible encryption capabilities that can safeguard data in on-premise, cloud, hybrid, or multicloud environments.

• Look for a tool with file, volume, and application encryption capabilities that conform to the industry’s compliance requirements, which may demand tokenization (data masking) or advanced security key management capabilities.

Data security optimization and risk analysis

Data protection tools and platforms Cont.

A tool that can generate contextual insights by combining data security information with advanced analytics will enable to accomplish optimization, risk analysis, and reporting with ease.

Choose a solution that can retain and synthesize large quantities of historical and recent data about the status and security of the databases, and look for one that offers data exploration, auditing, and reporting capabilities through a comprehensive but user-friendly self-service dashboard.

Functionality of database tools

Among the most significant database tools, we can find the following:

Database Visualization

With database visualization, organizations obtain visual representation and graphics of data that help them understand it and make better, more informed business decisions.

Through database visualization tools, database admins can fully understand the raw data that lives in databases and gain value from it by identifying patterns or trends.

By visualizing a database, users get to explore data in a more effective manner that allows for deeper analysis.

Performance Testing • Databases typically include complex sets of data that can create performance issues if not thoroughly examined.

Functionality of database tools Cont.

• With database performance testing, users can take preemptive actions that can help correct any issue that is identified during the testing process.

• By simulating real-life load for databases, administrators can pinpoint how the database will react under the specific circumstances when multiple users use the database simultaneously.

Database Backup

Functionality of database tools Cont.

• Database backup and recovery are strategies and procedures that help ensure the database is protected against data loss and the associated problems of reconstruction.

• By backing up a database, users create a duplicate database for use in case of a crash, data corruption, or any type of data loss.

• In essence, database backups help recover data easily and reconstruct it in case of loss.

Functionality of database tools Cont.

Database Backup Cont.

Grandfather-Father-Son (GFS) The method of ‘Grandfather-Father-Son’ backup scheme belongs to the most widely used schemes.

This scheme uses daily (Son), weekly (Father) and monthly (Grandfather) medium sets.

Four medium sets are titled everyday backup of workweek (i.e. Monday to Thursday).

On these medium sets (titled as Son in the scheme of GFS) the incremental backups take place.

These medium sets (Son) are repeatedly rewritten during the next week.

Functionality of database tools Cont.

Database Backup Cont.

Grandfather-Father-Son (GFS) • Another group of five medium sets, which is included in the GFS scheme, are medium sets titled as Week 1, Week 2, and so on (Father).

Refer the figure:

Functionality of database tools Cont.

Database Backup Cont.

Grandfather-Father-Son (GFS) On these medium sets (Father) the full backups take place every week, the Son medium sets are not used, and the expiration time of ‘Father’ group is one month.

Then their rewriting follows. The final medium set ‘Grandfather’ consists of 3 medium sets (medium set may be composed of one or many tapes) and it is titled as ‘Month 1, Month 2, Month 3, and so on’.

On these medium sets the follow-up rewriting takes place once per three months and more (depends on how many sets are devoted to ‘Grandfather’ group.

The expiration of these sets (it is the possibility of another rewriting) is adjusted according to the number of medium sets in Grandfather Group.

Database Backup Cont.

Grandfather-Father-Son (GFS)

Functionality of database tools Cont.

Each ‘medium set’ of tape groups (Son, Father or Grandfather) is either individual or a set of tapes. That is dependent on the size of backed-up data.

The total number of used medium sets in the GFS backup scheme is twelve. By reason of tape wear and by reason of keeping a longer history (archiving) it is recommended to change the medium sets for new ones in a certain time period. (Anderson, 2008)

Database Migration • It is the movement of data from one platform to another.

Functionality of database tools Cont.

• Through several stages and iterations, database migration takes into consideration the current state of the database as well as the future needs of the organization, migrating the schema and moving the data simultaneously.

• One of the main benefits associated with database migration is cost as it enables companies to move from an on-premise database to a cloud database in a cost-effective manner.

Data Redundancy

Functionality of database tools Cont.

It is the duplication of data in different places, whether by accident or done deliberately for backup and recovery purposes.

DBMS software provides control over data redundancy and saves storage space by doing so.

Typically, DBMS solutions use data normalization techniques to avoid unnecessary redundancy and duplicate data.

Learning Outcome 4: Understand the relationship between computer programming and computer hacking.

Assessment Criteria

4.1 Explain various popular computer programming languages.

4.2 Analyse the relationship between programming skills and the ability to hack into systems.

Computer programming language

•

Computer programming languages allow us to give instructions to a computer in a language the computer understands.

•

Such instructions can be executed directly when they are in the computer manufacturer-specific numerical form known as machine language, after a simple substitution process when expressed in a corresponding assembly language, or after translation from some “higher-level” language.

•

Machine and assembly languages are “low-level,” requiring a programmer to manage explicitly all of a computer’s idiosyncratic features of data storage and operation.

•

In contrast, high-level languages shield a programmer from worrying about such considerations and provide a notation that is more easily written and read by programmers.

Computer programming language Although there are many computer languages, relatively few are widely used.

Just as many human-based languages exist, there are an array of computer programming languages that programmers can use to communicate with a computer.

The portion of the language that a computer can understand is called a “binary.”

Just as many human-based languages exist, there are an array of computer programming languages that programmers can use to communicate with a computer.

Translating programming language into binary is known as “compiling.”

Computer programming language

•

Each language, from C Language to Python, has its own distinct features, though many times there are commonalities between programming languages.

•

These languages allow computers to quickly and efficiently process large and complex swaths of information.

•

For example, if a person is given a list of randomized numbers ranging from one to ten thousand and is asked to place them in ascending order, chances are that it will take a sizable amount of time and include some errors.

•

There are dozens of programming languages used in the industry today. Here we've compiled overviews of the most important, relevant and in-demand of these languages.

Introduction to Python

Where did it Start?

• Python was developed in the late 1980s at CWI in the Netherlands and first released to the public in 1991.

• Python is an easy to learn, powerful programming language. It has efficient high-level data structures and a simple but effective approach to object-oriented programming.

• Python’s elegant syntax and dynamic typing, together with its interpreted nature, make it an ideal language for scripting and rapid application development in many areas on most platforms.

• The Python interpreter and the extensive standard library are freely available in source or binary form for all major platforms from the Python Web site, https://www.python.org/, and may be freely distributed. (www.python.org, 2020)

Introduction to Python Cont.

• The same site also contains distributions of and pointers to many free third-party Python modules, programs and tools, and additional documentation.

• The Python interpreter is easily extended with new functions and data types implemented in C or C++ (or other languages callable from C).

• Python is also suitable as an extension language for customizable applications.

Introduction to Python Cont.

Who use it?

•

Professions and Industries: •

Python developers, software engineers, back end developers, Python programmers

•

Used by employers in information technology, engineering, professional services and design

•

Major Organizations: Google, Pinterest, Instagram, YouTube, DropBox, NASA, ESRI

•

Specializations and Industries: Web and Internet development (frameworks, micro-frameworks and advanced content management systems); scientific and numeric computing; desktop graphical user interfaces (GUIs)

Introduction to Python Cont.

What makes learning Python important?

•

Python lets you work quickly to integrate systems as a scripting or glue language. It’s also suited for Rapid Application Develop (RAD).

•

The game Civilization 4 has all its inner logic, including AI, implemented in Python.

•

NASA uses Python in its Integrated Planning System as a standard scripting language.

Features: • Simple to learn and easily read • Associated web frameworks for developing web-based applications • Free interpreter and standard library available in source or binary on major platforms (www.python.org, 2020)

Introduction to Java •

Java is a general-purpose, object-oriented, high-level programming language with several features that make it ideal for web-based development.

•

Originally known as Oak, Java was developed in 1990 at Sun Microsystems to add capabilities to the C++ language. Java was developed according to the principle of WORA (Write Once Run Anywhere). The language was introduced to the public in 1995 and is now owned by Oracle.

Who use it?

•

Professions and Industries: • Software engineers, Java developers •

Used by employers in communications, education, finance, health sciences, hospitality, retail and utilities

•

Major Organizations: V2COM, Eclipse Information Technologies, eBay, Eurotech

•

Specializations and Industries: Internet of Things (IoT), Enterprise Architecture, Cloud Computing

Introduction to Java Cont.

• Java is used to develop enterprise-level applications for video games and mobile apps, as well as to create web-based applications with JSP (Java Server Pages). When used online, Java allows applets to be downloaded and used through a browser, which can then perform a function not normally available.

• Programs that use or are written in Java include Adobe Creative Suite, Eclipse, Lotus Notes, Minecraft and OpenOffice.

• Java is the core foundation for developing Android apps.

Features: • Application portability • Robust and interpreted language • Extensive network library

Introduction to Ruby/Ruby on Rails •

Ruby is an open-sourced, object-oriented scripting language that can be used independently or as part of the Ruby on Rails web framework.

•

Designed in 1995, Ruby’s creator described it as “simple in appearance, but it is very complex inside, just like our human body.”

•

Ruby is used for simulations, 3D modeling, and to manage and track information.

•

Basecamp, Amazon, Twitter and Groupon were all created using Ruby on Rails.

•

NASA uses Ruby to conduct simulations.

Features: •

Free to use, copy, modify and distribute

•

Intuitive and flexible language

•

Completely object-oriented (ability to use method chaining)

Introduction to Ruby/Ruby on Rails Cont.

Who use it?

•

Professions and Industries: • Ruby on Rails developers, software engineers, data science engineers • Used by employers in technology, engineering, professional services, design, science and quality control

•

Major Organizations: Github, Scribd, Groupon, NASA Langley Research Center, Blue Sequence (part of Toyota Motor Manufacturing), Motorola, Google (SketchUp)

•

Specializations and Industries: Web App Development, Robotics, Networking, System Administration and Security

Introduction to JavaScript.

•

JavaScript is a client-side programming language that runs inside a client browser and processes commands on a computer rather than a server. It is commonly placed into an HTML or ASP file. Despite its name, JavaScript is not related to Java.

•

JavaScript was designed by Netscape and originally known as LiveScript, before becoming JavaScript in 1995.

•

JavaScript is used primarily in Web development to manipulate various page elements and make them more dynamic, including scrolling abilities, printing the time and date, creating a calendar and other tasks not possible through plain HTML. It can also be used to create games and APIs.

•

The agency Cyber-Duck in Britain uses public APIs, created with JavaScript, to pull in data about crime and enables users to review a local area.

•

Tweetmap, created by Pete Smart and Rob Hawkes using JavaScript, represents a world map that is proportionally sized according to the number of tweets.

Features: •

Basic features are easy to learn

•

Multiple frameworks

•

Users can reference JQuery, a comprehensive Javascript library

Introduction to JavaScript Cont.

Who Users It? • Professions and Industries: • JavaScript developers, Web developers, software engineers • Used by employers in Information Technology, Engineering, Design, Marketing, Finance and Healthcare

• Major Organizations: WordPress, Soundcloud, Khan Academy, Linkedin, Groupon, Yahoo and many others • Specializations and Industries Where JavaScript is Used Most: Front End Website Development, Gaming Development

Introduction to Swift

Introduction to Swift Cont.

Who Uses It? •

Professions and Industries:

•

Swift Platform Developers, iOS Mobile Application Developers, Software Developers, Senior Programmers, Data Engineers

•

Information Technology, Engineering, Design, Management and Professional Services

•

Major Organizations:Apple, Getty Images, Slack, Dow Jones, Playlist Media

•

Specializations Where Swift is Used Most: Software development

Introduction to C++ •

C++ is a general purpose, object-oriented, middle-level programming language and is an extension of C language, which makes it possible to code C++ in a “C style”. In some situations, coding can be done in either format, making C++ an example of a hybrid language.

•

Released in 1983 and often considered an object-oriented version of C language, C++ was created to compile lean, efficient code, while providing high-level abstractions to better manage large development projects.

•

The C++ language is used to create computer programs and packaged software, such as games, office applications, graphics and video editors and operating systems.

•

The Blackberry OS is developed using C++.

•

The newest Microsoft Office suite was developed using C++.

Features: •

Often the first programming language taught at college level

•

Quick processing and compilation mechanism

•

Robust standard library (STL)

Introduction to C++ Cont.

Who Uses It? •

Professions and Industries: •

C++ software engineers, C++ software developers, embedded engineers, programmer analysts

•

Used by employers in Information Technology, Engineering, Professional Services, Design, Quality Control and Management

•

Major Company and Organization Users: Google, Mozilla, Firefox, Winamp, Adobe Software, Amazon, Lockheed Martin

•

Specializations: System/Application Software, Drivers, Client-Server Applications, Embedded Firmware

Introduction to HTML (Hypertext Markup Language) •

HTML is the standard markup language used to create web pages; it ensures proper formatting of text and images (using tags) so that Internet browsers can display them in the ways they were intended to look.

•

HTML was created by physicist Tim Berners-Lee in 1990 to allow scientists to share documents online. Before then, all communication was sent using plain text. HTML made “rich” text possible (i.e. text formatting and visual images).

•

HTML is used to create electronic documents (pages) displayed online. Visit any page and you will see an example of HTML in action.

•

The diversity and complexity in the structure and appearance of today’s sites is made possible with HTML.

Features: • Easy to use and learn the basics of HTML • •

Free and accessible Multiple versions available

Introduction to HTML (HyperText Markup Language) Cont.

Who Uses It? • Professions and Industries: • Web developers, technical editors, email designers, software engineers • Used by employers in Information Technology, Engineering, Design, Professional Services, Management, Marketing, Customer Services and Sales • Major Organizations: Apple, CyberCoders, Apex Systems, CareerBuilder • Specializations and Industries Where HTML is Used Most: Web Development, Email Programming

We generally write a computer program using a high-level language. A high-level language is one that is understandable by us, humans. This is called source code.

Compiled and interpreted programming languages

However, a computer does not understand high-level language. It only understands the program written in 0's and 1's in binary, called the machine code.

To convert source code into machine code, we use either a compiler or an interpreter.

Both compilers and interpreters are used to convert a program written in a high-level language into machine code understood by computers.

However, there are differences between how an interpreter and a compiler works.

Compiled and interpreted programming languages Cont.

Compiled Languages • Compiled languages are converted directly into machine code that the processor can execute. As a result, they tend to be faster and more efficient to execute than interpreted languages. They also give the developer more control over hardware aspects, like memory management and CPU usage.

• Compiled languages need a “build” step – they need to be manually compiled first. You need to “rebuild” the program every time you need to make a change.

• Examples of pure compiled languages are C, C++, Erlang, Haskell, Rust, and Go.

Compiled and interpreted programming languages Cont.

Advantages of compiled languages

Disadvantages of compiled languages

Programs that are compiled into native machine code tend to be faster than interpreted code.

The most notable disadvantages are: •Additional time needed to complete the entire compilation step before testing •Platform dependence of the generated binary code

This is because the process of translating code at run time adds to the overhead and can cause the program to be slower overall.

Compiled and interpreted programming languages Cont.

Interpreted Languages • Interpreters run through a program line by line and execute each command.

• Interpreted languages were once significantly slower than compiled languages. But, with the development of just-in-time compilation, that gap is shrinking.

• Examples of common interpreted languages are PHP, Ruby, Python, and JavaScript.

Compiled and interpreted programming languages Cont.

Advantages of interpreted languages • Interpreted languages tend to be more flexible, and often offer features like dynamic typing and smaller program size. Also, because interpreters execute the source program code themselves, the code itself is platform independent.

Disadvantages of interpreted languages • The most notable disadvantage is typical execution speed compared to compiled languages.

Compiled Language A compiled language is a programming language whose implementations are typically compilers and not interpreters.

Difference between Compiled and Interpreted Language

Interpreted Language An interpreted language is a programming language whose implementations execute instructions directly and freely, without previously compiling a program into machinelanguage instructions.

Once the program is compiled it is The instructions are not directly expressed in the instructions of executed by the target the target machine. machine.

Error are displayed after the entire Error are displayed for every program is compiled single instruction.

Memory requirement is more due Memory requirement is less. to the creation of object code.

There are at least two steps to get from source code to execution.

There is only one steps to get from source code to execution.

Source code ---Compiler --Machine Code ---Output

Source Code ---Interpreter --Output

Compiled Language Interpreted Language Compiled programs run faster Interpreted programs can be than interpreted programs. modified while the program is running.

Compilation errors prevent the All the debugging occurs at runcode from compiling. time.

The code of compiled language A program written in an can be executed directly by the interpreted language is not computer’s CPU. compiled, it is interpreted.

Delivers better performance. e.g: C,C++, Java

Delivers relatively slower performance. e.g: Perl, Python, Ruby

Difference between Compiled and Interpreted Language Cont.

• Programmers solve problems using code, a Hacker is a creator/tinkerer, and a Developer is a formally trained programmer who doesn’t just solve problems but does so in a structured and disciplined way that was probably learned formally.

Programming skills and the ability to hack into systems

• A Programmer is someone who can solve problems by manipulating computer code. They can have a wide range of skill levels—from just being “ok” with basic scripting to being an absolute sorcerer with any language.

• A Hacker is someone who makes things. In this context, it’s someone who makes things by programming computers.

This is the original, and purest definition of the term, i.e., that you have an idea and you “hack” something together to make it work. It also applies to people who tinker with things in a way that extends or changes their functionality, or otherwise uses them in ways that weren’t originally intended.

Programming skills and the ability to hack into systems A Developer is a formally trained programmer. They don’t just solve problems or create things but do so in accordance with a set of design and implementation principles.

These include things like performance, maintainability, scale, robustness, and (ideally) security.

What developers, hackers, and programmers all have in common is that they solve problems using code.

Relationship between developments in computer programming skills and hacking •

People can be any combination of Developer, Programmer or a hacker. Here’s how they relate to each other

•

All hackers and developers are programmers.

•

Some people started out as programmers and became hackers. They typically become very good at their job, as they can understand the code and how to patch it.

•

Many programmers, and even developers, are not creative enough to be considered hackers.

•

Many programmers, and even hackers, are not educated or experienced enough to be considered developers.

•

Ideally, one would strive to be all three, i.e., creative enough to be considered a hacker, but with enough formal training and experience to design software rather than simply, hacking it together.

Relationship between developments in computer programming skills and hacking • But even if someone aren’t very creative, and/or lack the education and/or experience to properly build massive applications, should still be proud to be a programmer.

• Solving problems using code is a superpower by itself.

• While the programmer may be good at writing programs, that are also secure, the hacker’s job is to understand the code and find bugs in it, and generally suggest patches too.

• A hacker may not be able to write a big program from scratch, but they are generally able to review source code in most languages and find security issues that the programmer missed.

• The programmer’s job is generally to create an application.

• The hacker’s job is to use that application in an unintended way, and in some cases, the hacker will need to know some programming in order to make the program execute his or her own code perhaps

Relationship between developments in computer programming skills and hacking Programmer

Hacker

A programmer is one who writes code.

A hacker is one who exploits vulnerabilities on a system or a network.

Someone who can solve problems by manipulating computer code is known as a programmer.

Someone who makes things. In this context, it’s someone who makes things by programming computers is known as a hacker.

The programmer is a problem solver.

The Hacker is the creator.

Many programmers are not creative enough to be considered hackers.

All hackers are programmers.

LEARNING OUTCOME 5:

INVESTIGATE WHERE NON-MALICIOUS AND MALICIOUS HACKERS HAVE UTILISED PYTHON.

ASSESSMENT CRITERIA

5.1 INVESTIGATE WHERE NON-MALICIOUS AND MALICIOUS HACKERS HAVE UTILISED PYTHON.

Investigate where non-malicious and malicious hackers have utilised Python

• Python is one of the fastest-growing programming languages than any other language and playing a major role in Ethical hacking & cyber security industries that mainly used to develop the various penetration testing and hacking tools.

• Python is one of the well-known programming languages that can help crack into the big databases.

• It is one of the desired code-cracker for hackers all over the world.

Investigate where non-malicious and malicious hackers have utilised Python Why is Python language used for Hacking?

•

Its 3-5 times shorter than Java programs, as Python not just presents excellent ease for Python developers, but the programmer can be more fruitful in Python.

•

With a mere and simple syntax and a code style guideline that promotes the usage of formatting of codes, it’s all recommendation for beginners. It’s just the best programming language to nail it.

•

Python is a dynamic language with high-level inbuilt data standards.

Thus it enables developers to maintain multiple variables at the equivalent time, thus limiting any loss of time.

•

It’s a simple language for hackers that utilize simple functions and variables.

Investigate where non-malicious and malicious hackers have utilised Python Python : Scripting language •

Python is evaluated as a general-purpose programming language, and not only this, it is also known as a scripting language.

•

Python is a vast language, not just because it is extensively used in software development, web frameworks, and applications.

•

Still, the effective programming language can be utilized for everything that is created on the Java platform.

•

However, the fact is that Python is a high-level scripting language that can promptly join existing elements together.

•

The most exciting feature of python regarding hackers is that there are a lot of python-modules that can encourage hackers to reproduce exploit scripts.

Python Offers a Rich Library For Support

Investigate where nonmalicious and malicious hackers have utilised Python

• Hacking, as an object, needs utilizing libraries that can do the language reversal task.

• Python library consolidates built-in modules (written in C) that present a free hand over system functionality just as file I/O that would contrarily be unavailable to Python programmers.

• Python has a tremendous rebuilt and a very conventional library that can make hacking a kid’s play for an already well-knowledged person for hacking.

• It has great third-party libraries that assist hackers in getting the job done • As it encourages the hacker to do away with existing tracked by Anti-viruses (AV), invasion detection system, and many more, so, it has to be a chosen language between hackers.

Investigate where nonmalicious and malicious hackers have utilised Python Security incidents by tool Noticeably Python, continued to be the weapon of choice for most hackers.

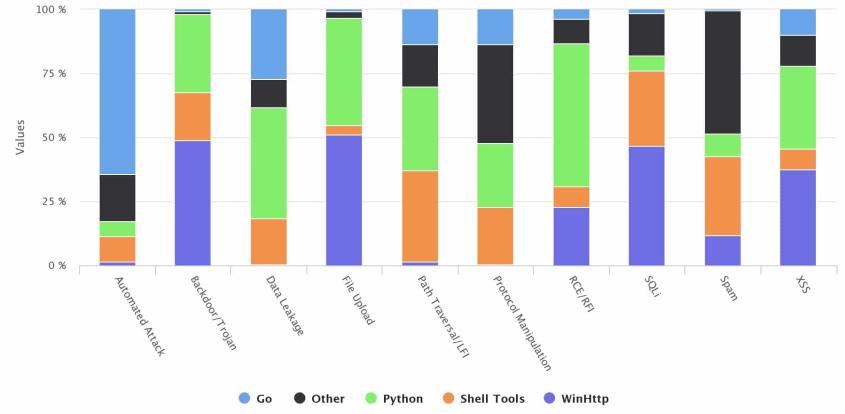

Next, we can see Google’s Go, WinHttp library, which is mainly used by .net and CPP running on Windows, followed by Shell tools such as cURL, wget and others. The rest of the top tools were more. (www.imperva.com, 2020)

Investigate where non-malicious and malicious hackers have utilised Python Cont.

• As illustrated below, Python was the strongest tool in RCE/RFI, File Upload and Data Leakage attacks during the year 2019. China used Python way more than any other country. It’s hard to say why but given how wellknown these countries are for their cyber activity, it’s possible that new hackers joining the market chose modern tools for their nefarious activities. (www.imperva.com, 2020)

Investigate where nonmalicious and malicious hackers have utilised Python Cont.

As stated above that Python is the most desired programming language employed by hackers since it’s an open-source language, which means that hackers can manage the stuff that other hackers have earlier made.

Not only this as being free and high-level language, but it also occurs with a group of genius support as well.

Though unethical hacking isn’t an apprehended thing to do, ethical hacking and re-coding in phases of upgrading and adjustment is an attached advantage that Python has in store to attempt.

Additional reading and resources

• Alfred Basta & Melissa Zgola (2011) Database Security, Boston: USA: Cengage Learning • Mark Lutz (2013) Learning Python (5th Ed.) Newton: USA, O’Reilly Media

THE END
