ABOUT US
For nearly 15 years, SL Lighting has been creating lighting that transforms spaces and enriches the way we live. We believe lighting should go beyond illumination—it should create ambience, define character, and bring lasting beauty to every environment.
All of our products are designed and engineered in the UK, where premium materials and advanced LED technology are combined to deliver luminaires of exceptional quality, durability, and timeless style.
A majority of our products are exclusive to SL Lighting, offering distinctive designs not found elsewhere. Many are built to the CRI 90 colour rendering standard, ensuring colours, textures, and finishes appear true to life—allowing spaces to be enjoyed exactly as envisioned.
As lighting design continues to evolve, we remain committed to innovation, producing collections that embrace new technology while staying true to our values of originality, durability, and design excellence. Lighting today, for a beautiful tomorrow.
BANBURY pg 4-9
ENZO pg 10-12
NICO pg 13-15
ROUND PANELS pg 16-19
FLEX PACK pg 20
OUTDOOR
KNURLED pg 22-24
REN pg 25-28
UM pg 29-31
LEO pg 32-34
CLEO pg 35-36
OSCAR MODULAR pg 37-42
CONVEX SHALLOW pg 43-45

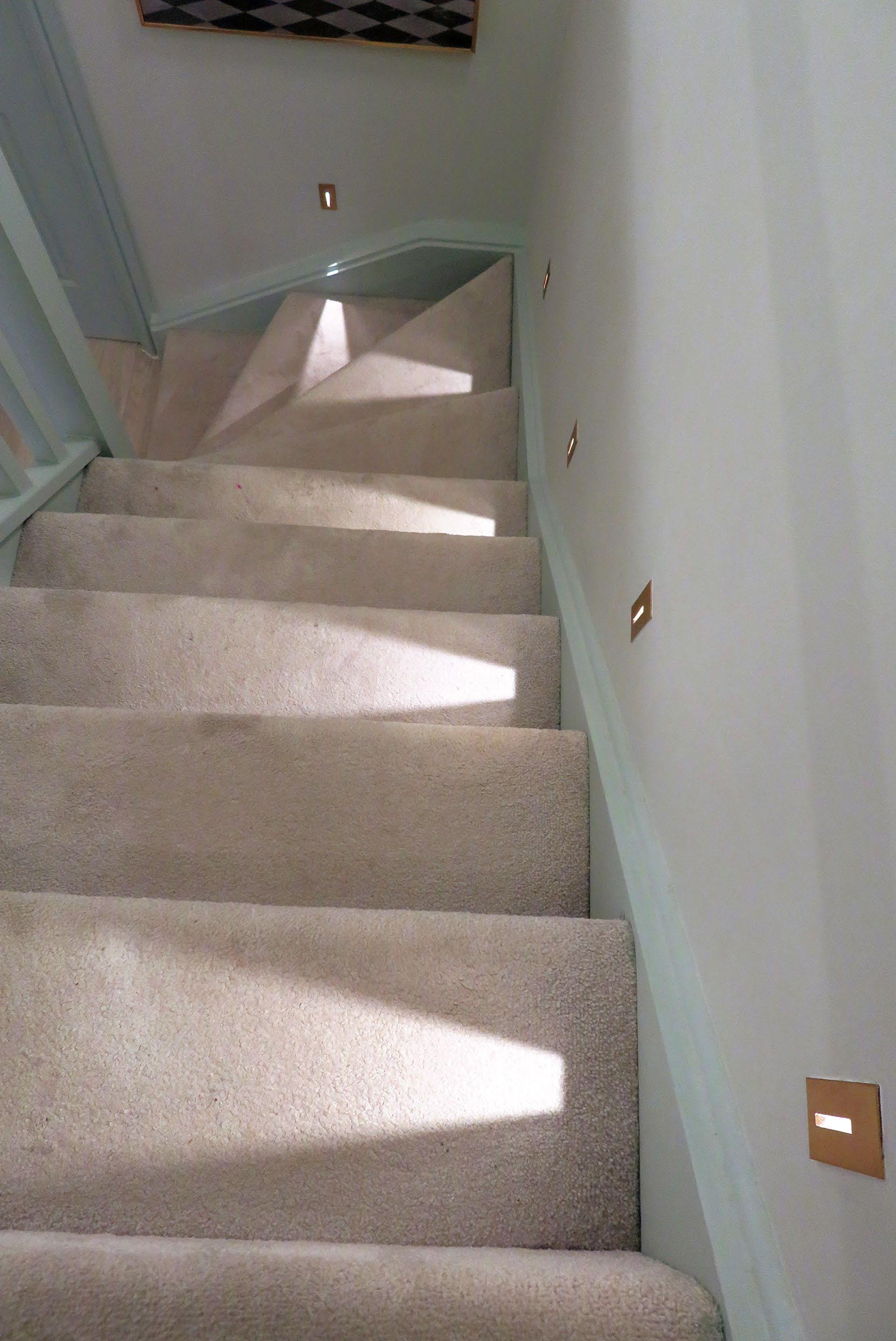

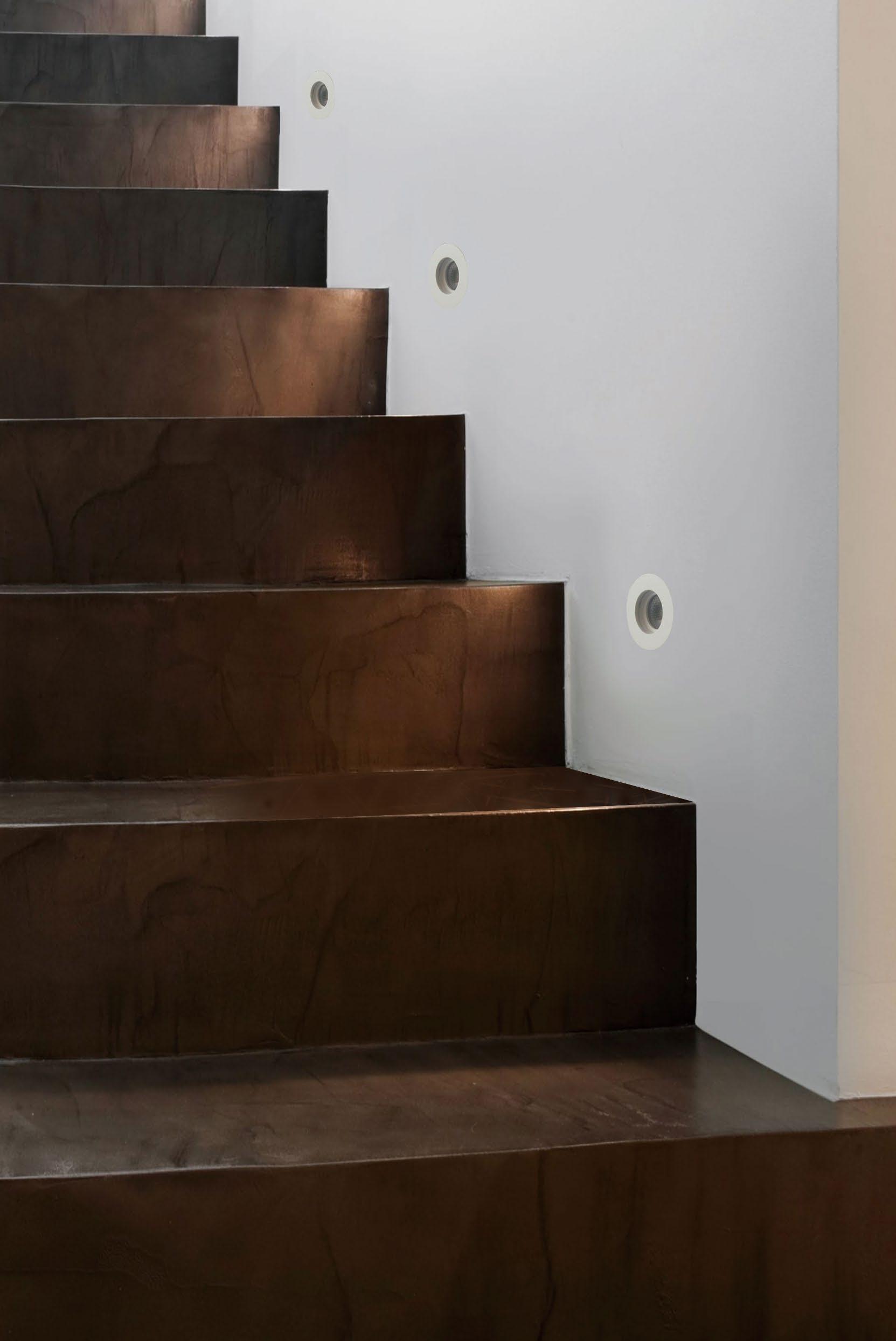

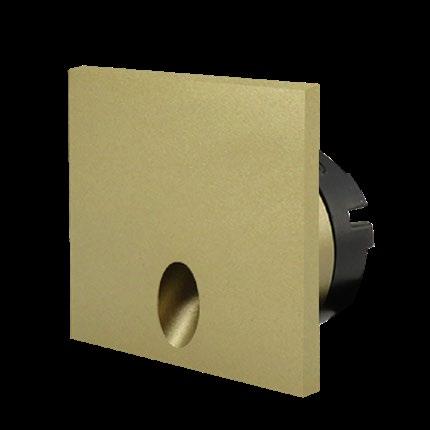

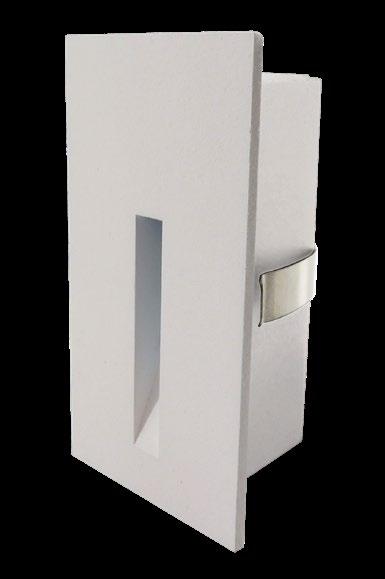

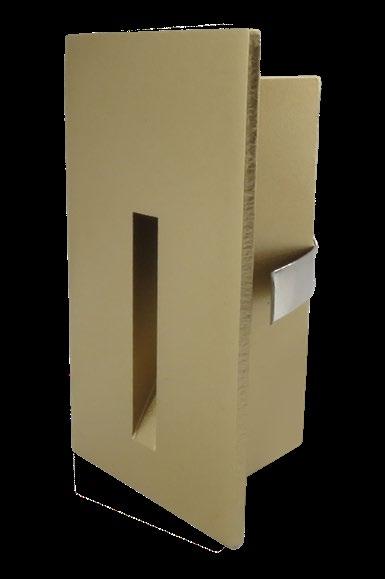

MARKER LIGHTS
SOFIA pg 47-49
MIA SQUARE pg 50-51
MIA ROUND pg 52-53
LOLA pg 54-57
ELLA pg 58-62
CHLOE pg 63-65
CLARA pg 66-68
MAYA pg 69-70
TRIMLESS MAYA pg 71-72

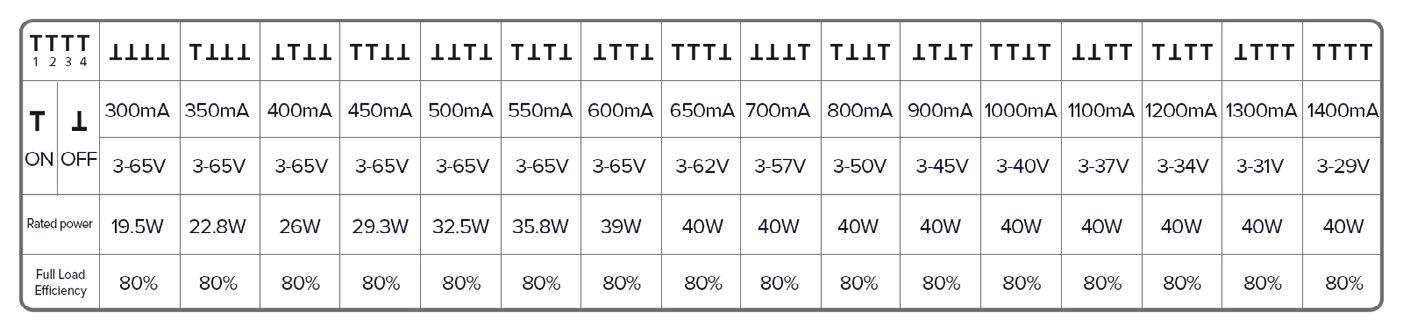

DIMMABLE DRIVERS pg 73-76
LED STRIP, CONTROLLERS,DRIVERS
NEON COB STRIP pg 78-80
IC COB STRIP pg 81-83
IC RGBW COB LED STRIP pg 84-85
120 LED STRIP pg 86-88
RGB LED STRIP pg 89-90
WALL CONTROLLERS pg 91-93

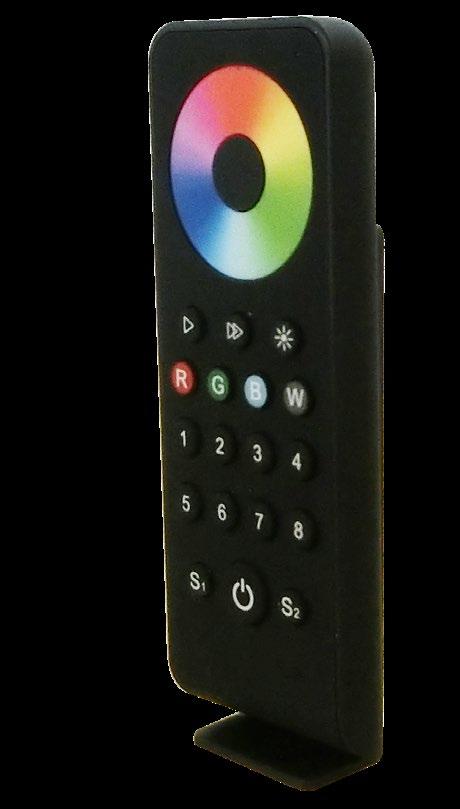

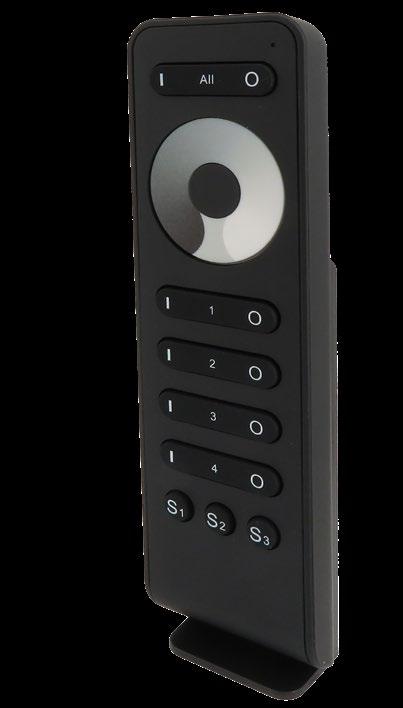

RF REMOTES pg 94-95
RF CONTROLLER pg 96

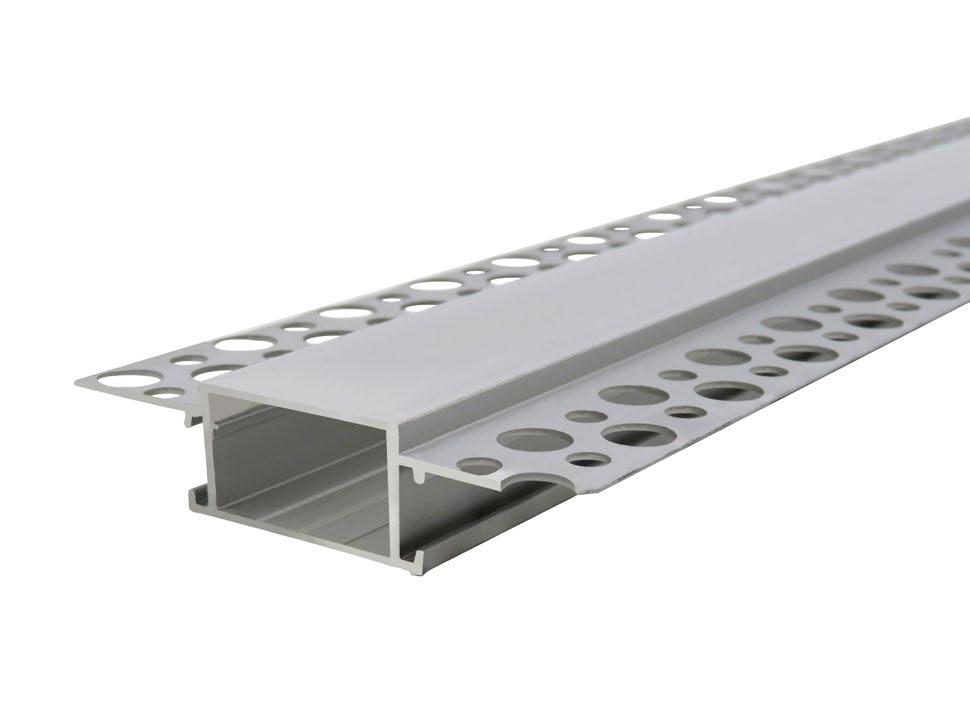

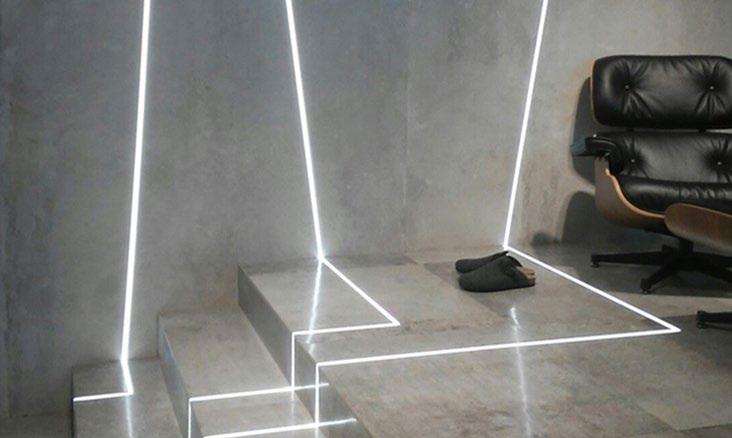

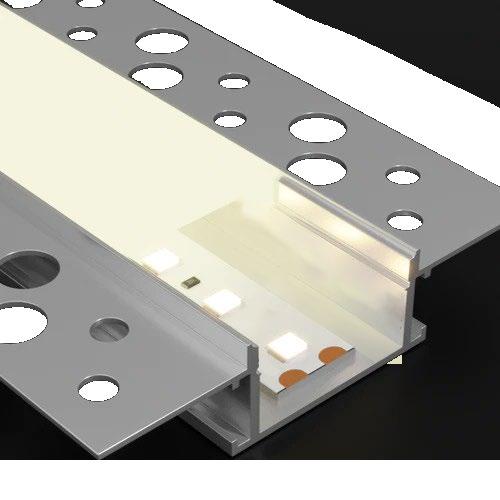

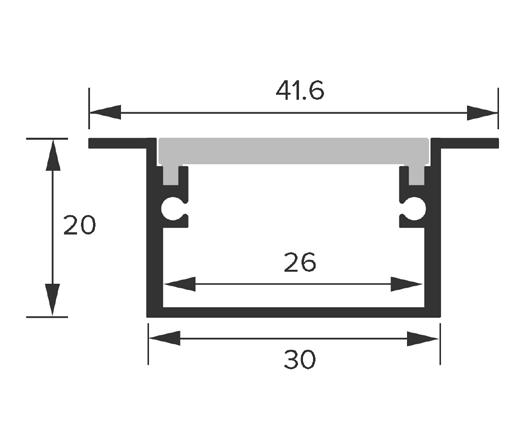

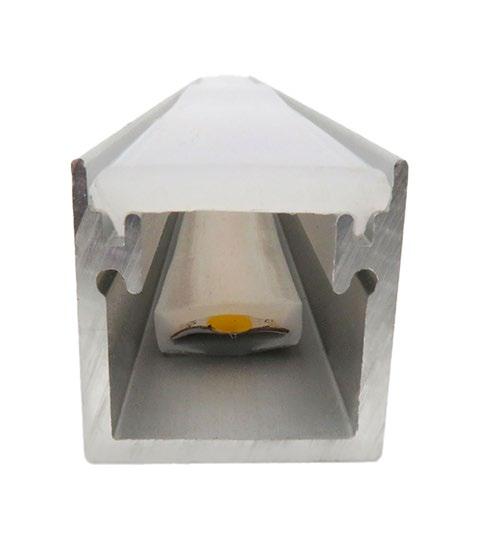

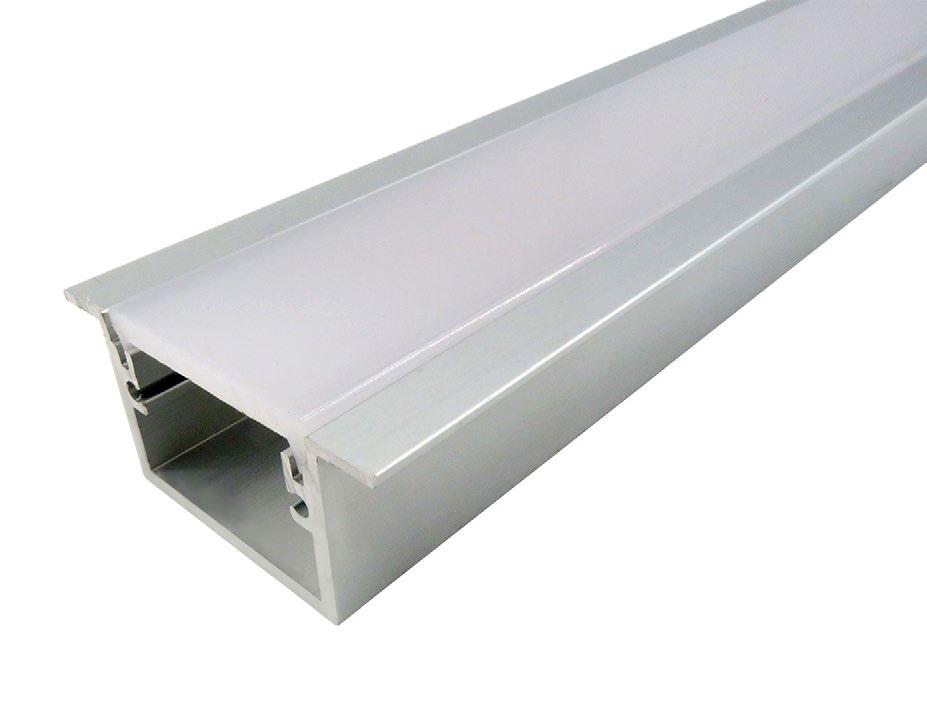

IN-GROUND PROFILE pg 98-100

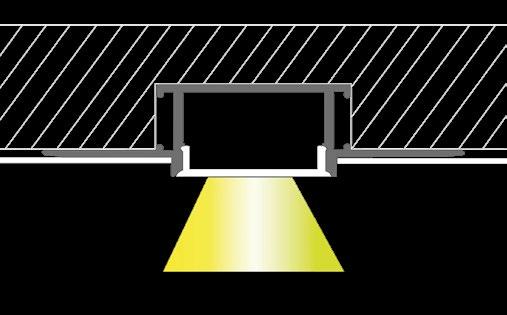

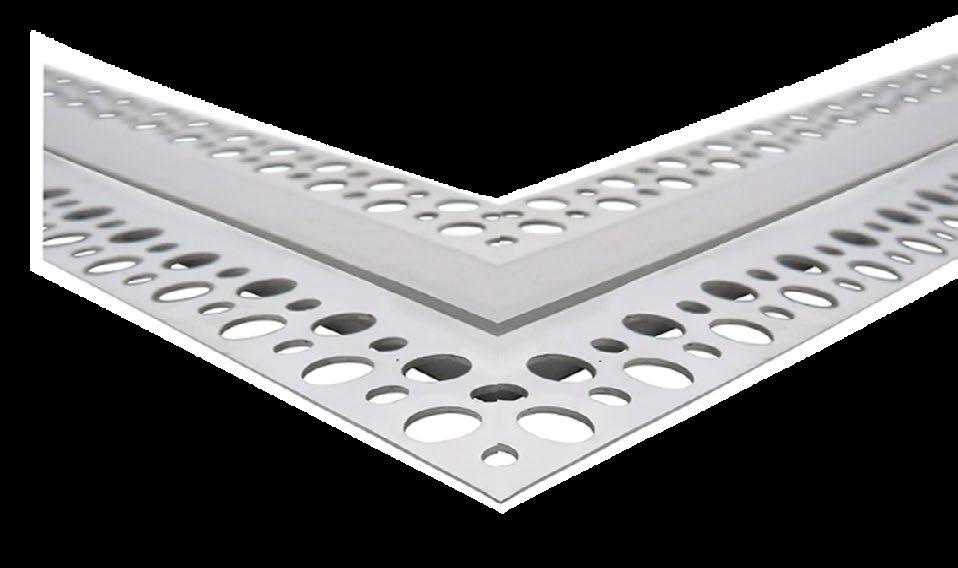

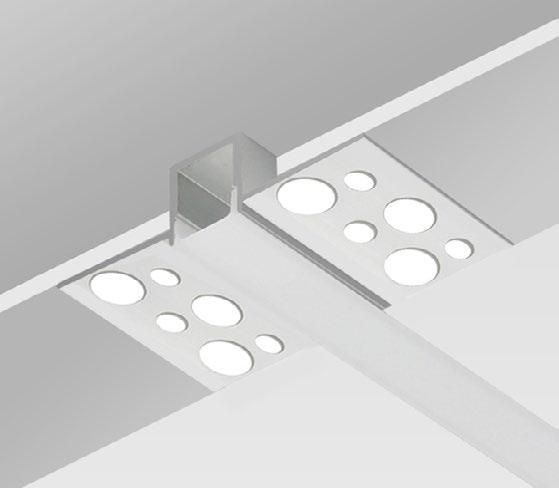

TRIMLESS PROFIIE pg 101-103
BLACK PROFILE pg 104
FLAT PROFILE pg 105

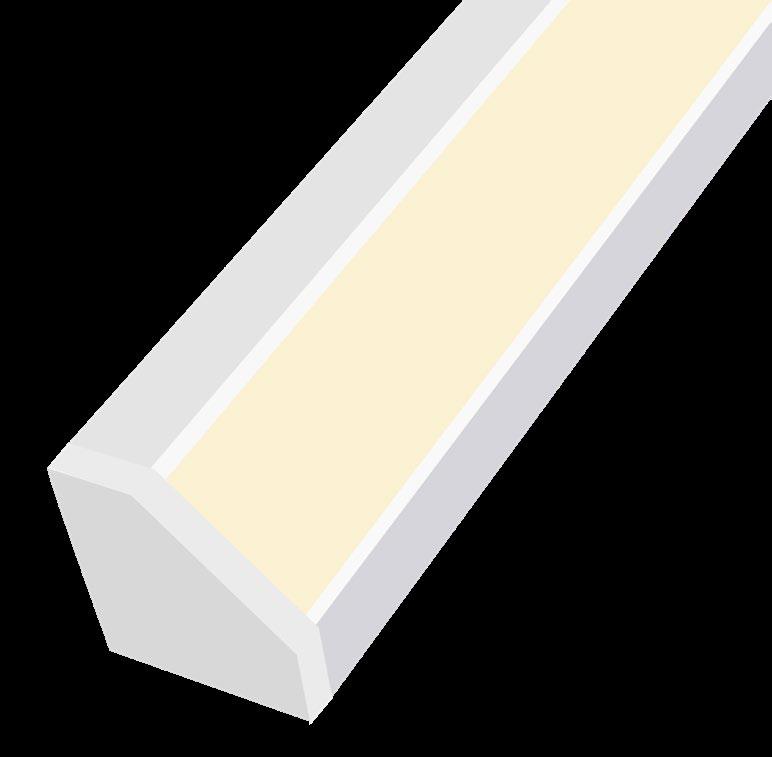

CORNER PROFILE pg 106

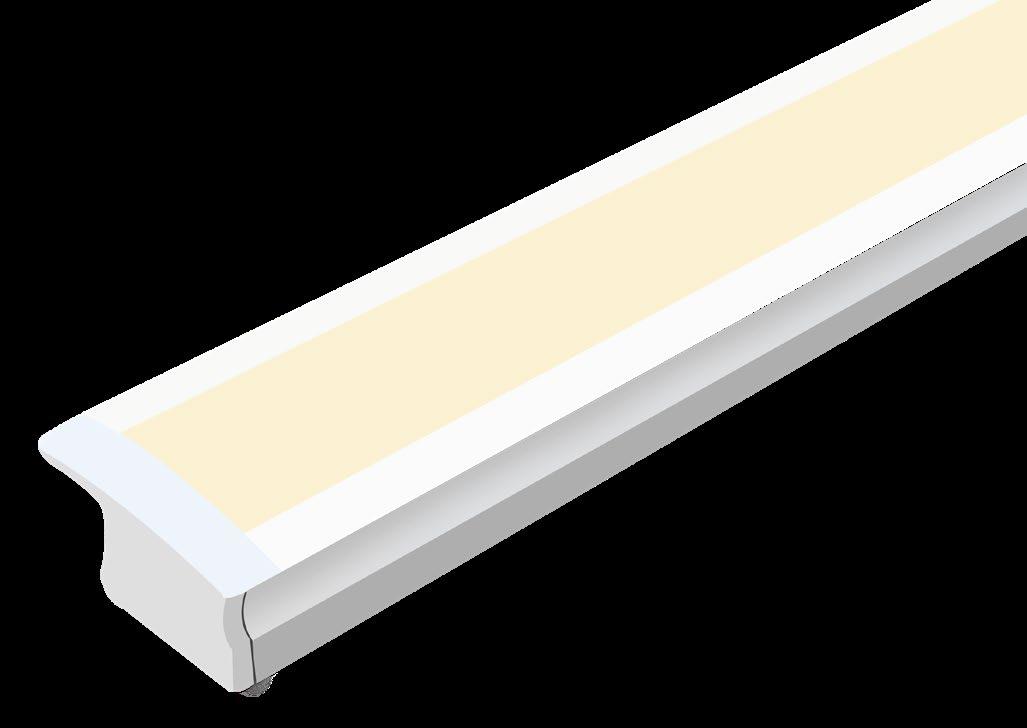

DEEP RECESSED PROFILE
SUPER SLIM DRIVERS pg 109-111
240V MAINS DIMMABLE DRIVERS pg 112

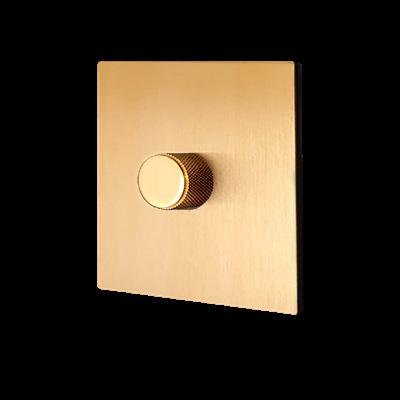

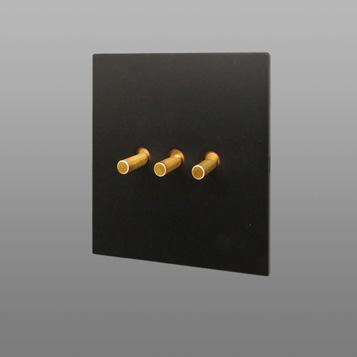

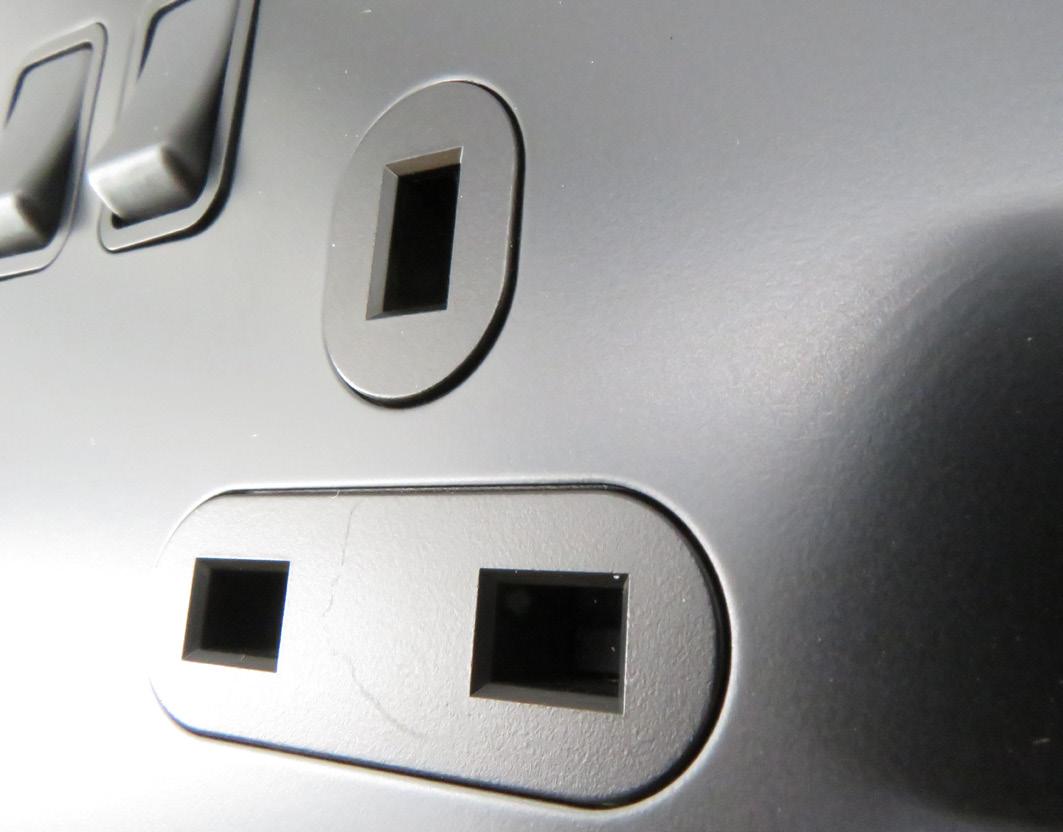

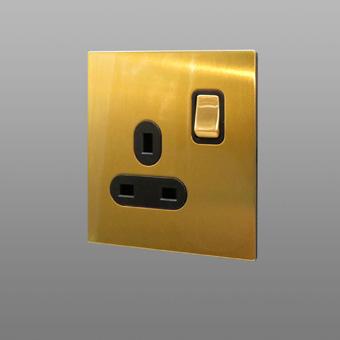

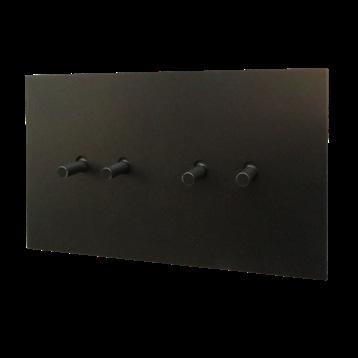

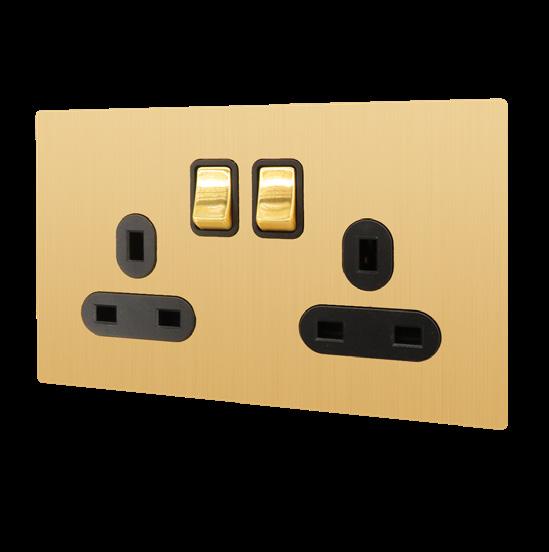

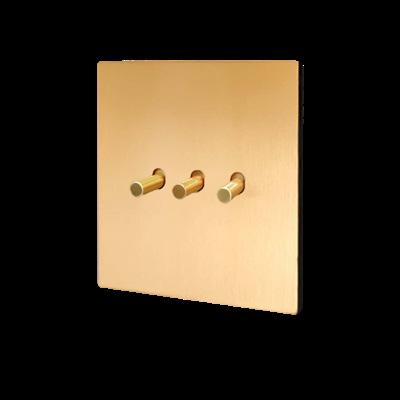

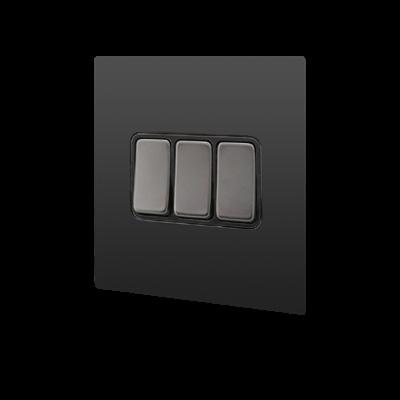

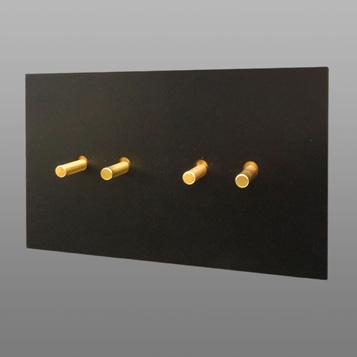

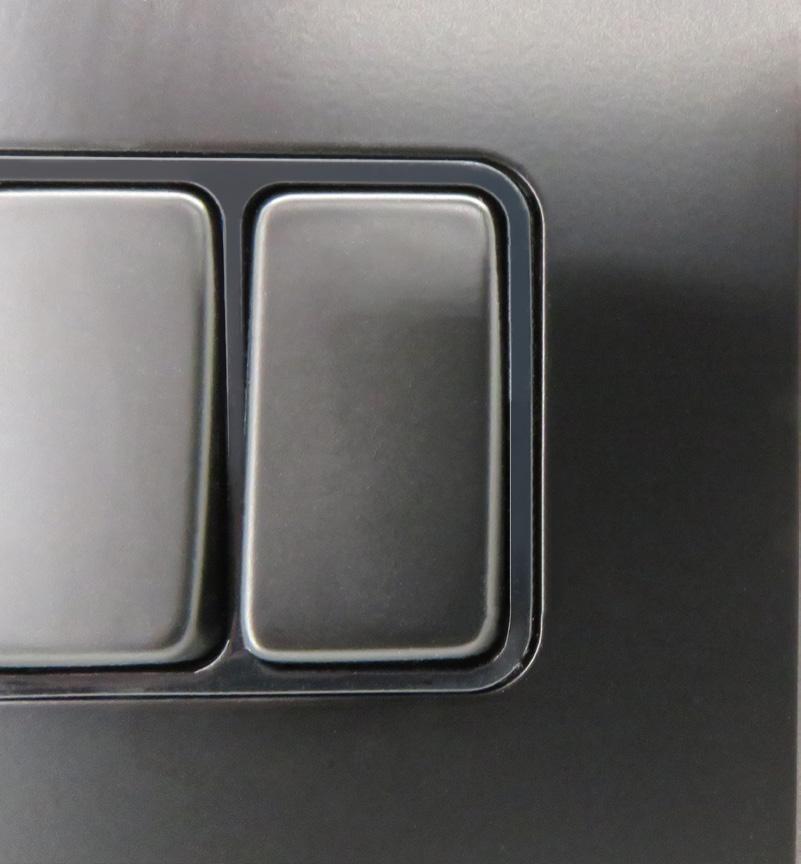

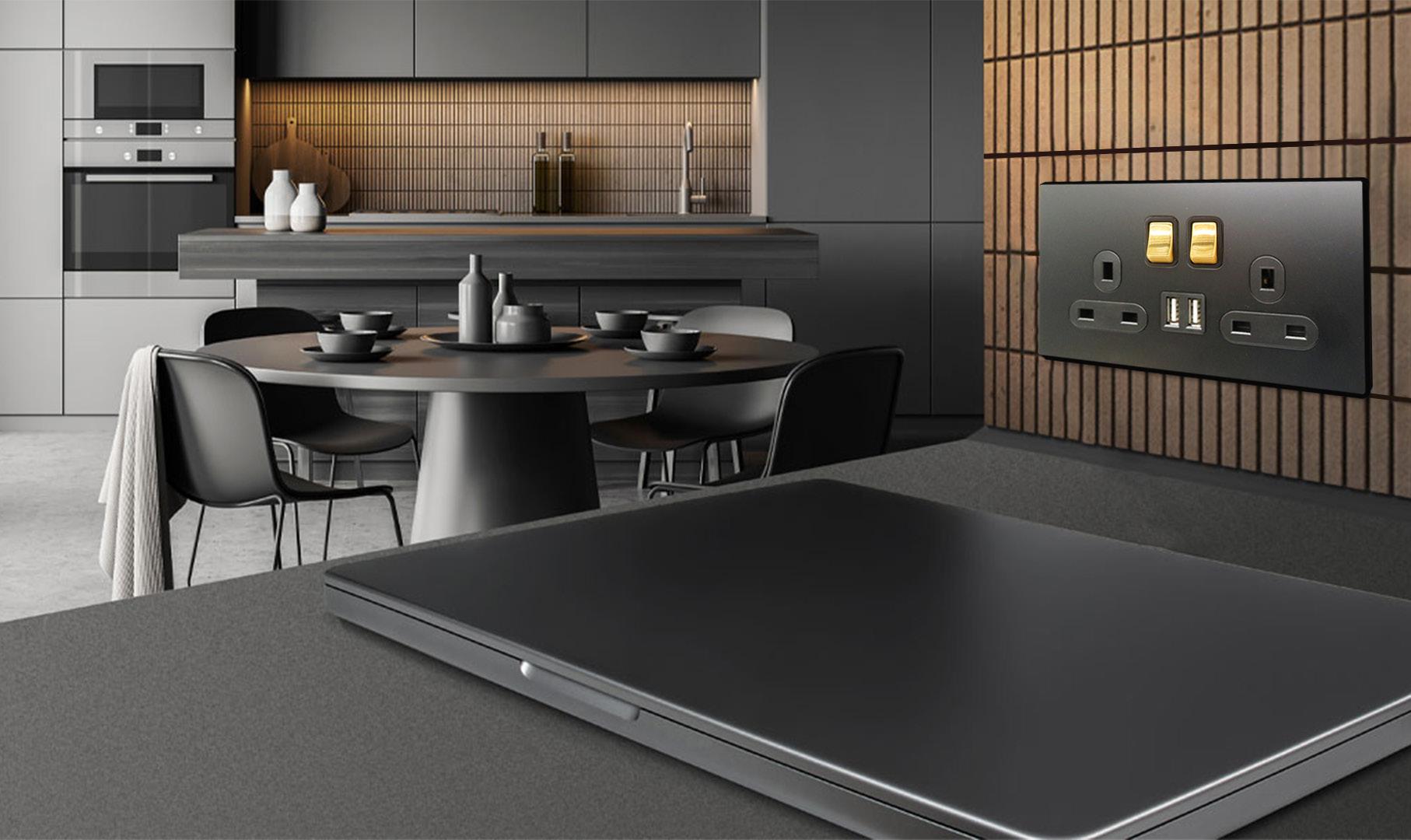

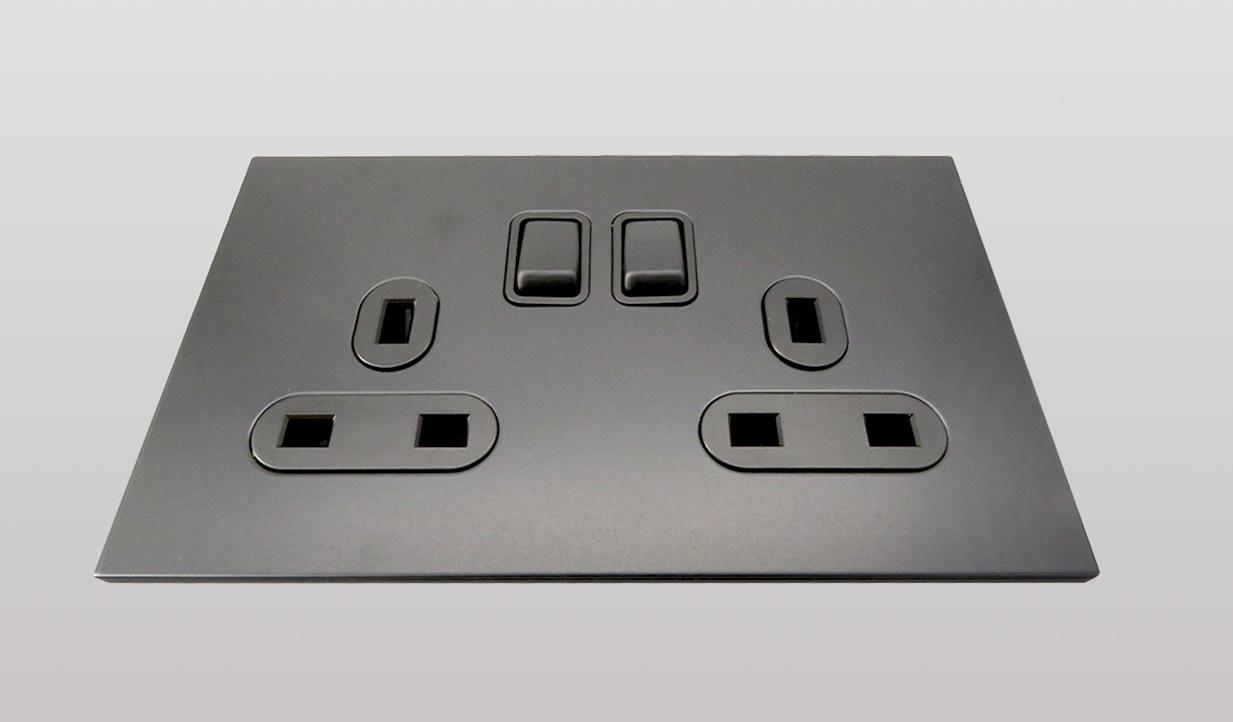

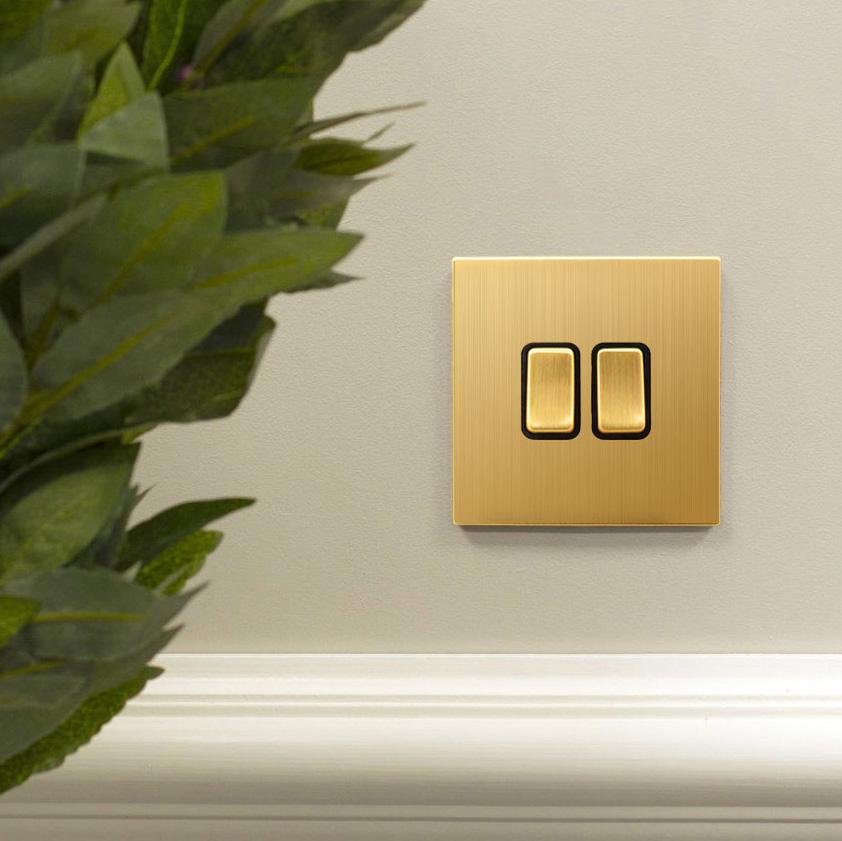

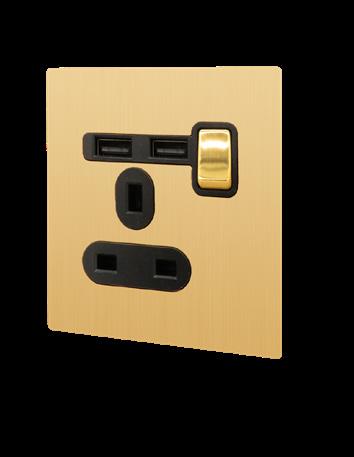

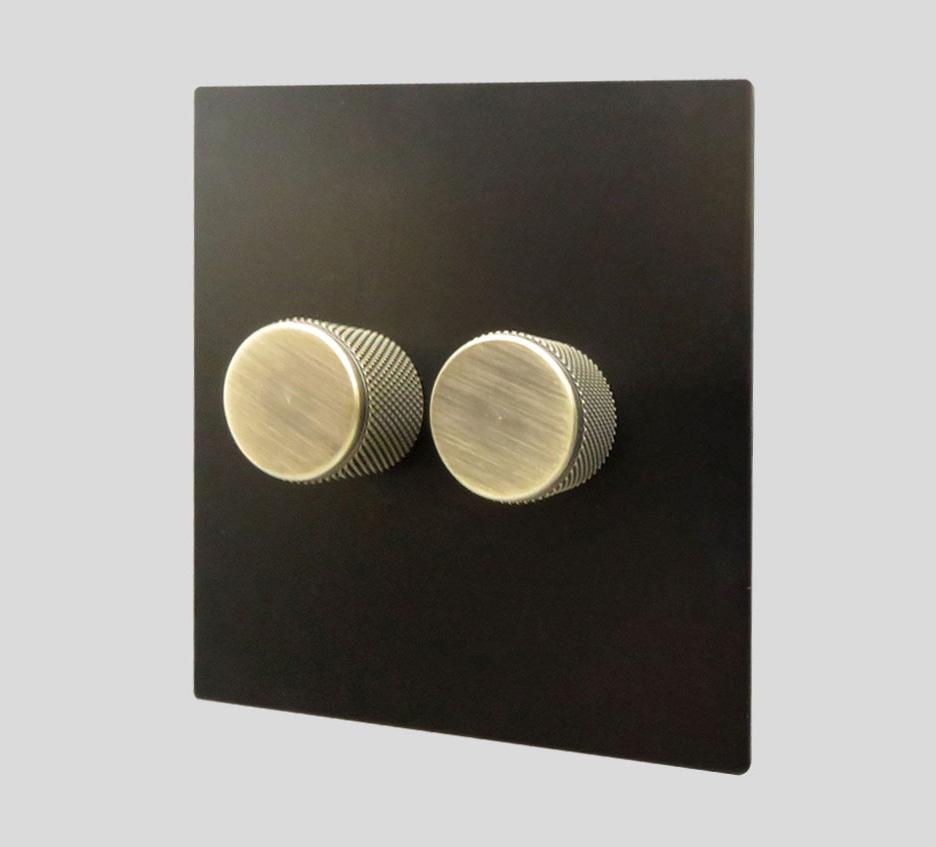

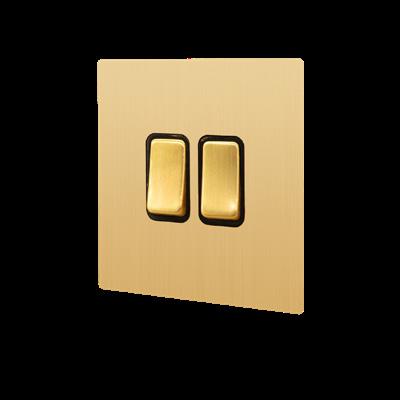

SWITCHES & SOCKETS
SWITCHES & SOCKETS pg 119-145 pg 107
DOWNLIGHTS

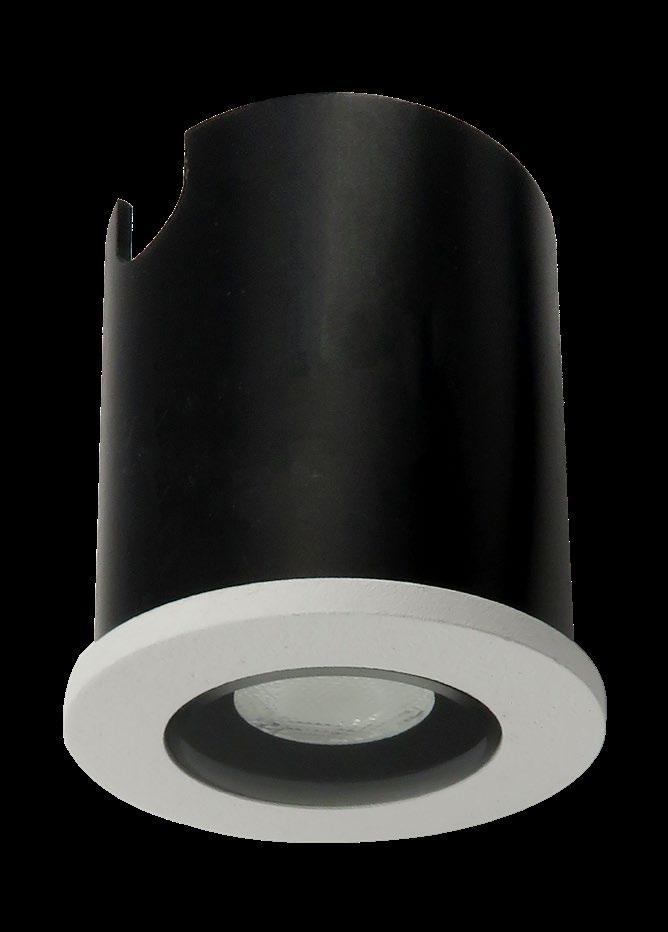

BANBURY FIXED
BANBURY TRIMLESS
BANBURY TRIMLESS TILT
BANBURY DOWNLIGHTS

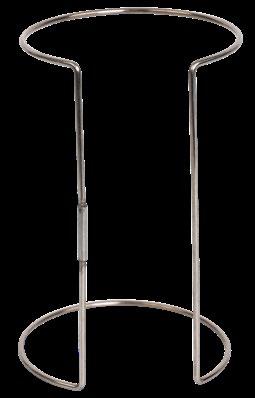

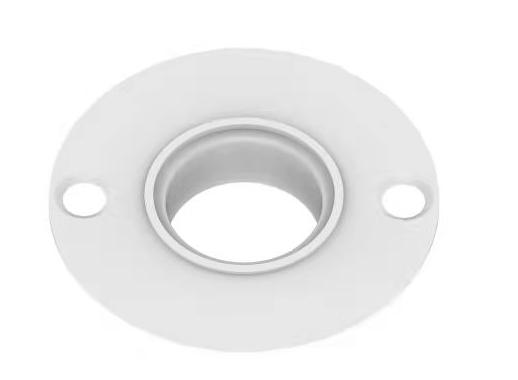

INSULATION BRACKET (SOLD SEPARATELY)

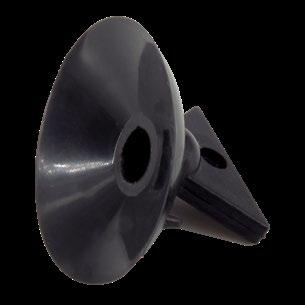

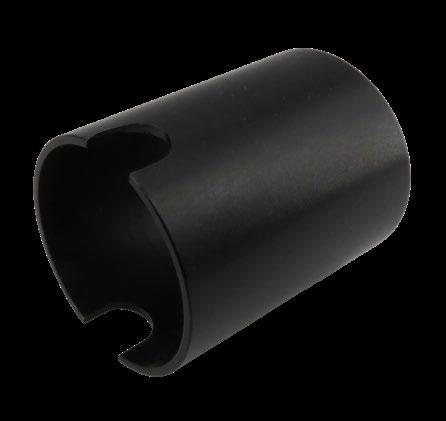

SUCTION CUP FOR LAMP REMOVAL

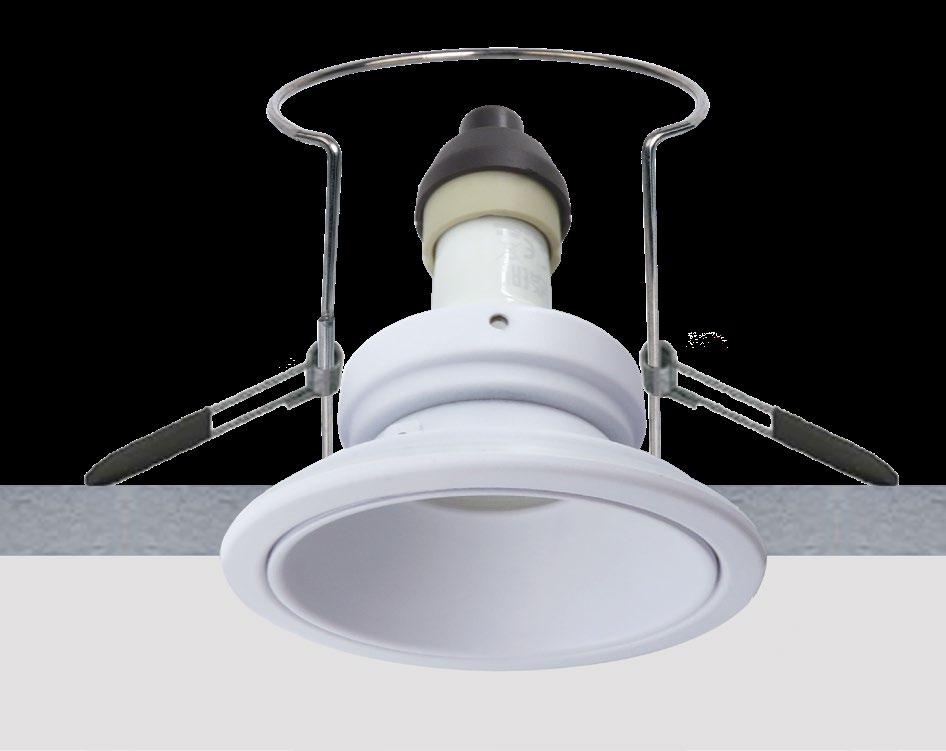

MINIMAL FIXED DOWNLIGHT
RATED FIXED DOWNLIGHT
• Fixed Downlight
• GU10 Socket – Max 10W
• GU10 bulb – not included
• Low glare
• Open back design with tempered glass bezel
• IP65 Rating
• Fire Rated upto 90 minutes
• Acoustic, Moisture, & Joist Rated
• Ceiling mounting
• Loop in and out quick connector
• Ideal for solid Joist & I-Joist ceilings
• Twin spring loaded brackets
• Die-cast aluminium
• Matt white finish
• 3 year warranty
INSULATION BRACKET (SOLD SEPARATELY)
BANBURY TRIMLESS DOWNLIGHT
• Fixed Downlight
• GU10 Socket – Max 10W
• GU10 bulb – not included
• Low glare
• Open back design with tempered glass bezel
• IP65 Rating
• Fire Rated upto 90 minutes
• Acoustic, Moisture, & Joist Rated
• Ceiling mounting • Loop in and out quick connector
• Ideal for solid Joist & I-Joist
• Twin spring loaded brackets
• Die-cast aluminium
• Matt white finish
• 3 year warranty

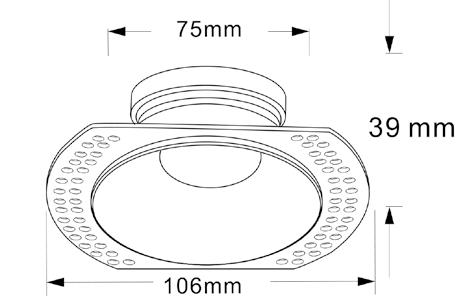

DIMENSIONS
INSULATION BRACKET (SOLD SEPARATELY)
SUCTION CUP FOR LAMP REMOVAL
BANBURY TRIMLESS
TILT DOWNLIGHT
FEATURES & BENEFITS
• Fixed Downlight
• GU10 Socket – Max 10W
• GU10 bulb – not included
• Low glare
• Open back design with tempered glass bezel
• IP65 Rating
• Fire Rated upto 90 minutes
• Acoustic, Moisture, & Joist Rated
SPECIFICATIONS
• Ceiling mounting
• Loop in and out quick connector
• Ideal for solid Joist & I-Joist ceilings
• Twin spring loaded brackets
• Die-cast aluminium
• Matt white finish
• 3 year warranty
FEATURES
TILT TRIMLESS TRIMLESS MINIMAL
UNIFORM DESIGN
1 INSERT 3 BEZEL STYLES
LOW PROFILE - IDEAL FOR SHALLOW CEILINGS
OPEN BACK TRIMLESS / TRIMLESS TILT OPTIONS AVAILABLE
CANLESS DESIGN ALLOWS BETTER HEAT DISSIPATION
TWIN SPRING LOADED BRACKETS
GU10 SOCKET (MAX LED 10W)
INSULATION BRACKET (SOLD SEPARATELY) ALLOWS INSTALLATION TO BE PLACED SAFELY OVER THE DOWNLIGHT
DIE-CAST ALUMINIUM

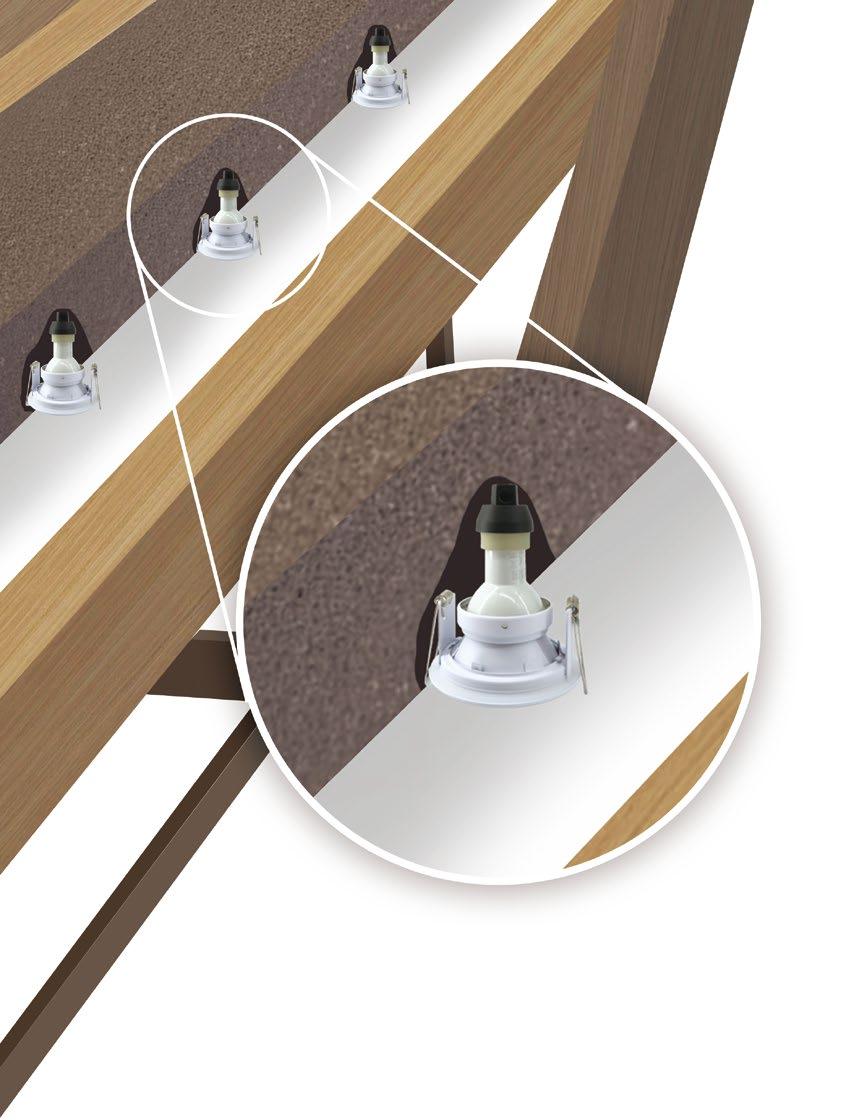

INSULATION BRACKET (SOLD SEPARATELY) BRACKET IS REQUIRED WHEN LOFT INSTALLATION IS PLACED OVER THE DOWNLIGHT
OPEN BACK DESIGN WITH TEMPERED GLASS BEZEL
ULTRA-THIN BEZEL
EASY TO INSTALL LOOP-IN / LOOP-OUT TERMINIAL BLOCK

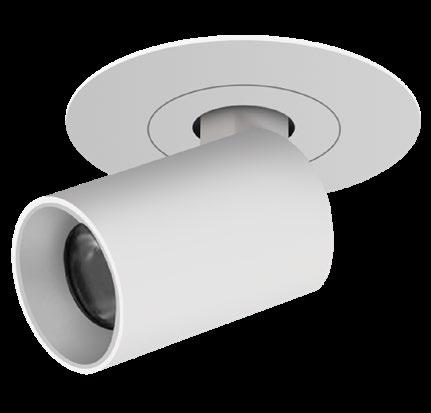

Semi RecessedTelescopic Spot Light Spotlight
Dimmable and Non-Dimmable Driver fits through Cutout
Black Finish Option

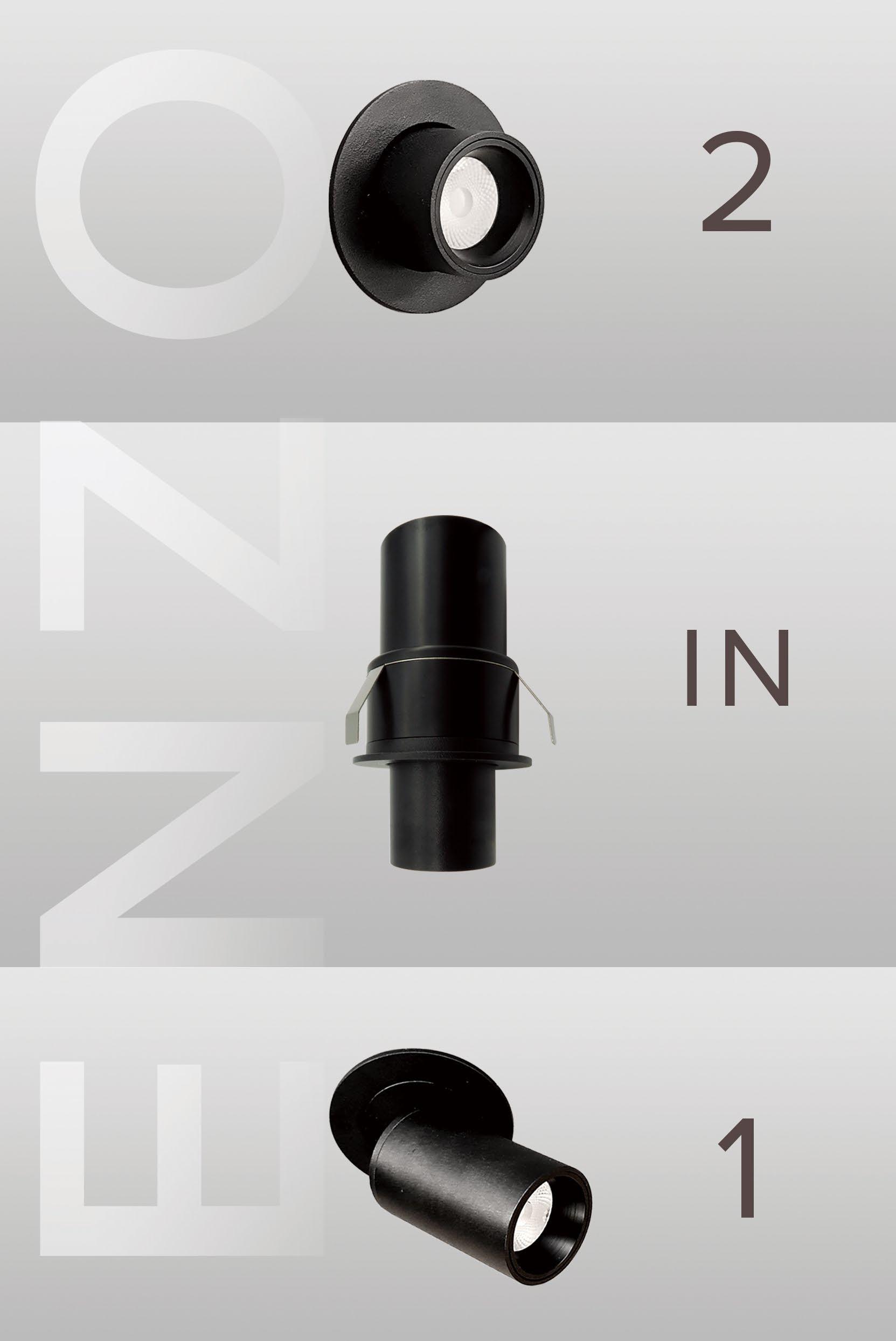

ENZO
FEATURES & BENEFITS

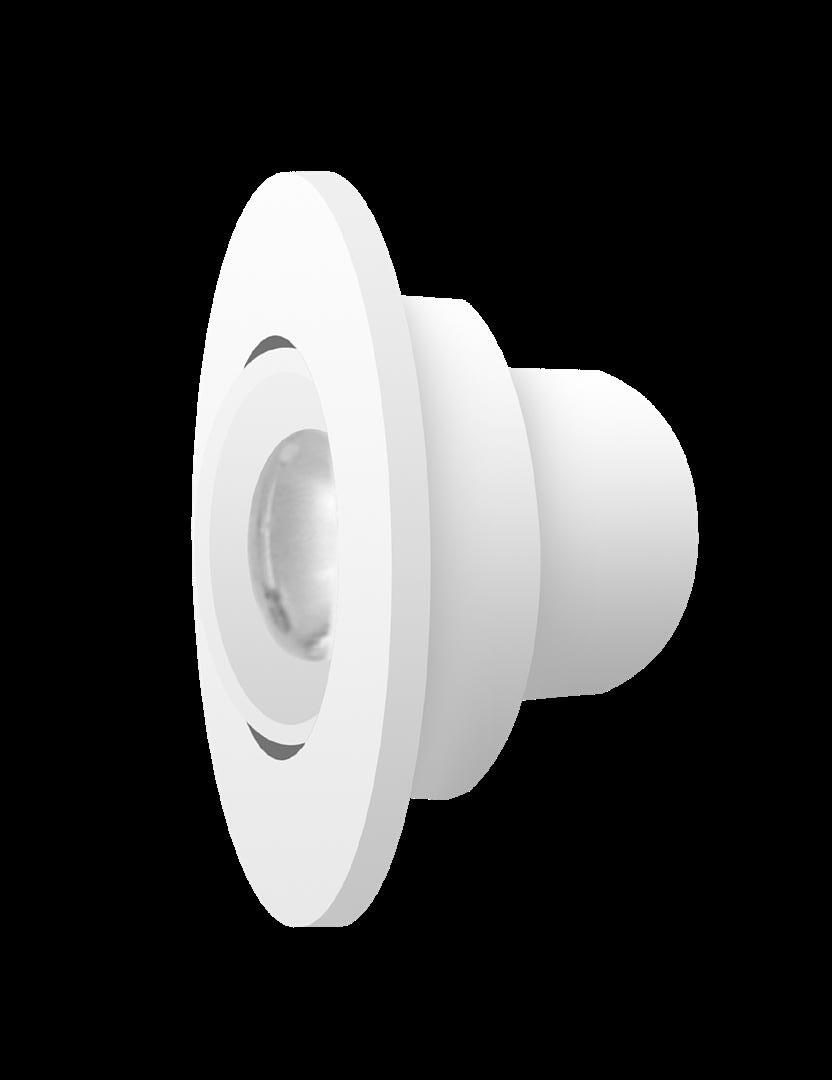

• 5W Recessed Spotlight / Downlight –430lm
• 2 in 1 – Semi Recessed Telescopic Spot Light
• IP Rating – IP44
• 24° Beam

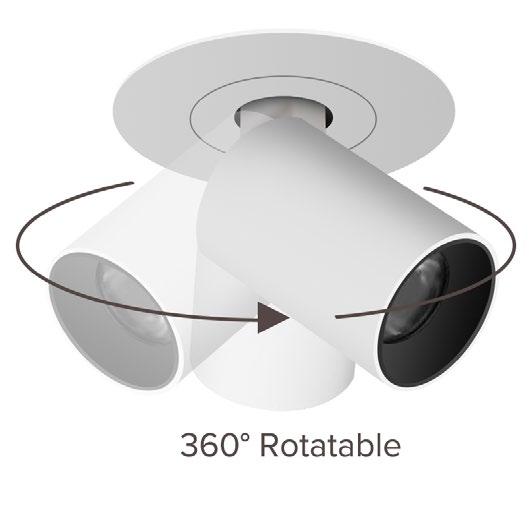

• 360 degree rotation - Ability to be tilted which enables to precisely control area of illumination
• Finish – Matt White & Matt Black
SPECIFICATIONS
• Telescopic pull out Spotlight
• Faceted Low Glare Lens
• Individual through-hole dimmable driver available
• Baffle Colour – Matt White / Matt Black included

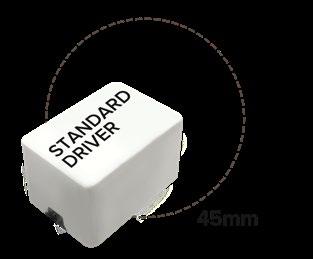

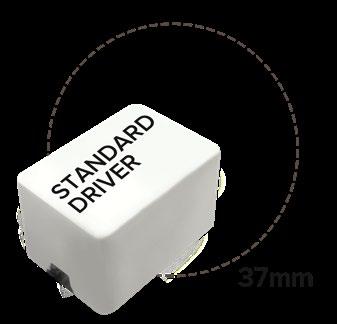

• Supplied with a non-dimmable driver fits through cutout
• Ideal for ambient, accent & task lighting
• 2 year warranty
DIMENSIONS

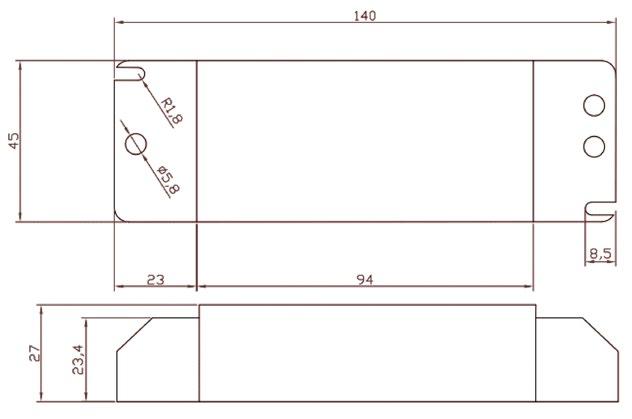

DRIVER DIMENSIONS
FEATURES
Matt White Baffle
Matt Black Baffle
White Baffle creates a seamless finish which blends into the ceiling
Black Baffle showcases low glare, high quality appearance
IP44
Baffle included: Matt White & Matt Black
24° Beam
OSRAM CHIP
Matt White Finish
Matt Black Finish
Dimmable and Non-Dimmable Driver fits through Cutout

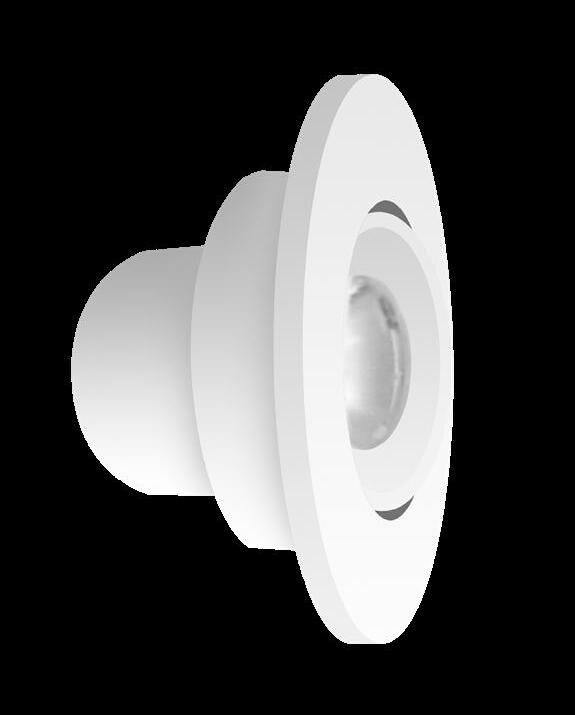

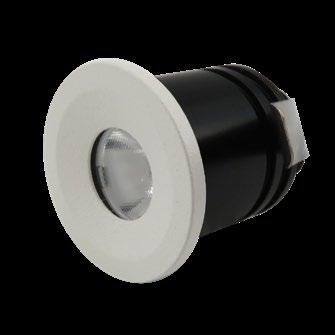

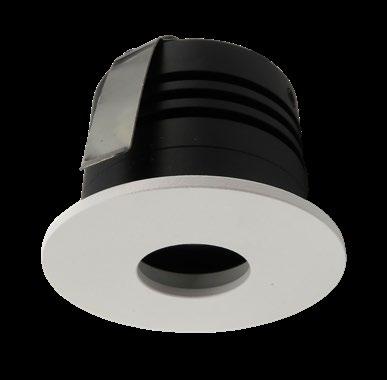

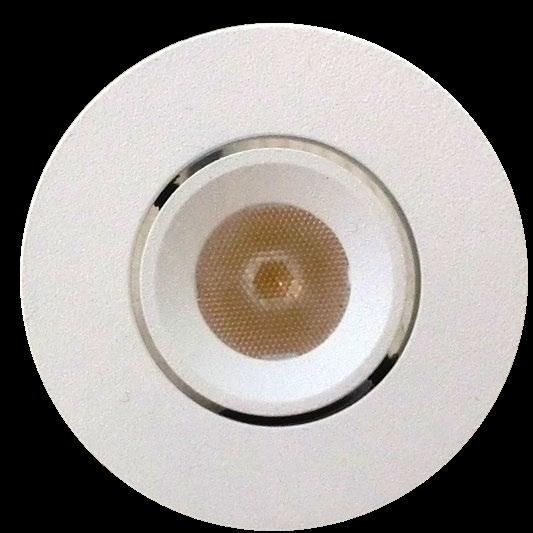

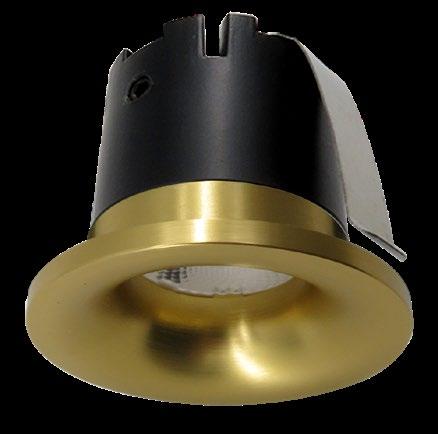

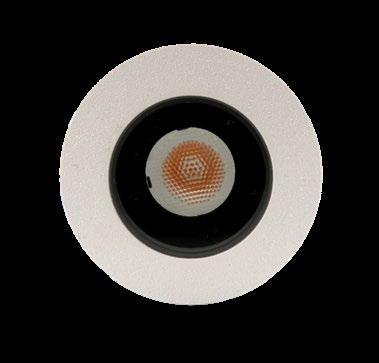

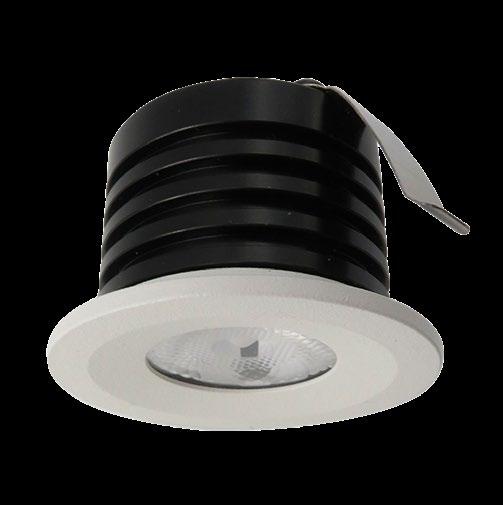

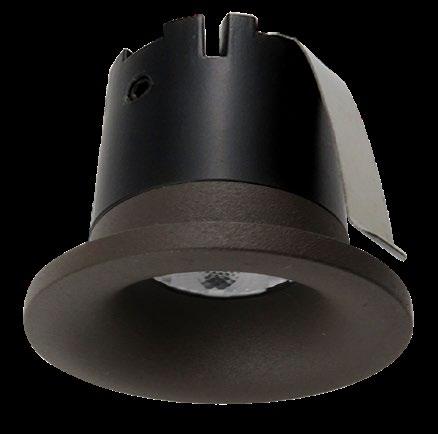

5W CCT NICO
• 5W Mini Downlight
• 430 Lumens
• IP44 Rated
• LED CHIP – Bridgelux
• Beam Angle 24°
• Use as a ambient, accent or task lighting
• Reflector Lens
• Low power consumption
• Finish – Matt White
• Two baffles included - White & Black
• Low glare light output achieved when both baffles used, it creates a softer tone which is ideal for highlighting features or areas of usage
• CCT Colour Switchable 2800K / 4000K / 6000K
• Individual through-hole dimmable driver available
• Suitable for Standard ceilings, Vaulted ceilings, High ceilings, Soffits
• 2 year warranty
FEATURES
24° Beam
IP44
Bridgelux LED CHIP
WHITE BAFFLE
BLACK BAFFLE

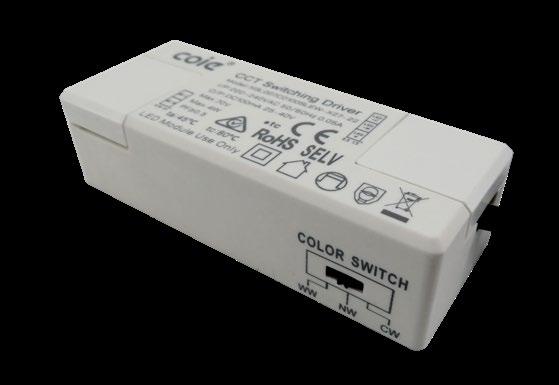

CCT COLOUR SWITCHABLE DRIVER
MATT WHITE DARK BRONZE
MATT GOLD
MATT BLACK

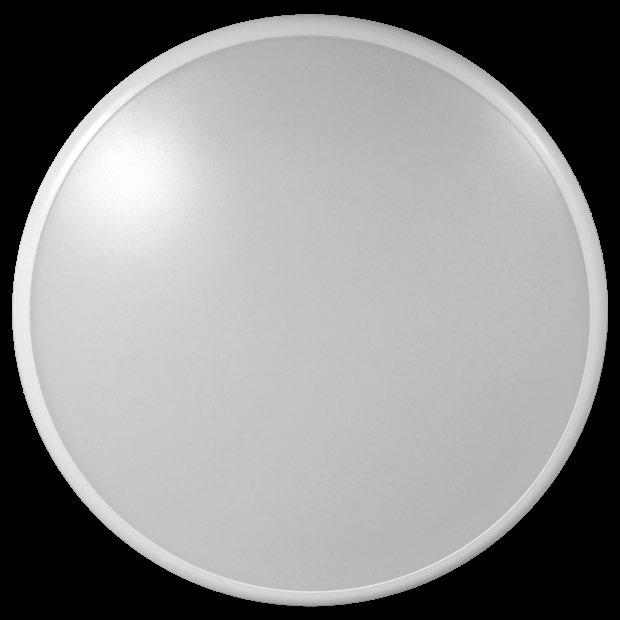

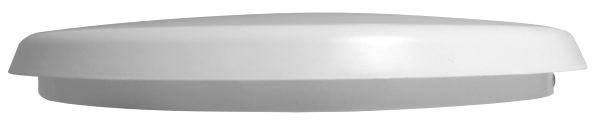

6W CCT ROUND PANEL
FEATURES & BENEFITS
• Colour switchable panel - 3000K, 4000K & 6000K
• Ultra thin – 9mm profile
• Even light distribution
• 30,000 hours
• IP Rating - IP54
• Available in 6W, 12W & 18W
SPECIFICATIONS
SPECIFICATIONS
• Dimmable driver available
• Emergency Pack available
• Ideal for receptions, entrance foyers, corridors, stairwells, offices
• 2 year warranty
12W CCT ROUND PANEL
• Colour switchable panel - 3000K, 4000K & 6000K
• Ultra thin – 9mm profile
• Even light distribution
• 30,000 hours
• IP Rating - IP54
• Available in 6W, 12W & 18W
• Dimmable driver available
• Emergency Pack available
• Ideal for receptions, entrance foyers, corridors, stairwells, offices
• 2 year warranty
18W CCT ROUND PANEL
• Colour switchable panel - 3000K, 4000K & 6000K
• Ultra thin – 9mm profile
• Even light distribution
• 30,000 hours
• IP Rating - IP54
• Available in 6W, 12W & 18W
SPECIFICATIONS
SPECIFICATIONS
• Dimmable driver available
• Emergency Pack available
• Ideal for receptions, entrance foyers, corridors, stairwells, offices
• 2 year warranty

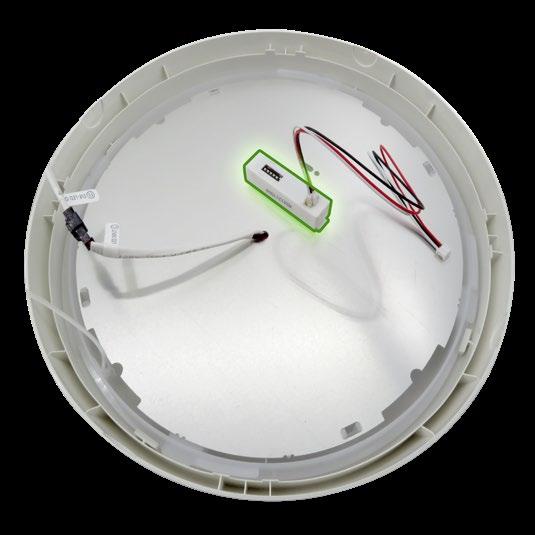

SUPPLIED WITH INDICATOR

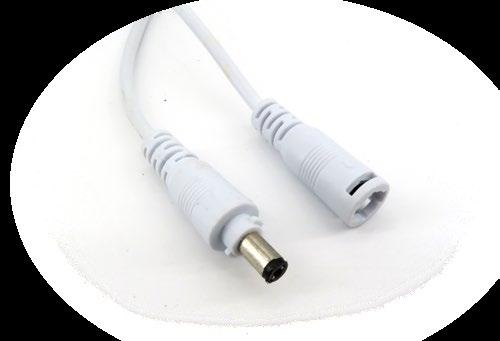

SUPPLIED WITH MALE & FEMALE CONNECTOR

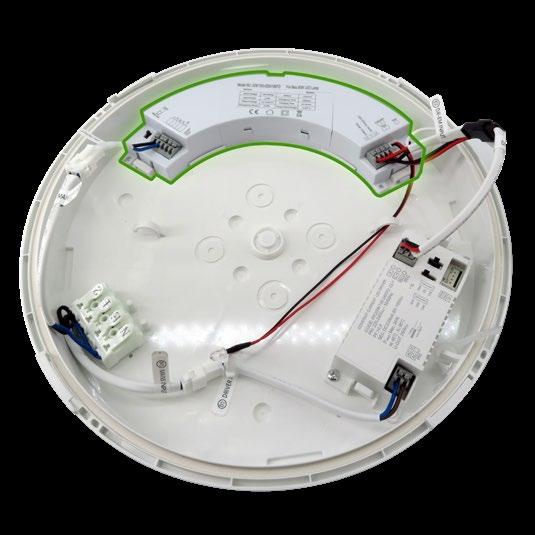

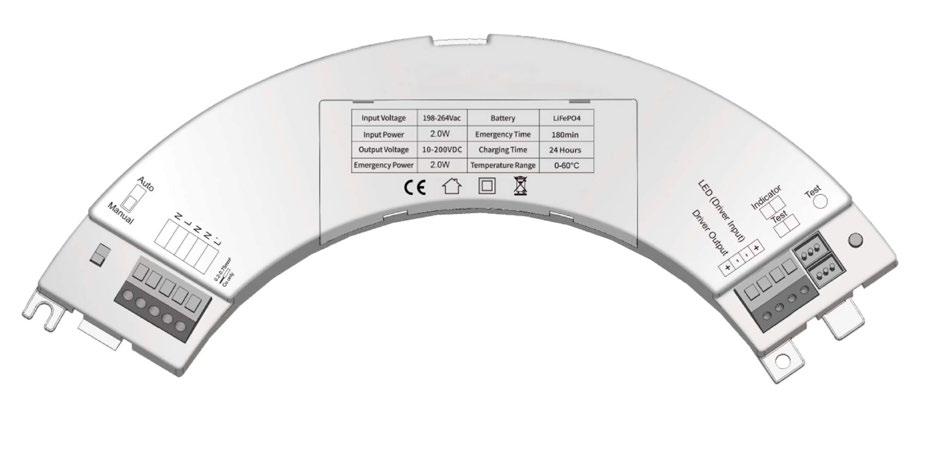

FLEX - PACK
• All-in-one design: constant current driver
• 3 pole isolation of lamp & mains driver power during emergency
• Efficient boosting
• Constant current recharging
• Easy installation
• High transforming efficiency
• Isolation safe design
• High power factor
• Reliable protection design in case of overload & overvoltage
• Smart automisation differs between standard lighting and emergency lighting
• Supplied with a charging indicator
• Ceiling cut out 44mm
• 3 year warranty

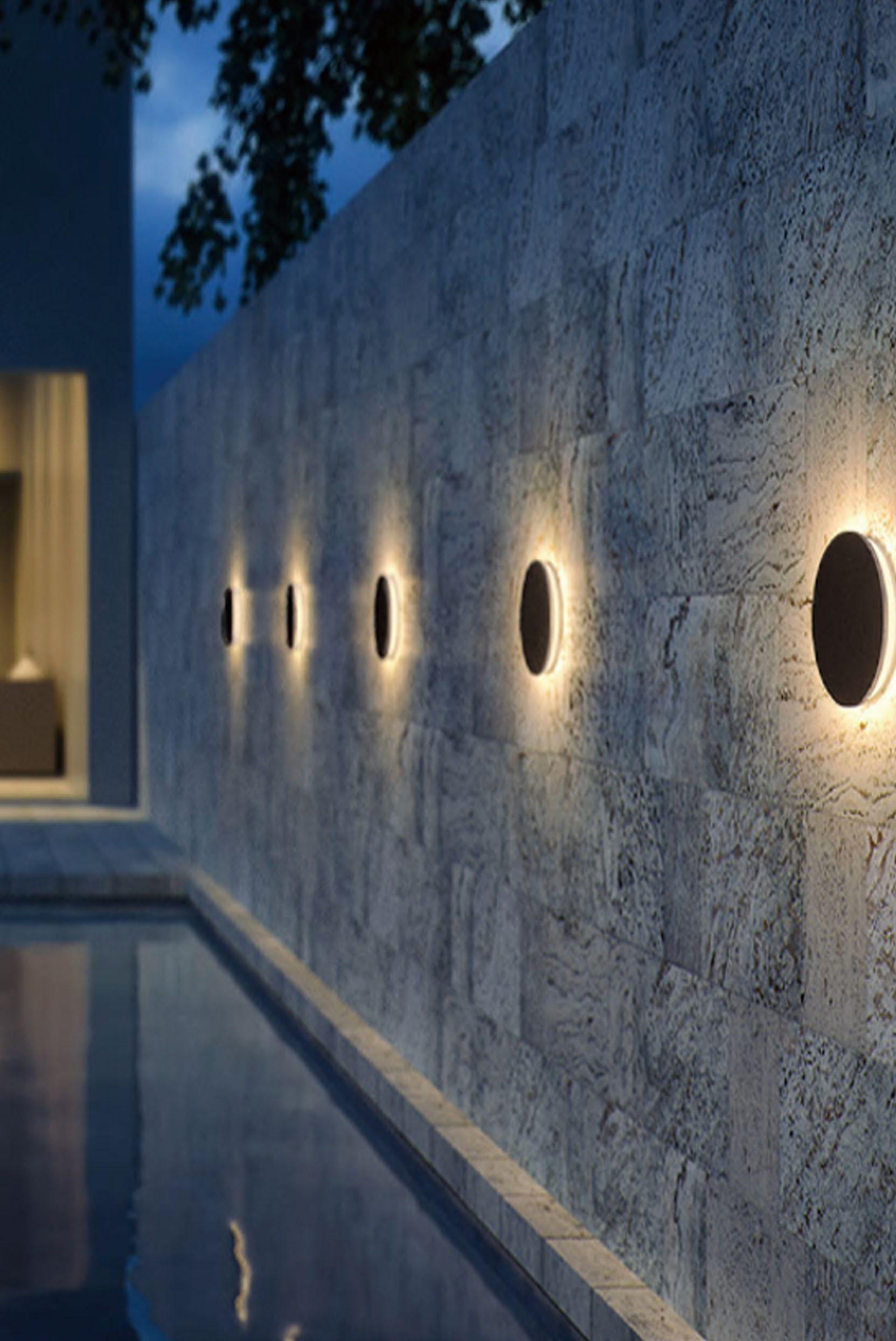

OUTDOOR
MATT BLACK YELLOW GOLD DARK BRONZE

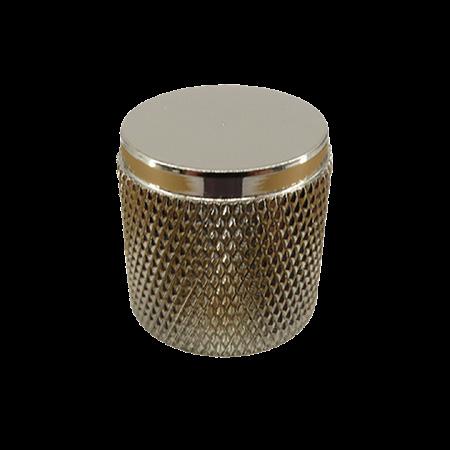

SYLISH KNUNRLED FINISH ON BOTH SIDES

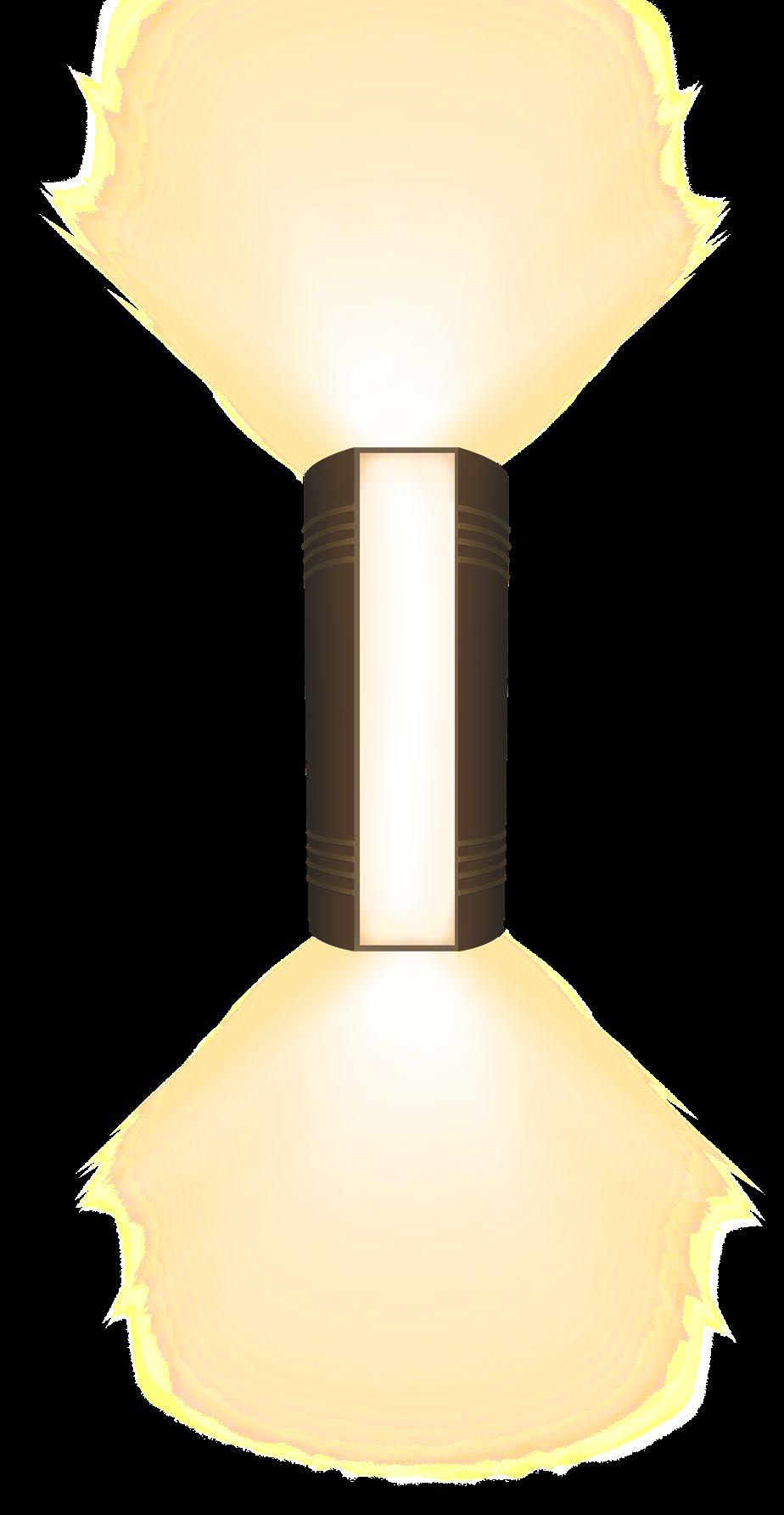

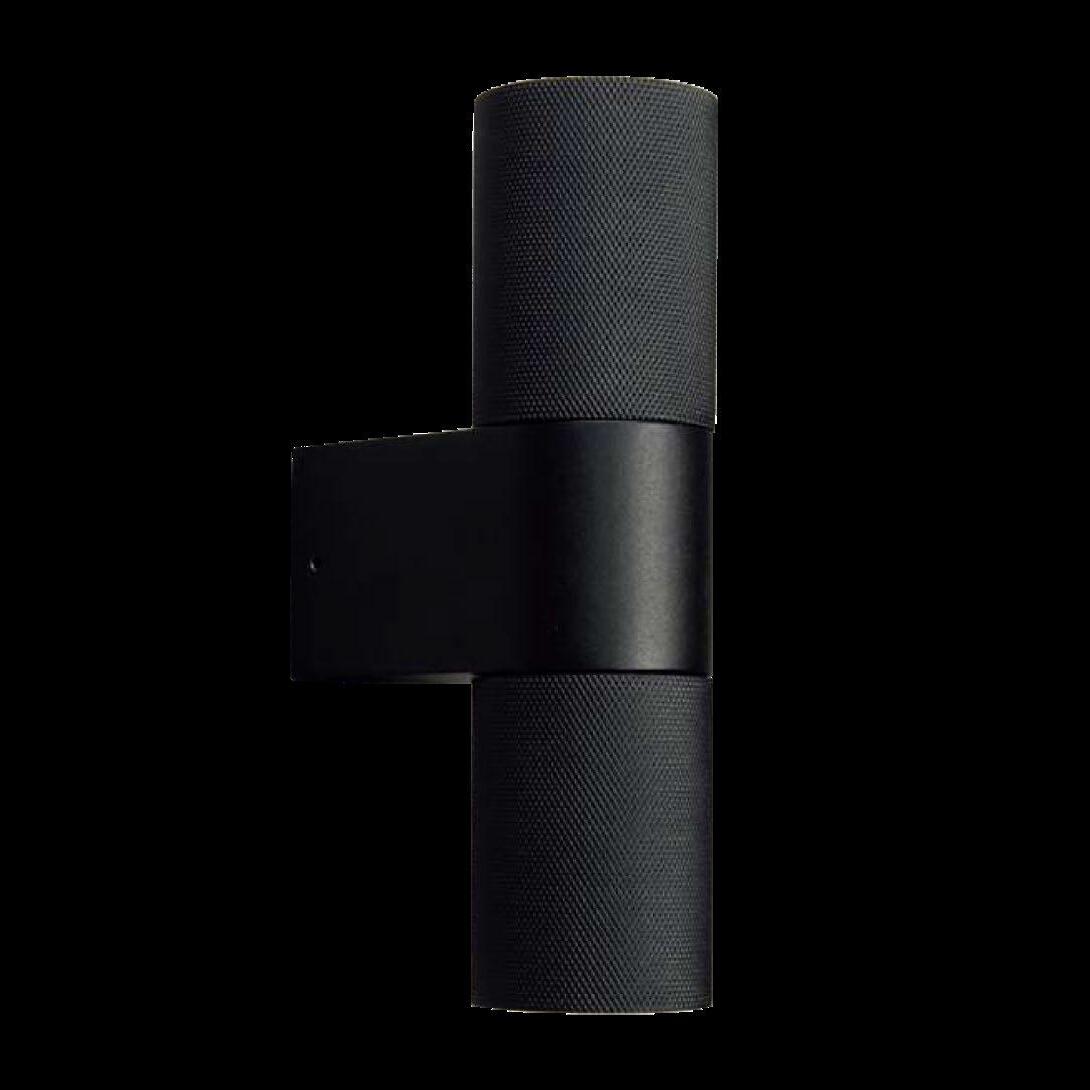

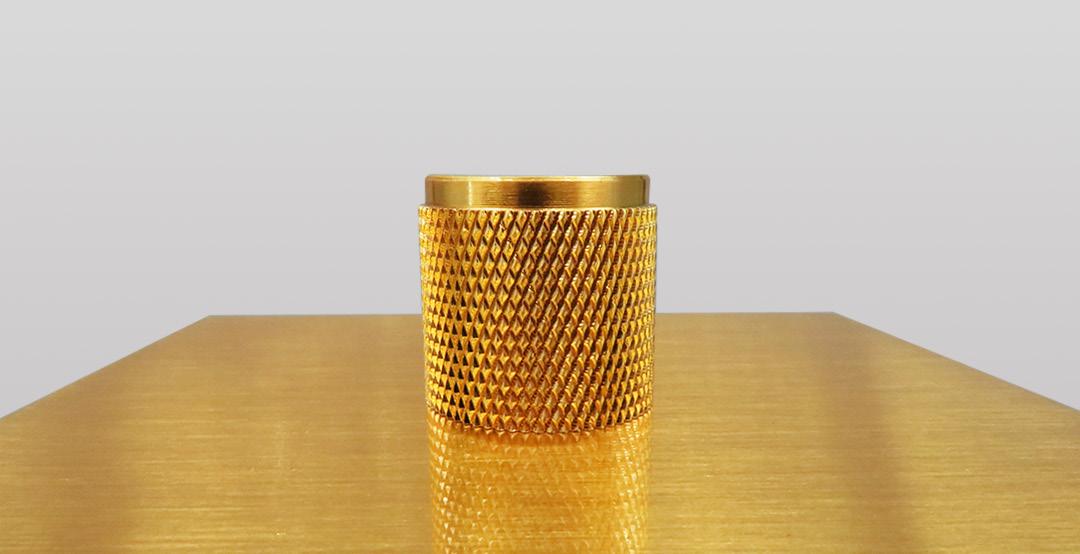

KNURLED

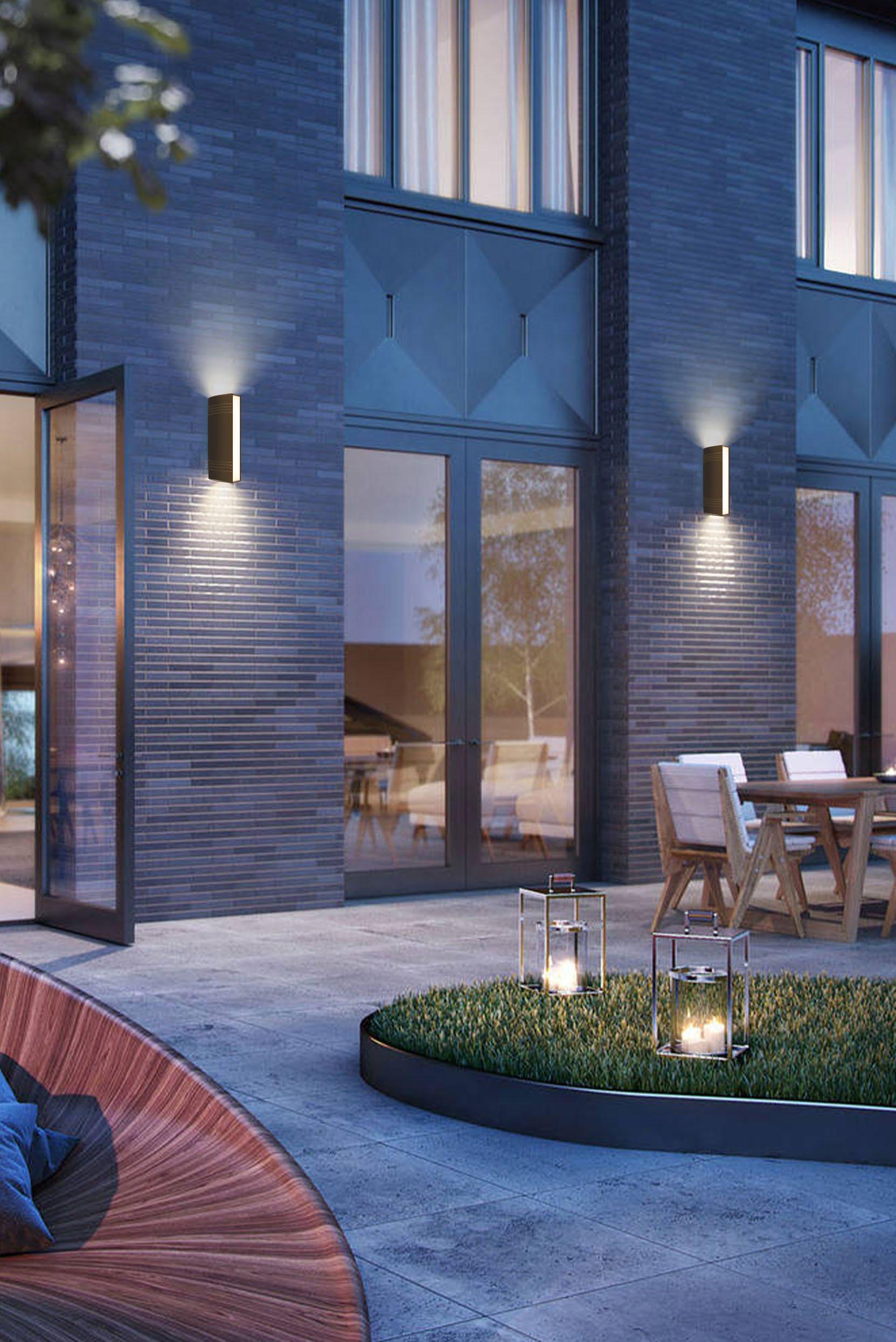

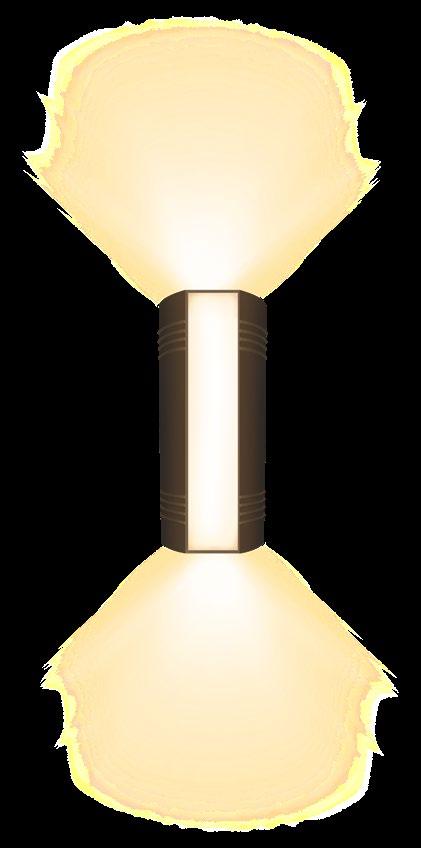

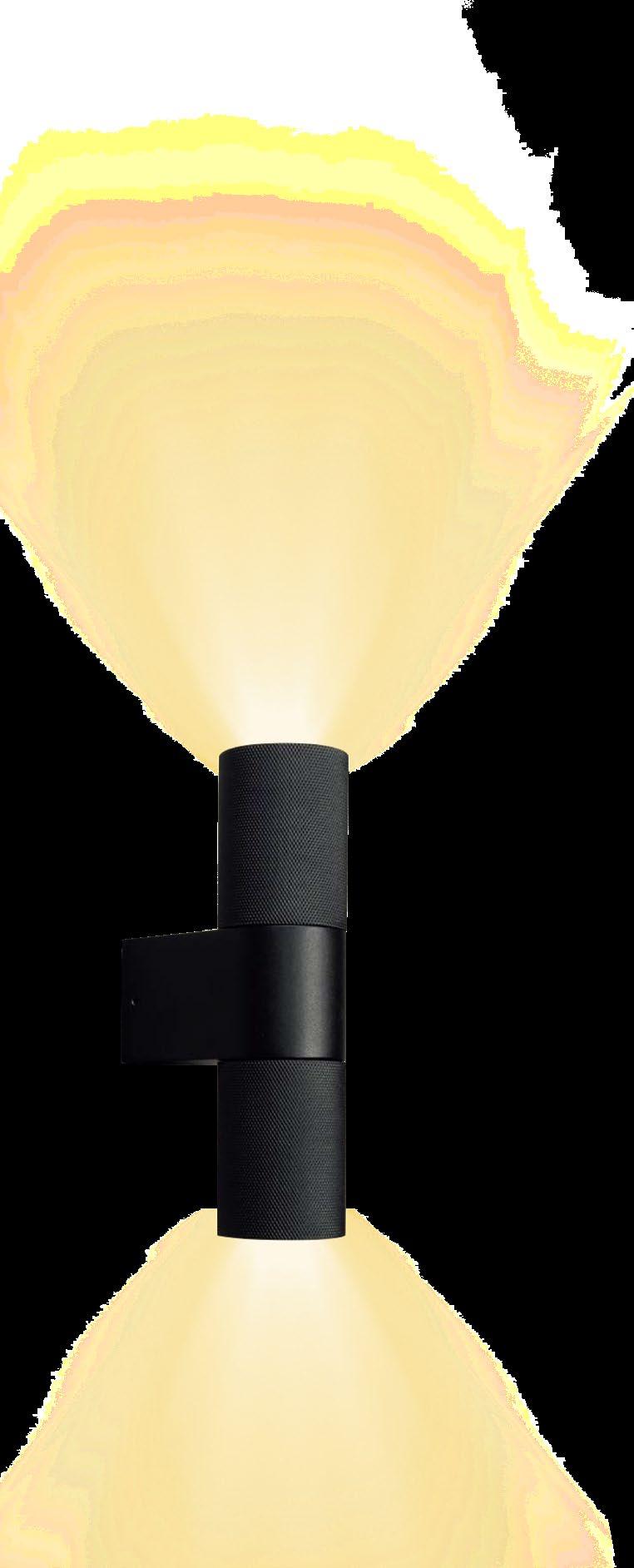

• Up / Down Wall Light
• Casts light in both upwards and downwards direction
• IP Rating – IP54
• Class - II
• Die-cast Aluminium construction
• Tempered Glass Lens
• Wall-Mount Cylinder
• Knurled finish & sleek design provides a modern architectural aesthetic
• Max Wattage: 2 x 35W
• Caps: 2 x GU10 sockets embedded in the body
• GU10 Bulbs are not included
• Dimmable – when using a dimmable GU10 bulb
• Bi-directional light for entryways, doorway, foyer, corridor, balcony, patio, or porch
• Ideal as a feature light which casts light spill in both an upwards and downwards projection
IP Rating - IP44
Knurled finish
Wall-Mount Cylinder
Tempered Glass Lens
sockets
STYLISH KUNRLED FINISH ON BOTH SIDES
Bi-Directional GU10 Wall Light
MATT BLACK GOLD DARK BRONZE
GU10 SOCKET
2×GU10

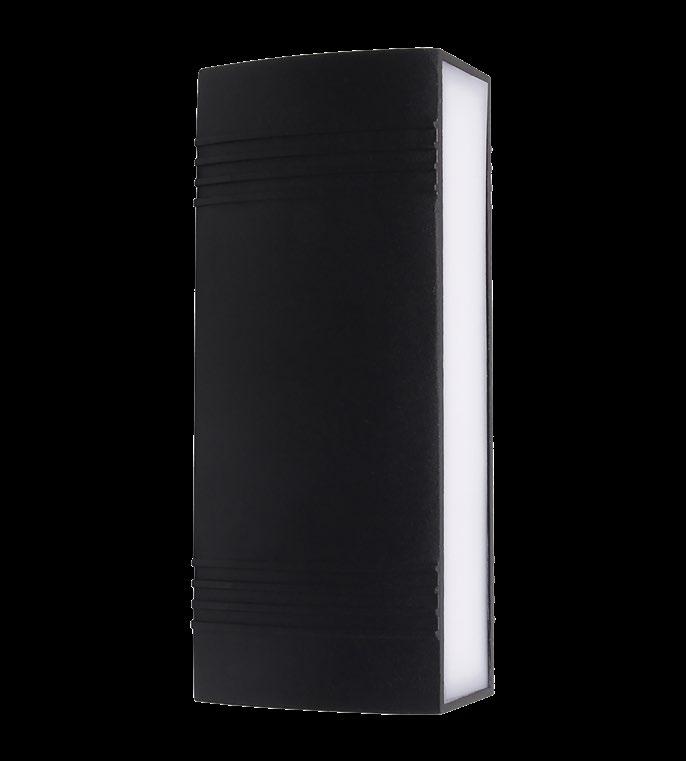

FEATURES & BENEFITS

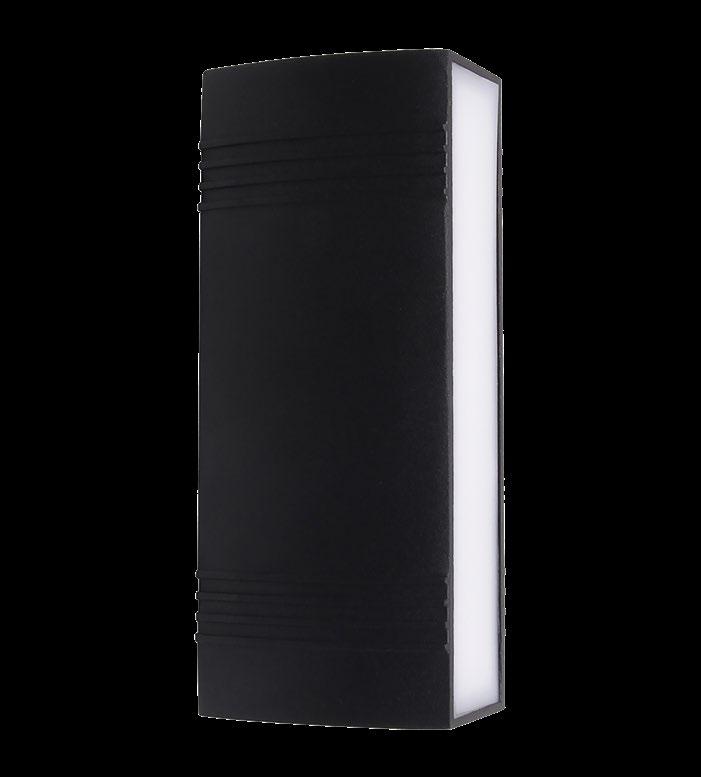

• 12W - Up / Down Forward
• 960 Lumens
• IP65 Rated
• Anti Glare
• LED CHIP – Osram
• 70mm Slim profile
• LED Chip – Epistar
• Surface mounted
• Die cast aluminium - Black finish
SPECIFICATIONS
• Can take existing cable directly into fitting
• Aluminium construction for efficient heat dissipation
• Pre-wired with 2metre rubberised cable
• Elegant replacement for traditional up-down lighting
• Flexible top-bend style in ultra-thin appearance
• IP67 Rated

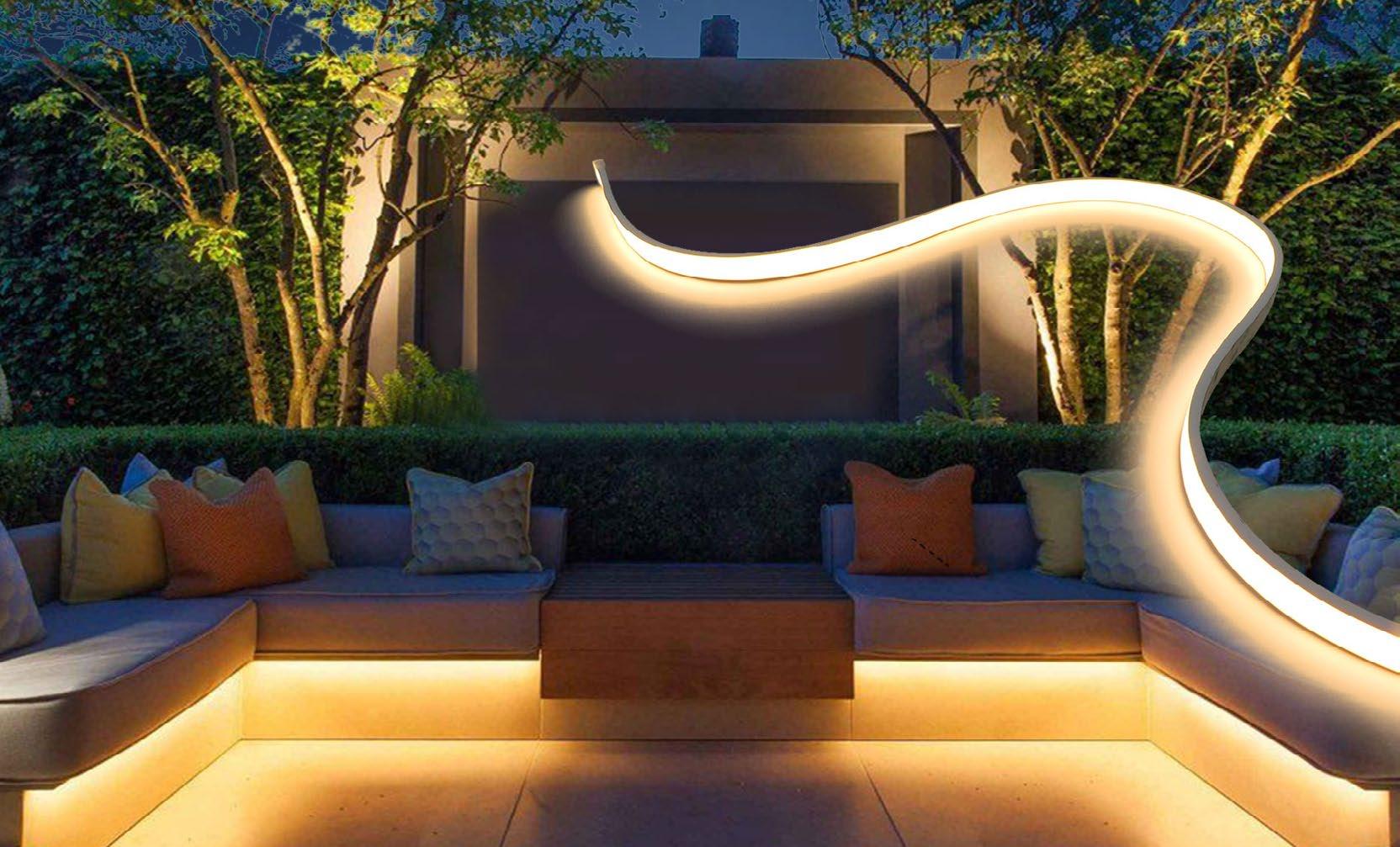

• 24V Super bright LED Strip
• Commercial grade high quality
• Long lasting Premium LED Strip
• Eliminates the need for a aluminium profile or a diffuser
• Available in Warm White 3000K, Cool White 4000K
• Available in 10 metre reel or 30 metre reel
• Constant Voltage
• Suitable for indoor & outdoor usage
• Ideal for linear lighting projects
NEON STRIP ACCESSORIES

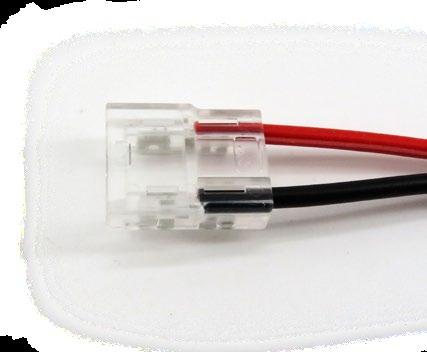

Neon Strip connectorStrip to Strip with 150MM Wires
Product Code-COB-IP-SSWL
End Cap
Product Code-COB-CAP

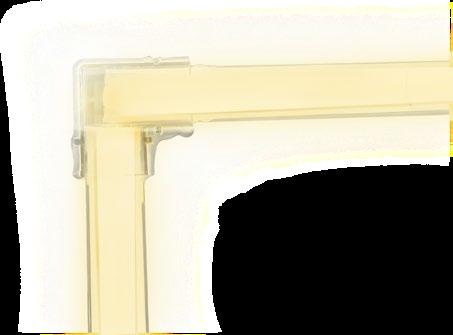

L Shape/Corner Connector
Product Code-COB-IP

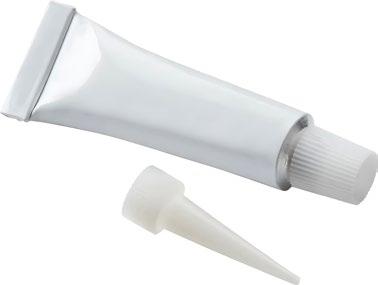

Product Code-COB-GLUE
Silicone Glue

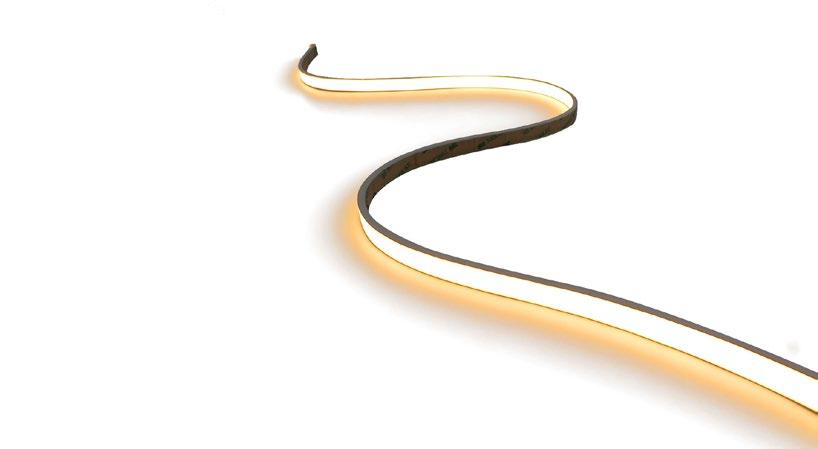

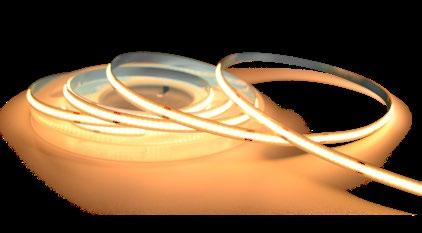

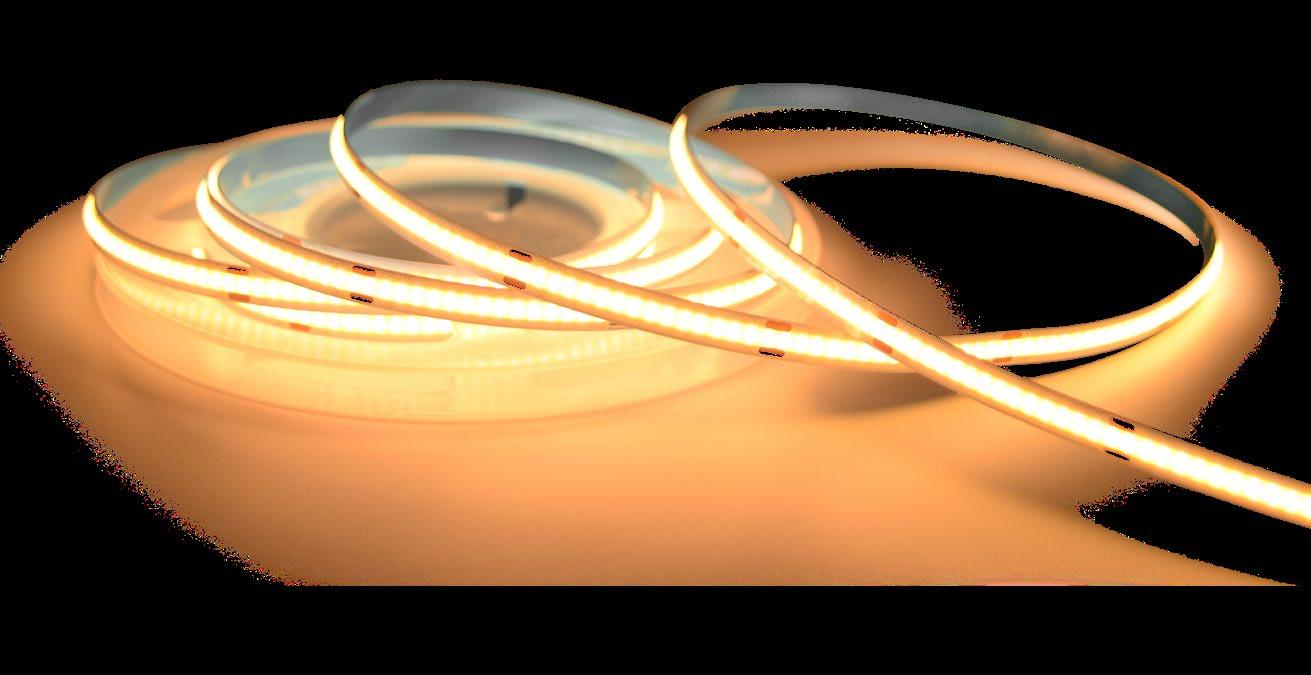

IC COB STRIP SEAMLESS LED STRIP
IC COB STRIP
• 8W/m COB Strip (Chip on Board Strip)
• Seamless light
• Dot free array – continuous light output from LED Chips
• Nonvisible LED Chips
• 24V Super bright LED Strip
• Commercial grade high quality
• Long lasting Premium LED Strip
• IP44 Rating
• Dimmable
• Suitable for professional installations
• 40 metre reel, 20 metre reel & 5 metre reel
• Constant Voltage
• Available in Warm White 3000K, Cool White 4000K, Daylight 6000K
• 1 year warranty
8W/M 24V
IC COB LED STRIP ACCESSORIES
DRIVER REFERENCE TABLE
It is recommended to run a maximum of 20 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver.

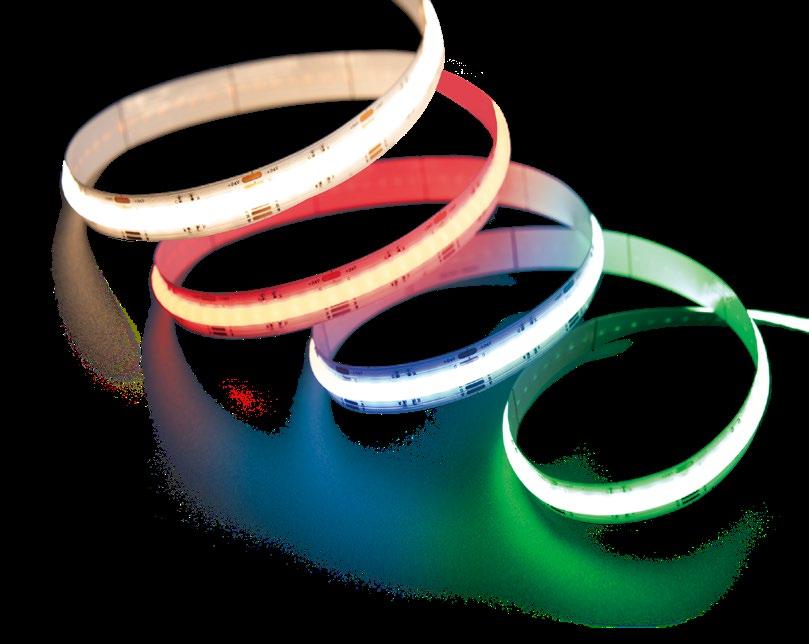

IC RGBW COB STRIP
•
• Nonvisible LED Chips
•
•
•
End Connector 10m Double End Connector 2m Double End Connector L CONNECTOR
14.4W/M
24V
RGBW COB LED STRIP
ACCESSORIES
DRIVER REFERENCE TABLE
It is recommended to run a maximum of 20 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver.
COB2-RGBW
COB2-RGBW-DEND12
COB2-RGBW-12L
RGBW Single End Connector – 12mm width
RGBW Double End Connector – 12mm width
RGBW COB L Connector 12mm width

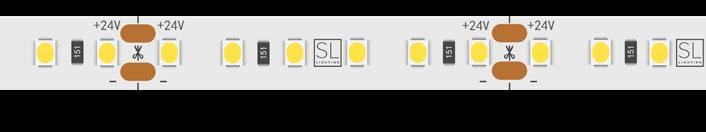

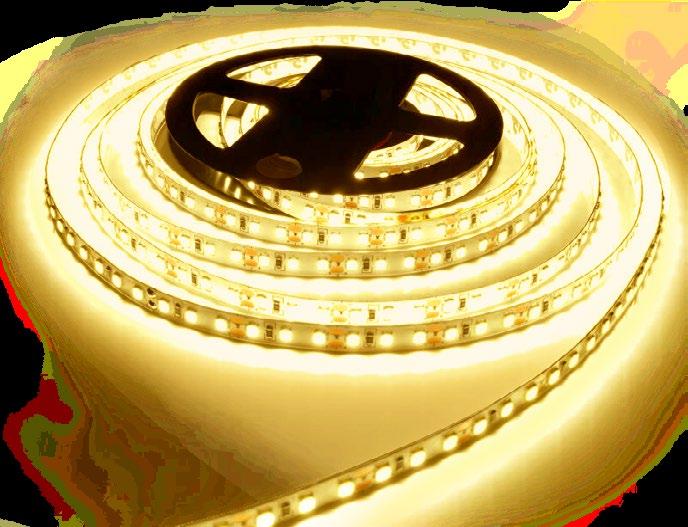

120 LED STRIP
• 120 LEDs Per metre
• Dot Free LED Strip
• 24V Super Bright LED Strip
• IP65 rated
• Dimmable
• Commercial grade high quality
• Long lasting premium LED Strip
• Suitable for professional installations
• 30M Reel
• 100mm cutting space
• Constant Voltage
• Available in Warm White 3000K & Cool White 4000K
• 1 year warranty (It is recommended Aluminium Extrusion is used on all LED Strip installs to prevent premature failure. Warranty will be extended to 2 years if installed with Aluminium Extrusion)
9.6W/M 24V
LED STRIP ACCESSORIES
DRIVER REFERENCE TABLE
It is recommended to run a maximum of 10 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver. For further information about the 24V DC LED Drivers see pages 81-83
IC RGB STRIP
•
•
12W 24V LED RGB STRIP ACCESSORIES
DRIVER REFERENCE TABLE
It is recommended to run a maximum of 10 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver.
WIFI Controller
COMPATIBLE MULTI RF RECEIVER

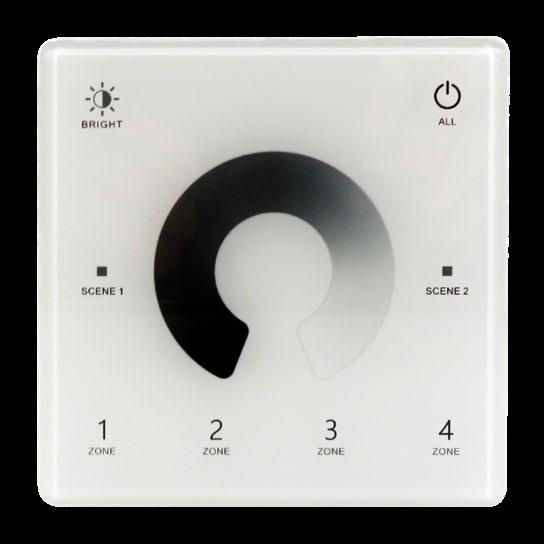

SINGLE WALL CONTROLLER
FEATURES & BENEFITS
• Control 4 Zones
• Glass touch panel for precision control
• Built-in LED indicator light allowing you to visibly see a touch movements
• Colour wheel to accurately adjust the colour of your lighting.
• Can be installed into a UK standard back box (mm depth)
• White finish
• Control Distance: 10 metres
• Dimming Range: 0-100%
• Dimension: 86 × 86 x 9.5
SPECIFICATIONS
DIMENSIONS
COMPATIBLE MULTI RF RECEIVER
RGBW WALL CONTROLLER
100-240V AC 0.1A
FEATURES & BENEFITS
• Control 4 Zones RGB/RGBW
• Glass touch panel for precision RGB+W colour control
• Built-in LED indicator light allowing you to visibly see a touch movements
• Colour wheel to accurately adjust the colour of your lighting.
• Can be installed into a UK standard back box (mm depth)
• White finish
• Control Distance: 10 metres
• Dimming Range: 0-100%
• Dimension: 86 × 86 x 9.5
SPECIFICATIONS
DIMENSIONS
COMPATIBLE MULTI RF RECEIVER
SINGLE
/ DUAL COLOUR REMOTE
• User-friendly interface, easy and simple operation
• Dim brightness, and colour mix setting, allows you to set to millions of colours
• Control up to 4 zones, each zone can be synced with 10 receivers
SPECIFICATIONS
• Ability to set 2 scenes
• Pre-set 10 changing modes, with pause function modes Compatible with ‘WIFI’ router
• 3 year warranty
MULTI-
FUNCTIONAL REMOTE CONTROL
• User-friendly interface, easy and simple operation
• Dim brightness, and colour mix setting, allows you to set to millions of colours
• Control up to 8 zones, each zone can be synced with 20 receivers
• Ability to set 2 scenes
• Pre-set 10 changing modes, with pause function modes Compatible with ‘WIFI’ router
• 3 year warranty
CONTROL VIA APP
Tuya
WIFI MULTIZONE RF CONTROLLER
CONTROLLER FOR SINGLE COLOUR, DUAL COLOUR, RGB & RGBW
12-36VDC
FEATURES & BENEFITS
3 YEAR WARRANTY CE & ROHS
• 5 in 1 full compatible with a variety of single colour, dual colour, RGB, RGBW, RGB+CCT
• Compatible with Google Assistant & Alexa
• Download Tuya APP to control LED Strip through your device (Mobile / Tablet )
• 5A 4CH 12-36VDC Constant voltage RF Controller/Receiver
• 360W -24V Max load
• Ultra Slim Design
• Updated shell with easy connection terminal
FUNCTIONS
• Control via RF Multi-functional remote control
• Unique receiver / repeater setting jumper
• Schedule time function
• Multiple scenes mode
• Control via voice command
• Group Control
• 3 year warranty
SPECIFICATIONS
DIMENSIONS
Schedule
IP65 In-Ground Profile
FEATURES & BENEFITS
• Seamless appearance – continuous form of in ground linear light
• Indoor & outdoor usage
• Surface Mount
• Flush linear lighting which can be walked over
• Waterproof / walkover profile
• Great for mounting & routing LED strip lights for a glamorous lighting design
• IK08 impact resistance
• Heavy duty designed for areas where resistance to footfall is needed
• 6063-T5 Aircraft Grade Pure Aluminum
• Polycarbonate V2 Diffusers
• Ideal for shelving, cabinets, bathrooms
SPECIFICATIONS
Product Code
IP65-PROFILE-1M/2M
Description 1/2 Metres Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 20
Inner width: 16
Outer width: 20
IP65 Flanged In-Ground Profile
FEATURES & BENEFITS
• Seamless appearance – continuous form of in ground linear light
• Indoor & outdoor usage
• Recessed into tiles or paving slabs
• Flush linear lighting which can be walked over
• Waterproof / walkover profile
• Great for mounting & routing LED strip lights for a glamorous lighting design
• IK08 impact resistance
• Heavy duty designed for areas where resistance to footfall is needed
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
• Ideal for decking, tiles, stairs, patio & paths
SPECIFICATIONS
Product Code
F-IP65-PROFILE-1M/2M
Description 1/2 Metres Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
• Available in 2 metres aluminium extrusion with 2 flanges
• Available with a frosted diffuser & 2 end caps

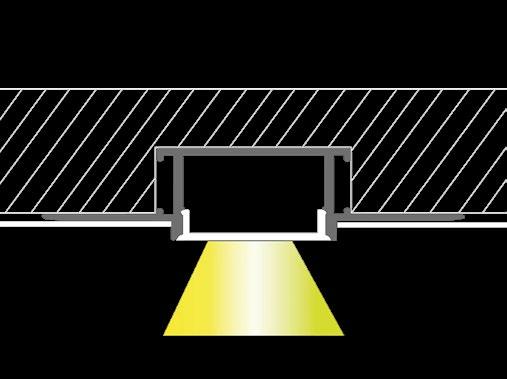

• Ideal for recessing in to plastered / drywalls and ceilings
DIMENSIONS
Dimensions 2 Metres Trimless Profile with Frosted Diffuser, 2 end caps (20mm internal)
Height: 14.40
Inner width: 20 Outer width without flanges: 23.86 Outer width with flanges: 61.66
Seamless diffused light output
6063-T5 Aircraft Grade Durable Aluminium
45° Cutting Angle
90° Corner Connection
FROSTED DIFFUSER INCLUDED
BLACK DIFFUSER INCLUDED
BLACK FLAT ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Flat Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• Low profile – Up to 8mm in height
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code
BW-FLAT-PROFILE-2M
• Available in 2 metres aluminium extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description
2 Metres Flat Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 8
Inner width: 12
Outer width: 17
(SILVER)
FLAT ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Flat Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• Low profile – Up to 8mm in height
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code
BW-FLAT-PROFILE-2M
• Available in 2 metres aluminium extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description
2 Metres Flat Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 8
Inner width: 12
Outer width: 17
CORNER ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Corner Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code BW-CORNER-PROFILE-2M
• Available in 2 metres aluminium extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description 2 Metres Corner Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
DEEP RECESSED ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Deep Recessed Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code BW-DRECESSED-PROFILE-2M
• Available in 2 metres Aluminium Extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description 2 Metres Deep Recessed Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 15
Inner width: 12
Outer width: 17
Outer width: 25
(SILVER)
UNDER-CABINET DRIVER IDEAL FOR DOWNLIGHT HOLES
IP67 RATED IDEAL FOR OUTDOORS

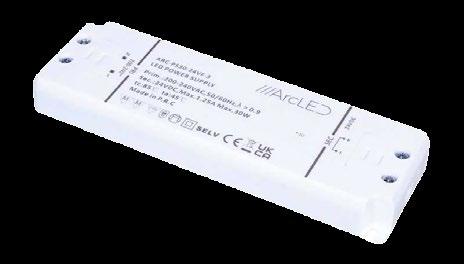

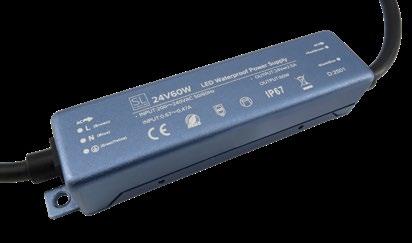

24V SUPER SLIM DRIVERS
FEATURES & BENEFITS
• Suitable for LED Strip
• IP67
• Ultra-Slim Driver
• Non- Dimmable
• Short-circuit, overload & over heating protection
• Available in 30W, 60W, 100W
• High Power Factor with efficiency > 0.96
• Compact design with over 50% size reduction
• 5 years warranty
IDEAL UNDER-CABINET DRIVER
IDEAL FOR DOWNLIGHT HOLES
IP67 RATED IDEAL FOR OUTDOORS

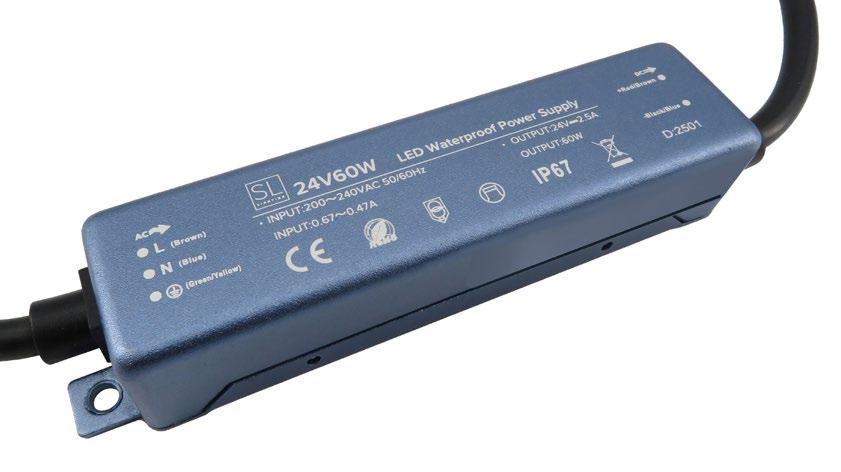

24V SUPER SLIM DRIVERS
150W 5 YEAR WARRANTY CE & ROHS 200W 30,000HRS 24V IP67
• Suitable for LED Strip
• IP67
• Ultra-Slim Driver
• Non- Dimmable
• Short-circuit, overload & over heating protection
• Available in 150W, 200W
• High Power Factor with efficiency > 0.96
• Compact design with over 50% size reduction
• 5 years warranty
IDEAL UNDER CABINET DRIVER
IDEAL FOR DOWNLIGHT HOLES
IP67 RATED - IDEAL FOR OUTDOORS
⅔ SMALLER THAN OTHER DRIVERS
SHORT CIRCUIT PROTECTION
OVERLOAD PROTECTION
SUITABLE FOR LED STRIP & ANY LIGHT FITTINGS THAT REQUIRE 24V CONSTANT VOLTAGE LED DRIVERS
OVER HEAT PROTECTION
OUR DRIVERS VS OTHER DRIVERS
IP67 RATED
2/3 SMALLER IN SIZE
RUBBER CABLE
THICK COPPER CORE
HIGH QUALITY FIBERGLASS BOARD
ALUMINUM HOUSING
HIGH POWER FACTOR >0.96
5 YEAR WARRANTY
HIGH POWER FACTOR > 0.96
IP20 RATED
LARGE DRIVER SIZE
PVC CABLES
THIN COPPER CORE
POOR QUALITY STEREWBOARD
PLASTIC HOUSING
LOW POWER FACTOR >0.80
2 YEAR WARRANTY

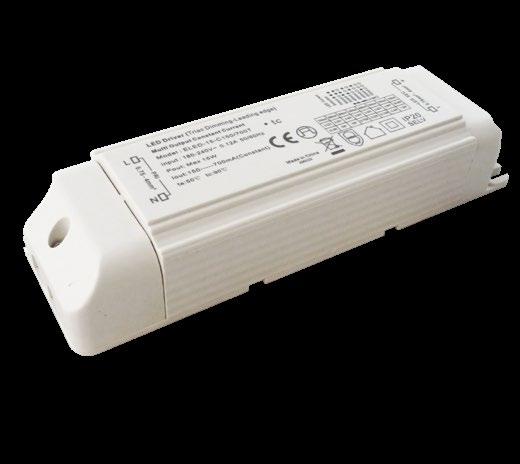

240V MAINS DIMMABLE DRIVERS
• Use for LED Strip
• 24V & 240V Dimmable driver
• Compatible with 1-10V and Leading Edge or Trailing Edge Dimmers
• Flicker-free, smooth dimming
• Adjustable resistance
• LED power indicator
• Short circuit, overload & over heating protection
• Available 60W, 100W & 150W
• 2 year warranty
CRI
(Colour Rendering Index)
A colour rendering index (CRI) is a quantitative measure of the degree to which an artificial light source to accurately reproduce the colours of the object it illuminates. It is a metric of colour quality which is a score with a maximum of 100.
EXCELLENT CRI 90
REASONABLE CRI 80
POOR CRI 50
HIGH COLOUR RENDERING TECHNOLOGY
STANDARD LED
Our standard of CRI 90 applies to many products in our range, including luminaires, marker lights & LED Strip.
WIFI is s wireless networking technology using radio waves that allows devices such as mobile phones, tablet, PC, laptops & other equipment (entertainment systems, printers) to connect to the internet without a wired connection. A network can be created through these devices by exchanging information with one another.
Bluetooth
Bluetooth is a wireless networking technology which uses short wave radio frequencies to interconnect wireless electronic devices.
Google Assistant
Google assistant is a virtual assistant developed by Google to do variety of tasks via having a conversation with you rather than providing links to websites
Amazon Alexa
Amazon developed Alexa (smart speaker) that is a voice-controlled personal assistant to carry out a variety of tasks.
Tuya App / Smart Life App
Provides a smart home solution to control your lighting by a touch of a button or by voice command via Amazon Alexa or Google Assistant Tuya Smart life
LIFESPAN (HRS)
120°
CRI - A colour rendering index (CRI) is a quantitative measure of the degree to which an artificial light source renders colour in the same manner as a natural light source.
Lifespan - The amount of time (usually measured in hours) a light fitting is expected to operate.
Beam angle - The angle, in degrees, at which light is emitted from a light source.
AC200-240V - Alternating current is a form of voltage which can be easily changed by means of a power transformer.
Dimmable - Dimmable LED fittings can vary the amount of light they emit to better suit your surroundings.
Fire Rated - A fire-resistance rating measures the duration for which a passive fire protection system can withstand a standard fire resistance test. This is usually measured in 30, 60 and 90 minutes
Impact Resistance - The ability of a product to withstand a high force or shock applied to it over a short period of time. A high force over a short time has a greater effect than a weaker force over a longer period of time.
Short Circuit Protection - This feature prevents damage to the LED driver's core components in the event of a short circuit
Overload Protection - This protection function is activated if the LED driver is unable to provide enough power when the LED driver is oversized
Over Heat Protection - Over heat protection ensures the safety of your light system and the LED driver. The driver will not be damaged and protects itself. However, the safety function is not a safety function.
LM80 / LM10 - This is a measurement of how LEDs are performing after 10,000 hours
MACADAM MACADAM 3 STEP - We only use LEDs from within 3 macadam ellipses, meaning the CCT is consistent throughout our products
TUV
TUV - TUV certified product meet safety regulations. It lower risk of liability through documented safety standards
IK10
LM80
CE & ROHS
CE - The CE marking certifies that a product has met EU consumer safety, health or environmental requirements. Electromagnetic energy is radiated, absorbed, or dissipated.
ROHS - is a certification which aims to restrict certain dangerous substances commonly used in electronic and electronic equipment. Any RoHS compliant component is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE).
WARRANTY
15W
Warranty - Replacement products will be provided if a product fails or is found to be defective within the given warranty period.
Watts - the (SI) unit of power (energy per unit time), the equivalent of one joule per second. The watt is used to specify the rate at which electrical energy is dissipated, or the rate at which electromagnetic energy is radiated, absorbed, or dissipated.
TPA Its a term used in the UK Building Regulations (UK Building Regulations, Fire Safety, Approved Document B, Volume 2 – Buildings other than dwellings) that classify lighting diffusers according to their flammability. TP means thermoplastic, and TP materials, such as polycarbonate (PC), acrylic (PMMA) and polystyrene (PS), are commonly used as diffusers in light fittings. In the UK Building Regulations these are classified as TP(a) or TP(b) and when a lighting diffuser is deemed to be part of a ceiling it must be made of either TP(a) or TP(b) rated material.
Diffusers made of TP(a) rated material can be used to an unlimited extent in the ceilings of rooms (offices, classrooms etc) and circulation areas (corridors, lift lobbies etc). The UK Building Regulations do not require minimum spacings between TP(a) rated diffusers nor do they limit the % of the ceiling area that can be made of TP(a) rated diffusers.
Suitable for installation on normally flammable surfaces SOCKET TYPES
B15 - Socket Base B15
CLASS
CLASS
Class 1
Electrically insulated and provided with connection for earth
Complied with Class 2
Double insulation requirements of BS EN 60598
Complied with Class 3
Extra-low voltage (SELV) requirements of BS EN 60598
When higher impact energy protection is required 50 joules is recommended
The ingress protection (IP) code represents the protection against dust, solid objects and moisture provided by the luminaire enclosure.
IP20 IP40 IP43 IP44
IP55 IP65 IP66 IP67 IP54 IP68
DEFINITION OF INGRESS PROTECTION (IP)
BODIES
against drops of liquid falling at any angle up to 15* from the vertical
against rain falling at at angle up to 60* from the vertical
Protection against ingress of small foreign bodies
than 1mm 5 Protection against the ingress of dust in an amount
with

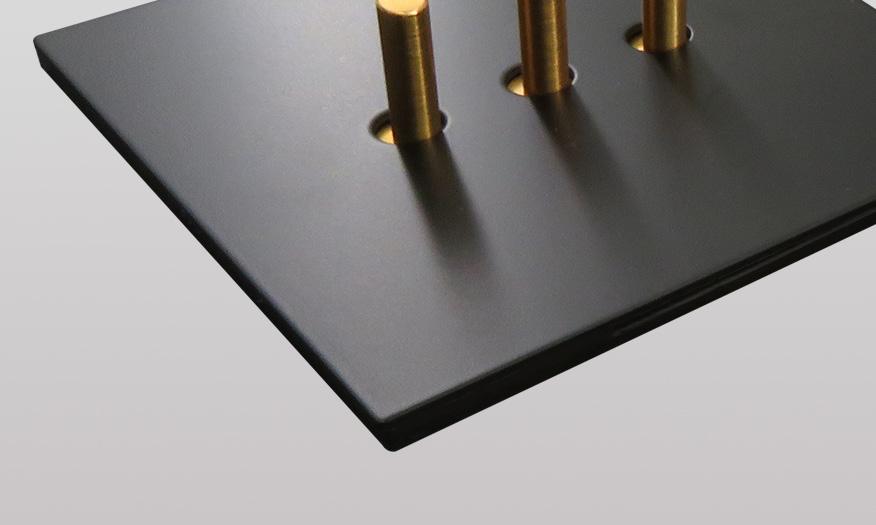

Modern & elegant simple clip on plate design
1,2,3,4 Gang Switches
Toggle length: 9.5mm
Dimension: 90×86mm
Rated Current: 10A
Rated Voltage: 220-250V
Low profile interchangeable plates

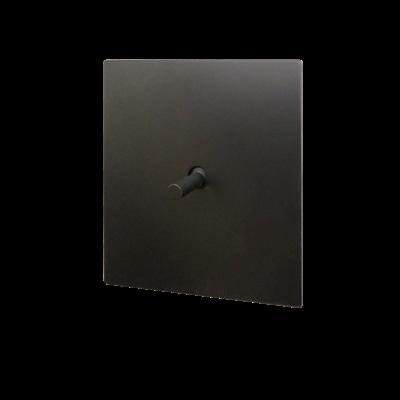

1 GANG 2 WAY - TOGGLE LIGHT SWITCH
1G2W-BLK-TOG
1G2W-GOLD-TOG
1G2W-BLK-PLT
1G2W-GOLD-PLT
1 Gang 2 Way Switch Black Toggle
1 Gang 2 Way Switch Gold Toggle
1 Gang 2 Way Switch Black Plate
1 Gang 2 Way Switch Gold Plate
1 GANG 2 WAY - INTERMEDIATE TOGGLE LIGHT SWITCH
1G2W-BLK-TOG-INTER
1G2W-GOLD-TOG-INTER
1G2W-BLK-PLT
1G2W-GOLD-PLT
1 Gang 2 Way Switch Black Toggle Intermediate Switch
1 Gang 2 Way Switch Gold Toggle Intermediate Switch
1 Gang 2 Way Switch Black Plate
1 Gang 2 Way Switch Gold Plate

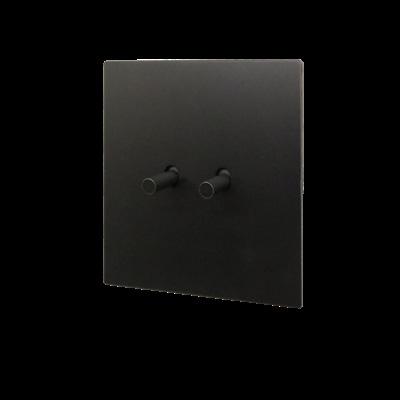

2 GANG 2 WAY - TOGGLE LIGHT SWITCH
2G2W-BLK-TOG
2G2W-GOLD-TOG
2G2W-BLK-PLT
2G2W-GOLD-PLT
2 GANG 2 WAY - INTERMEDIATE TOGGLE LIGHT SWITCH
2G2W-BLK-TOG-INTER
2G2W-GOLD-TOG-INTER
2G2W-BLK-PLT
3 GANG 2 WAY - TOGGLE LIGHT SWITCH
3G2W-BLK-TOG
3G2W-GOLD-TOG
3G2W-BLK-PLT
3G2W-GOLD-PLT
4 GANG 2 WAY - TOGGLE LIGHT SWITCH
4G2W-BLK-TOG
4G2W-GOLD-TOG
4G2W-BLK-PLT
4G2W-GOLD-PLT

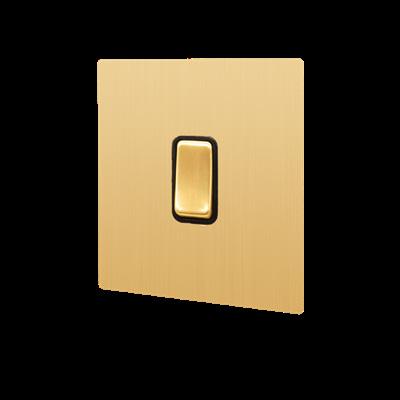

ROCKER SWITCHES
On & Off Function
Low Profile Screwless
Flat Plate
Rated Current: 10A
Rated Voltage: 220-250V
Dimension: 90×86mm
1 GANG ROCKER LIGHT SWITCH
2 GANG ROCKER LIGHT SWITCH
3 GANG ROCKER LIGHT SWITCH
DIMMER SWITCHES
Dimmer knobs available in Antique Brass, Matt Gold, Matt Black & Chrome
MATT GOLD ANTIQUE BRASS

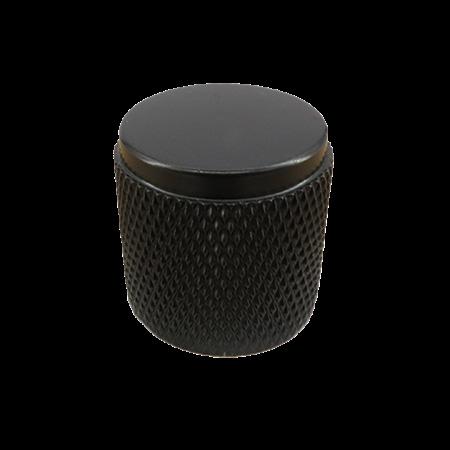

Knurled finished knob
Rated Voltage: 200-250V
Rated Wattage: 0-500W
Dimension: 90 × 86mm
Push on/off, rotary action dimmer
Anti-flicker
1 GANG 2 WAY - DIMMER SWITCH
1GDIM-BLK-K
1GDIM-GOLD-K
1 Gang 2 Way Light Dimmer with Black Knurled Knob
1 Gang
Way

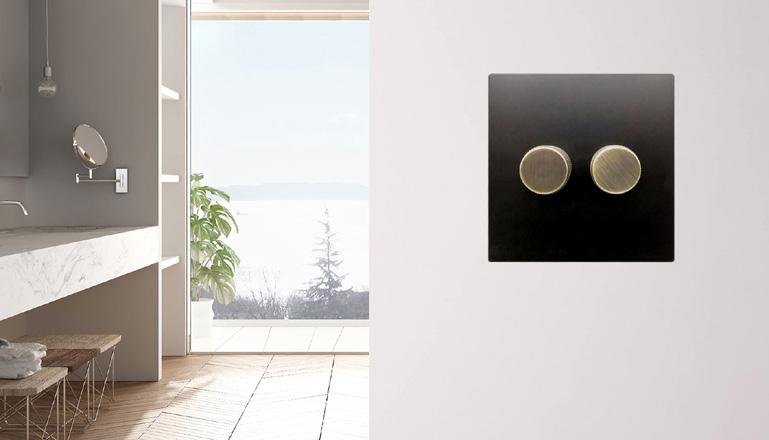

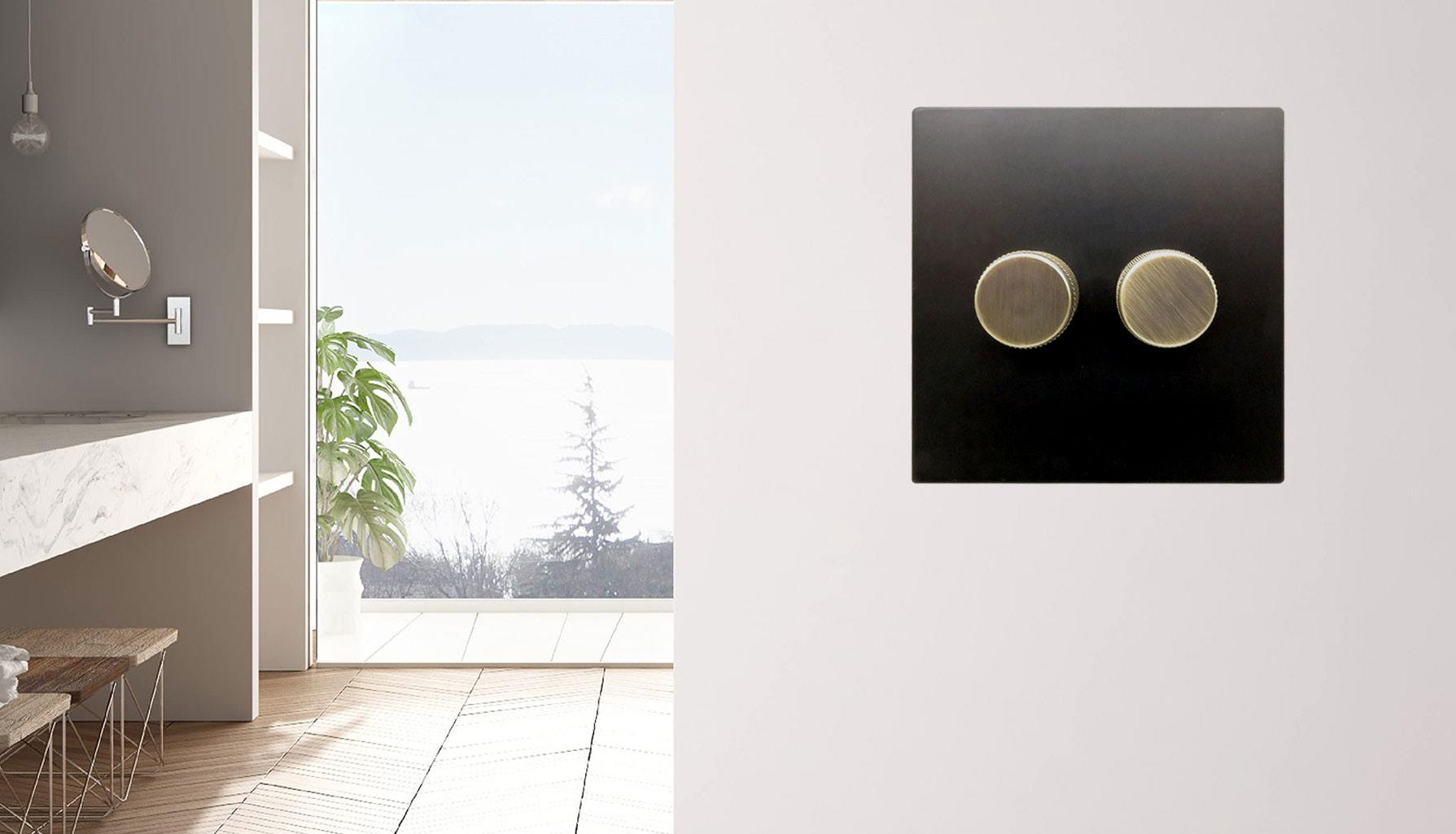

2 GANG 2 WAY DIMMER SWITCH
10A 220-250V 220-250V
2GDIM-BLK-K
2GDIM-GOLD-K
2
2 Gang 2 Way Light Dimmer with Black Knurled Knob
2
Light Dimmer with Matt Gold / French Brushed Brass Knurled Knob
Gang 2 Way Light Dimmer with Matt Gold / French Brushed Brass Knurled Knob
SWITCH SOCKETS
Single / Double Switch with USB & USB C
Dimension: Single 90 × 86mm, Double 146 × 86mm
Black inserts
Rated Current: 13A
Decorative low profile screwless flat plat
Rated Voltage: 220-250V
SWITCHED FUSED SPUR
10A 220-250V
PRODUCT
1F1G-PANEL-BLACK
1F1G-PANEL-GOLD
1F1G-BLACK-PLT
1F1G-GOLD-PLT
OPTIONS AVAILABLE
1 gang + Fuse unit Stainless Steel Panel Black Toggle
1 gang + Fuse unit Stainless Steel Panel Gold Toggle
1 Gang + 1 Fuse Unit Black Plate

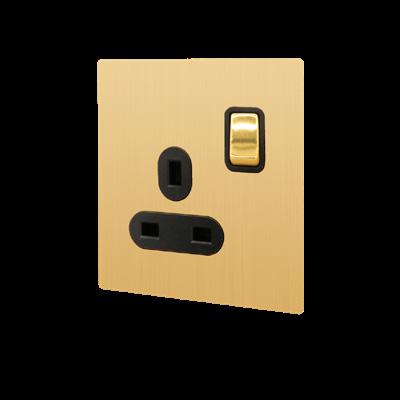

13A MF SINGLE SOCKET
OPTIONS AVAILABLE
x 86mm
x 86mm
x 86mm
1 Gang + 1 Fuse Unit Gold Plate 90 x 86mm
10A 220-250V
DIMENSION
3P-S-BLK
3P-S-GOLD
3 Pin Single MF Switch Socket Matt Black
3 Pin Single MF Switch Socket Matt Gold
90 x 86mm
90 x 86mm
MF SINGLE SWITCH SOCKET WITH USB
OPTIONS AVAILABLE
MF SINGLE SWITCH SOCKET WITH USB & USB C
AVAILABLE
3P-S-BLK-USB
3P-S-BLK-USBC
3P-S-GOLD-USB
3P-S-GOLD-USBC
3 Pin Single MF Switch Socket Matt Black with 2 USB Ports
Matt
MF DOUBLE SWITCH SOCKET
3P-D-BLK
3P-D-GOLD

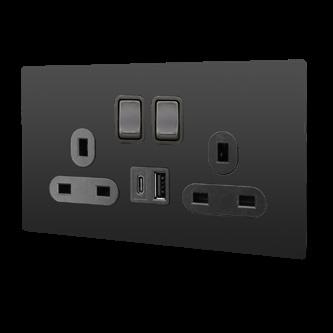

MF DOUBLE SWITCH SOCKET WITH USB
3P-D-BLK-USB
3P-D-GOLD-USB
MF DOUBLE SWITCH SOCKET
3P-D-BLK-USBC
45A COOKER CONTROL UNIT
3P-45A-BLK
3P-D-GOLD-USBC
3P-45A-GOLD
TOGGLE SWITCHES
1G2W-BLK-TOG
1G2W-GOLD-TOG
1G2W-BLK-PLT
1G2W-GOLD-PLT
2G2W-BLK-TOG
2G2W-GOLD-TOG
2G2W-BLK-PLT
2G2W-GOLD-PLT
1G2W-BLK-TOGINTER
1G2W-GOLD-TOGINTER
1G2W-BLK-PLT
1G2W-GOLD-PLT
2G2W-BLK-TOGINTER
2G2W-GOLD-TOGINTER
2G2W-BLK-PLT
2G2W-GOLD-PLT
TOGGLE SWITCHES
3G2W-BLK-TOG
3G2W-GOLD-TOG
3G2W-BLK-PLT
3G2W-GOLD-PLT
4G2W-BLK-TOG
4G2W-GOLD-TOG
4G2W-BLK-PLT
4G2W-GOLD-PLT
ROCKER LIGHT SWITCHES
1G2W-BLK-ROCKERSET
1G2W-GOLD-ROCKER-SET
1G2W-GOLD-ROCKER-PLT
2G2W-BLK-ROCKER-SET
2G2W-GOLD-ROCKERSET
2G2W-BLK-ROCKER-
2G2W-GOLD-ROCKER-
3G2W-BLK-ROCKER-SET
3G2W-GOLD-ROCKER-
3G2W-GOLD-ROCKER-
4G2W-BLK-ROCKER-SET
DIMMER SWITCHES & FUSE SPURS
ANTIQUE BRASS
1GDIM-BLK-K
1GDIM-GOLD-K
DIM-SS-K
DIM-AB-K
1GDIM-BLK-PLT
1GDIM-GOLD-PLT
1 Gang Light Dimmer with Black Knurled Knob
1 Gang Light Dimmer with Matt Gold / French Brushed Brass Knurled Knob
Chrome Knurled Dimmer Knob
Antique Brass Knurled Dimmer Knob
1 Gang Light Dimmer Black Plate
1 Gang Light Dimmer Matt Gold / French Brushed Brass Plate
2GDIM-BLK-K
2GDIM-GOLD-K
DIM-SS-K
DIM-AB-K
2GDIM-BLK-PLT
2GDIM-GOLD-PLT
2 Gang Light Dimmer with Black Knurled Knob
2 Gang Light Dimmer with Matt Gold / French Brushed Brass Knurled Knob
Chrome Knurled Dimmer Knob
Antique Brass Knurled Dimmer Knob
2 Gang Light Dimmer Black Plate
2 Gang Light Dimmer Matt Gold / French Brushed Brass Plate
1F1G-PANEL-BLACK
1F1G-PANEL-GOLD
1F1G-BLACK-PLT
1F1G-GOLD-PLT
1 gang + Fuse unit Stainless Steel Panel Black Toggle
1 gang + Fuse unit Stainless Steel Panel Gold Toggle
