ABOUT US
Over the past ten years, SL Lighting has listened to our customers and developed a range of sustainable lighting solutions that live beyond tomorrow, helping our customers save energy, save money and reduce their impact on our planet.
The design of our products is led by our engineers here in the UK, with an emphasis on durability, incorporating high quality materials along with our LED technology to produce luminaires of outstanding longevity.
Many of our luminaires now have the CRI 90 colour rendering standard, creating a warm natural light that stimulates an harmonious atmosphere to enhance your inspired designs.
As LED lighting technologies continue to develop, you can be sure that we will continue to be at the forefront with a product range that enable you to take full advantage of technological advances. Lighting today, for a beautiful tomorrow.
BANBURY pg 4-6
ENZO pg 7-9
NICO pg 10-12
ROUND PANELS pg 13-16
FLEX PACK pg 17
OUTDOOR
KNURLED pg 19-21
REN pg 22-25
UM pg 26-28
LEO pg 29-31
CLEO pg 32-33
OSCAR pg 34-37
MARKER LIGHTS
SOFIA pg 39-41
MIA SQUARE pg 42-43
MIA ROUND pg 44
LOLA pg 46-48
ELLA pg 49-53
CHLOE pg 54-56
CLARA pg 57-59
MAYA pg 60-61
TRIMLESS MAYA pg 62-63
DIMMABLE DRIVERS pg 64-66
LED STRIP, CONTROLLERS,DRIVERS
NEON COB STRIP pg 68-70
IC COB STRIP pg 71-72
9.6W/M LED STRIP pg 73-74
RGB LED STRIP pg 75-77
WALL CONTROLLER pg 80
CONTROLLER pg 81
REMOTE pg 82
IN-GROUND PROFILE pg 83-85
TRIMLESS PROFIIE pg 86-88
BLACK PROFILE pg 89
FLAT PROFILE pg 90
CORNER PROFILE pg 91
DEEP RECESSED PROFILE pg 92
SUPER SLIM DRIVERS pg 93-94
240V MAINS DIMMABLE DRIVERS pg 95

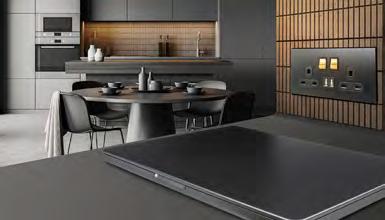

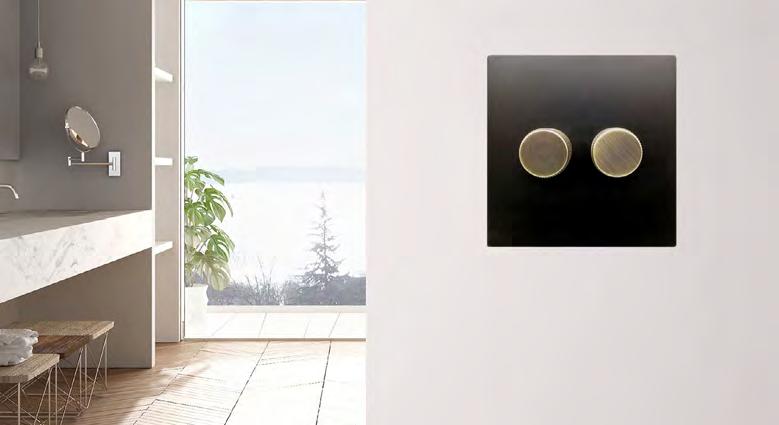

SWITCHES & SOCKETS
SWITCHES & SOCKETS pg 101-129
DOWNLIGHTS
ROUND PANELS
INSTALLATION BRACKET (SOLD SEPARATELY)
BANBURY FIXED DOWNLIGHT
FIRE RATED FIXED DOWNLIGHT
FEATURES & BENEFITS
• Fixed Downlight
• GU10 Socket – Max 10W
• GU10 bulb – not included
• Low glare
• Open back design with tempered glass bezel
• IP65 Rating
• Fire Rated upto 90 minutes
SPECIFICATIONS
• Ceiling mounting
• Loop in and out quick connector
• Idearl for solid Joist & I-Joist ceilings
• Twin spring loaded brackets
• Die-cast aluminium
• Matt white finish
• 2 year warranty
DIMENSIONS
INSTALLATION BRACKET (SOLD SEPARATELY)
BANBURY TRIMLESS DOWNLIGHT
FIRE RATED DOWNLIGHT
FEATURES & BENEFITS
• Fixed Downlight
• GU10 Socket – Max 10W
• GU10 bulb – not included
• Low glare
• Open back design with tempered glass bezel
• IP65 Rating
• Fire Rated upto 90 minutes
SPECIFICATIONS
• Ceiling mounting
• Loop in and out quick connector
• Idearl for solid Joist & I-Joist ceilings
• Twin spring loaded brackets
• Die-cast aluminium
• Matt white finish
• 2 year warranty
DIMENSIONS
ENZO
Semi Recessed Downlight Spotlight
Driver Supplied Fits Through Cutout
Black Finish Option
• 5W Recessed Spotlight / Downlight –430lm
• 2 in 1 – Semi Recessed Downlight & Spotlight
• IP Rating – IP44
• 24° Beam
• 360 degree rotation - Ability to be tilted which enables to precisely control the beam of light
• Finish – Matt White & Black
• Faceted Lens
• Baffle Colour – Matt White / Matt Black included
• Supplied with a standard driver fits through cutout
• Dimmable driver option – minimum 10 fitting
• Ideal for ambient, accent & task lighting
• 2 year warranty
FEATURES
Matt White Baffle
Matt Black Baffle
White Baffle creates a seamless finish which blends into the ceiling
Black Baffle showcases low glare, high quality appearance
IP44
Baffle included: Matt White & Matt Black
24° Beam
OSRAM CHIP
Matt White Finish
Matt Black Finish
NICO
Driver Supplied Fits Through Cutout
MINI BAFFLE DOWNLIGHT
FEATURES & BENEFITS
• 5W Mini Downlight
• 430 Lumens
• IP44 Rated
• LED CHIP – Bridgelux
• Beam Angle 24°
• Use as a ambient, accent or task lighting
• Reflector Lens
• Low power consumption
• Finish – Matt White
SPECIFICATIONS
• Two baffles included - White & Black
• Low glare light output achieved when both baffles used, it creates a softer tone which is ideal for highlighting features or areas of usage
• CCT Colour Switchable 2800K / 4000K / 6000K
• Dimmable driver available
• Suitable for Standard ceilings, Vaulted ceilings, High ceilings, Soffits
• 2 year warranty
DIMENSIONS
FEATURES
24° Beam
IP44
Bridgelux LED CHIP
WHITE BAFFLEBLACK BAFFLE
430LM
CCT COLOUR SWITCHABLE DRIVER
MATT WHITE DARK BRONZE
MATT GOLD
MATT BLACK
6W CCT ROUND PANEL
FEATURES & BENEFITS
• Colour switchable panel - 3000K, 4000K & 6000K
• Ultra thin – 9mm profile
• Even light distribution
• 30,000 hours
• IP Rating - IP54
• Available in 6W, 12W & 18W
SPECIFICATIONS
• Dimmable driver available
• Emergency Pack available
• Ideal for receptions, entrance foyers, corridors, stairwells, offices
• 2 year warranty
Emergency Pack & Dimmable Driver
12W CCT ROUND PANEL
TRI-COLOUR RECESSED PANEL
FEATURES & BENEFITS
• Colour switchable panel - 3000K, 4000K & 6000K
• Ultra thin – 9mm profile
• Even light distribution
• 30,000 hours
• IP Rating - IP54
• Available in 6W, 12W & 18W
SPECIFICATIONS
• Dimmable driver available
• Emergency Pack available
• Ideal for receptions, entrance foyers, corridors, stairwells, offices
• 2 year warranty
Emergency Pack & Dimmable Driver
18W CCT ROUND PANEL
TRI-COLOUR RECESSED PANEL
FEATURES & BENEFITS
• Colour switchable panel - 3000K, 4000K & 6000K
• Ultra thin – 9mm profile
• Even light distribution
• 30,000 hours
• IP Rating - IP54
• Available in 6W, 12W & 18W
SPECIFICATIONS
• Dimmable driver available
• Emergency Pack available
• Ideal for receptions, entrance foyers, corridors, stairwells, offices • 2 year warranty
FLEX - PACK
FEATURES & BENEFITS
• All-in-one design: constant current driver
• 3 pole isolation of lamp & mains driver power during emergency
• Efficient boosting
• Constant current recharging
• Easy installation
• High transforming efficiency
• Isolation safe design
SPECIFICATIONS
• High power factor
• Reliable protection design in case of overload & overvoltage
• Smart automisation differs between standard lighting and emergency lighting
• Supplied with a charging indicator
• Ceiling cut out 44mm
• 3 year warranty
DIMENSIONS
OUTDOOR

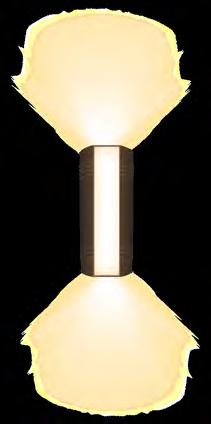

KNURLED
GU10 UP / DOWN WALL LIGHT
DIMENSIONS SYLISH KNUNRLED FINISH ON BOTH SIDES
FEATURES
& BENEFITS
• Up / Down Wall Light
• Casts light in both upwards and downwards direction
• IP Rating – IP44
• Class - II
• Die-cast Aluminium construction
• Tempered Glass Lens
• Wall-Mount Cylinder
• Knurled finish & sleek design provides a modern architectural aesthetic
SPECIFICATIONS
• Max Wattage: 2 x 35W
• Caps: 2 x GU10 sockets embedded in the body
• GU10 Bulbs are not included
• Dimmable – when using a dimmable GU10 bulb
• Bi-directional light for entryways, doorway, foyer, corridor, balcony, patio, or porch
• Ideal as a feature light which casts light spill in both an upwards and downwards projection
Wall-Mount Cylinder
IP Rating - IP44
Tempered Glass Lens
Knurled finish
STYLISH KUNRLED FINISH ON BOTH SIDES
sockets
Bi-Directional GU10 Wall Light
MATT BLACK GOLD DARK BRONZE
GU10 SOCKET - 2 MAX
2×GU10
FEATURES & BENEFITS
• 12W - Wall Wash Light
• 960 Lumens
• IP65 Rated
• Anti Glare
• LED CHIP – Osram
• 70mm Slim profile
• LED Chip – Epistar
• Surface mounted
• Die cast aluminium - Black finish
SPECIFICATIONS
• Aluminium construction for efficient heat dissipation
• Pre-wired with 2metre rubberised cable
• Elegant replacement for traditional up-down lighting
• Can be used as an architectural feature
• Perfect for lighting & decorative purposes
• Ideal foyers, hallways, gardens, patio, yards etc
• 2 year warranty
DIMENSIONS
FEATURES & BENEFITS
• 18W - Wall Wash Light
• 1440 Lumens
• IP65 Rated
• Anti Glare
• LED CHIP – Osram
• 70mm Slim profile
• LED Chip – Epistar
• Surface mounted
• Die cast aluminium - Black finish
SPECIFICATIONS
• Aluminium construction for efficient heat dissipation
• Pre-wired with 2metre rubberised cable
• Elegant replacement for traditional up-down lighting
• Can be used as an architectural feature
• Perfect for lighting & decorative purposes
• Ideal foyers, hallways, gardens, patio, yards etc
• 2 year warranty
DIMENSIONS
Dia Cast Aluminium
IP65 Rated
960 Lumens
Anti Glare
Epistar LED CHIP
SLIM PROFILE
WALL WASH LIGHT
BACKLIT WALL LIGHT
FEATURES & BENEFITS
• 12W - Backlit wall light
• 720 lumens
• IP65 rated
• 360 beam
• 50mm slim profile
• LED Chip – Epistar
• Black finish
• Can be ceiling or wall-mounted
– surface mounting
SPECIFICATIONS
• Die cast aluminium with a polycarbonate diffuser
• Pre-wired with 2metre rubberised cable
• Highlights focal points in an area - Adds style to small area
• Backlit which creates a warm aura
• Light shines around the fitting creating a halo lighting effect (ambient lighting)
• Can be ceiling or wall-mounted – surface mounting
• 2 year warranty
BACKLIT
CREATES A HALO LIGHTING EFFECT
Anti Glare
Epistar LED CHIP
50M SLIM PROFILE
LEO
SPIKE LIGHT
FEATURES & BENEFITS
• 5W Spike Light
• Upto 475 lumens
• IP65 Rated
• Integrated Driver
• Die Cast Aluminium Body
• Halogen Lens
• Pre flexed 2m cable
• CREE Chip
SPECIFICATIONS
• Suitable for wall & ground mounting
• Supplied with Spike & Wall Plate
• Available in 3000K & 4500K
• Use as a spotlight, accent or ambient light
• Ability to be tilted which enables to precisely control the beam of light
• 2 year warranty
DIMENSIONS
Spike Wall Plate
FEATURES
IP65 Rated
Die Cast Aluminium Body Intergrated Driver
Pre Flexed 2m Cable
Halogen Lens
SpikeWall Plate
CLEO-GU10
GU10 SPIKE LIGHT
FEATURES & BENEFITS
• GU10 Lamp Base Socket –MAX 7W
• 1.5 Metres per flexed cable
• Polycarbonate plastic
• Non-corrosive
• IP65 Rated
• Supplied with Spike
• Suitable for wall & ground mounting
• Use as a spotlight, accent or ambient light
• Ability to be tilted which enables to precisely control the beam of light
• Ideal to illuminate gardens, driveways, patios, trees, walkways
• 1 year warranty
DIMENSIONS
SPECIFICATIONS
FEATURES
Polycarbonate plastic
180° Degree rotatable
Non-corrosive
Pre Flexed 1.5m Cable
ACCESSORIES
IP65 Rated
Spike
GU10 Socket
Spike
OSCAR
DUAL POWER / COLOUR BULKHEAD
FEATURES & BENEFITS
• 12W/18W – Upto 1840lm
• IP rating - IP65
• IK10 rating
• Four conduit entry knockouts on each side and two rear entry points/knock-outs
• Besa box mounting option
• 320mm with a low profile depth 75mm
• TPA Rated and UV Stabilised
DIP SWITCH SETTING
• Available black or white bezel
• CCT Switchable – 3000K, 4000K, 6000K
• Standard, sensor adjustable, emergency, combined adjustable and emergency
• Ideal wall / ceiling mountable luminaire for internal & external
• 1 year warranty
DIMENSIONS
SPECIFICATIONS
12/18W3K, 4K, 6K12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm320 x 75mm
3K – 1800lm, 4K – 1820lm, 6K – 1840lm
OSCAR-SEN Sensor Adjustable12/18W3K, 4K, 6K12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm320 x 75mm 18W 3K – 1800lm, 4K – 1820lm, 6K – 1840lm
OSCAR-EM Emergency 12/18W3K, 4K, 6K12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm320 x 75mm 18W 3K – 1800lm, 4K – 1820lm, 6K – 1840lm OSCAR-COM Sensor Adjustable & Emergency 12/18W3K, 4K, 6K12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm320 x 75mm
3K – 1800lm, 4K – 1820lm, 6K – 1840lm
DUAL POWER COLOUR CHANGING
FOUR KNOCKOUT ENTRIES ON EACH SIDEBESA BOX MOUNTING OPTION
BEZEL’S HAVE KNOCKOUTS TO ALLOW FOR INTALLATION WITH CONDULT
BLACK BEZEL WHITE BEZEL
IP65 RATING
IK10 RATING
320MM DIAMETER WITH A LOW PROFILE 75MM
SENSOR EMERGENCY COMBINED SENSOR & EMERGENCY
MARKER LIGHTS
ROUND
CLARA
SOFIA
Driver Supplied Fits Through Cutout
3W LOW LEVEL MARKER LIGHT SOFIA
FEATURES & BENEFITS
• 3W Low Level Wash Light
• 50 Lumens
• IP44 Rated
• Anti Glare
• LED CHIP – Osram
• Slim profile
• Supplied with a inline non dimmable driver fits through cutout
• Dimmable driver option available
• Available Aluminium Embedded Box –required when installed into brick or solid walls
SPECIFICATIONS
• Finish - Matt White, Matt Black & Matt Gold
• Available in Warm White 3000K
• An ideal indirect lighting effect in circulation areas, walkways, stairs etc
• Aids individuals to navigate their way around when overhead lights are switched off
• Can be used as decorative feature marker light
• 2 year warranty
DIMENSIONS
FEATURES
SLIM PROFILE
OSRAM CHIP
IP44 RATED ANTI GLARE FROSTED GLASS FOR OPTIMUM LIGHT DISTRIBUTION
ONLY SUITABLE FOR INDOOR & BATHROOM USAGE
MATT WHITE MATT BLACK
SOFIA-3W-3KBLK
MATT GOLD DARK BRONZE PRODUCT
SOFIA-3W-3KBRZ
MIA
Driver Supplied Fits Through Cutout
LOW LEVEL MARKER LIGHT MIA
FEATURES & BENEFITS
• 3W Low Level Wash Light
• 50 Lumens
• IP44 Rated
• Anti Glare
• LED CHIP – Osram
• Slim profile
• Supplied with a inline non dimmable driver fits through cutout
• Dimmable driver option available
• Available Embedded Sleeve –required when installed into brick or solid walls (Sold Separately)
SPECIFICATIONS
• Finish - Matt White, Matt Black & Matt Gold
• Available in Warm White 3000K
• An ideal indirect lighting effect in circulation areas, walkways, stairs etc
• Aids individuals to navigate their way around when overhead lights are switched off
• Can be used as an architectural feature maker light within an area
• 2 year warranty
DIMENSIONS
Polycarbonate Embedded Sleeve
Driver Supplied Fits Through Cutout
MIA ROUND
LOW LEVEL MARKER LIGHT
FEATURES & BENEFITS
• 3W Low Level Wash Light
• 50 Lumens
• IP44 Rated
• Anti Glare
• LED CHIP – Osram
• Slim profile
• Supplied with a inline non dimmable driver fits through cutout
• Dimmable driver option available
• Available Embedded Sleeve –required when installed into brick or solid walls (Sold Separately)
SPECIFICATIONS
DIMENSIONS
• Finish - Matt White, Matt Black & Matt Gold
• Available in Warm White 3000K
• An ideal indirect lighting effect in circulation areas, walkways, stairs etc
• Aids individuals to navigate their way around when overhead lights are switched off
• Can be used as an architectural feature maker light within an area
• 2 year warranty
FEATURES
SLIM PROFILE
OSRAM CHIP
IP44 RATED
ANTI GLARE
FROSTED GLASS FOR OPTIMUM LIGHT DISTRIBUTION PRODUCT
ONLY SUITABLE FOR INDOOR & BATHROOM USAGE
Ideal For Low Level Lighting
Round Option PRODUCT CODE：
Embedded Box ( Sold Separately ) Required when installed into brick & solid walls
MATT WHITE
MATT BLACK
MATT GOLD
MATT GOLD
LOLA
Supplied with In-Ground Sleeve
LOLA
IN GROUND LIGHT
FEATURES & BENEFITS
• lntegrated Recessed Downlight
• 240 Lumens
• LED Chip - Osram
• Beam Angle 30°
• IP Rating - IP67
• Anti-Glare
• Faceted Lens
• Waterproof gland
• 2 waterproof gasket
• Flush toughened glass
SPECIFICATIONS
• Made from 316 Stainless Steel for maximum durability
• Stainless Steel, Matt White, Eyelid & Up/Down Bezels available
• Available in 3000K & 4000K
• 24V Constant Voltage Wired in parallel
• 2 Metres rubberised cable
• Ideal walk over light when used mounting sleeve
• Suitable as a walkover light
• 2 year warranty
DIMENSIONS
3000K & 4000K Options
Faceted Lens
Waterproof Gland
2 Waterproof Gaskats
In Ground Sleeve
IP67 Rated
Beam Angel 30°
240 Lumens
Driver Supplied Fits Through Cutout In-Ground Polycarbonate Sleeve (Sold Separately)
3W ELLA
IP65 MARKER LIGHT
FEATURES & BENEFITS
• 3W Low Glare Marker Light / Downlight
• High Powered version of our 1W Ella Range
• 200 Lumens
• LED Chip - Osram
• Beam Angle 30°
• IP Rating – IP65
• Anti-Glare
• Faceted Lens
• Flush toughened glass
SPECIFICATIONS
Product Code
• Polycarbonate Embedded Sleeve available
• Included Brushed Nickel & Matt White Bezel
• Variety of bezel options available
• Improved driver IP rating, with waterproof heat shrink
• Indoor & outdoor usage
• Available in 2700K, 3000K & 4000K
• 2 year warranty
DIMENSIONS
/ Matt
ELLA3W-SLEEVE
Polycarbonate Embedded Sleeve
35 x 50
Driver Supplied Fits Through Cutout
FEATURES & BENEFITS
• 1W Low Glare Marker Light / Downlight
• 100 Lumens
• LED Chip - Osram
• Beam Angle 30°
• IP Rating – IP65
• Anti-Glare
• Faceted Lens
• Flush toughened glass IP65 MARKER LIGHT
SPECIFICATIONS
• Polycarbonate Embedded Sleeve available
• Included Brushed Nickel & Matt White Bezel
• Variety of bezel options available
• Ideal walk over light when used mounting sleeve
• Suitable as a walkover light
• Available in 2700K, 3000K & 4000K
• 2 year warranty Product Code
DIMENSIONS
MATT WHITE BEZEL INCLUDED (PAINTABLE BEZEL)
BRONZE PRODUCT CODE: ELLA-BZL-BRZ
POLISHED BRASS PRODUCT CODE: ELLA-BZL-PB
BRUSHED NICKEL BEZEL INCLUDED
MATT BLACK BEZEL (SOLD SEPARATELY) PRODUCT CODE: ELLA-BLK-BZL
FOLLOWING BEZEL RANGE IS ONLY SUITABLE FOR INDOOR & BATHROOM USAGE ( SOLD SEPARATELY )
MATT ANTHRACITE GREY PRODUCT CODE: ELLA-BZL-GREY
POLISHED COPPER PRODUCT CODE: ELLA-BZL-PC
MATT GOLD PRODUCT CODE: ELLA-BZL-MGOLD
ANTIQUE BRASS PRODUCT CODE: ELLA-BZL-AB
MATT WHITE PRODUCT CODE:
ELLA-EYE-BZL-WHT
DARK BRONZE PRODUCT CODE: ELLA-EYE-BZL-BRZ
MATT WHITE PRODUCT CODE: ELLA-UD-BZL-WHT
DARK BRONZE PRODUCT CODE: ELLA-UD-BZL-BRZ
Ella Eyelid Bezel
BRUSHED NICKEL PRODUCT CODE:
ELLA-EYE-BZL-BN
ANTIQUE BRASS PRODUCT CODE: ELLA-EYE-BZL-AB
POLISH BRASS PRODUCT CODE: ELLA-EYE-BZL-PB
Ella Up & Down Bezel
BRUSHED NICKEL PRODUCT CODE: ELLA-UD-BZL-BN
ANTIQUE BRASS PRODUCT CODE: ELLA-UD-BZL-AB
POLISH BRASS PRODUCT CODE: ELLA-UD-BZL-PB
MATT BLACK PRODUCT CODE: ELLA-EYE-BZL-BLK
POLISHED COPPER PRODUCT CODE: ELLA-EYE-BZL-PC
MATT BLACK PRODUCT CODE: ELLA-UD-BZL-BLK
POLISHED COPPER PRODUCT CODE: ELLA-UD-BZL-PC
Supplied Fits Through Cutout
3W CHLOE
CCT MARKER LIGHT / MINI DOWNLIGHT
FEATURES & BENEFITS
• 3W Low Glare Marker Light / Downlight
• 300 Lumens
• LED Chip - Osram
• Beam Angle 30°
• IP Rating - IP44
• Fluted, Anti-Glare Bezel
• Faceted Lens
SPECIFICATIONS
• Great MR11 Alternative
• Variety of bezel options available including Matt White & Brushed Nickel
• Colour Switchable 2800K, 4000K 6000K
• Ideal for kitchens (as plinth lights) receptions, meeting rooms, entrance foyers
• 2 year warranty
DIMENSIONS
WHITE (PAINTABLE BEZEL)
MATT BLACK PRODUCT CODE: CHLOE-BZL-BLK
FOLLOWING BEZEL RANGE IS ONLY SUITABLE FOR INDOOR & BATHROOM USAGE ( SOLD SEPARATELY )
BRONZE PRODUCT CODE: CHLOE-BZL-BRZ
MATT GOLD PRODUCT CODE: CHLOE-BZL-MG
MATT ANTHRACITE GREY PRODUCT CODE: CHLOE-BZL-GREY
POLISHED BRASS PRODUCT CODE: CHLOE-BZL-PB ANTIQUE BRASS PRODUCT CODE: CHLOE-BZL-AB POLISHED COPPER PRODUCT CODE: CHLOE-BZL-PC
MATT
BRUSHED NICKEL
ALCOVE / NICHE LIGHTING SOFFIT LIGHTING
Supplied Fits Through Cutout
CLARA
1W
ADJUSTABLE
MARKER LIGHT
FEATURES & BENEFITS
• 1W Adjustable Marker Light / Downlight
• 100 Lumens
• LED Chip - Osram
• Beam Angle 30°
• IP Rating – IP44
SPECIFICATIONS
• Anti-Glare
• Faceted Lens
• Available in Matt White Finish
• Paintable Bezel
•
• 2 year warranty
FEATURES
IP44 RATED
PAINTABLE BEZEL
OSRAM LED CHIP
ADJUSTABLE MARKER LIGHT
180 degree rotate
POWERED BY
FACETED LOW GLARE LENS
Driver Supplied Fits Through Cutout
INTERCHANGEABLE BEZEL MARKER LIGHT
FEATURES & BENEFITS
• 1W Marker Light / Downlight
• 100 Lumens
• LED Chip - Osram
• Beam Angle 30°
• IP44 Rated
• Finish - Matt White
SPECIFICATIONS
• Faceted Lens
• Round, Square, Pin Spot, Wash Bezels options available
• Available Round & Square Eyelid Bezels
• 2 Year Warranty
MATT WHITE PAINTABLE BEZEL
INTERCHANGEABLE BEZEL
POWERED BY
ROUND BEZEL SUPPLIED WITH FITTING
SQUARE BEZEL SUPPLIED WITH FITTING
BLACK PRODUCT CODE: MAYA-BZL-BLK
PIN SPOT SUPPLIED WITH FITTING
WASH BEZEL SUPPLIED WITH FITTING
FOLLOWING BEZEL RANGE IS ONLY SUITABLE FOR INDOOR & BATHROOM USAGE ( SOLD SEPARATELY )
100LM
TRIMLESS MAYA
TRIMLESS MAYA BEZEL
IDEAL FOR PLASTER BOARDS
PRODUCT CODE: TRIMLESS-BZL
SUITABLE FOR MAYA ROUND BEZEL
PIN SCREW ACCESSORIES ALLOWS FOR EASY REMOVEL AND REPLACMENT OF FITTING
PRODUCT CODE: PIN-SCRW
THROUGH-HOLE DIMMABLE DRIVERS FOR MARKER LIGHTS
3W CONSTANT CURRENT DIMMABLE DRIVER
COMPATIBLE WITH
COMPATIBLE WITH
FEATURES & BENEFITS
• Protections: Short Circuit/ Over load/ Over Current
• Full protection plastic housing easy installation
• IP20 rated
• Powers one per fittings
• Dimming Function: Triac Dimmable
1W CONSTANT CURRENT DIMMABLE DRIVER SPECIFICATIONS
SOFIA MIA
MAYA CHLOE
WITH: MIA ROUND
ELLA
20W DIMMABLE DRIVER
20W CONSTANT CURRENT DIMMABLE DRIVER
IP20 CE & ROHS
FEATURES & BENEFITS
2 YEAR WARRANTY
• Constant current mode output with multiple levels selectable by dip switch
• Protections: Short Circuit/ Over load/ Over Current
• Full protection plastic housing easy installation
DIP MULTIPLE CURRENT FORM
• IP20 design for indoor installation
• Cooling by free air convection
• Dimming function: Triac dimmable
• 2 year warranty
DIMENSIONS
SOFIA MIA
MAYA
WITH: MIA ROUND
CHLOE
ELLA
40W DIMMABLE DRIVER
40W CONSTANT CURRENT DIMMABLE DRIVER
2 YEAR WARRANTY IP20 40W CE & ROHS
FEATURES & BENEFITS
• Constant current mode output with multiple levels selectable by dip switch
• Protections: Short Circuit/ Over load/ Over Current
• Full protection plastic housing easy installation
• IP20 design for indoor installation
• Cooling by free air convection
• Dimming function: Triac dimmable
DIMENSIONS
DIP MULTIPLE CURRENT FORM
• 2 year warranty SPECIFICATIONS
LED STRIP, CONTROLLERS,DRIVERS
DOTLESS OPAL DIFFUSED COVER
NEON IP67 COB STRIP
LED NEON STRIP
FEATURES & BENEFITS
• Seamless Neon Cob LED Strip
• Dot free array – continuous light output (max 10metres recommended) from LED Chips
• Dotless opal diffused appearancehigh quality finish
• Invisible LED Chips
• Flexible top-bend style in ultra-thin appearance
• IP67 Rated
• 24V Super bright LED Strip
SPECIFICATIONS
• Commercial grade high quality
• Long lasting Premium LED Strip
• Eliminates the need for a aluminium profile or a diffuser
• Available in Warm White 3000K, Cool White 4000K
• Available in 10 metre reel or 30 metre reel
• Constant Voltage
• Suitable for indoor & outdoor usage
• Ideal for linear lighting projects
NEON STRIP ACCESSORIES
Neon Strip connectorStrip to Strip with 150MM Wires
Product Code-COB-IP-SSWL
Product Code-COB-CAP
L Shape/Corner Connector
Product Code-COB-IP
Product Code-COB-GLUE
End Cap
Silicone Glue
IC COB STRIP SEAMLESS LED STRIP
IC COB STRIP
FEATURES & BENEFITS
• 8W/m COB Strip (Chip on Board Strip)
• Seamless light
• Dot free array – continuous light output from LED Chips
• Nonvisible LED Chips
• 24V Super bright LED Strip
• Commercial grade high quality
• Long lasting Premium LED Strip
• IP44 Rating
• Dimmable
• Suitable for professional installations
• 40 metre reel
• Constant Voltage
• Available in Warm White 3000K, Cool White 4000K, Daylight 6000K
• 1 year warranty
IC RGBW COB STRIP
SEAMLESS LED STRIP
FEATURES & BENEFITS
• 14W/M COB Strip (Chip on Board Strip)
• Seamless light
• Dot free array – continuous light output from LED Chips
• Nonvisible LED Chips
• 24V Super bright LED Strip
• Commercial grade high quality
• Long lasting Premium LED Strip
• IP44 Rating
• Dimmable
• Suitable for professional installations
• 10 metre reel
• Constant Voltage
• Available in Multicoloured & White light (2700K) Output
• 1 year warranty SPECIFICATIONS
8W/M 24V
IC COB LED STRIP ACCESSORIES
DRIVER REFERENCE TABLE
It is recommended to run a maximum of 20 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver.
120 LED STRIP
DOT FREE STRIP
FEATURES & BENEFITS
• 120 LEDs Per metre
• Dot Free LED Strip
• 24V Super Bright LED Strip
• IP65 rated
• Dimmable
• Commercial grade high quality
• Long lasting premium LED Strip
• Suitable for professional installations
SPECIFICATIONS
• 30M Reel
100mm cutting space • Constant Voltage
• Available in Warm White 3000K & Cool White 4000K
• 1 year warranty
(It is recommended Aluminium Extrusion is used on all LED Strip installs to prevent premature failure. Warranty will be extended to 2 years if installed with Aluminium Extrusion)
9.6W/M 24V
LED STRIP ACCESSORIES
DRIVER REFERENCE TABLE
It is recommended to run a maximum of 10 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver. For further information about the 24V DC LED Drivers see pages 81-83
SPECIFICATIONS
WIFI Controller
Schedule
COMPATIBLE MULTI RF RECEIVER
Wall Controller
FEATURES & BENEFITS
• Control 4 Zones RGB/RGBW
• Glass touch panel for precision RGB+W colour control
• Built-in LED indicator light allowing you to visibly see a touch movements
• Colour wheel to accurately adjust the colour of your lighting.
• Can be installed into a UK standard back box (mm depth)
• White finish
• Control Distance: 10 metres
• Dimming Range: 0-100%
• Dimension: 86 × 86 x 9.5
SPECIFICATIONS
DIMENSIONS
Tuya
WIFI MULTIZONE RF CONTROLLER
CONTROLLER FOR SINGLE COLOUR, DUAL COLOUR, RGB & RGBW
12-36VDC 3 YEAR WARRANTY CE & ROHS
FEATURES & BENEFITS
• 5 in 1 full compatible with a variety of single colour, dual colour, RGB, RGBW, RGB+CCT
• Compatible with Google Assistant & Alexa
• Download Tuya APP to control LED Strip through your device (Mobile / Tablet )
• 5A 4CH 12-36VDC Constant voltage RF Controller/Receiver
• 360W -24V Max load
• Ultra Slim Design
• Updated shell with easy connection terminal
FUNCTIONS
• Control via RF Multi-functional remote control
• Unique receiver / repeater setting jumper
• Schedule time function
• Multiple scenes mode
• Control via voice command
• Group Control
• 3 year warranty
SPECIFICATIONS
DIMENSIONS Product
MULTIFUNCTIONAL REMOTE CONTROL
LED STRIP REMOTE CONTROL
• User-friendly interface, easy and simple operation
• Dim brightness, and colour mix setting, allows you to set to millions of colours
• Control up to 8 zones, each zone can be synced with 20 receivers
FEATURES & BENEFITS SPECIFICATIONS
• Ability to set 2 scenes
• Pre-set 10 changing modes, with pause function modes Compatible with ‘WIFI’ router
• 3 year warranty
DIMENSIONS
IP65 In-Ground Profile
FEATURES & BENEFITS
• Seamless appearance – continuous form of in ground linear light
• Indoor & outdoor usage
• Surface Mount
• Flush linear lighting which can be walked over
• Waterproof / walkover profile
• Great for mounting & routing LED strip lights for a glamorous lighting design
• IK08 impact resistance
• Heavy duty designed for areas where resistance to footfall is needed
• 6063-T5 Aircraft Grade Pure Aluminum
• Polycarbonate V2 Diffusers
• Ideal for shelving, cabinets, bathrooms
SPECIFICATIONS
Product Code
IP65-PROFILE-1M/2M
Description 1/2 Metres Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 20
Inner width: 16
Outer width: 20
IP65 Flanged In-Ground Profile
FEATURES & BENEFITS
• Seamless appearance – continuous form of in ground linear light
• Indoor & outdoor usage
• Recessed into tiles or paving slabs
• Flush linear lighting which can be walked over
• Waterproof / walkover profile
• Great for mounting & routing LED strip lights for a glamorous lighting design
• IK08 impact resistance
• Heavy duty designed for areas where resistance to footfall is needed
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
• Ideal for decking, tiles, stairs, patio & paths
SPECIFICATIONS
Product Code
F-IP65-PROFILE-1M/2M
Description 1/2 Metres Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions Height: 20
Inner width: 26 Bottom outer width: 30 Top outer width: 41.6
(12MM WIDTH)
TRIMLESS PLASTER-IN ALUMINIUM EXTRUSION – 12MM
FEATURES & BENEFITS
• Trimless Recessed Plaster-In Aluminium Extrusion
• 6063-T5 Aircraft Grade - Durable Aluminium
• Creates an embedded flat angle linear light effect
• Matt silver finish extrusion
• Provides good heat dissipation to LED Strip – acts as a heatsink
• Polycarbonate V2 Diffuser
SPECIFICATIONS
Product Code
• Frosted diffuser reduces glare & creates seamless diffused light output
• DOT FREE effect when using our LED Strip
• Available in 2 metres aluminium extrusion with 2 flanges
• Available with a frosted diffuser & 2 end caps
• Ideal for recessing in to plastered / drywalls and ceilings
DIMENSION
Description Dimensions 2 Metres Trimless Profile with Frosted Diffuser, 2 end caps (12mm internal)Height: 15
Inner width: 12.5
Outer width without flanges: 15 Outer width with flanges: 56
(20MM WIDTH)
TRIMLESS PLASTER-IN ALUMINIUM EXTRUSION – 20MM
FEATURES & BENEFITS
•Trimless Recessed Plaster-In Aluminium Extrusion
•6063-T5 Aircraft Grade - Durable Aluminium
•Creates an embedded flat angle linear light effect
•Matt silver finish extrusion
•Provides good heat dissipation to LED Strip – acts as a heatsink
•Polycarbonate V2 Diffuser
SPECIFICATIONS
Product Code SL-TRIM-20 Description
•Frosted diffuser reduces glare & creates seamless diffused light output
•DOT FREE effect when using our LED Strip
•Available in 2 metres aluminium extrusion with 2 flanges
•Available with a frosted diffuser & 2 end caps
•Ideal for recessing in to plastered / drywalls and ceilings
DIMENSION
Dimensions 2 Metres Trimless Profile with Frosted Diffuser, 2 end caps (20mm internal)Height: 14.40
6063-T5 Aircraft Grade Durable Aluminium
Seamless diffused light output
45° Cutting Angle
90° Corner Connection
FROSTED DIFFUSER INCLUDED
BLACK DIFFUSER INCLUDED
BLACK FLAT ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Flat Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• Low profile – Up to 8mm in height
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code
BW-FLAT-PROFILE-2M
• Available in 2 metres aluminium extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description
2 Metres Flat Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 8
Inner width: 12
Outer width: 17
(SILVER)
FLAT ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Flat Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• Low profile – Up to 8mm in height
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code
BW-FLAT-PROFILE-2M
• Available in 2 metres aluminium extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description
2 Metres Flat Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 8
Inner width: 12
Outer width: 17
CORNER ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Corner Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code
• Available in 2 metres aluminium extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description 2 Metres Corner Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
17.50
DEEP RECESSED ALUMINIUM EXTRUSION
FEATURES & BENEFITS
• Dot Free Deep Recessed Aluminium Extrusion
• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip
• 6063-T5 Aircraft Grade Pure Aluminium
• Polycarbonate V2 Diffusers
SPECIFICATIONS
Product Code
BW-DRECESSED-PROFILE-2M
• Available in 2 metres Aluminium Extrusion
• Available with 2 metres frosted diffuser
• Available with 4 mounting clips & 2 end caps
• Ideal for mounting directly on flat surfaces
Description
2 Metres Deep Recessed Profile with Frosted Cover, 2 end caps, 4 Mounted Clips
DIMENSIONS
Dimensions
Height: 15
Inner width: 12
Outer width: 17
Outer width: 25
IDEAL FOR DOWNLIGHT HOLES
24V SUPER SLIM DRIVERS
IP67 NON-DIMMABLE DRIVERS
30W 3 YEAR WARRANTY CE & ROHS 60W100W30,000HRS24VIP67
FEATURES & BENEFITS
• Suitable for LED Strip
• IP67
• Ultra-Slim Driver
• Non- Dimmable
SPECIFICATIONS
• Short-circuit, overload & over heating protection
• Available in 30W, 60W, 100W
• High Power Factor with efficiency > 0.96
• Compact design with over 50% size reduction
• 3 years warranty
24V SUPER SLIM DRIVERS
•
• IP67
• Ultra-Slim Driver
• Non- Dimmable
•
•
•
•
•
240V MAINS DIMMABLE DRIVERS
FEATURES & BENEFITS
• Use for LED Strip
• 24V & 240V Dimmable driver
• Compatible with 1-10V and Leading Edge or Trailing Edge Dimmers
• Flicker-free, smooth dimming
• Adjustable resistance
SPECIFICATIONS
• LED power indicator
• Short circuit, overload & over heating protection
• Available 60W, 100W & 150W
• 2 year warranty
CRI
(Colour Rendering Index)
A colour rendering index (CRI) is a quantitative measure of the degree to which an artificial light source to accurately reproduce the colours of the object it illuminates. It is a metric of colour quality which is a score with a maximum of 100.
EXCELLENT CRI 90
REASONABLE CRI 80 POOR CRI 50
HIGH COLOUR RENDERING TECHNOLOGY
STANDARD LED
Our standard of CRI 90 applies to many products in our range, including luminaires, marker lights & LED Strip.
ENZO NICO SOFIA MIA MIA ROUND
ELLA CLARE MAYA
3W CHLOE LOLA
DIMMER COMPATIBILITY
Rako RAK4T/RDL250/ RDL500/RDT500
Wave RFJSJSLW400 Range
GUIDE TO CATALOGUE SYMBOLOGY
WIFI
WIFI is s wireless networking technology using radio waves that allows devices such as mobile phones, tablet, PC, laptops & other equipment (entertainment systems, printers) to connect to the internet without a wired connection. A network can be created through these devices by exchanging information with one another.
Bluetooth
Bluetooth is a wireless networking technology which uses short wave radio frequencies to interconnect wireless electronic devices.
Google Assistant
Google assistant is a virtual assistant developed by Google to do variety of tasks via having a conversation with you rather than providing links to websites
Amazon Alexa
Amazon developed Alexa (smart speaker) that is a voice-controlled personal assistant to carry out a variety of tasks.
Tuya App / Smart Life App
Provides a smart home solution to control your lighting by a touch of a button or by voice command via Amazon Alexa or Google Assistant TuyaSmart life
LIFESPAN (HRS)
CRI - A colour rendering index (CRI) is a quantitative measure of the degree to which an artificial light source renders colour in the same manner as a natural light source.
Lifespan - The amount of time (usually measured in hours) a light fitting is expected to operate.
120°
Beam angle - The angle, in degrees, at which light is emitted from a light source.
AC200-240V - Alternating current is a form of voltage which can be easily changed by means of a power transformer.
Dimmable - Dimmable LED fittings can vary the amount of light they emit to better suit your surroundings.
Fire Rated - A fire-resistance rating measures the duration for which a passive fire protection system can withstand a standard fire resistance test. This is usually measured in 30, 60 and 90 minutes
Impact Resistance - The ability of a product to withstand a high force or shock applied to it over a short period of time. A high force over a short time has a greater effect than a weaker force over a longer period of time.
MACADAM MACADAM 3 STEP - We only use LEDs from within 3 macadam ellipses, meaning the CCT is consistent throughout our products
TUV
CE & ROHS
TUV - TUV certified product meet safety regulations. It lower risk of liability through documented safety standards
CE - The CE marking certifies that a product has met EU consumer safety, health or environmental requirements. Electromagnetic energy is radiated, absorbed, or dissipated.
ROHS - is a certification which aims to restrict certain dangerous substances commonly used in electronic and electronic equipment. Any RoHS compliant component is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE).
WARRANTY Warranty - Replacement products will be provided if a product fails or is found to be defective within the given warranty period.
15W Watts - the (SI) unit of power (energy per unit time), the equivalent of one joule per second. The watt is used to specify the rate at which electrical energy is dissipated, or the rate at which electromagnetic energy is radiated, absorbed, or dissipated.
TPA Its a term used in the UK Building Regulations (UK Building Regulations, Fire Safety, Approved Document B, Volume 2 – Buildings other than dwellings) that classify lighting diffusers according to their flammability. TP means thermoplastic, and TP materials, such as polycarbonate (PC), acrylic (PMMA) and polystyrene (PS), are commonly used as diffusers in light fittings. In the UK Building Regulations these are classified as TP(a) or TP(b) and when a lighting diffuser is deemed to be part of a ceiling it must be made of either TP(a) or TP(b) rated material.
Diffusers made of TP(a) rated material can be used to an unlimited extent in the ceilings of rooms (offices, classrooms etc) and circulation areas (corridors, lift lobbies etc). The UK Building Regulations do not require minimum spacings between TP(a) rated diffusers nor do they limit the % of the ceiling area that can be made of TP(a) rated diffusers. LM80 /
- Socket Base
- Socket Base
B22 - Socket Base
E14 - Socket Base
B15 - Socket Base
Class 1
Electrically insulated and provided with connection for earth
Complied with Class 2
Double insulation requirements of BS EN 60598
Complied with Class 3
Extra-low voltage (SELV) requirements of BS EN 60598
Suitable for installation on normally flammable surfaces
The ingress protection (IP) code represents the protection against dust, solid objects and moisture provided by the luminaire enclosure.
DEFINITION OF INGRESS PROTECTION (IP)
Modern & elegant simple clip on plate design
1,2,3,4 Gang Switches
Toggle length: 9.5mm
Dimension: 90×86mm
Rated Current: 10A
Rated Voltage: 220-250V
Low profile interchangeable plates
1 GANG 2 WAY - TOGGLE LIGHT SWITCH
1G2W-BLK-TOG
1G2W-GOLD-TOG
1G2W-BLK-PLT
1G2W-GOLD-PLT
1 Gang 2 Way Switch Black Toggle
1 Gang 2 Way Switch Black Plate
1 Gang 2 Way Switch Gold Plate
x 86mm
x 86mm
1 GANG 2 WAY - INTERMEDIATE TOGGLE LIGHT SWITCH
1G2W-BLK-TOG-INTER
1G2W-GOLD-TOG-INTER
1G2W-BLK-PLT
1G2W-GOLD-PLT
1 Gang 2 Way Switch Black Toggle Intermediate Switch
1 Gang 2 Way Switch Gold Toggle 1 Gang 2 Way Switch Gold Toggle Intermediate Switch
1 Gang 2 Way Switch Black Plate
1 Gang 2 Way Switch Gold Plate Toggle Length: 9.5mm Toggle Length: 9.5mm
Length: 9.5mm Toggle Length: 9.5mm
x 86mm
x 86mm
2 GANG 2 WAY - TOGGLE LIGHT SWITCH
2G2W-BLK-TOG
2G2W-GOLD-TOG
2G2W-BLK-PLT
2G2W-GOLD-PLT
2 Gang 2 Way Switch Black Toggle
2 Gang 2 Way Switch Gold Toggle
2 Gang 2 Way Switch Black Plate
2 Gang 2 Way Switch Gold Plate
OPTIONS AVAILABLE
Toggle Length: 9.5mm
Toggle Length: 9.5mm
2 GANG 2 WAY - INTERMEDIATE TOGGLE LIGHT SWITCH
OPTIONS AVAILABLE
2G2W-BLK-TOG-INTER
2G2W-GOLD-TOG-INTER
2G2W-BLK-PLT
2G2W-GOLD-PLT
2 Gang 2 Way Switch Black Toggle Intermediate Switch
2 Gang 2 Way Switch Gold Toggle Intermediate Switch
2 Gang 2 Way Switch Black Plate
2 Gang 2 Way Switch Gold Plate
Toggle Length: 9.5mm 90 x 86mm 90 x 86mm
Toggle Length: 9.5mm 90 x 86mm 90 x 86mm
3 GANG 2 WAY - TOGGLE LIGHT SWITCH
3G2W-BLK-TOG
3G2W-GOLD-TOG
3G2W-BLK-PLT
3G2W-GOLD-PLT
3 Gang 2 Way Switch Black Toggle
4G2W-BLK-TOG
4G2W-GOLD-TOG
4G2W-BLK-PLT
4G2W-GOLD-PLT
3 Gang 2 Way Switch Gold Toggle 4 Gang 2 Way Switch Gold Toggle
3 Gang 2 Way Switch Black Plate 4 Gang 2 Way Switch Black Plate
x 86mm
4 GANG 2 WAY - TOGGLE LIGHT SWITCH
4 Gang 2 Way Switch Black Toggle
3 Gang 2 Way Switch Gold Plate 4 Gang 2 Way Switch Gold Plate
ROCKER SWITCHES
On & Off Function
Low Profile Screwless Flat Plate
Rated Current: 10A
Rated Voltage: 220-250V
Dimension: 90×86mm
1 GANG ROCKER LIGHT SWITCH
2 GANG ROCKER LIGHT SWITCH
3 GANG ROCKER LIGHT SWITCH
DIMMER SWITCHES
Dimmer knobs available in Antique Brass, Matt Gold, Matt Black & Stainless Steel
GOLD BLACK CHROME ANTIQUE BRASS
Knurled finished knob
Rated Voltage: 200-250V
Rated Wattage: 0-500W
Dimension: 90 × 86mm
Push on/off, rotary action dimmer
1 GANG 2 WAY - DIMMER SWITCH
1GDIM-BLK-K
1GDIM-GOLD-K
1GDIM-BLK-PLT
1GDIM-GOLD-PLT
1 Gang Light Dimmer in Black Knurled Knob
1 Gang Light Dimmer in Matt Gold / French Brushed Brass Knurled Knob
1 Gang Light Dimmer in Black Plate
1 Gang Light Dimmer in Matt Gold / French Brushed Brass Plate
2 GANG 2 WAY DIMMER SWITCH
2GDIM-BLK-K
2GDIM-GOLD-K
2GDIM-BLK-PLT
2GDIM-GOLD-PLT
2 Gang Light Dimmer in Black Knurled Knob
2 Gang Light Dimmer in Matt Gold / French Brushed Brass Knurled Knob
2 Gang Light Dimmer in Black Plate
2 Gang Light Dimmer in Matt Gold / French Brushed Brass Plate
SWITCH SOCKETS
Single/Double Switch with USB
Dimension: Single 90 × 86mm, Double 146 × 86mm
Black inserts
Rated Current: 13A
Decorative low profile screwless flat plat
Rated Voltage: 220-250V
SWITCHED FUSED SPUR
10A220-250V
1F1G-PANEL-BLACK
1F1G-PANEL-GOLD
1F1G-BLACK-PLT
1F1G-GOLD-PLT
OPTIONS AVAILABLE
1 gang +Fuse unit Stainless Steel Panel Black Toggle
1 gang +Fuse unit Stainless Steel Panel Gold Toggle
1 Gang + 1 Fuse Unit Black Plate
13A MF SINGLE SOCKET
x 86mm
x 86mm
x 86mm
1 Gang + 1 Fuse Unit Gold Plate 90 x 86mm
10A220-250V
OPTIONS AVAILABLE
3P-S-BLK
3P-S-GOLD
3 Pin Single MF Switch Socket Matt Black
3 Pin Single MF Switch Socket Gold 90 x 86mm 90 x 86mm
MF SINGLE SWITCH SOCKET WITH
3P-S-GOLD-USB
3 Pin Single MF Switch Socket Matt Black with 2 USB Ports
3 Pin Single MF Switch Socket Gold with 2 USB Ports
x
x
MF SINGLE SWITCH SOCKET WITH USB & USB C
3 pin Single MF Switch Socket Matt Black with 1 USB + USB-C Ports
3 pin Single MF Switch Socket Gold with 1 USB + USB-C Ports
x 86mm
x 86mm
3P-S-BLK-USB
3P-S-BLK-USBC
3P-S-GOLD-USBC
MF DOUBLE SWITCH SOCKET
3P-D-BLK
3P-D-GOLD
MF DOUBLE SWITCH SOCKET WITH USB
3P-D-BLK-USB
3P-D-GOLD-USB
3 Pin MF Double Switch Socket Matt Black
MF DOUBLE SWITCH SOCKET
WITH USB & USB C
3 Pin MF Double Switch Socket Matt Black with 1 USB + USB-C Ports
3 Pin MF Double Switch Socket Gold with 1 USB + USB-C Ports
45A COOKER CONTROL UNIT
3P-D-BLK-USBC
3P-45A-BLK
3P-D-GOLD-USBC
3P-45A-GOLD
Cooker Control Unit - Matt Black
TOGGLE SWITCHES
1G2W-BLK-TOG
1G2W-GOLD-TOG
1G2W-BLK-PLT
1G2W-GOLD-PLT
2G2W-BLK-TOG
2G2W-GOLD-TOG
2G2W-BLK-PLT
1G2W-BLK-TOGINTER
1G2W-GOLD-TOGINTER
1G2W-BLK-PLT
1G2W-GOLD-PLT
2G2W-BLK-TOGINTER
2G2W-GOLD-TOGINTER
2G2W-BLK-PLT
2G2W-GOLD-PLT 2G2W-GOLD-PLT
TOGGLE SWITCHES
3 Gang4 Gang
3G2W-BLK-TOGINTER
3G2W-GOLD-TOGINTER
3G2W-BLK-PLT
3G2W-GOLD-PLT
CODE CODE
4G2W-BLK-TOGINTER
4G2W-GOLD-TOGINTER
4G2W-BLK-PLT
4G2W-GOLD-PLT
3 GANG 2 WAY INTERMEDIATE SWITCH
3 Gang 2 Way Intermediate Switch Black Toggle
3 Gang 2 Way Intermediate Switch Gold Toggle
3 Gang 2 Way Intermediate Switch Black Plate
3 Gang 2 Way Intermediate Switch Gold Plate
4 GANG 2 WAY INTERMEDIATE SWITCH
4 Gang 2 Way Intermediate Switch Black Toggle
4 Gang 2 Way Intermediate Switch Gold Toggle
4 Gang 2 Way Intermediate Switch Black Plate
4 Gang 2 Way Intermediate Switch Gold Plate
Length: 9.5mm
ROCKER LIGHT SWITCHES
1G2W-BLK-ROCKER-SET
1G2W-GOLD-ROCKER-SET
1G2W-BLK-ROCKER-PLT
2G2W-BLK-ROCKER-SET
2G2W-GOLD-ROCKER-SET
2G2W-BLK-ROCKER-PLT
3G2W-BLK-ROCKER-SET
4G2W-BLK-ROCKER-SET
DIMMER SWITCHES & FUSE SPURS
1GDIM-BLK-K
1GDIM-GOLD-K
DIM-SS-K
DIM-AB-K
1GDIM-BLK-PLT
1GDIM-GOLD-PLT
BLACK BLACK GOLD GOLD CHROME ANTIQUE BRASS
1 Gang Light Dimmer in Black Knurled Knob
1 Gang Light Dimmer in Matt Gold / French Brushed Brass Knurled Knob
Chrome Dimmer Knurled Knob
Antique Brass Dimmer Knurled Knob
1 Gang Light Dimmer in Black Plate
1 Gang Light Dimmer in Matt Gold / French Brushed Brass Plate
2GDIM-BLK-K
2GDIM-GOLD-K
DIM-SS-K
DIM-AB-K
2GDIM-BLK-PLT
2GDIM-GOLD-PLT
2 Gang Light Dimmer in Black Knurled Knob
2 Gang Light Dimmer in Matt Gold / French Brushed Brass Knurled Knob
Chrome Dimmer Knurled Knob
Antique Brass Dimmer Knurled Knob
2 Gang Light Dimmer in Black Plate
2 Gang Light Dimmer in Matt Gold / French Brushed Brass Plate
1F1G-PANEL-BLACK
1F1G-PANEL-GOLD
1F1G-BLACK-PLT
1F1G-GOLD-PLT
1 gang +Fuse unit Stainless Steel Panel Black Toggle
1 gang +Fuse unit Stainless Steel Panel Gold Toggle
1 Gang + 1 Fuse Unit Black Plate
1 Gang + 1 Fuse Unit Gold Plate
x
SWITCH SOCKETS
3P-S-BLK
3P-S-GOLD
3P-S-BLK-USB
3P-S-GOLD-USB
3P-S-BLK-USBC
3P-S-GOLD-USBC
3P-D-BLK
3P-D-GOLD
3P-D-BLK-USB
3P-D-GOLD-USB
3P-D-BLK-USBC
3P-D-GOLD-USBC
COOKER CONTROL UNIT
3P-45A-BLK
3P-45A-GOLD
45A Cooker Control Unit - Matt Black 45A Cooker Control Unit - Matt Gold
x 86mm
x 86mm
DISCLAIMER:
All information contained within this catalogue is given in good faith and with every belief in its accuracy, but this cannot be considered as a formal warranty. Save Light Ltd takes no liability for the accuracy of the information provided in this catalogue. The information contained in this catalogue is subject to change without notice.
