Outdoor

OUTDOOR

18

KNURLED

pg 19-21

REN

pg 22-25

UM

pg 26-28

LEO

pg 29-31

CLEO

pg 32-33

OSCAR

pg 34-37

19

Option Available

MATT BLACK

GOLD

DARK BRONZE

Finish

SYLISH KNUNRLED FINISH ON BOTH SIDES

KNURLED GU10 UP / DOWN WALL LIGHT AC200-240V

GU10 SOCKET

IP44

FEATURES & BENEFITS

CLASS II DIMENSIONS

• Up / Down Wall Light

• Max Wattage: 2 x 35W

• Casts light in both upwards and downwards direction

• Caps: 2 x GU10 sockets embedded in the body

• IP Rating – IP44

• GU10 Bulbs are not included

• Class - II

• Dimmable – when using a dimmable GU10 bulb

• Die-cast Aluminium construction

• Bi-directional light for entryways, doorway, foyer, corridor, balcony, patio, or porch

• Tempered Glass Lens • Wall-Mount Cylinder • Knurled finish & sleek design provides a modern architectural aesthetic

• Ideal as a feature light which casts light spill in both an upwards and downwards projection

SPECIFICATIONS

20

Product Code

Finish

Input Voltage

Socket

Dimension

KNURLED-BLK

MATT BLACK

200-240V

GU10

183 x 116 x 109

KNURLED-GOLD

GOLD

200-240V

GU10

183 x 116 x 109

KNURLED-BRZ

BRONZE

200-240V

GU10

183 x 116 x 109

IP Rating - IP44 Knurled finish

STYLISH KUNRLED FINISH ON BOTH SIDES

Wall-Mount Cylinder

2×GU10 sockets Tempered Glass Lens

GU10 SOCKET - 2 MAX

Bi-Directional GU10 Wall Light

MATT BLACK

GOLD

DARK BRONZE

21

22

REN 12W WALL WASH LIGHT 12W

50K LIFESPAN (HRS)

CE & ROHS

EPISTAR

180°

BEAM ANGLE

IP65

85-265V

CRI 90

FEATURES & BENEFITS

DIMENSIONS

• 12W - Wall Wash Light

• Aluminium construction for efficient heat dissipation

• 960 Lumens

• Pre-wired with 2metre rubberised cable

• IP65 Rated • Anti Glare

• Elegant replacement for traditional up-down lighting

• LED CHIP – Osram

• Can be used as an architectural feature

• 70mm Slim profile

• Perfect for lighting & decorative purposes

• LED Chip – Epistar

• Ideal foyers, hallways, gardens, patio, yards etc

• Surface mounted

• 2 year warranty

• Die cast aluminium - Black finish SPECIFICATIONS Product Code

Power

Colour

Lumens

Dimensions

REN-3K

12W

3000K

960lm

156mm x 64mm x 70mm

REN-4K

12W

4000K

960lm

156mm x 64mm x 70mm 23

REN 18W WALL WASH LIGHT 18W

50K LIFESPAN (HRS)

CE & ROHS

EPISTAR

180°

BEAM ANGLE

IP65

85-265V

CRI 90

FEATURES & BENEFITS

DIMENSIONS

• 18W - Wall Wash Light

• Aluminium construction for efficient heat dissipation

• 1440 Lumens

• Pre-wired with 2metre rubberised cable

• IP65 Rated • Anti Glare

• Elegant replacement for traditional up-down lighting

• LED CHIP – Osram

• Can be used as an architectural feature

• 70mm Slim profile

• Perfect for lighting & decorative purposes

• LED Chip – Epistar

• Ideal foyers, hallways, gardens, patio, yards etc

• Surface mounted

• 2 year warranty

• Die cast aluminium - Black finish SPECIFICATIONS

24

Product Code

Power

Colour

Lumens

Dimensions

REN-3K18W

18W

3000K

1440lm

220mm x 66mm x 70mm

REN-4K18W

18W

4000K

1440lm

220mm x 66mm x 70mm

960 Lumens Dia Cast Aluminium Anti Glare

IP65 Rated

Epistar LED CHIP

WALL WASH LIGHT

SLIM PROFILE

25

26

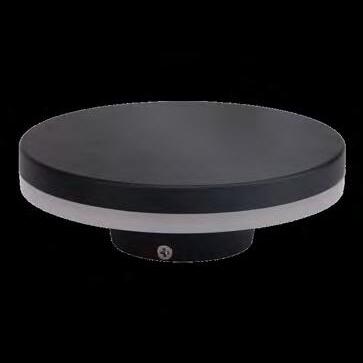

UM BACKLIT WALL LIGHT 12W

50K LIFESPAN (HRS)

CE & ROHS

EPISTAR

360°

BEAM ANGLE

IP65

85-265V

CRI 90

FEATURES & BENEFITS

DIMENSIONS

• 12W - Backlit wall light

• Die cast aluminium with a polycarbonate diffuser

• 720 lumens

• Pre-wired with 2metre rubberised cable

• IP65 rated • 360 beam

• Highlights focal points in an area - Adds style to small area

• 50mm slim profile

• Backlit which creates a warm aura

• LED Chip – Epistar

• Light shines around the fitting creating a halo lighting effect (ambient lighting)

• Black finish • Can be ceiling or wall-mounted – surface mounting

• Can be ceiling or wall-mounted – surface mounting • 2 year warranty

SPECIFICATIONS Product Code

Power

Colour

Lumens

Dimensions

UM-3K

12W

3000K

720lm

150mm x 50mm

UM-4K

12W

4000K

720lm

150mm x 50mm 27

Dia Cast Aluminium

720 Lumens

Anti Glare

IP65 Rated

Epistar LED CHIP

BACKLIT CREATES A HALO LIGHTING EFFECT

50M SLIM PROFILE

28

29

ACCESSORIES

Spike

Wall Plate

LEO SPIKE LIGHT 5W

24°

LM80

BEAM ANGLE

CREE CHIP

50K LIFESPAN (HRS)

AC85-265V

CE & ROHS

2 YEAR WARRANTY

FEATURES & BENEFITS

IP65

DIMENSIONS

• 5W Spike Light

• Suitable for wall & ground mounting

• Upto 475 lumens

• Supplied with Spike & Wall Plate

• IP65 Rated

• Available in 3000K & 4500K

• Integrated Driver

• Use as a spotlight, accent or ambient light

• Die Cast Aluminium Body • Halogen Lens

• Ability to be tilted which enables to precisely control the beam of light

• Pre flexed 2m cable

• 2 year warranty

• CREE Chip

SPECIFICATIONS

30

Product Codes

Colour

Input Voltage

Lumens

Dimension

LEO-5W-3K

3000K

AC85-265V

450lm

243 x 63 x 45

LEO-5W-45K

4500K

AC85-265V

475lm

243 x 63 x 45

FEATURES IP65 Rated

Die Cast Aluminium Body

Intergrated Driver

Halogen Lens

Pre Flexed 2m Cable

Spike

Wall Plate 31

ACCESSORIES

Spike

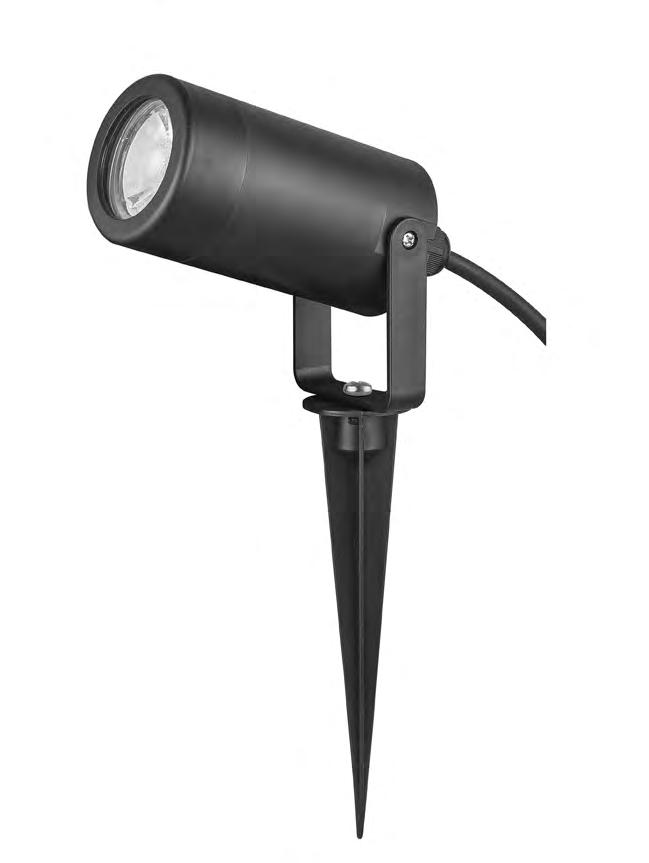

CLEO-GU10 GU10 SPIKE LIGHT GU10 SOCKET

AC220-240V

IP65

CLASS II

FEATURES & BENEFITS

DIMENSIONS

• GU10 Lamp Base Socket – MAX 7W • 1.5 Metres per flexed cable

• Suitable for wall & ground mounting • Use as a spotlight, accent or ambient light • Ability to be tilted which enables to precisely control the beam of light

• Polycarbonate plastic • Non-corrosive • IP65 Rated

• Ideal to illuminate gardens, driveways, patios, trees, walkways

• Supplied with Spike

• 1 year warranty

SPECIFICATIONS

32

1 YEAR WARRANTY

Product Codes

Description

Dimension

CLEO-GU10

GU10 Spike Light

254 x 110 x 60

CE & ROHS

FEATURES Polycarbonate plastic GU10 Socket

180° Degree rotatable Non-corrosive

IP65 Rated

Pre Flexed 1.5m Cable

Spike

ACCESSORIES

Spike 33

34

OSCAR DUAL POWER / COLOUR BULKHEAD 12W/18W

50K LIFESPAN (HRS)

CE & ROHS

CLASS II

120°

IK10

BEAM ANGLE AC230V

1 YEAR WARRANTY

FEATURES & BENEFITS

IP65

TPA

CRI 80

UV

DIMENSIONS

• 12W/18W – Upto 1840lm

• Available black or white bezel

• IP rating - IP65

• CCT Switchable – 3000K, 4000K, 6000K

• IK10 rating

• Standard, sensor adjustable, emergency, combined adjustable and emergency

• Four conduit entry knockouts on each side and two rear entry points/knock-outs

• Ideal wall / ceiling mountable luminaire for internal & external

• Besa box mounting option • 1 year warranty • 320mm with a low profile depth 75mm • TPA Rated and UV Stabilised

DIP SWITCH SETTING Detection Area (Sensitivity)

Hold Time

Daylight Threshold 4

5

6

6

7

8

100%

ON

ON

ON

5S

ON

ON

ON

2Lux

ON

75%

—

ON

ON

30S

ON

ON

—

10Lux

—

ON

50%

ON

—

ON

90S

—

ON

—

25Lux

—

ON

25%

—

—

ON

3min

ON

—

—

50Lux

—

—

10%

ON

ON

—

20min

—

—

—

Disable*

—

—

—

30min

1

2

3

ON

ON

ON

—

ON

ON — —

SPECIFICATIONS Product Code

Description

Power

Colour

Lumens

Dimensions

OSCAR-CCT

Standard

12/18W

3K, 4K, 6K

12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm

320 x 75mm

OSCAR-SEN

Sensor Adjustable

12/18W

3K, 4K, 6K

18W 3K – 1800lm, 4K – 1820lm, 6K – 1840lm 12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm

320 x 75mm

18W 3K – 1800lm, 4K – 1820lm, 6K – 1840lm OSCAR-EM

Emergency

12/18W

3K, 4K, 6K

12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm

320 x 75mm

18W 3K – 1800lm, 4K – 1820lm, 6K – 1840lm OSCAR-COM

Sensor Adjustable & Emergency

12/18W

3K, 4K, 6K

12W 3K – 1200lm, 4K – 1220lm, 6K – 1240lm

320 x 75mm

18W 3K – 1800lm, 4K – 1820lm, 6K – 1840lm 35

BLACK BEZEL

WHITE BEZEL

DUAL POWER

COLOUR CHANGING

FOUR KNOCKOUT ENTRIES ON EACH SIDE

BESA BOX MOUNTING OPTION

BEZEL’S HAVE KNOCKOUTS TO ALLOW FOR INTALLATION WITH CONDULT 36

IP65 RATING

IK10 RATING

320MM DIAMETER WITH A LOW PROFILE 75MM

SENSOR

EMERGENCY

COMBINED SENSOR & EMERGENCY

37
