LED Strip, Controllers, Drivers

LED STRIP, CONTROLLERS,DRIVERS NEON COB STRIP

pg 68-70

IC COB STRIP

pg 71-72

RGBW COB STRIP

pg 73-74

9.6W/M LED STRIP

pg 75-77

WALL CONTROLLER

pg 80

CONTROLLER

pg 81

REMOTE

pg 82

IN-GROUND PROFILE

pg 83-85

TRIMLESS PROFILE-12MM

pg 86-88

BLACK PROFILE

pg 89

FLAT PROFILE

pg 90

CORNER PROFILE

pg 91

DEEP RECESSED PROFILE

pg 92

SUPER SLIM DRIVERS 240V MAINS DIMMABLE DRIVERS

pg 93-94 pg 95 67

68

DOTLESS OPAL DIFFUSED COVER

10MTRS CONTINOUS NO VOLTAGE DROP

NEON IP67 COB STRIP

24V

LED NEON STRIP 14.4W/M

50K LIFESPAN (HRS)

IP67

DIMMABLE

180°

BEAM ANGLE

1 YEAR WARRANTY

CE & ROHS

COB LED

CRI 90

24V

FEATURES & BENEFITS

COMPATIBLE CONTROLLERS

• Seamless Neon Cob LED Strip

• Commercial grade high quality

• Dot free array – continuous light output • Long lasting Premium LED Strip (max 10metres recommended) from LED • Eliminates the need for a aluminium profile Chips or a diffuser • Dotless opal diffused appearance high quality finish • Invisible LED Chips • Flexible top-bend style in ultra-thin appearance • •

IP67 Rated 24V Super bright LED Strip

•

Available in Warm White 3000K, Cool White 4000K

•

Available in 10 metre reel or 30 metre reel

•

Constant Voltage

•

Suitable for indoor & outdoor usage

•

Ideal for linear lighting projects

RF 8 ZONE LED STRIP

MULTI RF CONTROLLER

REMOTE CONTROL

SPECIFICATIONS Product Code

Power

Colour

Lumens

Cutting Space

Dimensions

COB3K-IP67-30

14.4W/m

3000K

1150lm/m

45.45mm

12.5 x 30000

COB4K-IP67-30

14.4W/m

4000K

1200lm/m

45.45mm

12.5 x 30000 69

NEON STRIP ACCESSORIES

70

Neon Strip connectorStrip to Strip with 150MM Wires

L Shape/Corner Connector

Product Code-COB-IP-SSWL

Product Code-COB-IP

End Cap

Silicone Glue

Product Code-COB-CAP

Product Code-COB-GLUE

IC COB STRIP SEAMLESS LED STRIP

71

NONVISIBLE ON BOARD IC CONTROLLER

20MTRS CONTINOUS NO VOLTAGE DROP

IC COB STRIP

24V

SEAMLESS LED STRIP 8W/M

50K LIFESPAN (HRS)

IP44

DIMMABLE

180°

BEAM ANGLE

1 YEAR WARRANTY

CE & ROHS

COB LED

CRI 90

24V

FEATURES & BENEFITS

COMPATIBLE CONTROLLERS

• 8W/m COB Strip (Chip on Board Strip)

• IP44 Rating

• Seamless light

• Dimmable

• Dot free array – continuous light output from LED Chips

• Suitable for professional installations • 40 metre reel

• Nonvisible LED Chips • Constant Voltage • 24V Super bright LED Strip • Commercial grade high quality

• Available in Warm White 3000K, Cool White 4000K, Daylight 6000K

• Long lasting Premium LED Strip

• 1 year warranty

RF 8 ZONE LED STRIP

MULTI RF CONTROLLER

REMOTE CONTROL

SPECIFICATIONS

72

Product Code

Power

Colour

Lumens

Cutting Space

COB2-27K

8W/m

2700K

820lm/m

42mm

10 x 40000

COB2-3K

8W/m

3000K

840lm/m

42mm

10 x 40000

COB2-4K

8W/m

4000K

840lm/m

42mm

10 x 40000

COB2-6K

8W/m

6000K

840lm/m

42mm

10 x 40000

Dimensions

IC RGBW COB STRIP SEAMLESS LED STRIP 14W/M

50K LIFESPAN (HRS)

IP44

DIMMABLE

180°

BEAM ANGLE

1 YEAR WARRANTY

CE & ROHS

COB LED

CRI 90

24V

FEATURES & BENEFITS

COMPATIBLE CONTROLLERS

• 14W/M COB Strip (Chip on Board Strip)

• IP44 Rating

• Seamless light

• Dimmable

• Dot free array – continuous light output from LED Chips

• Suitable for professional installations • 10 metre reel

• Nonvisible LED Chips • Constant Voltage • 24V Super bright LED Strip • Commercial grade high quality

• Available in Multicoloured & White light (2700K) Output

• Long lasting Premium LED Strip

• 1 year warranty

RF 8 ZONE LED STRIP

MULTI RF CONTROLLER

REMOTE CONTROL

SPECIFICATIONS Product Code

Power

Colour

Lumens

Cutting Space

Dimensions

COB2-RGBW

14W/M

MULTICOLOURED + WHITE

1000lm/m

100mm

10 x 10000 73

10mm Double End Connector

8W/M 24V IC COB LED STRIP ACCESSORIES DRIVER REFERENCE TABLE It is recommended to run a maximum of 20 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver.

30W

2.6M

60W

5.2M

100W

8.6M

150W

13M

200W

17.3M

SPECIFICATIONS

74

Product Code

Description

COB-DEND

10mm Double End Connector

75

DOT FREE WITH OUR ALUMINIUM EXTRUSION

120 LEDS PER METRE

120 LED STRIP DOT FREE STRIP 9.6W/M

50K LIFESPAN (HRS)

IP65

DIMMABLE

120°

BEAM ANGLE 24V

FEATURES & BENEFITS

1 YEAR WARRANTY

CE & ROHS

2835 SMD

CRI 90

COMPATIBLE CONTROLLERS

• 120 LEDs Per metre

• 30M Reel

• Dot Free LED Strip

• 100mm cutting space

• 24V Super Bright LED Strip

• Constant Voltage

• IP65 rated

• Available in Warm White 3000K & Cool White 4000K

• Dimmable • Commercial grade high quality • Long lasting premium LED Strip • Suitable for professional installations

• 1 year warranty (It is recommended Aluminium Extrusion is used on all LED Strip installs to prevent premature failure. Warranty will be extended to 2 years if installed with Aluminium Extrusion)

RF 8 ZONE LED STRIP

MULTI RF CONTROLLER

REMOTE CONTROL

SPECIFICATIONS

76

Product Code

Power

Colour

Lumens

Cutting Space

Dimensions

BI120-3K-IP65

9.6W/m

3000K

1020lm/m

50mm

10 x 30000

50mm

10 x 30000

50mm

10 x 30000

BI120-4K-IP65

9.6W/m

4000K

1040lm/m

BI120-6K-IP65

9.6W/m

6000K

1080lm/m

2 Pin, 10mm End Connector

10mm Single End Connector

10m Double End Connector

2m Double End Connector

9.6W/M 24V LED STRIP ACCESSORIES DRIVER REFERENCE TABLE It is recommended to run a maximum of 10 metres continuously to avoid any voltage drop and leave a 20% tolerance on a driver. For further information about the 24V DC LED Drivers see pages 81-83

30W

2.6M

60W

5.2M

100W

8.6M

150W

13M

200W

17.3M

SPECIFICATIONS Product Code

Description

CD-SEND

10mm Single End Connector

CD-DEND

10mm Double End Connector

CD-DEND-2M

2 Metre Double End Connector

BLK-S-CTR-10MM

2 Pin, 10mm Connector for Single Colour Silicone Coating IP65 LED Strip 77

WIFI Controller

78

Schedule Time

Multiple Scenes Mode

Voice Command

79

Group Control

COMPATIBLE MULTI RF RECEIVER

Wall Controller 100-240V AC

0.1A

FEATURES & BENEFITS

DIMENSIONS

• Control 4 Zones RGB/RGBW • Glass touch panel for precision RGB+W colour control • Built-in LED indicator light allowing you to visibly see a touch movements • Colour wheel to accurately adjust the colour of your lighting.

• Can be installed into a UK standard back box (mm depth) • White finish • Control Distance: 10 metres • Dimming Range: 0-100% • Dimension: 86 × 86 x 9.5

SPECIFICATIONS

80

Product Code

Description

Dimensions

WALL-RGB/RGBW

4 Zones RGB/RGBW

86 × 86 x 9.5

COMPATIBLE WITH

CONTROL VIA APP

Tuya

WIFI MULTIZONE RF CONTROLLER CONTROLLER FOR SINGLE COLOUR, DUAL COLOUR, RGB & RGBW 12-36VDC

CE & ROHS

3 YEAR WARRANTY

FEATURES & BENEFITS • 5 in 1 full compatible with a variety of single colour, dual colour, RGB, RGBW, RGB+CCT • Compatible with Google Assistant & Alexa

• Control via RF Multi-functional remote control • Unique receiver / repeater setting jumper • Schedule time function

• Download Tuya APP to control LED Strip through your device (Mobile / Tablet )

• Multiple scenes mode

• 5A 4CH 12-36VDC Constant voltage RF Controller/Receiver

• Control via voice command

• 360W -24V Max load

• Group Control

• Ultra Slim Design

• 3 year warranty

• Updated shell with easy connection terminal

FUNCTIONS

DIMENSIONS

SPECIFICATIONS Product Code

Input Voltage

Output Voltage

Dimensions

WIFI-CONTROL

12-36VDC

5 × ( 36 - 72 ) W

114 × 38 × 20 81

COMPATIBLE MULTI RF RECEIVER

MULTIFUNCTIONAL REMOTE CONTROL RF LED STRIP REMOTE CONTROL 14.3VDC

3 YEAR WARRANTY

CE & ROHS

FEATURES & BENEFITS

DIMENSIONS

• User-friendly interface, easy and simple operation • Dim brightness, and colour mix setting, allows you to set to millions of colours

• Ability to set 2 scenes • Pre-set 10 changing modes, with pause function modes Compatible with ‘WIFI’ router • 3 year warranty

• Control up to 8 zones, each zone can be synced with 20 receivers

SPECIFICATIONS

82

Product Code

Description

Operating Voltage

Dimension

8ZONE-RGBW

8 Zone RF Remote

3VDC

141 x 50 x 17.50

83

IP65 In-Ground Profile FEATURES & BENEFITS

DIMENSIONS

• Seamless appearance – continuous form of in ground linear light • Indoor & outdoor usage • Surface Mount • Flush linear lighting which can be walked over • Waterproof / walkover profile • Great for mounting & routing LED strip lights for a glamorous lighting design • IK08 impact resistance • Heavy duty designed for areas where resistance to footfall is needed • 6063-T5 Aircraft Grade Pure Aluminum • Polycarbonate V2 Diffusers • Ideal for shelving, cabinets, bathrooms

SPECIFICATIONS

84

Product Code

Description

Dimensions

IP65-PROFILE-1M/2M

1/2 Metres Profile with Frosted Cover, 2 end caps, 4 Mounted Clips

Height: 20 Inner width: 16 Outer width: 20

IP65 Flanged In-Ground Profile FEATURES & BENEFITS

DIMENSIONS

• Seamless appearance – continuous form of in ground linear light • Indoor & outdoor usage • Recessed into tiles or paving slabs • Flush linear lighting which can be walked over • Waterproof / walkover profile • Great for mounting & routing LED strip lights for a glamorous lighting design • IK08 impact resistance • Heavy duty designed for areas where resistance to footfall is needed • 6063-T5 Aircraft Grade Pure Aluminium • Polycarbonate V2 Diffusers • Ideal for decking, tiles, stairs, patio & paths

SPECIFICATIONS Product Code

Description

Dimensions

F-IP65-PROFILE-1M/2M

1/2 Metres Profile with Frosted Cover, 2 end caps, 4 Mounted Clips

Height: 20 Inner width: 26 Bottom outer width: 30 Top outer width: 41.6 85

(12MM WIDTH)

TRIMLESS PLASTER-IN ALUMINIUM EXTRUSION – 12MM FEATURES & BENEFITS

DIMENSION

• Trimless Recessed Plaster-In Aluminium Extrusion

• Frosted diffuser reduces glare & creates seamless diffused light output

• 6063-T5 Aircraft Grade - Durable Aluminium

•

• Creates an embedded flat angle linear light effect

• Available in 2 metres aluminium extrusion with 2 flanges

• Matt silver finish extrusion

•

Available with a frosted diffuser & 2 end caps

• Provides good heat dissipation to LED Strip – acts as a heatsink

•

Ideal for recessing in to plastered / drywalls and ceilings

DOT FREE effect when using our LED Strip

• Polycarbonate V2 Diffuser

SPECIFICATIONS

86

Product Code

Description

Dimensions

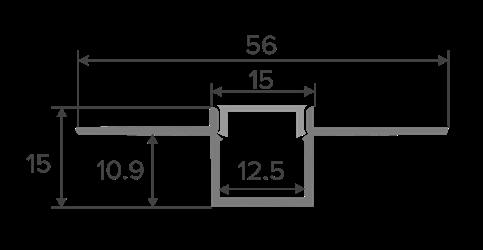

SL-TRIM-12

2 Metres Trimless Profile with Frosted Diffuser, 2 end caps (12mm internal)

Height: 15 Inner width: 12.5 Outer width without flanges: 15 Outer width with flanges: 56

(20MM WIDTH)

TRIMLESS PLASTER-IN ALUMINIUM EXTRUSION – 20MM FEATURES & BENEFITS

DIMENSION

• Trimless Recessed Plaster-In Aluminium Extrusion

• Frosted diffuser reduces glare & creates seamless diffused light output

• 6063-T5 Aircraft Grade - Durable Aluminium

•

• Creates an embedded flat angle linear light effect

• Available in 2 metres aluminium extrusion with 2 flanges

• Matt silver finish extrusion

•

Available with a frosted diffuser & 2 end caps

• Provides good heat dissipation to LED Strip – acts as a heatsink

•

Ideal for recessing in to plastered / drywalls and ceilings

DOT FREE effect when using our LED Strip

• Polycarbonate V2 Diffuser

SPECIFICATIONS Product Code

Description

Dimensions

SL-TRIM-20

2 Metres Trimless Profile with Frosted Diffuser, 2 end caps (20mm internal)

Height: 14.40 Inner width: 20 Outer width without flanges: 23.86 Outer width with flanges: 61.66 87

Embedded Linear Light

6063-T5 Aircraft Grade Durable Aluminium

45° Cutting Angle

90° Corner Connection Seamless diffused light output

88

FROSTED DIFFUSER INCLUDED

BLACK DIFFUSER INCLUDED

BLACK FLAT ALUMINIUM EXTRUSION FEATURES & BENEFITS

DIMENSIONS

• Dot Free Flat Aluminium Extrusion • Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip • Low profile – Up to 8mm in height • 6063-T5 Aircraft Grade Pure Aluminium • Polycarbonate V2 Diffusers

• Available in 2 metres aluminium extrusion • Available with 2 metres frosted diffuser • Available with 4 mounting clips & 2 end caps • Ideal for mounting directly on flat surfaces

SPECIFICATIONS Product Code

Description

Dimensions

BW-FLAT-PROFILE-2M

2 Metres Flat Profile with Frosted Cover, 2 end caps, 4 Mounted Clips

Height: 8 Inner width: 12 Outer width: 17 89

(SILVER)

FLAT ALUMINIUM EXTRUSION FEATURES & BENEFITS

DIMENSIONS

• Dot Free Flat Aluminium Extrusion • Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip • Low profile – Up to 8mm in height • 6063-T5 Aircraft Grade Pure Aluminium

• Available in 2 metres aluminium extrusion • Available with 2 metres frosted diffuser • Available with 4 mounting clips & 2 end caps • Ideal for mounting directly on flat surfaces

• Polycarbonate V2 Diffusers

SPECIFICATIONS

90

Product Code

Description

Dimensions

BW-FLAT-PROFILE-2M

2 Metres Flat Profile with Frosted Cover, 2 end caps, 4 Mounted Clips

Height: 8 Inner width: 12 Outer width: 17

(SILVER)

CORNER ALUMINIUM EXTRUSION FEATURES & BENEFITS

DIMENSIONS

• Dot Free Corner Aluminium Extrusion

• Available in 2 metres aluminium extrusion

• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip

• Available with 2 metres frosted diffuser

• 6063-T5 Aircraft Grade Pure Aluminium • Polycarbonate V2 Diffusers

• Available with 4 mounting clips & 2 end caps • Ideal for mounting directly on flat surfaces

SPECIFICATIONS Product Code

Description

Dimensions

BW-CORNER-PROFILE-2M

2 Metres Corner Profile with Frosted Cover, 2 end caps, 4 Mounted Clips

Height: 17.50 Inner width: 13 91

(SILVER)

DEEP RECESSED ALUMINIUM EXTRUSION FEATURES & BENEFITS

DIMENSIONS

• Dot Free Deep Recessed Aluminium Extrusion

• Available in 2 metres Aluminium Extrusion

• Suitable to house Single Colour & RGB Strip in order to act as a heat sink to maintain LED Strip

• Available with 2 metres frosted diffuser

• 6063-T5 Aircraft Grade Pure Aluminium • Polycarbonate V2 Diffusers

• Available with 4 mounting clips & 2 end caps • Ideal for mounting directly on flat surfaces

SPECIFICATIONS

92

Product Code

Description

Dimensions

BW-DRECESSED-PROFILE-2M

2 Metres Deep Recessed Profile with Frosted Cover, 2 end caps, 4 Mounted Clips

Height: 15 Inner width: 12 Outer width: 17 Outer width: 25

IDEAL UNDER-CABINET DRIVER

IDEAL FOR DOWNLIGHT HOLES

24V SUPER SLIM DRIVERS IP67 NON-DIMMABLE DRIVERS 30W

60W

100W

30,000HRS

24V

IP67

CE & ROHS

3 YEAR WARRANTY

FEATURES & BENEFITS • Suitable for LED Strip

• Short-circuit, overload & over heating protection

• IP67

• Available in 30W, 60W, 100W

• Ultra-Slim Driver

• High Power Factor with efficiency > 0.96

• Non- Dimmable

• Compact design with over 50% size reduction • 3 years warranty

SPECIFICATIONS Product Code

Power

Power Factor

Output Current

Input Current

Dimensions

SS-30W

30W

>0.96

1.25A

AC96~264V 50/60Hz

80 x 26 x 20

SS-60W

60W

>0.96

2.5A

AC200~240V 50/60Hz

102 x 26 x 20

SS-100W

100W

>0.96

4.2A

AC100~264V 50/60Hz

130 x 37 x 20 93

IDEAL UNDER-CABINET DRIVER

IDEAL FOR DOWNLIGHT HOLES

24V SUPER SLIM DRIVERS IP67 NON-DIMMABLE DRIVERS 150W

200W

30,000HRS

24V

IP67

CE & ROHS

2 YEAR WARRANTY

FEATURES & BENEFITS • Suitable for LED Strip

• Short-circuit, overload & over heating protection

• IP67

• Available in 150W, 200W

• Ultra-Slim Driver

• High Power Factor with efficiency > 0.96

• Non- Dimmable

• Compact design with over 50% size reduction • 2 years warranty

SPECIFICATIONS

94

Product Code

Power

Power Factor

Output Current

Input Current

Dimensions

SS-150W

150W

>0.96

6.3A

AC100~264V 50/60Hz

152 x 37 x 20

SS-200W

200W

>0.96

8.3A

AC200~240V 50/60Hz

152 x 37 x 20

240V MAINS DIMMABLE DRIVERS LED STRIP MAINS DIMMABLE DRIVER 60W

100W

150W

IP42

2 YEAR WARRANTY

FEATURES & BENEFITS • Use for LED Strip

• LED power indicator

• 24V & 240V Dimmable driver

• Short circuit, overload & over heating protection

• Compatible with 1-10V and Leading Edge or Trailing Edge Dimmers

• Available 60W, 100W & 150W

• Flicker-free, smooth dimming

• 2 year warranty

• Adjustable resistance

SPECIFICATIONS Product Code

Power

IP Rating

Output Current

Input Current

Dimensions

240-ADIM-60W

60W

IP42

8.30A

200-250V

135 x 43.5 x 26.5

240-ADIM-100W

100W

IP42

6.25A

200-250V

205 x 47.5 x 32

240-ADIM-150W

150W

IP42

6.25A

200-250V

225 x 47.5 x 32 95
