Downlights

DOWNLIGHTS BANBURY

pg 4-6

ENZO

pg 7-9

NICO

pg 10-12

ROUND PANELS

pg 13-16

FLEX PACK

pg 17

3

6

INSTALLATION BRACKET (SOLD SEPARATELY)

BANBURY FIXED DOWNLIGHT FIRE RATED FIXED DOWNLIGHT GU10

IP65

AC220-240V 50/60HZ

FIRE RATED

FEATURES & BENEFITS

CLASS I

DIMENSIONS

• Fixed Downlight

• Ceiling mounting

• GU10 Socket – Max 10W

• Loop in and out quick connector

• GU10 bulb – not included

• Idearl for solid Joist & I-Joist ceilings

• Low glare

• Twin spring loaded brackets

• Open back design with tempered glass bezel

• Die-cast aluminium

• IP65 Rating

• Matt white finish • 2 year warranty

• Fire Rated upto 90 minutes

SPECIFICATIONS Product Code

Finish

Socket

Cutout

Dimension

BANBURY-FIX-WHT

Matt White

GU10

80mm

87 x 41 mm 5

INSTALLATION BRACKET (SOLD SEPARATELY)

BANBURY TRIMLESS DOWNLIGHT FIRE RATED DOWNLIGHT GU10

IP65

AC220-240V 50/60HZ

FIRE RATED

FEATURES & BENEFITS

CLASS I

DIMENSIONS

• Fixed Downlight

• Ceiling mounting

• GU10 Socket – Max 10W

• Loop in and out quick connector

• GU10 bulb – not included

• Idearl for solid Joist & I-Joist ceilings

• Low glare

• Twin spring loaded brackets

• Open back design with tempered glass bezel

• Die-cast aluminium

• IP65 Rating

• Matt white finish • 2 year warranty

• Fire Rated upto 90 minutes

SPECIFICATIONS

6

Product Code

Finish

Socket

Cutout

Dimension

BANBURY-TRIM-WHT

Matt White

GU10

75mm

L106 x W87 x H39

ENZO 7

2 in 1

Semi Recessed Downlight

Spotlight

Driver Supplied Fits Through Cutout

Black Finish Option

ENZO RECESSED SPOT/DOWNLIGHT 5W

25K (HRS)

CE & ROHS

CRI 90

24°

BEAM ANGLE

2 YEAR WARRANTY

AC200-240V

OSRAM CHIP

FEATURES & BENEFITS

IP44

DIMENSIONS

• 5W Recessed Spotlight / Downlight – 430lm • 2 in 1 – Semi Recessed Downlight & Spotlight

• Faceted Lens • Baffle Colour – Matt White / Matt Black included • Supplied with a standard driver fits through cutout

• IP Rating – IP44 • 24° Beam • 360 degree rotation - Ability to be tilted which enables to precisely control the beam of light

• Dimmable driver option – minimum 10 fitting • Ideal for ambient, accent & task lighting • 2 year warranty

• Finish – Matt White & Black SPECIFICATIONS

8

Product Code

Power

Colour

Lumens

Output Voltage

Dimension

ENZO-5W-3KWHT/BLK

5W

3000K

400lm

3VDC 1000ma

83 x 55

50

ENZO-5W-4KWHT/BLK

5W

4000K

430lm

3VDC 1000ma

83 x 55

50

Product Code

Description

Output Voltage

Dimension

ENZO-DIM

Dimmable Driver

3-42V

185 x 42.5 x 28.5

Cutout

FEATURES IP44

Baffle included: Matt White & Matt Black

24° Beam

OSRAM CHIP

Matt White Finish

Matt Black Finish

Matt White Baffle

Matt Black Baffle

White Baffle creates a seamless finish which blends into the ceiling

Black Baffle showcases low glare, high quality appearance 9

NICO

10

Driver Supplied Fits Through Cutout

UGR 10

NICO MINI BAFFLE DOWNLIGHT 5W

30K LIFESPAN (HRS)

CRI 90

IP44

BRIDGELUX CHIP

CLASS II

24°

AC200-240V 2 YEAR WARRANTY

FEATURES & BENEFITS

BEAM ANGLE UGR 10

DIMENSIONS

• 5W Mini Downlight

• Two baffles included - White & Black

• 430 Lumens

• Low glare light output achieved when both baffles used, it creates a softer tone which is ideal for highlighting features or areas of usage

• IP44 Rated • LED CHIP – Bridgelux • Beam Angle 24°

• CCT Colour Switchable 2800K / 4000K / 6000K

• Use as a ambient, accent or task lighting

• Dimmable driver available

• Reflector Lens

• Suitable for Standard ceilings, Vaulted ceilings, High ceilings, Soffits

• Low power consumption

• 2 year warranty

• Finish – Matt White

SPECIFICATIONS Output

Product Code

Finish

Power

Colour

NICO-5W-CCTWHT

Matt White

5W

2800K/4000K/6000K

Product Code

Description

Output Voltage

Dimension

NICO-DIM

Dimmable Driver

2-6V

68 x 26 x 21

36V / 100ma

Dimension

Cutout

50 x 35

45

11

FEATURES 430LM

IP44

24° Beam

Bridgelux LED CHIP

WHITE BAFFLE

12

BLACK BAFFLE

CCT COLOUR SWITCHABLE DRIVER

MATT WHITE

DARK BRONZE

MATT GOLD

MATT BLACK

13

CCT DIP SWITCH

Compatible Emergency Pack & Dimmable Driver

Flex Pack

Dimmable Driver

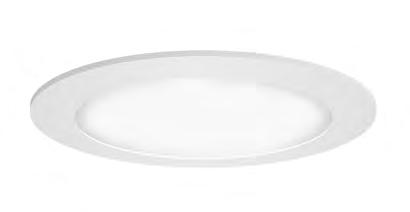

6W CCT ROUND PANEL TRI-COLOUR RECESSED PANEL 6W

30K LIFESPAN (HRS)

CE & ROHS

2 YEARS WARRANTY

120°

BEAM ANGLE

IP54

AC220-240V

CRI 80

FEATURES & BENEFITS

DIMENSIONS

• Colour switchable panel - 3000K, 4000K & 6000K

• Dimmable driver available 9

• Emergency Pack available • Ultra thin – 9mm profile • Even light distribution

• Ideal for receptions, entrance foyers, corridors, stairwells, offices

• 30,000 hours

• 2 year warranty

• IP Rating - IP54 120 CUTOUT Ø 100

• Available in 6W, 12W & 18W

SPECIFICATIONS Product Code

Power

Colour

Lumens

Output Voltage

Output Current

Dimensions

Cutout

SL-RP6W-CCT

6W

3000K 4000K 6000K

3000K - 550lm 4000K - 600lm 6000K - 650lm

24-42V

300mA

120 x 9mm

Ø 100mm

SPECIFICATIONS

14

Product Code

Description

Output Voltage

Dimensions

RP-6W-12W

6W & 12W Dimmable Driver

24-42V

89 x 38 x 22

CCT DIP SWITCH

Compatible Emergency Pack & Dimmable Driver

Flex Pack

Dimmable Driver

12W CCT ROUND PANEL TRI-COLOUR RECESSED PANEL 12W

30K LIFESPAN (HRS)

CE & ROHS

2 YEARS WARRANTY

120°

BEAM ANGLE

IP54

AC220-240V

CRI 80

FEATURES & BENEFITS

DIMENSIONS

• Colour switchable panel - 3000K, 4000K & 6000K • Ultra thin – 9mm profile

• Dimmable driver available 9

• Emergency Pack available

• Even light distribution

• Ideal for receptions, entrance foyers, corridors, stairwells, offices

• 30,000 hours

• 2 year warranty

• IP Rating - IP54 170 CUTOUT Ø 150

• Available in 6W, 12W & 18W

SPECIFICATIONS Product Code

Power

Colour

Lumens

Output Voltage

Output Current

Dimensions

Cutout

SL-RP12W-CCT

12W

3000K 4000K 6000K

3000K - 1150lm 4000K - 1200lm 6000K - 1250lm

24-42V

300mA

Ø 170 x 9mm

Ø 150mm

SPECIFICATIONS Product Code

Description

Output Voltage

Dimensions

RP-6W-12W

6W & 12W Dimmable Driver

24-42V

89 x 38 x 22

RP-12W-18W

12W & 18W Dimmable Driver

36-60V

100 x 43 x 23 15

CCT DIP SWITCH

Compatible Emergency Pack & Dimmable Driver

Flex Pack

Dimmable Driver

18W CCT ROUND PANEL TRI-COLOUR RECESSED PANEL 18W

30K LIFESPAN (HRS)

CE & ROHS

2 YEARS WARRANTY

120°

BEAM ANGLE

IP54

AC220-240V

CRI 80

FEATURES & BENEFITS

DIMENSIONS

• Colour switchable panel - 3000K, 4000K & 6000K • Ultra thin – 9mm profile

• Dimmable driver available 9

• Emergency Pack available

• Even light distribution

• Ideal for receptions, entrance foyers, corridors, stairwells, offices

• 30,000 hours

• 2 year warranty

• IP Rating - IP54 223 CUTOUT Ø 200

• Available in 6W, 12W & 18W

SPECIFICATIONS Product Codes

Power

Colour

Lumens

Output Voltage

Output Current

Dimensions

Cutout

SL-RP18W-CCT

18W

3000K 4000K 6000K

3000K - 1750lm 4000K - 1800lm 6000K - 1850lm

200-240V

300mA

Ø 223 x 9mm

Ø 200mm

SPECIFICATIONS

16

Product Codes

Description

Output Voltage

Dimensions

RP-12W-18W

12W & 18W Dimmable Driver

36-60V

100 x 43 x 23

FLEX - PACK ALL-IN ONE EMERGENCY PACK COMPATIBLE WITH LED PANELS IP20

3 YEARS WARRANTY

FEATURES & BENEFITS • All-in-one design: constant current driver • 3 pole isolation of lamp & mains driver power during emergency • Efficient boosting • Constant current recharging • Easy installation • High transforming efficiency • Isolation safe design

DIMENSIONS • High power factor • Reliable protection design in case of overload & overvoltage • Smart automisation differs between standard lighting and emergency lighting • Supplied with a charging indicator • Ceiling cut out 44mm • 3 year warranty

SPECIFICATIONS Product Codes

Description

IP Rating

Battery Pack

Operating Voltage

Output Voltage Range

Dimension

FLEX-PACKV3

All-in-one Emergency Pack

IP20

3.6V NiCd

230V +/- 10%

9-200 VDC

Driver section 270(l) x 38(w) x 30(h) 17
